Yamaha TT-S303 Turntable

Yamaha TT-S303 Turntable

Yamaha TT-S303 is a belt-drive turntable for 33⅓ and 45 rpm records. A rigid body, straight tonearm and classic Hi-Fi design suit a home audio system. Finish: black.

A built-in phono preamp and PHONO/LINE switching allow connection to a line input or active speakers. Select PHONO when using an external phono preamp or an amplifier’s Phono MM input.

You start and stop playback by positioning the tonearm yourself. The tonearm does not return automatically.

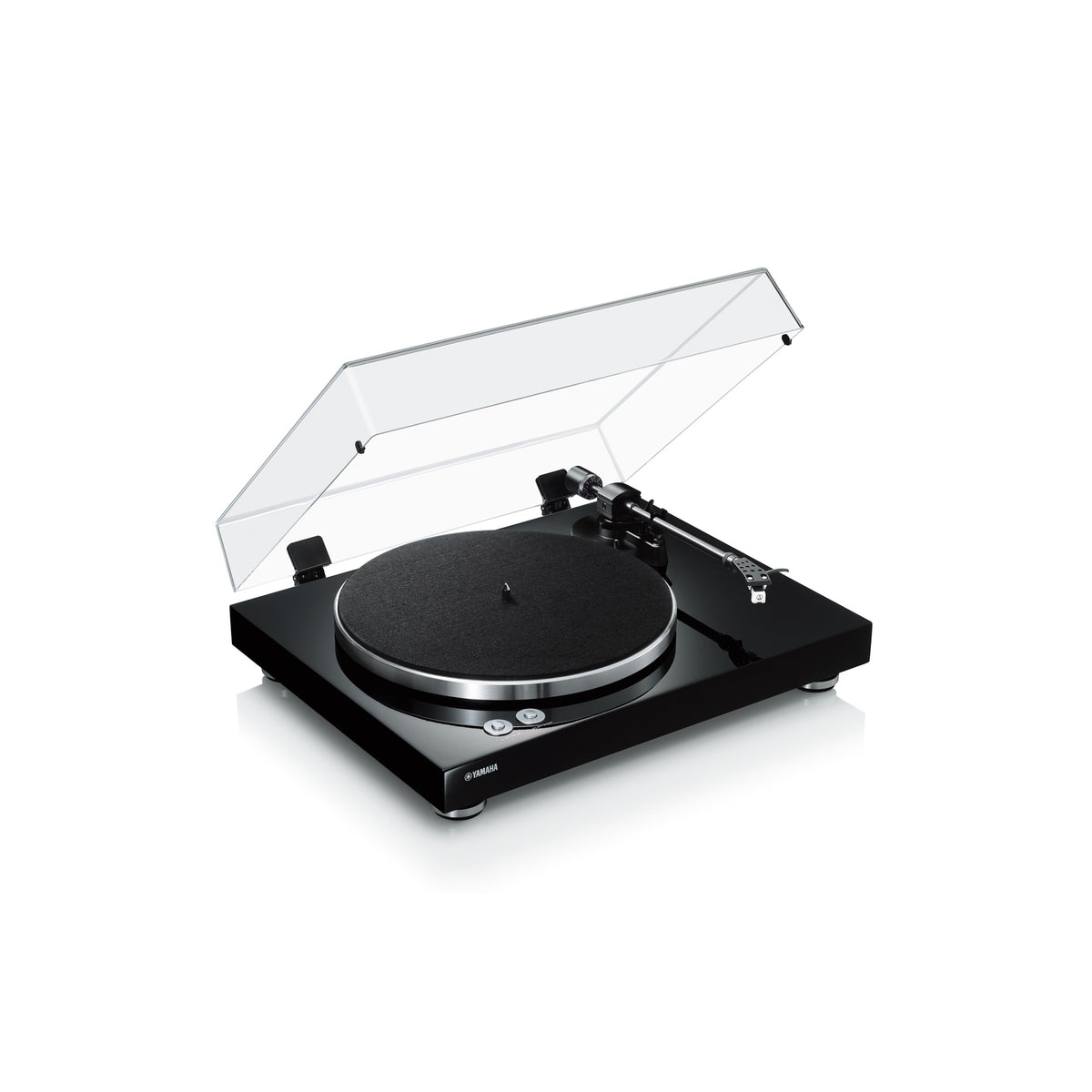

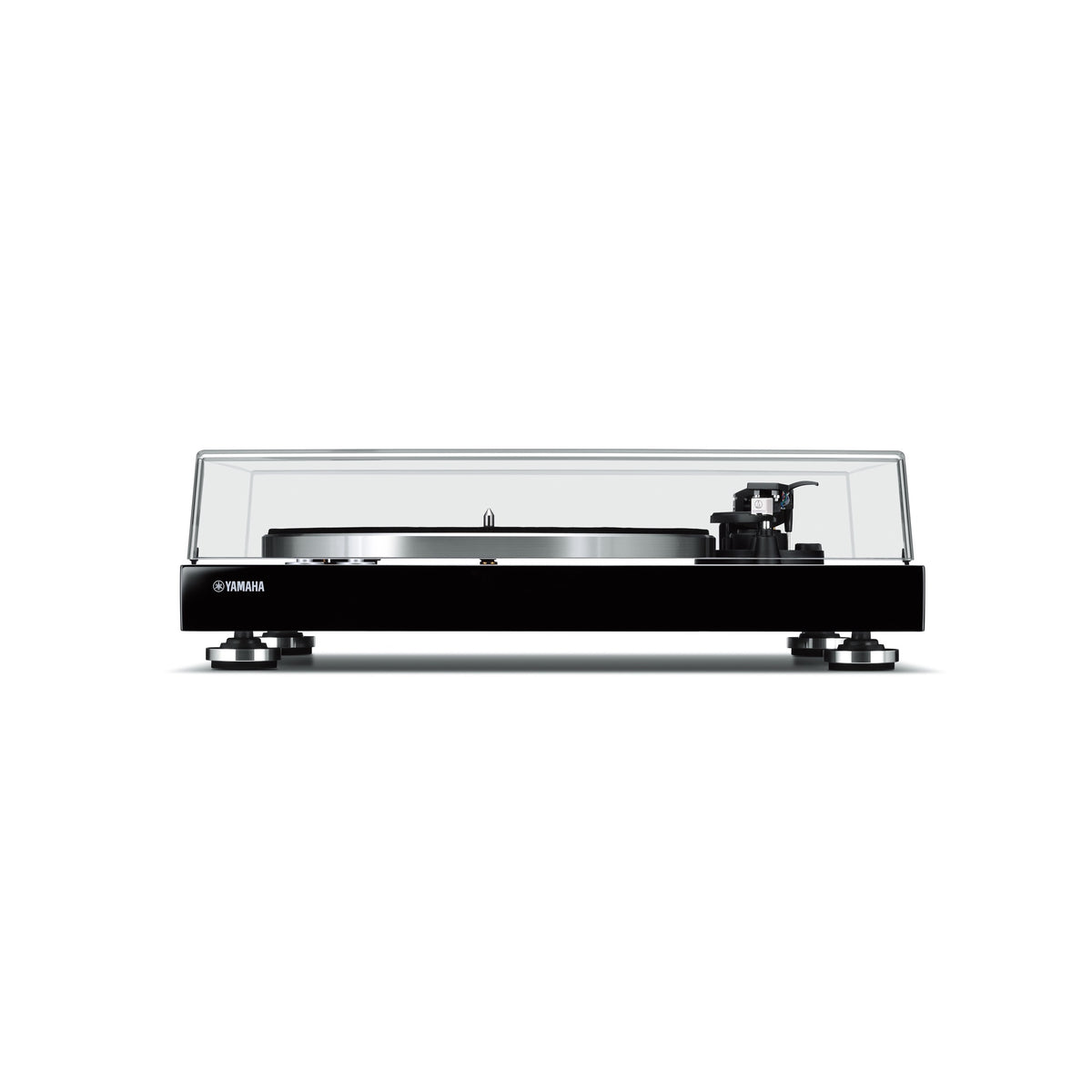

The tonearm lift helps lower the stylus, while the removable dust cover protects the turntable when it is not in use.

Main Features

• Belt drive, DC motor and a 30 cm die-cast aluminium platter.
• Static-balanced tonearm with an adjustable counterweight and anti-skating control.
• An MM cartridge with headshell is included; specified stylus pressure is 3.5 ±0.5 g.

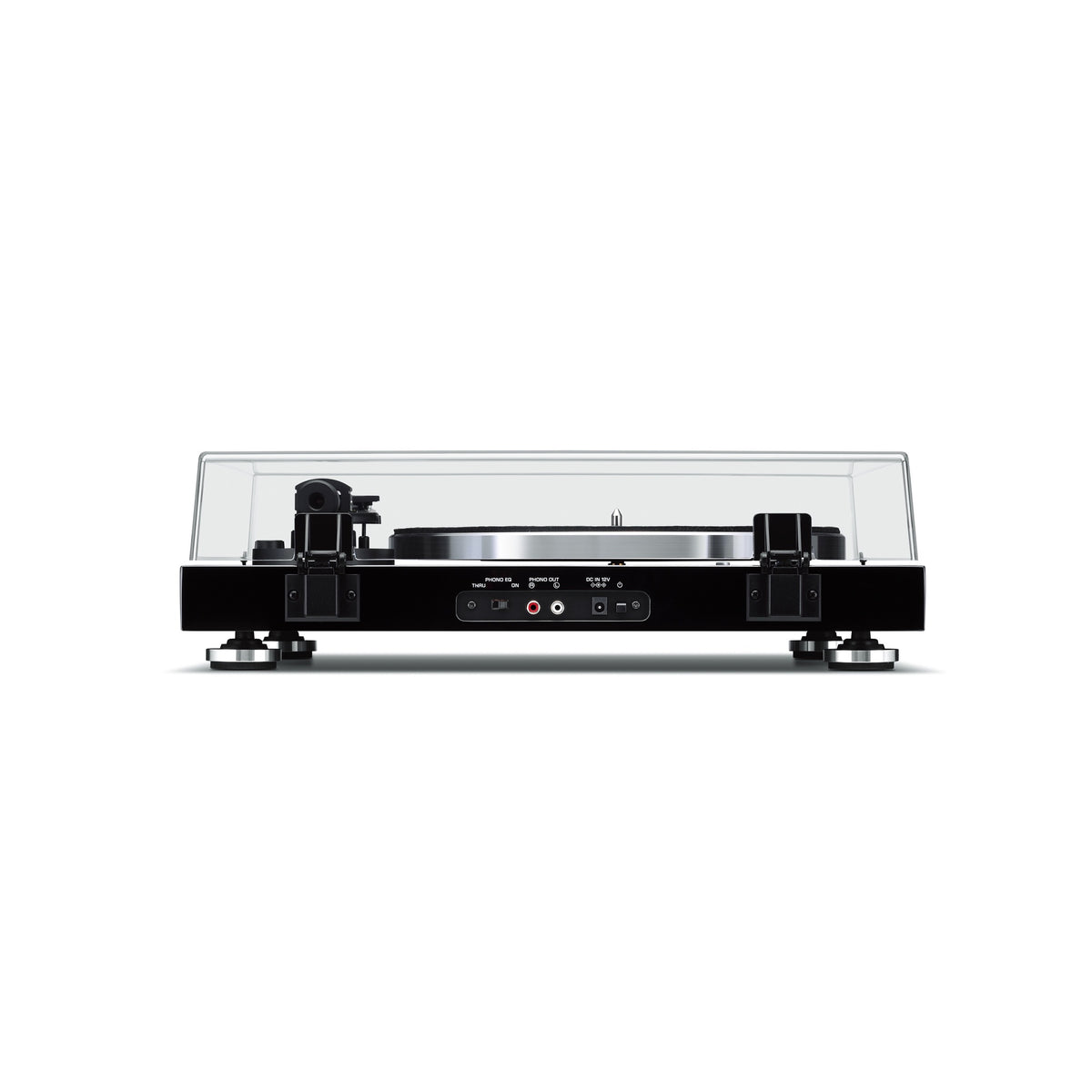

• External power adapter and a stereo RCA output with switchable output level.

Technical Specifications

• Operation: Manual; tonearm lift lever
• Speed: 33⅓ / 45 rpm; variation ±2%; wow and flutter 0.2%
• Tonearm: straight, static-balanced; effective length 223.5 mm; overhang 19 mm
• Stylus Pressure: adjustable 0–4 g; specified 3.5 ±0.5 g
• Cartridge: MM; 2.5 mV (1 kHz, 3.54 cm/s); weight 5.0 ±0.3 g; height 17.0 ±0.7 mm
• Cartridge and Headshell Weight: accepted combined weight 15.5–19 g; supplied headshell 10 g including screws, nuts and wires
• Output: stereo RCA; PHONO 2.5 mV ±3 dBV (1 kHz, 3.54 cm/s), LINE with RIAA EQ 140 mV (−17 dBV)
• Signal-to-Noise Ratio: ≥67 dB (A-weighted, 20 kHz LPF)
• Power Adapter: input 100–240 V, 50/60 Hz; output 12 V, 0.5 A
• Power Consumption: 1.5 W on; 0.1 W off
• Dimensions (W × H × D): 450 × 136 × 368 mm, including feet and protrusions
• Weight: 4.8 kg

What’s Included

• Yamaha TT-S303 turntable (1 unit)
• Platter, platter mat and pre-installed drive belt
• Tonearm counterweight
• Headshell with MM cartridge
• 45 rpm adapter
• Dust cover and hinges (2)
• Stereo RCA cable
• Region-appropriate power adapter

Who Is It For

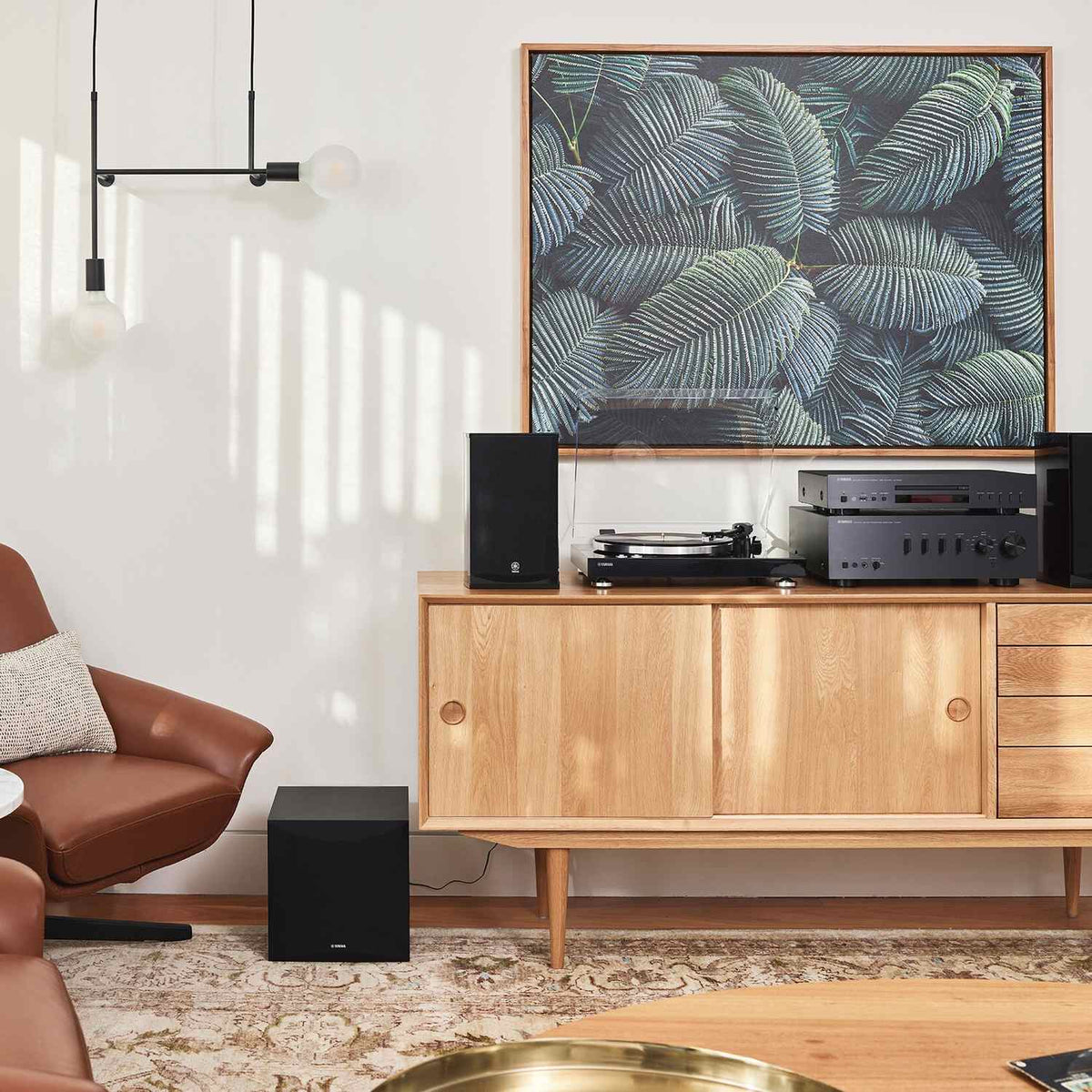

For listening to vinyl at home through a stereo amplifier or active speakers, with manual operation, an included cartridge and switchable phono equalization.
