Yamaha SR-B30A Soundbar System

Yamaha SR-B30A Soundbar System

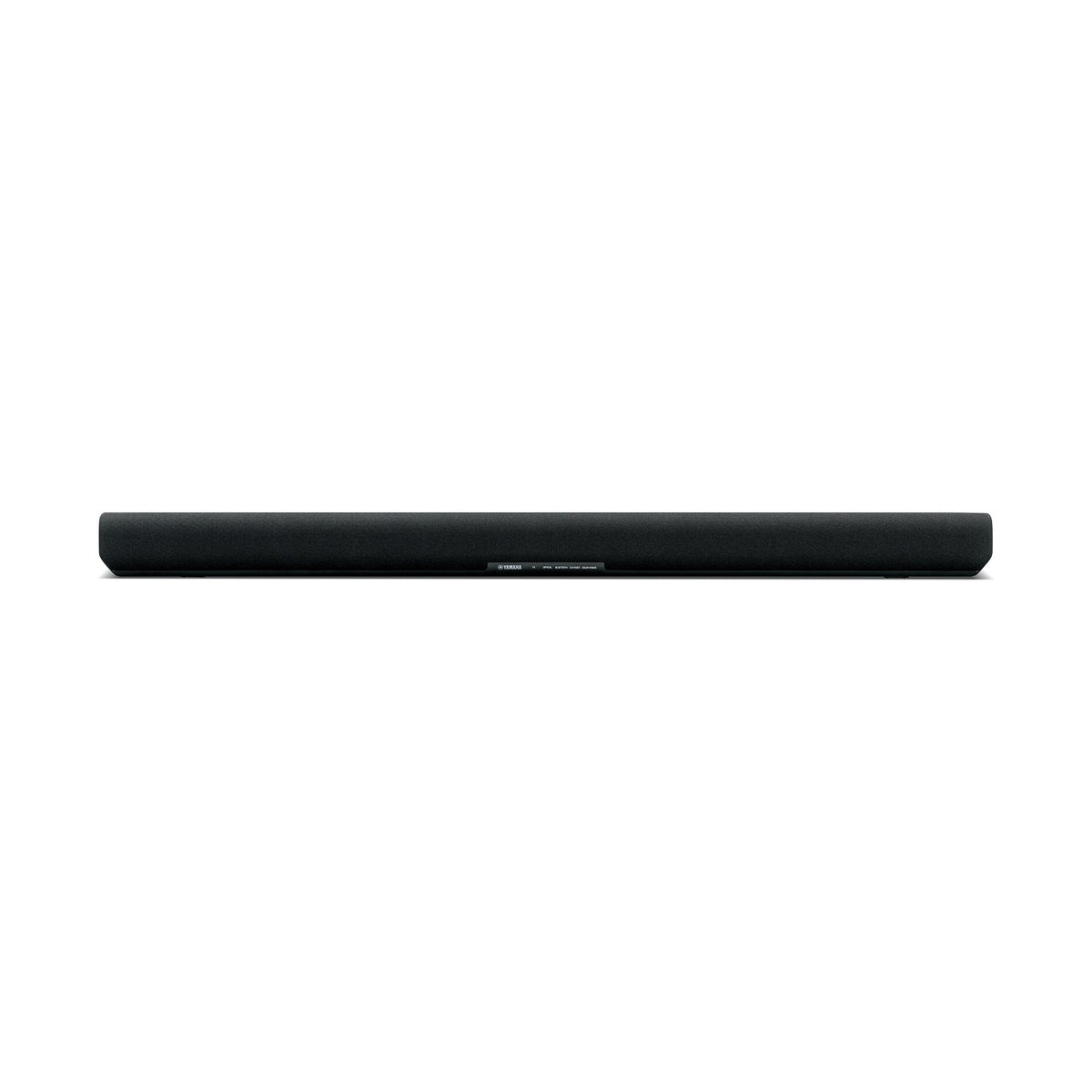

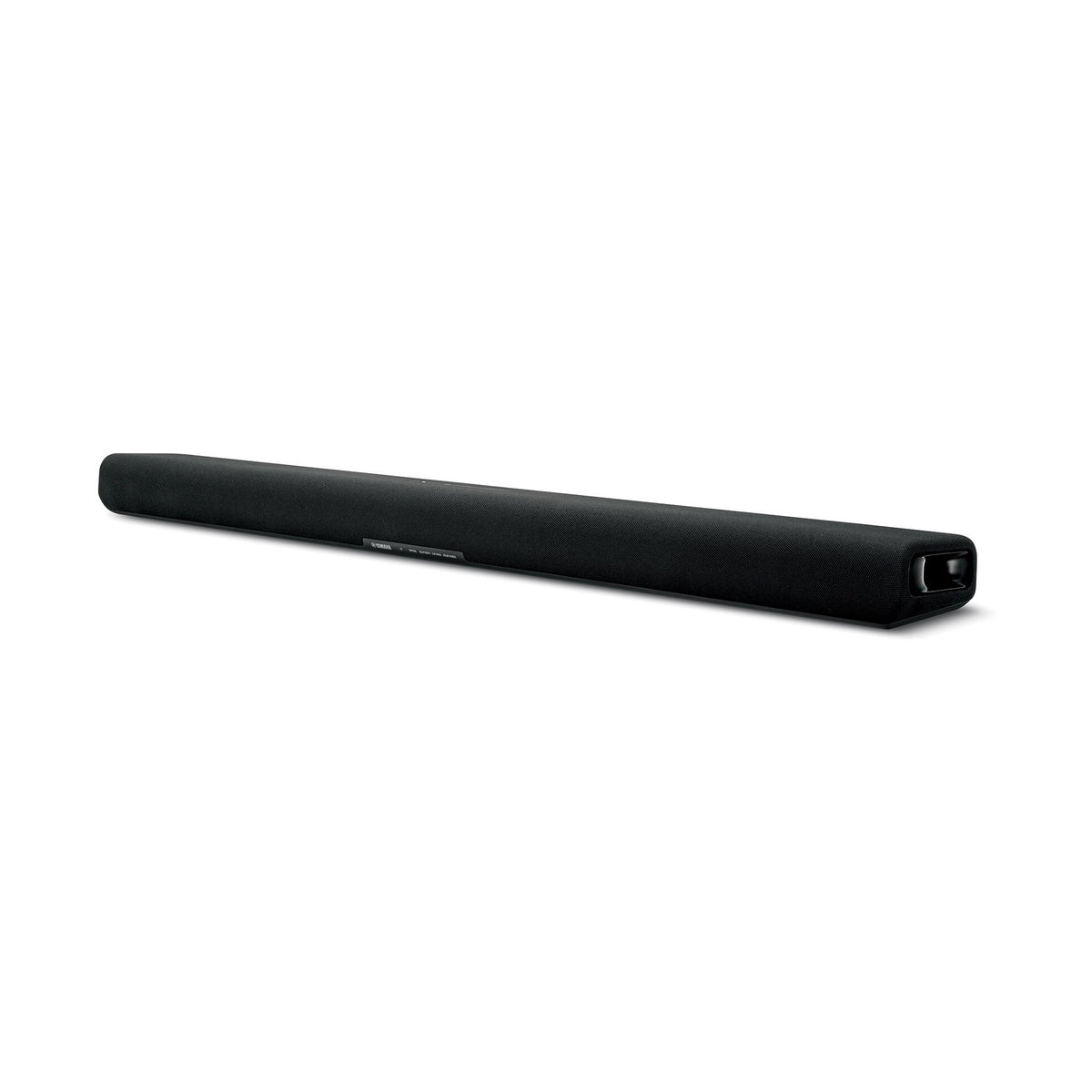

Yamaha SR-B30A is a Soundbar System with built-in bass drivers.

Dolby Atmos is reproduced virtually through the main unit’s drivers. This model has no dedicated upward-firing height drivers.

Connect a TV through HDMI eARC/ARC or optical audio. The HDMI connector receives TV return audio; there is no separate HDMI input for a video source.

Two built-in bass drivers reproduce low frequencies. An optional powered subwoofer can connect to the mono RCA output; it is not included.

Main Features

• Clear Voice emphasizes speech to make dialogue easier to follow.
• Stereo, Standard, Movie and Game modes adapt playback to different content.
• Bass Extension increases the impression of bass; the bass level can be adjusted separately.
• HDMI CEC enables basic control from a compatible TV remote.
• Bluetooth plays phone audio without an audio cable.

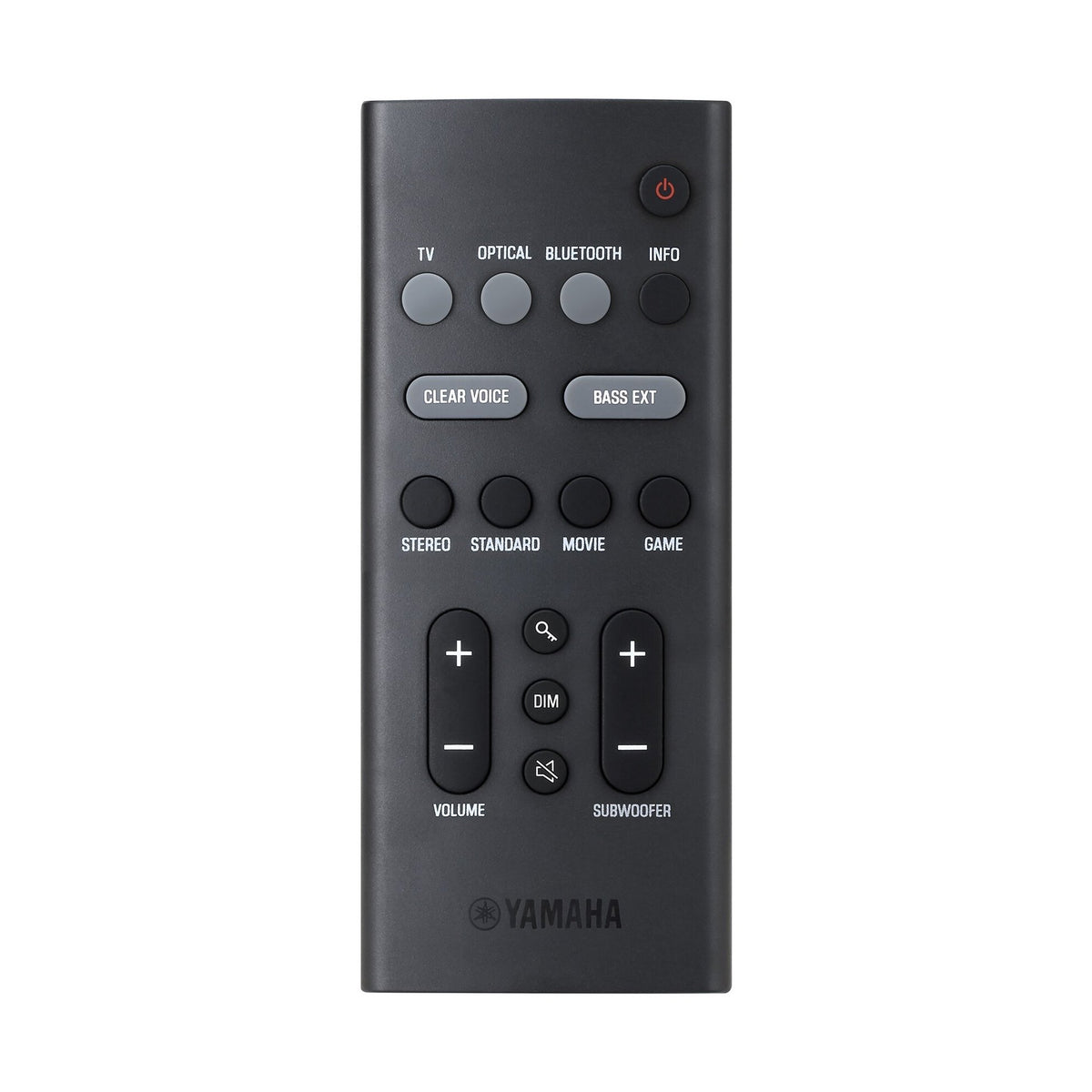

• Sound Bar Remote adjusts playback modes and tone settings.

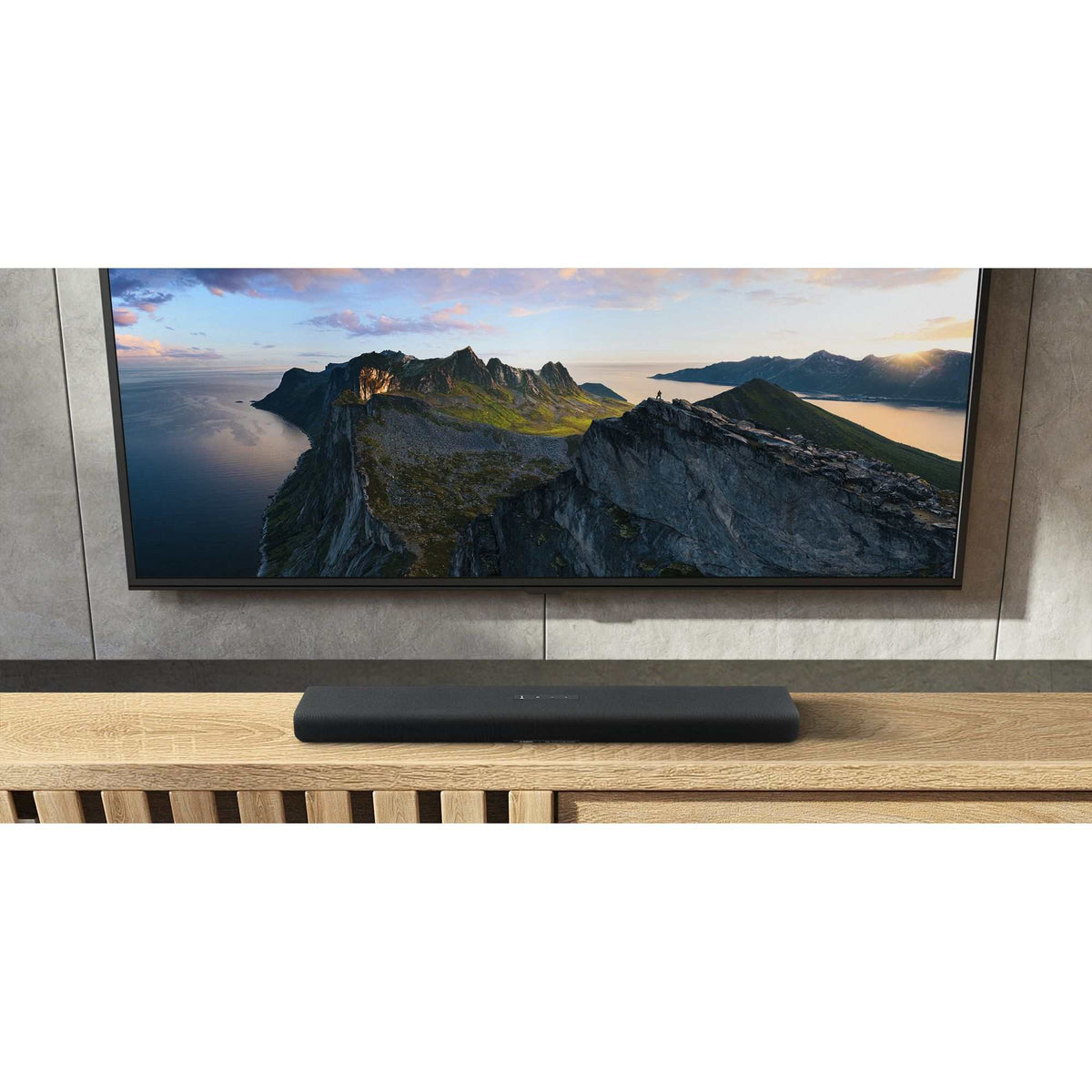

• Place the main unit beneath a TV or mount it on a wall. Wall screws are not included.
• The USB port is for firmware updates, not music-file playback.
• Wi-Fi, AirPlay and MusicCast are not supported. True X rear speakers cannot be added to this model.

Technical Specifications

• Drivers: front 4 × 4.6 cm; tweeters 2 × 2.5 cm; built-in bass 2 × 7.5 cm
• Maximum rated output: 120 W (front 2 × 30 W; bass 60 W)
• Driver frequency ranges: front 240 Hz-22 kHz; tweeters 9–22 kHz; bass 54–240 Hz
• Driver impedance: front and tweeters 4 Ω; bass 3 Ω

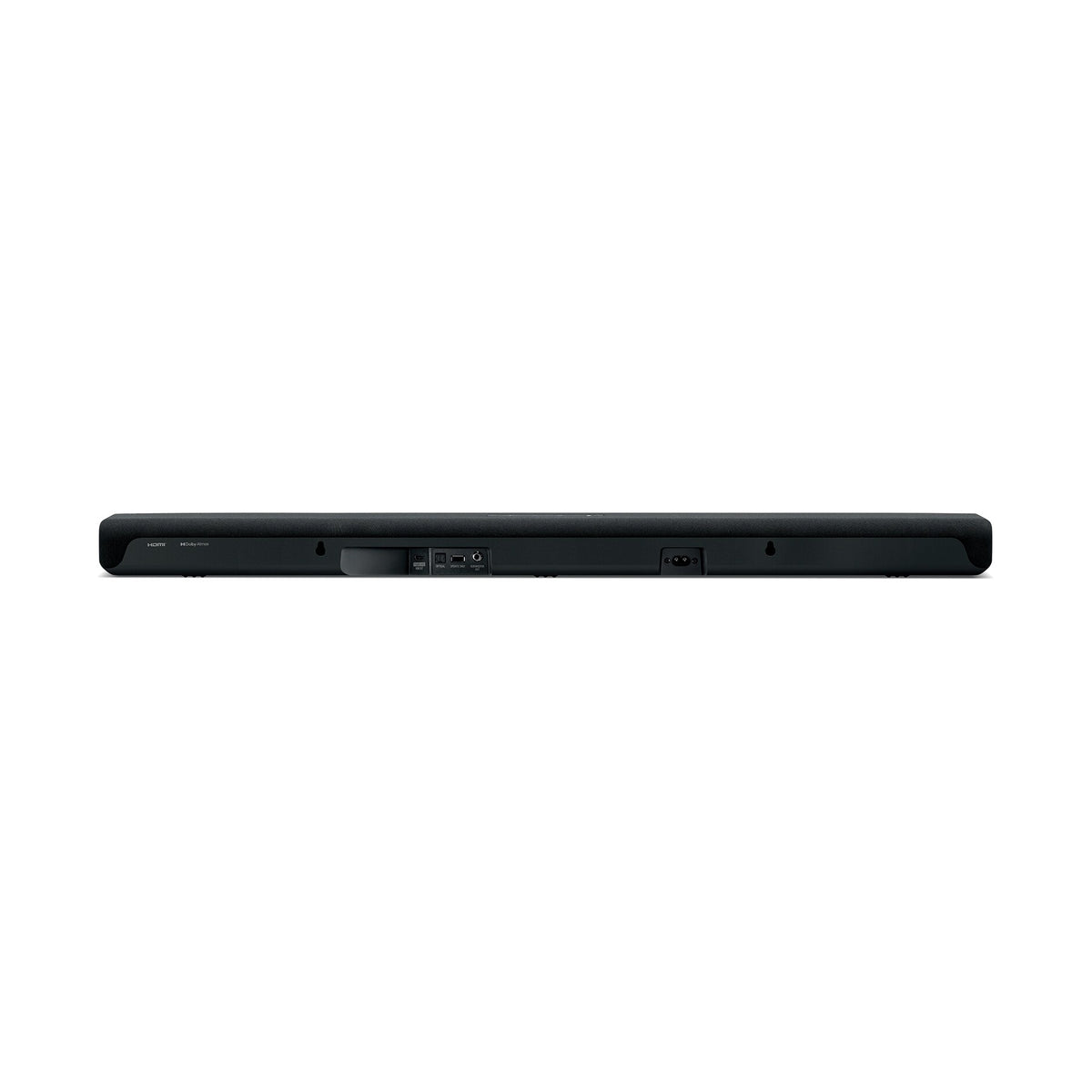

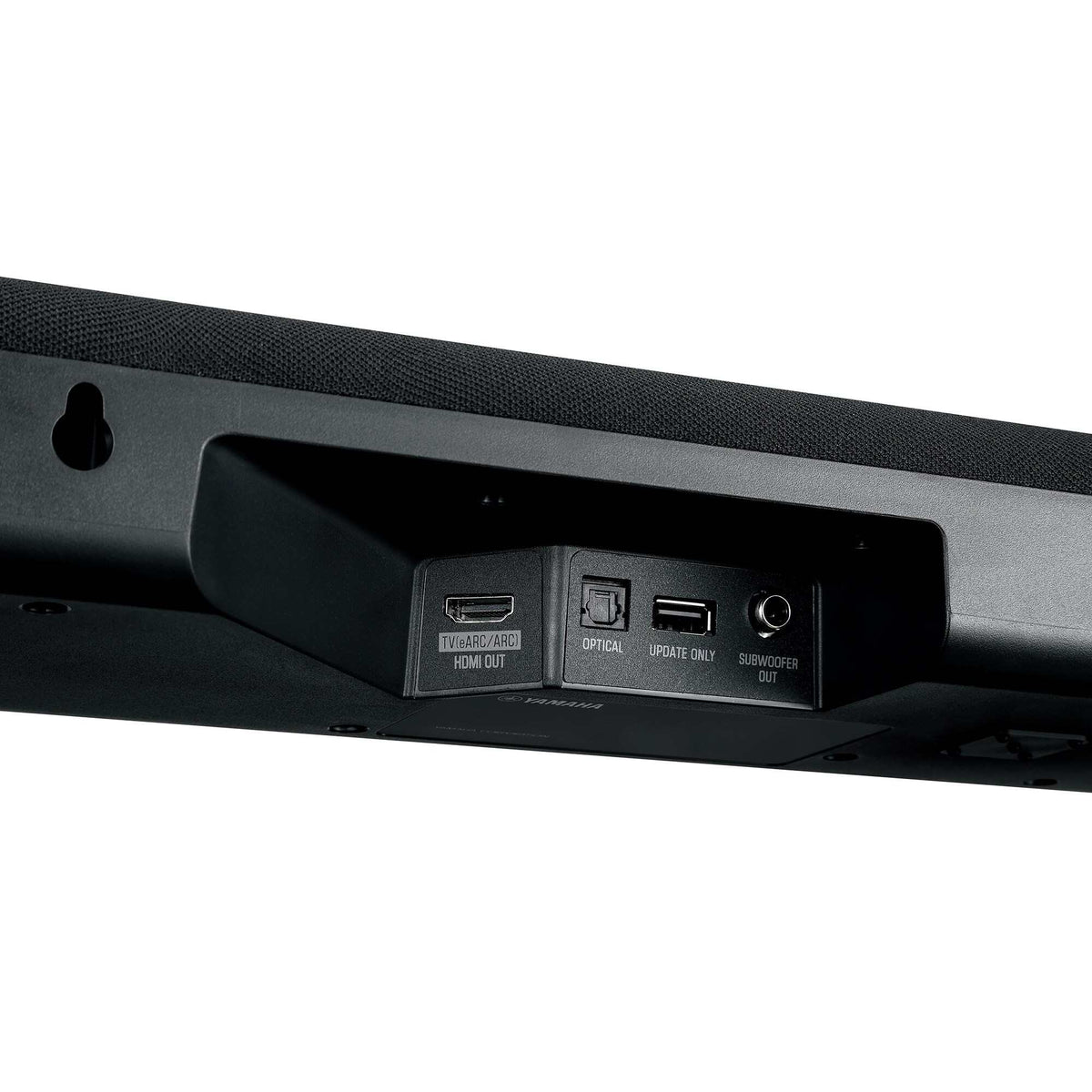

• Connections: HDMI eARC/ARC TV audio, 1 optical input, USB for updates only, mono RCA powered-subwoofer output
• Bluetooth: Bluetooth 5.1, A2DP, SBC/AAC reception; about 10 m
• Power and consumption: 100–240 V, 50/60 Hz; 23 W; standby 0.3 W / 0.6 W
• Dimensions (W × H × D): 910 × 68 × 133 mm; on a wall with spacers 910 × 66 × 139 mm
• Weight: 3.9 kg
• TV audio formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital; eARC PCM up to 7.1 channels, 96 kHz / 24-bit; ARC without TrueHD, optical PCM/Dolby Digital; DTS not supported

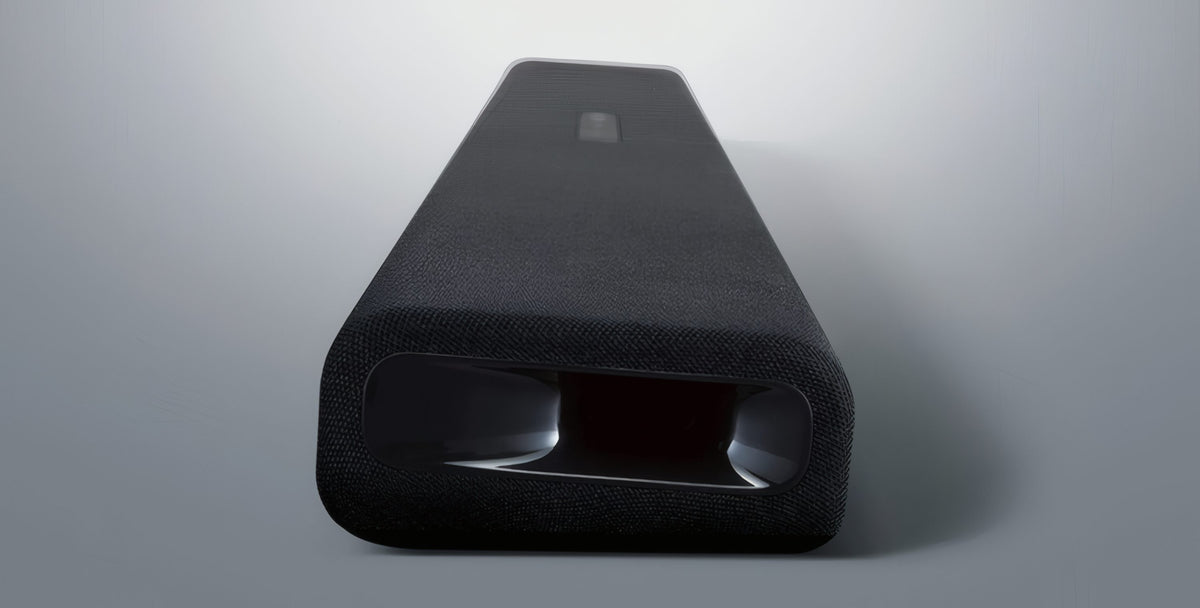

• Construction: sealed front-driver sections; built-in bass-reflex bass section

What’s Included

• Yamaha SR-B30A Soundbar System (main unit SR-B30A), 1 pc
• Remote control with installed CR2025 battery, 1 pc
• Power cord, 1 pc
• HDMI cable, 1.5 m, 1 pc
• Mounting template, 1 pc
• Mounting spacers, 2 pcs

Who Is It For

For TV, movies and music without a separate AV receiver. Bluetooth playback requires a phone or another source; the unit has no built-in network streaming services.
