Yamaha R-S202D Stereo Receiver

Yamaha R-S202D Stereo Receiver

Yamaha R-S202D is a stereo receiver with DAB/DAB+ and FM radio. Built-in Bluetooth plays music from a phone or another compatible source, while analog inputs connect a CD player and other audio equipment.

The design uses short signal paths. The power transformer sits close to the amplifier circuit, with one-point grounding to reduce interference.

A and B speaker outputs select one pair or both together. Use speakers rated at least 8 Ω for one pair, or at least 16 Ω per speaker when both pairs play simultaneously.

The remote selects sources, radio stations and volume. Bass, treble and balance controls adjust playback to suit the system, and display brightness is adjustable.

Main Features

• DAB/DAB+ and FM with RDS, with 40 presets for each band.

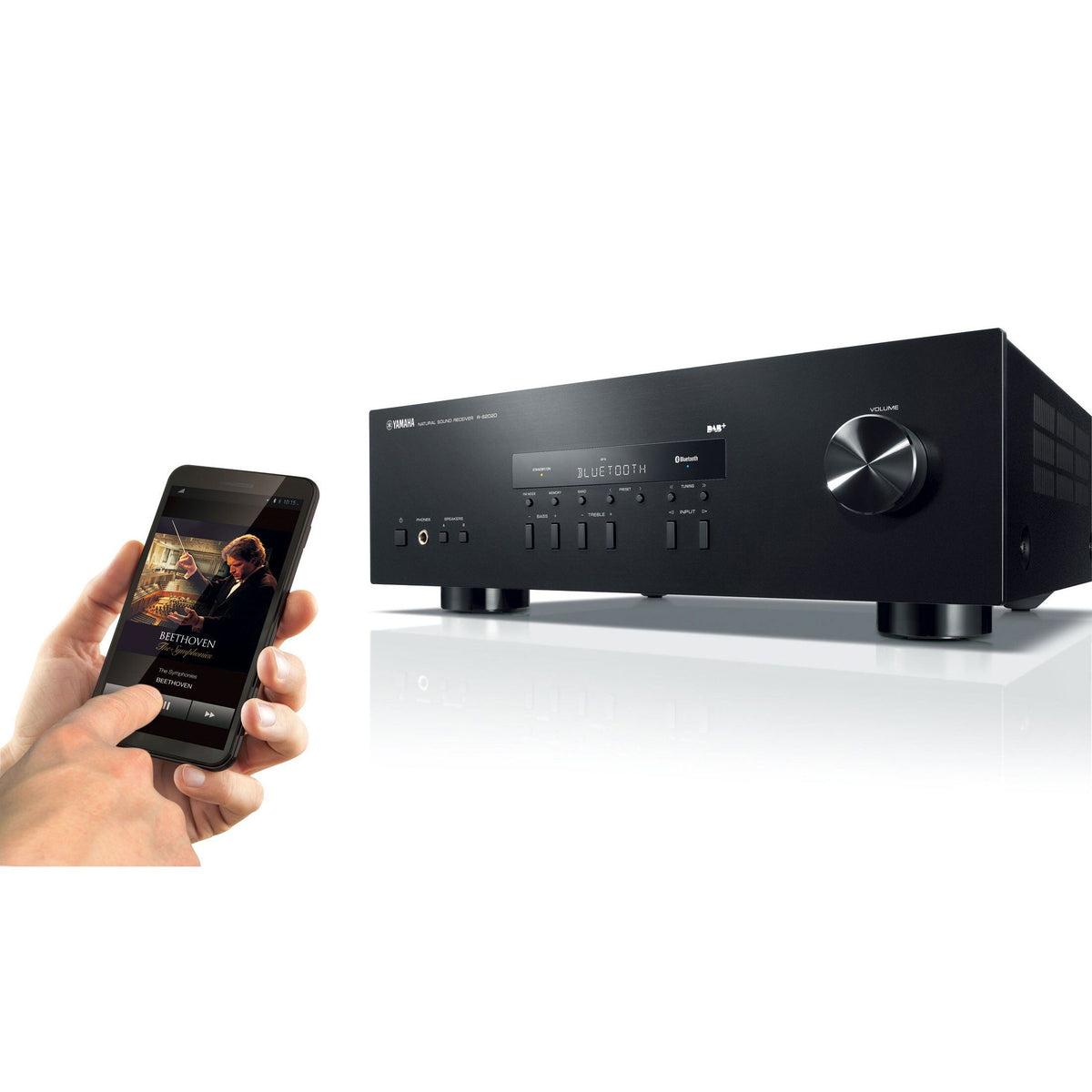

• Bluetooth 4.1 + EDR supports SBC/AAC codecs and A2DP/AVRCP profiles, with a range of up to 10 m without obstructions.

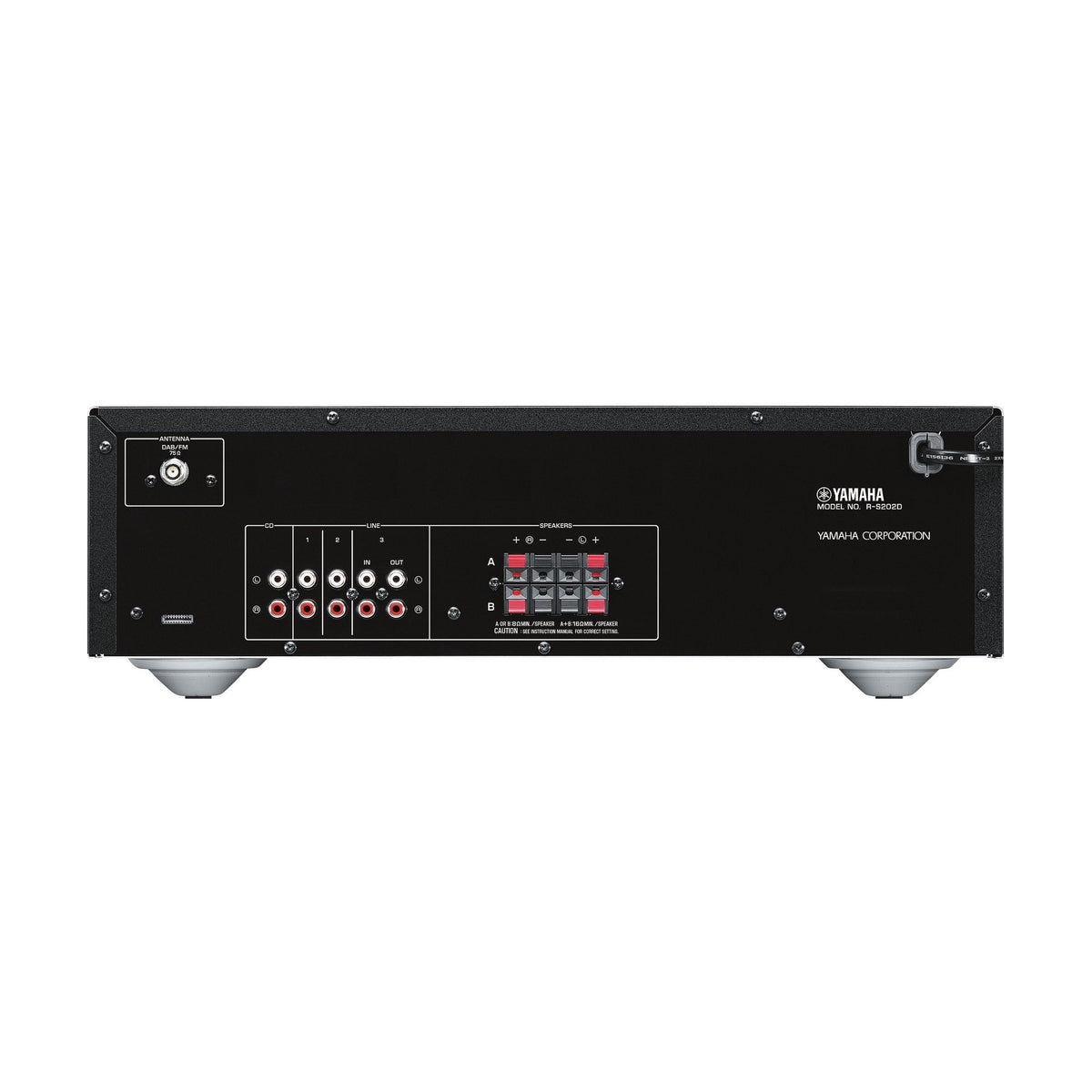

• 4 stereo RCA inputs and a LINE 3 output for an analog recorder.
• A 6.3 mm headphone jack supports private listening; connecting headphones mutes the speakers.
• Sleep timer: 30/60/90/120 min. Auto standby after 2/4/8/12 hours of inactivity, or disabled.
• The remote also operates compatible Yamaha CD players.
• Drives passive speakers from analog and Bluetooth sources. A turntable requires a built-in or external phono preamp.
• A DAB/FM antenna, remote and 2 AA batteries are included.

Technical Specifications

• RMS Output: 2 × 100 W (8 Ω, 40 Hz - 20 kHz, 0.2% THD)
• Maximum Output: 2 × 115 W (4 Ω, 1 kHz, 0.7% THD)
• Dynamic Power per Channel: 125/150/165/180 W (8/6/4/2 Ω)
• Speaker Impedance: A or B ≥8 Ω; A+B, each ≥16 Ω
• Frequency Response: 20 Hz - 20 kHz, ±0.5 dB; 10 Hz - 100 kHz, ±3.0 dB
• THD / Signal-to-Noise Ratio: ≤0.2% (50 W, 8 Ω, 20 Hz - 20 kHz); ≥100 dB (CD input shorted, 500 mV)
• Line Input Sensitivity / Impedance: 500 mV / 47 kΩ
• Radio Bands: DAB/DAB+ 174–240 MHz (Band III); FM 87.5–108 MHz
• Tone Controls: bass / treble ±10 dB
• Power Supply / Consumption: 230 V, 50 Hz; 175 W; standby 0.5 W
• Dimensions (W × H × D): 435 × 141 × 322 mm
• Weight: 6.7 kg

What’s Included

• Yamaha R-S202D stereo receiver in the selected colour (1 unit)
• Remote control
• AA / R6 / UM-3 batteries (2)
• DAB/FM antenna

Who Is It For

For a home stereo system with passive speakers, radio listening, and playback from a phone or line-level audio source.
