Yamaha R-N600A is a network receiver with stereo amplification and MusicCast. Play network music, USB files, internet radio, DAB/DAB+ and FM stations, or audio from a turntable and other connected sources.

The ToP-ART signal layout and vibration-damping ART base work alongside the ESS SABRE ES9010K2M DAC. Pure Direct bypasses tone, Loudness and balance circuitry.

MusicCast provides access to Spotify, Amazon Music HD and other services. Service availability may change. AirPlay 2 plays audio from compatible Apple devices, and the receiver is Roon Tested.

MusicCast can distribute supported connected sources to compatible devices in other rooms. AirPlay, 352.8/384 kHz PCM and DSD cannot be distributed through MusicCast Link.

Main Features

• Phono MM input plus 2 optical and 2 coaxial inputs for a TV or other digital source. HDMI ARC is not provided.
• Bluetooth 4.2 receives SBC/AAC audio from a phone and transmits SBC audio to compatible Bluetooth headphones.
• A/B speaker terminals, a headphone jack and a dedicated output for an active subwoofer.
• USB-A accepts FAT16/FAT32 flash drives, rather than a computer or charging devices; encrypted drives are unsupported.
• Front-panel controls and the included remote select sources and adjust volume.
• WAV, FLAC, AIFF, ALAC and DSD support gapless playback. DRM-protected files and 32-bit float WAV are unsupported; server playback also depends on the server software.

Technical Specifications

• Rated Output: 2 × 80 W (8 Ω, 20 Hz - 20 kHz, 0.07% THD, both channels driven)
• Dynamic Power per Channel: 105/125/150/175 W (8/6/4/2 Ω)
• Speaker Impedance: A or B ≥4 Ω with the correct setting; A+B, each ≥8 Ω
• Frequency Response: 20 Hz - 20 kHz, ±0.5 dB; Pure Direct: 10 Hz - 100 kHz, ±1.0 dB
• Signal-to-Noise Ratio (Pure Direct): CD 100 dB (200 mV), Phono 87 dB (5 mV), inputs shorted
• DAC: ESS SABRE ES9010K2M, 32-bit / 384 kHz

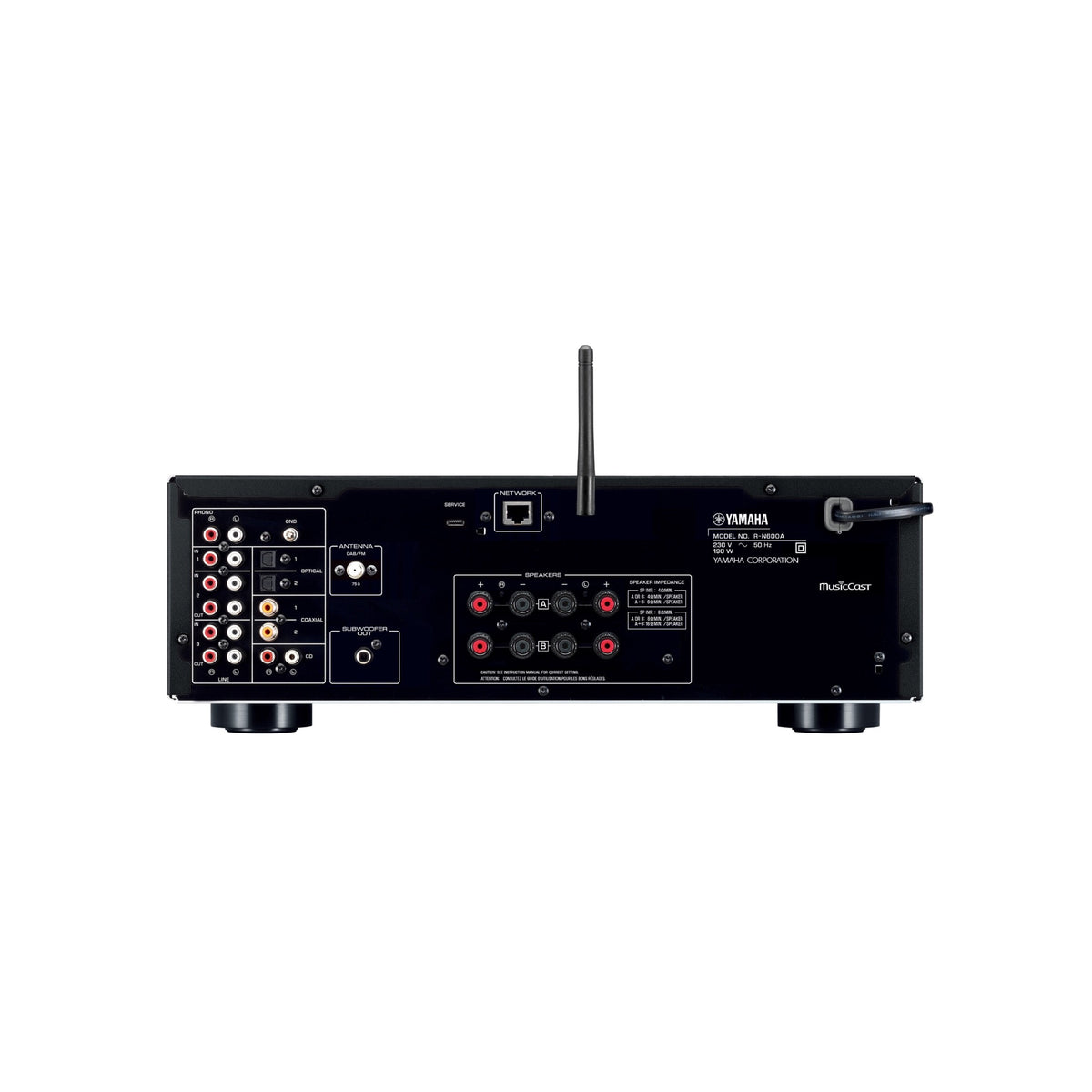

• Analog Connections: 5 stereo RCA inputs including Phono MM; 2 stereo RCA outputs
• Digital Inputs: 2 optical and 2 coaxial, 2-channel PCM up to 192 kHz
• Other Outputs: mono subwoofer, 6.3 mm headphone; no Trigger output
• Network: Ethernet 10Base-T/100Base-TX; Wi-Fi 2.4/5 GHz, 802.11a/b/g/n/ac
• Formats: MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, ALAC, DSD
• Network / USB Resolution: WAV/AIFF up to 384 kHz / 32-bit; FLAC up to 384 kHz / 24-bit; ALAC up to 96 kHz / 24-bit; DSD up to 11.2 MHz
• Radio: DAB/DAB+, FM with RDS; 40 DAB presets
• Adjustments: bass / treble ±10 dB, Loudness, balance, display brightness
• Power / Consumption: 230 V, 50 Hz; 190 W; standby 0.2 W without network, 2.0 W with Wi-Fi and Bluetooth off, 2.3 W with 5 GHz Wi-Fi and Bluetooth on
• Dimensions (W × H × D): 435 × 151 × 392 mm; height with antenna upright 225 mm
• Weight: 9.8 kg

What’s Included

• Yamaha R-N600A network receiver in the selected colour (1 unit)

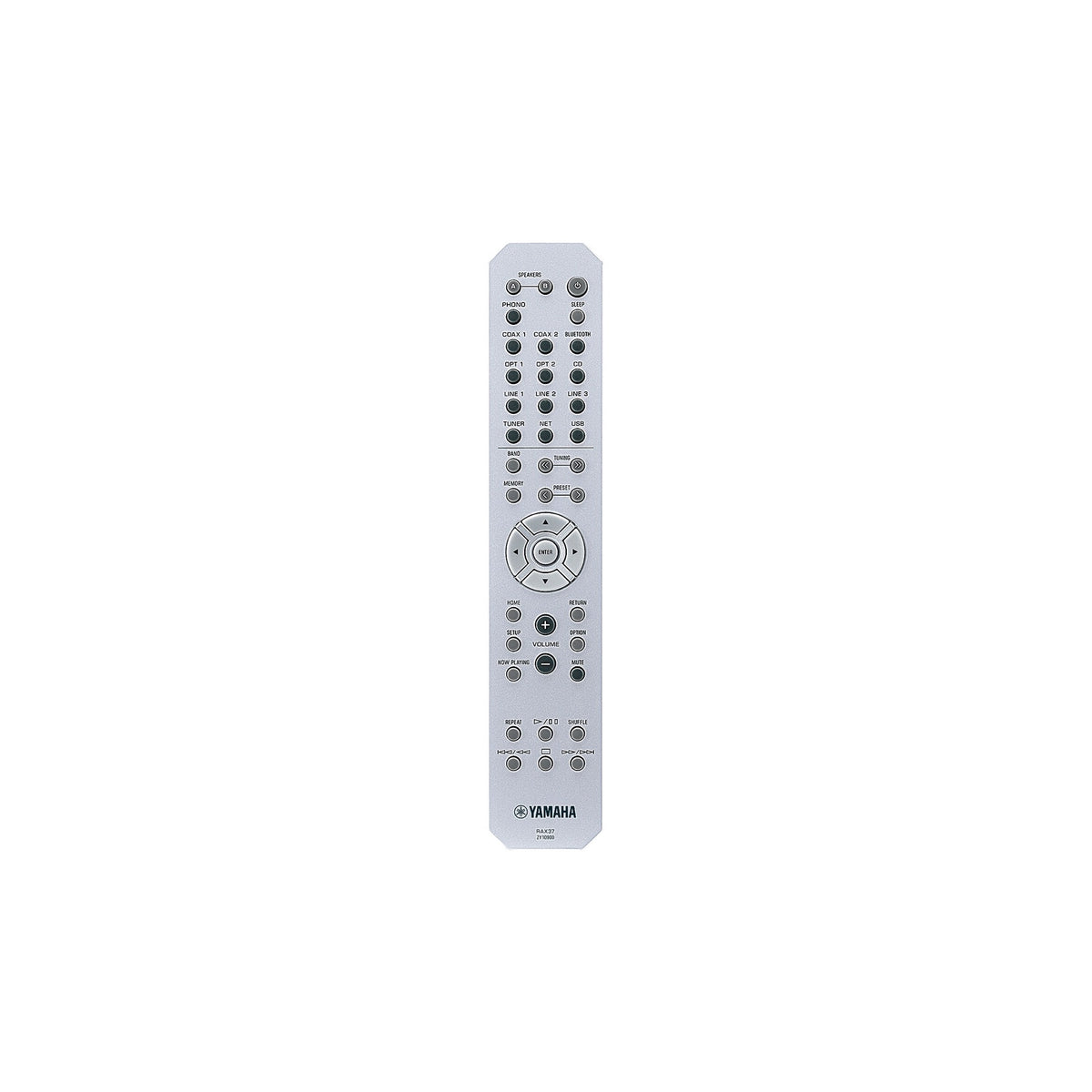

• Remote control
• AA / R6 / UM-3 batteries (2)
• DAB/FM antenna for the European model

Who Is It For

For a home stereo system with passive speakers, combining network music, radio, vinyl and TV audio in one receiver.
