Yamaha NS-SW100 Powered Subwoofer

Yamaha NS-SW100 Powered Subwoofer

Yamaha NS-SW100 is a Powered Subwoofer for adding low-frequency support to a stereo or home cinema system. A 25 cm (10 in) cone driver and amplifier are built into the cabinet, allowing connection to the line-level output of an amplifier or AV receiver. The Black finish suits other components in the system.

The Twisted Flare Port guides airflow to reduce turbulence noise at the edge of the port, supporting clearer bass reproduction.

Advanced YST II combines negative-impedance and constant-current control to support stable driver movement when reproducing low frequencies.

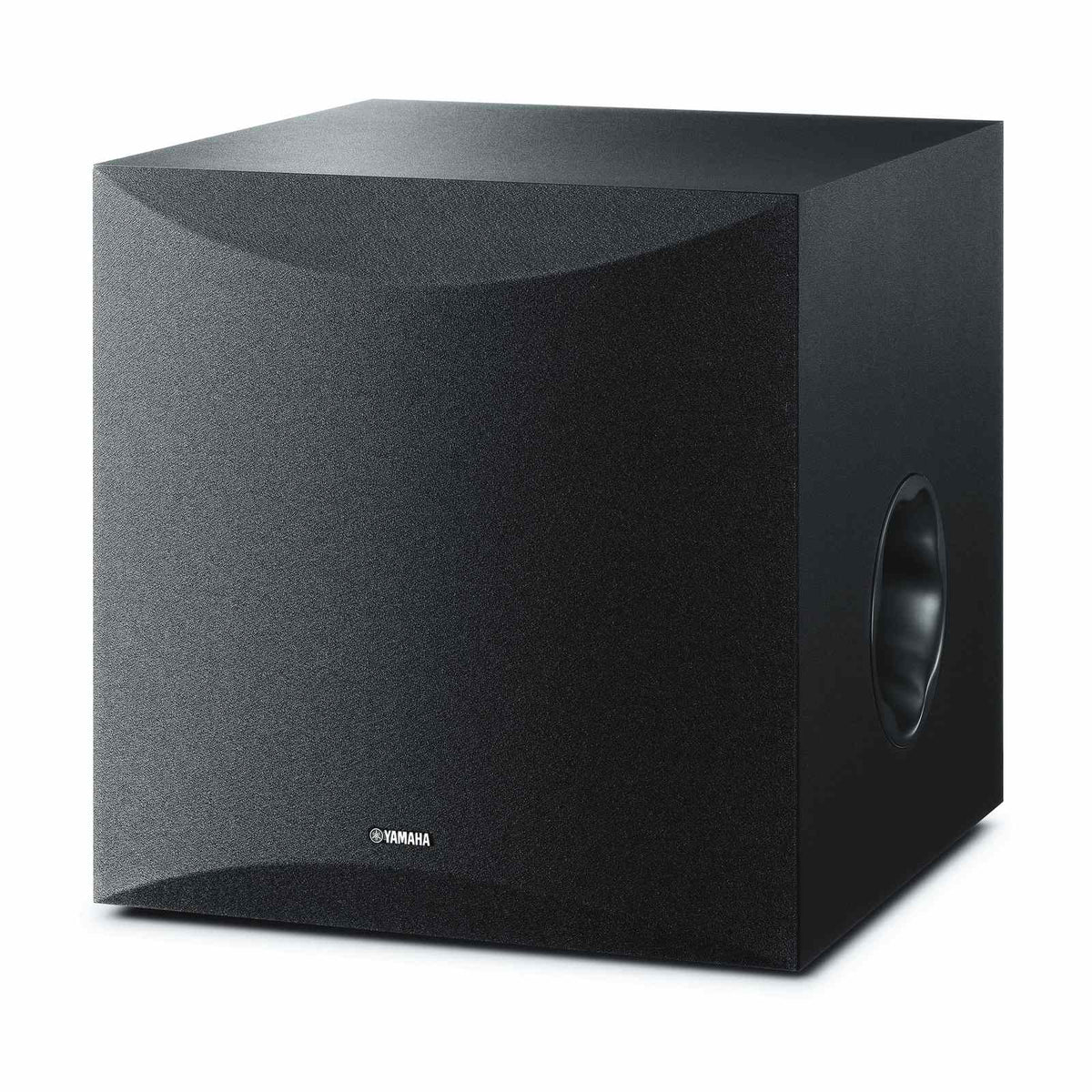

Curved front panel with a black finish.

Main Features

• The single RCA INPUT connects to an amplifier’s SUB OUT or PRE OUT line-level output. An RCA audio cable is purchased separately.

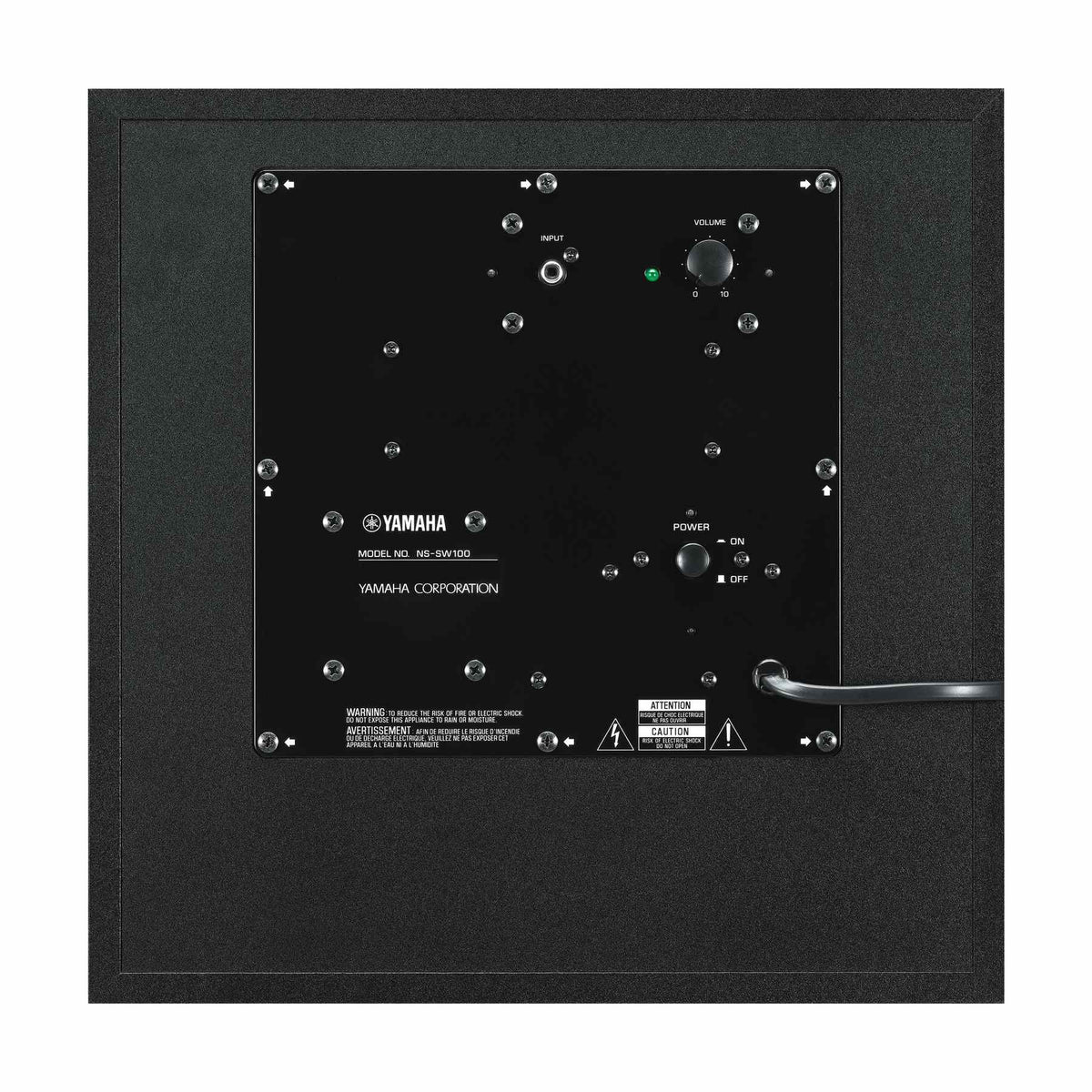

• The rear panel carries volume and power controls plus a green power indicator. Set crossover parameters on the connected amplifier or AV receiver.

Technical Specifications

• Type: Powered Subwoofer, 1 unit
• Finish: black
• Driver: 1 × 25 cm (10 in), cone
• Amplifier output: 50 W (100 Hz, 5 Ω, 10% THD)
• Frequency response: 25–180 Hz
• Dynamic power: 100 W (5 Ω)
• Audio inputs: INPUT (FROM AMPLIFIER), 1 × RCA
• Magnetic shielding: no
• Power supply: 230 V AC, 50 Hz; consumption 40 W
• Dimensions (W × H × D): 351 × 352 × 408 mm
• Weight: 12 kg

What’s Included

• Yamaha NS-SW100 Powered Subwoofer, 1 unit

Who Is It For

For stereo and home cinema systems with a suitable amplifier or receiver line-level output. Placement near the front speakers is possible; adjust the position and volume balance while listening to your system. This model uses a wired audio connection.
