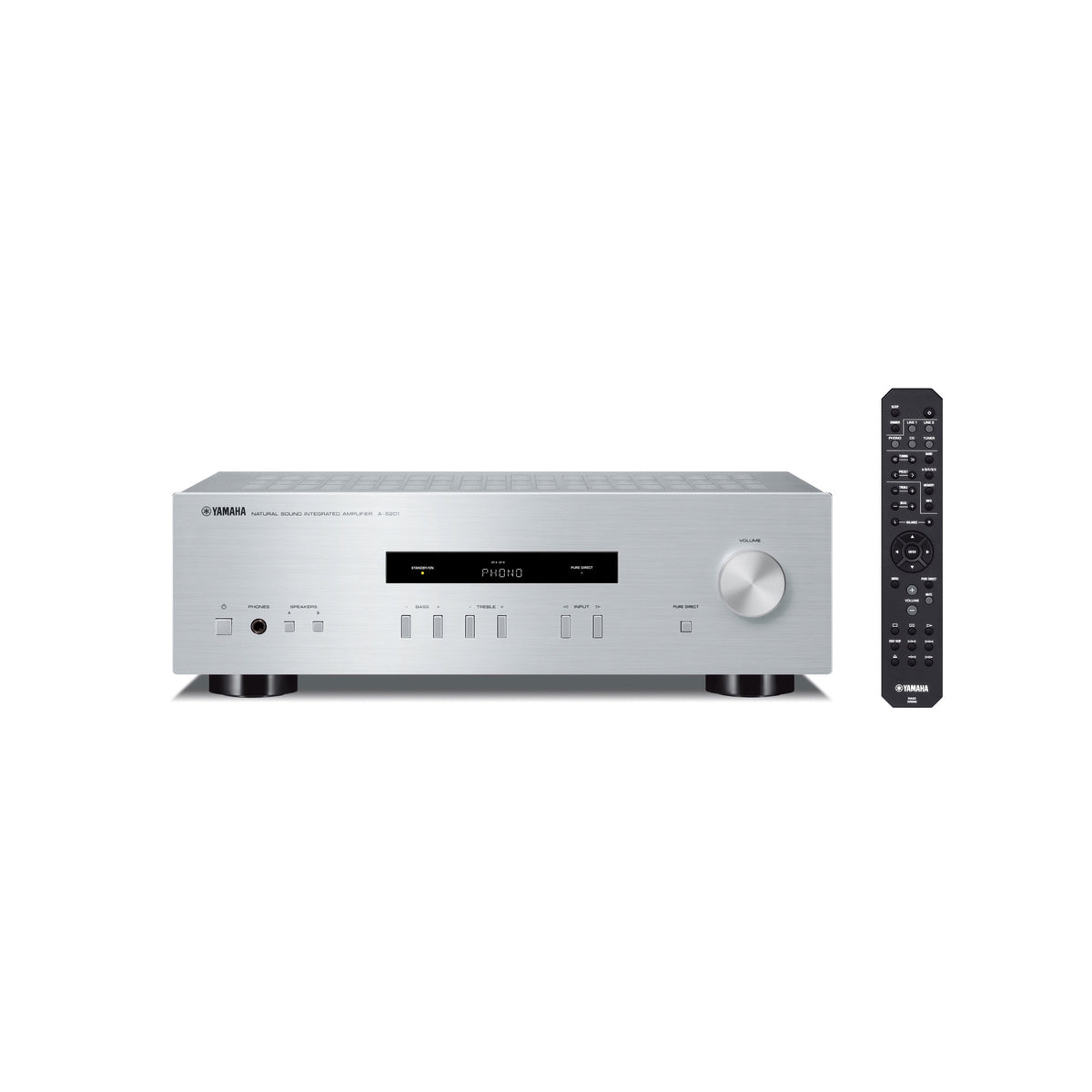

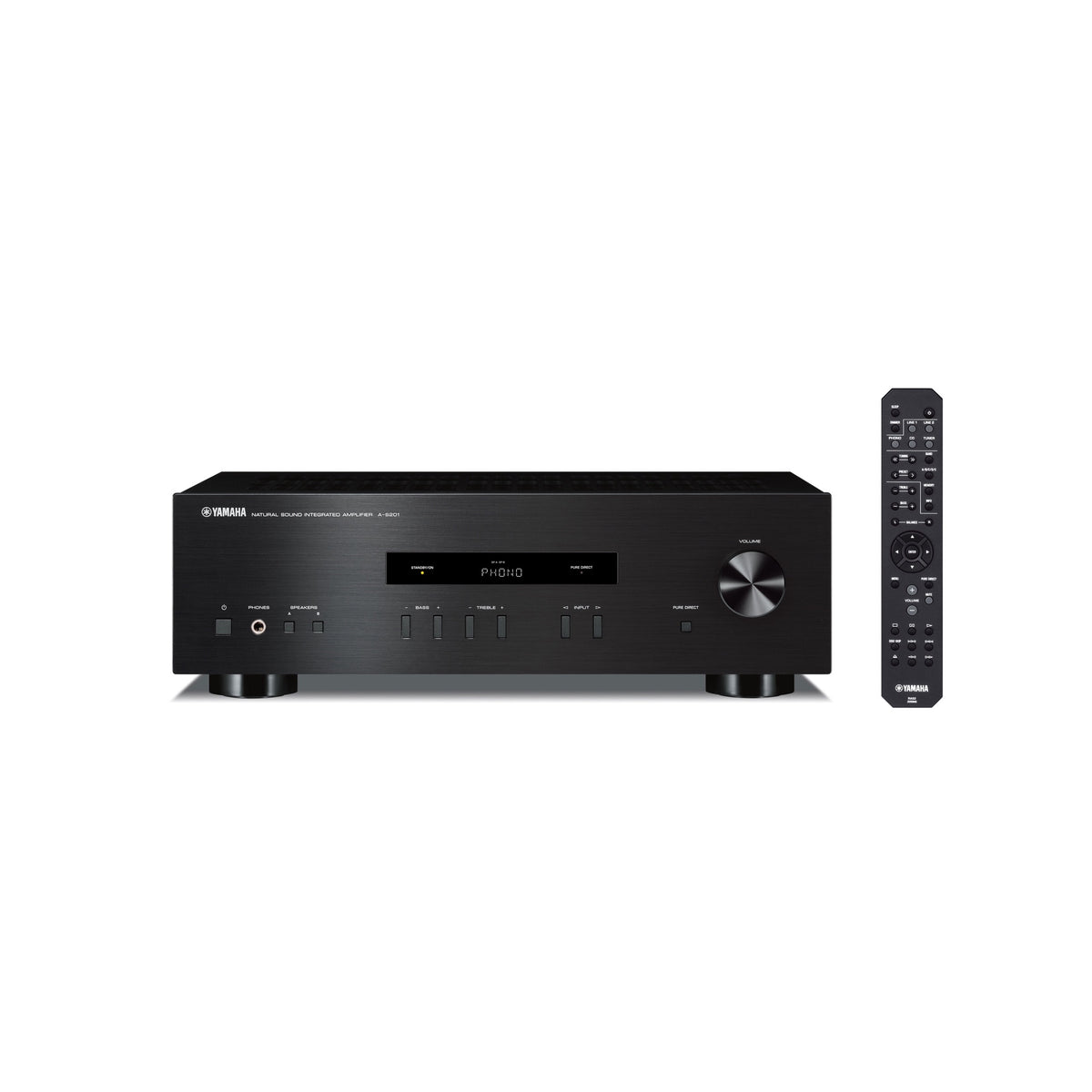

Yamaha A-S201 Integrated Amplifier

Yamaha A-S201 Integrated Amplifier

The Yamaha A-S201 is an integrated amplifier. Its analogue inputs accept CD players, line-level sources and turntables fitted with an MM cartridge.

Short signal paths and a power transformer positioned near the power amplifier reduce signal and power losses. Single-point signal and power grounding reduces mutual interference.

Pure Direct bypasses the tone, balance and buffer amplifier circuits. The display turns off after a few seconds, and bass, treble and balance controls are disabled.

Front-panel controls select the source, volume and A/B speaker outputs. The remote can also operate compatible Yamaha CD players and tuners, with available functions depending on the connected model.

Main Features

• The Phono MM input accepts a turntable with an MM cartridge without a separate phono preamp.
• A/B or A+B selection supports one or both speaker pairs. Two terminal sets also support bi-wiring, subject to the specified impedance requirements.
• Screw-type speaker terminals provide secure cable connections. The enclosure has a hairline finish.
• The menu lets you limit maximum volume and set the initial volume at power-on. A sleep timer switches the amplifier to standby after the selected interval.
• Automatic standby can be set to 2/4/8/12 hours of inactivity or disabled.
• The REC output carries the selected source except LINE 2. Volume, tone, balance and Pure Direct settings do not affect the recorded signal.
• The remote operates within 6 m and uses 2 AA batteries.

Technical Specifications

• RMS Power: 2 × 100 W (8 Ω, 40 Hz - 20 kHz, 0.2% THD)
• Maximum Power per Channel: 115 W (4 Ω, 1 kHz, 0.7% THD, European model)
• Dynamic Power per Channel: 125/150/165/180 W (8/6/4/2 Ω)
• Speaker Impedance: A/B ≥8 Ω; A+B each ≥16 Ω; bi-wiring ≥8 Ω
• Frequency Response: 20 Hz - 20 kHz, ±0.5 dB; 10 Hz - 100 kHz, ±3.0 dB
• THD: Phono to REC ≤0.025% (20 Hz - 20 kHz, 2 V); CD to speakers ≤0.2% (20 Hz - 20 kHz, 50 W, 8 Ω)
• Signal-to-Noise Ratio: CD ≥100 dB (500 mV), Phono ≥75 dB (10 mV), inputs shorted, IHF-A; residual noise 70 µV
• Input Sensitivity / Impedance: CD 500 mV / 47 kΩ; Phono MM 10 mV / 47 kΩ (1 kHz, 100 W, 8 Ω)
• Output Level / Impedance: REC 500 mV / 2.2 kΩ; headphones 470 mV / 470 Ω; RIAA deviation ±0.5 dB

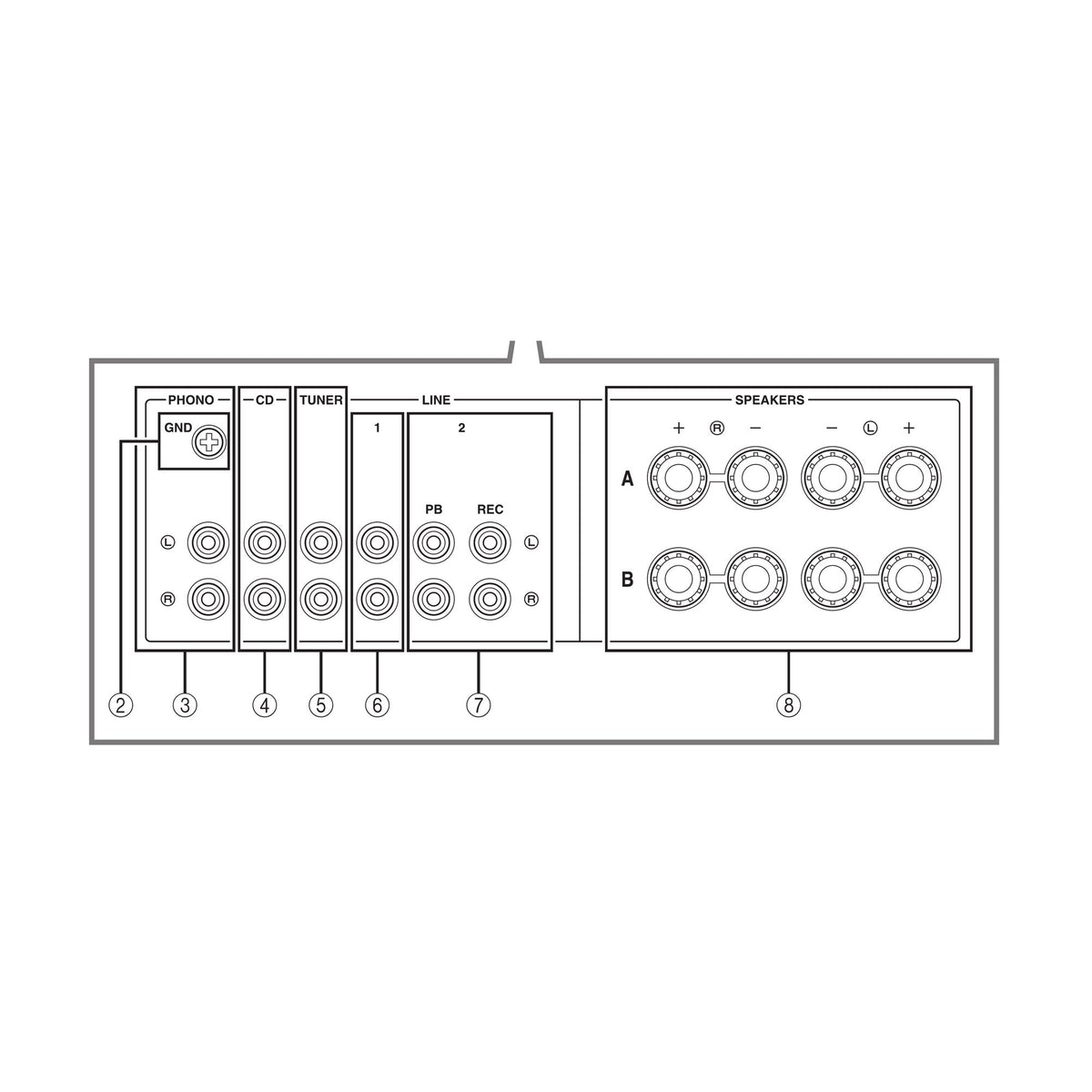

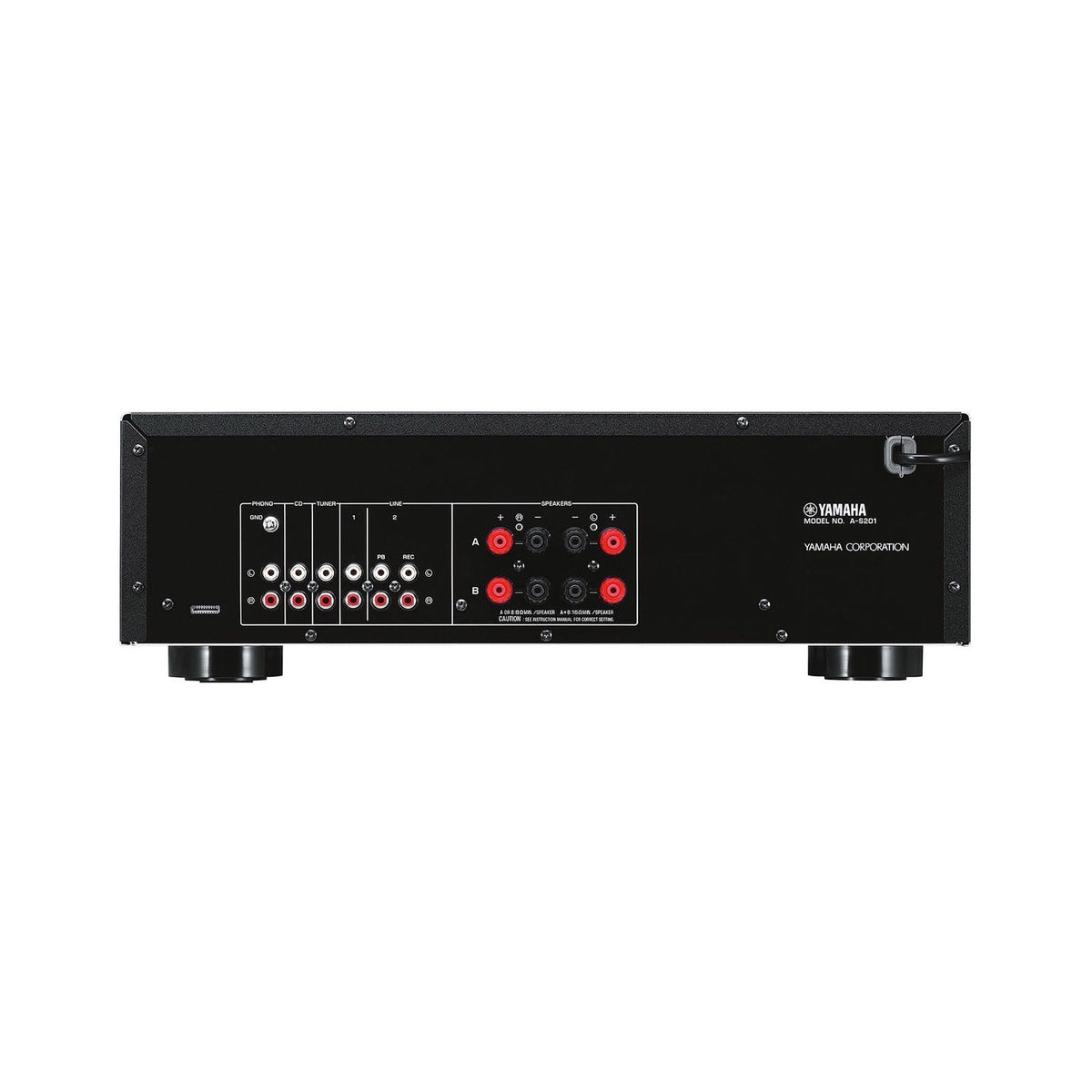

• Connections: 5 stereo RCA inputs including Phono MM; REC output; 6.3 mm headphone jack
• Tone Controls: bass ±10 dB (50 Hz), treble ±10 dB (20 kHz); balance
• Power Supply / Consumption: 230 V, 50 Hz; 175 W
• Standby Consumption: ≤0.5 W
• Dimensions (W × H × D): 435 × 141 × 333 mm
• Weight: 6.7 kg

What’s Included

• Yamaha A-S201 Integrated Amplifier, selected colour (1 unit)
• Remote control
• AA / R6 / UM-3 batteries (2 pcs.)

Who Is It For

For home stereo systems with passive speakers and analogue music sources, including a turntable, where straightforward physical controls are preferred.
