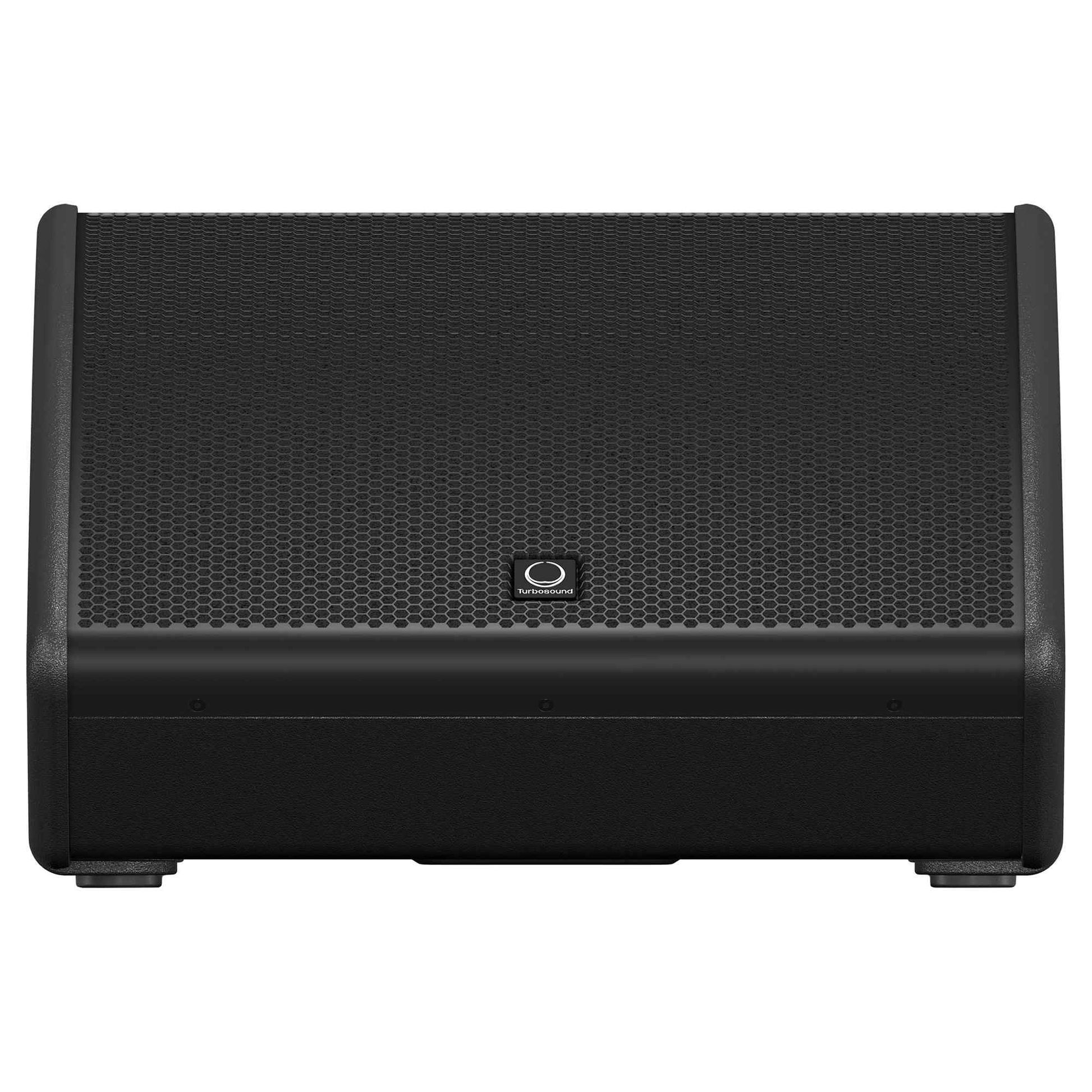

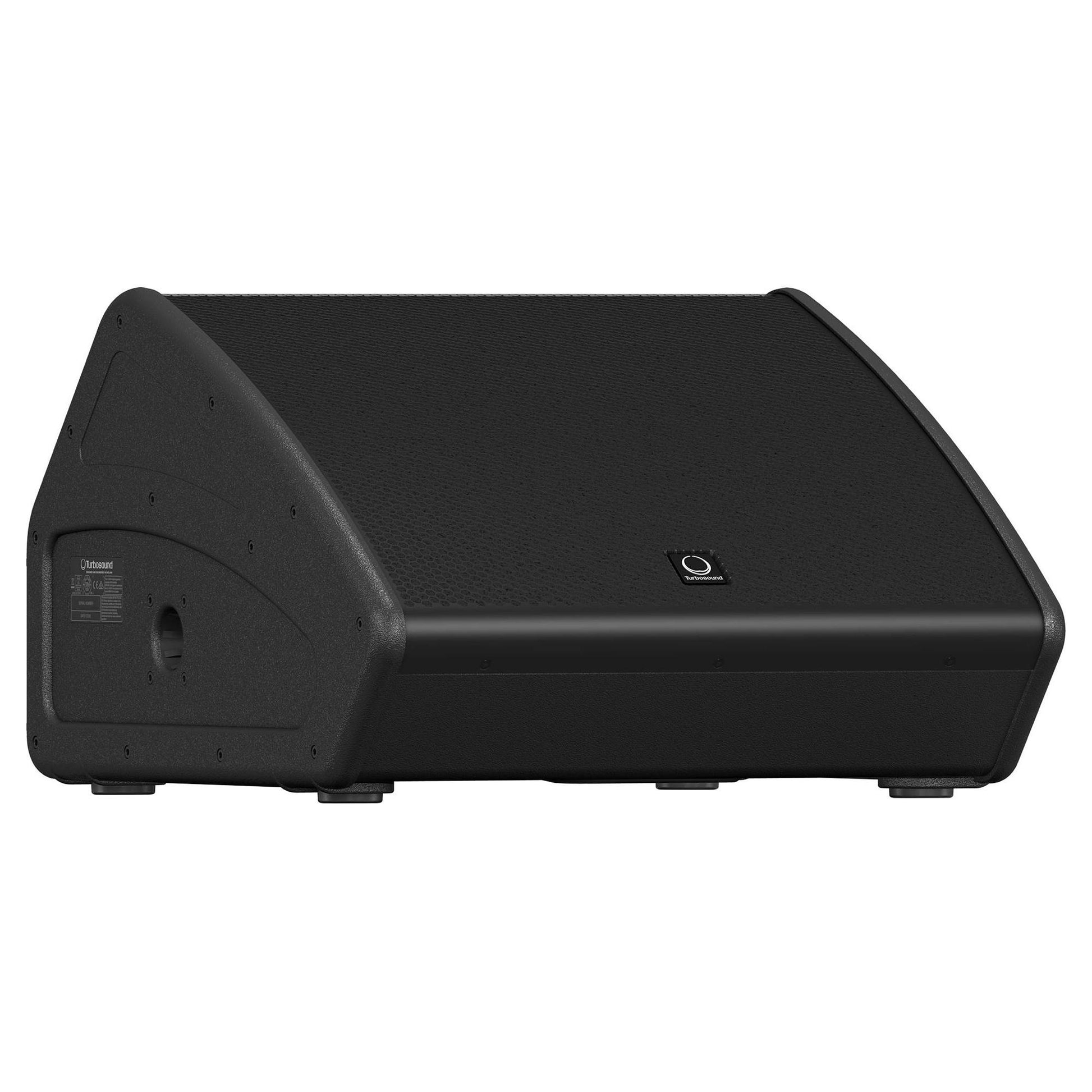

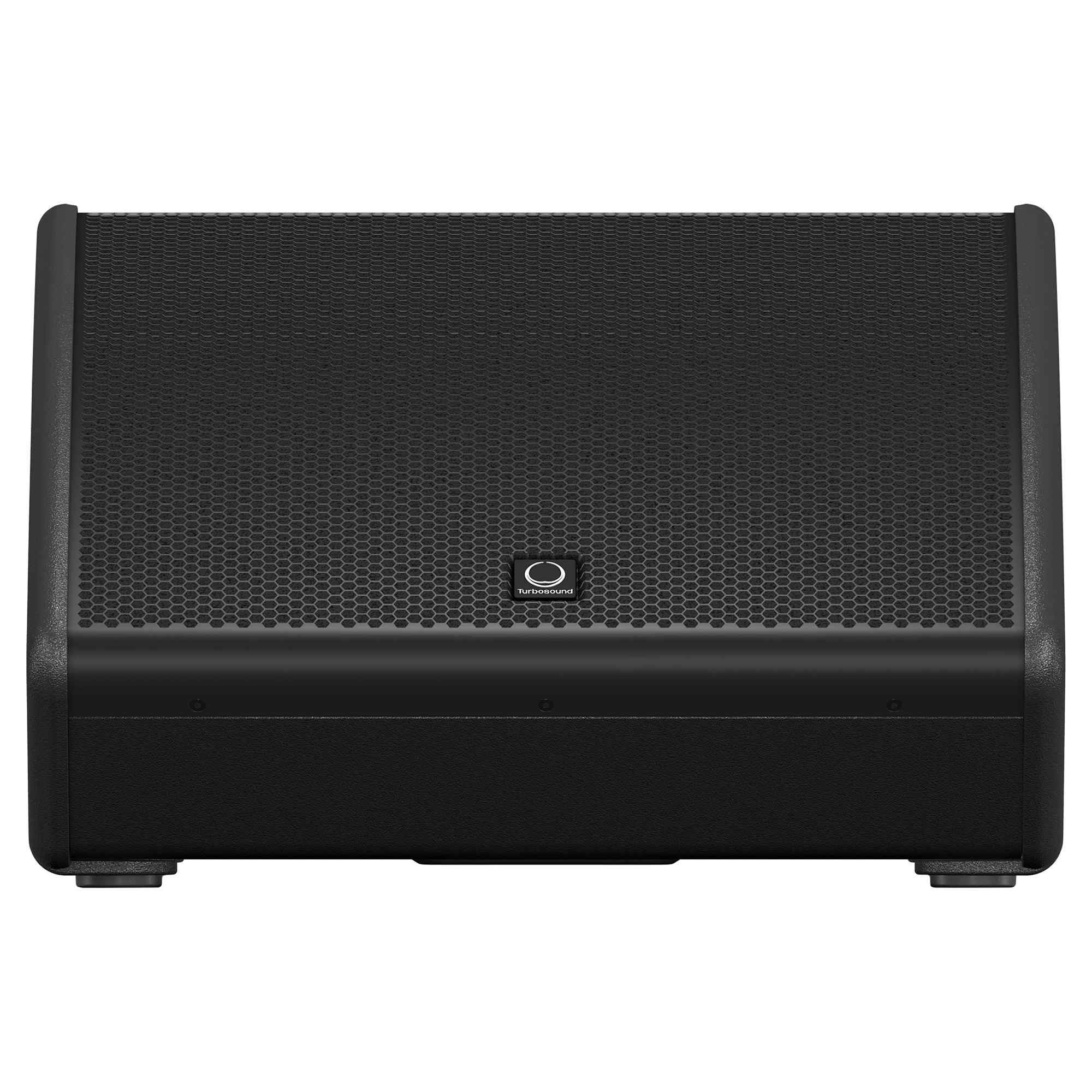

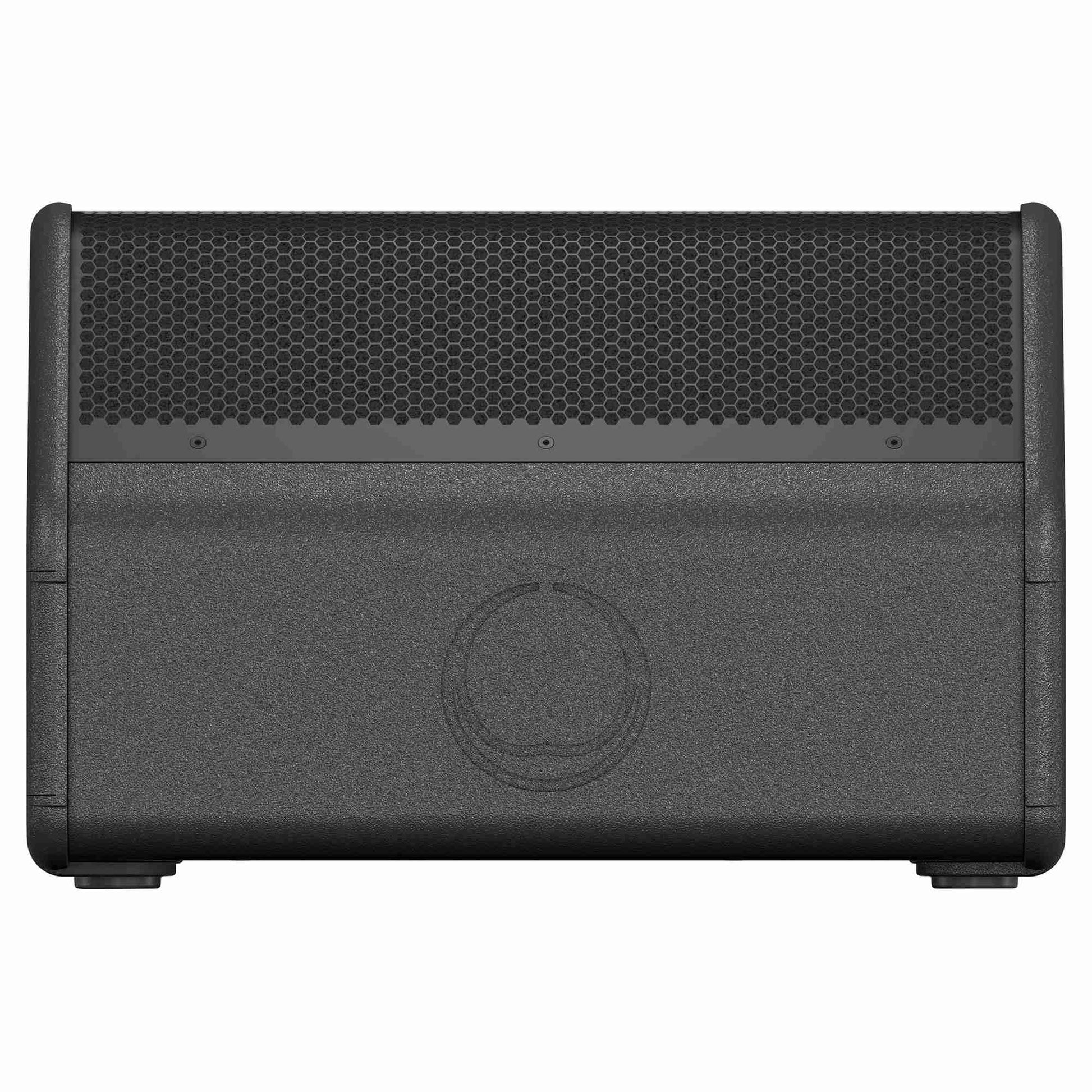

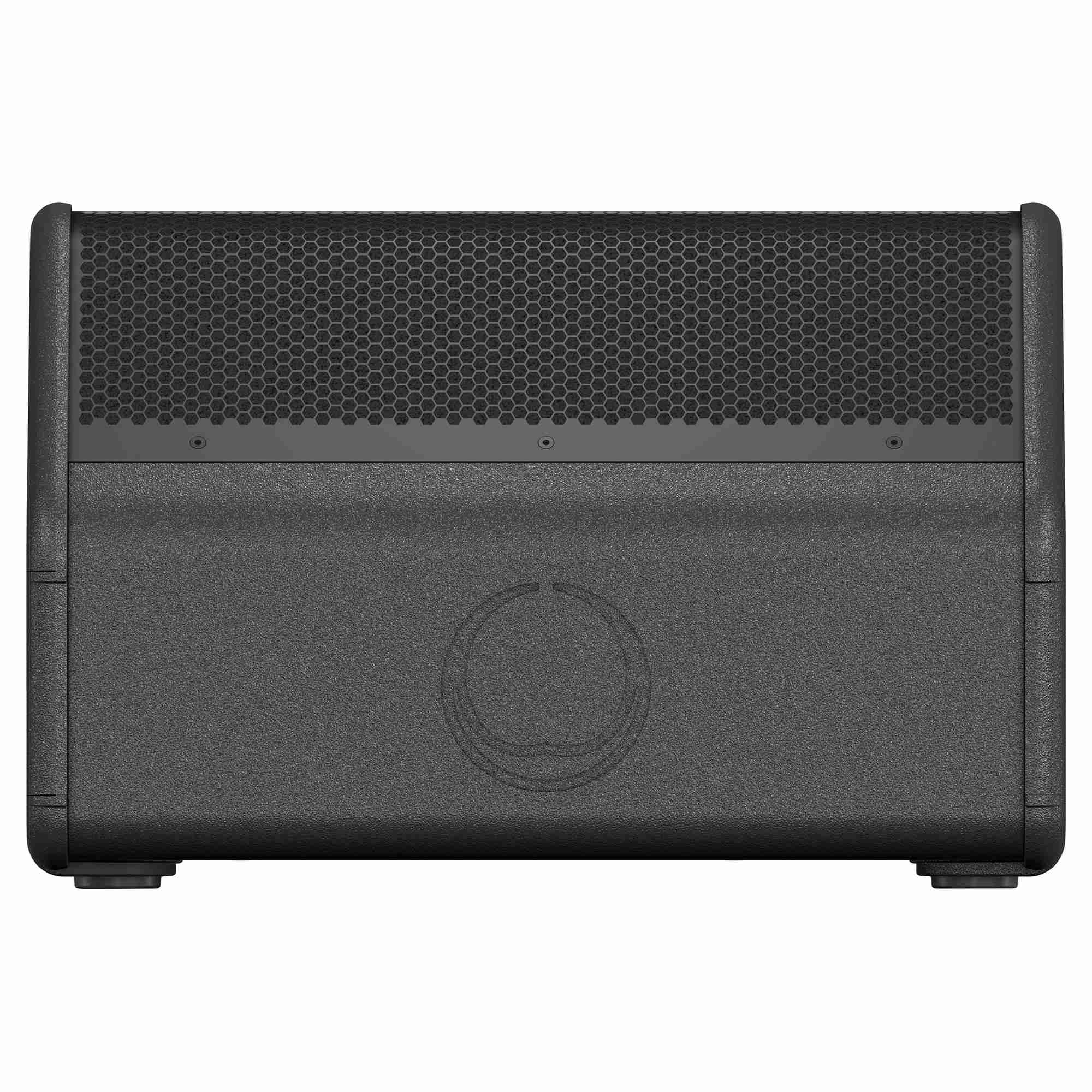

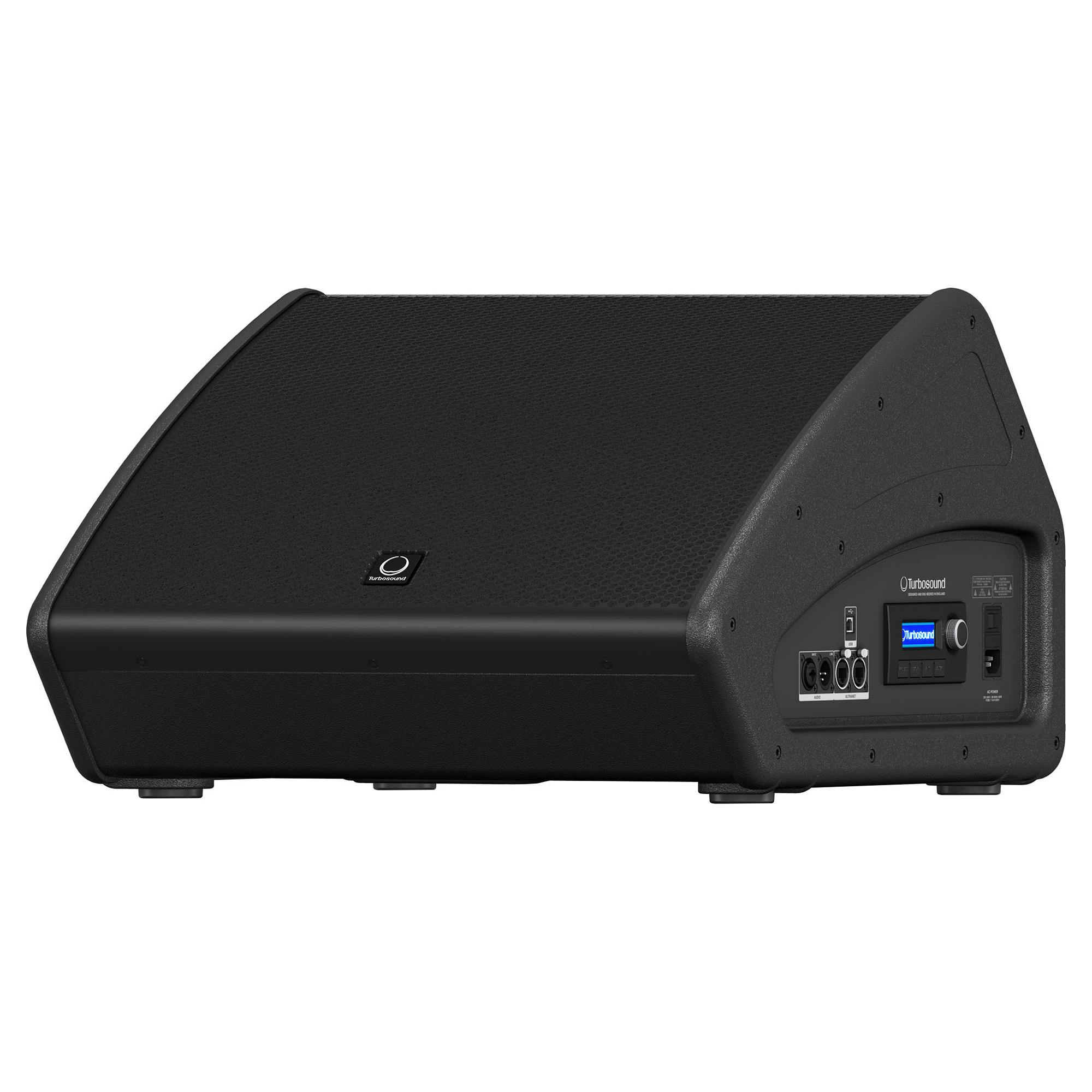

Turbosound TFX152M-AN 15-Inch Powered Stage Monitor

Turbosound TFX152M-AN 15-Inch Powered Stage Monitor

The Turbosound TFX152M-AN is a powered two-way stage monitor with a 15-inch low-frequency driver.

Designed for floor monitoring at concerts, rehearsals and other events, it can also provide main or supplementary speech and music reinforcement. Its low-profile cabinet helps preserve audience sight lines.

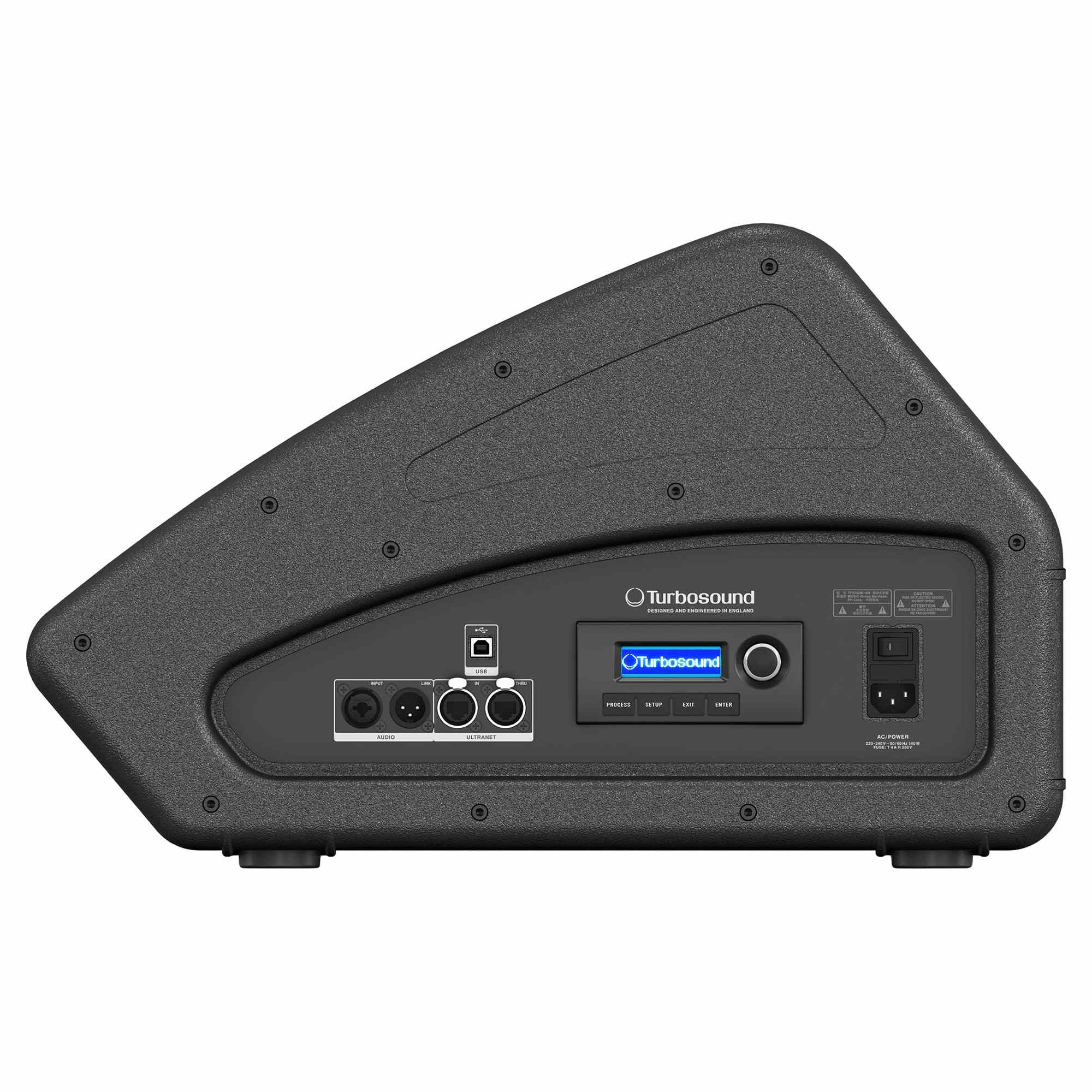

The built-in KLARK TEKNIK Class-D amplifier delivers 1100 W maximum output power. DSP equalisation, limiting and crossover settings allow the response to be adjusted for the loudspeaker position and sound system. Buttons and a rotary encoder provide access to the settings shown on the LCD.

A combination XLR / 6.3 mm input accepts analogue audio, while the XLR LINK output passes an unprocessed copy to another powered loudspeaker. ULTRANET IN and THRU connect compatible digital audio devices. USB supports DSP control from a computer and firmware updates.

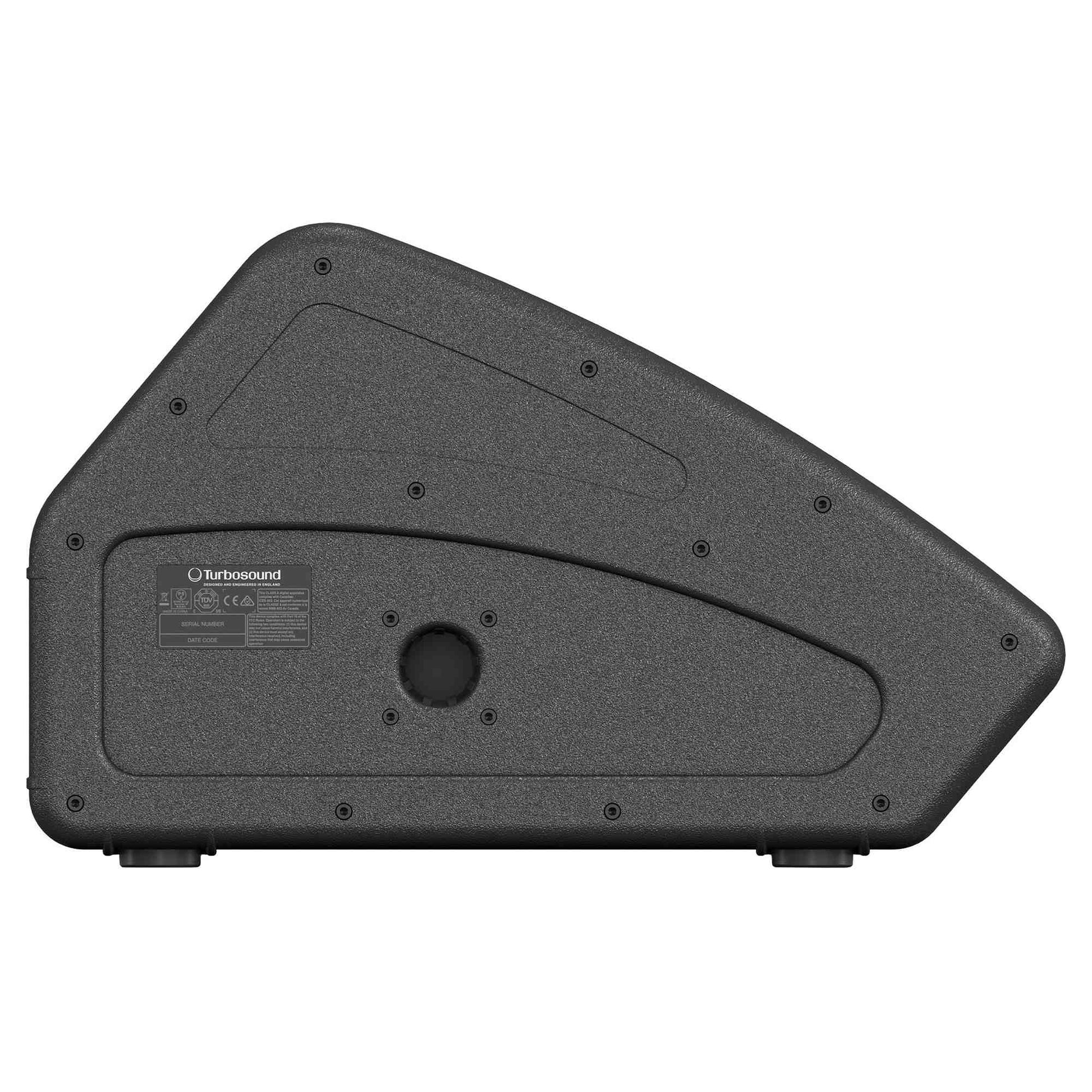

The 15-inch low-frequency driver is paired with a 1-inch titanium-dome compression driver. Its waveguide provides 60° horizontal by 40° vertical dispersion. The 15 mm plywood cabinet includes a carrying handle and a 35 mm socket for stand mounting.

Main Features

• A two-way system reproduces speech and music for stage monitoring.
• The built-in amplifier removes the need for a separate power amplifier.
• DSP equalisation allows the response to be adjusted to the application.
• Limiting helps protect the drivers against overload.
• The LCD provides direct access to settings at the loudspeaker.
• ULTRANET accepts digital audio from compatible devices.
• The XLR LINK output passes analogue audio to another powered loudspeaker.
• A 35 mm pole socket supports use for main sound reinforcement.

Technical Specifications

• Product type: powered stage monitor
• System: two-way, full-range
• Drivers: 1 x 15-inch LF driver, 1 x 1-inch HF compression driver
• Amplifier: Class-D, 1100 W maximum output power
• Frequency response: 63–18 000 Hz (±3 dB), 57–20 000 Hz (-10 dB)
• Maximum SPL: 127 dB peak
• Dispersion: 60° H x 40° V at -6 dB points, rotatable waveguide
• Analogue connections: 1 x XLR / 6.3 mm combination input, 1 x XLR LINK output
• Digital connections: 2 x RJ45 (ULTRANET IN / THRU), USB
• European mains supply: 220–240 V AC, 50/60 Hz, IEC inlet
• Enclosure: 15 mm plywood, composite end cheeks, steel grille
• Pole socket: 35 mm
• Dimensions: 351 x 530 x 565 mm (H x W x D)
• Weight: 21.5 kg

What’s Included

• 1 x Turbosound TFX152M-AN powered stage monitor
• Region-appropriate IEC mains cable

Who Is It For

For stage monitoring at concerts, theatres and rehearsals. It also suits speech and music reinforcement at smaller events or supplementary audience coverage within a larger system.
