Turbosound PQ18B 18-Inch Passive Subwoofer

Turbosound PQ18B 18-Inch Passive Subwoofer

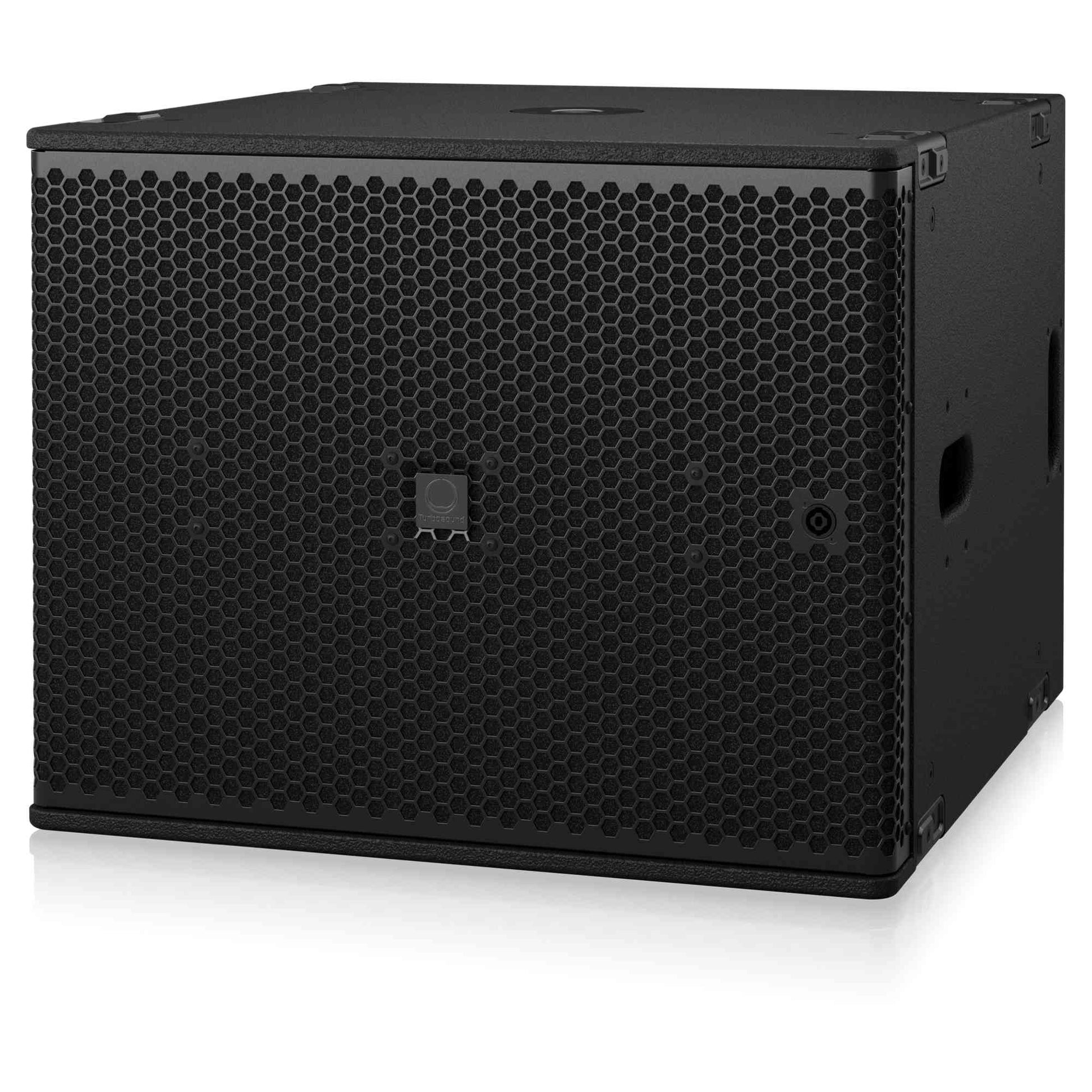

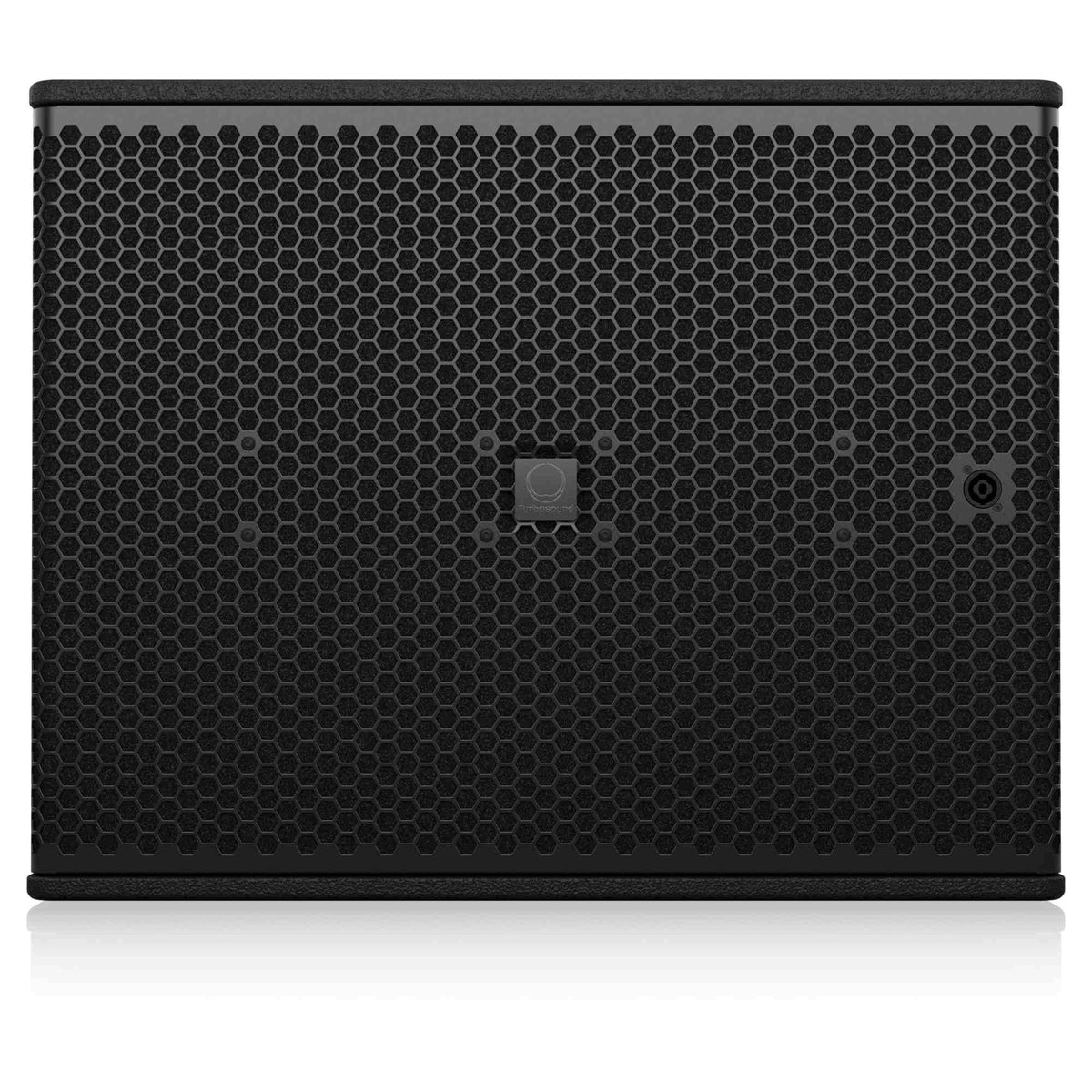

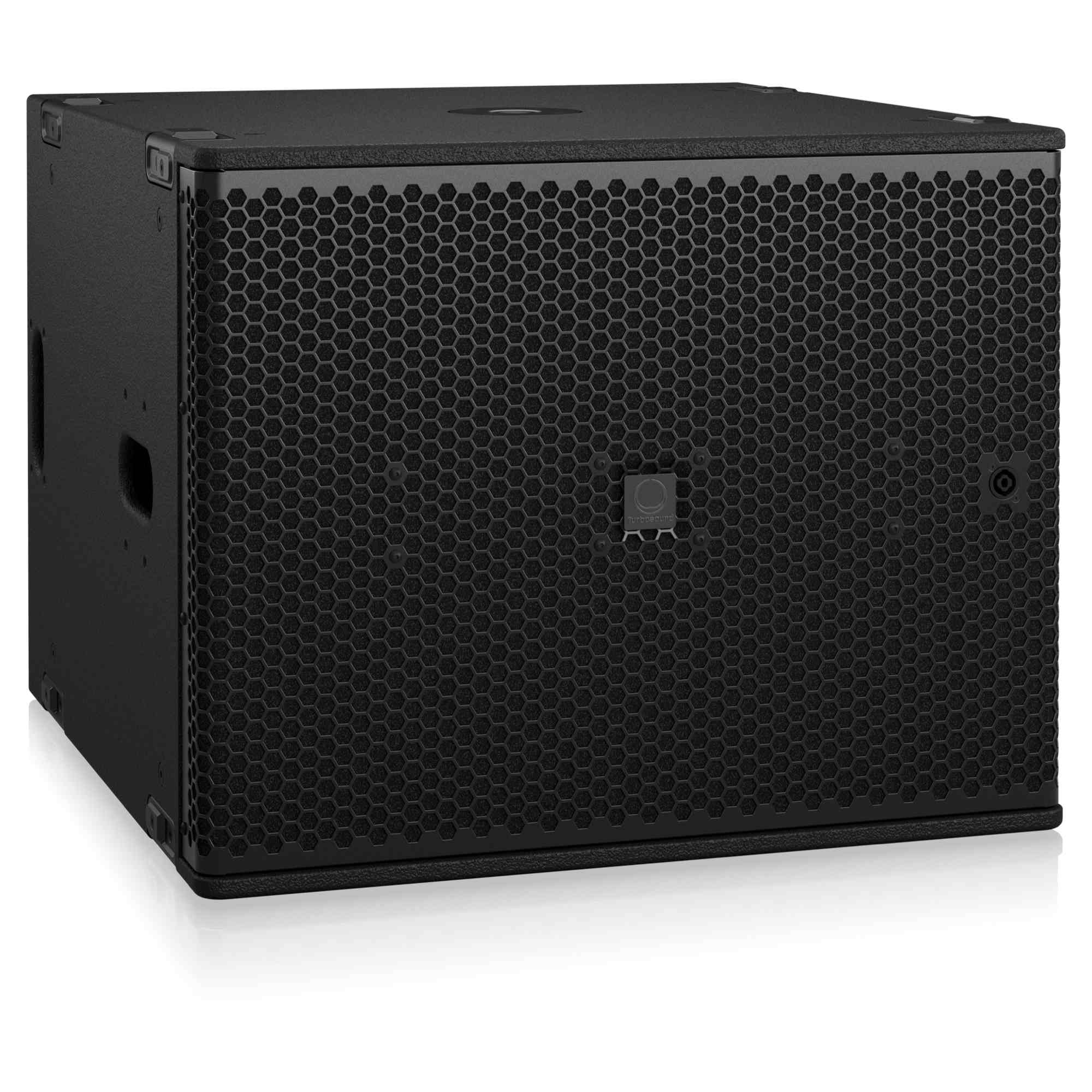

The Turbosound PQ18B is a passive subwoofer with a single 18-inch ferrite driver in a bass-reflex enclosure.

Designed for professional mobile, touring and installed systems, it extends the low-frequency output of PQ Series full-range loudspeakers. The enclosure supports conventional placement and manufacturer-defined directional bass configurations.

The PQ18B requires a supported Lab Gruppen amplifier and the matching manufacturer Lake DSP preset. One amplifier and DSP channel is required per enclosure in normal operation, while directional configurations can require additional channels.

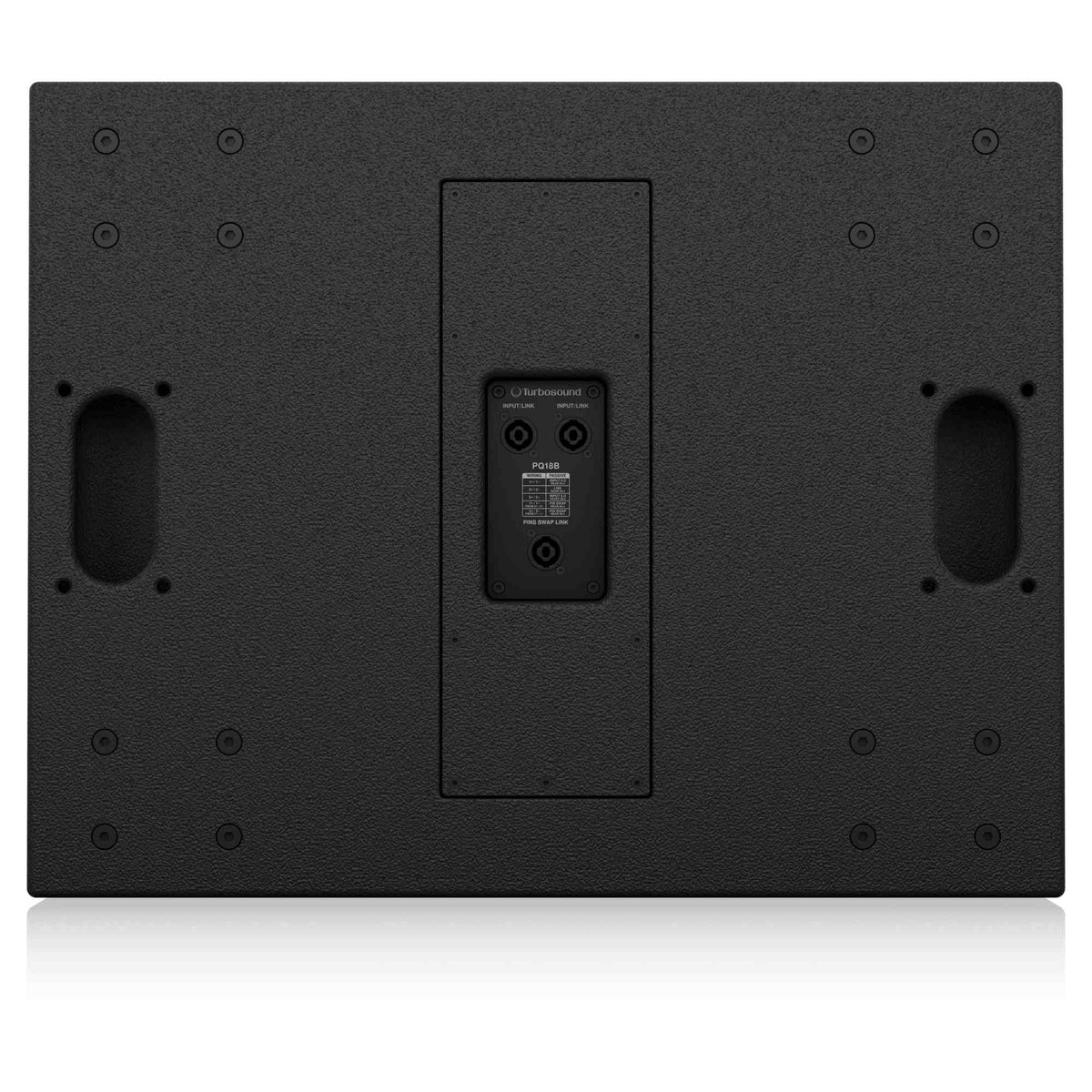

Rear NL4 connectors provide input, link and pin-swap functions. A front NL4 connector supports tidy cable routing in directional configurations. A 35 mm M20 socket accepts a pole for a compatible full-range loudspeaker.

The 15 and 18 mm plywood enclosure includes a steel grille, integrated handles and interlocking feet for vertical or horizontal placement. An optional wheel kit can assist transport.

Main Features

• An 18-inch driver extends the low-frequency response of a professional sound system.
• 700 W continuous and 2800 W peak power handling suit touring applications.
• Lake DSP presets configure a supported Lab Gruppen amplifier for the PQ18B.
• Rear NL4 connectors provide input, link and pin-swap functions.
• A front NL4 connector simplifies cable routing in directional configurations.
• The 35 mm M20 socket accepts a pole for a compatible loudspeaker.
• The enclosure supports vertical or horizontal placement.
• Integrated handles assist transport.
• An IP44 rating provides protection under the manufacturer’s specified conditions.

Technical Specifications

• Product type: passive bass-reflex subwoofer
• Driver: 1 x 18-inch ferrite LF driver, 4-inch copper voice coil
• Power handling: 700 W continuous, 2800 W peak
• Frequency response: 45–200 Hz (±3 dB), 32–3000 Hz (-10 dB)
• Maximum SPL: 133 dB, 138 dB peak
• Sensitivity: 99 dB (1 W / 1 m)
• Nominal impedance: 8 Ω
• Dispersion: omnidirectional
• Connections: 3 x rear NL4, 1 x front NL4
• Pole socket: 35 mm with M20 thread
• Enclosure: 15 and 18 mm plywood, steel grille
• Protection rating: IP44
• Dimensions: 520 x 660 x 687 mm (H x W x D)
• Weight: 47.9 kg

What’s Included

• 1 x Turbosound PQ18B passive subwoofer

Who Is It For

For professional touring, mobile and installed systems requiring increased low-frequency sound pressure. A compatible Lab Gruppen amplifier and manufacturer DSP preset are required.
