Turbosound PQ15 15-Inch Passive Two-Way Loudspeaker

Turbosound PQ15 15-Inch Passive Two-Way Loudspeaker

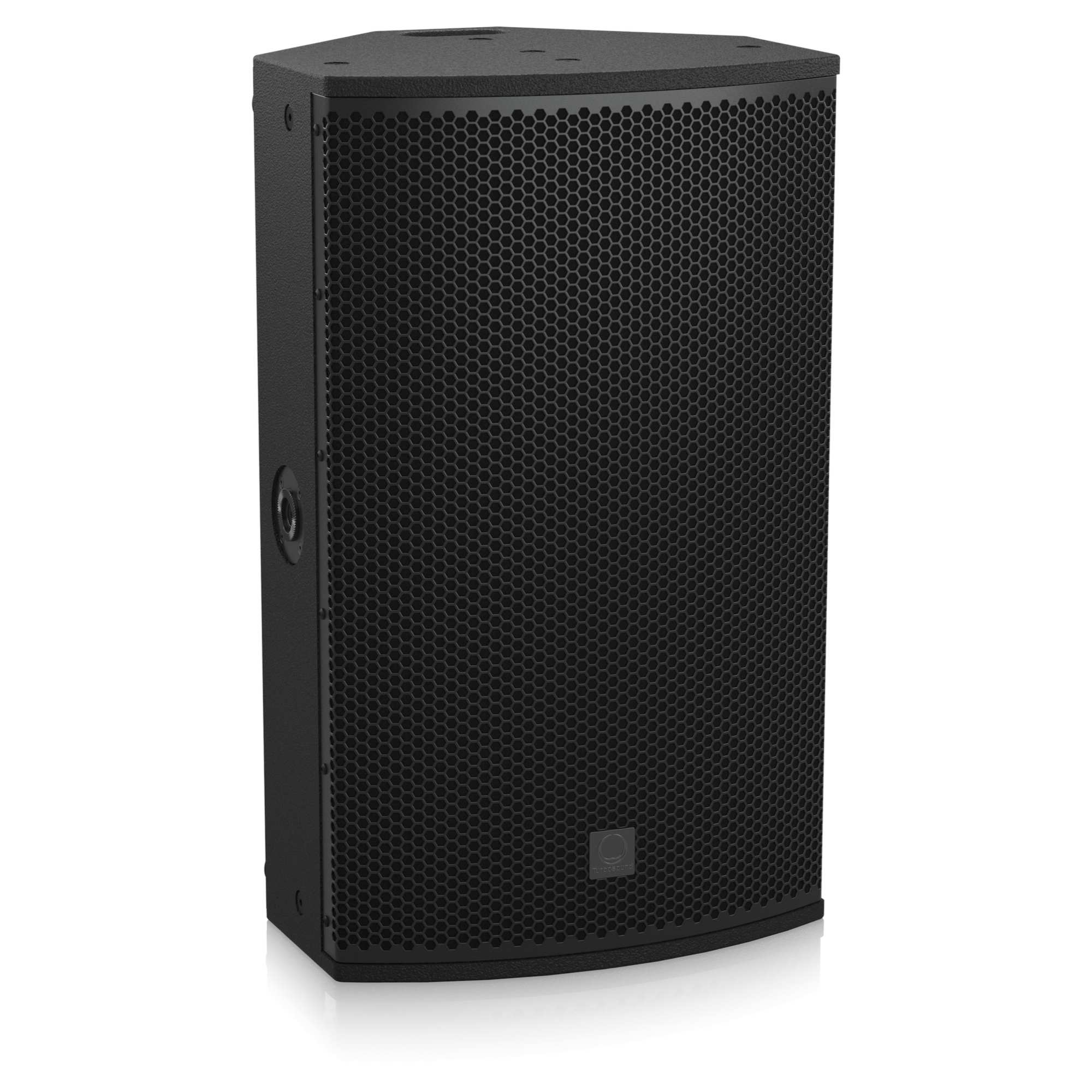

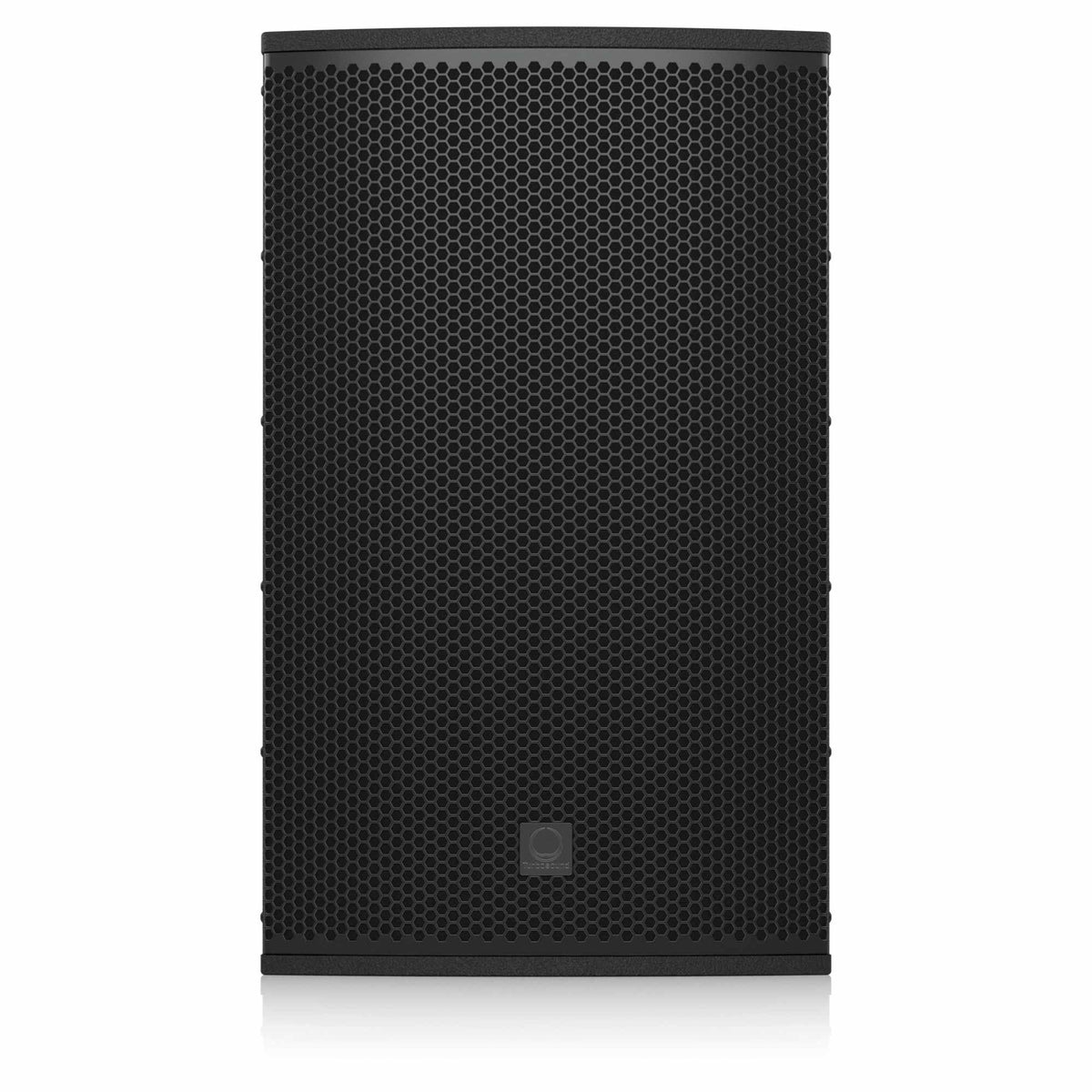

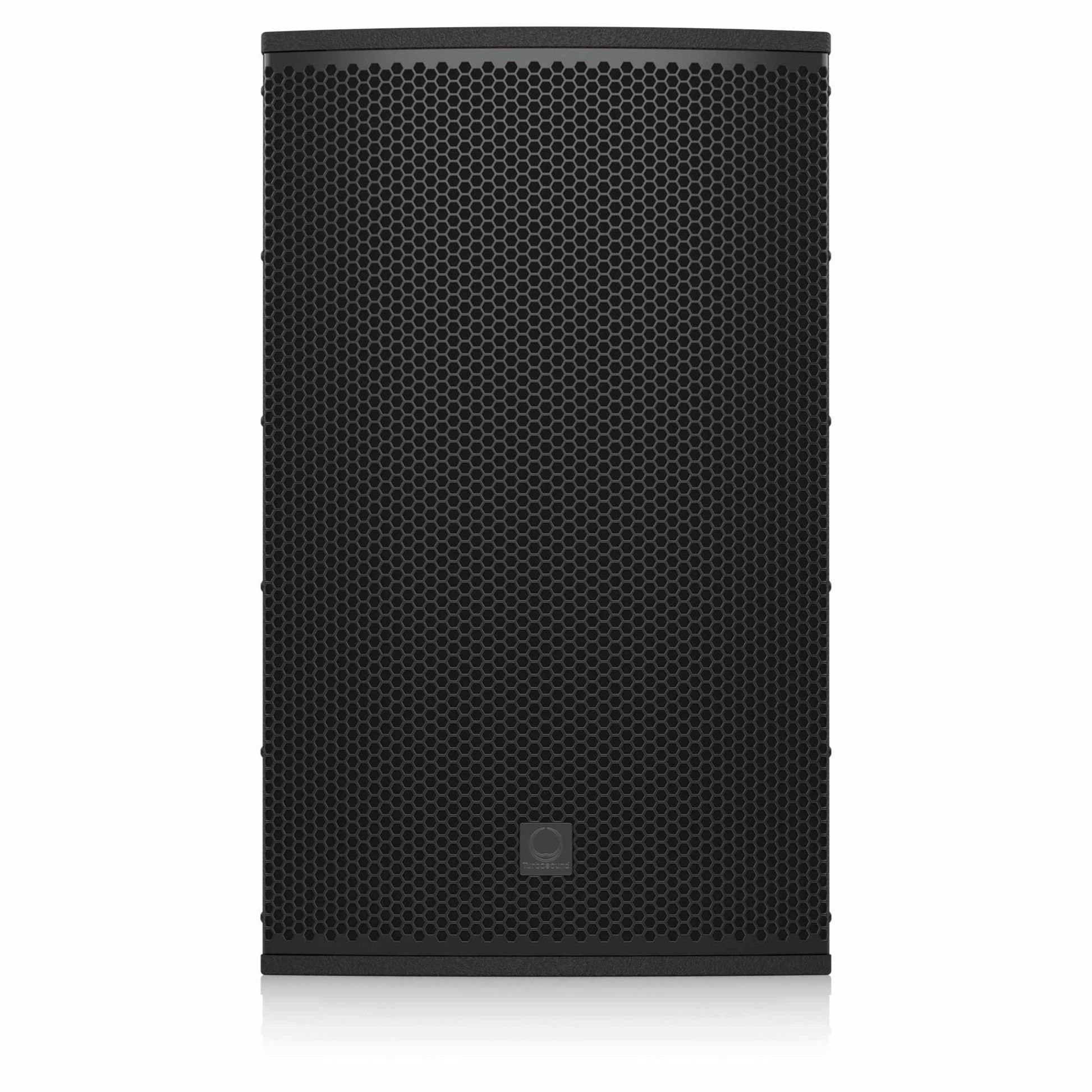

The Turbosound PQ15 is a passive two-way loudspeaker with a 15-inch low-frequency driver and a 1-inch neodymium high-frequency compression driver.

It is designed for professional speech and music reinforcement, stage monitoring, delay coverage and installed systems. Its rotatable waveguide provides 80° horizontal by 50° vertical dispersion, allowing the pattern orientation to suit vertical or horizontal cabinet placement.

The passive PQ Series requires a supported Lab Gruppen amplifier and the matching manufacturer Lake DSP preset. One amplifier and DSP channel is required per loudspeaker in normal operation. PQ10, PQ12 and PQ15 models must not share the same amplifier and DSP circuit.

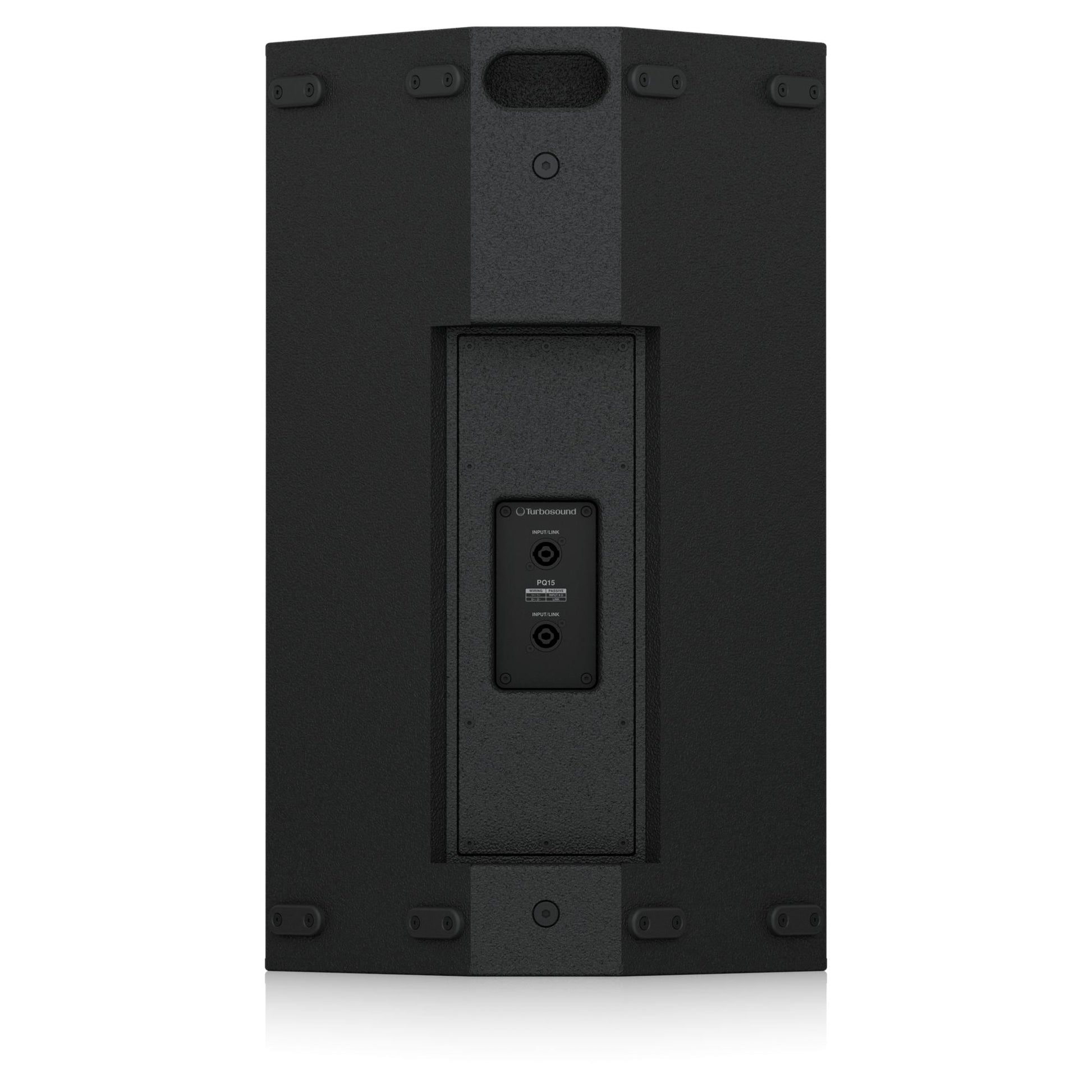

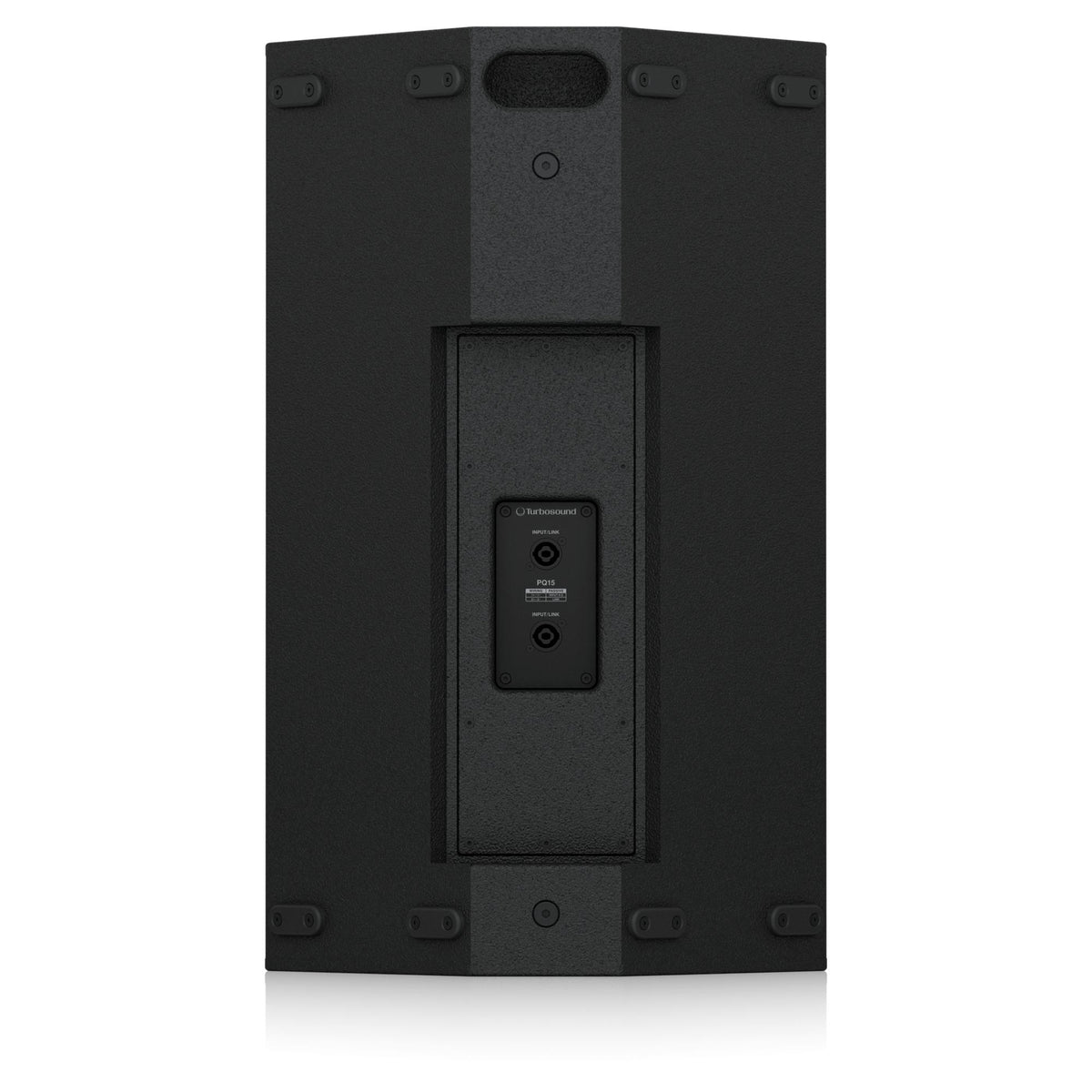

Two parallel NL4 connectors accept the speaker-level input and pass it to another enclosure. Two 35 mm sockets provide straight or downward-tilted pole positions. Integrated M10 points support professional installation with suitable accessories sold separately.

The 15 mm plywood cabinet has a steel grille and an integrated handle. Angled cabinet panels and two sets of feet allow floor placement as a stage monitor.

Main Features

• A two-way system reproduces speech and music for professional sound reinforcement.
• The 15-inch LF driver is paired with a neodymium HF compression driver.
• An 80° x 50° rotatable waveguide allows the coverage orientation to be changed.
• Lake DSP presets configure the amplifier for the specific PQ model.
• Two NL4 connectors accept and link the speaker-level signal.
• Two 35 mm sockets offer straight or downward-tilted pole positions.
• M10 mounting points accept compatible professional installation accessories.

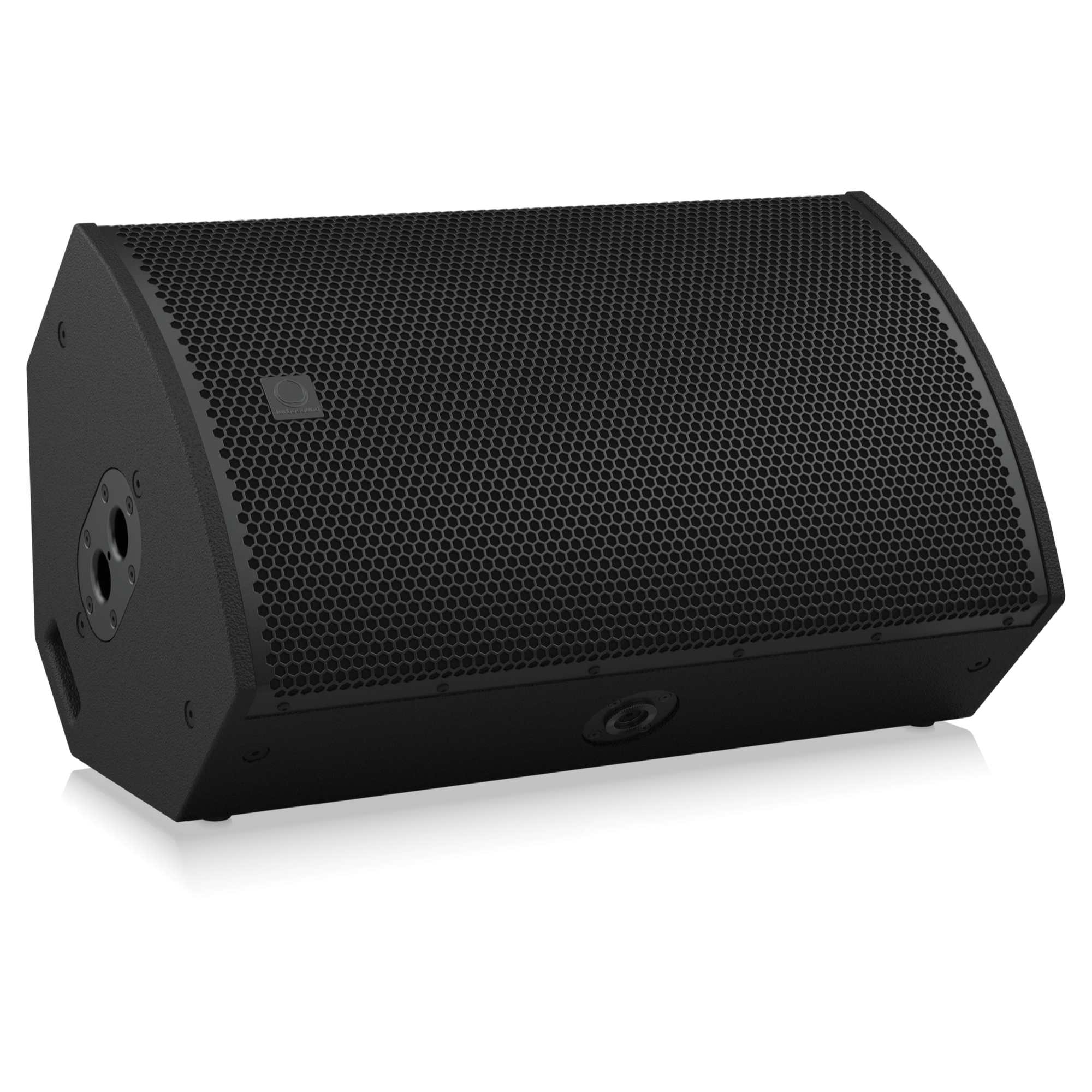

• The cabinet can be placed on the floor as a stage monitor.
• An integrated handle assists transport.

Technical Specifications

• Product type: passive two-way loudspeaker
• Drivers: 1 x 15-inch LF, 1 x 1-inch neodymium HF compression driver
• Power handling: LF 500 W continuous / 2000 W peak, HF 50 W continuous / 200 W peak
• Frequency response: 70–20000 Hz (±3 dB), 45–20000 Hz (-10 dB)
• Maximum SPL: 133 dB, 138 dB peak
• Sensitivity: 99 dB (1 W / 1 m)
• Nominal impedance: 8 Ω
• Dispersion: 80° H x 50° V at -6 dB points, rotatable waveguide
• Connections: 2 x NL4 input / link
• Pole sockets: 2 x 35 mm, straight and tilted
• Enclosure: 15 mm plywood, steel grille
• Dimensions: 712 x 430 x 383 mm (H x W x D)
• Weight: 27.0 kg

What’s Included

• 1 x Turbosound PQ15 passive loudspeaker

Who Is It For

For professional mobile and installed systems, stage monitoring, main sound reinforcement and delay coverage. A compatible Lab Gruppen amplifier and manufacturer DSP preset are required.
