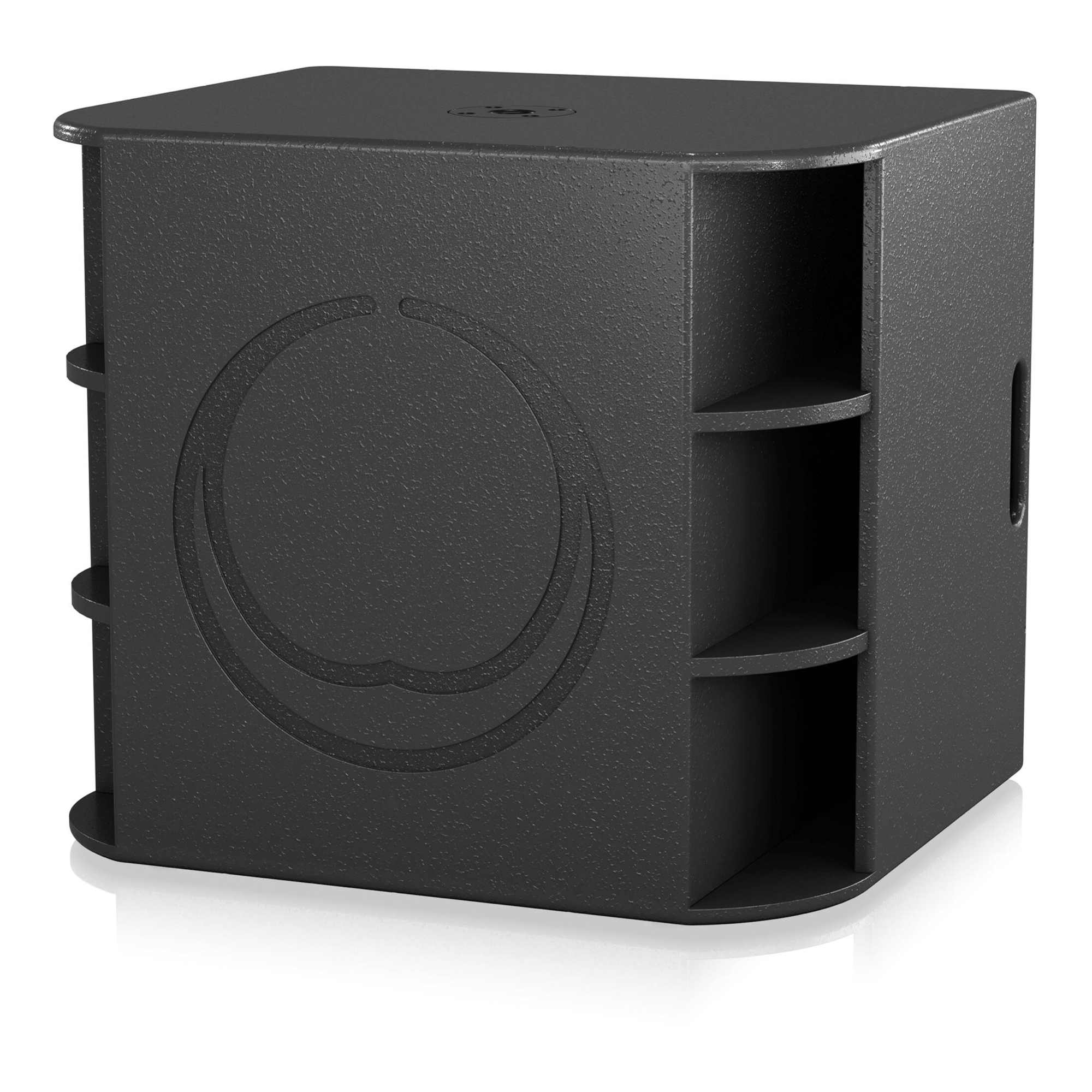

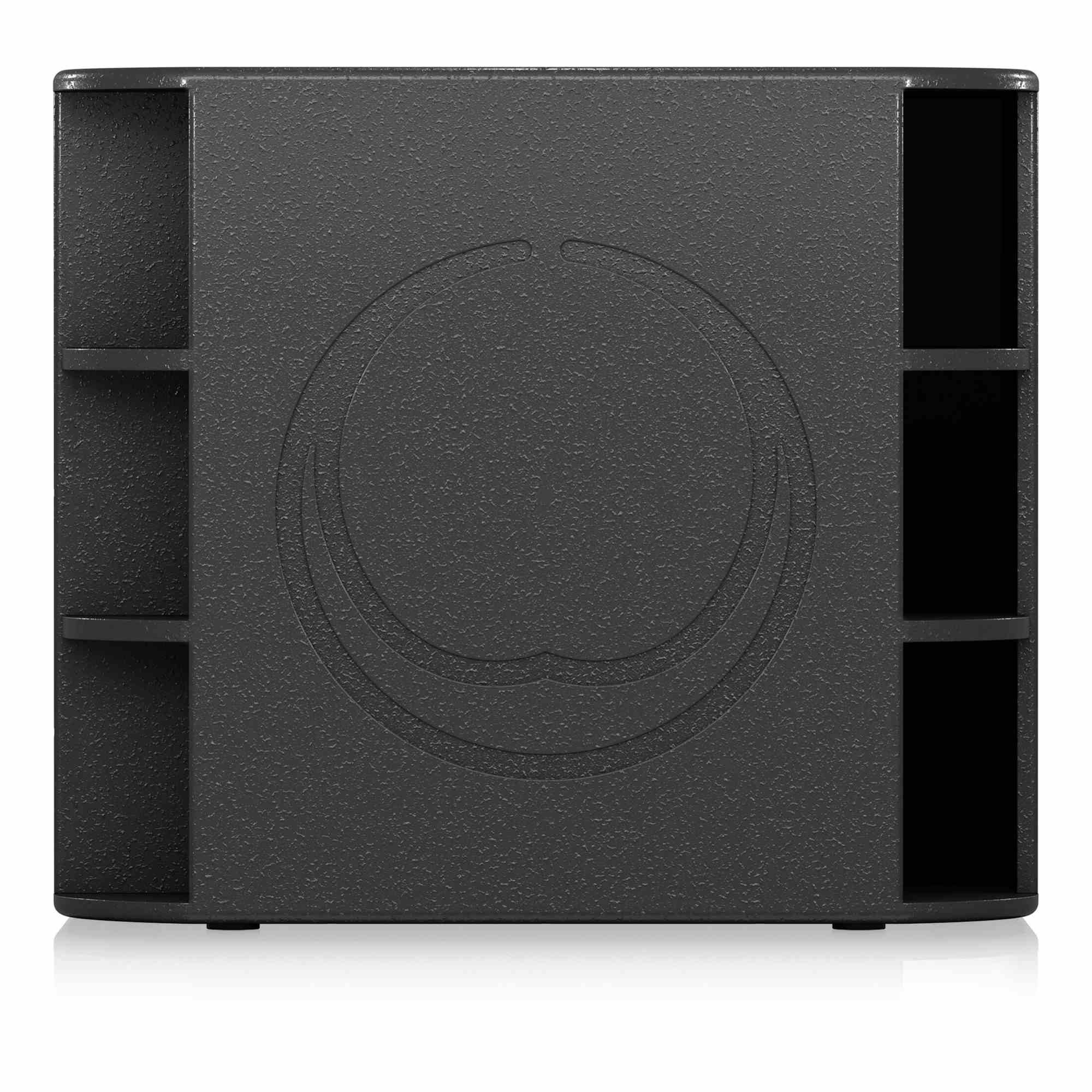

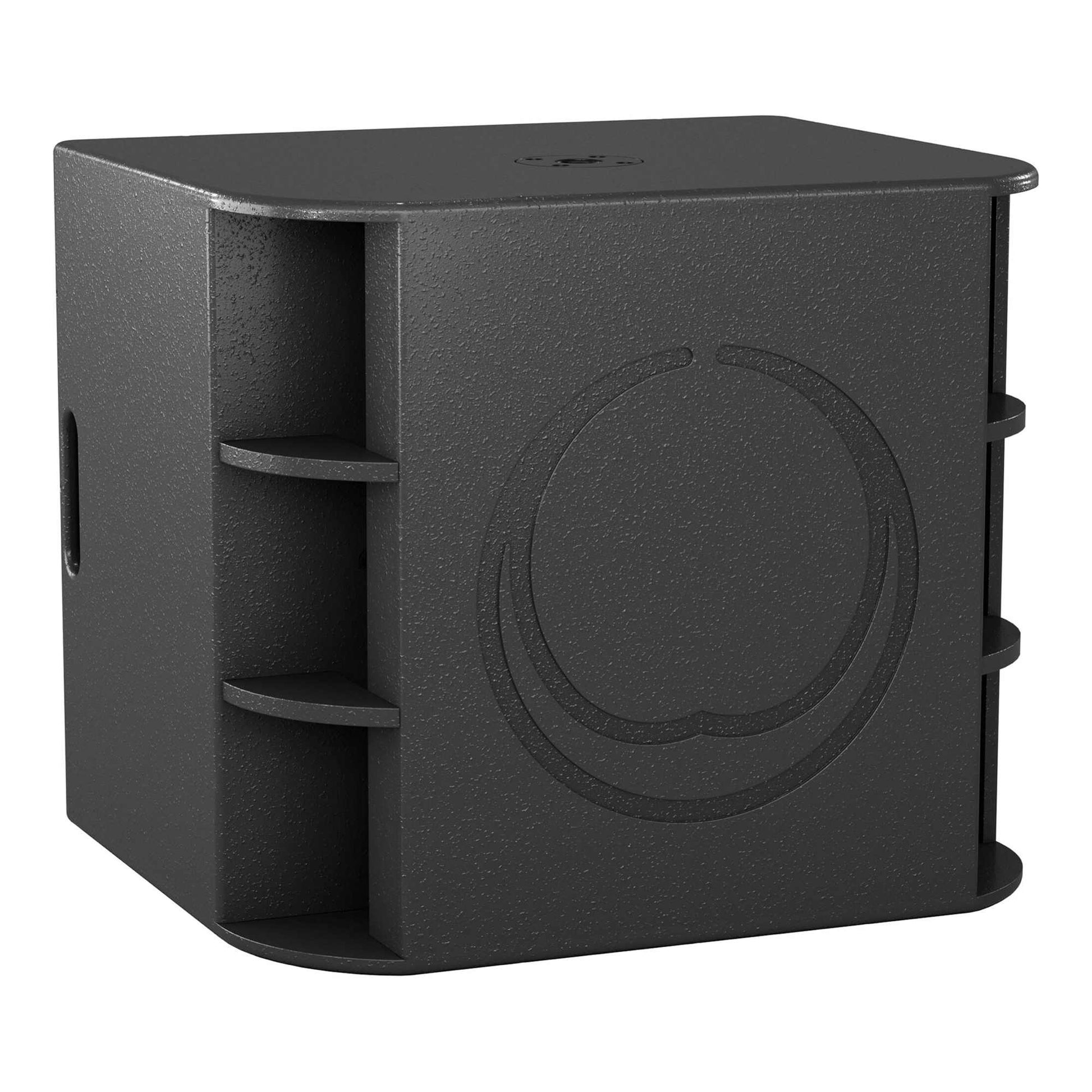

TURBOSOUND MILAN M18B Powered Subwoofer

Turbosound Milan M18B 18-Inch Powered Subwoofer

The Turbosound Milan M18B is a 2,200 W powered 18-inch subwoofer designed for portable PA systems and permanent sound installations.

Its bandpass enclosure provides efficient low-frequency reproduction and extends the frequency range of a Milan sound system. Steep cut-off slopes help the subwoofer integrate effectively with Milan Series full-range loudspeakers. A single M18B can provide low-frequency extension for one or two Milan Series top cabinets.

The integrated 2,200 W Class-D power amplifier and switch-mode power supply operate together with Klark Teknik digital signal processing. Dynamic equalisation and limiting manage system performance, while the high-excursion 18-inch low-frequency driver features a 4-inch voice coil and double suspension.

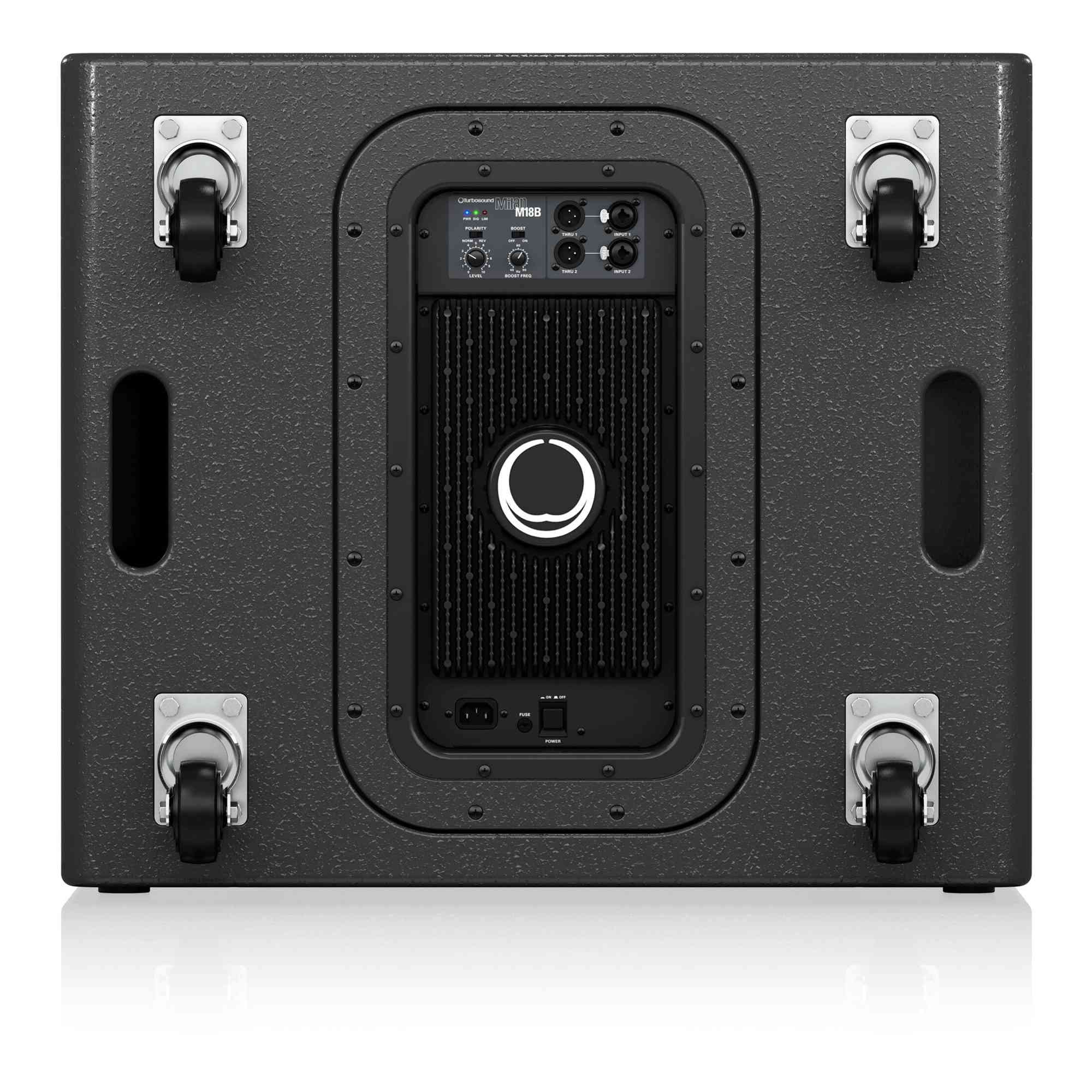

The onboard control panel provides level, polarity, bass boost and boost frequency controls. Two combination XLR / 6.3 mm inputs accept balanced or unbalanced signals, while two balanced XLR Thru outputs pass full-range signals to powered loudspeakers or additional powered subwoofers.

The screwed and glued birch plywood enclosure has a hard-wearing semi-matt black finish. A powder-coated perforated steel grille protects the driver, while the 36 mm pole-mount socket supports a satellite loudspeaker. Supplied plated steel castors with rubber tyres make the 48 kg cabinet easier to transport.

Main Features

• Powered 18-inch subwoofer extends the low-frequency performance of portable and permanently installed PA systems
• 2,200 W Class-D power amplifier combines high output power with efficient operation
• Klark Teknik DSP with dynamic equalisation and limiting manages system performance
• Bandpass enclosure provides efficient reproduction within a defined low-frequency range
• High-excursion 18-inch driver with a 4-inch voice coil and double suspension is designed for demanding low-frequency reproduction
• Adjustable +6 dB bass boost allows the centre frequency to be selected between 40 and 90 Hz
• Polarity switch helps align the subwoofer with the other loudspeakers in the system
• Two combination XLR / 6.3 mm inputs accept balanced and unbalanced line-level signals
• Two balanced XLR Thru outputs allow connection to powered full-range loudspeakers or additional subwoofers
• Birch plywood enclosure and perforated steel grille are suited to portable and permanent applications
• 36 mm pole-mount socket supports a satellite loudspeaker above the subwoofer

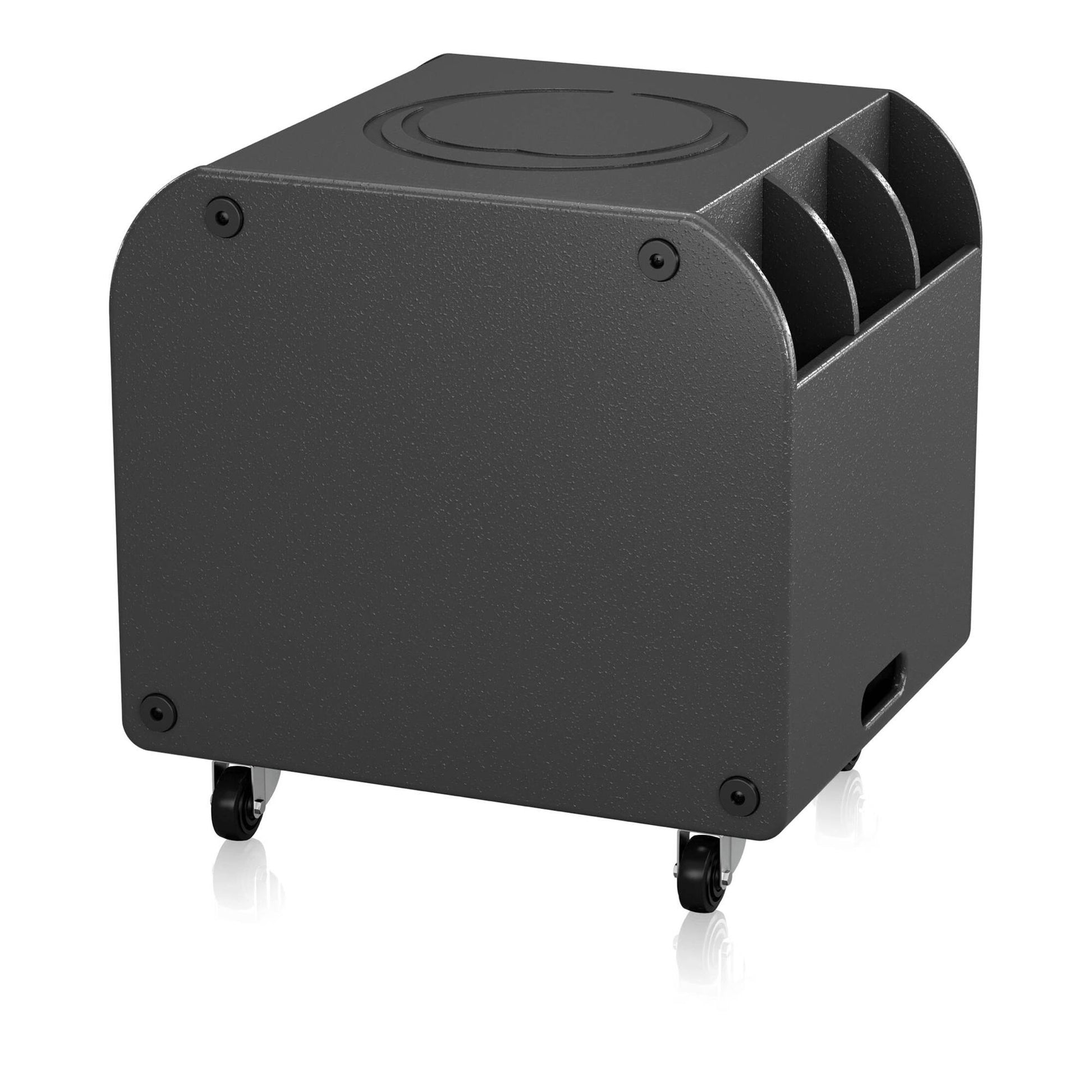

• Plated steel castors with rubber tyres simplify transportation of the 48 kg cabinet

Technical Specifications

• Type: powered bandpass subwoofer
• Driver: 1 x 18-inch low-frequency driver
• Driver diameter: 457 mm
• Voice coil: 4 inches
• Maximum output power: 2,200 W
• Amplifier class: Class-D
• Signal processing: Klark Teknik DSP with dynamic equalisation and limiting
• Frequency range (±3 dB): 40 Hz–100 Hz
• Frequency range (-10 dB): 30 Hz–150 Hz
• Maximum SPL: 134 dB peak, measured in half-space
• Bass boost: +6 dB, continuously adjustable from 40 to 90 Hz, Q = 1
• Controls: level, polarity, boost, boost frequency and mains power
• Inputs: 2 x combination XLR / 6.3 mm connectors, balanced or unbalanced
• Thru outputs: 2 x balanced 3-pin XLR connectors
• Input sensitivity: +4 dBu with the level control at the centre position
• Input impedance: 10 kΩ unbalanced, 20 kΩ balanced
• Indicators: blue power, green signal and red limit LEDs
• Amplifier protection: short circuit, thermal, overcurrent and DC protection
• European mains voltage: 220–240 V AC
• Fuse: T 6.3 A H 250 V
• Power consumption: 280 W at 1/8 maximum power
• Mains connector: IEC connector with integrated fuseholder
• Enclosure: screwed and glued birch plywood
• Finish: semi-matt black paint
• Protective grille: powder-coated perforated steel
• Pole-mount socket: 36 mm
• Dimensions (H x W x D): 590 x 640 x 530 mm
• Net weight: 48 kg

In the Box

• Turbosound Milan M18B powered subwoofer
• Plated steel transport castors with rubber tyres

Who Is It For

The Turbosound Milan M18B is designed for travelling musicians, houses of worship, banquet facilities, nightclubs and other venues requiring additional low-frequency output in a portable or permanently installed PA system.
