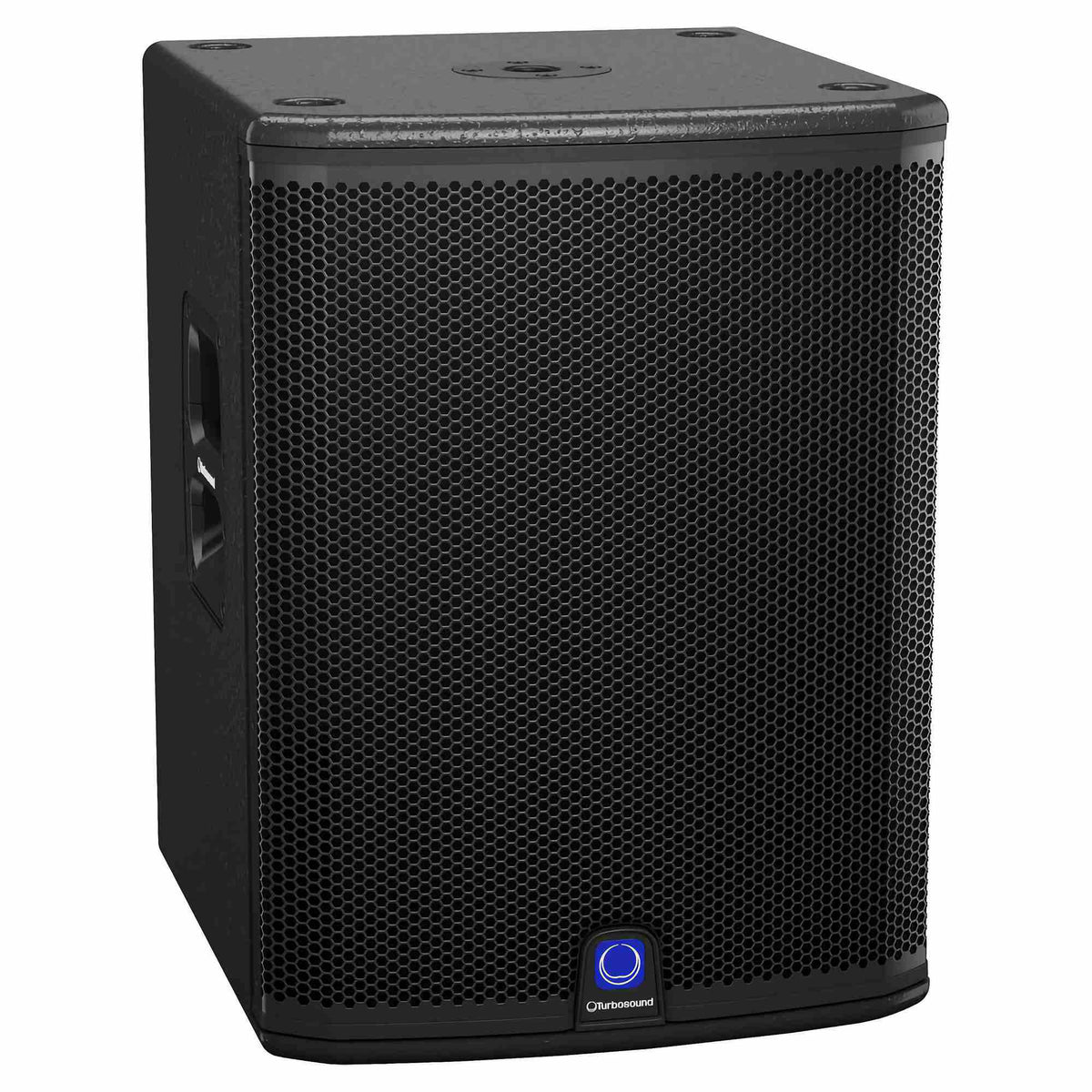

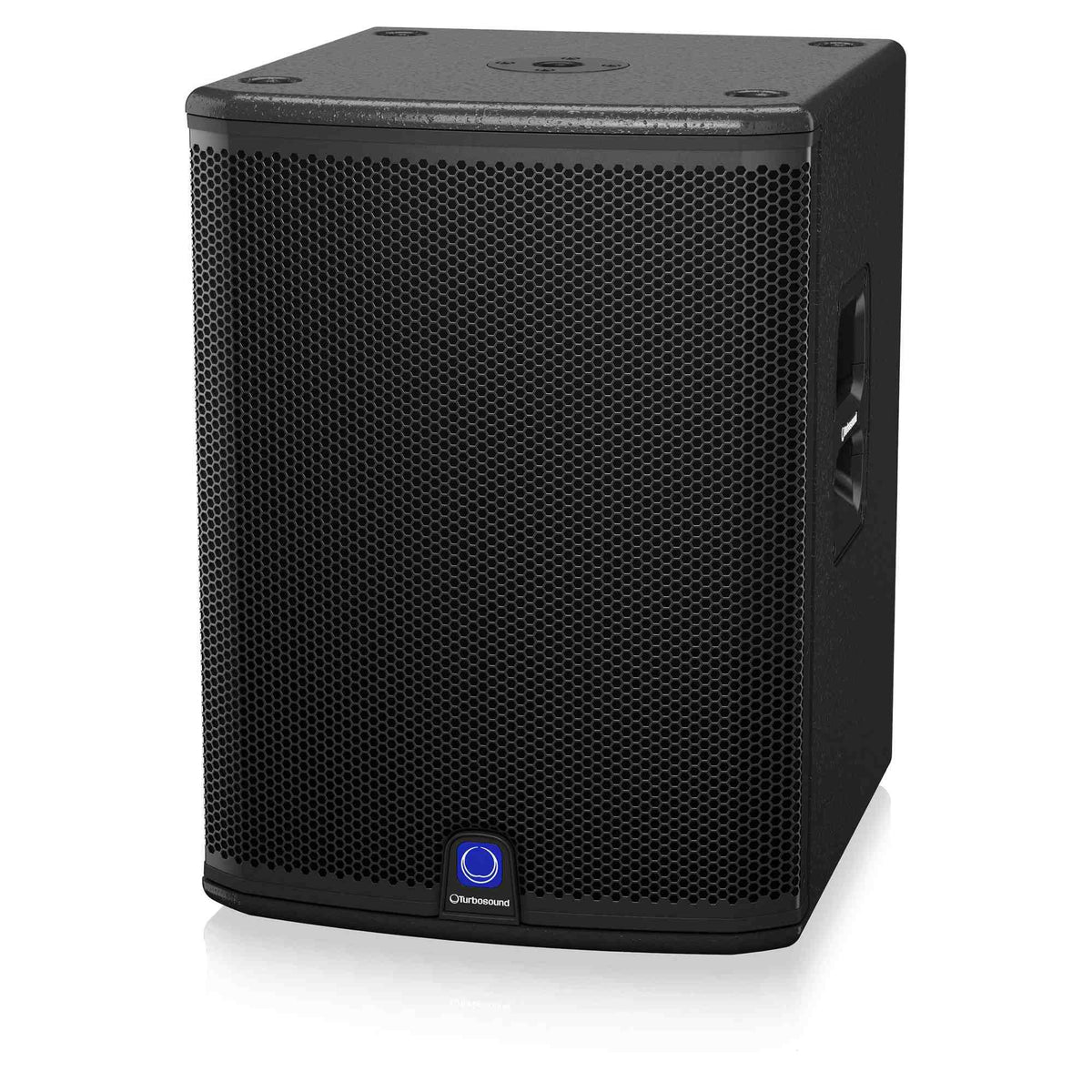

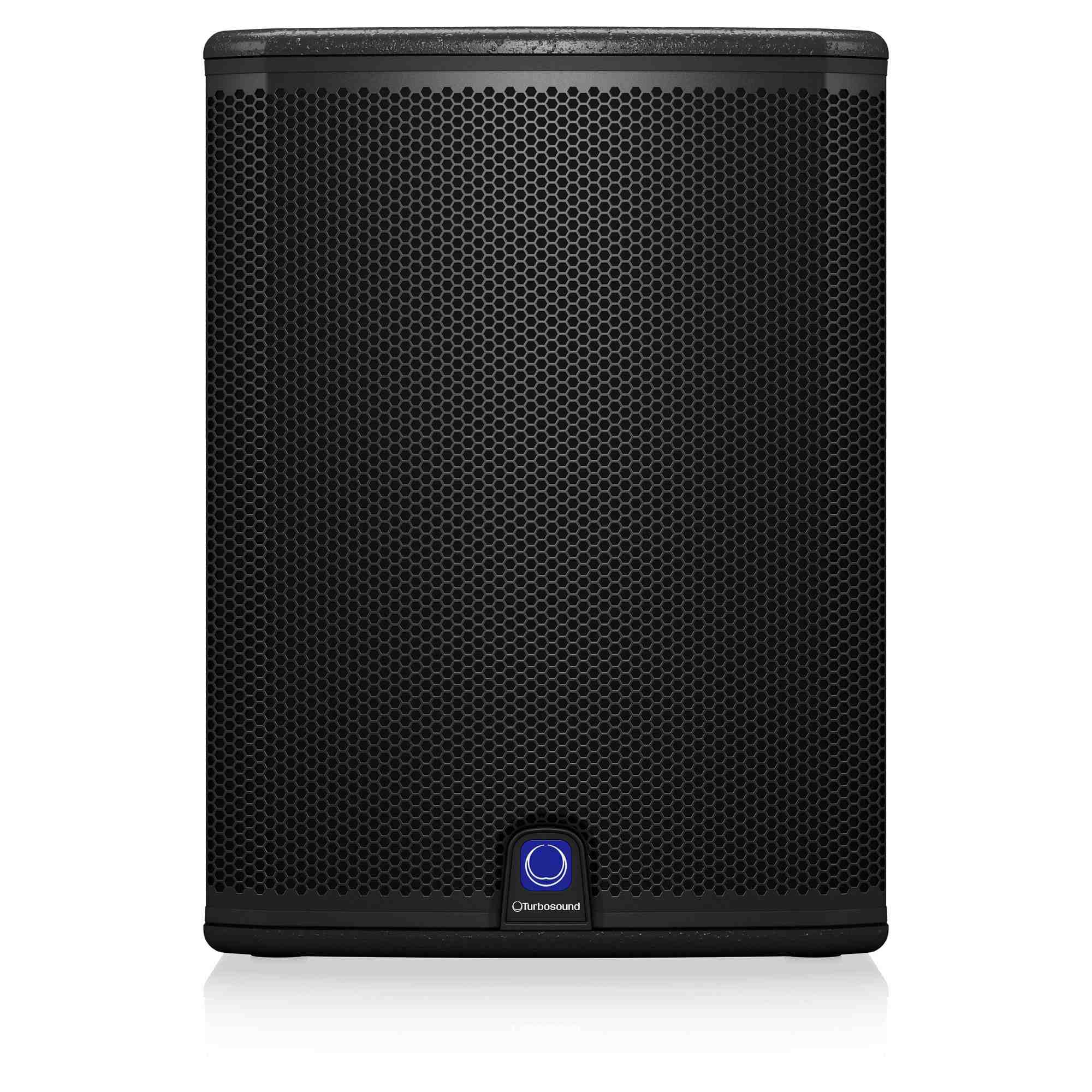

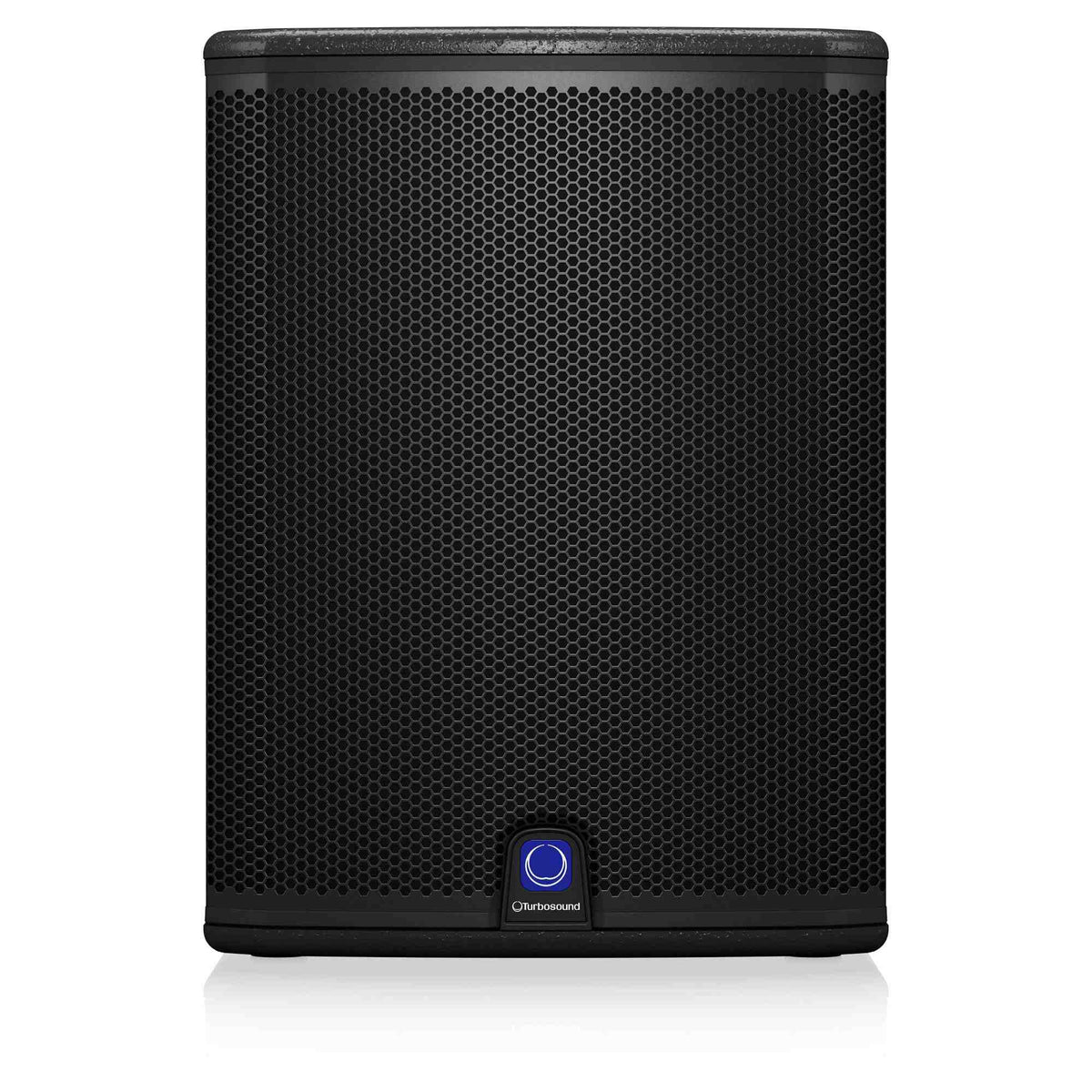

Turbosound iQ15B Powered Subwoofer

Turbosound iQ15B 15-Inch Powered Subwoofer

The Turbosound iQ15B is a 15-inch powered subwoofer with a KLARK TEKNIK amplifier and DSP.

It extends the low-frequency output of full-range loudspeakers in live music, DJ and installed sound systems. The DSP menu includes alignment presets for the iQ8, iQ10, iQ12 and iQ15.

The built-in Class-D amplifier delivers a maximum output of 3000 W. Crossover, equalisation, phase and delay settings allow the subwoofer to be adjusted to the system, while limiting helps protect against overload.

Two XLR / 6.3 mm combination inputs accept analogue signals. The XLR outputs pass unprocessed copies of the corresponding inputs to other powered loudspeakers. ULTRANET carries digital audio between compatible devices, and USB supports DSP control from a computer and firmware updates.

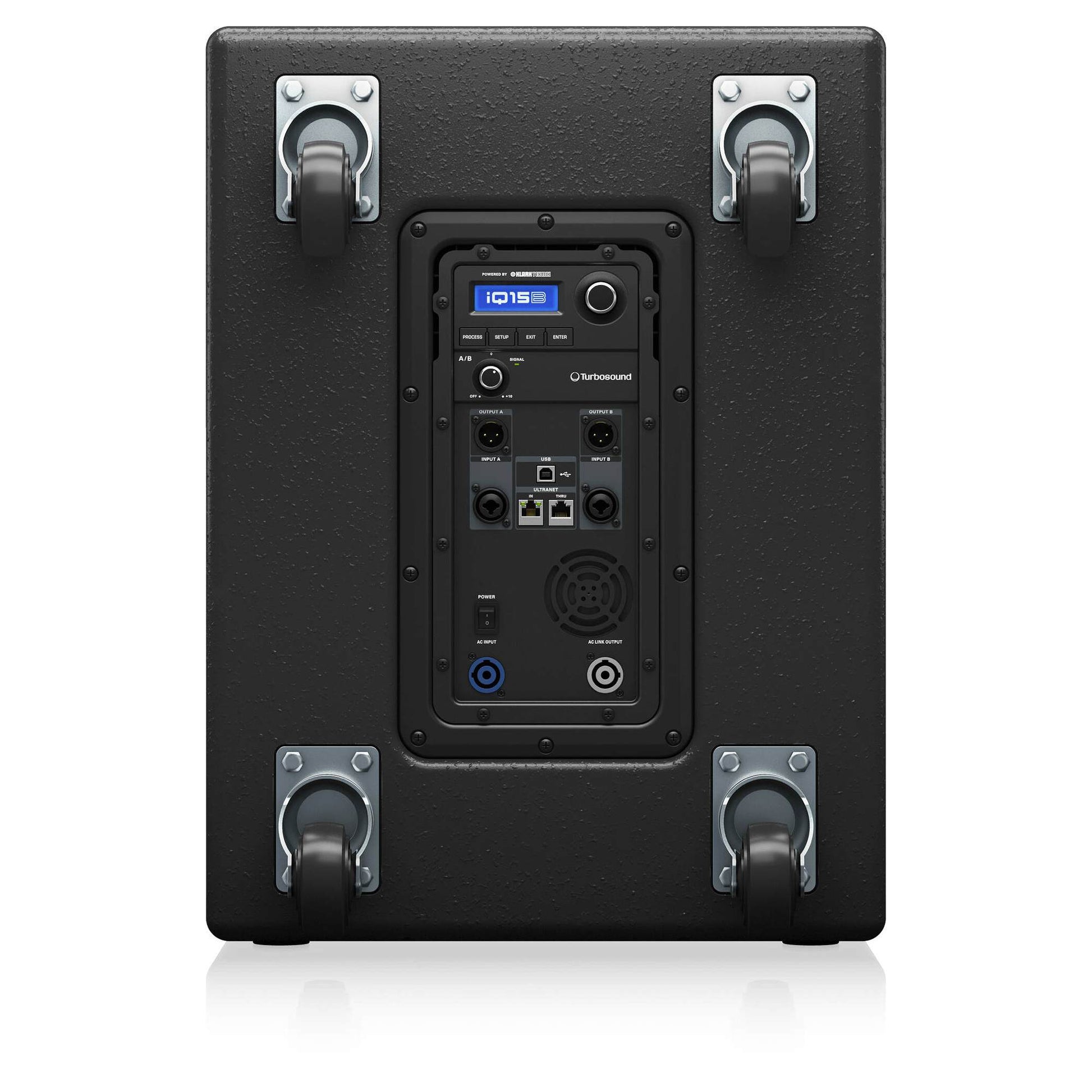

Rear-panel buttons and a rotary encoder provide access to settings shown on the LCD. The birch plywood cabinet has a 35 mm pole socket, and the supplied castors make it easier to move.

Main Features

• A 15-inch low-frequency driver extends the bass output of a full-range system.
• The built-in amplifier removes the need for a separate power amplifier.
• DSP alignment presets simplify integration with iQ full-range loudspeakers.
• Adjustable crossover and phase settings help match the subwoofer to the system.
• Up to 300 ms of delay supports time alignment with other loudspeakers.
• ULTRANET accepts digital audio from a compatible mixing console.

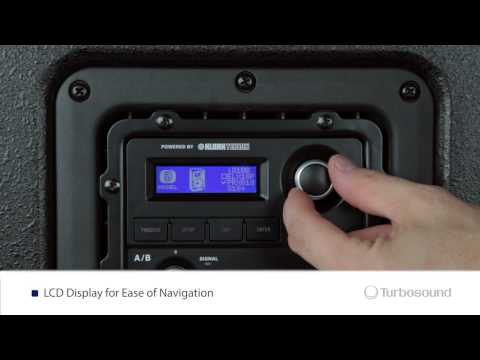

• The LCD provides direct access to DSP settings at the loudspeaker.
• Supplied castors make the cabinet easier to transport.

Technical Specifications

• Product type: powered subwoofer
• Driver: 1 x 15-inch low-frequency driver
• Amplifier: Class-D, 3000 W maximum output power
• Frequency response: 50–130 Hz (±3 dB), 40–130 Hz (-10 dB)
• Maximum SPL: 130 dB peak
• Analogue inputs: 2 x XLR / 6.3 mm combination sockets
• Analogue outputs: 2 x XLR, linked to the inputs
• Digital connections: 2 x RJ45 (ULTRANET IN / THRU), USB
• Delay: 0–300 ms
• European mains supply: 220–240 V AC, 50/60 Hz
• Mains connections: powerCON input and link output
• Enclosure: birch plywood, black finish, steel grille
• Pole socket: 35 mm
• Dimensions: 602 x 445 x 495 mm (H x W x D)
• Weight: 30.6 kg

What’s Included

• 1 x Turbosound iQ15B powered subwoofer
• Transport castors
• Region-appropriate mains cable

Who Is It For

For low-frequency reinforcement in live music, DJ and event sound systems. Suitable for portable or installed setups used alongside full-range loudspeakers.
