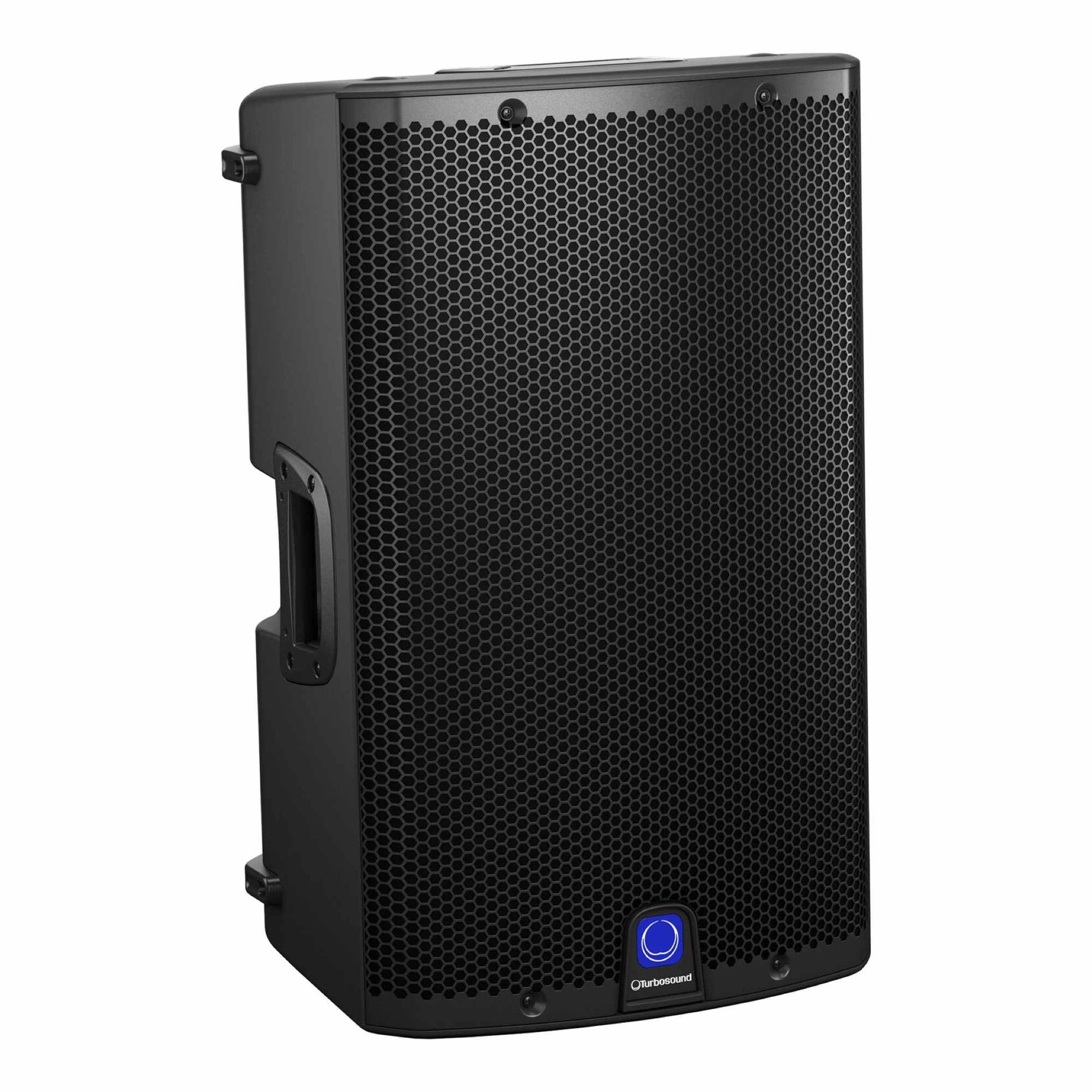

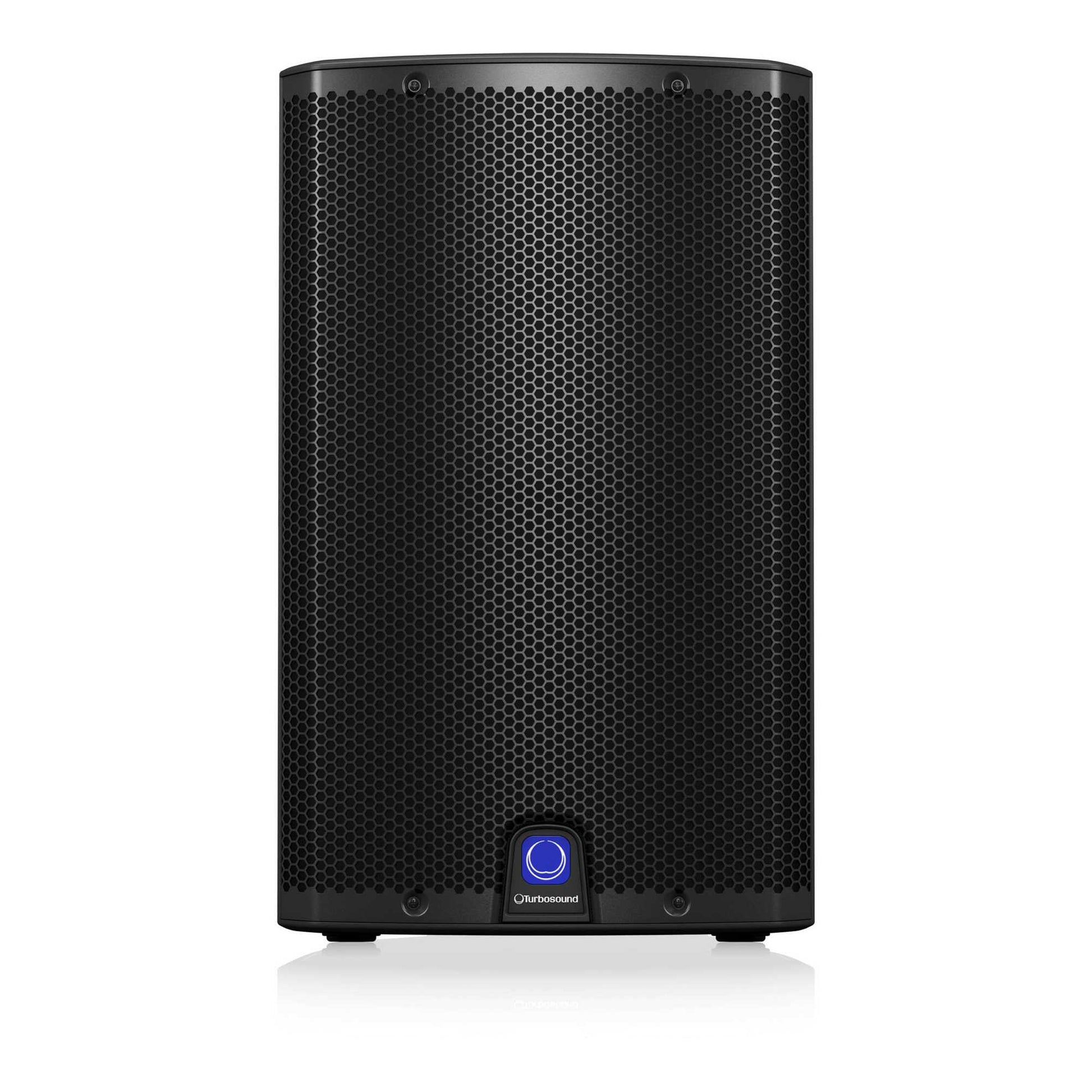

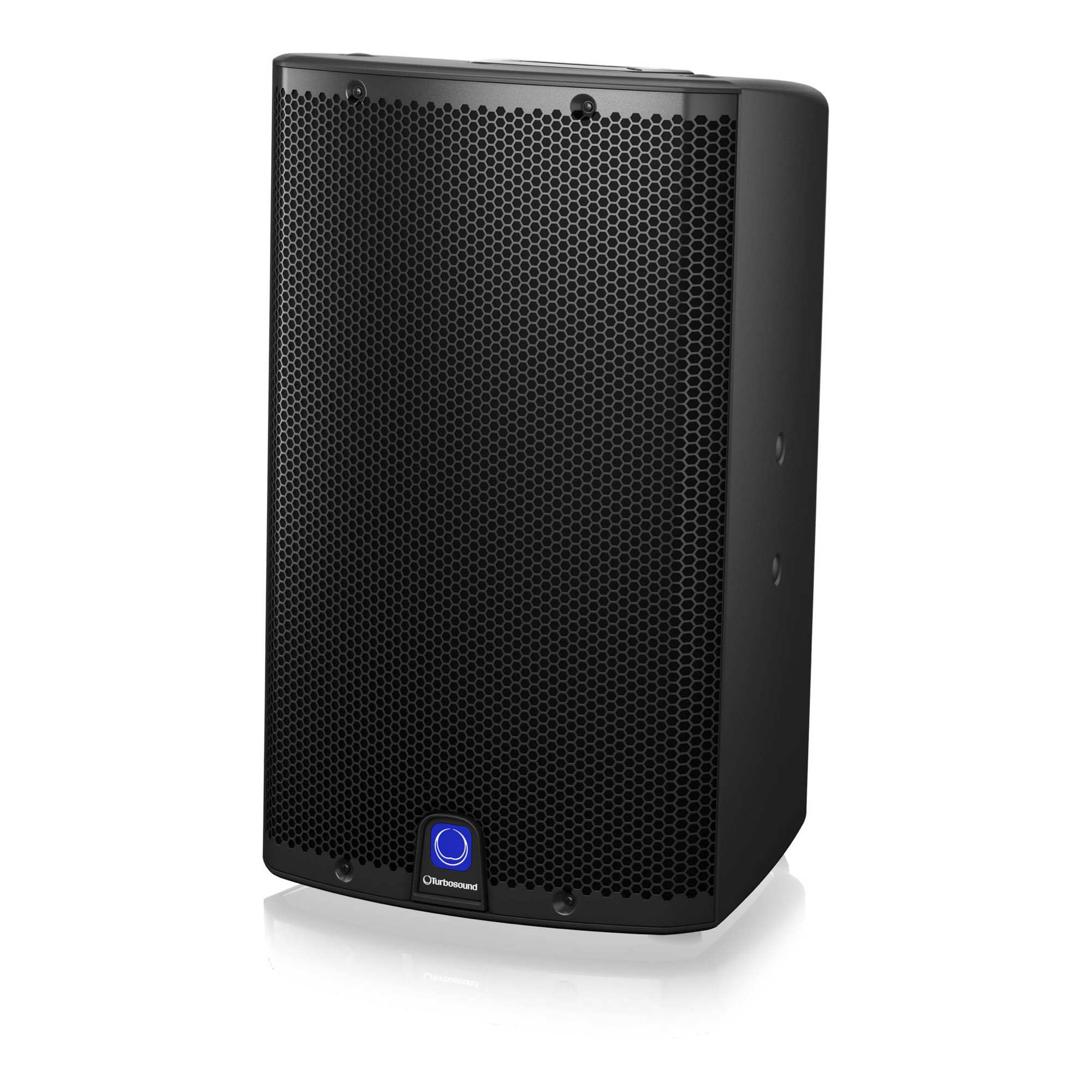

Turbosound iQ12 Two-Way Powered Loudspeaker

Turbosound iQ12 Two-Way Powered Loudspeaker

The Turbosound iQ12 is a 2,500 W two-way powered loudspeaker designed for portable and fixed-installation music and speech sound reinforcement systems.

The loudspeaker combines a 12-inch low-frequency driver with a low-mass voice coil and a high-temperature 1-inch compression driver. Its nominal 80° horizontal by 60° vertical dispersion pattern helps direct sound evenly across the intended audience area.

A two-channel KLARK TEKNIK Class-D amplifier delivers up to 2,500 W of output power. The integrated KLARK TEKNIK digital signal processor manages dynamic EQ, limiting, speaker modelling, subwoofer integration and feedback control. The SCC (Spatial Contour Control) function adjusts the frequency response according to whether the loudspeaker is positioned on a stand, floor, wall or ceiling.

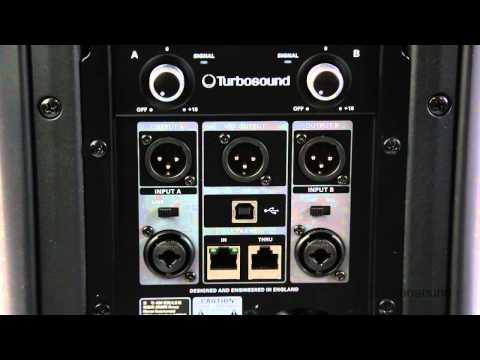

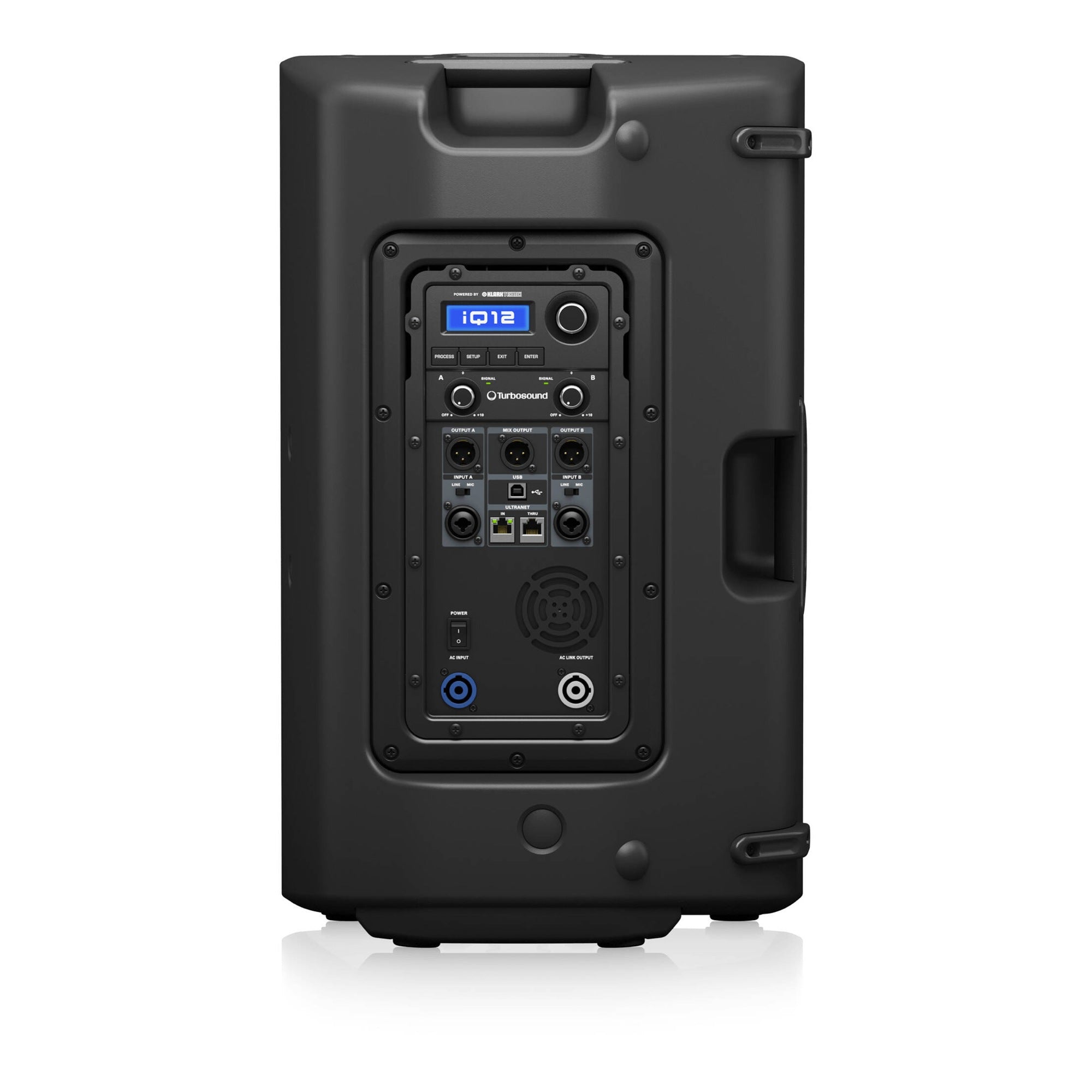

Two independent input channels feature combination XLR / 6.3 mm connectors, selectable microphone or line-level sensitivity and individual gain controls. Dedicated XLR outputs for both channels and a separate Mix Out connector allow the signal to be routed to additional audio equipment. ULTRANET networking transmits up to 16 channels of digital audio between compatible mixers, loudspeakers and personal monitoring systems over CAT5 cable.

Local control is provided through a backlit LCD screen, a rotary push encoder and dedicated function buttons. The USB connection supports computer-based remote control and DSP or speaker-modelling firmware updates. A lightweight fibre glass reinforced composite enclosure, powder-coated perforated steel grille, internal rigging points and dual-angle pole mount make the iQ12 suitable for both portable use and permanent installations.

Main Features

• Two-way powered loudspeaker for portable and fixed sound reinforcement systems
• KLARK TEKNIK Class-D amplifier delivers up to 2,500 W of output power
• 12-inch low-frequency driver with a low-mass voice coil supports improved transient response
• High-temperature 1-inch compression driver with a copper-clad aluminium voice coil extends high-frequency reproduction
• KLARK TEKNIK DSP provides dynamic EQ, limiting, delay and system configuration functions
• Speaker-modelling presets provide a selection of different loudspeaker response characteristics
• SCC processing compensates the frequency response according to loudspeaker position and installation
• Integrated subwoofer alignment and feedback-control functions simplify system configuration
• Two microphone or line-level inputs include independent gain controls and signal indicators
• ULTRANET networking transmits up to 16 digital audio channels over a single CAT5 cable
• LCD screen and rotary push encoder provide direct access to DSP parameters
• USB connectivity supports computer-based remote control and firmware updates
• Dual-angle pole mount allows the loudspeaker angle to be adjusted for audience coverage
• Internal M10 rigging points support permanent installation applications

Technical Specifications

• Product type: powered loudspeaker
• System: two-way
• Maximum output power: 2,500 W
• Amplifier type: two-channel Class-D
• Frequency response: 52 Hz–18 kHz, ±3 dB
• Frequency range: 45 Hz–20 kHz, –10 dB
• Maximum SPL: 130 dB peak
• Nominal dispersion: 80° horizontal × 60° vertical at –6 dB
• Low-frequency driver: 1 × 12-inch (308.5 mm)
• High-frequency driver: 1 × 1-inch (25.4 mm) compression driver
• Crossover type: active
• Limiters: independent HF, LF, peak and RMS
• Amplifier protection: short-circuit, open-circuit and thermal protection
• Audio inputs: 2 × combination XLR / 6.3 mm connectors
• Input sensitivity: line +4 dBu or microphone –22 dBu, selectable
• Input impedance: 20 kΩ unbalanced, 40 kΩ balanced
• Maximum input level: +21 dBu
• Channel outputs: 2 × XLR, linked to the corresponding inputs
• Mix output: 1 × balanced XLR
• Output impedance: 100 Ω unbalanced, 200 Ω balanced
• ULTRANET connections: 2 × RJ45
• ULTRANET channels: 16
• ULTRANET latency: less than 0.9 ms
• Recommended ULTRANET cable: shielded CAT5, up to 75 m
• DSP functions: position compensation, sound modes, speaker modelling and feedback control
• Display: 128 × 32 LCD with blue backlight
• Delay: 0–300 ms
• Equalisation: high and low shelving EQ plus 2 parametric EQ bands
• Preset memory: 20 presets, including 19 user-definable presets
• High-pass crossover: Linkwitz-Riley, 24 dB/octave
• Mains connections: powerCON input and link output
• Power supply: 220–240 V~, 50/60 Hz
• Power consumption: 150 W at 1/8 maximum power
• Enclosure: fibre glass reinforced composite
• Grille: powder-coated perforated steel
• Rigging points: 3 × M10
• Dimensions (H × W × D): 609 × 370 × 370 mm
• Net weight: 21.1 kg

In the Box

• Turbosound iQ12 powered loudspeaker
• Mains power cable

Who Is It For

The Turbosound iQ12 is designed for portable and fixed-installation music and speech sound reinforcement. It is suitable for sound engineers, musicians, performance and event venues, and other installations requiring a two-way powered loudspeaker with integrated DSP, flexible signal connectivity and ULTRANET digital audio networking.
