Trace Elliot Transit B Preamp

Trace Elliot Transit B Preamp

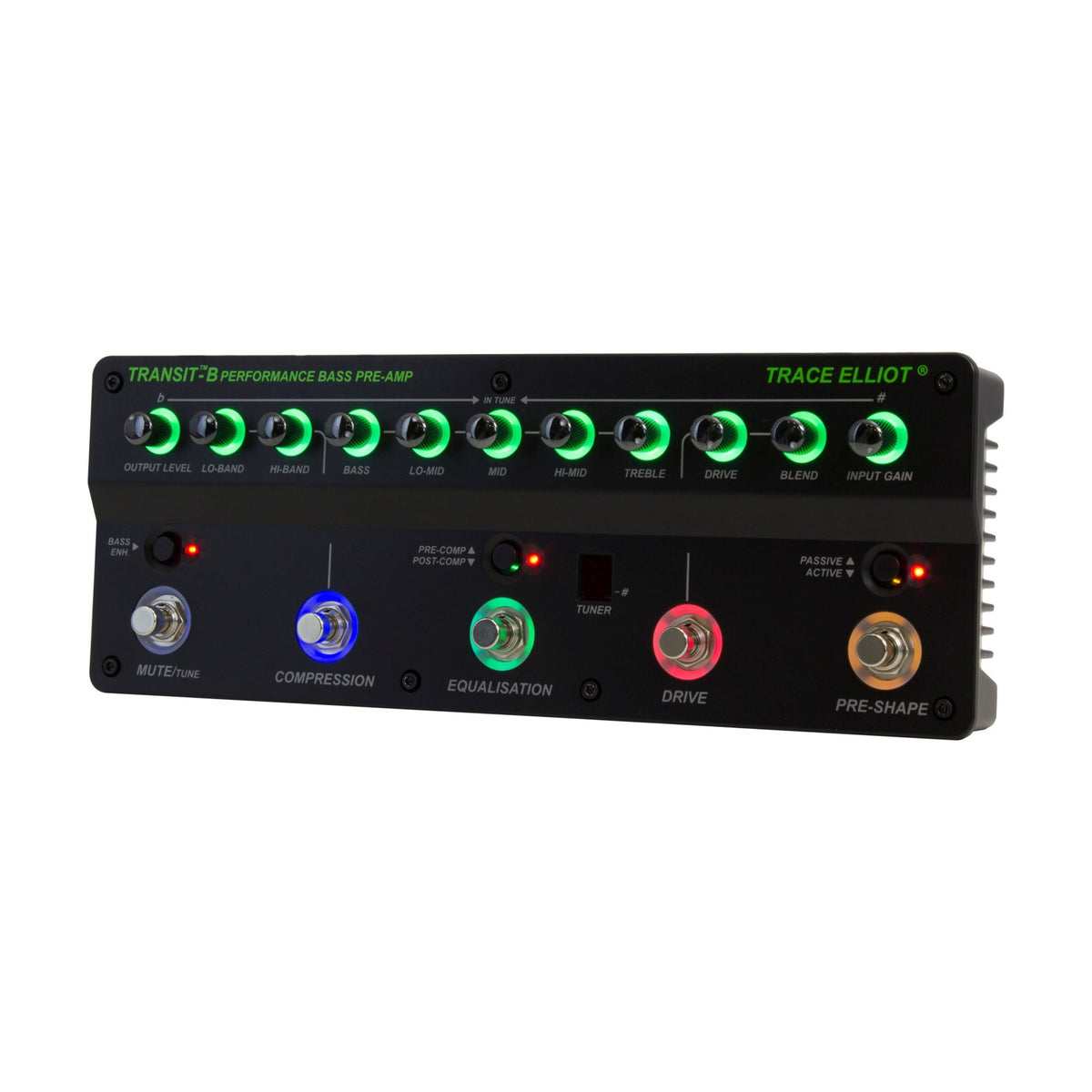

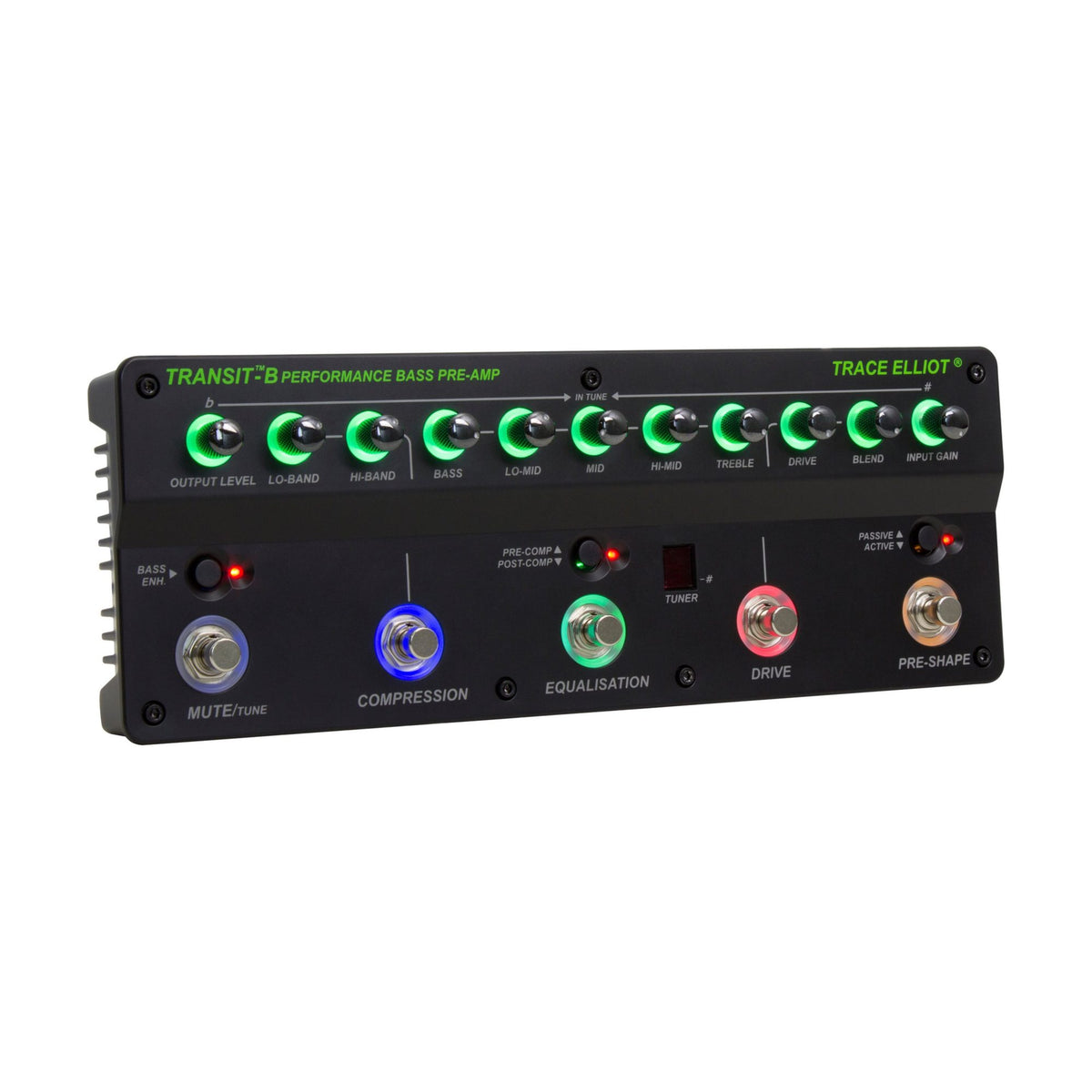

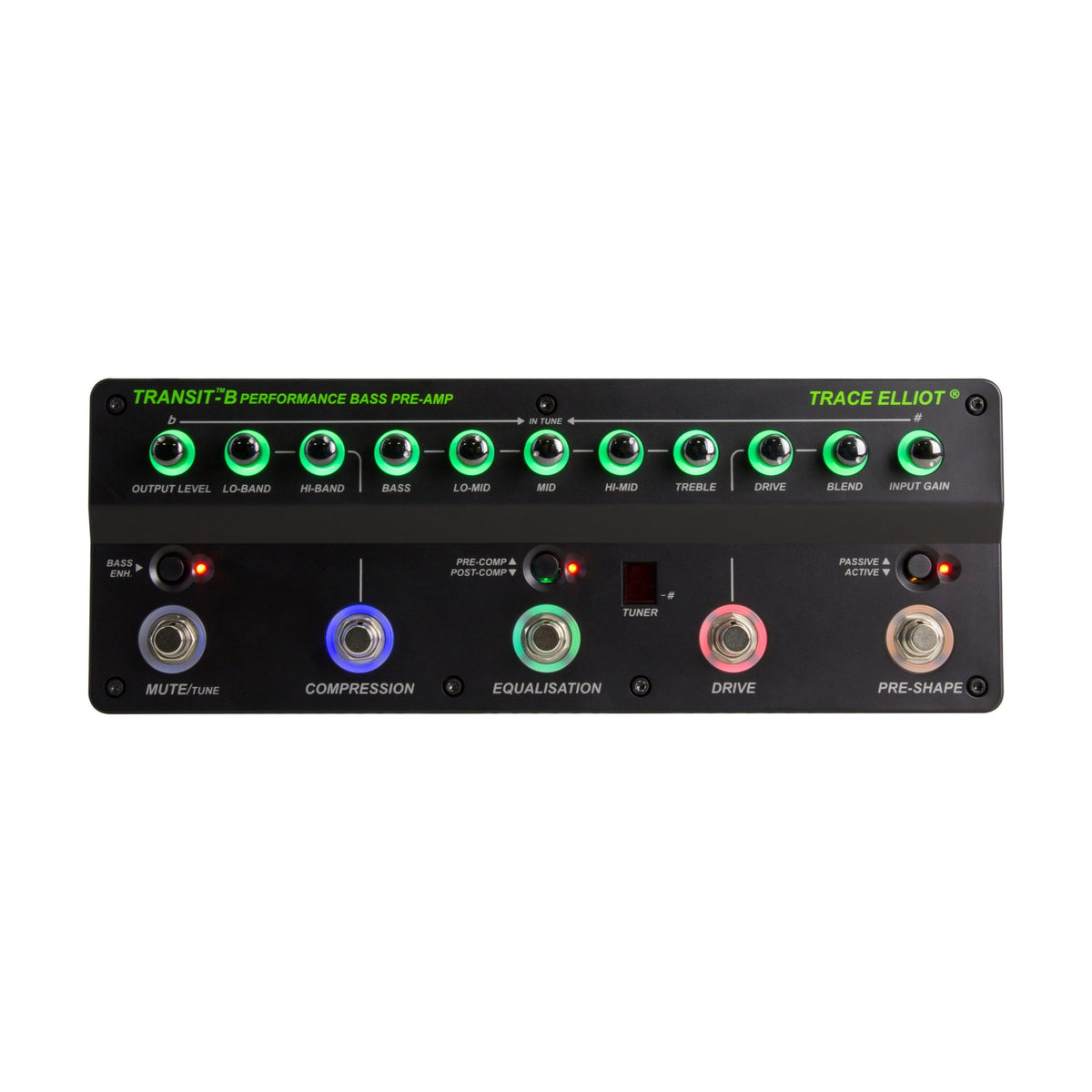

Trace Elliot Transit B is a bass preamp with effects.

Passive/Active switching accommodates different instrument signals. Gain and Output Level set input gain and the main output level separately, with an indicator showing input clipping.

Five-band EQ and Pre-Shape adjust the voicing. Dual-band compression processes frequencies on either side of a 333 Hz crossover and can operate before or after the equalizer.

Drive provides valve-style distortion, with Blend mixing processed and clean signals. Bass Enhancement generates low-frequency subharmonics and should be used with cabinets capable of reproducing the added bass content.

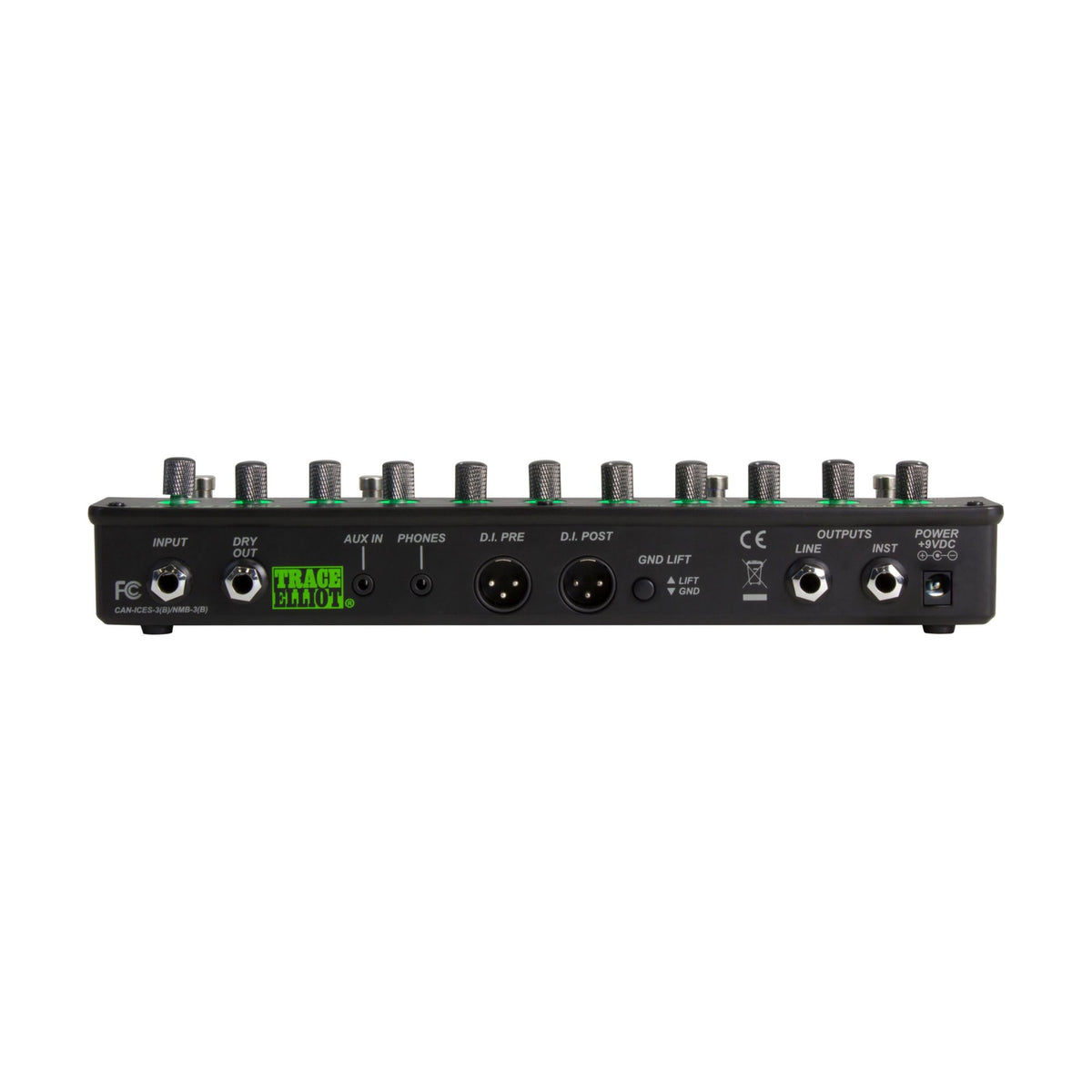

Instrument- and line-level outputs sit alongside Dry and separate pre/post XLR DI feeds. Output Level does not affect the DI levels. Aux input and headphones support practice with an external audio source, and tuner mute silences every output except Dry.

Main Features

• Passive/Active modes select the appropriate input setting for the instrument.
• Five-band EQ provides separate control across bass, midrange and treble.
• Low- and high-band compression have independent controls.
• Pre/post-EQ compressor placement changes how the processing stages interact.
• Drive with Blend retains a share of the clean signal alongside distortion.
• Pre and post DI provide separate unprocessed and processed feeds.
• A chromatic tuner and mute support tuning during a performance.
• A 9 V power adapter and carry bag are included.

Technical Specifications

• Input: 6.35 mm; Passive impedance 500 kΩ, Active 44 kΩ
• Equalizer: ±15 dB: 117 Hz, 279 Hz, 664 Hz, 1.73 kHz, 4.95 kHz
• Compressor: 2 bands, 333 Hz crossover; pre/post-EQ placement
• Effects: Pre-Shape, Drive, Blend, Bass Enhancement, chromatic tuner
• 6.35 mm Outputs: Dry, INST (−10 dBV), LINE (+4 dBu); INST and LINE impedance 1 kΩ
• DI Outputs: 2 balanced XLR: pre and post, +4 dBu; Ground Lift
• Aux and Headphones: 3.5 mm; aux +4 dBu, 10 kΩ; headphones up to 500 mW RMS / 4 Ω
• Power Supply: 9 V DC, 900 mA, centre negative; adapter included
• Dimensions (W × D × H): 312 × 114 × 58.4 mm
• Weight: pedal 1.18 kg; pedal with bag and power adapter 1.45 kg

What’s Included

• Trace Elliot Transit B preamp, 1 unit
• 9 V DC, 900 mA power adapter, 1 unit

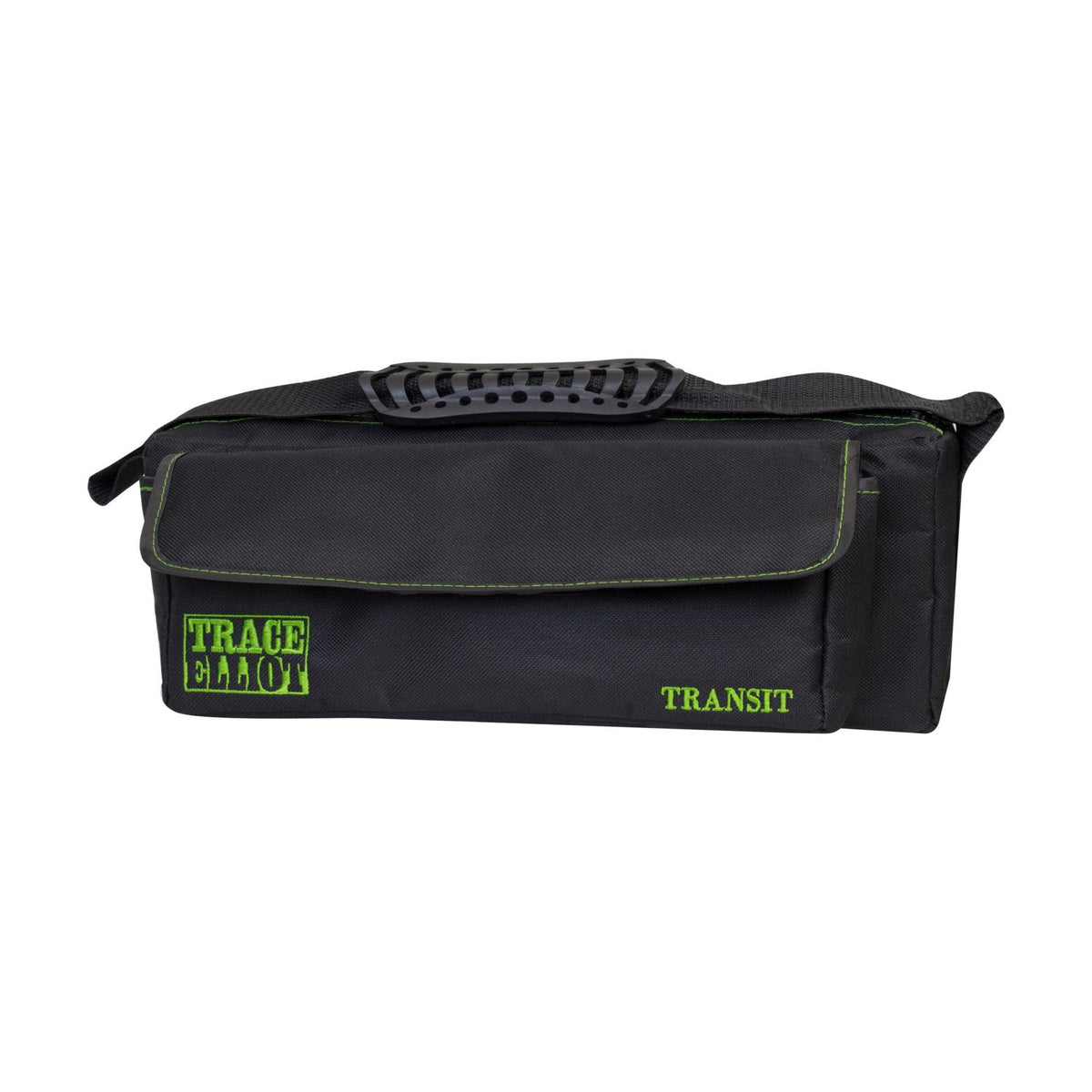

• Carry bag, 1 unit

Who Is It For

For bass players preparing a signal for an amplifier, live sound mixer or recorder in a single device. Separate INST and LINE connections allow selection of a level appropriate to the receiving equipment.
