Trace Elliot Transit A Preamp

Trace Elliot Transit A Preamp

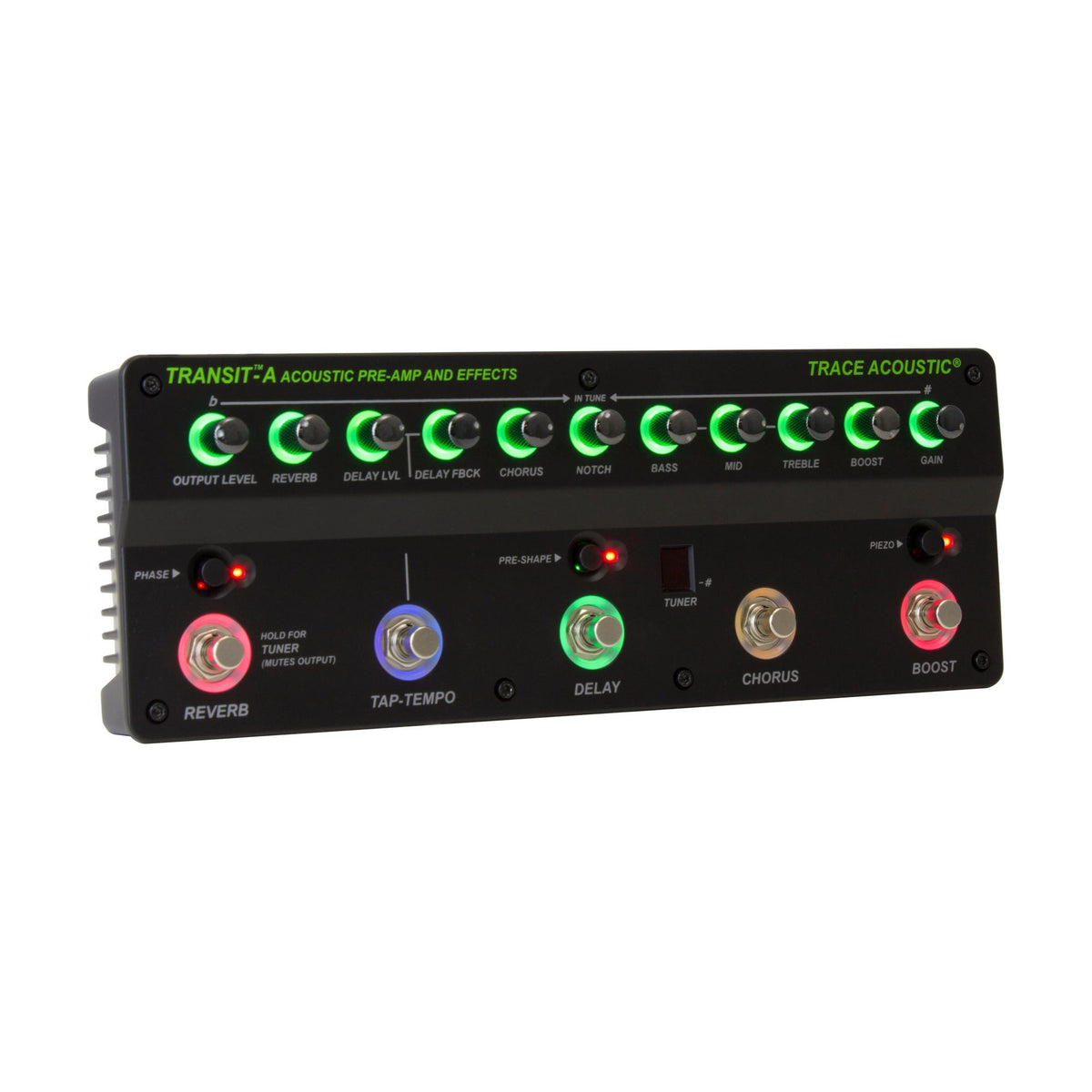

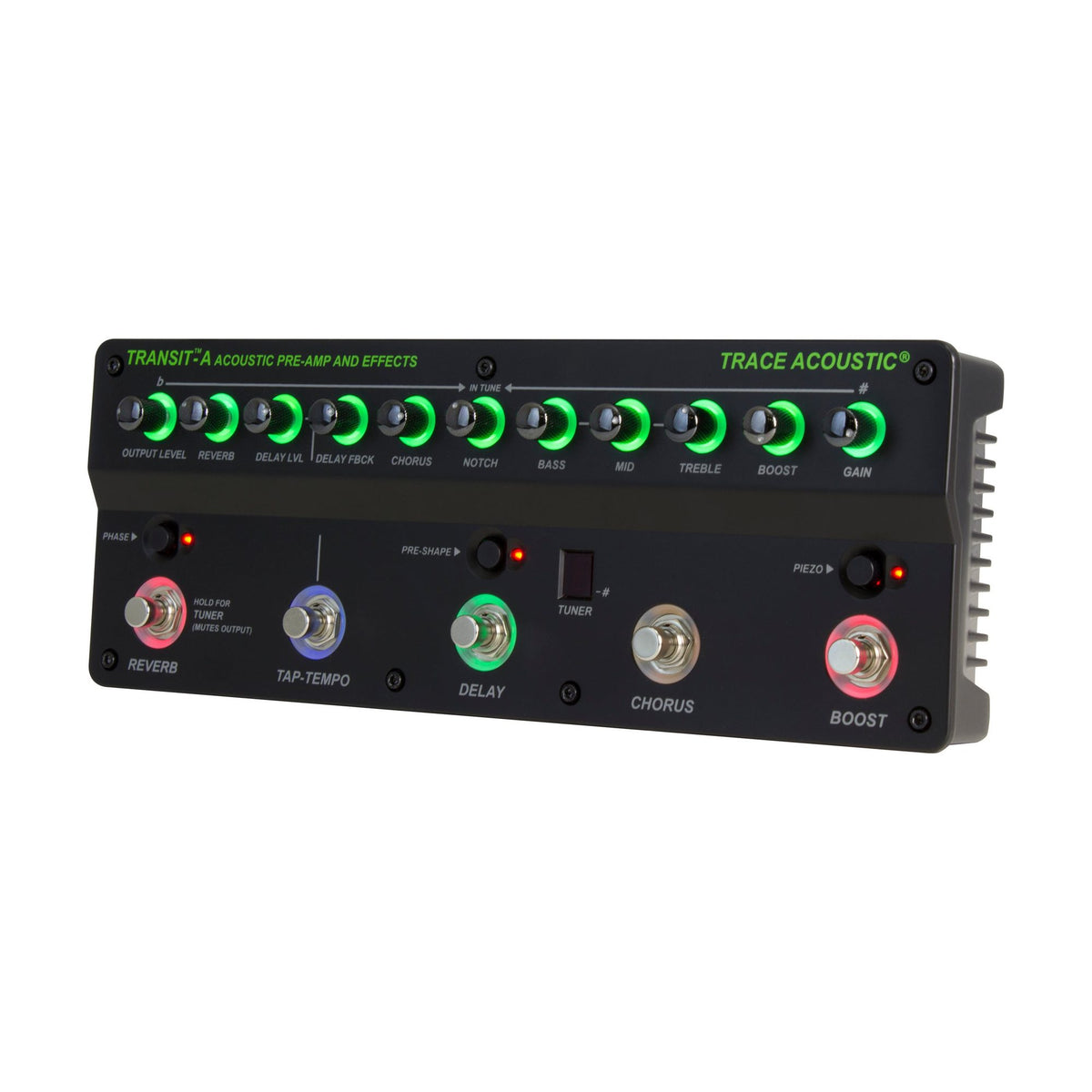

Trace Elliot Transit A is an acoustic guitar preamp with effects.

Route the instrument signal to an amplifier, mixer or recorder. PIEZO mode raises input impedance above 10 MΩ and adds 10 dB of gain for a passive piezo pickup.

Gain-controlled compression works alongside three-band EQ and Pre-Shape voicing. The variable notch filter targets feedback frequencies, while phase reversal offers another way to adjust the interaction between instrument and speakers.

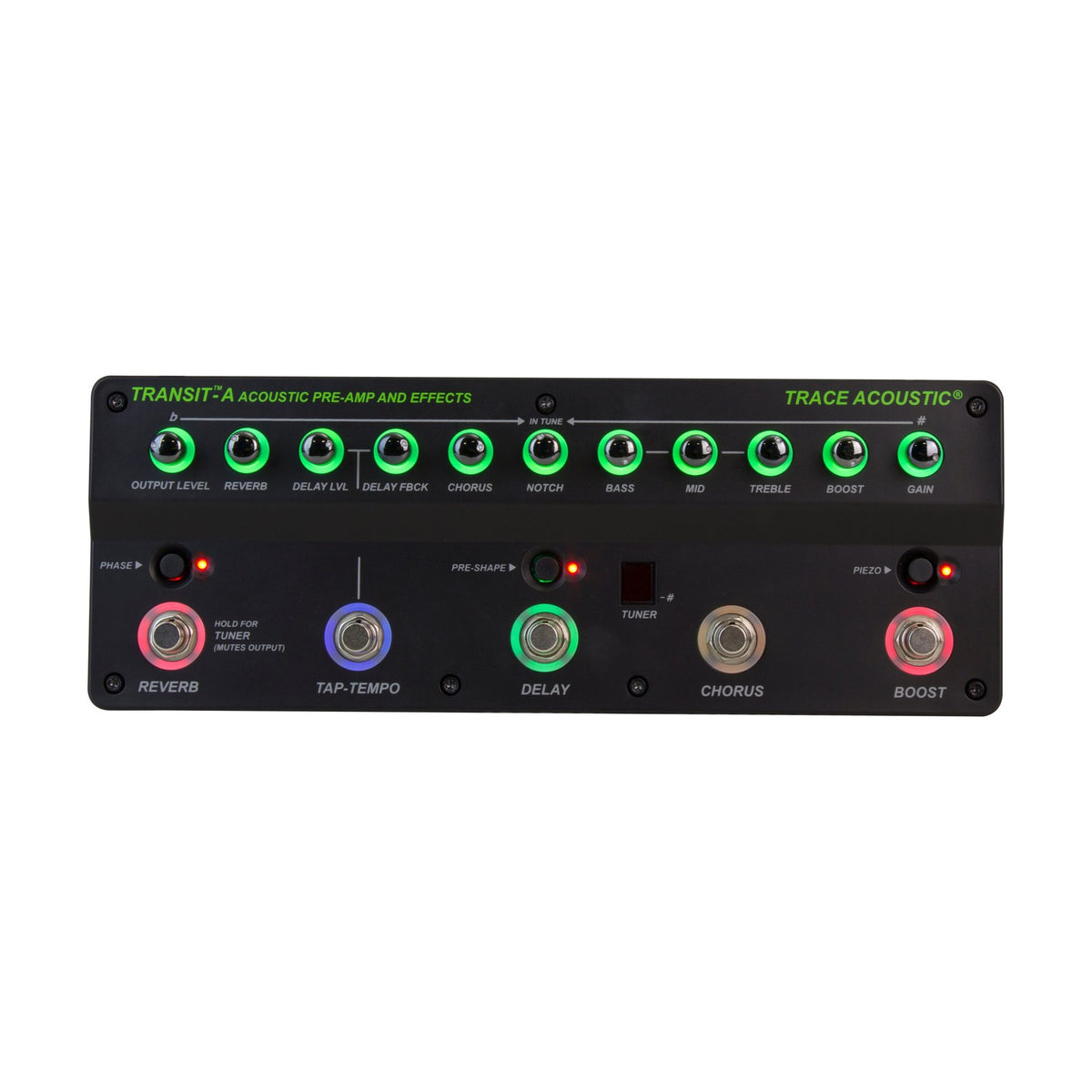

Chorus, delay and reverb have dedicated controls and footswitches. Tap Tempo sets the delay timing, with selectable trails after bypass. Boost adds up to 10 dB ahead of the compressor.

Stereo outputs are joined by separate pre/post XLR DI connections and a dry feed. Output Level does not change the XLR levels. Aux input and headphones support practice with an external audio source. Holding the Reverb switch engages the tuner and mutes every output except Dry.

Main Features

• PIEZO mode adapts the input for passive piezo pickups.
• Gain control and its indicator help manage the automatic compressor.
• A 30–330 Hz notch filter targets acoustic feedback.
• Phase reversal provides an additional feedback-control option.
• Single-knob chorus and reverb simplify effect adjustment.
• Tap Tempo plus delay level and feedback controls tailor the effect to a song.
• Tuner mute allows tuning without sending signal to the main outputs.
• The supplied power adapter and bag cover operation and transport.

Technical Specifications

• Input: 6.35 mm; Normal 110 kΩ, PIEZO >10 MΩ and +10 dB
• Equalizer: ±15 dB: 100 Hz, 600 Hz, 4 kHz
• Tone Functions: Pre-Shape, compression, phase reversal, notch 30–330 Hz, boost 0–10 dB
• Effects: chorus, reverb, delay up to 1 s with Tap Tempo and selectable trails

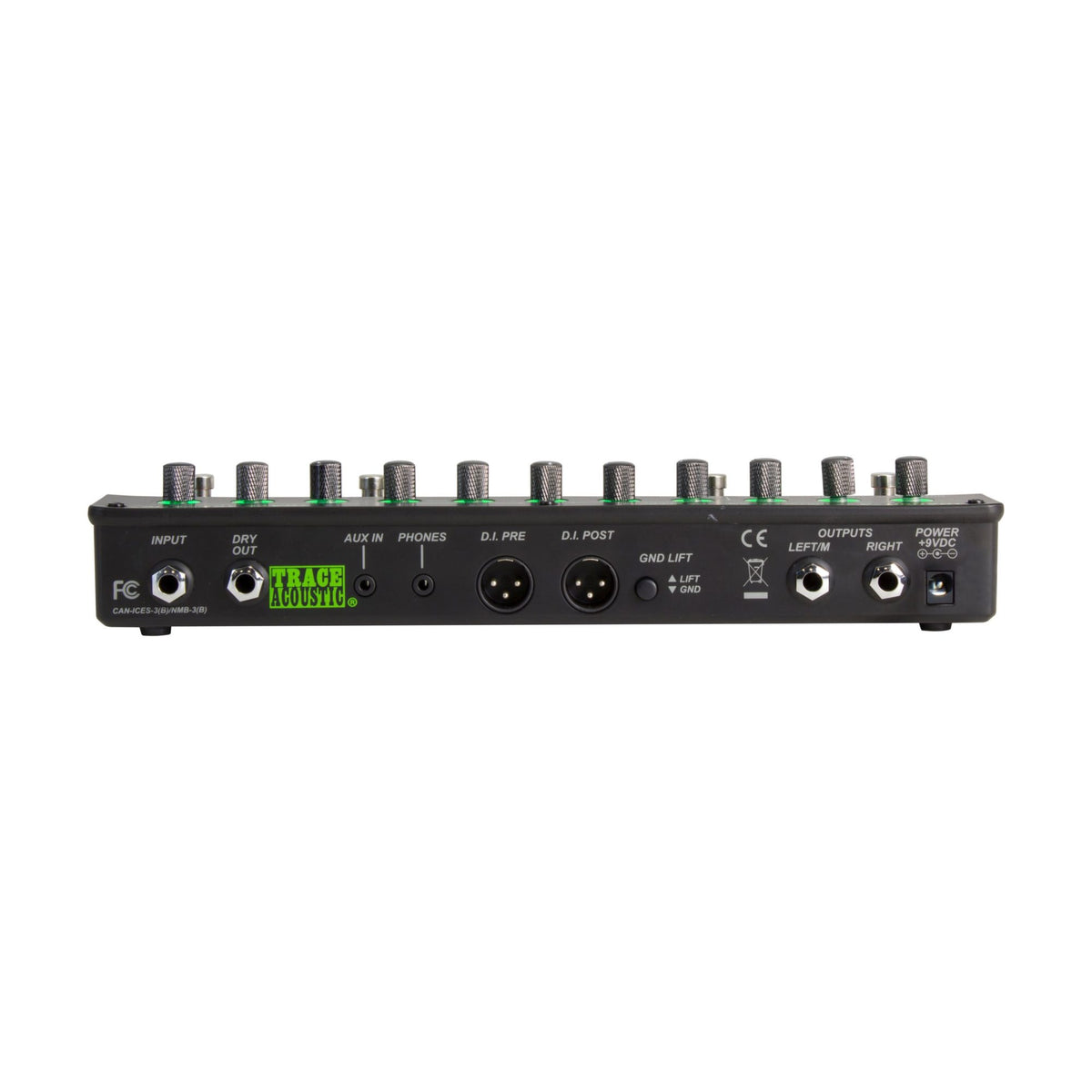

• Main Outputs: 6.35 mm Left/Mono and Right, Dry; output impedance 150 Ω
• DI Outputs: 2 balanced XLR: pre and post, Ground Lift; unaffected by Output Level
• Aux and Headphones: 3.5 mm; aux +4 dBu, 10 kΩ; headphones up to 500 mW RMS / 4 Ω
• Power Supply: 9 V DC, 1 A, centre negative; adapter included
• Dimensions (W × D × H): 312 × 114 × 58.4 mm
• Weight: pedal 1.18 kg; pedal with bag and power adapter 1.45 kg

What’s Included

• Trace Elliot Transit A preamp, 1 unit
• 9 V DC, 1 A power adapter, 1 unit

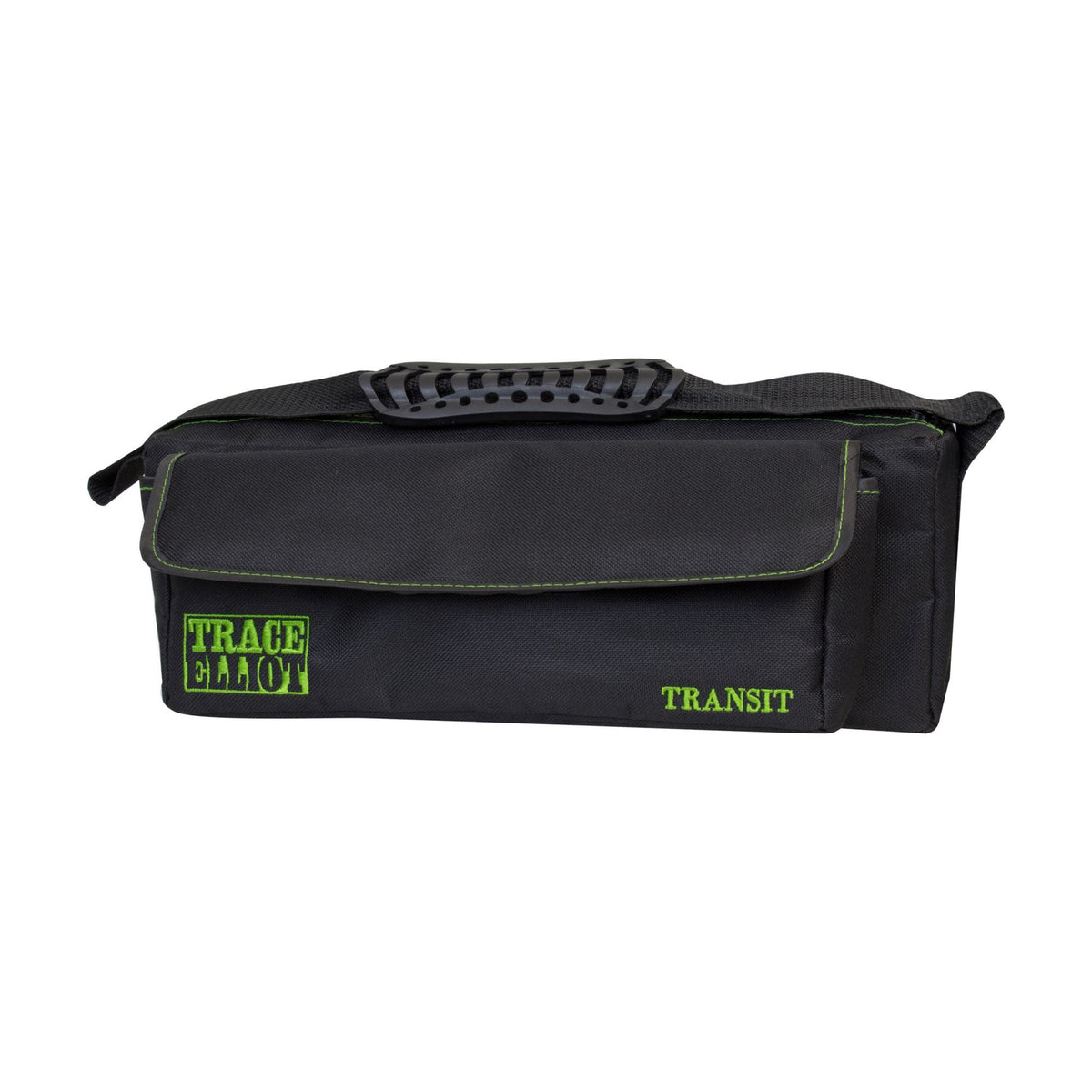

• Carry bag, 1 unit

Who Is It For

For electroacoustic guitars and other acoustic instruments with a suitable pickup. Tone shaping, effects, tuning and DI in one device prepare the signal for live sound, recording or headphone practice.
