Trace Elliot Overdrive Pedal

Trace Elliot Overdrive Pedal

Trace Elliot Overdrive is a bass effects pedal.

Its soft asymmetric clipping circuit is designed for the bass instrument range. Drive sets the amount of distortion, while Tone adjusts the perceived midrange and high-frequency harmonic structure of the distorted signal.

Blend mixes clean and distorted signals at the main output. Level sets the distorted signal level. A separate Dry output supplies an unaffected signal independently of the Blend setting.

True Bypass avoids the effect circuit when switched off. Use a 9 V battery or centre-negative 9 V DC adapter. The pedal generates its 18 V supply rails internally, so the external power input remains 9 V.

Main Features

• Drive adjusts the effect from lighter to stronger distortion.
• Blend retains a share of the clean bass signal.
• Tone adjusts the perceived midrange of the distorted signal.
• Level sets the distorted signal sent to an amplifier.
• A separate Dry output feeds an unprocessed signal to another signal path.
• True Bypass routes the signal around the disabled effect.
• The internal 18 V circuit runs from a standard 9 V source.
• A die-cast enclosure includes a footswitch for engaging the effect.

Technical Specifications

• Effect: bass overdrive, soft asymmetric clipping

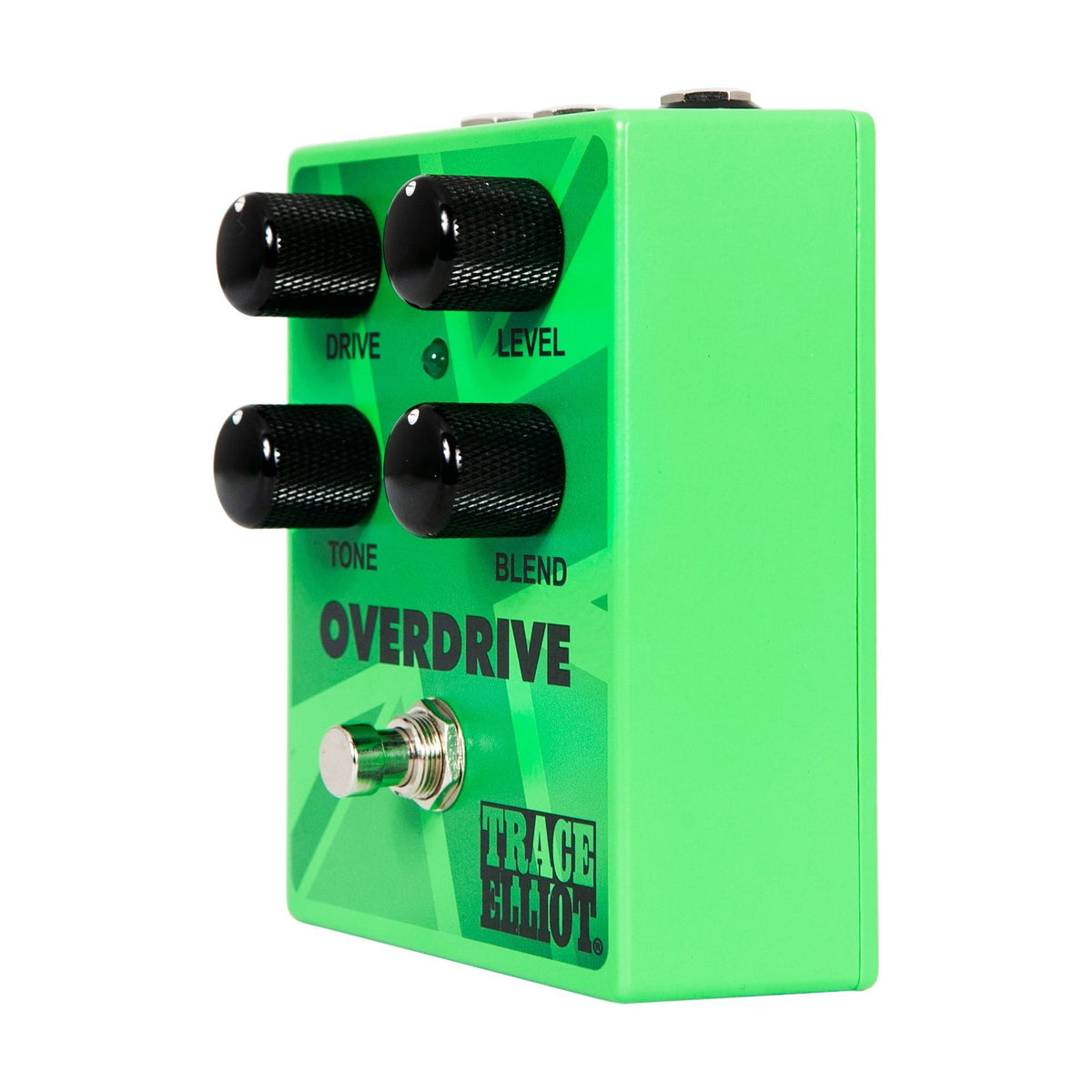

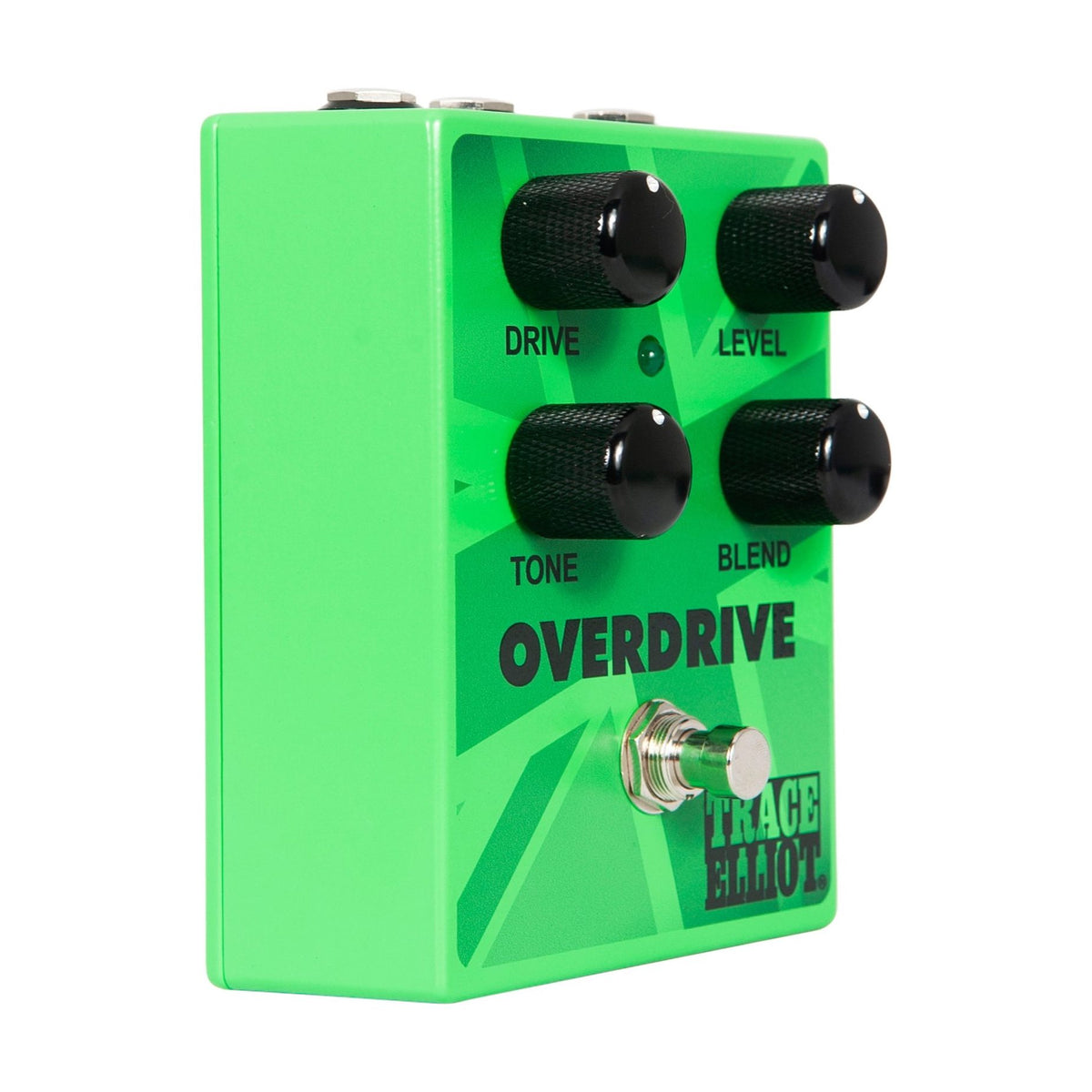

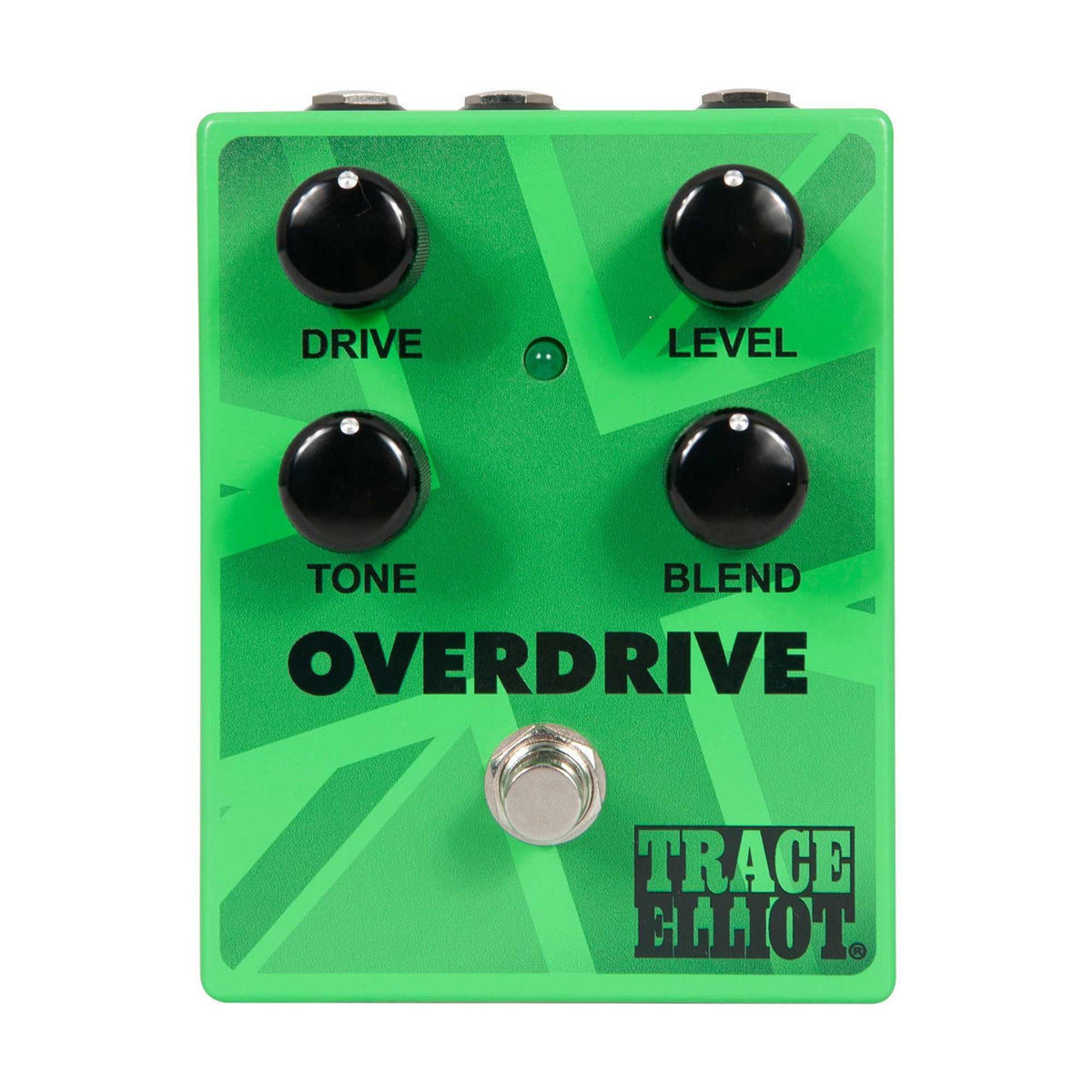

• Controls: Drive, Level, Tone, Blend
• Input: 6.35 mm mono, impedance 2.2 MΩ

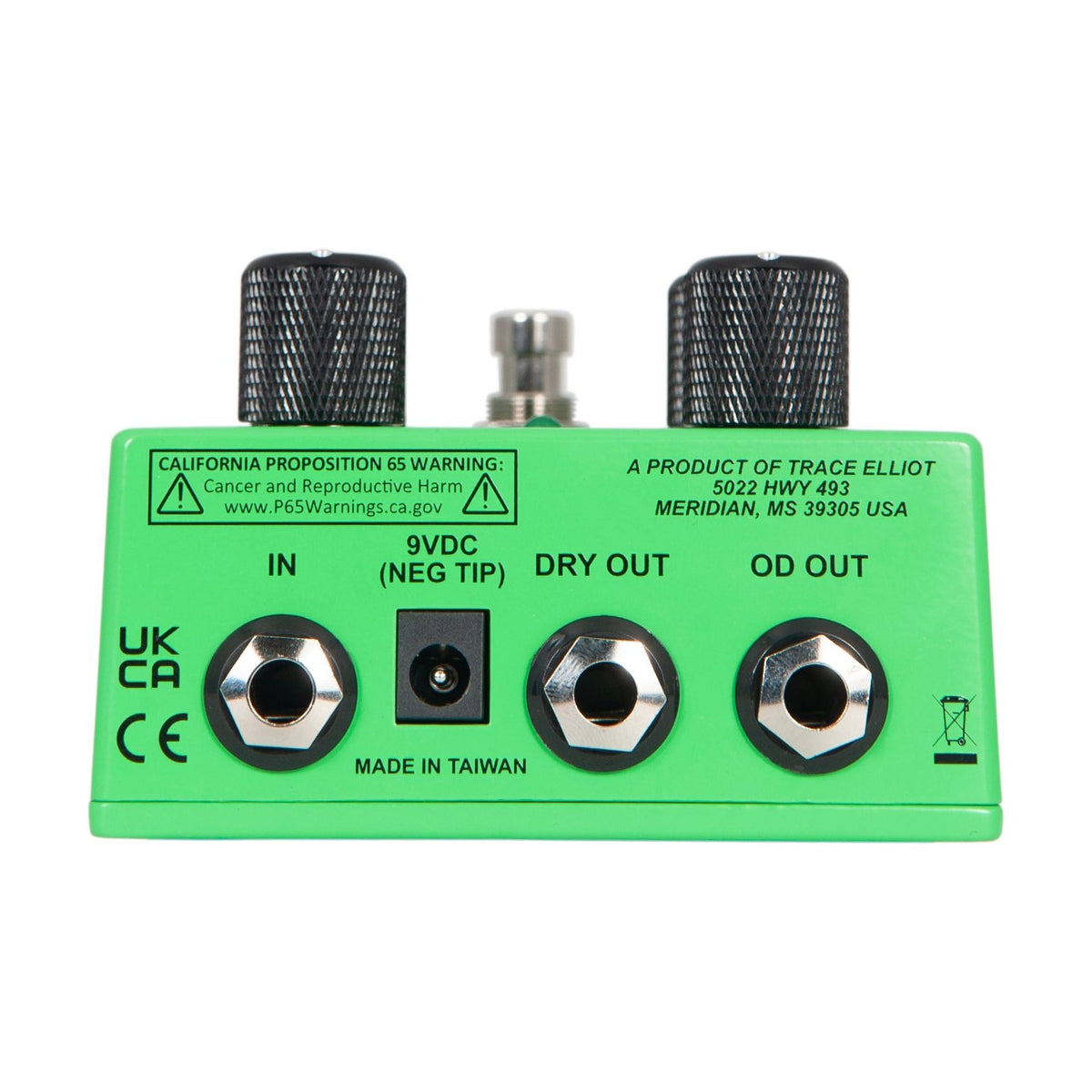

• Outputs: 6.35 mm Overdrive and Dry, both 1 kΩ impedance
• Bypass: True Bypass
• Power Supply: 9 V DC, centre negative, or 9 V battery; internally generated 18 V rails
• Enclosure: die-cast metal
• Weight: 0.5 kg

What’s Included

• Trace Elliot Overdrive pedal, 1 unit

Who Is It For

For bass players adding distortion while retaining part of the clean signal. The Dry connection supports a separate path, and Tone can work alongside Pre-Shape on ELF, TE-1200 and classic Trace Elliot amplifiers.
