Trace Elliot Acoustic Clarity Pedal
Trace Elliot Acoustic Clarity is an effects pedal for acoustic-electric instruments.

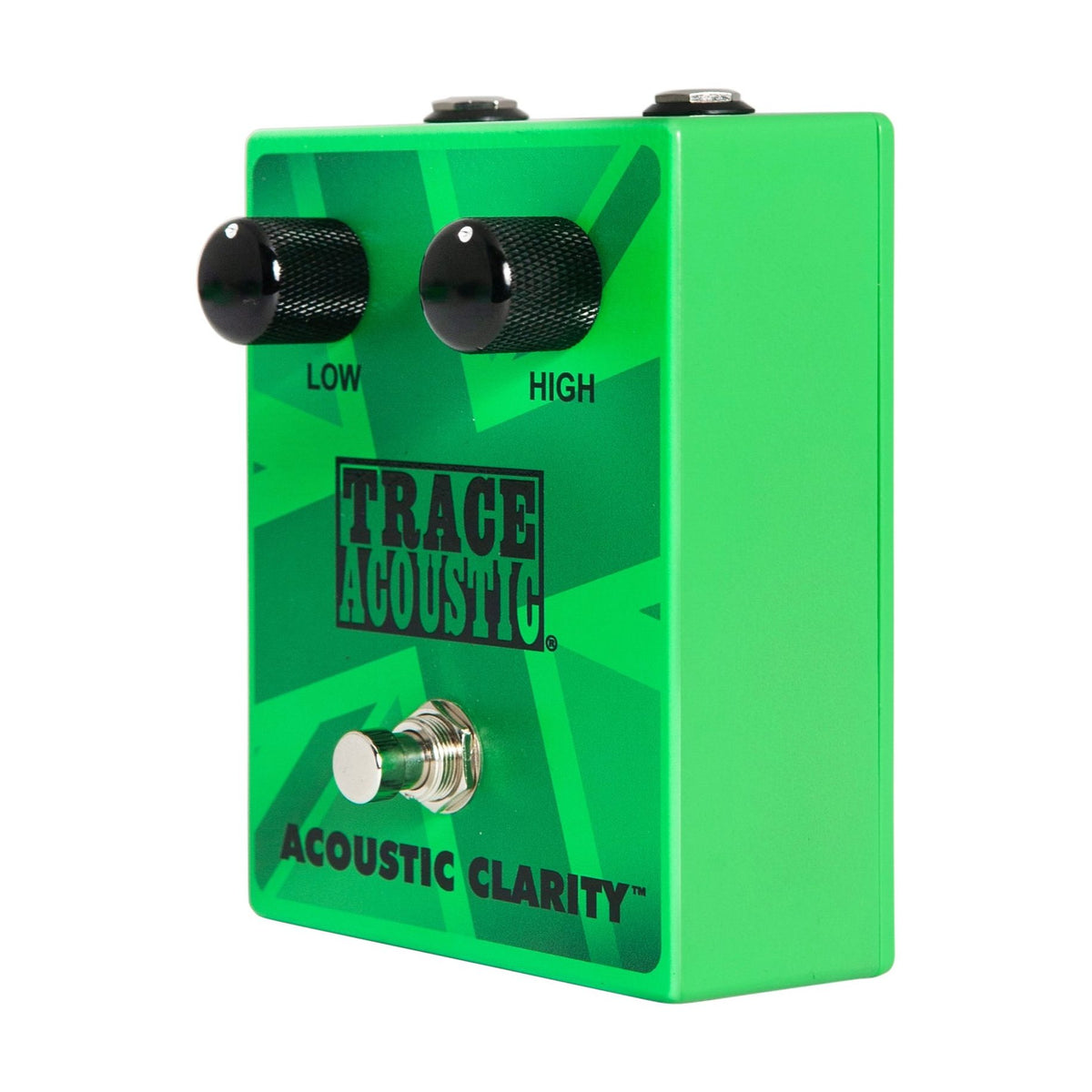

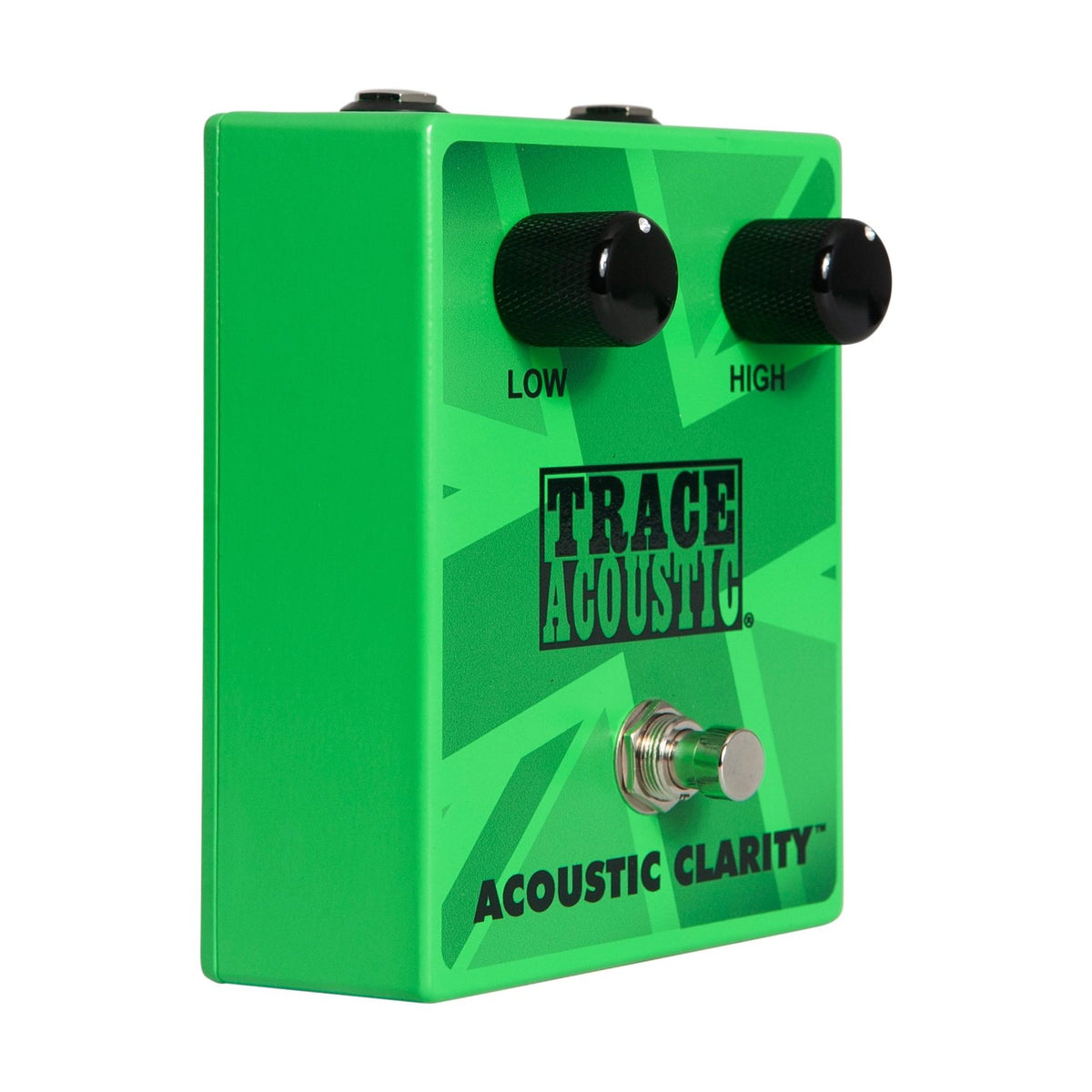

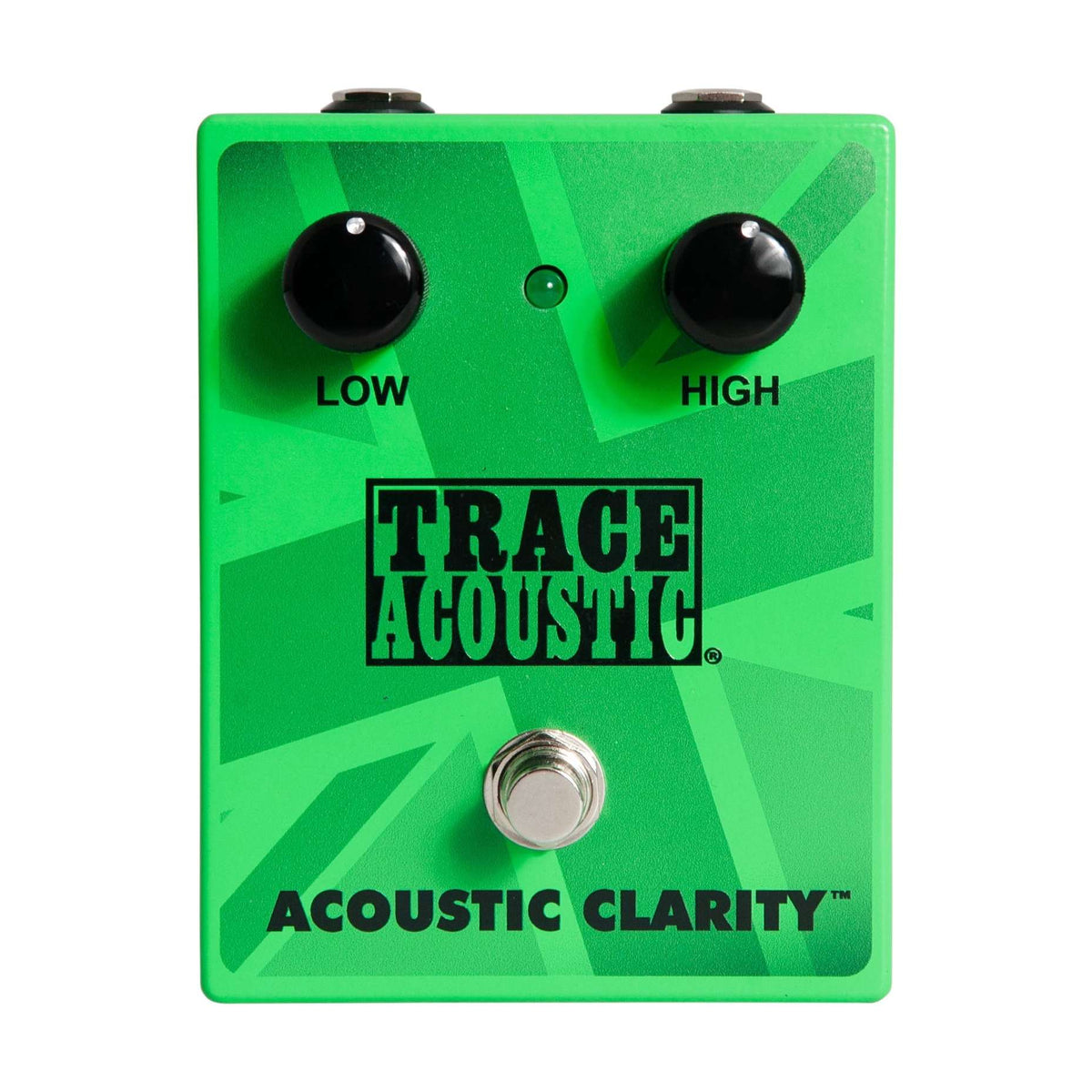

Two variable filters enhance low- and high-frequency content already present in the signal. LOW adds low-frequency energy, while HIGH brings out upper harmonics and the instrument’s natural brightness.
Start LOW at its minimum setting and increase it to suit the connected system. Excessive low-frequency enhancement can produce a muddy sound. Input and output gain are fixed at unity, with no separate level controls.

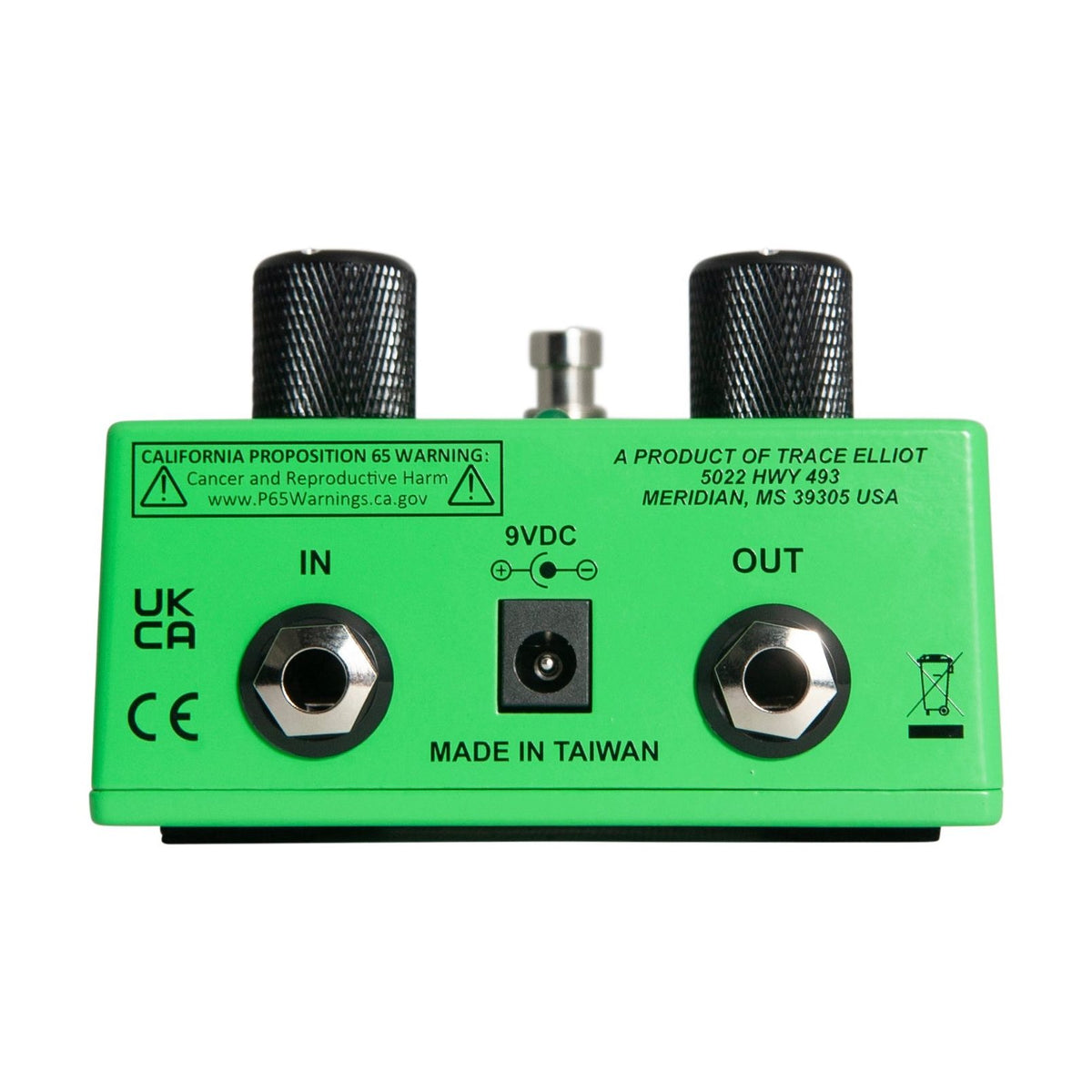

Connect the instrument output directly to the 6.35 mm input. The 2.2 MΩ input and 1 kΩ output connect the pedal to an instrument amplifier, PA system or further effects. Switching the effect off engages True Bypass around the processing circuit.
Use a 9 V battery or a centre-negative 9 V DC adapter. Internal circuitry generates ±9 V supply rails, providing an 18 V span for signal processing. The external power socket remains a 9 V input.
Main Features
- Separate LOW and HIGH controls adjust enhancement at either end of the spectrum.
- The filters act on frequency content already present in the instrument signal.
- True Bypass lets the footswitch alternate between processed and unaffected sound.
- Fixed unity input and output gain removes the need to set separate level controls.
- The 2.2 MΩ input accepts a direct acoustic-electric instrument feed.
- The 1 kΩ output feeds an amplifier, PA system or further effects.
- Battery or external 9 V power accommodates different pedalboard setups.
Technical Specifications
- Type: frequency-enhancement pedal for acoustic-electric instruments
- Adjustable Parameters: LOW and HIGH
- Input: 6.35 mm; impedance 2.2 MΩ
- Output: 6.35 mm; impedance 1 kΩ
- Input and Output Gain: fixed at unity
- Bypass: True Bypass via footswitch
- Power Supply: 9 V DC, centre negative, or 9 V battery
- Internal Supply: ±9 V rails, 18 V span
What’s Included
- Trace Elliot Acoustic Clarity pedal, 1 unit
Who Is It For
For acoustic-electric guitar, bass, ukulele, violin or cello with an electrical signal output. Use it to shape instrument tone during performances or recording, ahead of an amplifier, PA system or further effects.
