Tannoy SAT SUB 4PACK Passive Loudspeaker System

Tannoy SAT SUB 4PACK passive loudspeaker system

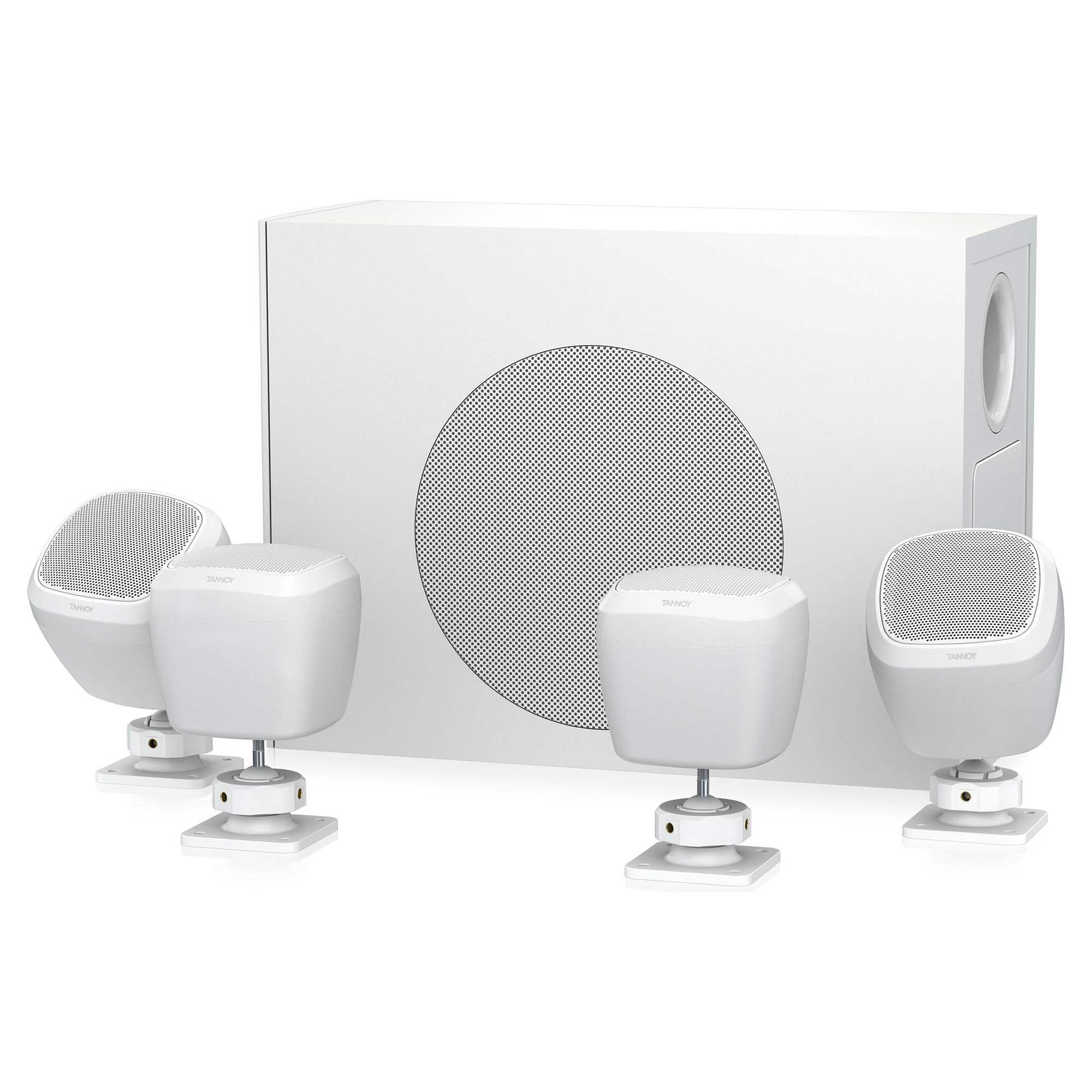

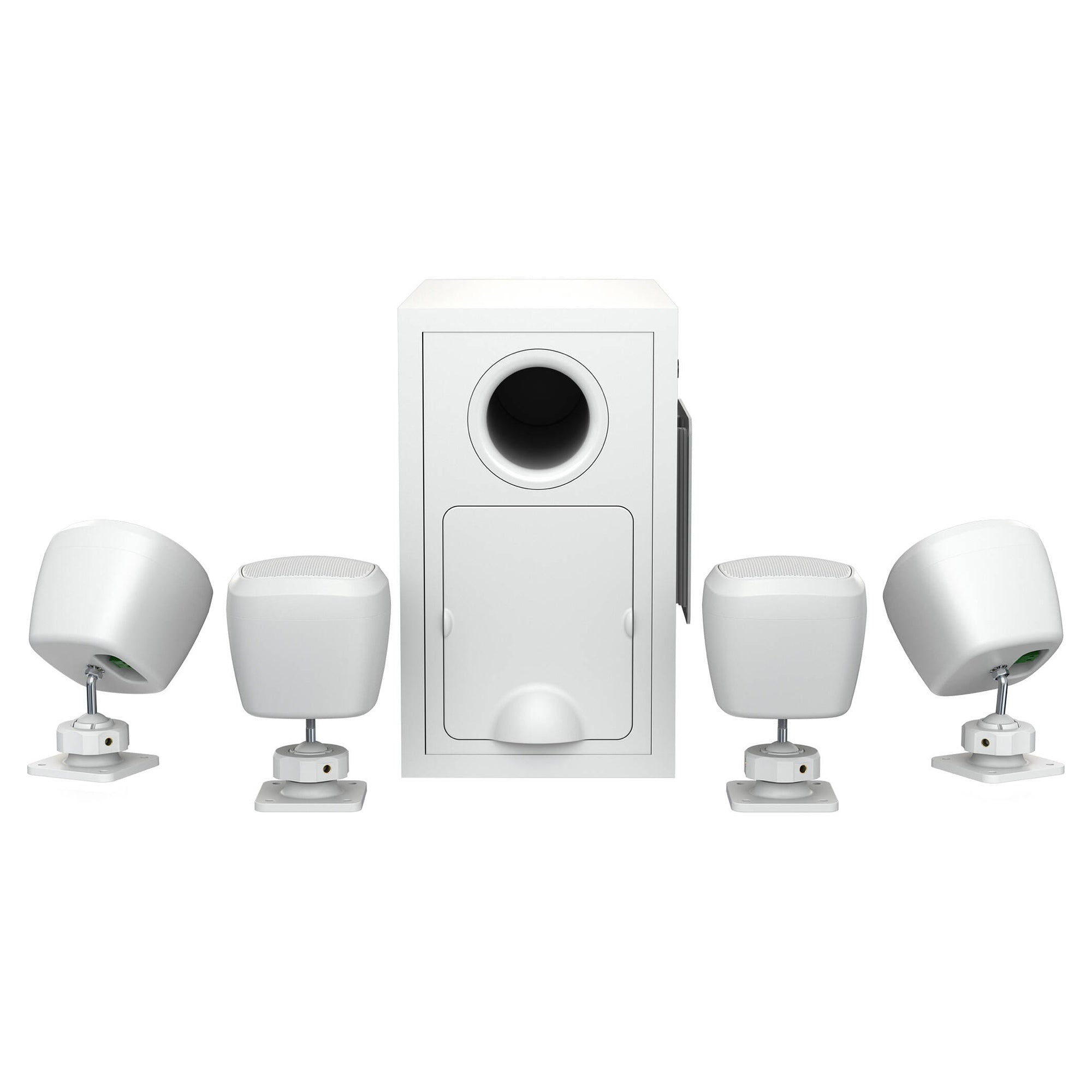

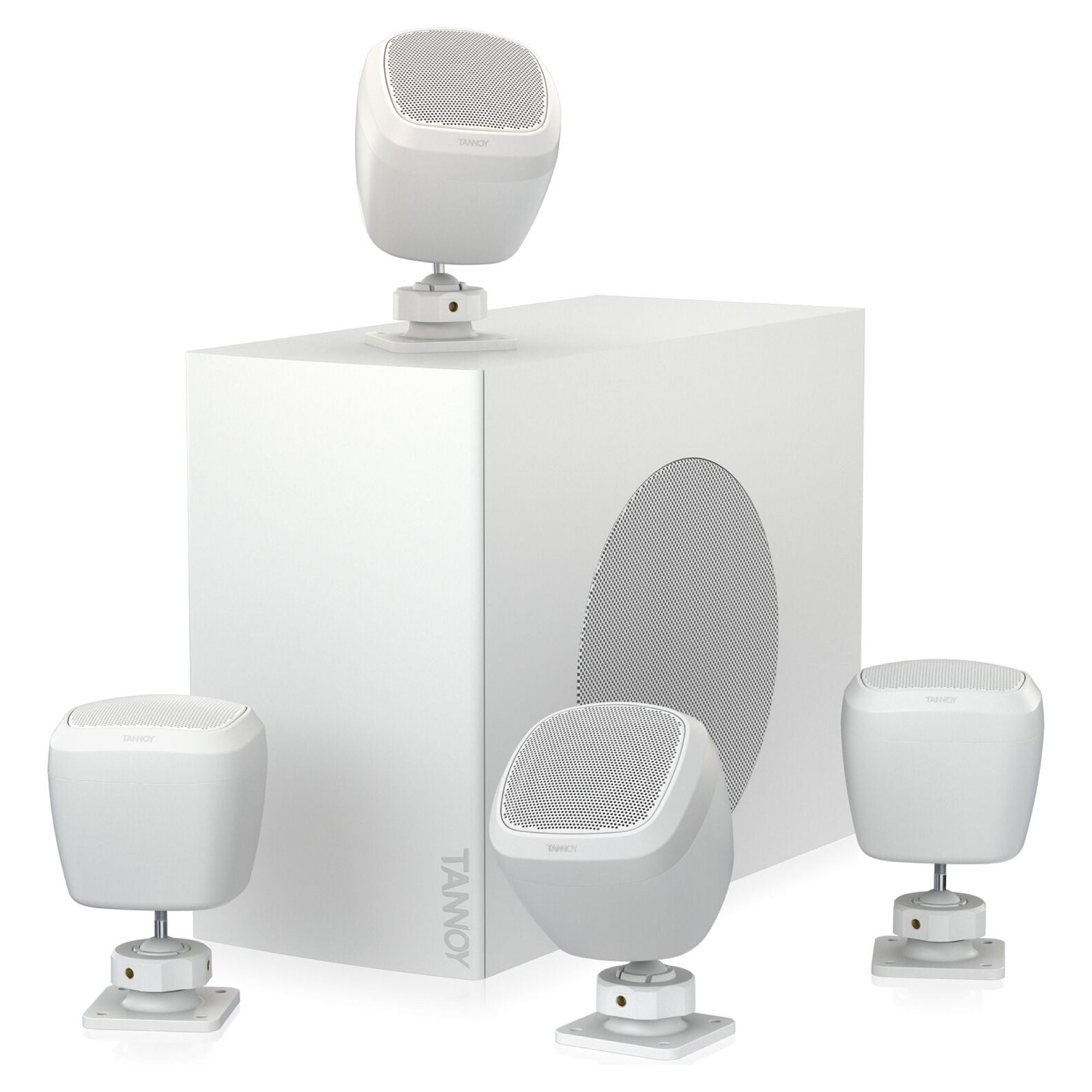

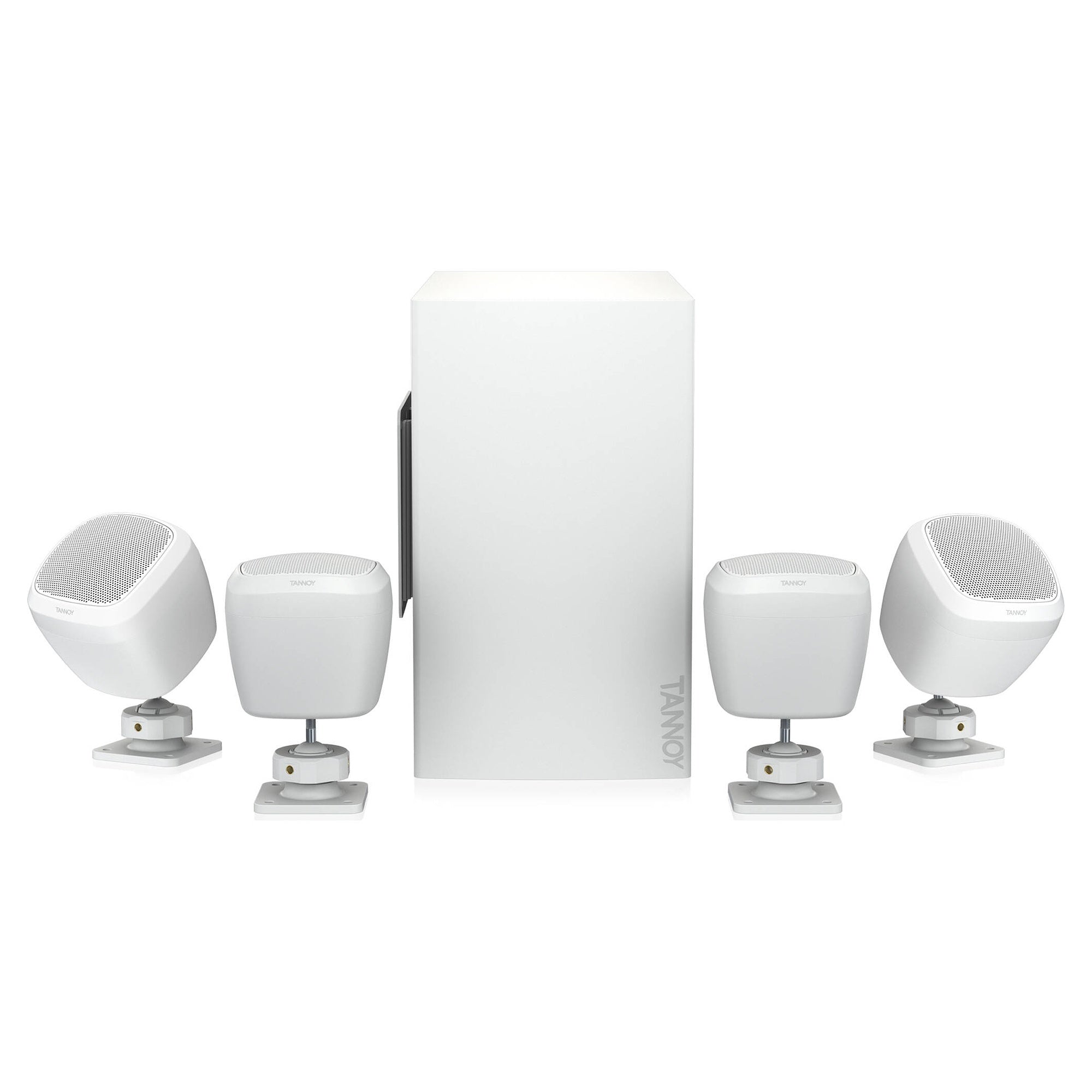

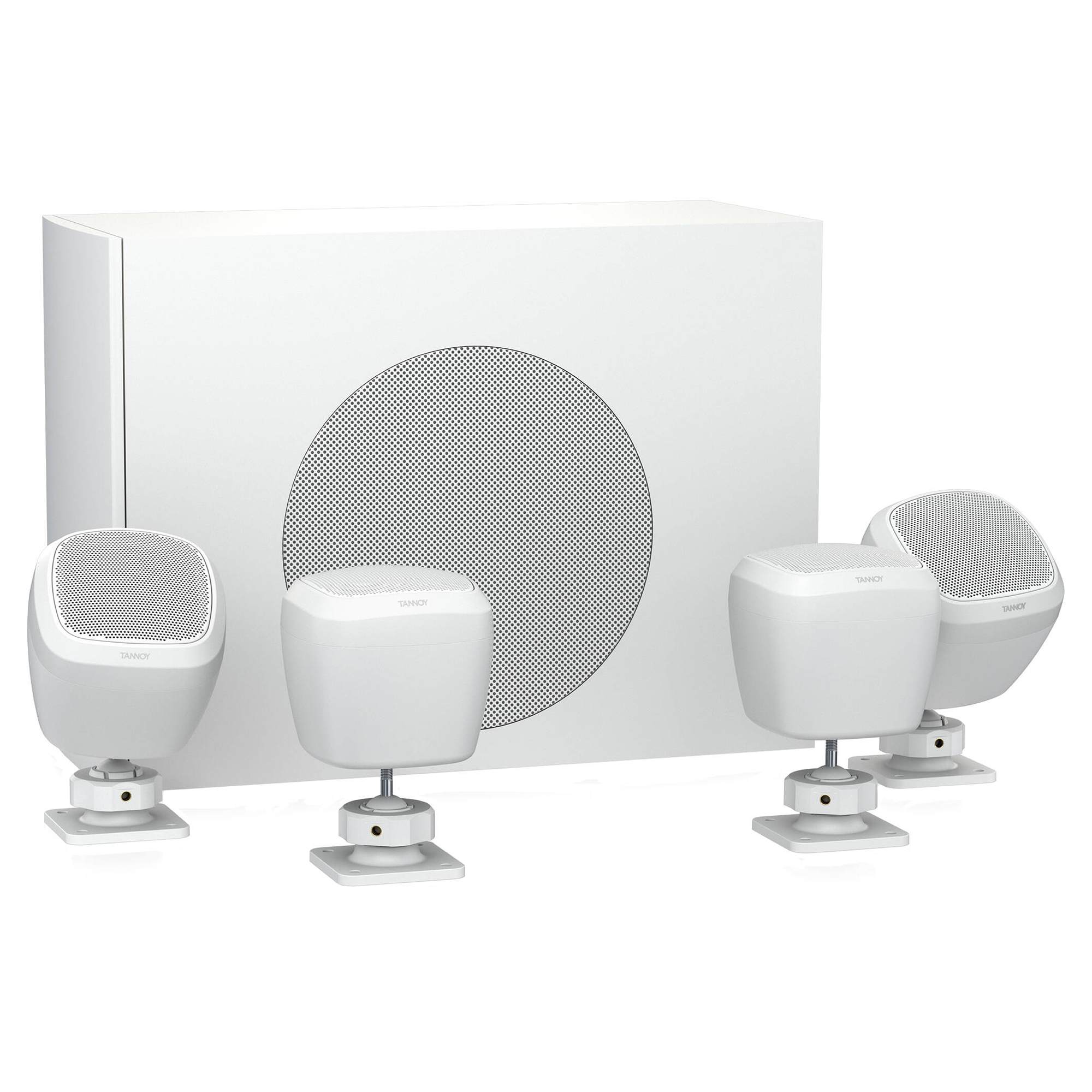

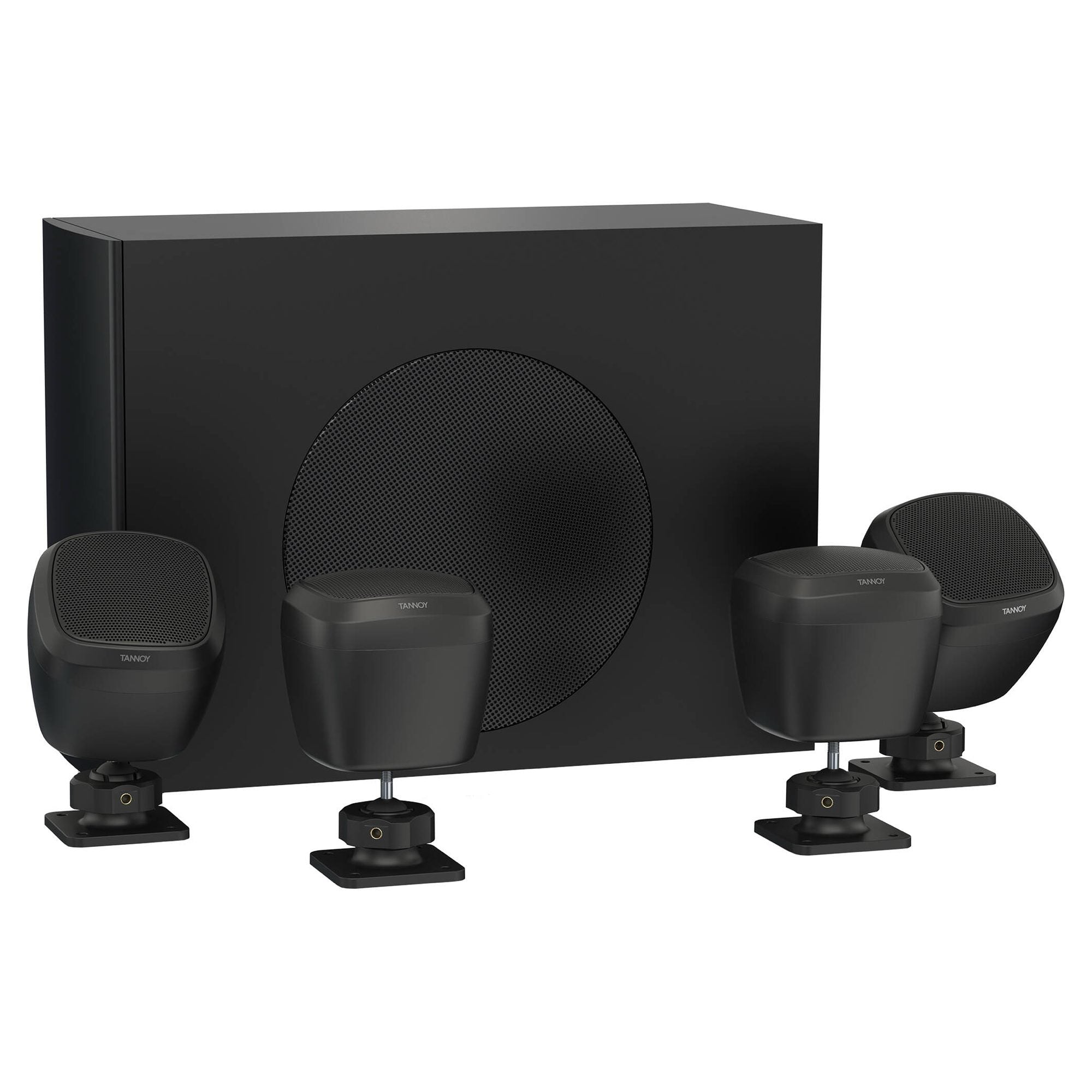

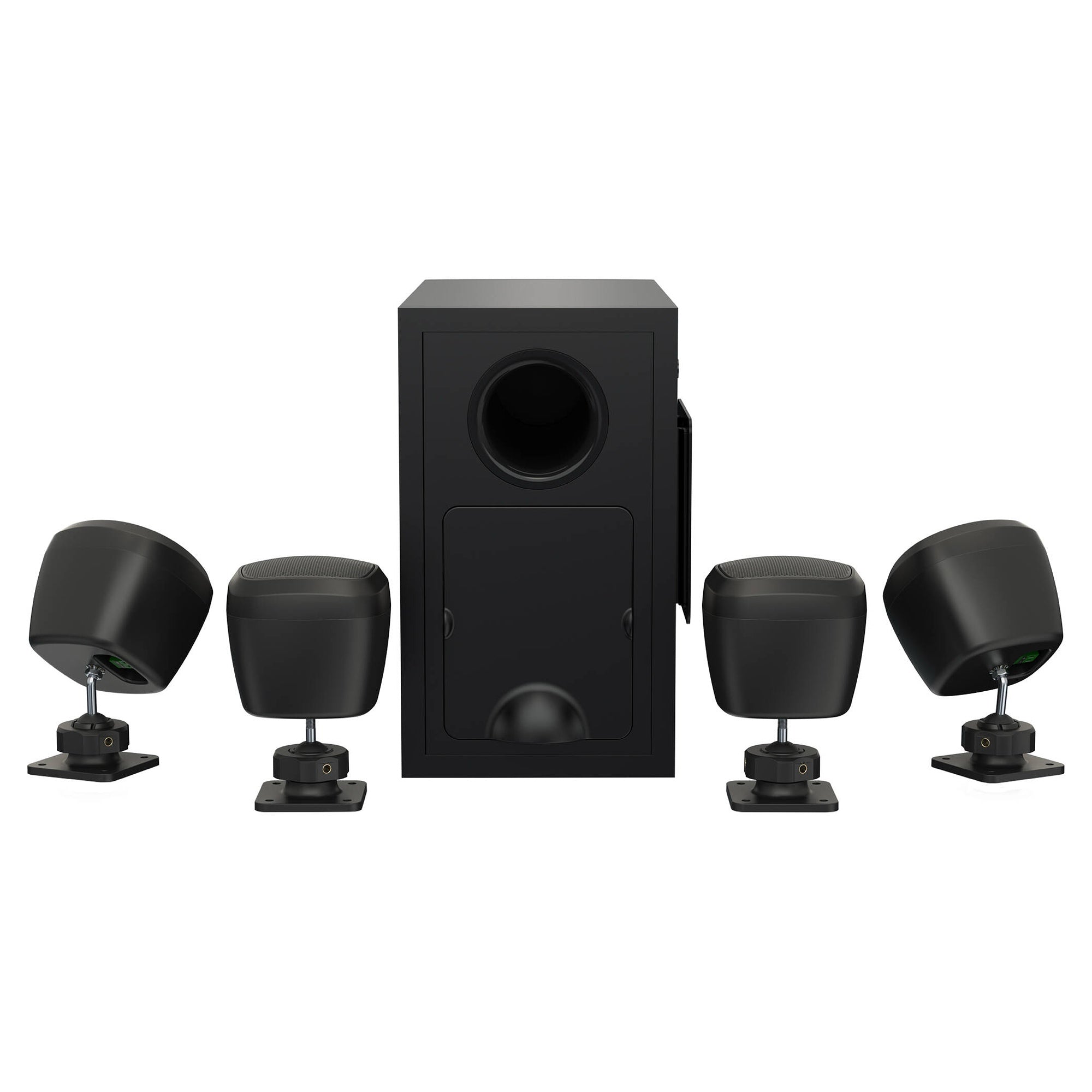

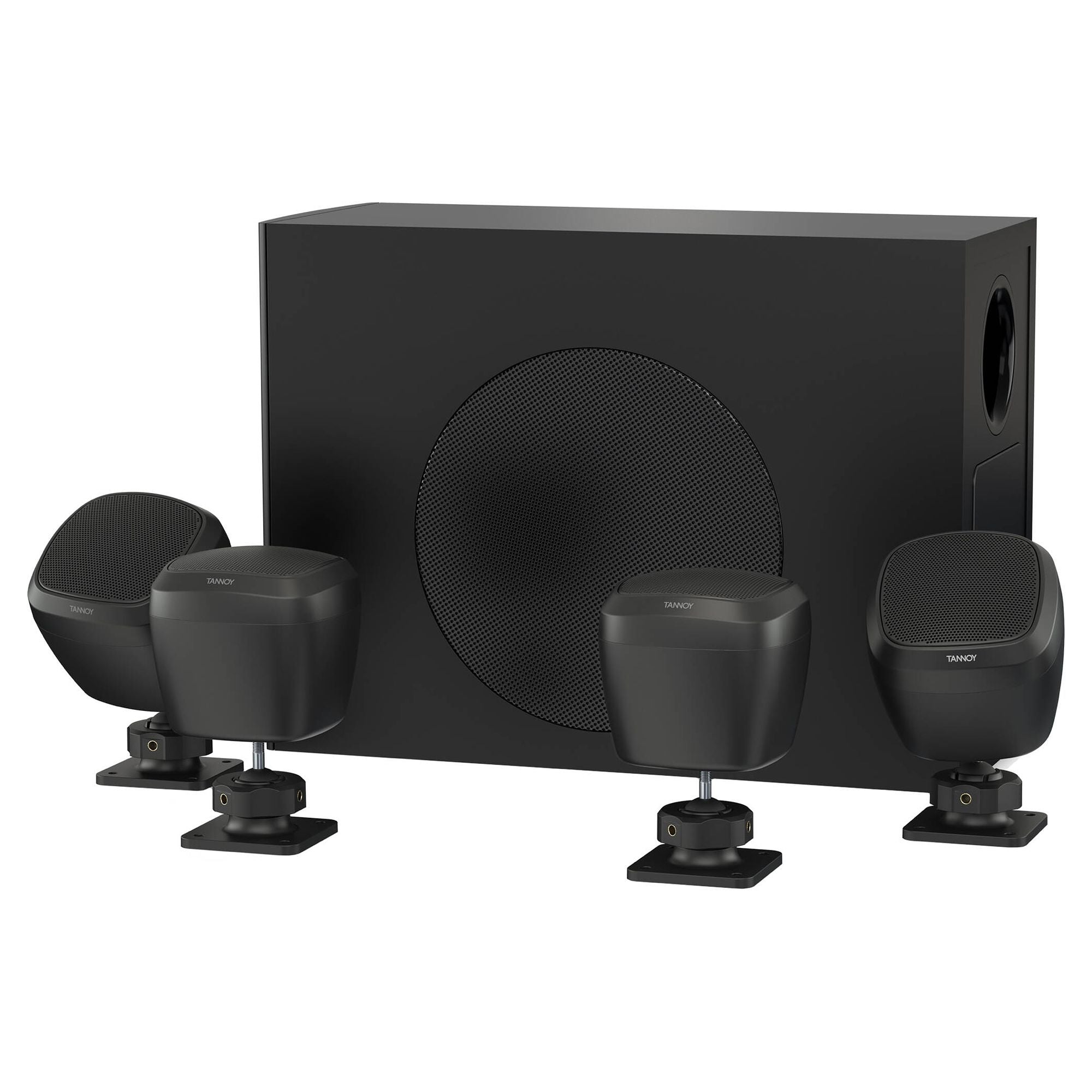

Tannoy SAT SUB 4PACK is a passive commercial loudspeaker system comprising four SAT 3 satellite loudspeakers and one SAT SUB subwoofer.

Designed for background and foreground music in bars, restaurants, shops and other commercial spaces, the system uses the crossover and satellite terminals built into the SAT SUB. No external loudspeaker processing is required.

The integrated transformer supports 70 V and 100 V distributed systems, while the 8 Ω setting allows operation with a compatible low-impedance amplifier. The SAT SUB can be wall-mounted or placed on the supplied rubber feet, and the SAT 3 brackets support wall or ceiling installation.

Main Features

• A complete commercial loudspeaker system with four SAT 3 satellites and one SAT SUB subwoofer.
• The 6.5-inch SAT SUB extends low-frequency reproduction down to 32 Hz.
• Four 2.5-inch SAT 3 drivers cover the range from 200 Hz to 20 kHz.
• An integrated 200 Hz crossover and four satellite outputs simplify system wiring.
• 70 V and 100 V transformer taps support distributed audio installations.
• An 8 Ω setting enables use with a compatible low-impedance amplifier.
• A link output allows another SAT SUB system to be connected.
• Wall and ceiling brackets allow the SAT 3 loudspeakers to be aimed after installation.

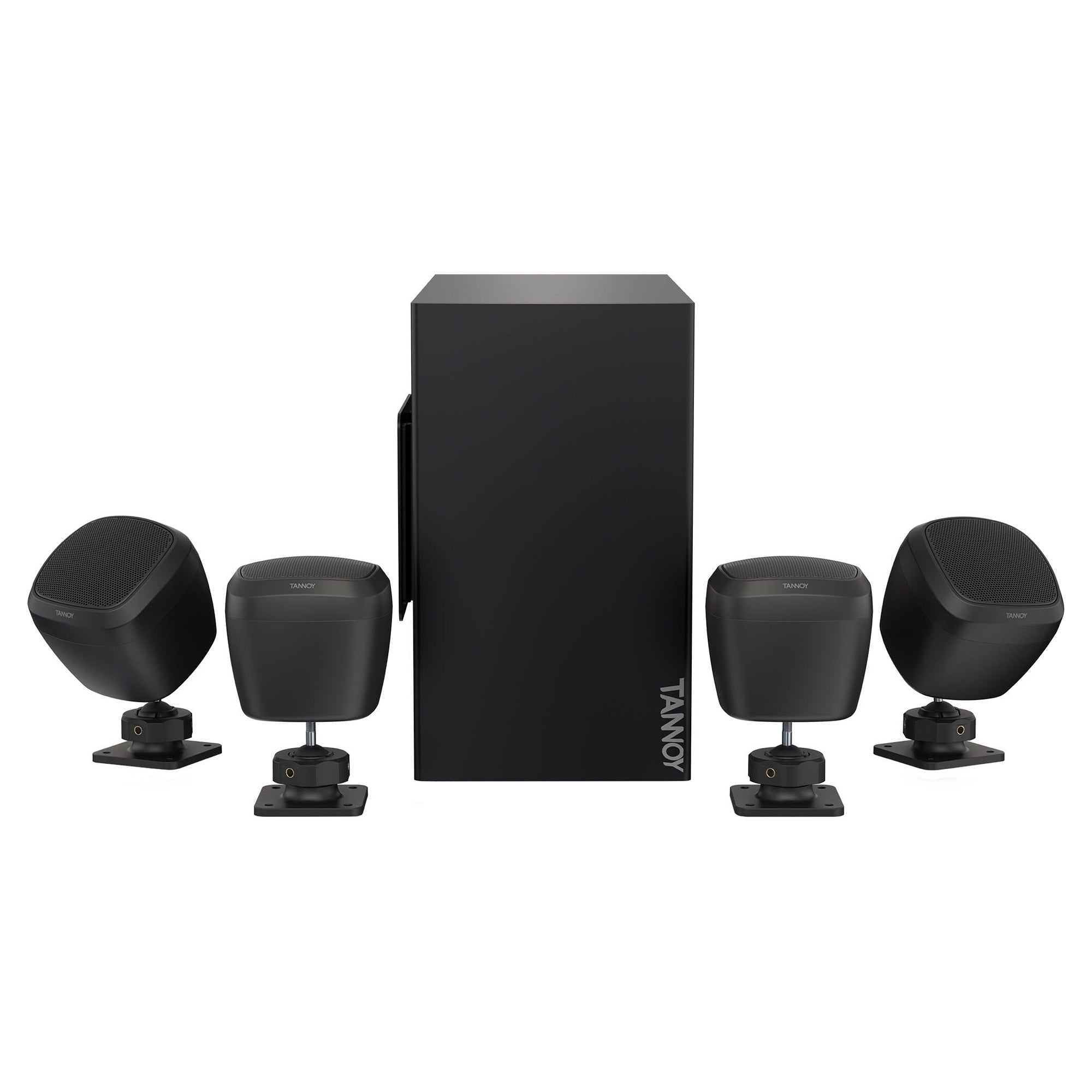

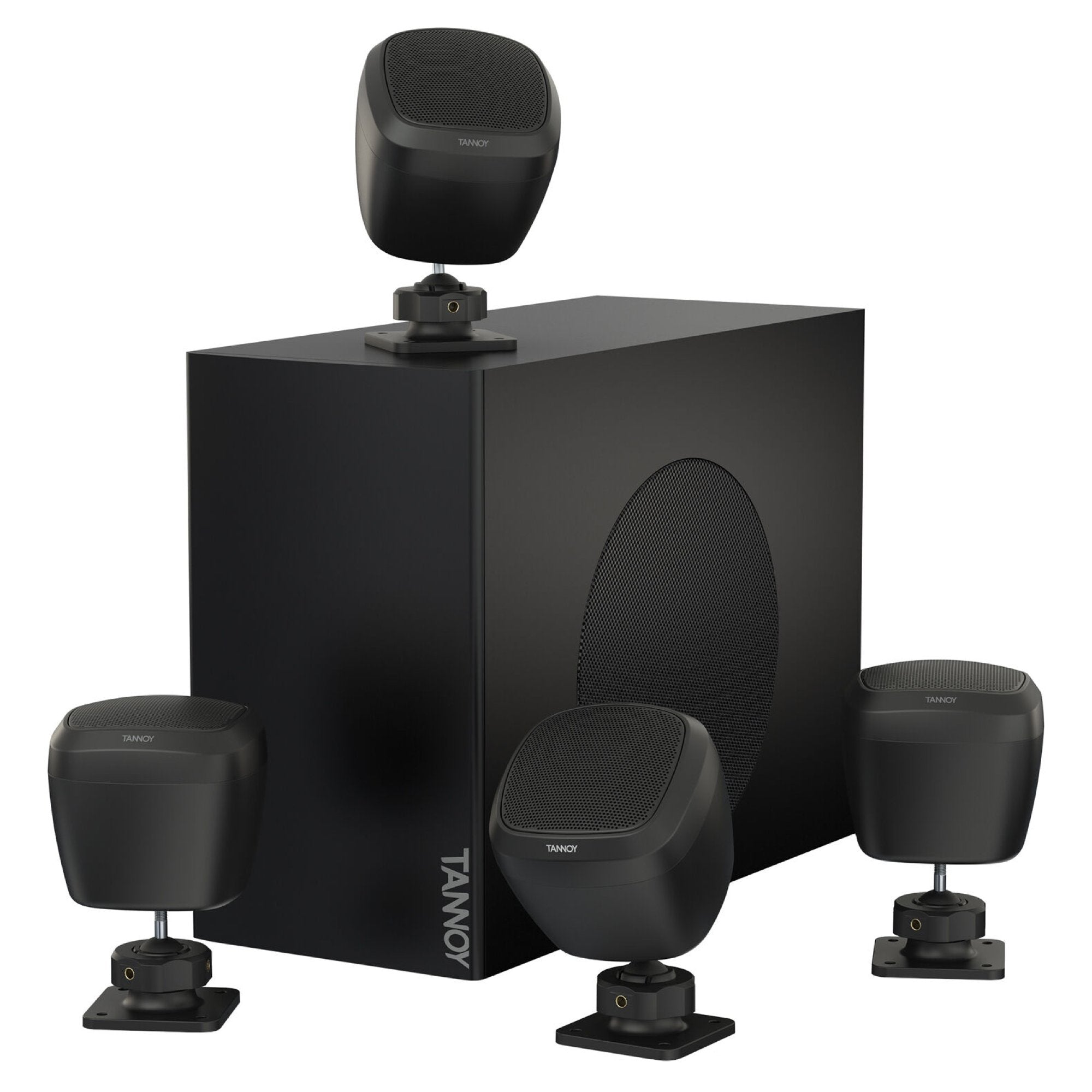

• Available in black and white finishes.

Technical Specifications

SAT SUB subwoofer

• Driver: 1 × 165 mm (6.5-inch), paper cone
• Frequency range: 32–260 Hz (-10 dB)
• Average / programme power: 80 W / 120 W
• Recommended amplifier power: 120 W at 8 Ω
• Impedance: 8 Ω
• Sensitivity: 93 dB (1 W / 1 m)
• Maximum SPL: 116 dB at 1 m
• Transformer taps: 100 V: 20, 40 or 80 W; 70 V: 10, 20, 40 or 80 W; 8 Ω Lo-Z
• Crossover point: 200 Hz

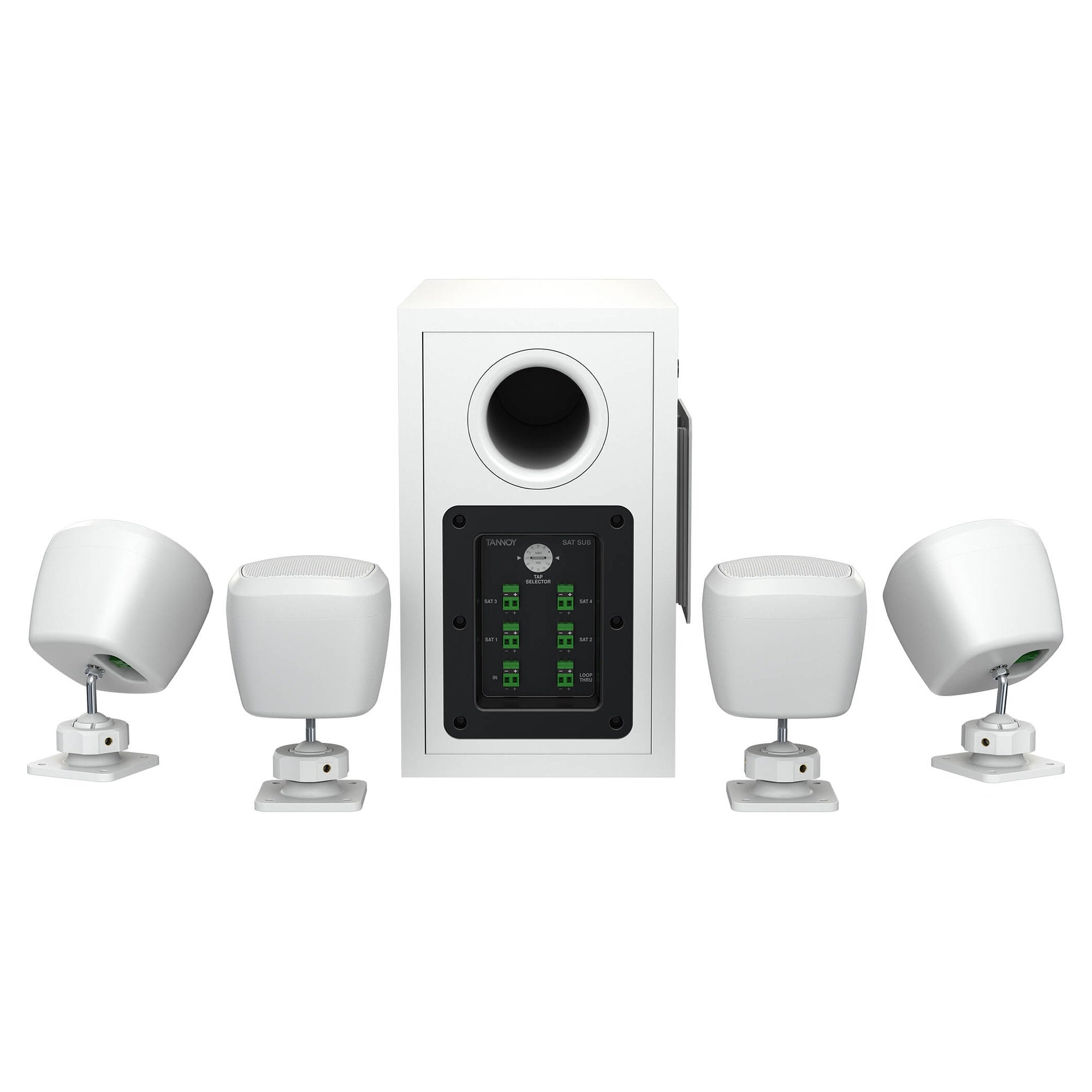

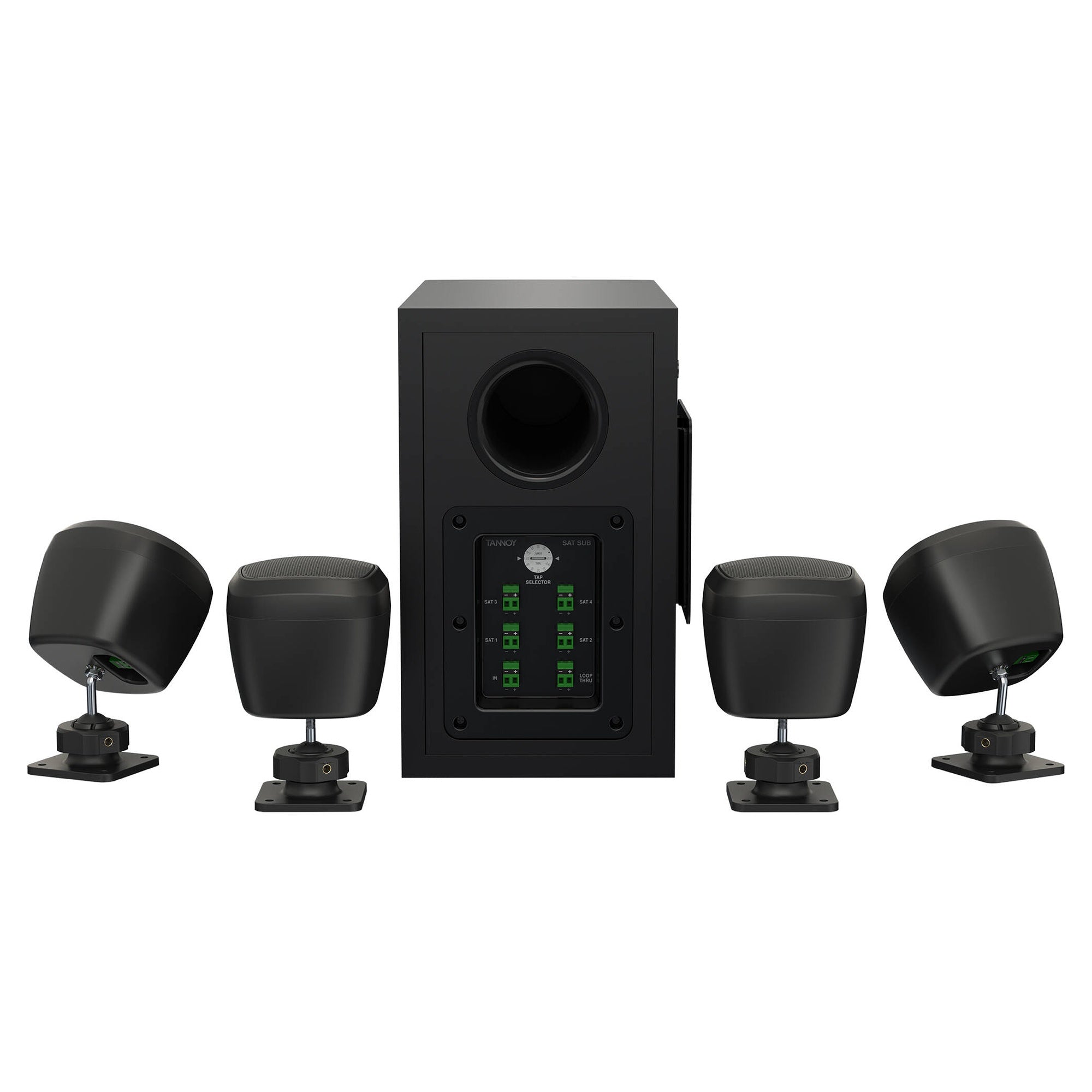

• Connectors: 6 × Phoenix Contact terminal blocks
• Dimensions: 175 × 413 × 300 mm without bracket
• Weight: 10.7 kg including bracket

SAT 3 satellite loudspeaker

• Driver: 63.5 mm (2.5-inch) full-range paper cone
• Frequency range: 200–20,000 Hz (-10 dB)
• Average / programme power: 15 W / 25 W
• Recommended amplifier power: 25 W at 16 Ω
• Impedance: 16 Ω
• Sensitivity: 83 dB (1 W / 1 m)
• Maximum SPL: 100 dB at 1 m
• Coverage angle: 265° × 265° at 1 kHz
• Connector: Phoenix Contact terminal block
• Dimensions: 100 × 100 × 93 mm without bracket
• Weight: 1.16 kg including bracket

What’s Included

• 4 × Tannoy SAT 3 satellite loudspeakers
• 1 × Tannoy SAT SUB passive subwoofer
• SAT 3 wall and ceiling mounting brackets
• SAT SUB wall mounting bracket
• 4 × self-adhesive rubber feet for the SAT SUB

A power amplifier is not included.

Who Is It For

The system is suitable for background and foreground music in restaurants, bars, shops, offices and other small to medium-sized commercial spaces. It can be integrated into a 70/100 V distributed audio system or a compatible 8 Ω installation.
