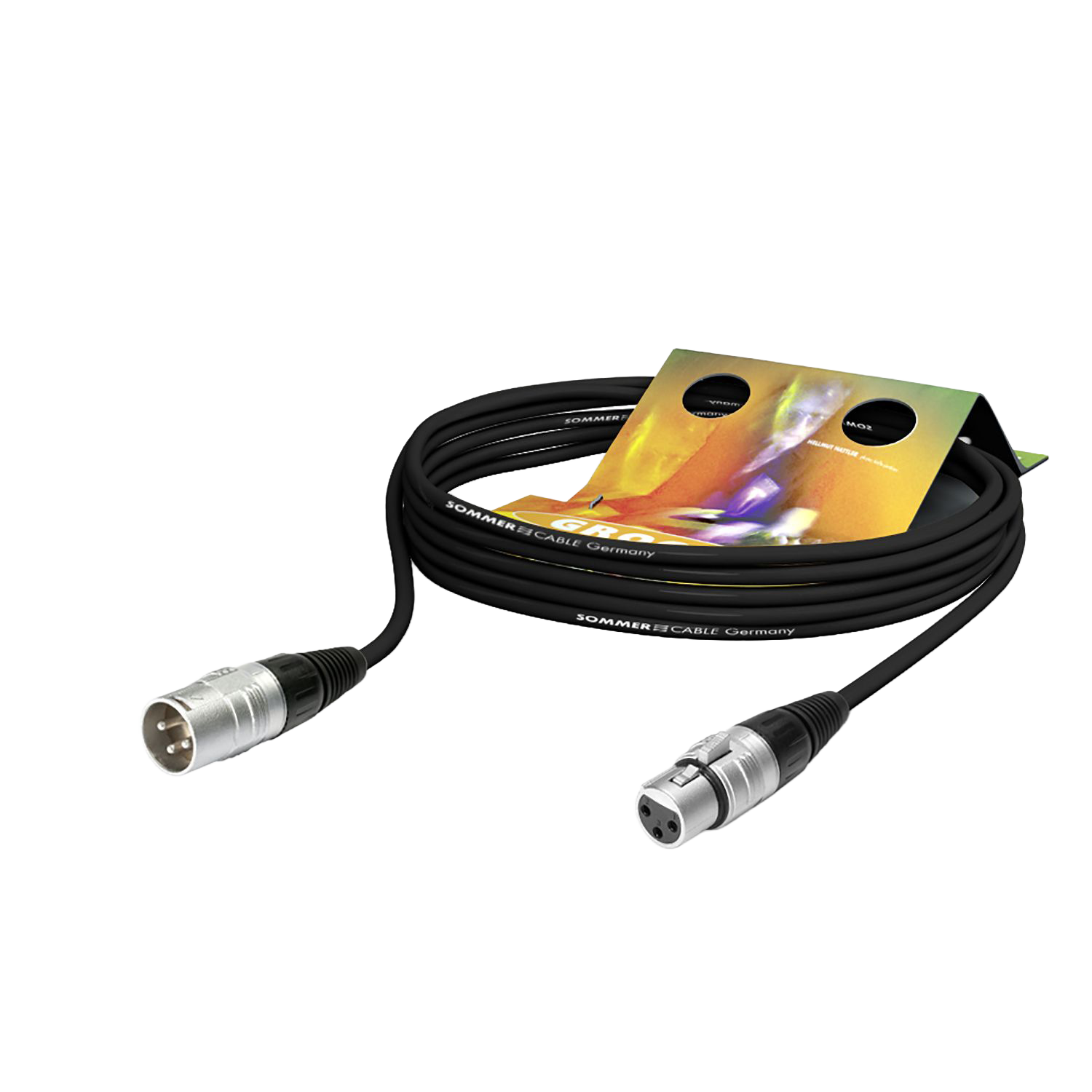

Sommer Cable SGHN-0100-SW 1 m XLR Microphone Cable

Sommer Cable SGHN-0100-SW 1 m XLR Microphone Cable

Sommer Cable SGHN-0100-SW is a 1 m XLR microphone cable designed to carry balanced analog audio signals in stage, live sound and home recording applications.

The cable is assembled using Stage 22 Highflex cable with two 0.22 mm² inner conductors. Its dense helical copper screen provides 99% optical coverage, while the conductor-to-conductor capacitance is rated at 68 pF/m.

A straight 3-pole HICON XLR BASIC connector is fitted at each end: one female XLR connector and one male XLR connector. Both connectors feature silver-plated contacts, nickel-plated metal housings with conductive surfaces, black plastic caps and 3-chuck collet strain relief.

The 6.4 mm Super Soft PVC outer jacket provides flexibility and makes the cable easy to route, coil and store. PVC filling extending almost to the cable core helps protect the internal construction against pulling, twisting and other mechanical stress.

Main Features

• XLR microphone cable designed to carry balanced analog audio signals
• 1 m length is suitable for short connections on stage, in live sound systems and in recording setups
• Two 0.22 mm² inner conductors provide the electrical construction required for balanced signal transmission
• Dense helical copper screen helps reduce the effect of external electromagnetic interference on the transmitted signal
• 99% optical shield coverage provides dense screening around the inner conductors
• 68 pF/m conductor-to-conductor capacitance matches the specified electrical characteristics of the Stage 22 Highflex cable
• Flexible 6.4 mm Super Soft PVC outer jacket makes the cable easy to route and coil
• Silver-plated HICON XLR BASIC contacts provide the electrical connection between compatible devices
• 3-chuck collet strain relief holds the cable securely inside each connector housing

Technical Specifications

• Manufacturer: Sommer Cable
• Model: SGHN-0100-SW
• Series: Stage 22 Highflex
• Product type: microphone cable
• Signal transmission: balanced analog
• Length: 1 m
• Connector A: 3-pole female XLR
• Connector B: 3-pole male XLR
• Connector brand: HICON
• Connector series: XLR BASIC
• Connector contacts: silver-plated
• Connector housings: nickel-plated metal with conductive surfaces
• Inner conductors: 2
• Inner conductor cross-section: 0.22 mm²
• Conductor size: AWG 24
• Shielding: helical copper screen
• Optical shield coverage: 99%
• Conductor-to-conductor capacitance: 68 pF/m
• Outer jacket material: PVC
• Cable diameter: 6.4 mm
• Colour: black
• EAN: 4049371058926

In the Box

• 1 x Sommer Cable SGHN-0100-SW 1 m microphone cable with factory-fitted HICON XLR connectors

Who Is It For

This cable is intended for connecting microphones and other compatible audio equipment equipped with 3-pole XLR connections. It is suitable for stage use, live sound systems and home recording applications.
