Showtec Xpression 2000S - Spot Moving Head

Showtec Xpression 2000S - Spot Moving Head

A 200 W white LED produces a 17° beam and 4488 lm output. Motorised focus adjusts the sharpness of gobo projections, while the frost filter softens their edges.

The colour wheel offers seven dichroic colours plus open. Six metal gobos can rotate in both directions. A 12-facet circular prism and a 10-facet linear prism can be overlaid and rotated to create multiple moving projections.

DMX and RDM control are complemented by automatic programs, Master/Slave operation and custom programs stored in the fixture. Small setups can run saved programs without an external controller. The LCD provides access to settings, including adjustable PWM from 1200 Hz to 15 kHz.

16-bit pan and tilt provide precise positioning. Power and DMX inputs and outputs support linked fixtures. The Quick-lock mounting position is adjustable, and the base incorporates a carrying handle. The IP20 housing is intended for indoor operation.

Main Features

• Two rotating prisms can operate separately or together.
• Four dimming curves: Linear, Square, I-Square and S-Curve.
• Selectable fan modes and adjustable PWM frequency.
• The manufacturer provides a GDTF fixture file for control setup.

Technical Specifications

• Light Source: 1 × 200 W white LED
• Luminous Flux: 4488 lm
• Illuminance: 2 m: 19138 lx; 3 m: 8506 lx; 5 m: 3062 lx
• Colour Rendering Index: CRI 76
• Colour Temperature: 8000 K
• Beam Angle: 17°
• Optical Controls: motorised focus; frost filter
• Control: DMX, RDM, automatic and stored programs, Master/Slave, physical buttons
• DMX Channels: 14, 18
• Display: LCD
• PWM Frequency: 1200–15000 Hz
• Dimming: 0–100 %; Linear, Square, I-Square, S-Curve
• Shutter: yes
• Prisms: 12-facet circular; 10-facet linear; rotation, indexing and overlay
• Colour System: 7 dichroic colours + open; wheel indexing and rotation

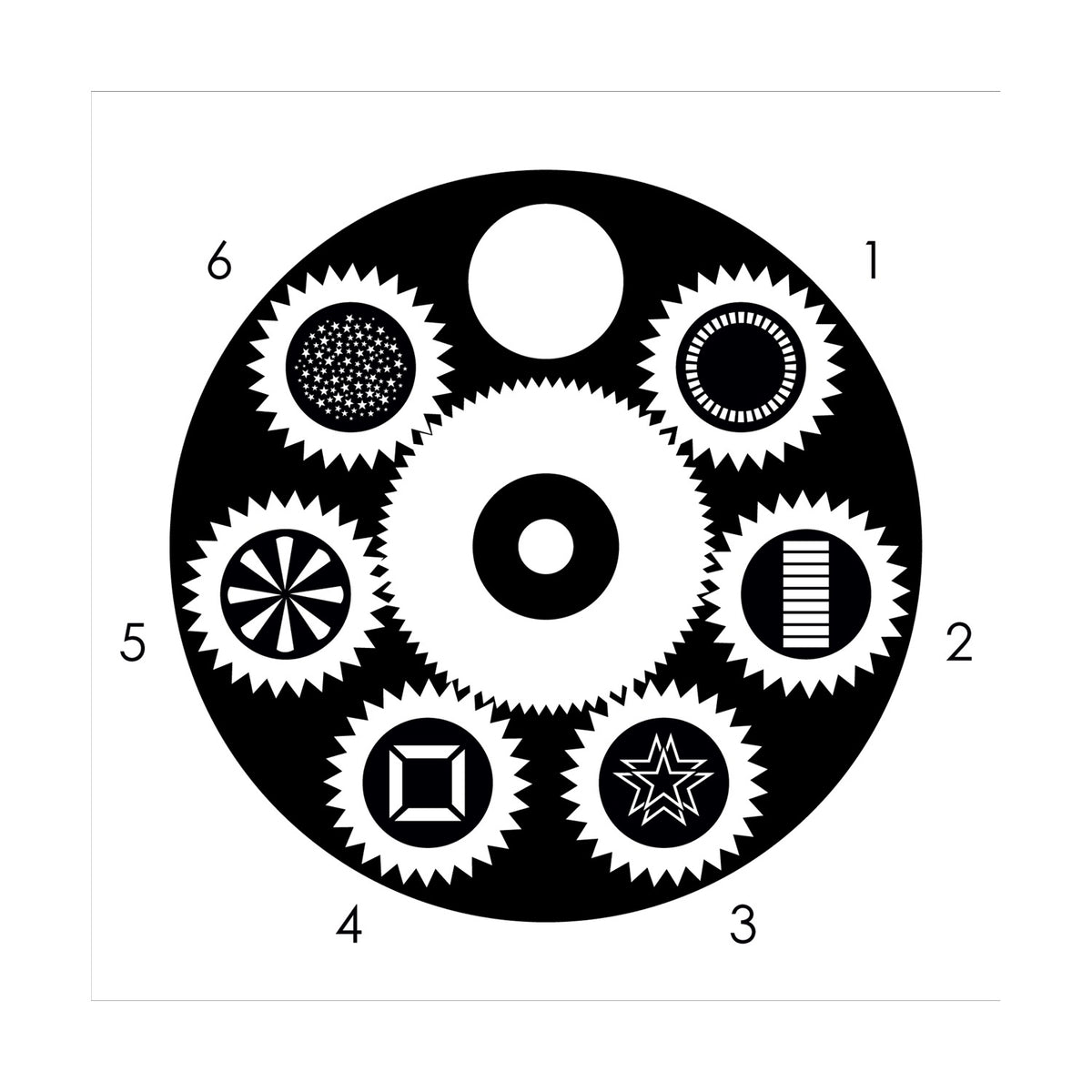

• Gobos: 6 rotating metal gobos + open
• Movement: Pan 540°; Tilt 270°; 16-bit positioning
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption: 221 W

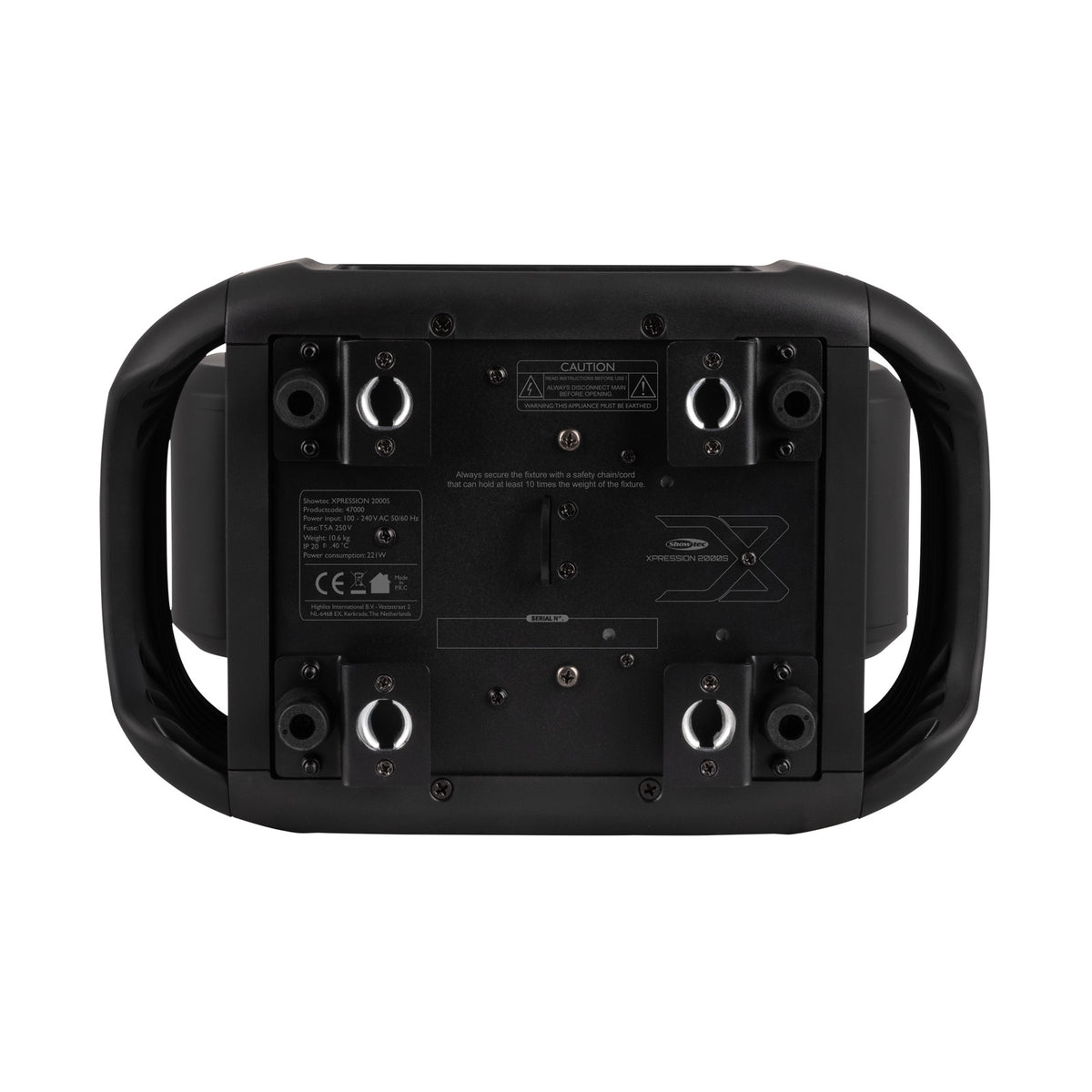

• Connections: Power Pro Blue input, Power Pro Grey output; 3-pin XLR DMX input and output
• Dimensions (L × W × H): 196 × 310 × 425 mm
• Weight: 10.6 kg
• Protection: IP20, indoor use only
• Housing and Cooling: black, metal and plastic; convection and axial fan, selectable modes

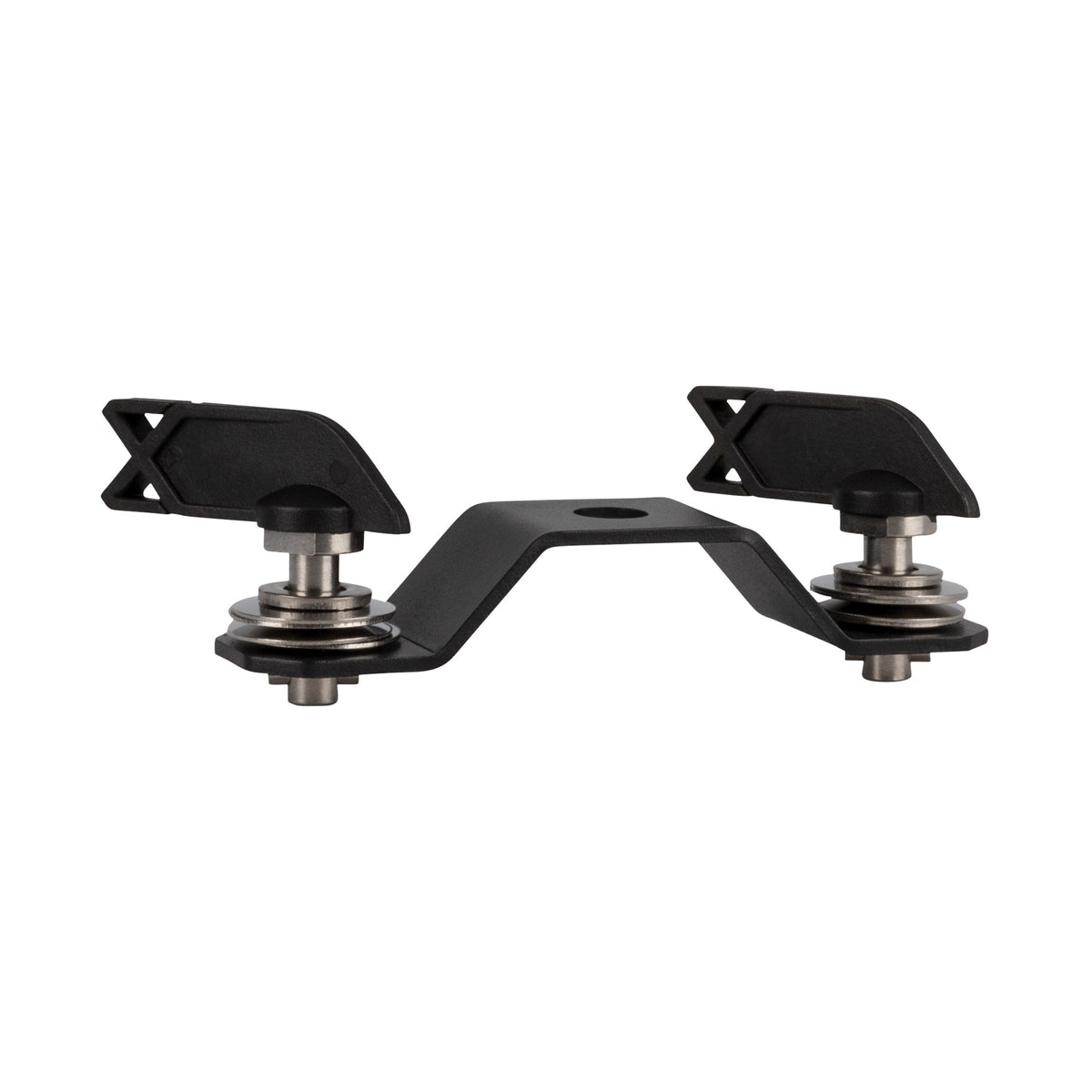

• Mounting: Quick-lock brackets
• Ambient Temperature: up to 40°C
• Maximum Surface Temperature: 70°C

What’s Included

• 1 × Showtec Xpression 2000S - Spot Moving Head
• 1.5 m Schuko to Power Pro power cable
• 2 Quick-lock brackets

Who Is It For

For indoor stages and clubs requiring coloured gobo projections, motorised focus and multiple prism effects. Matching colours and effects across the Xpression series allow coordinated fixture combinations.
