Showtec Shark Beam FX One Moving Head

Showtec Shark Beam FX One Moving Head

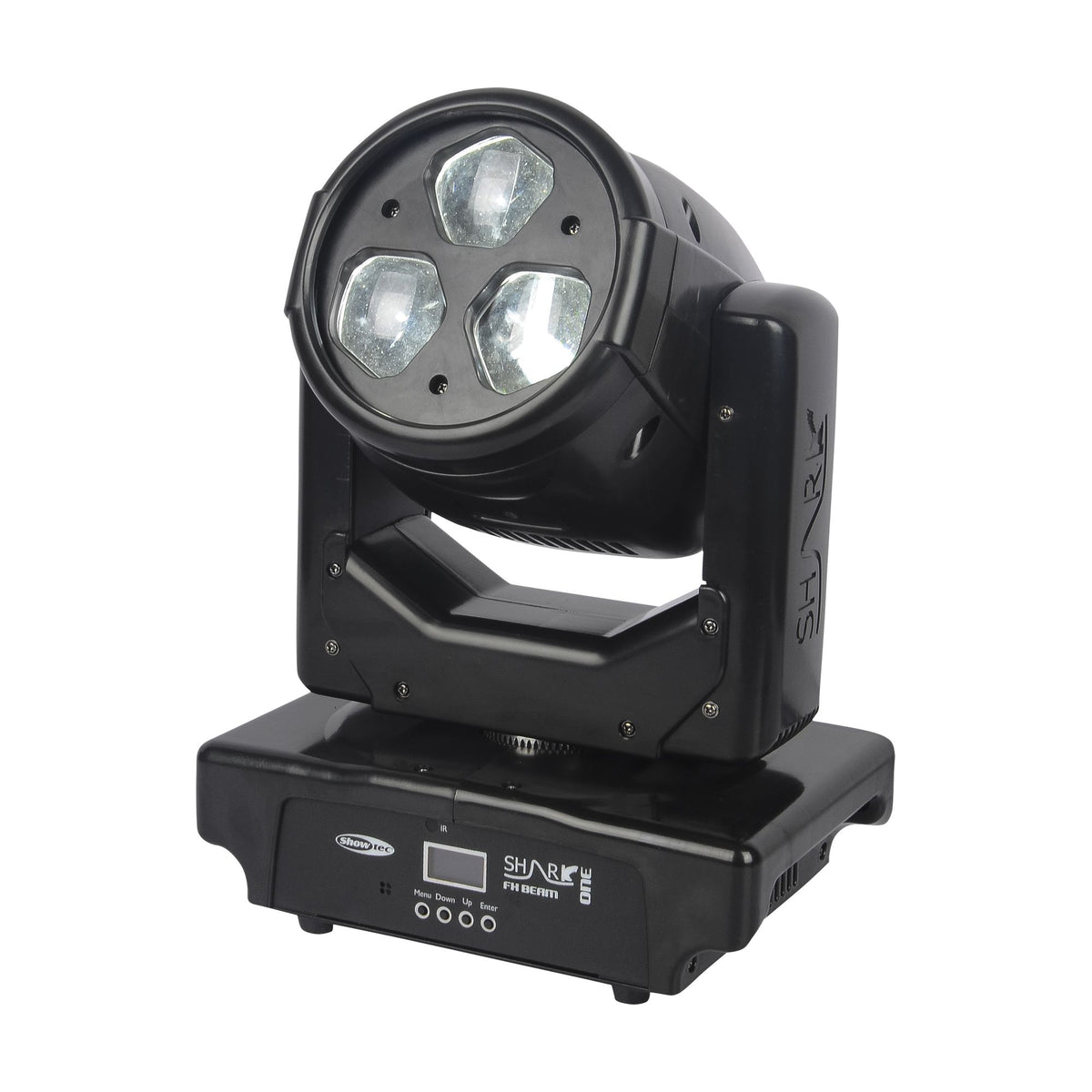

Three 40 W RGBW LEDs and a motorised 4–60° zoom range move between a narrow beam and a broad wash. The front lens assembly rotates continuously in either direction.

Built-in aerial effects combine movement, colour and rotating optics. DMX controls dimming, strobe and zoom in a choice of 8- or 16-channel modes.

Automatic and sound-triggered programs also operate without a console. Master/Slave mode synchronises multiple fixtures, while the supplied IR remote selects programs and effects wirelessly.

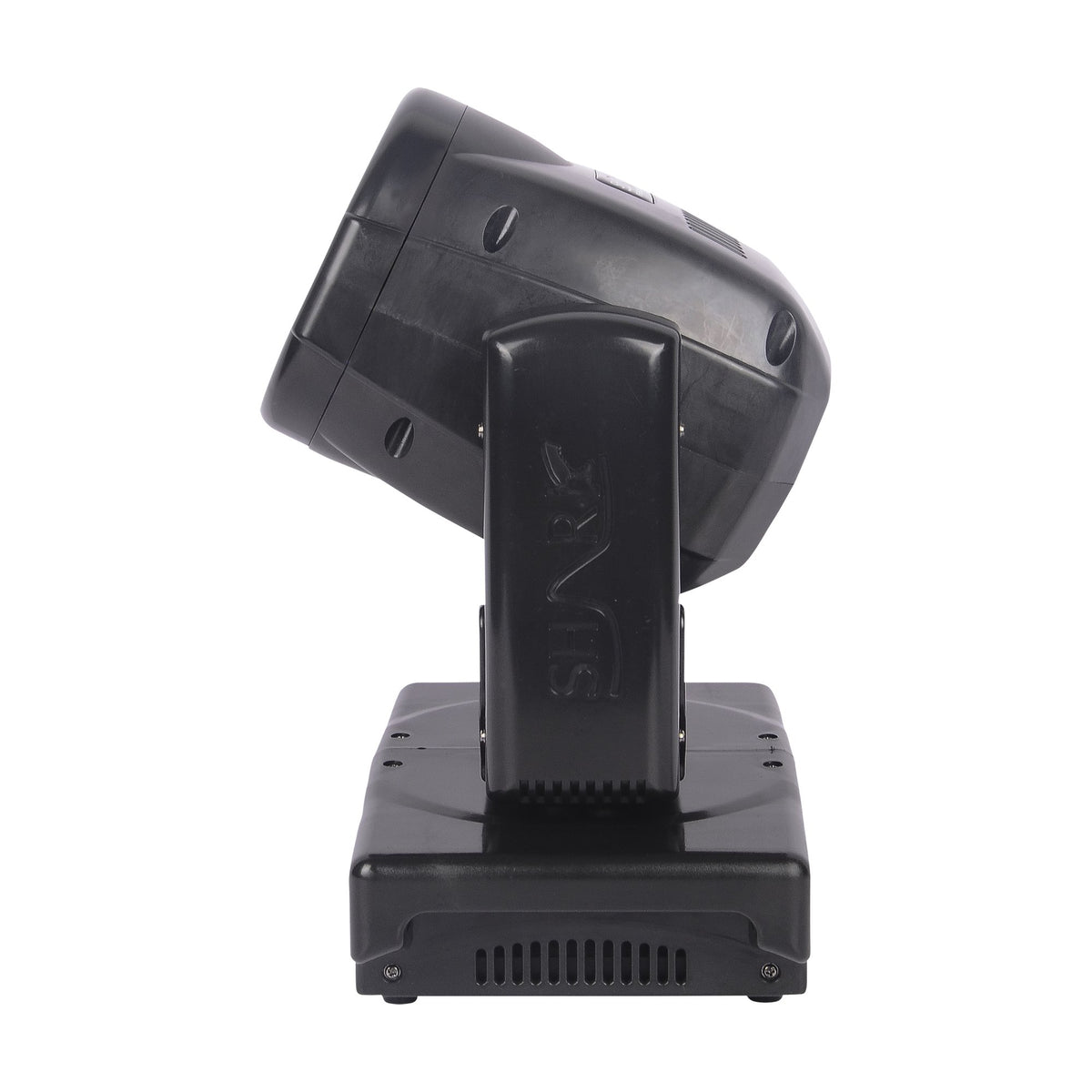

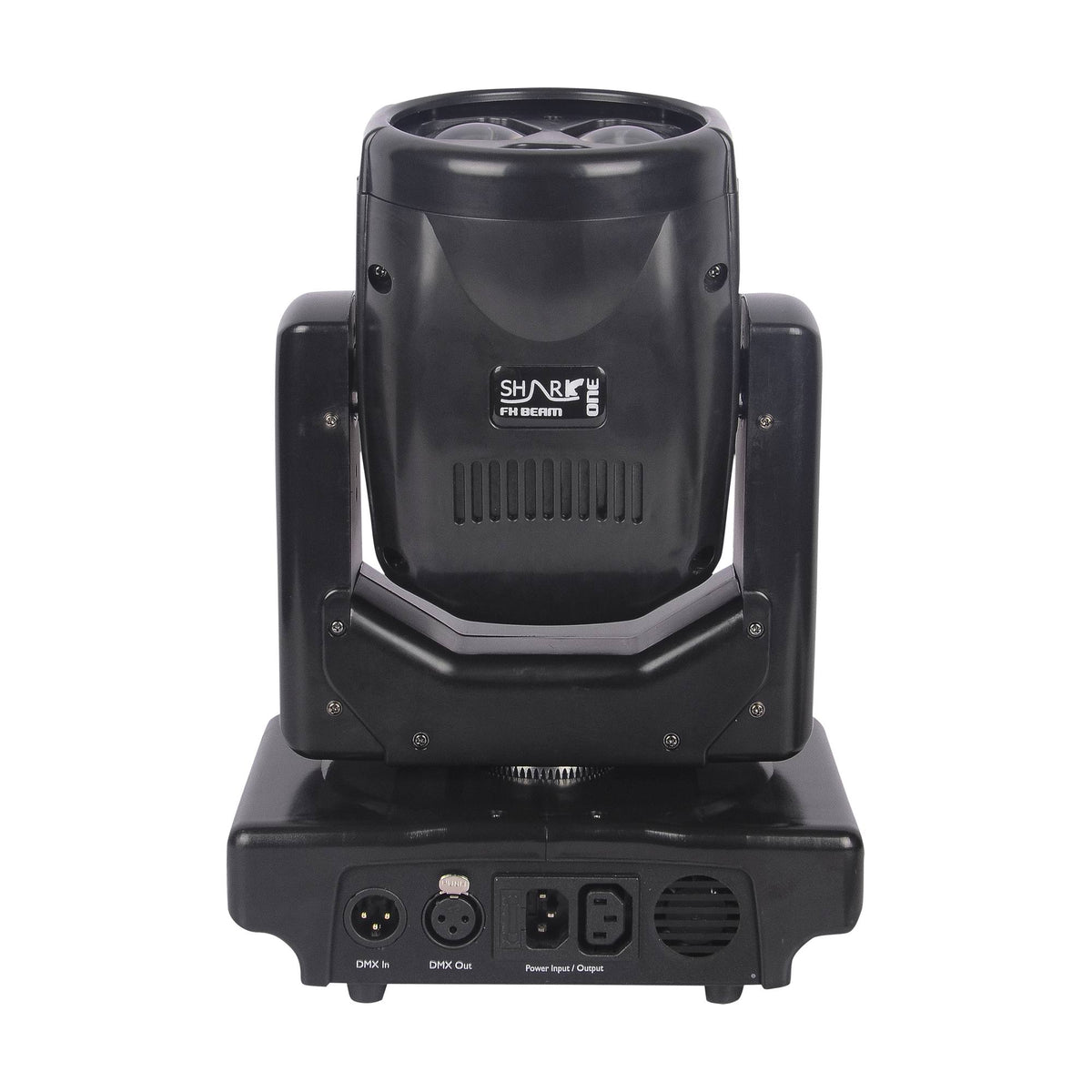

Head positioning uses 16-bit Pan/Tilt control. Setup is available through an OLED menu; IEC power input/output and 3-pin XLR DMX connections support linked installations. This IP20 fixture is for indoor use.

Main Features

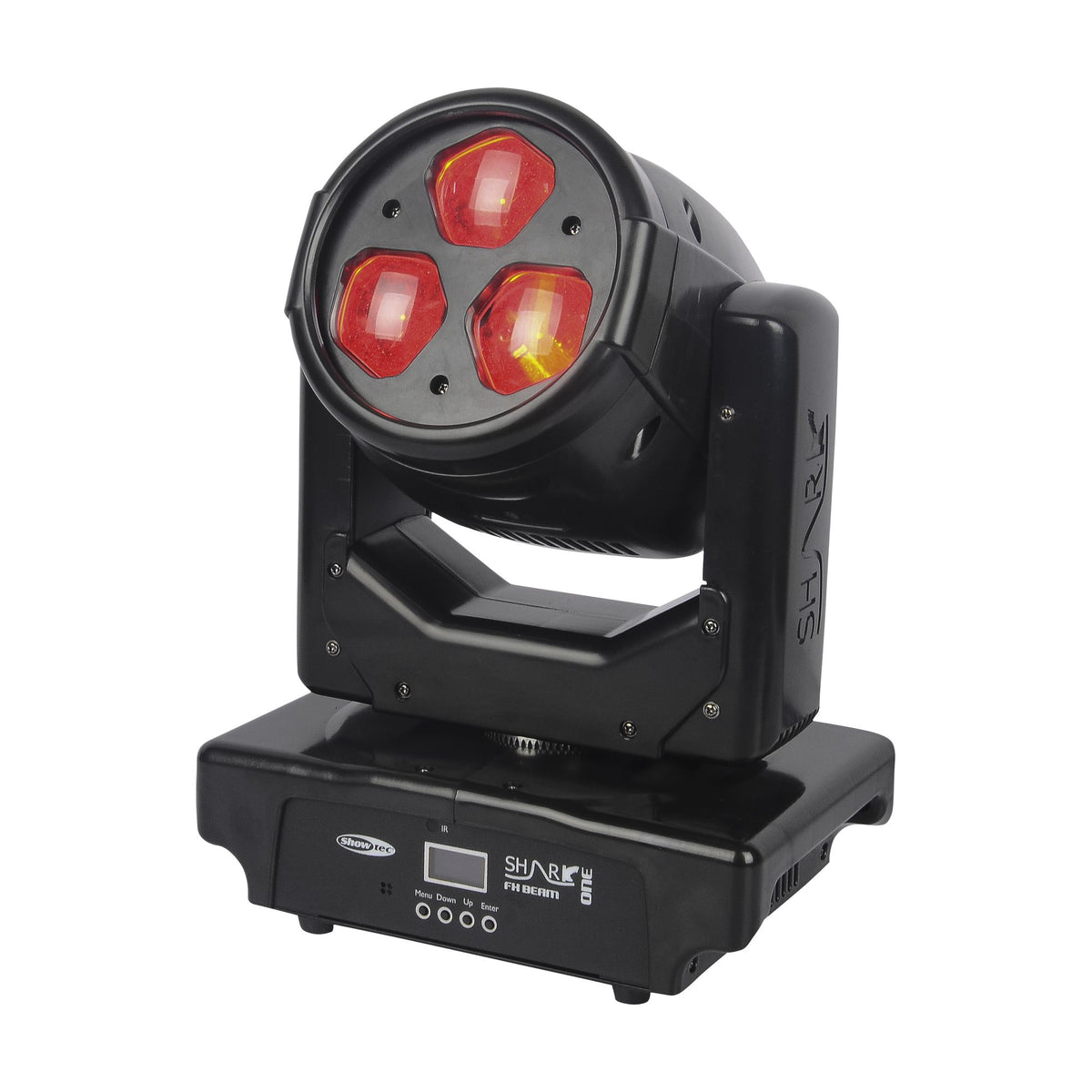

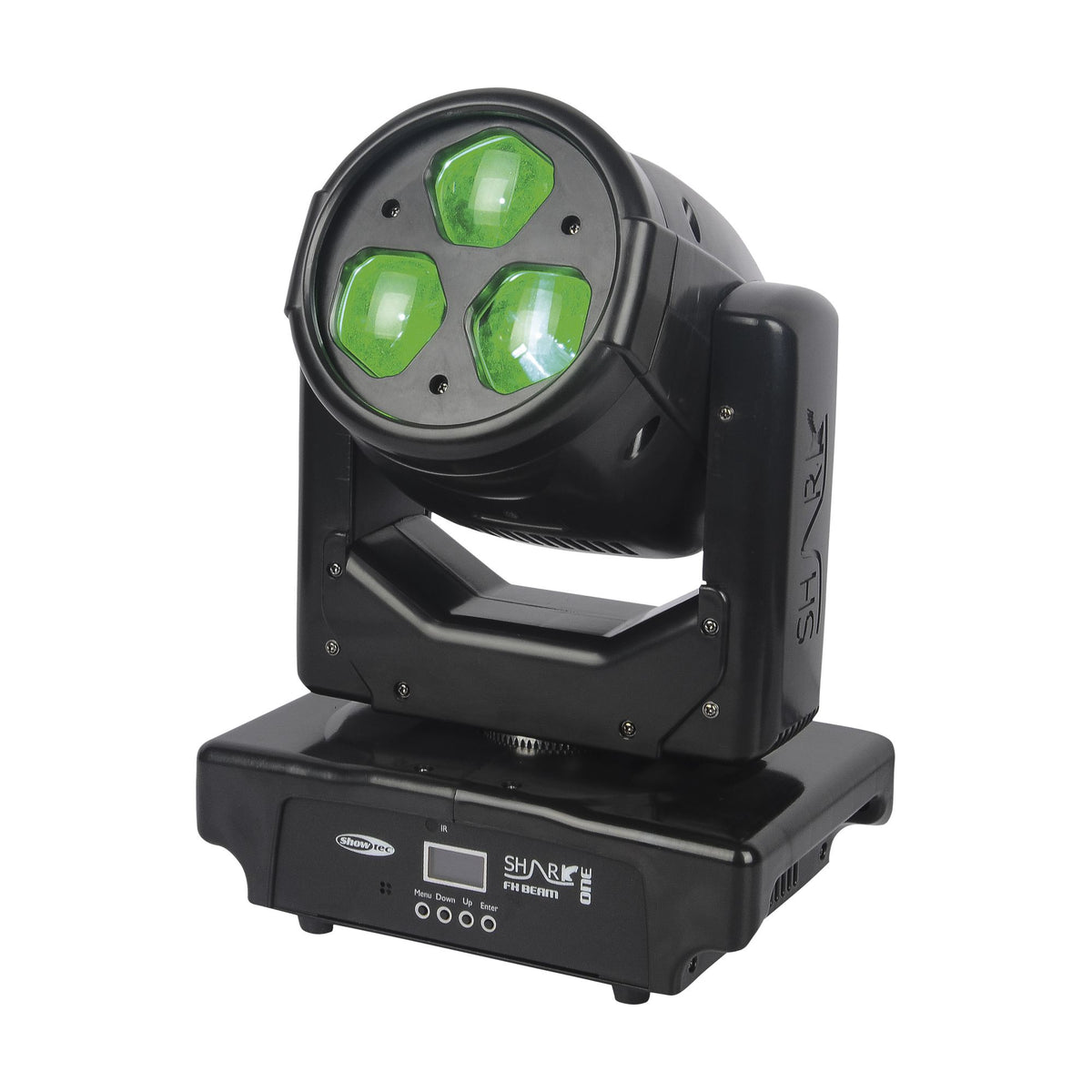

• RGBW sources mix colours with a separate white component.
• Motorised 4–60° zoom changes the beam width.
• Continuous bidirectional lens rotation creates moving aerial effects.
• 8- and 16-channel DMX modes provide different control detail.
• 16-bit Pan/Tilt control positions the head precisely.
• Automatic and sound-triggered programs run without a console.

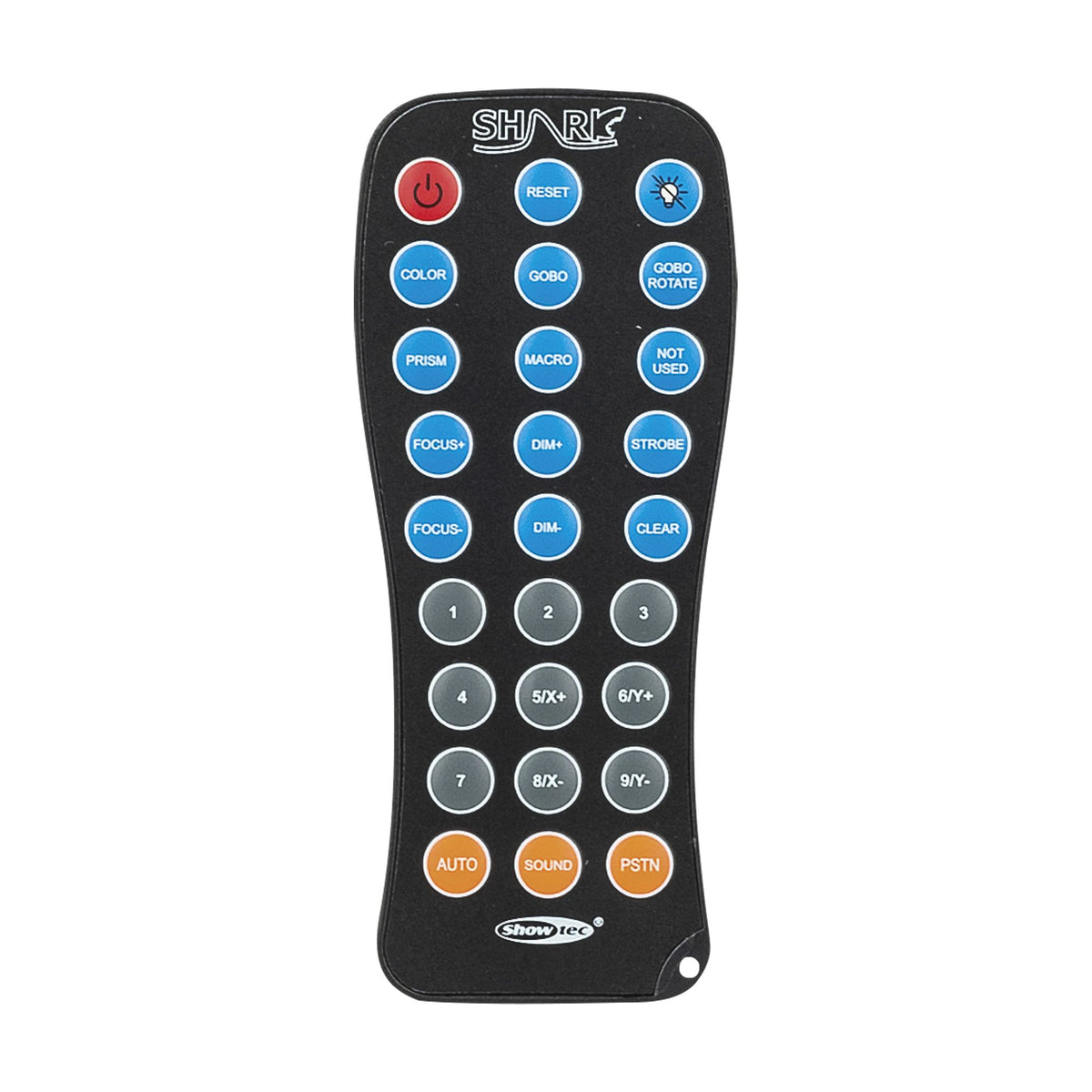

• An IR remote is supplied for program and effect selection.
• An IEC power output supports onward power connection.

Technical Specifications

• Light Source: 3 × 40 W RGBW LED
• Illuminance @ 2 m: 48300 lx
• Beam Angle Minimum (Circular): 4 °
• Beam Angle Maximum (Circular): 60 °
• Zoom Type: Motorised
• Zoom Minimum: 4 °
• Zoom Maximum: 60 °
• Control Mode: Auto, DMX, Master Slave, Remote, Sound
• DMX Channels: 8, 16
• Display: OLED
• Dimmer: 0–100 %
• Strobe: 0–20 Hz
• Pan: 540 °
• Tilt: 230 °
• Pan/Tilt Resolution: 16 bit
• Continuous Movement: Rotating Optics
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption: 135 W
• Fuse: 2 A
• Power Connector In: IEC
• Power Connector Out: IEC
• DMX Connector: XLR 3P In/Out
• Weight: 6 kg
• IP Rating: IP20, indoor use only
• Housing: Metal, Plastic
• Colour: Black
• Cooling: Axial fan
• Mounting Options: Bracket
• Safety Attachment: Yes
• Safety Eyes: 1
• Maximum Ambient Temperature: 40 °C
• Maximum Surface Temperature: 80 °C
• Minimum Distance to Objects: 1 m
• Dimensions (L × W × H): 255 × 175 × 355 mm
• Lens Rotation: Continuous in both directions

What’s Included

• 1 × Showtec Shark Beam FX One Moving Head
• Mounting bracket and safety eye
• IR remote
• 1.5 m IEC power cable

Who Is It For

Indoor stage and club lighting requiring narrow beams, wide colour washes and rotating optical effects.
