Showtec Pixel Bar 8 COB LED Bar

Showtec Pixel Bar 8 COB LED Bar

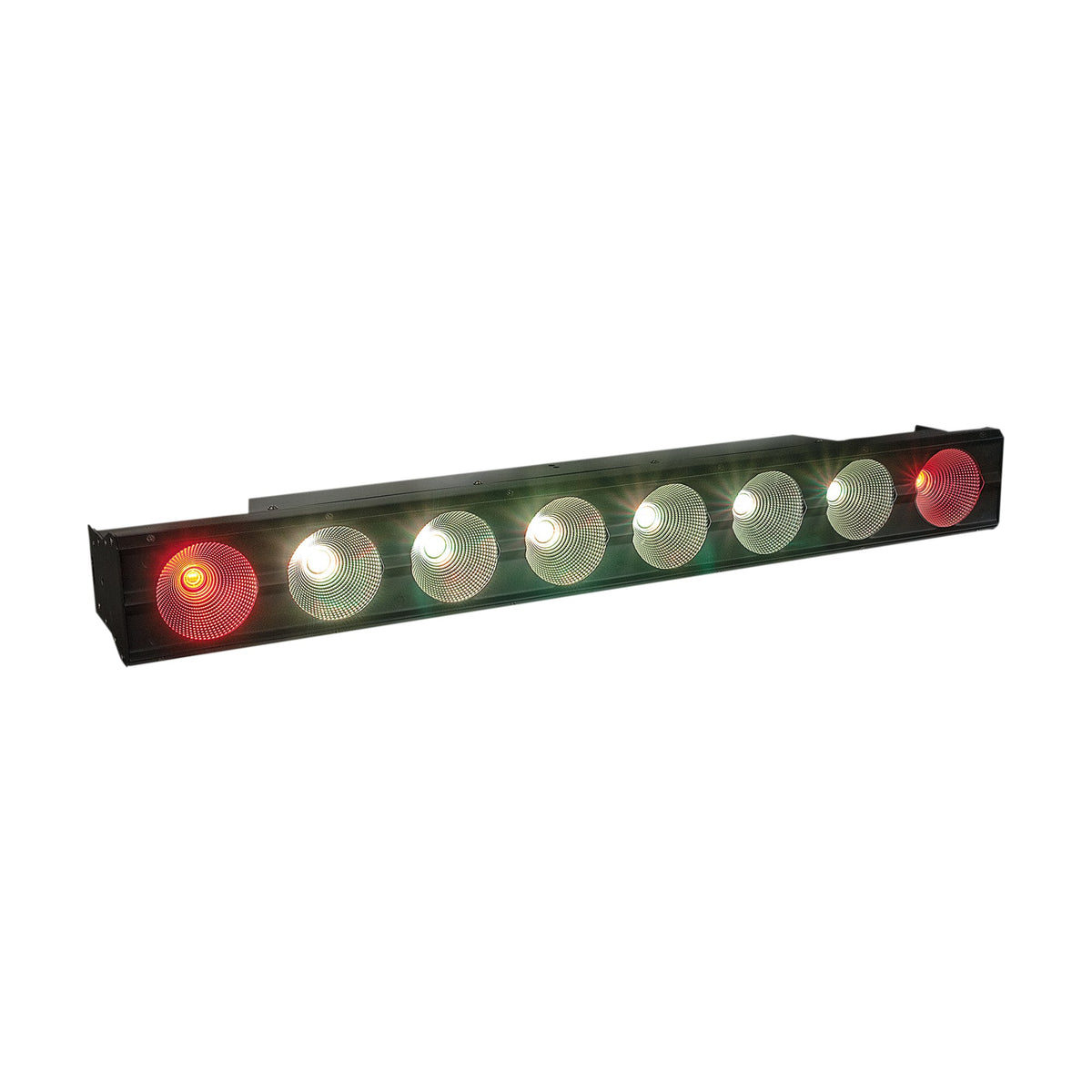

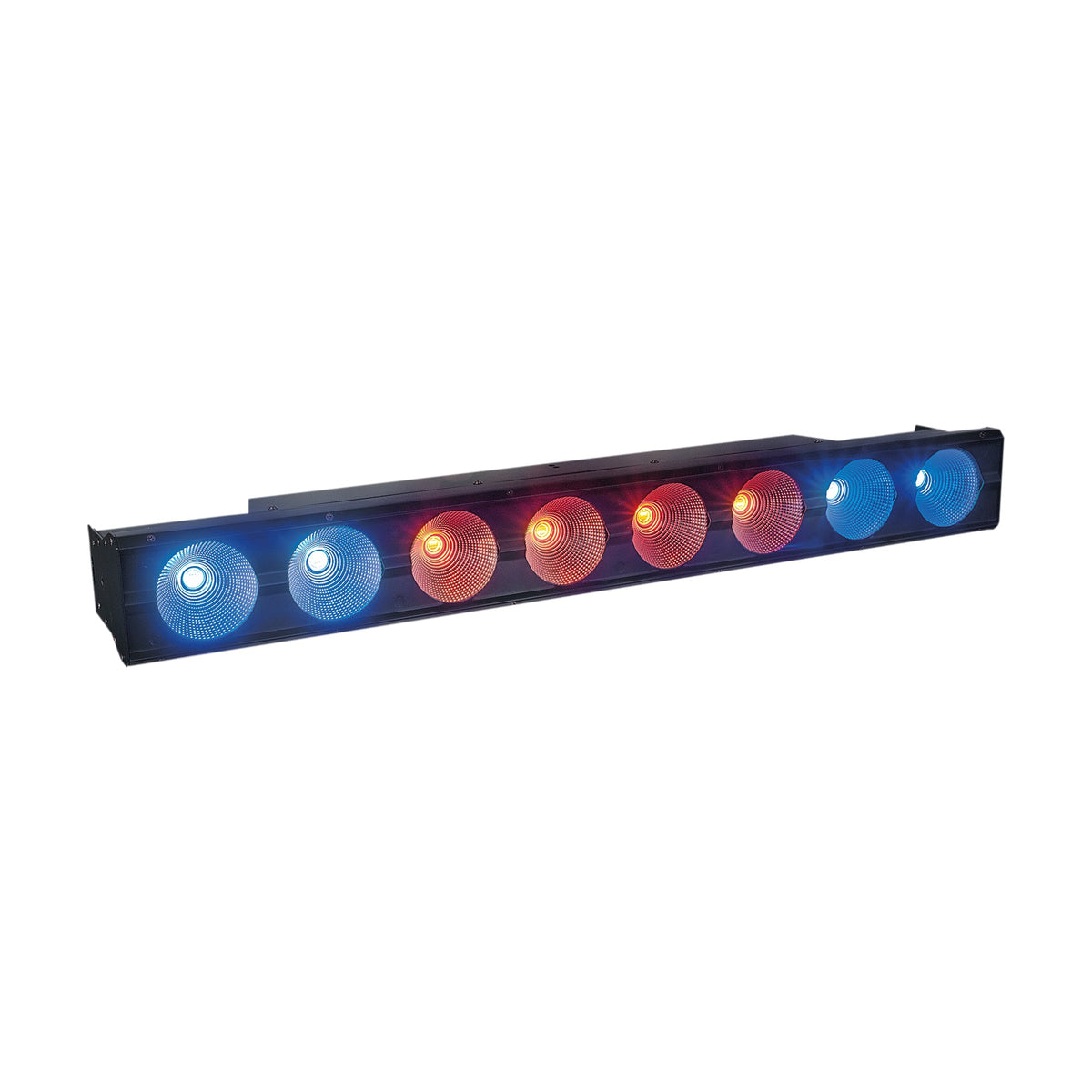

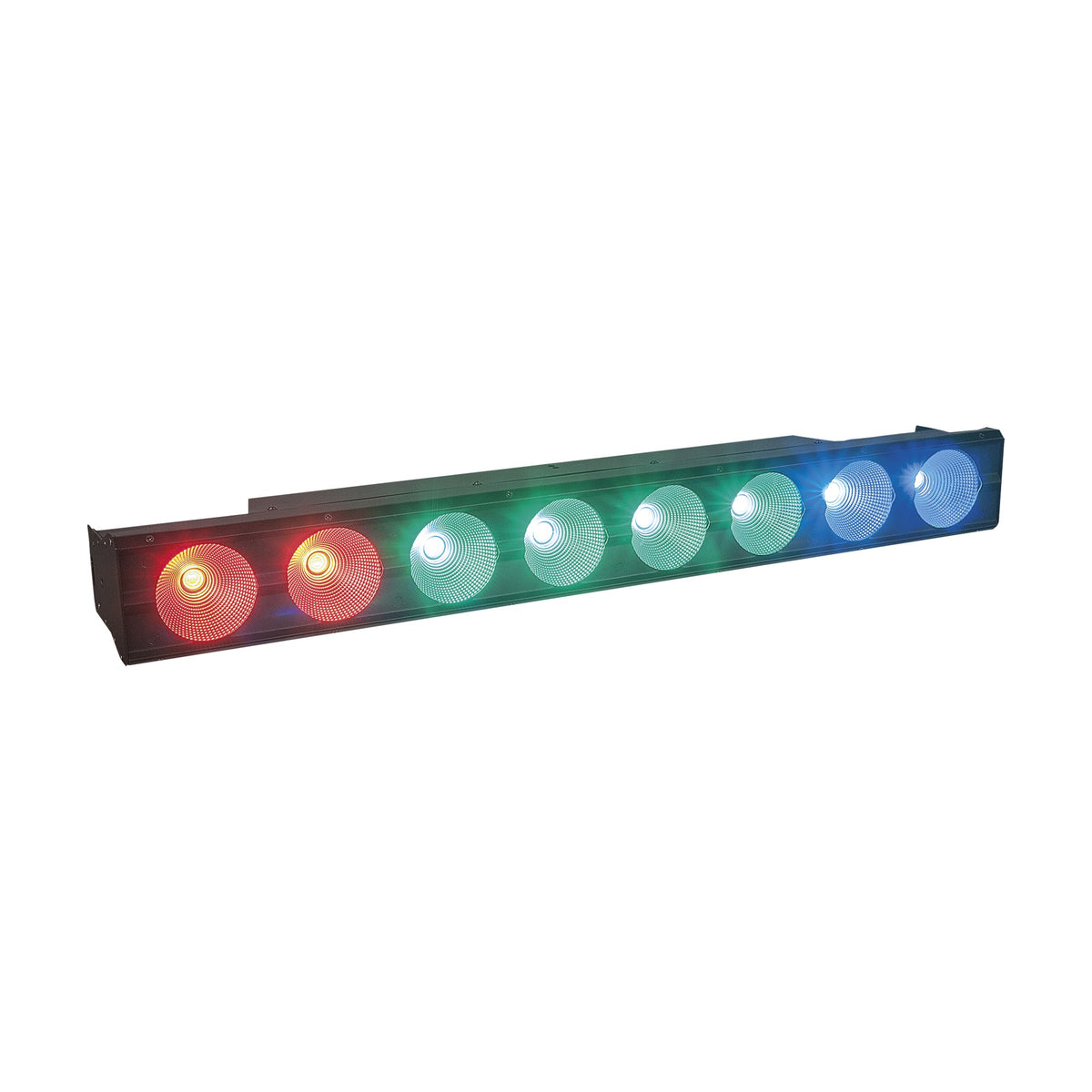

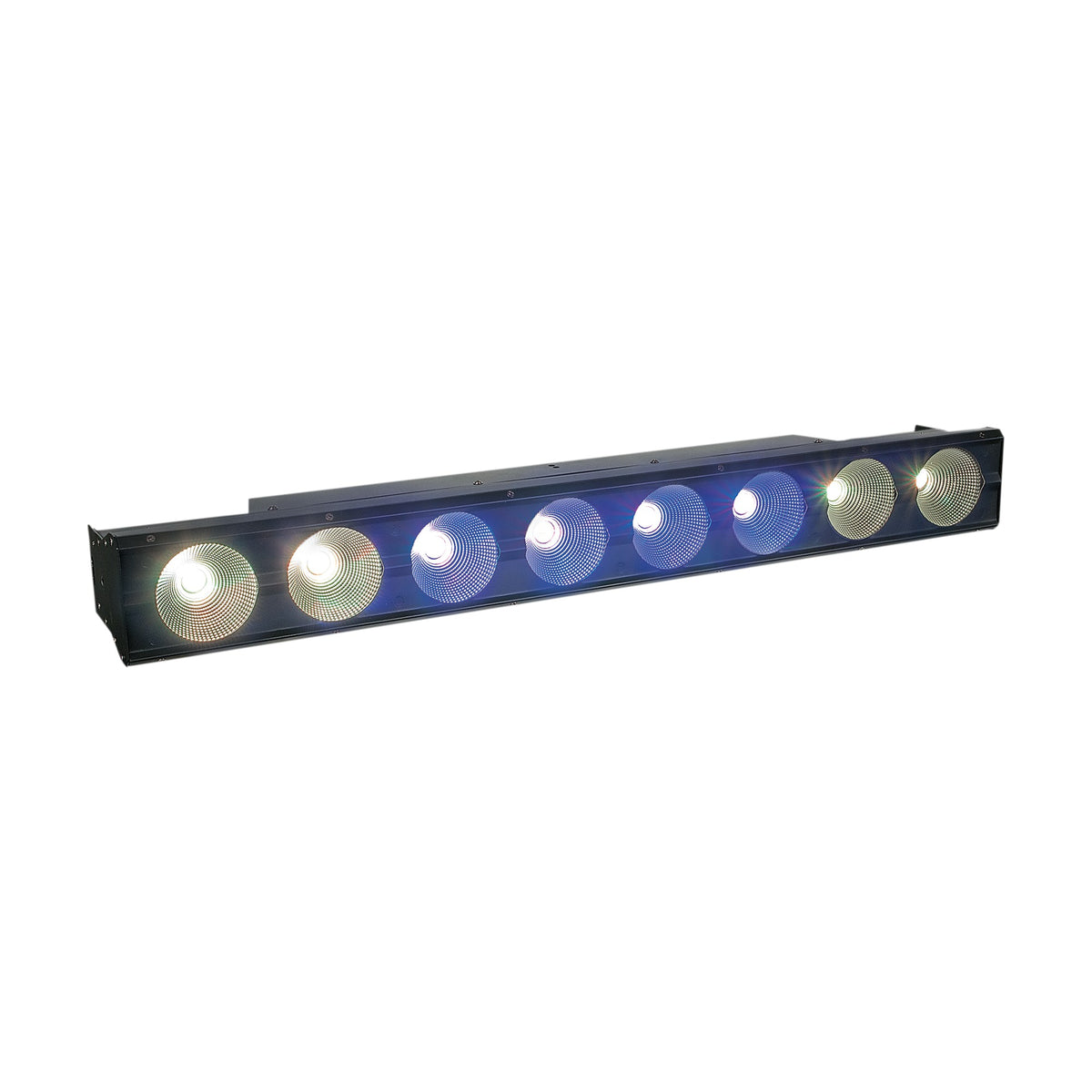

Eight 15 W COB RGB LEDs form a linear light source with a 60° horizontal and vertical beam. The wide distribution is suitable for broad colour washes.

Choose from 2-, 3-, 5-, 6-, 12- or 24-channel DMX modes. In 24-channel mode, RGB values are controlled separately for each of the eight sources, enabling moving colour sequences across the bar. The 12-channel mode controls four pairs of adjacent sources independently.

Automatic programs, static colours and sound-triggered operation work without a DMX console. Master/Slave mode synchronises multiple bars, and a numeric display provides access to settings.

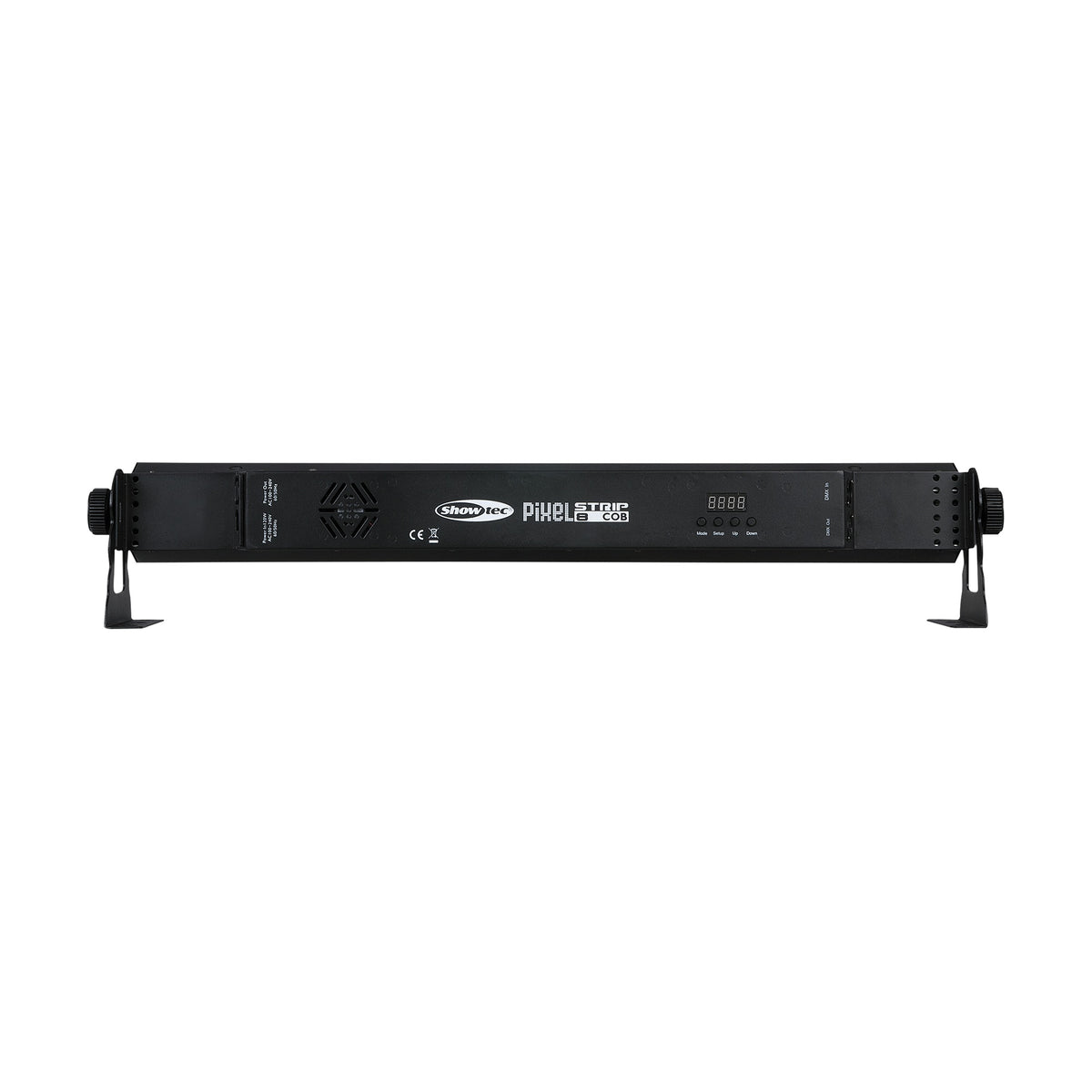

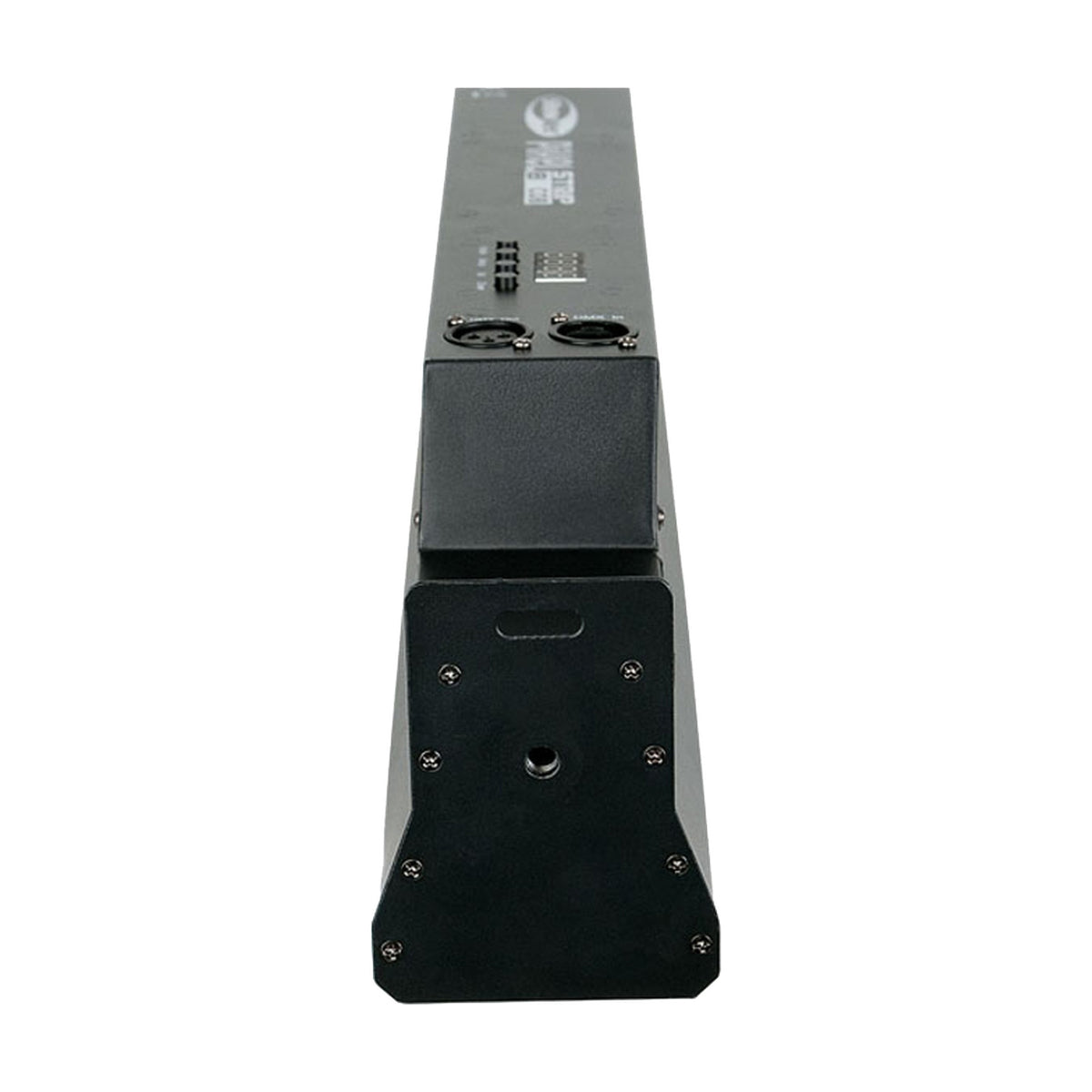

IEC power input/output and 3-pin XLR DMX connectors support linked fixtures. The brackets allow standing or mounted installation. Fan cooling and an IP20 housing are specified for indoor operation.

Main Features

• 8 individual COB RGB sources create a linear lighting effect.
• 24-channel mode controls each RGB source independently.
• Six DMX modes balance available functions and channel use.
• A 60° × 60° beam provides wide light distribution.
• Automatic and sound-triggered programs run without a DMX console.
• 0–100% dimming and strobe effects complement colour sequences.
• Master/Slave mode synchronises multiple bars.
• IEC and XLR outputs support daisy-chained installations.

Technical Specifications

• Light Source: 8 × 15 W COB RGB LED
• Refresh Rate: 7800 Hz
• Luminous Flux (Total): 1050 lm
• Beam Angle (Horizontal): 60 °
• Beam Angle (Vertical): 60 °
• Control Mode: Auto, Built-in Program, DMX, Master Slave, Sound
• DMX Channels: 2, 3, 5, 6, 12, 24
• Display: 7-segment
• Dimmer: 0–100 %
• Strobe: 0–20 Hz
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption: 120 W
• Power Connector In: IEC
• Power Connector Out: IEC
• DMX Connector: XLR 3P In/Out
• Weight: 3.9 kg
• IP Rating: IP20, indoor use only
• Housing: Metal
• Colour: Black
• Cooling: Axial fan
• Mounting Options: Bracket, Stand
• Maximum Ambient Temperature: 40 °C
• Minimum Operating Temperature: -5 °C
• Dimensions (L × W × H): 735 × 110 × 85 mm excluding brackets
• Illuminance at 2 m (R / G / B / Full): 300 / 340 / 410 / 1050 lx
• Fuse: 2 A / 250 V

What’s Included

• 1 × Showtec Pixel Bar 8 COB LED Bar
• Mounting brackets
• 1.35 m IEC power cable

Who Is It For

Indoor stage backdrops, club lighting and linear colour effects. Independent source control supports programmed RGB sequences.
