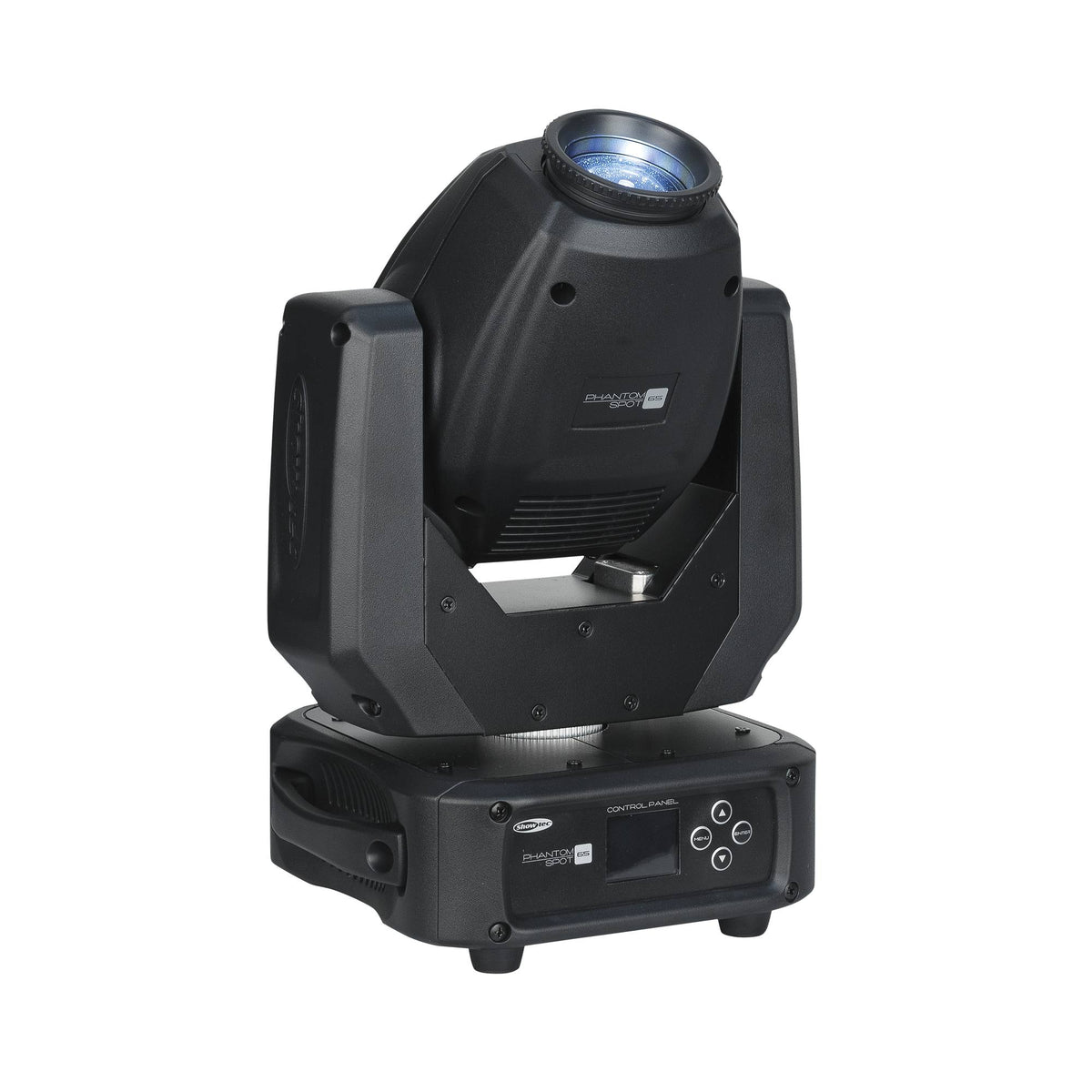

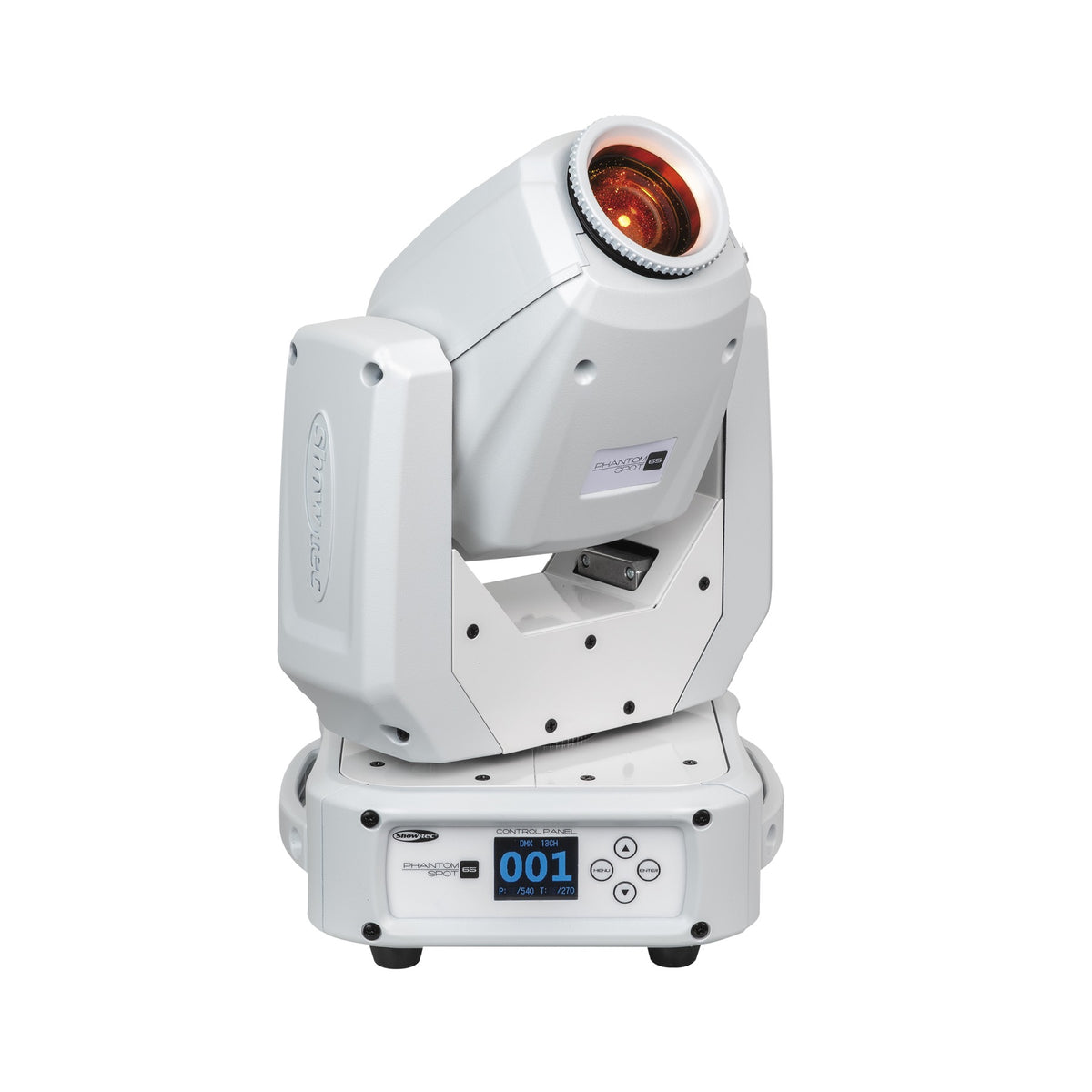

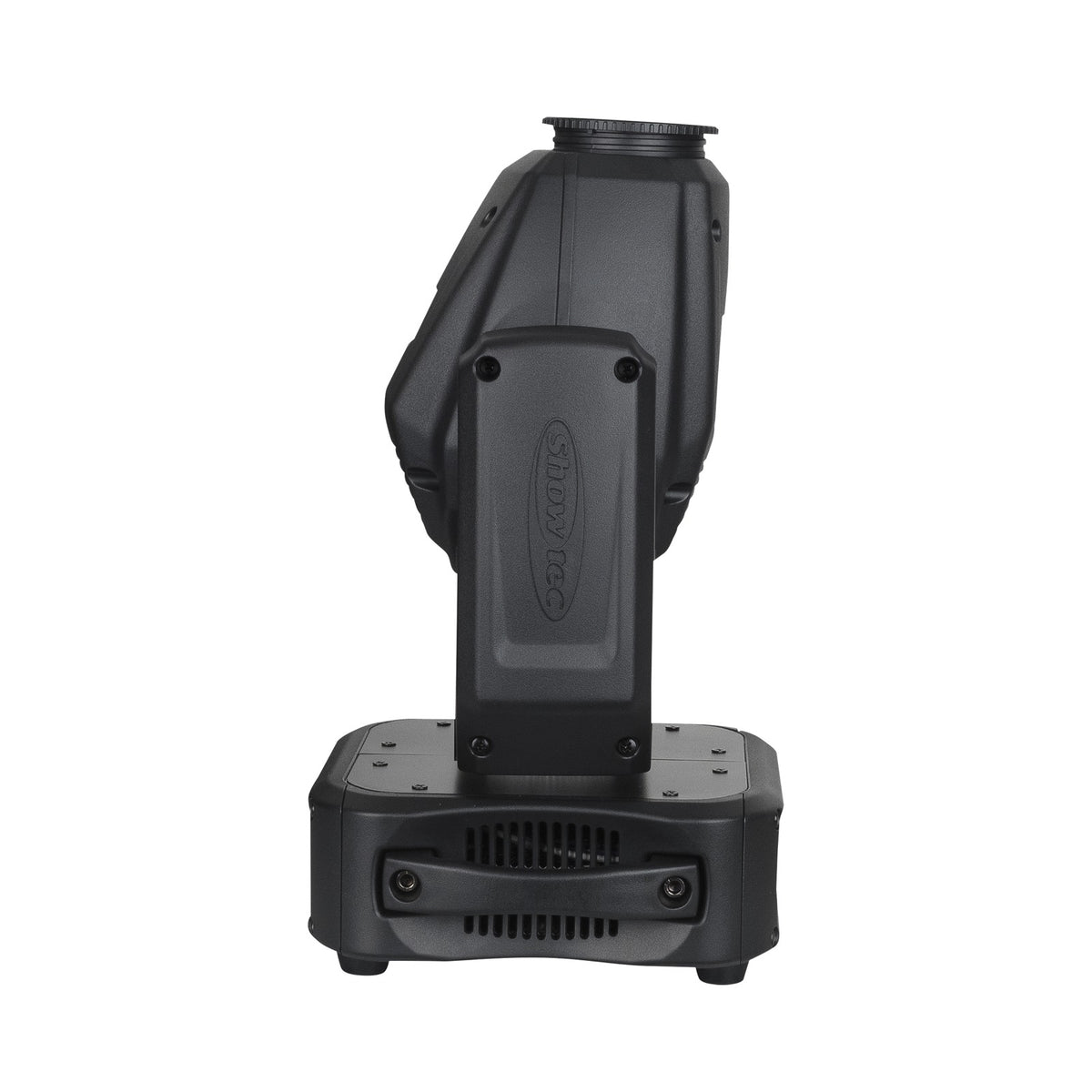

Showtec Phantom 65 Spot Moving Head

Showtec Phantom 65 Spot Moving Head

A 65 W white LED produces a 16° beam. Mechanical focus adjustment lets you sharpen the gobo projection for the selected throw distance.

Independent colour and gobo wheels combine eight dichroic colours with seven interchangeable gobos that rotate in either direction. A three-facet prism adds another projection effect, with strobe and dimmer settings providing further control.

Choose 8 or 13 DMX channels, automatic programs, sound activation or Master/Slave operation. The LCD and physical buttons provide access to the operating mode and DMX address.

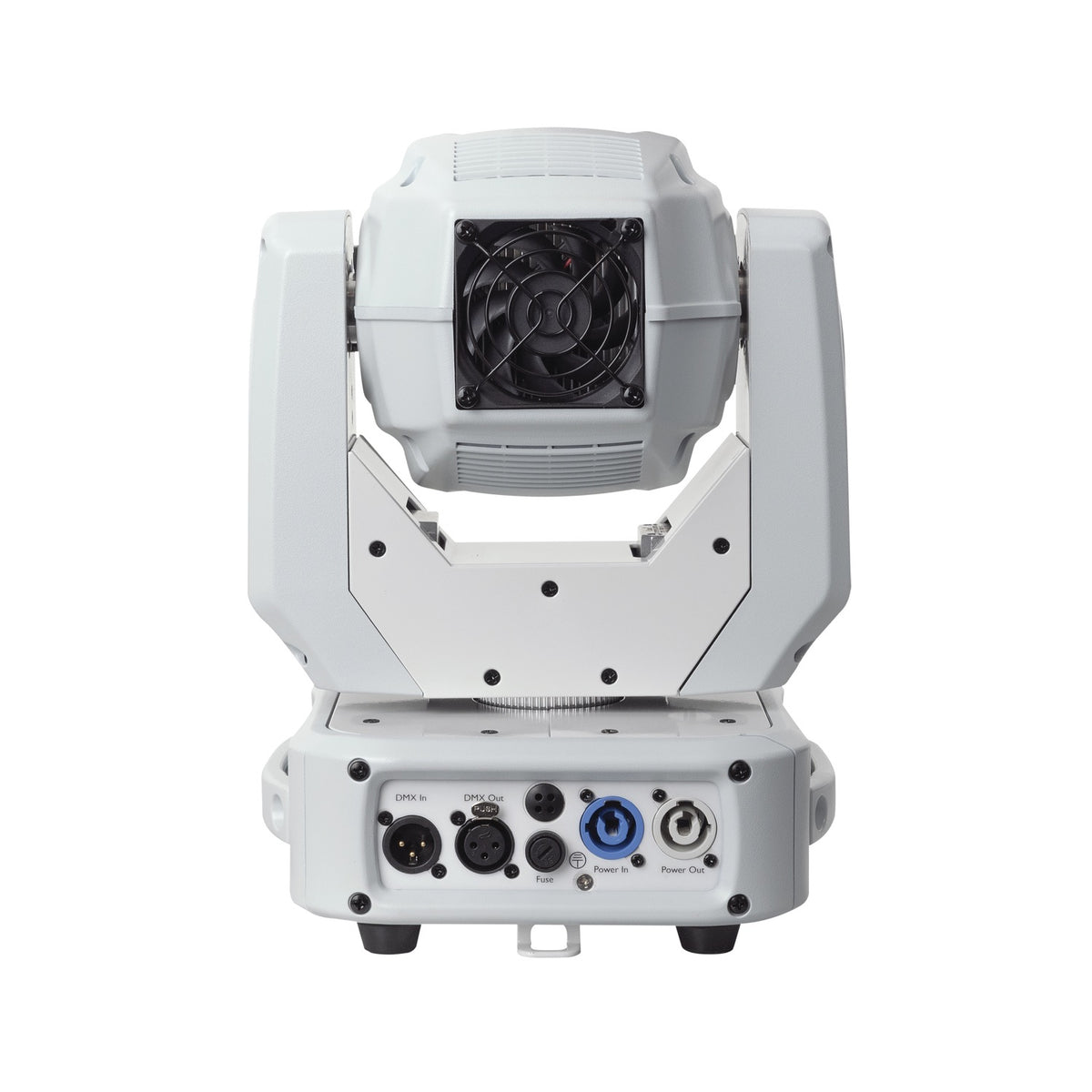

The IP20 housing is intended for indoor use. One Quick-lock bracket supports suspended mounting, while power and 3-pin XLR DMX inputs and outputs allow fixtures to be linked. Black and white housings are offered.

Main Features

• Seven interchangeable rotating gobos: six metal and one glass.
• Colour-wheel indexing, split colours and Rainbow-flow effects.
• 16-bit positioning with selectable pan and tilt ranges.
• Movement inversion and pan/tilt blackout are available.

Technical Specifications

• Light Source: 1 × 65 W cool-white CW LED
• Luminous Flux: 2095 lm
• Illuminance: 5 m: 1870 lx
• Beam Angle: 16°
• Optical Controls: mechanical focus; fixed beam angle
• Control: DMX, automatic programs, physical controls, Master/Slave, sound activation
• DMX Channels: 8, 13
• Display: LCD
• Dimming: 0–100 %
• Strobe: 0-20 Hz
• Prisms: 3-facet circular
• Colour System: 8 dichroic colours + open; wheel indexing and rotation

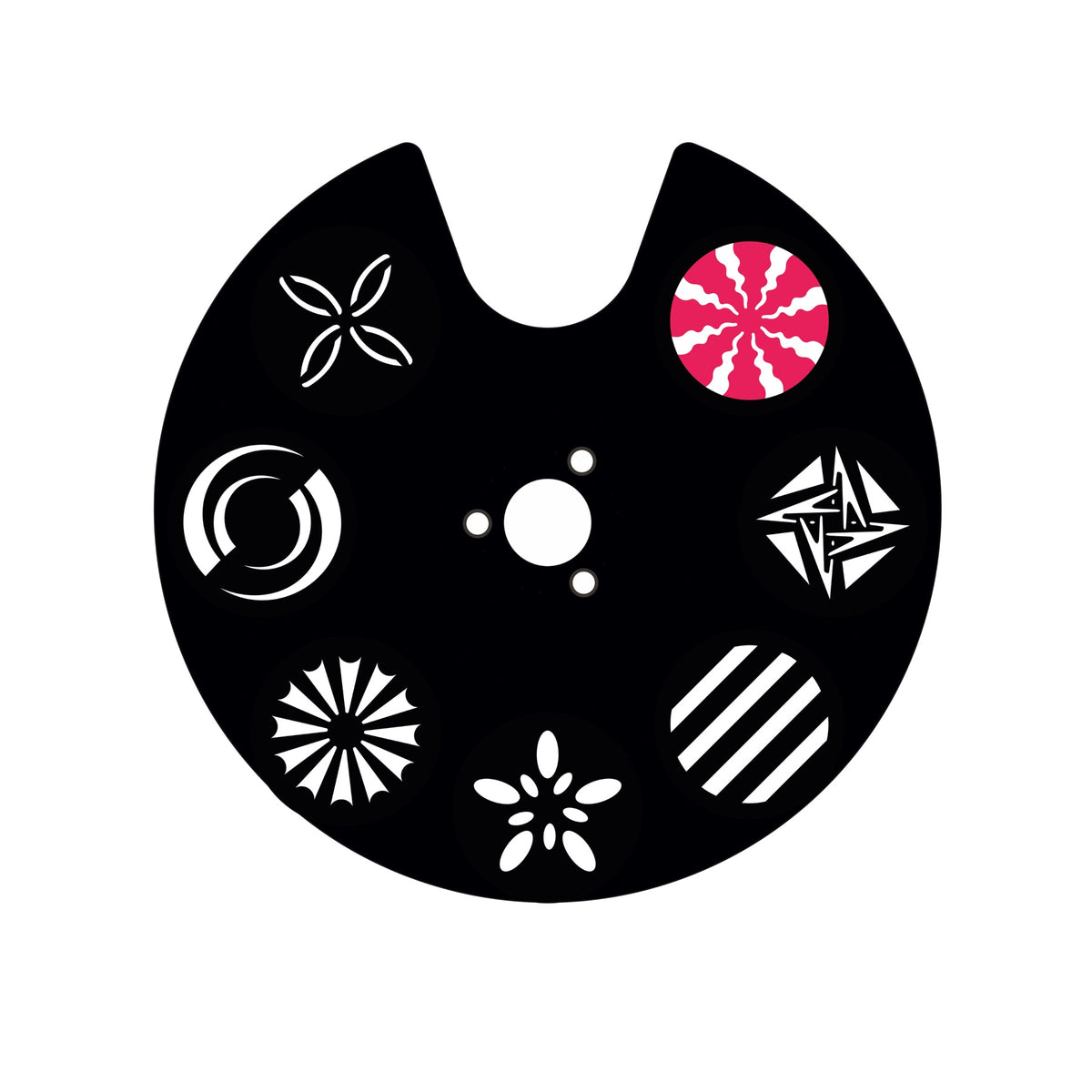

• Gobos: 7 interchangeable rotating gobos + open; 6 metal and 1 glass
• Gobo Dimensions: metal 24 mm, image 20 mm, thickness 0.29 mm; glass 23.75 mm, image 21 mm, thickness 1.31 mm
• Movement: Pan 540°; Tilt 270°; 16-bit positioning
• Selectable Movement Ranges: Pan 540°/360°/180°; Tilt 270°/180°/90°
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption (Manual Rating): 125 W

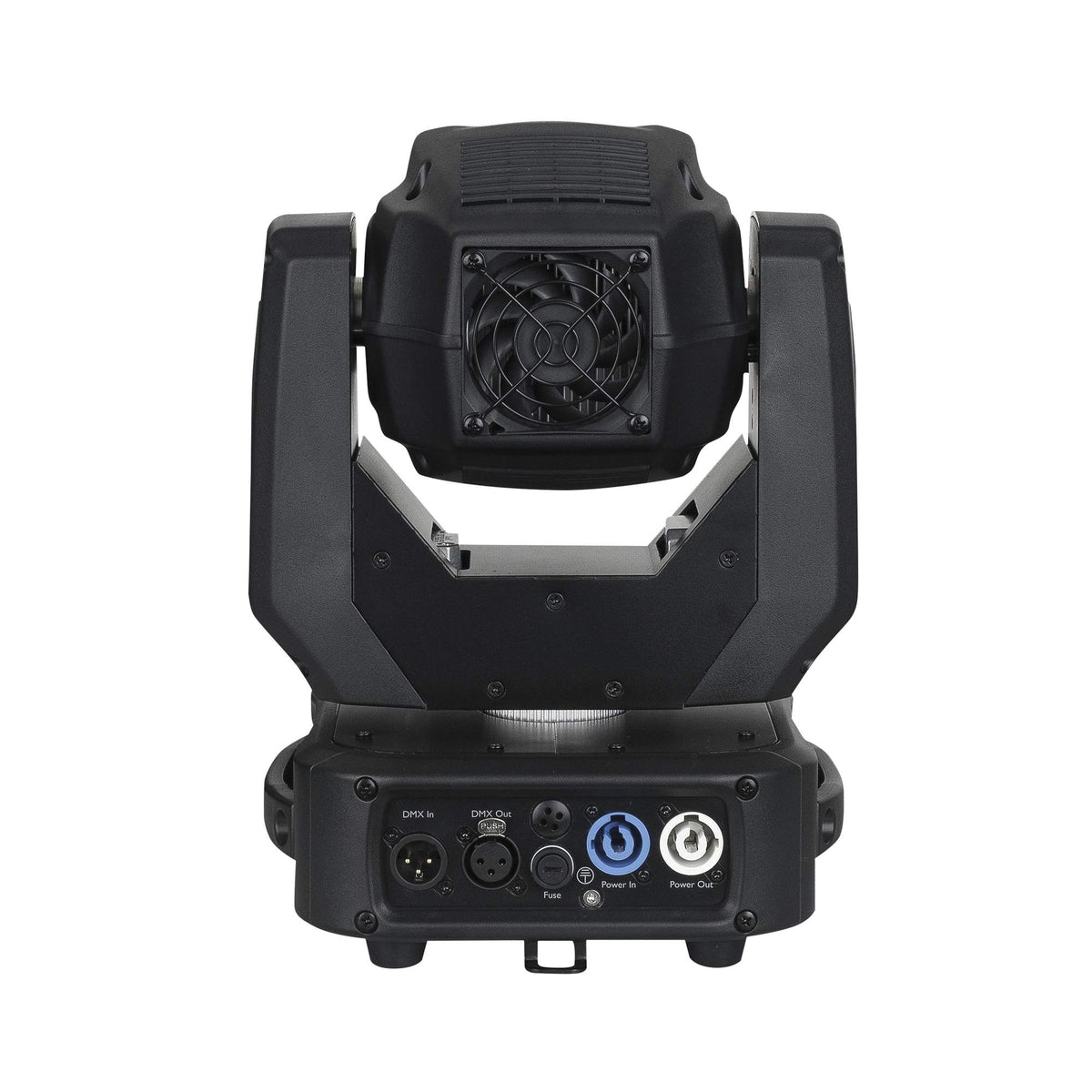

• Connections: Power Pro Blue input and Power Pro Grey output; 3-pin XLR DMX inputs and outputs
• Dimensions (L × W × H): 230 × 200 × 365 mm
• Weight: 6.2 kg
• Protection: IP20, indoor use only
• Housing and Cooling: black or white; metal and plastic; axial fan

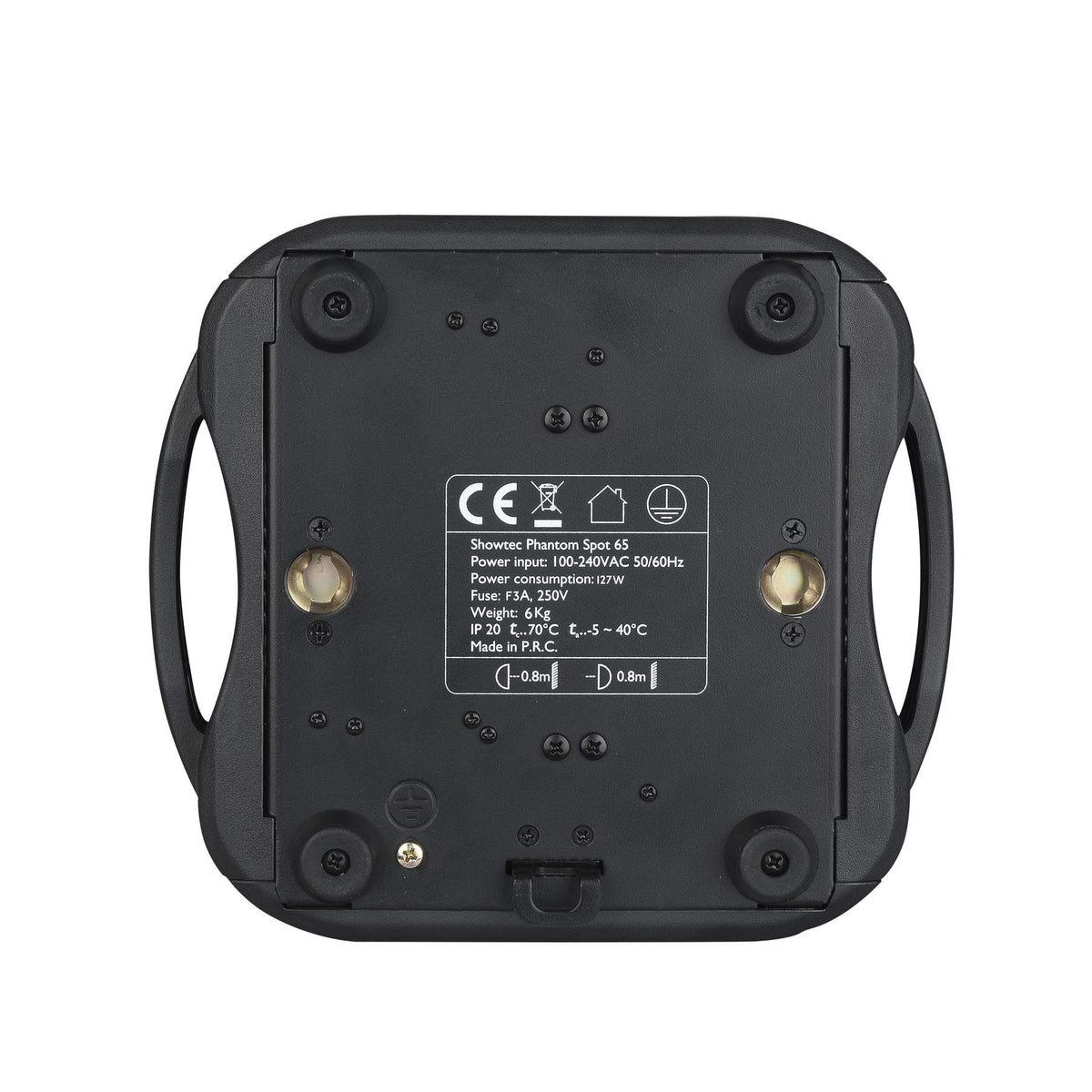

• Mounting: Quick-lock brackets
• Ambient Temperature: up to 40°C
• Maximum Surface Temperature: 70°C

What’s Included

• 1 × Showtec Phantom 65 Spot Moving Head
• 1.5 m Power Pro power cable
• 1 Quick-lock bracket

Who Is It For

For indoor stages and events requiring gobo projections and coloured moving beams. Mechanical focus suits a fixed throw distance, while the smaller DMX mode provides a simpler control option.
