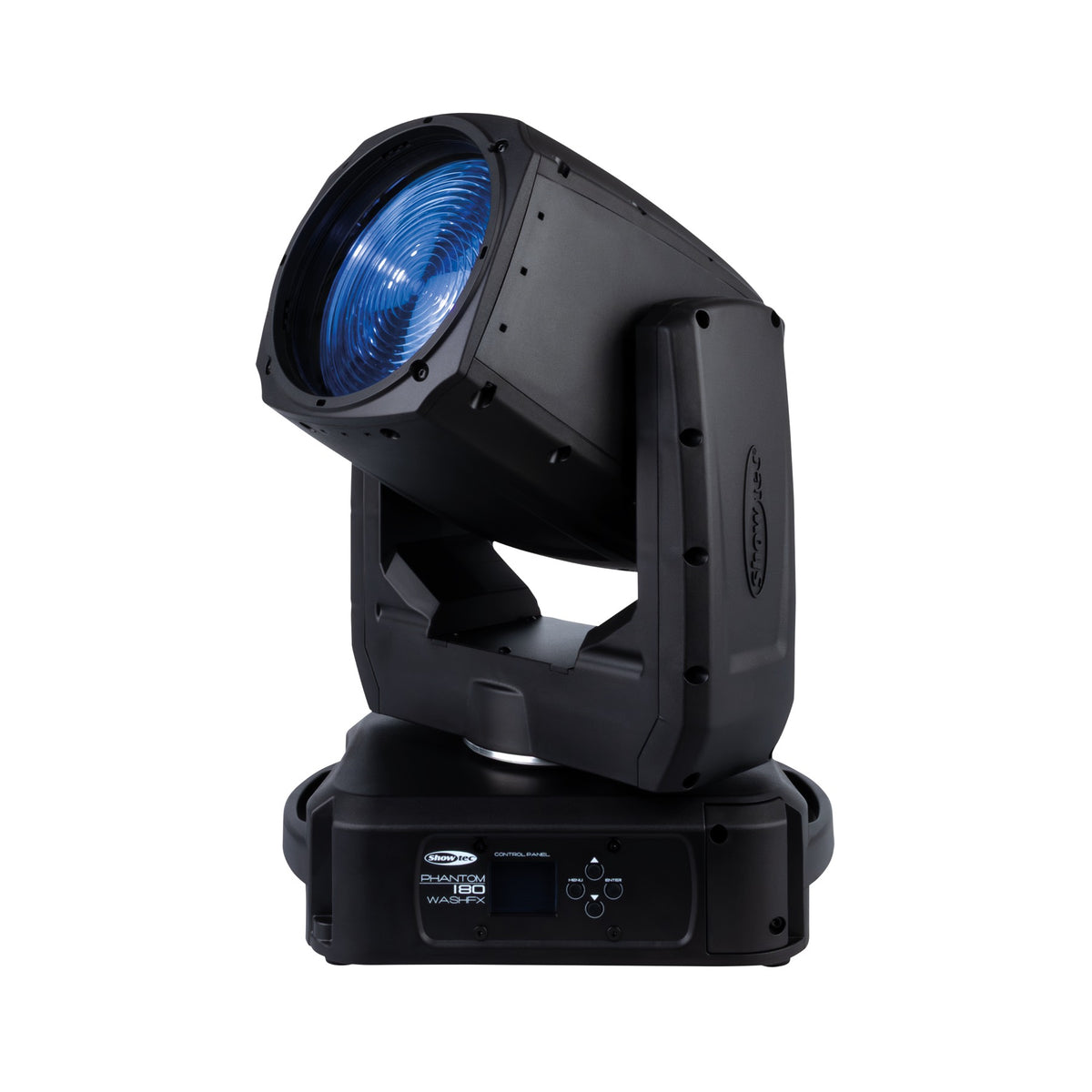

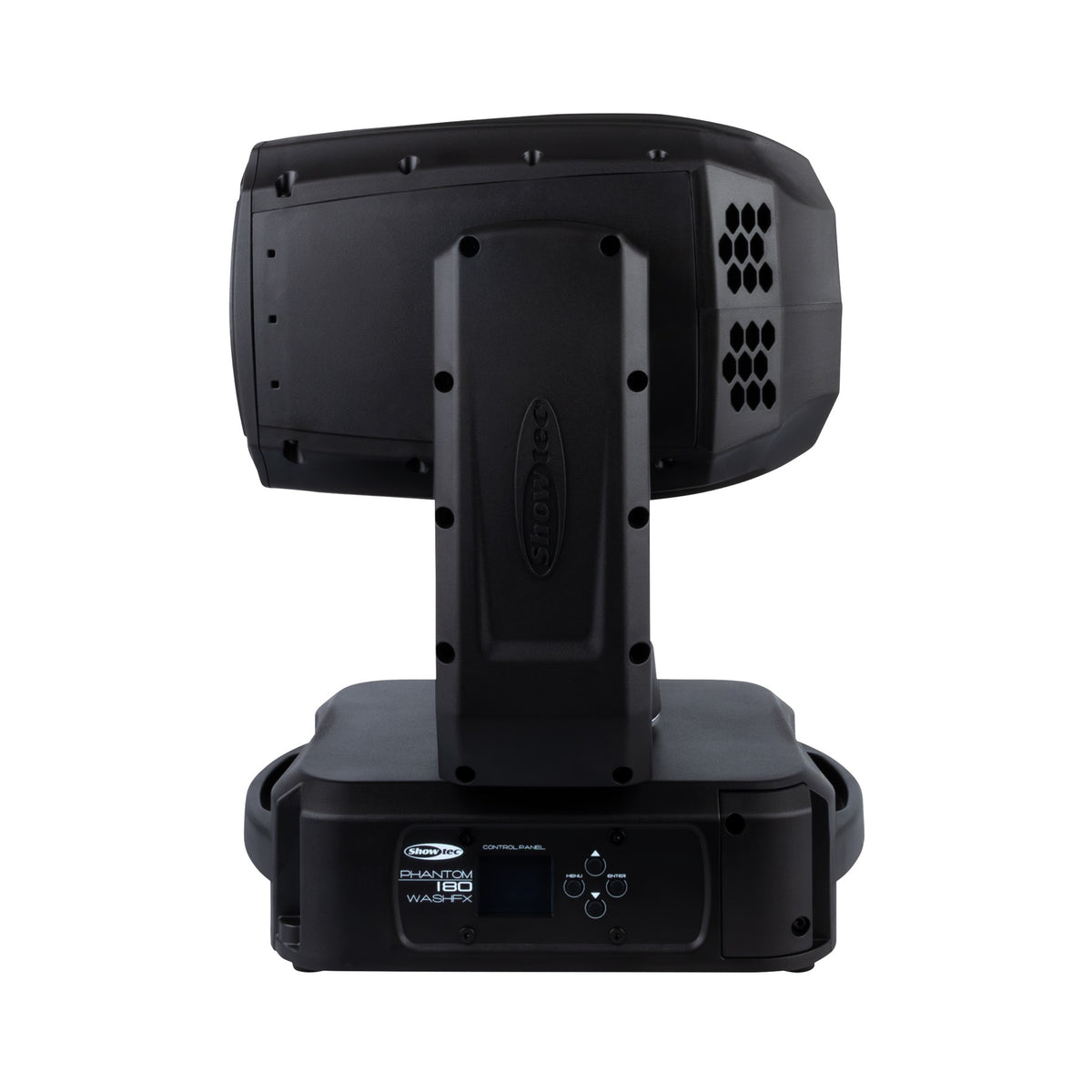

Showtec Phantom 180 WashFX Moving Head

Showtec Phantom 180 WashFX Moving Head

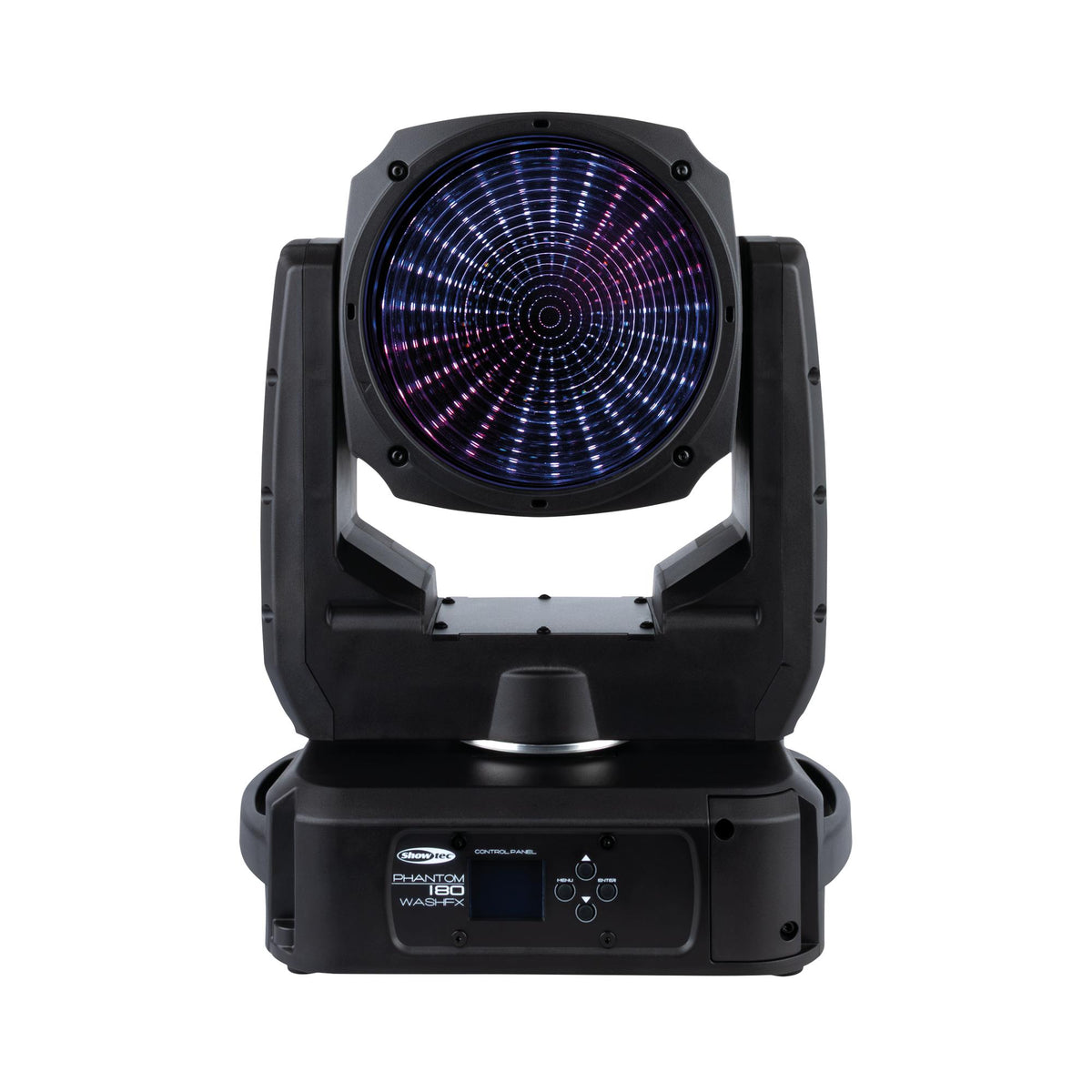

A 180 W RGBL LED is complemented by 24 individually controlled RGB background pixels. One fixture can combine coloured wash illumination with a separate pixel effect.

The motorised beam angle spans 4.8–27°, while the wider field angle spans 8.5–33.3°. The supplied soft-edge filter creates a more homogeneous beam.

Choose 28, 34 or 95 DMX channels. DMX/RDM operation is complemented by built-in programs and physical controls; wireless CRMX Classic and W-DMX are optional. An internal LCD battery allows configuration without mains power.

The IP65 housing uses carbon-fibre-reinforced plastic for indoor and outdoor applications. Power Pro True and 5-pin XLR DMX inputs and outputs provide connectivity. Quick-lock brackets support suspended installation, while forced-convection cooling removes heat during operation.

Main Features

• RGBL main light source with independently controlled RGB background pixels.
• Two dimming curves: Linear and Square.
• Motorised optics and a supplied soft-edge filter.
• The LCD battery powers configuration rather than the main light source.

Technical Specifications

• Light Source: 1 × 180 W RGBL LED
• Luminous Flux: 3884 lm
• Expected LED Life: 20000 h
• Illuminance: 2 m: 65110 lx; 3 m: 28938 lx; 5 m: 10418 lx
• Colour Rendering Index: CRI 79
• Beam Angle: 4.8–27°
• Field Angle: 8.5–33.3°
• Zoom Ratio: 1:5
• Front Lens Diameter: 164 mm
• Optical Controls: motorised zoom
• Control: DMX, RDM, built-in programs, physical buttons
• DMX Channels: 28, 34, 95
• Wireless Control: CRMX Classic and W-DMX, optional
• Display: LCD with internal configuration battery
• Dimming: 0–100 %; Linear, Square
• Strobe: 0-20 Hz
• Movement: Pan 540°; Tilt 270°; 16-bit positioning
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption: 275 W

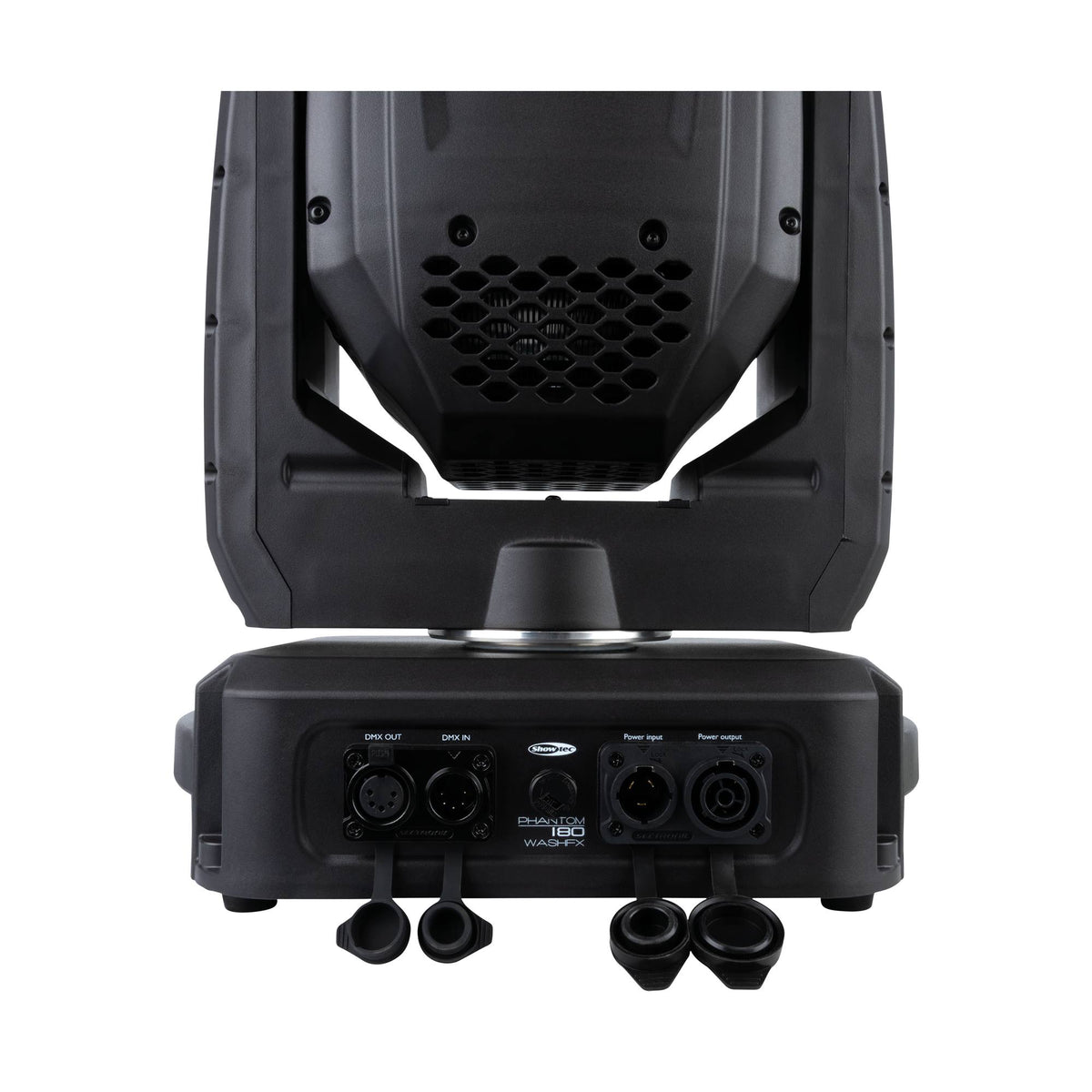

• Connections: Power Pro True input and output; 5-pin XLR DMX input and output
• Dimensions (L × W × H): 238 × 328 × 479 mm
• Weight: 10 kg
• Protection: IP65
• Housing and Cooling: black, carbon-fibre-reinforced plastic; forced convection

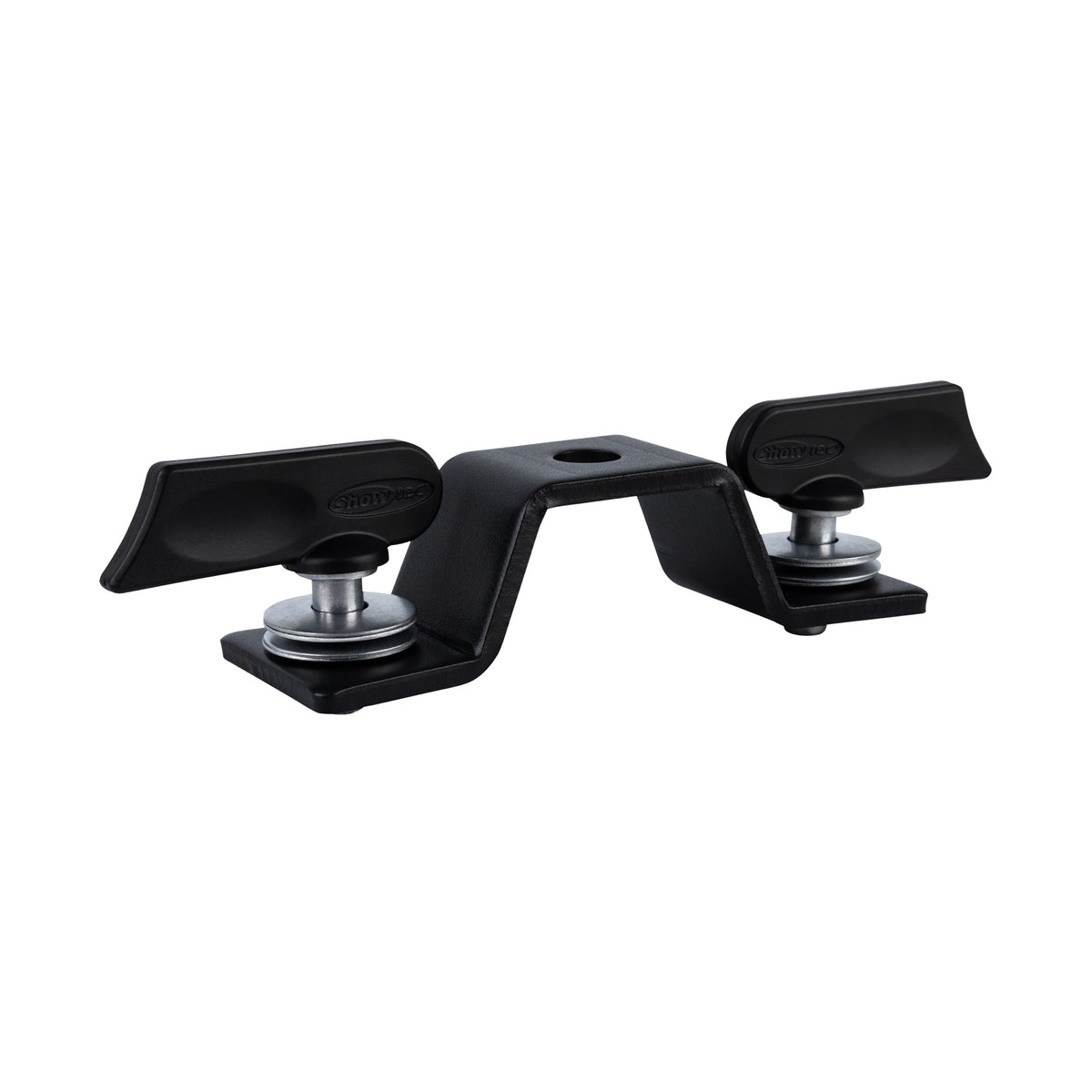

• Mounting: Quick-lock brackets
• Ambient Temperature: -5–40°C
• Maximum Surface Temperature: 70°C
• Additional Optics: supplied soft-edge filter

What’s Included

• 1 × Showtec Phantom 180 WashFX Moving Head
• 1.5 m Schuko to Power Pro True power cable
• 2 Quick-lock brackets
• Soft-edge filter

Who Is It For

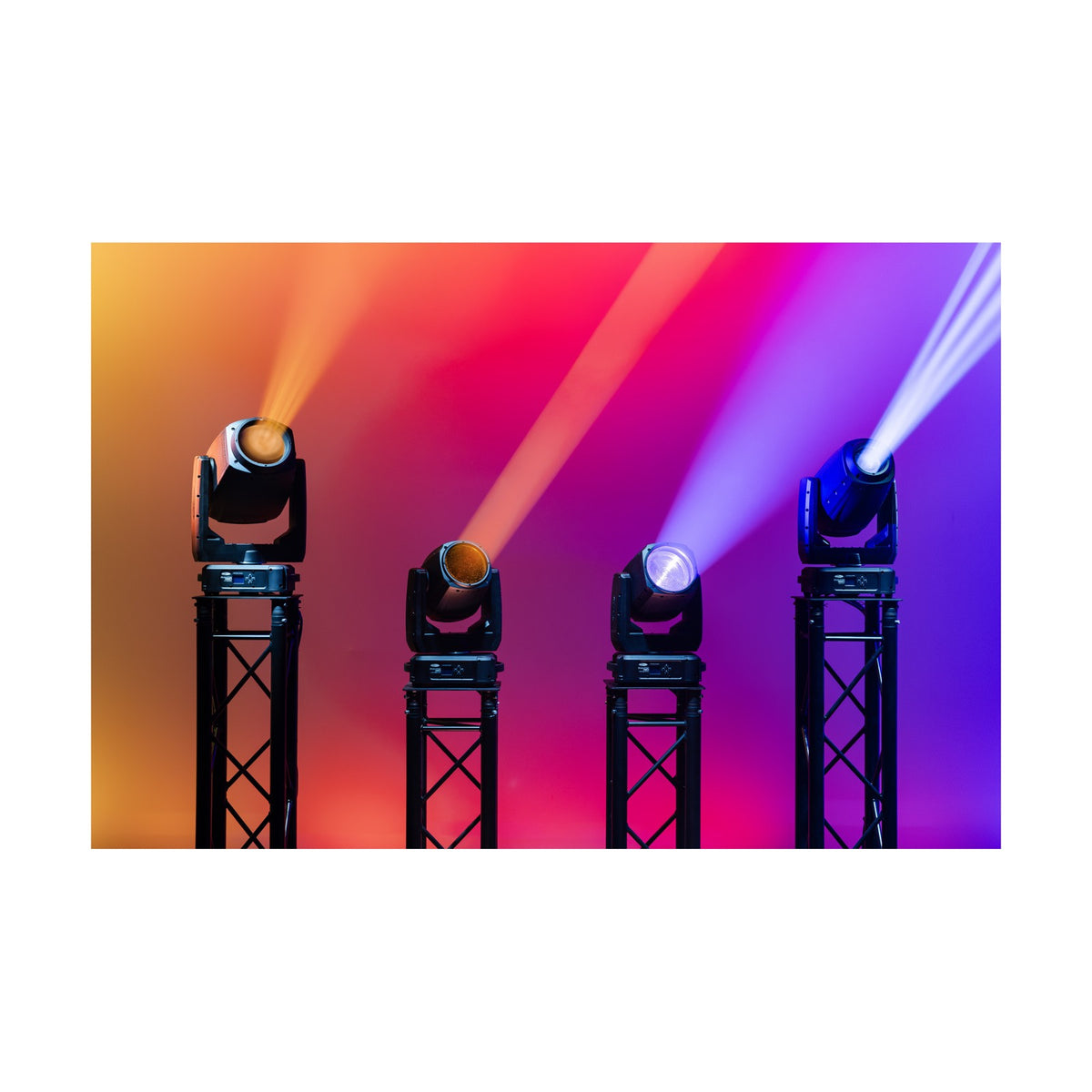

For coloured stage and event lighting with additional background pixel patterns. IP65 protection supports outdoor events when installed and operated according to the manufacturer’s mounting, connector protection and operating requirements.
