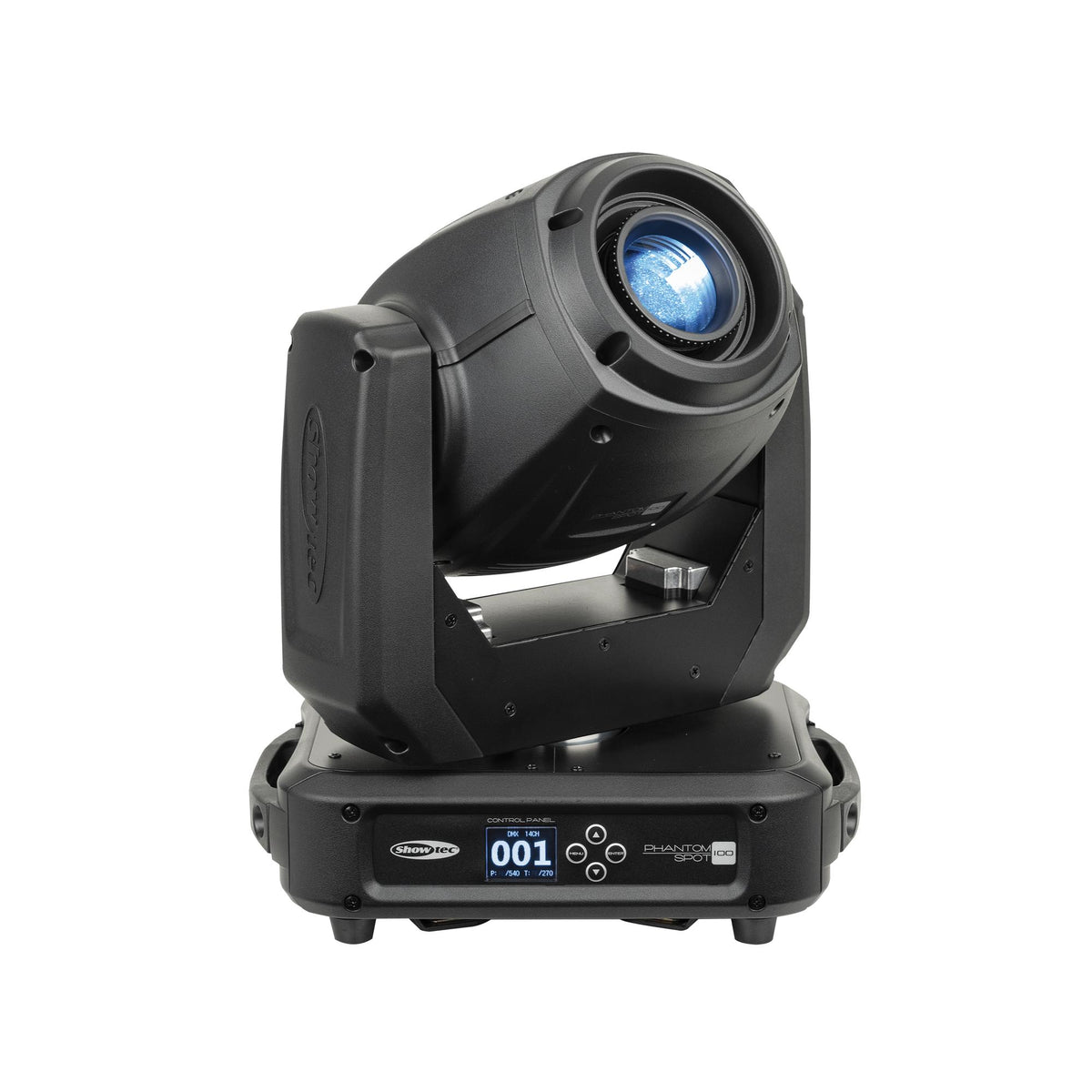

Showtec Phantom 100 Spot Moving Head

Showtec Phantom 100 Spot Moving Head

A 100 W cool-white LED is paired with motorised focus and a mechanically adjustable 12–17° beam.

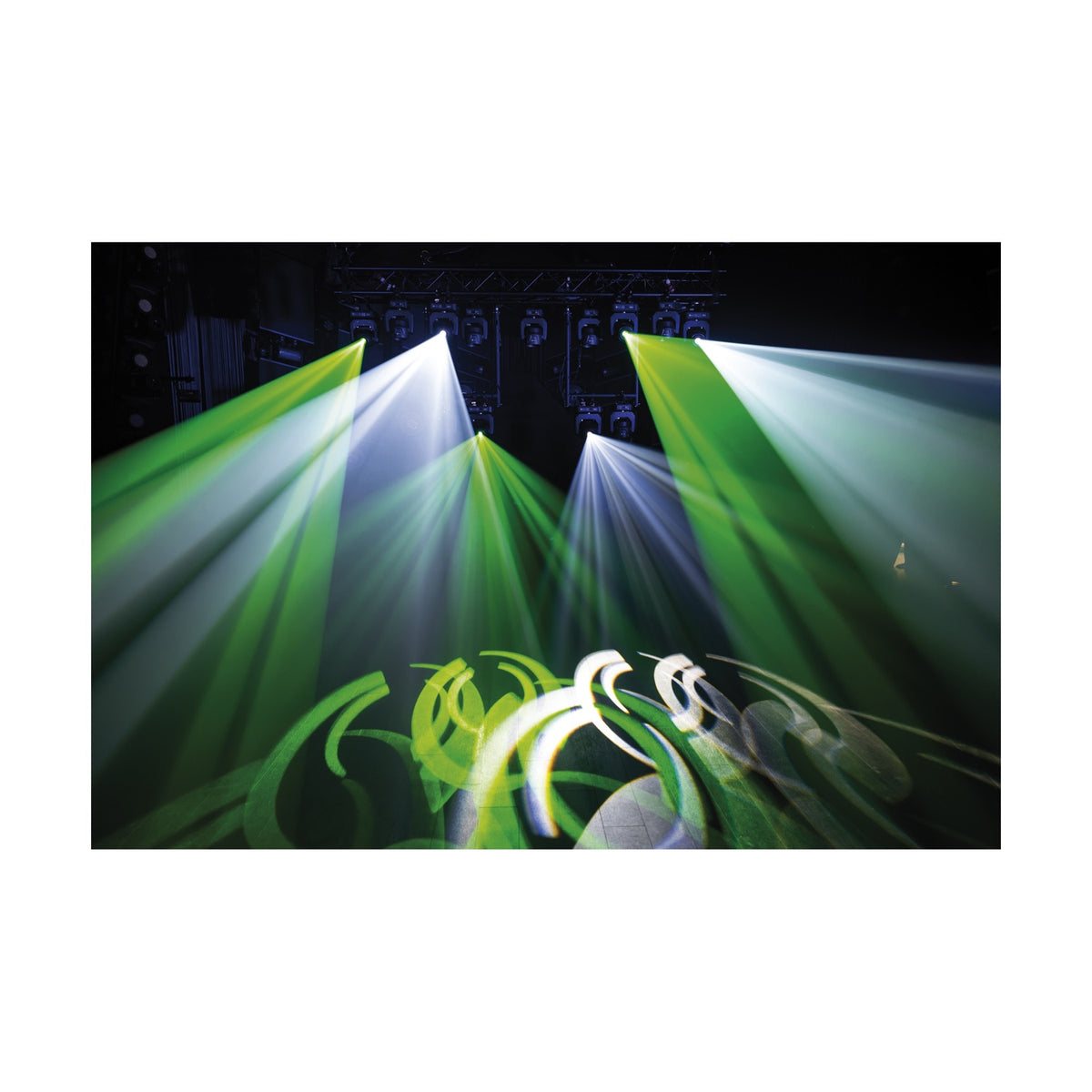

Seven interchangeable rotating gobos produce moving patterns. The eight-colour dichroic wheel also includes an open position for white light. Select either the six-facet circular prism or the five-facet linear prism to multiply the projected pattern.

DMX controls focus, colours, gobos and movement. Automatic programs, sound activation and Master/Slave operation provide alternatives to a separately programmed DMX sequence. Settings are accessed through the LCD.

Designed for indoor use, the fixture includes two Quick-lock brackets for rigging. A mains output supports power linking within the permitted load limits. Wireless DMX requires additional equipment.

Main Features

• 100 W cool-white LED delivers a luminous flux of 5500 lm.
• Motorised focus adjusts image sharpness from the console.
• Mechanically adjustable 12–17° zoom sets the beam width at installation.
• Seven interchangeable rotating gobos provide moving patterns.
• Eight dichroic colours plus white are selected on the colour wheel.
• Rotating circular and linear prisms produce different effects and are used separately.
• 10-channel and 14-channel DMX modes offer a choice of control detail.
• Master/Slave mode synchronises fixtures to the master unit’s program.

Technical Specifications

• Light Source: 1 × 100 W cool-white CW LED
• Luminous Flux: 5500 lm
• Illuminance: 5 m: 5500 lx
• Beam Angle: 12–17°
• Optical Controls: mechanical zoom; motorised focus
• Colour System: 8 dichroic colours + open for white; wheel indexing and rotation

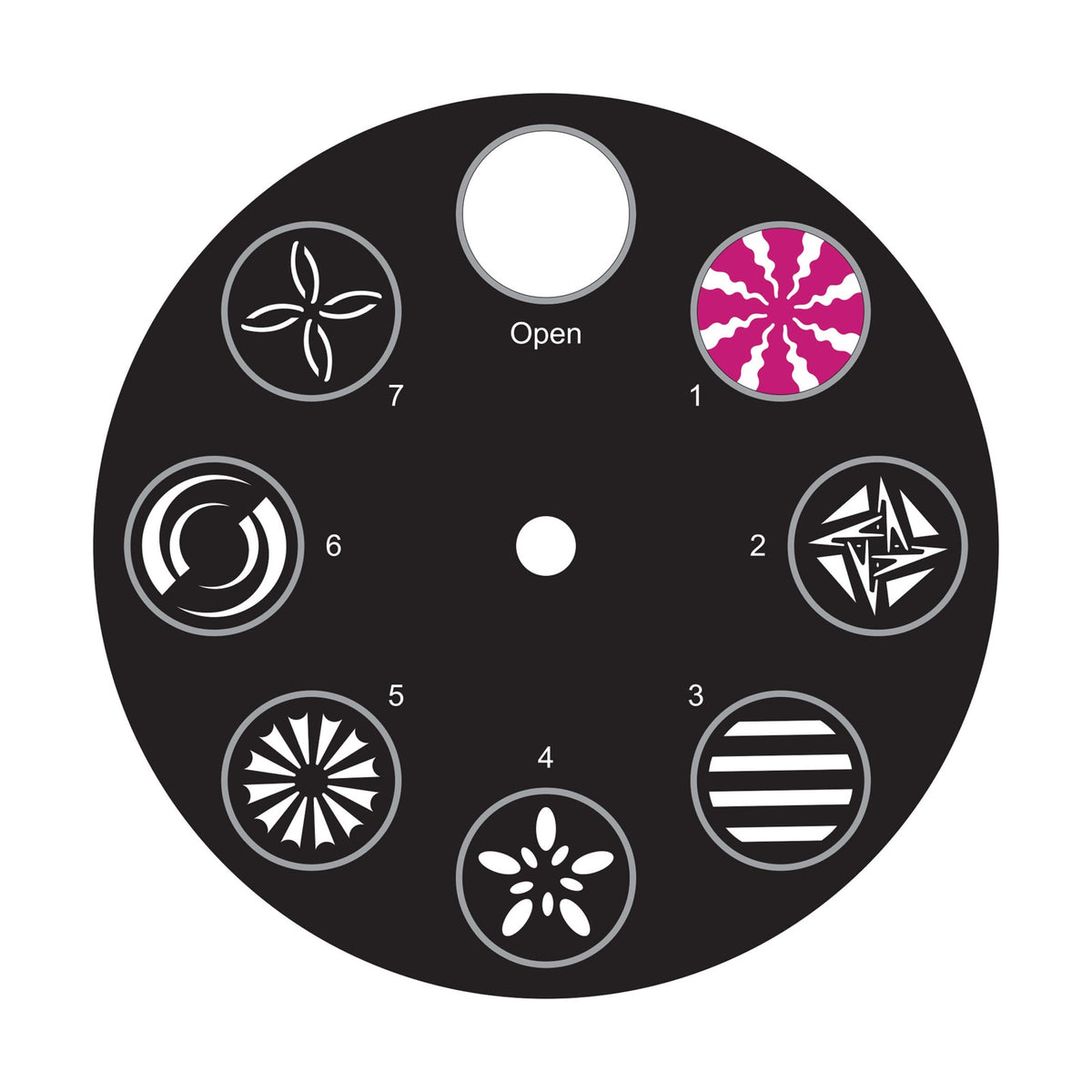

• Gobos: 7 interchangeable rotating + open; 6 metal and 1 glass
• Gobo Dimensions: glass 24 mm, image 21 mm, thickness 1.37 mm; metal 23.94 mm, image 20 mm, thickness 0.5 mm
• Prisms: 5-facet linear and 6-facet circular; indexing and rotation; used separately
• Control: DMX, automatic programs, physical controls, Master/Slave, sound activation
• DMX Channels: 10, 14
• Wireless Control: wireless DMX with an optional module, not included
• Display: LCD
• Dimming: 0–100 %
• Strobe: 0–20 Hz
• Movement: Pan 540°; Tilt 230°; 16-bit resolution
• Selectable Movement Ranges: Pan 540°/360°/180°; Tilt 230°/180°/90°
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption: 200 W

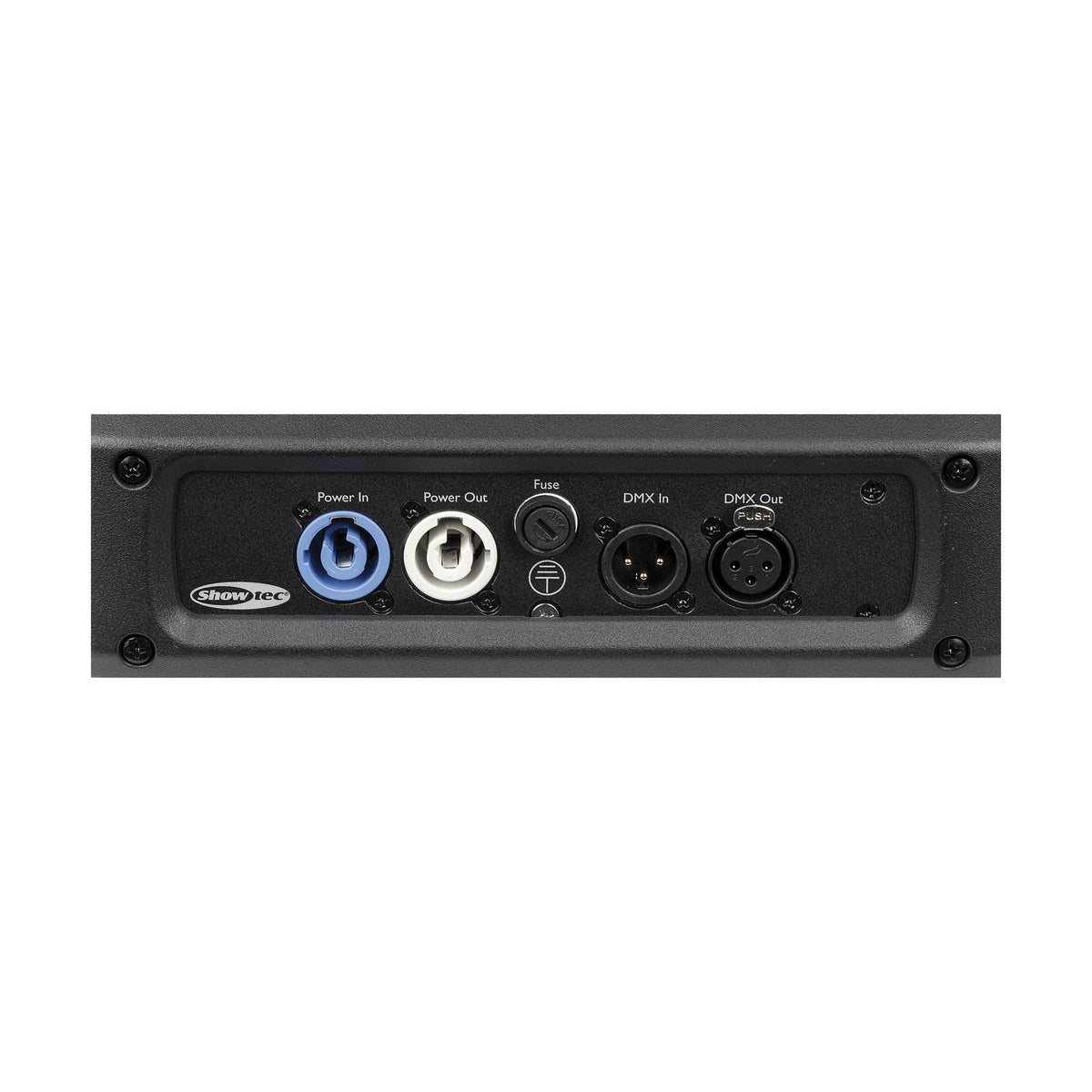

• Connections: Power Pro Blue input and Power Pro Grey output; 3-pin XLR DMX input and output
• Dimensions (L × W × H): 325 × 210 × 420 mm
• Weight: 11.3 kg
• Protection: IP20, indoor use only

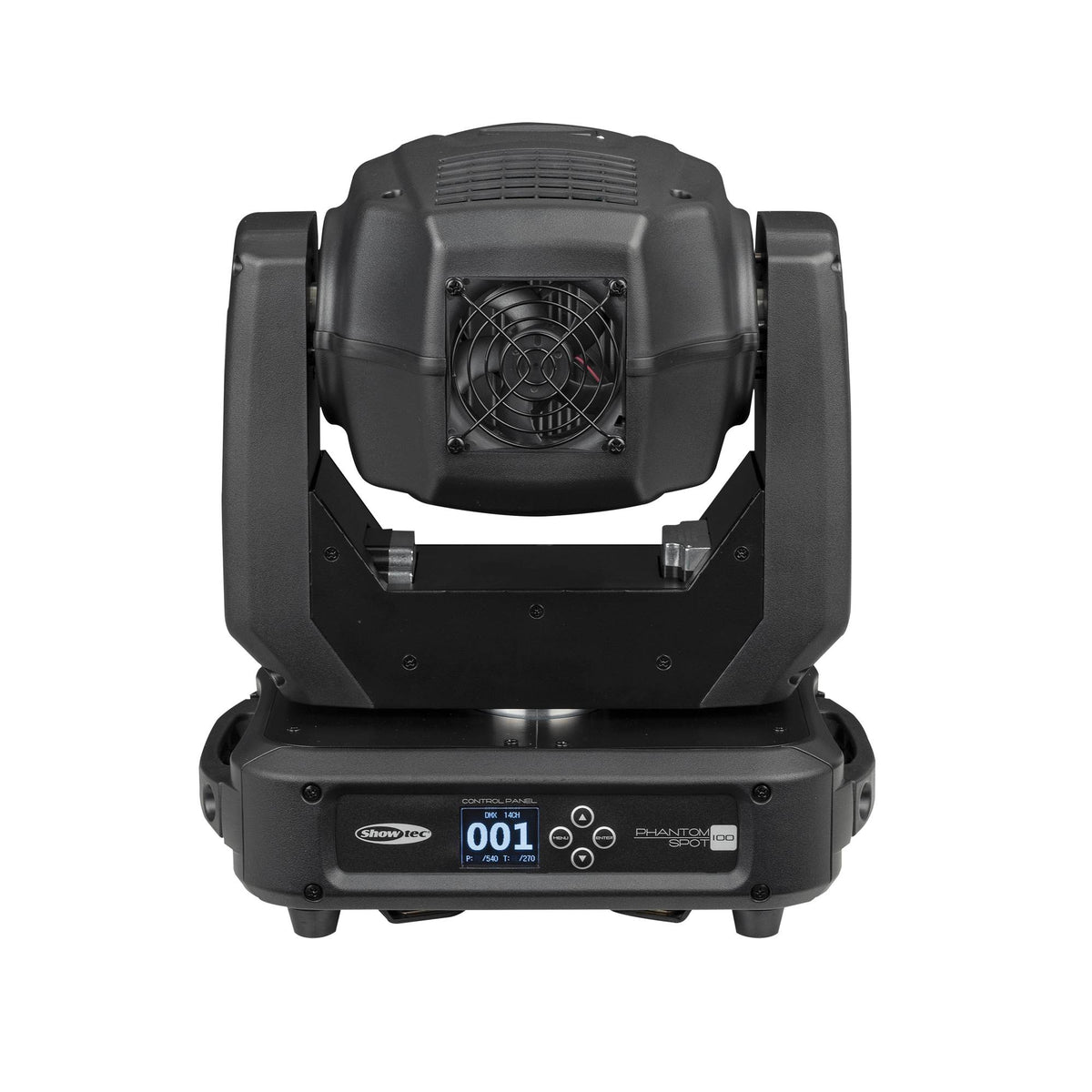

• Housing and Cooling: black; metal and plastic; axial fan

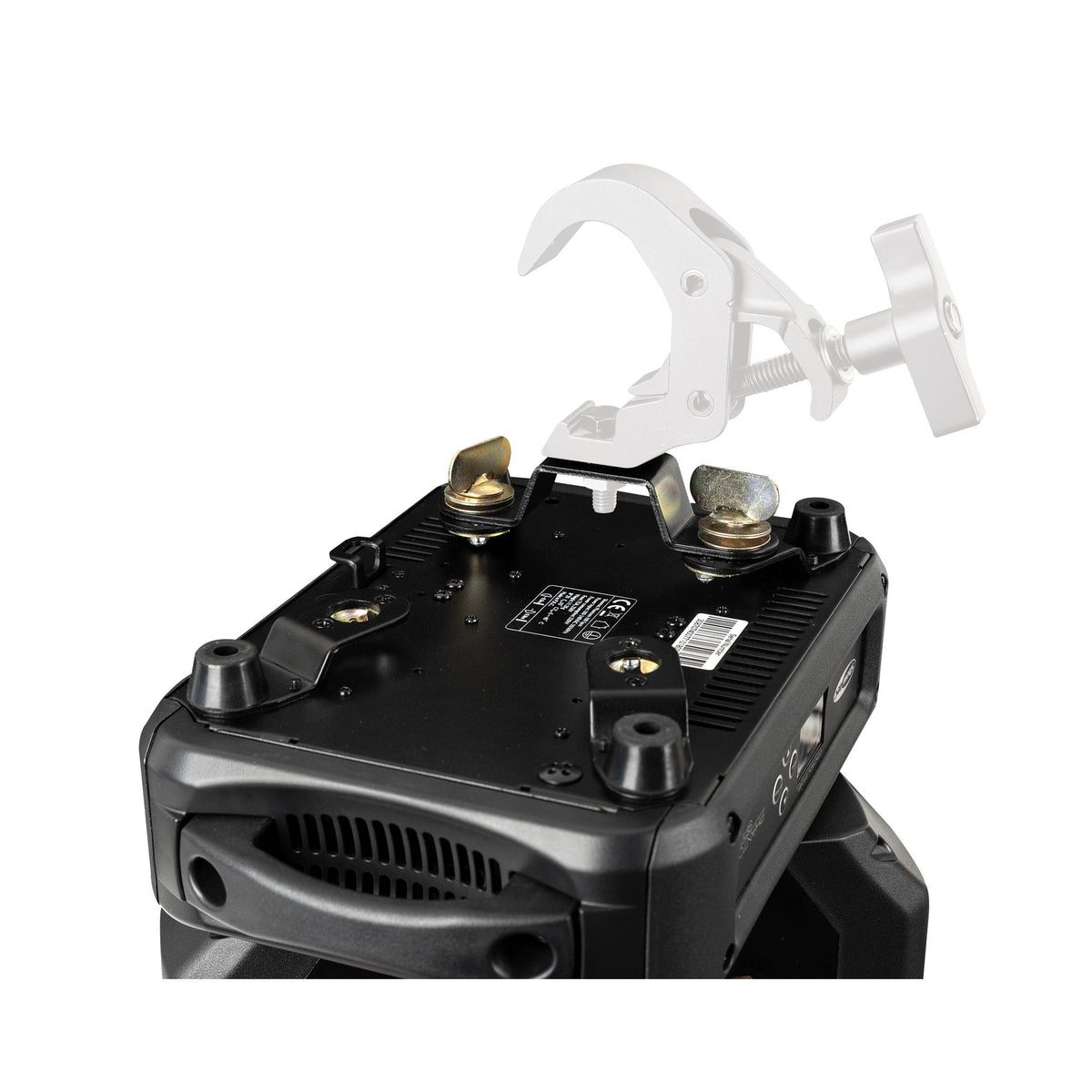

• Mounting: Quick-lock brackets; safety attachment
• Ambient Temperature: up to 40°C
• Maximum Surface Temperature: 70°C

What’s Included

• 1 × Showtec Phantom 100 Spot Moving Head
• 1.3 m Power Pro power cable
• 2 Quick-lock brackets

Who Is It For

For indoor stages and events requiring gobo projections and coloured moving beams. Beam width is set at the fixture, while focus and effects remain accessible through DMX.
