Showtec Performer Profile 700 Q6 Profile Spotlight Body

Showtec Performer Profile 700 Q6 Profile Spotlight Body

A 300 W six-colour RGBALC source provides coloured and white light for theatre and studio use.

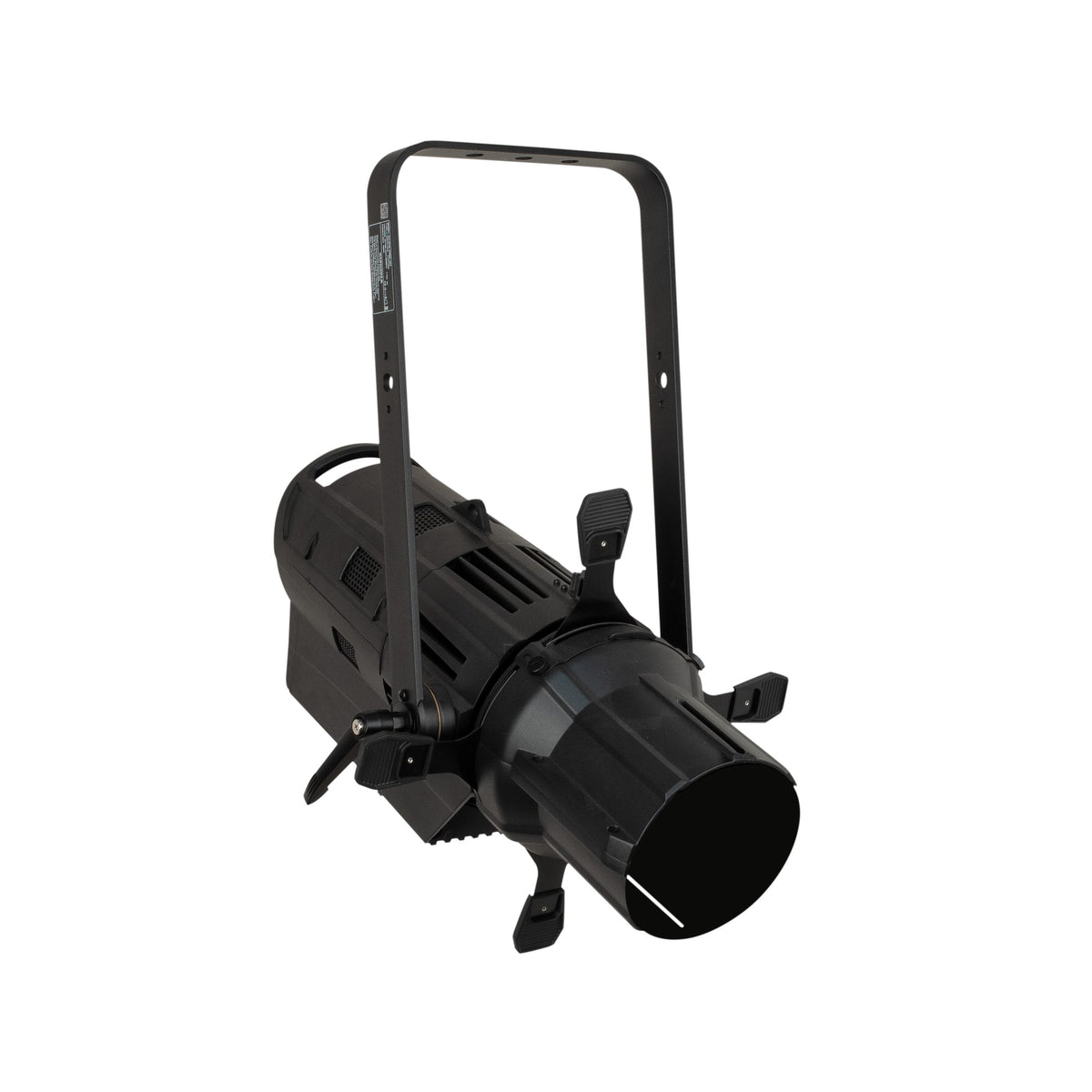

This is a profile spotlight body: the lens required for operation must be selected and purchased separately.

Red, green, blue, amber, lime and cyan mixing is complemented by 1800–10000 K colour temperature adjustment and CRI 95.

16-bit intensity control supports precise lighting transitions.

Main Features

• Choose a 19°, 26°, 36°, 50° or compatible zoom lens to match the required illuminated area.
• Framing shutters define the edges of the illuminated field when optics are fitted.
• 48 colour presets, 10 automatic and 2 custom programs complement DMX and RDM control.
• Master/Slave mode synchronises multiple fixtures.
• LIVE, STUDIO and POWER modes balance light output and cooling.
• An optional iris and gobo holders extend the beam-shaping options.

Technical Specifications

• Light Source: 300 W RGBALC LED: red, green, blue, amber, lime and cyan
• Luminous Flux: 10276 lm
• Illuminance at 2 / 3 / 5 m: 23862 / 10605 / 3818 lx
• Colour Rendering Index: CRI 95
• Colour Temperature: 1800–10000 K
• Optics: Lens sold separately: 19° / 26° / 36° / 50° or zoom
• Control: DMX, RDM, manual, automatic programs, Master/Slave
• DMX Channels: 3 / 7 / 8 / 10 / 13 / 20
• Dimming: 0–100%, 16-bit; DIM4 response or OFF linear mode
• Built-In Programs: 48 colour presets, 10 automatic and 2 custom programs
• LED Refresh Rate: 1200 / 2400 / 4000 / 6000 / 25000 Hz
• Strobe: 0–25 Hz
• Display: OLED
• DMX Signal Loss: SAVE: last state; BLACK: blackout
• Performance Modes: LIVE / STUDIO / POWER; STUDIO reduces noise and light output
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 300 W

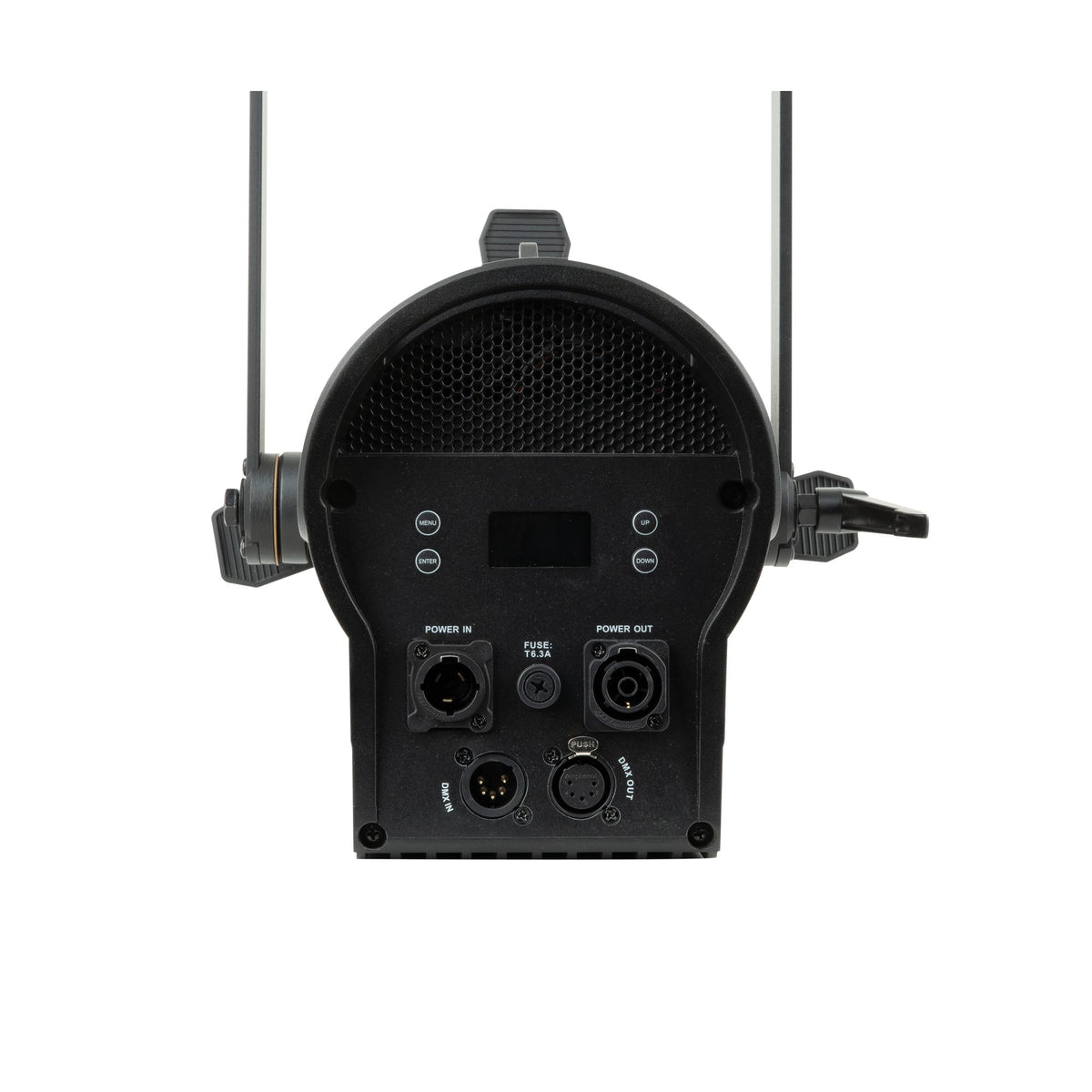

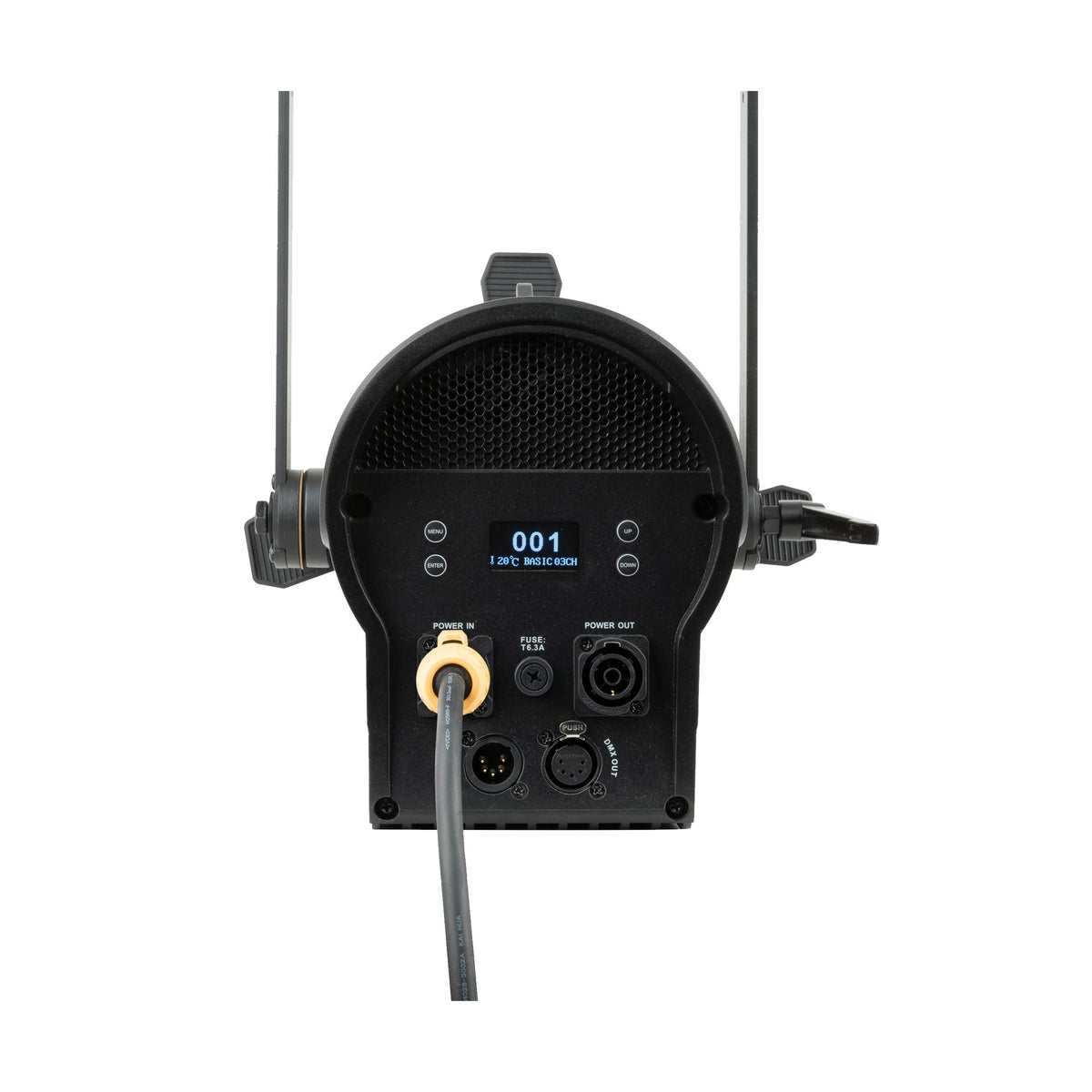

• Connections: Power Pro True power input and output; 5-pin XLR input and output
• Housing and Mounting: Black die-cast aluminium; adjustable bracket
• Cooling and Protection: Fan cooling, IP20; indoor use only, up to 45 °C
• Dimensions (W × H × D): 301 × 227 × 578 mm
• Weight: 8 kg
• Individual Colour Flux: R 1289 / G 2119 / B 295 / A 1720 / L 3756 / C 857 lm
• Dimmer Curves: 4: Linear / Square / I-Square / S-Curve

What’s Included

• 1 × Showtec Performer Profile 700 Q6 Profile Spotlight Body
• 1.5 m Schuko to Power Pro True power cable
• Safety cable

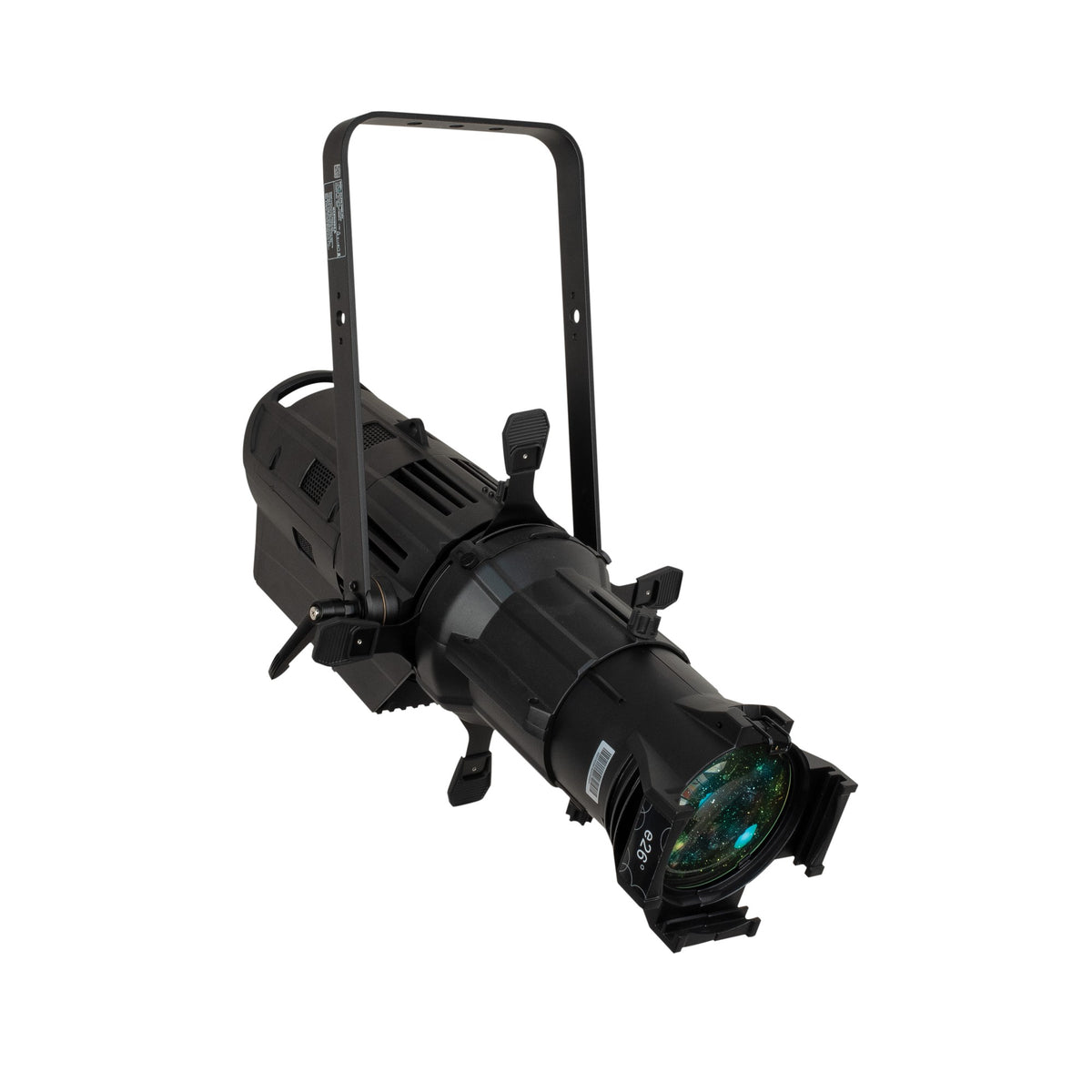

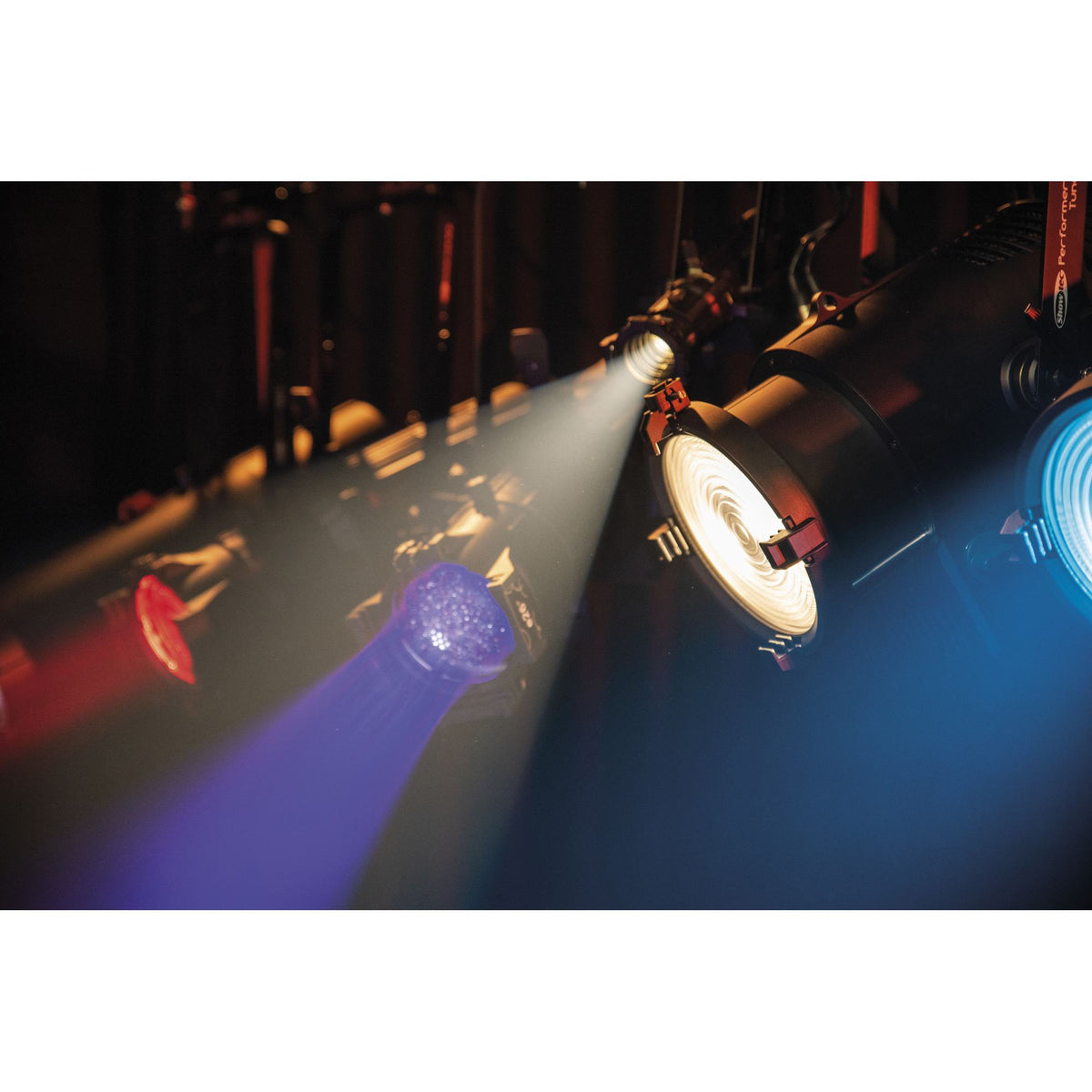

A lens is not included. Lenses 33070–33075, iris 33076 and gobo holders 33077–33079 are sold separately. Photographs showing a lens illustrate a completed configuration.

Who Is It For

For theatre and studio systems where a lens is selected to suit stage distance and the required beam width. The body is designed for indoor use.
