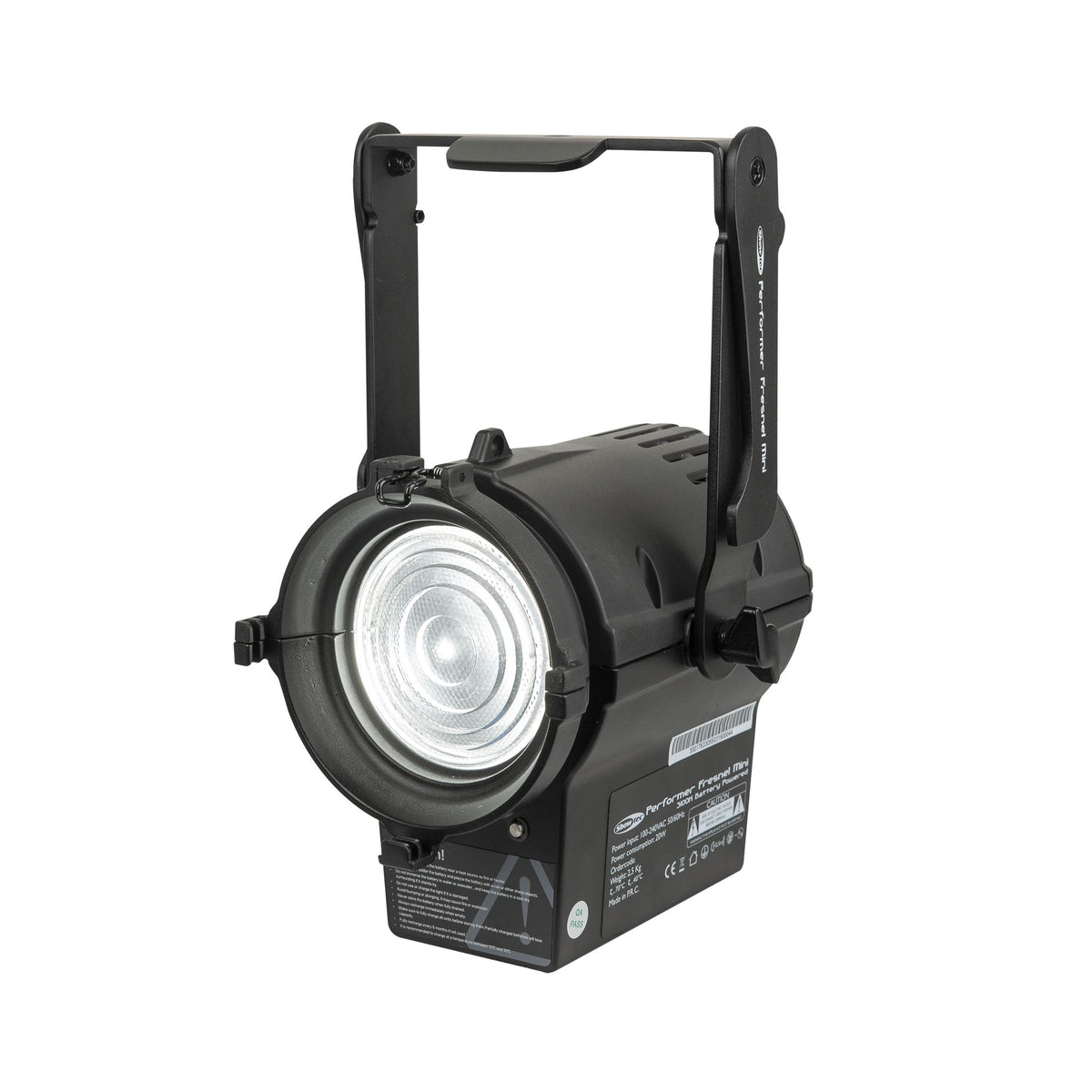

Showtec Performer Fresnel Mini DMX Fresnel Spotlight

Showtec Performer Fresnel Mini DMX Fresnel Spotlight

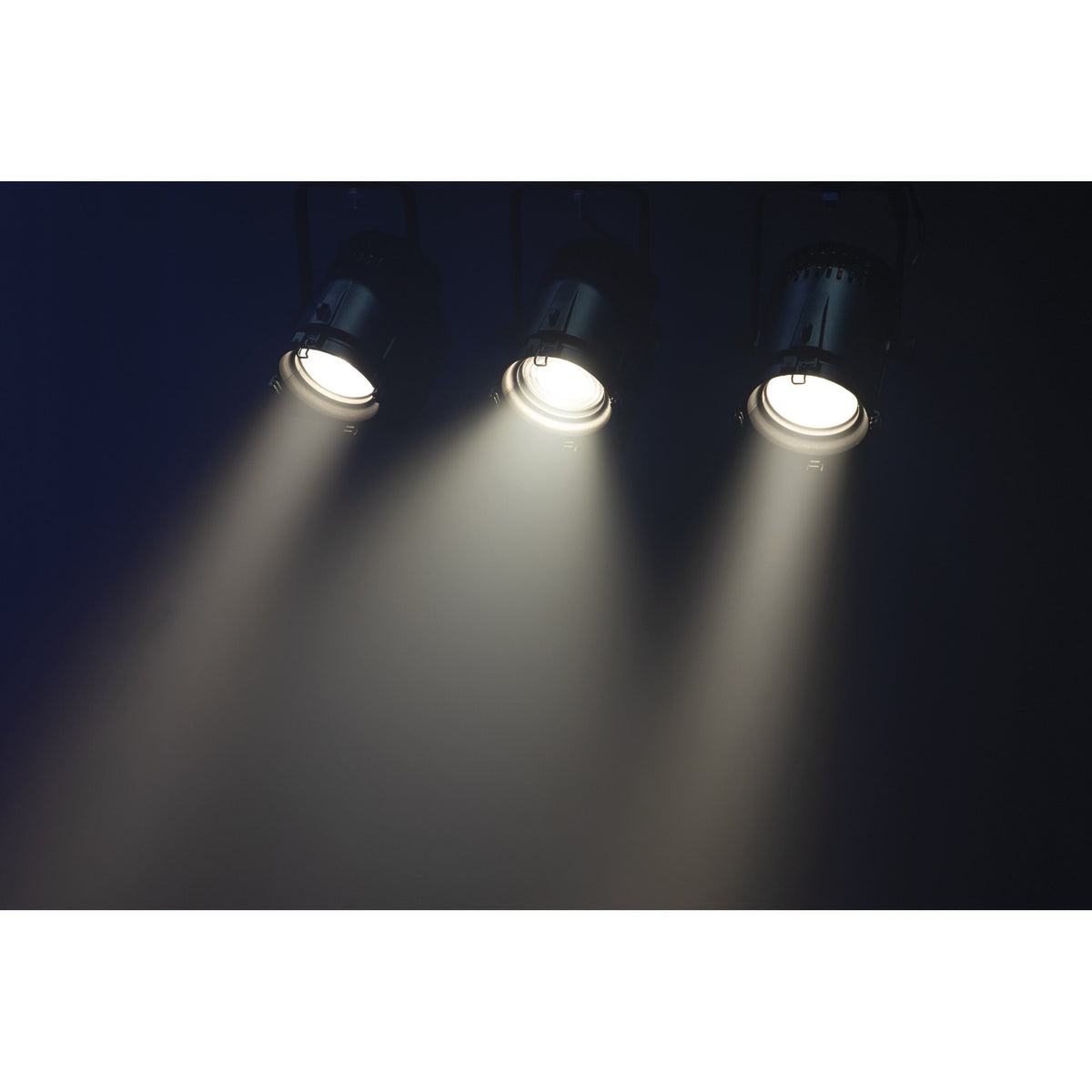

A Fresnel lens distributes warm-white 3100 K light into a soft-edged field, with a beam angle adjustable manually from 12° to 40°.

The compact housing and fanless cooling suit theatres and studios.

Intensity is controlled through one DMX channel, with RDM support.

A separately purchased RDM controller is required to set the DMX address; a DMX desk alone cannot perform this setup.

Main Features

• A 30 W LED source produces 1650 lm, while CRI 92 supports accurate colour rendering.
• 16-bit dimming allows precise intensity adjustment.
• 3-pin XLR input and output connect fixtures in a DMX chain.
• Separately purchased barndoor 33056 provides additional control of light spill.

Technical Specifications

• Light Source: 30 W warm-white LED
• Colour Temperature: 3100 K
• Luminous Flux: 1650 lm
• Colour Rendering Index: CRI 92
• Beam Angle: 12–40°, manually adjustable
• Control: DMX and RDM; 1 DMX channel
• Dimming: 0–100%, 16-bit
• DMX Address Setting: Requires a separately purchased RDM controller

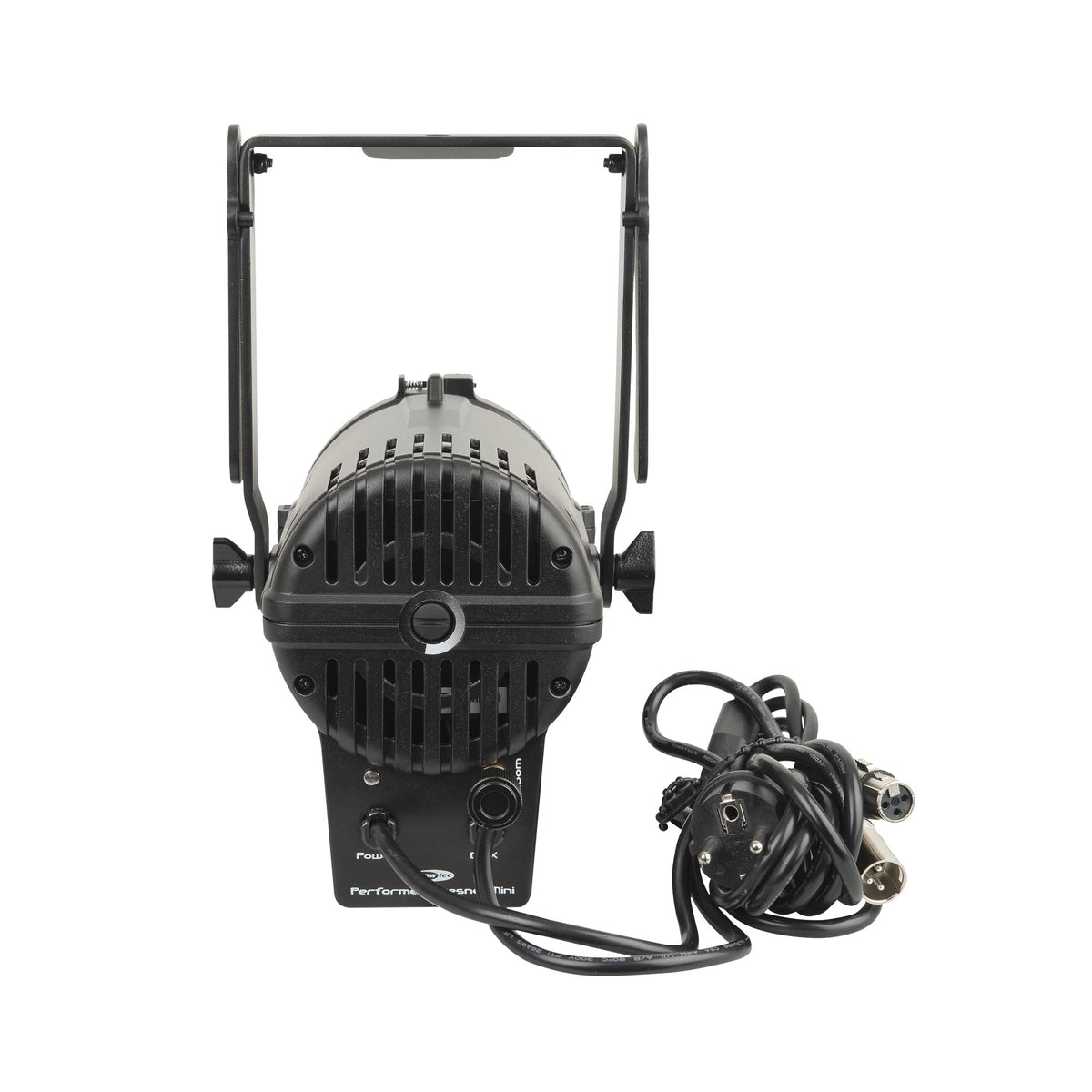

• DMX Connections: 3-pin XLR input and output
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 23 W
• Power Connection: Fixed cable with Schuko plug

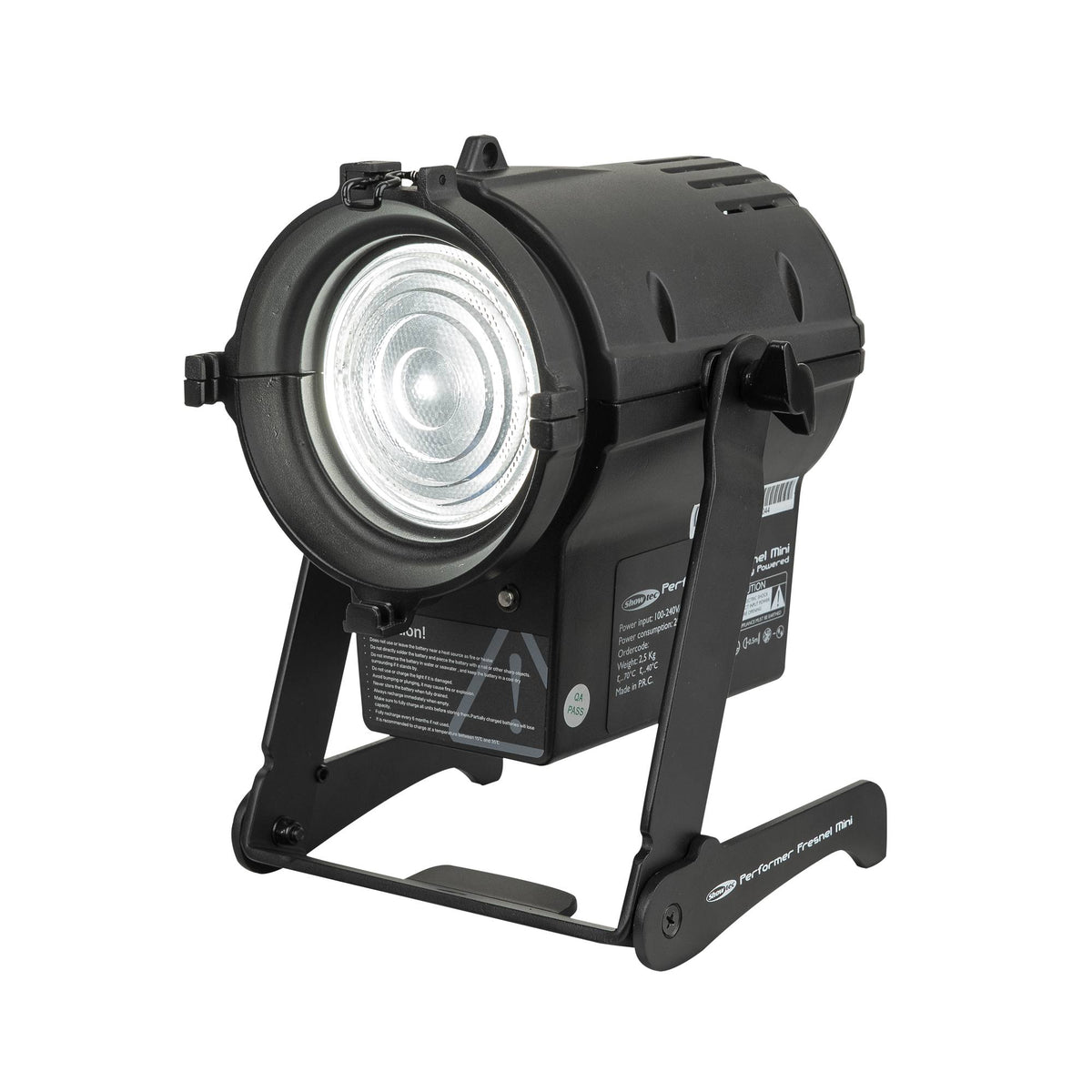

• Housing and Mounting: Black aluminium; adjustable bracket
• Cooling: Passive, fanless
• IP Rating and Ambient Temperature: IP20, indoor use only; up to 40 °C
• Dimensions (W × H × D): 175 × 188 × 275 mm
• Weight: 2.3 kg

What’s Included

• 1 × Showtec Performer Fresnel Mini DMX Fresnel Spotlight
• Fixed power cable with Schuko plug
• Safety cable

Barndoor 33056, an RDM controller and DMX cables are not included and must be purchased separately.

Who Is It For

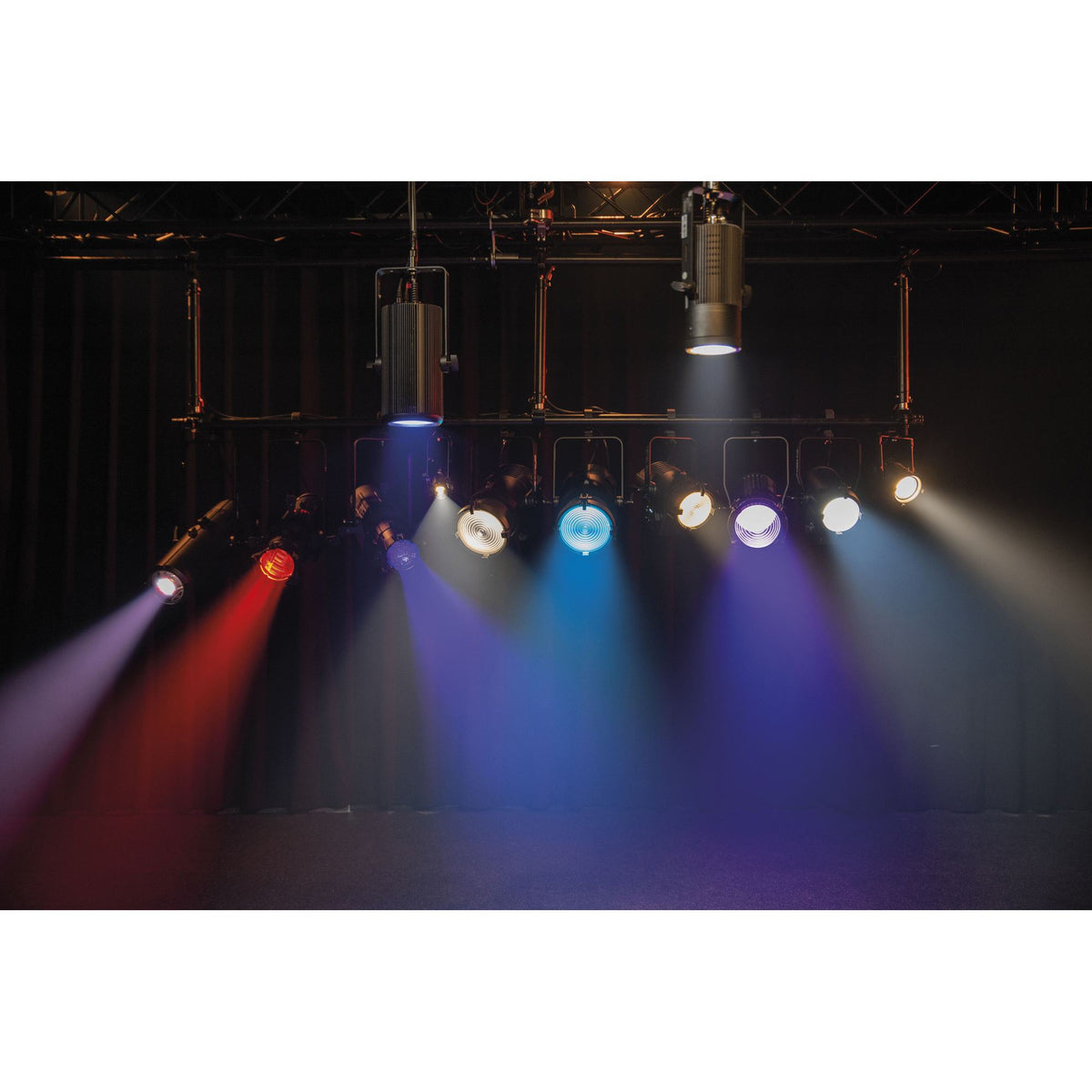

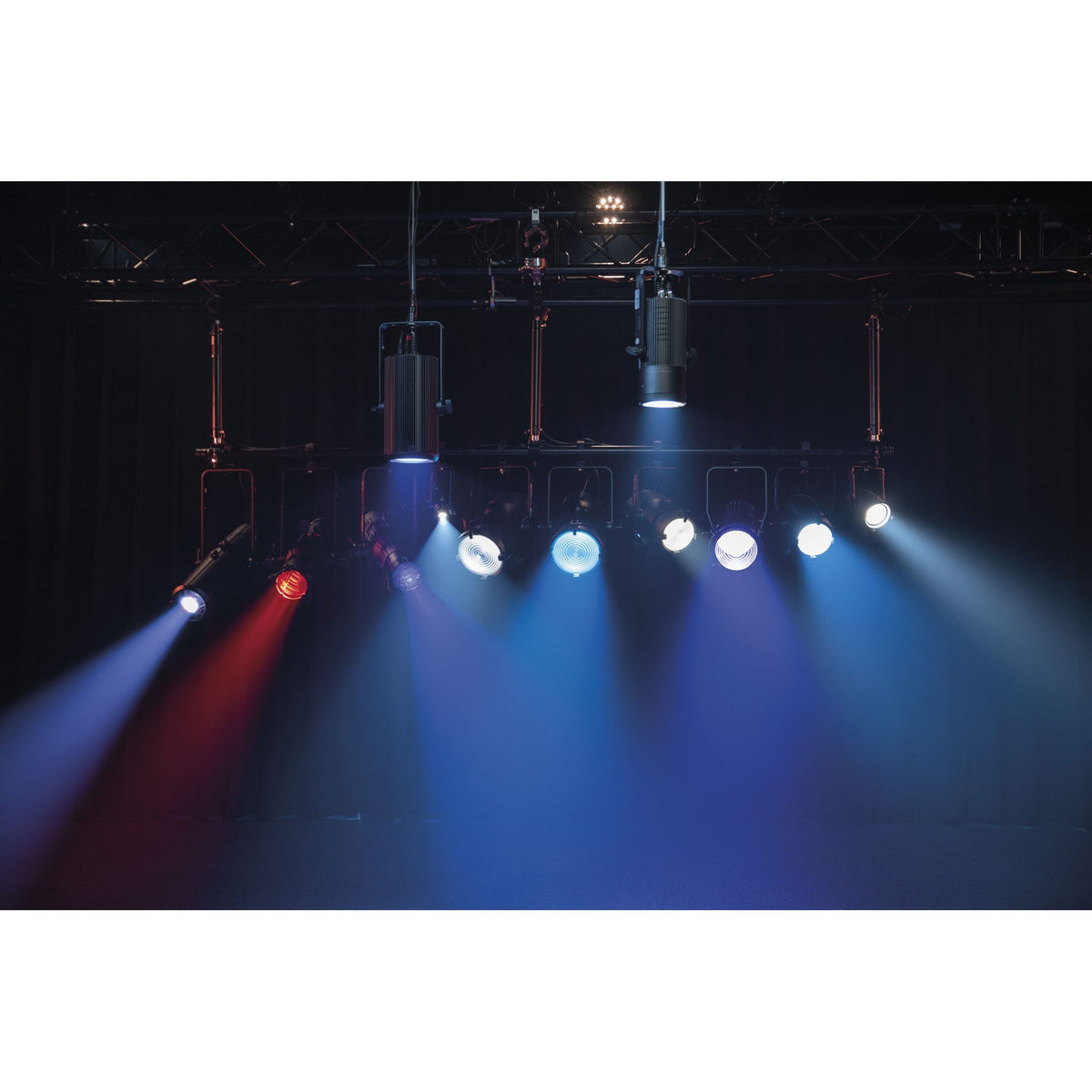

For small indoor stages, television studios and theatres needing quiet warm-white lighting controlled from a DMX system.
