Showtec Performer Fresnel Mini DDT Fresnel Spotlight

Showtec Performer Fresnel Mini DDT Fresnel Spotlight

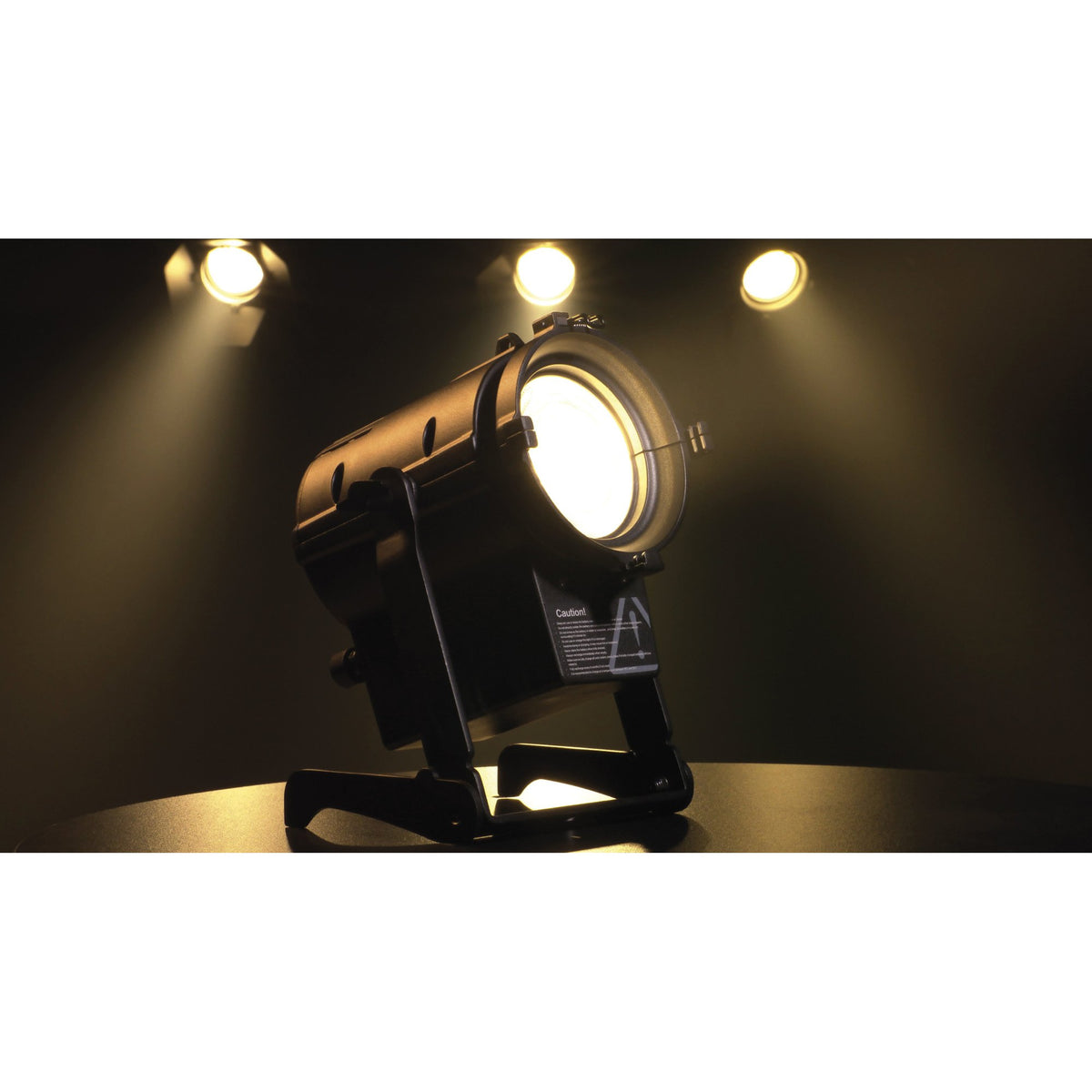

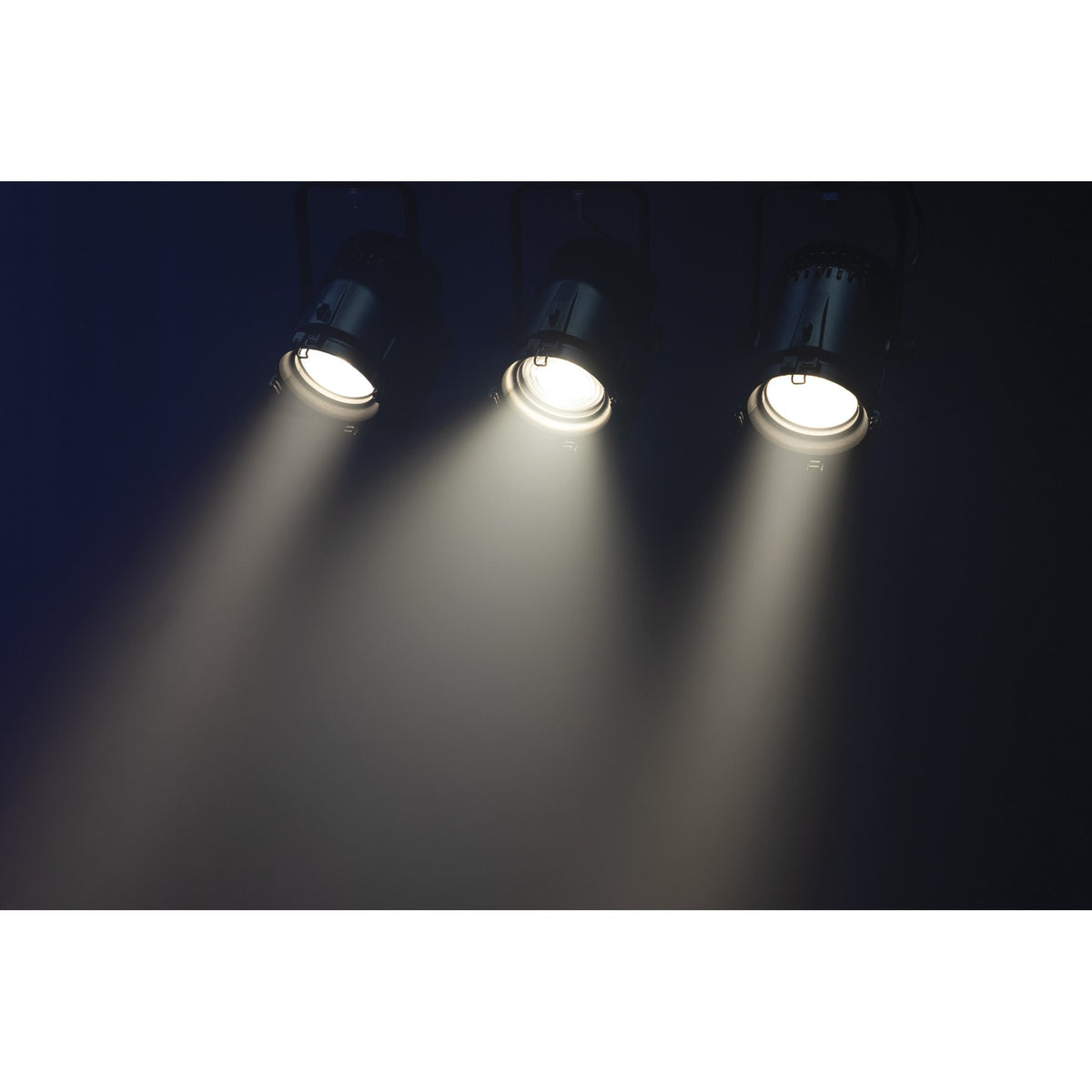

A Fresnel lens shapes warm-white 3100 K light into a soft-edged field, with a beam angle adjustable manually from 12° to 40°.

The field can be matched to a stage set, speaker or display.

The DDT version is dimmed through a traditional TRIAC dimmer pack, allowing an LED source to work with this control infrastructure.

This model has no DMX.

Passive fanless cooling also suits quiet environments.

Main Features

• A 30 W warm-white LED and CRI 92 support accurate rendering of illuminated colours.
• Manual zoom changes the illuminated area without moving the fixture.

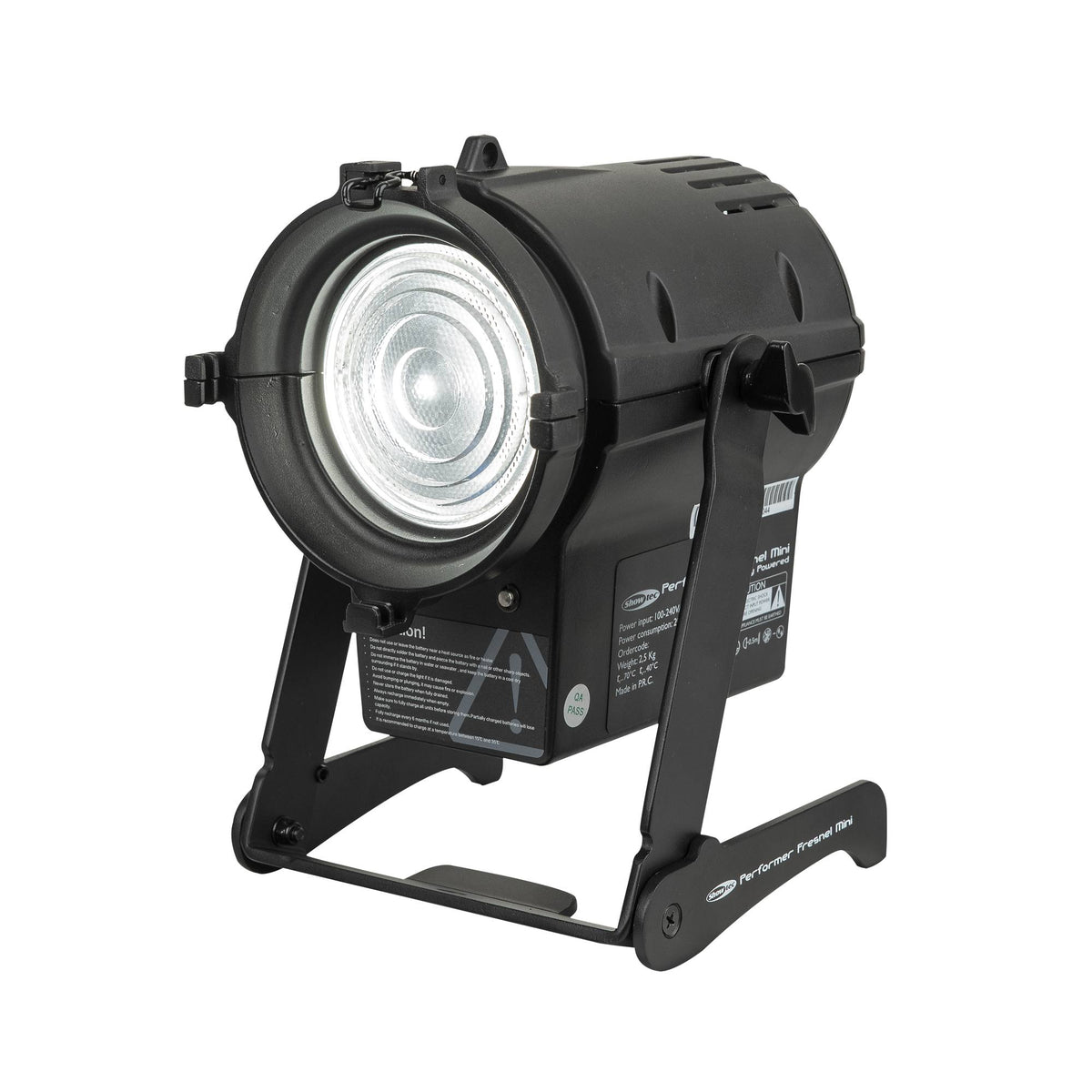

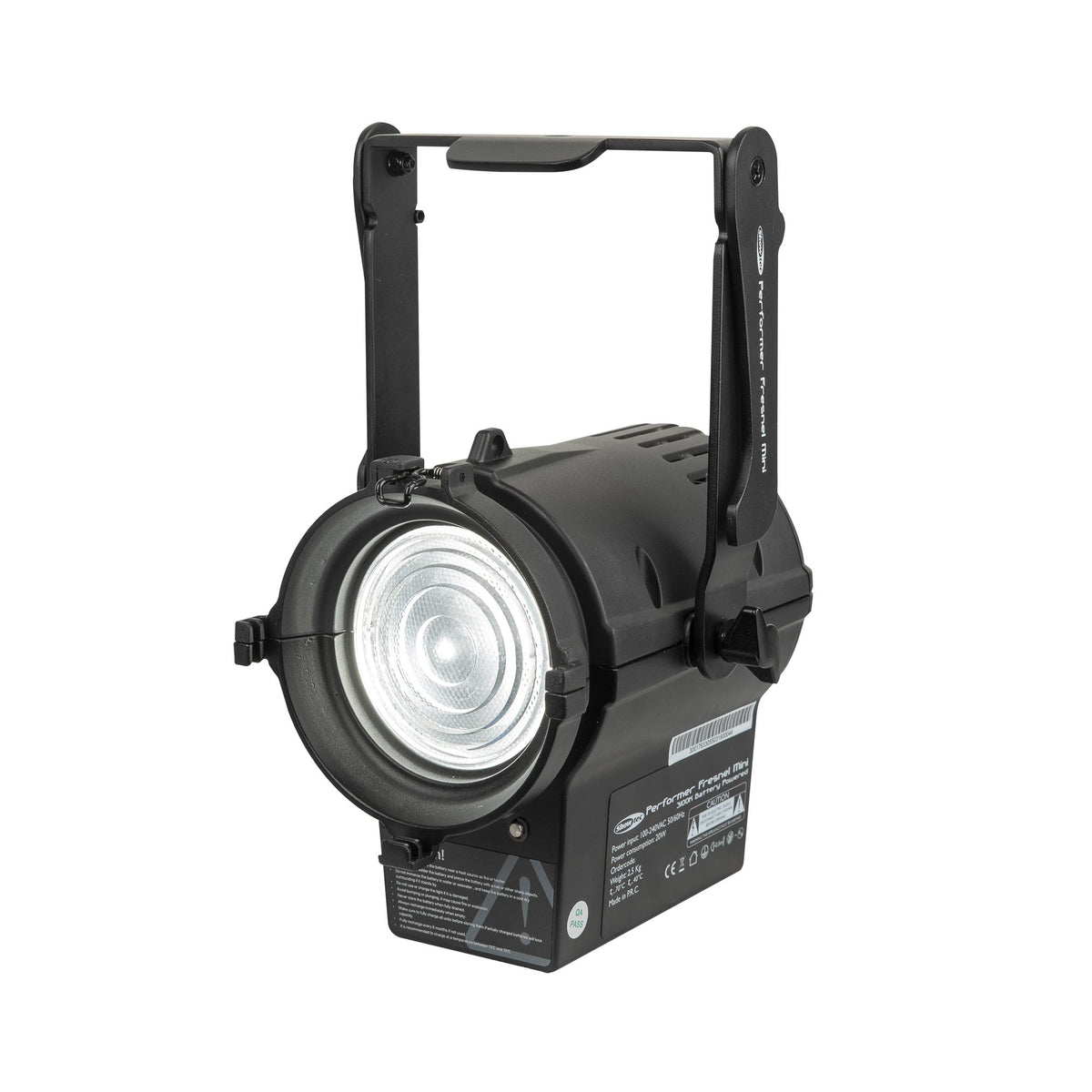

• An adjustable bracket allows the light to be aimed at the required angle.
• Separately purchased barndoor 33056 helps limit spill outside the illuminated area.

Technical Specifications

• Light Source: 30 W warm-white LED
• Colour Temperature: 3100 K
• Luminous Flux: 1350 lm
• Colour Rendering Index: CRI 92
• Beam Angle: 12–40°, manually adjustable
• Control: TRIAC, via a traditional dimmer pack
• Dimming: 5–100%
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 23 W

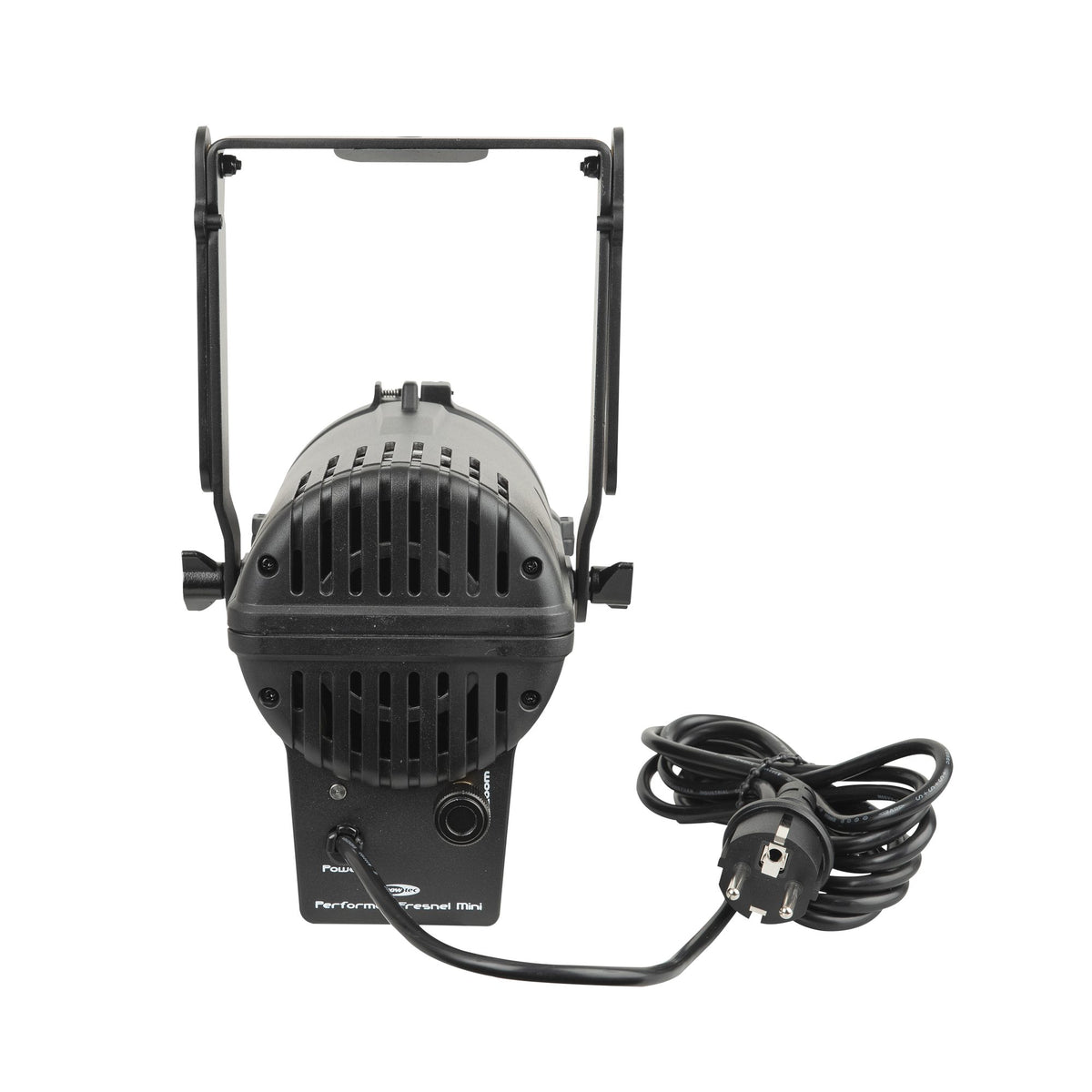

• Power Connection: Fixed cable with Schuko plug
• Housing and Mounting: Black aluminium; adjustable bracket
• Cooling: Passive, fanless
• IP Rating and Ambient Temperature: IP20, indoor use only; up to 40 °C
• Dimensions (W × H × D): 175 × 188 × 210 mm
• Weight: 2.86 kg

What’s Included

• 1 × Showtec Performer Fresnel Mini DDT Fresnel Spotlight
• Fixed power cable with Schuko plug
• Safety cable

Barndoor 33056 and a dimmer pack are not included and must be purchased separately.

Who Is It For

For indoor theatre, studio, museum and display lighting where a compact Fresnel fixture is required and a compatible TRIAC dimmer pack is already in use.
