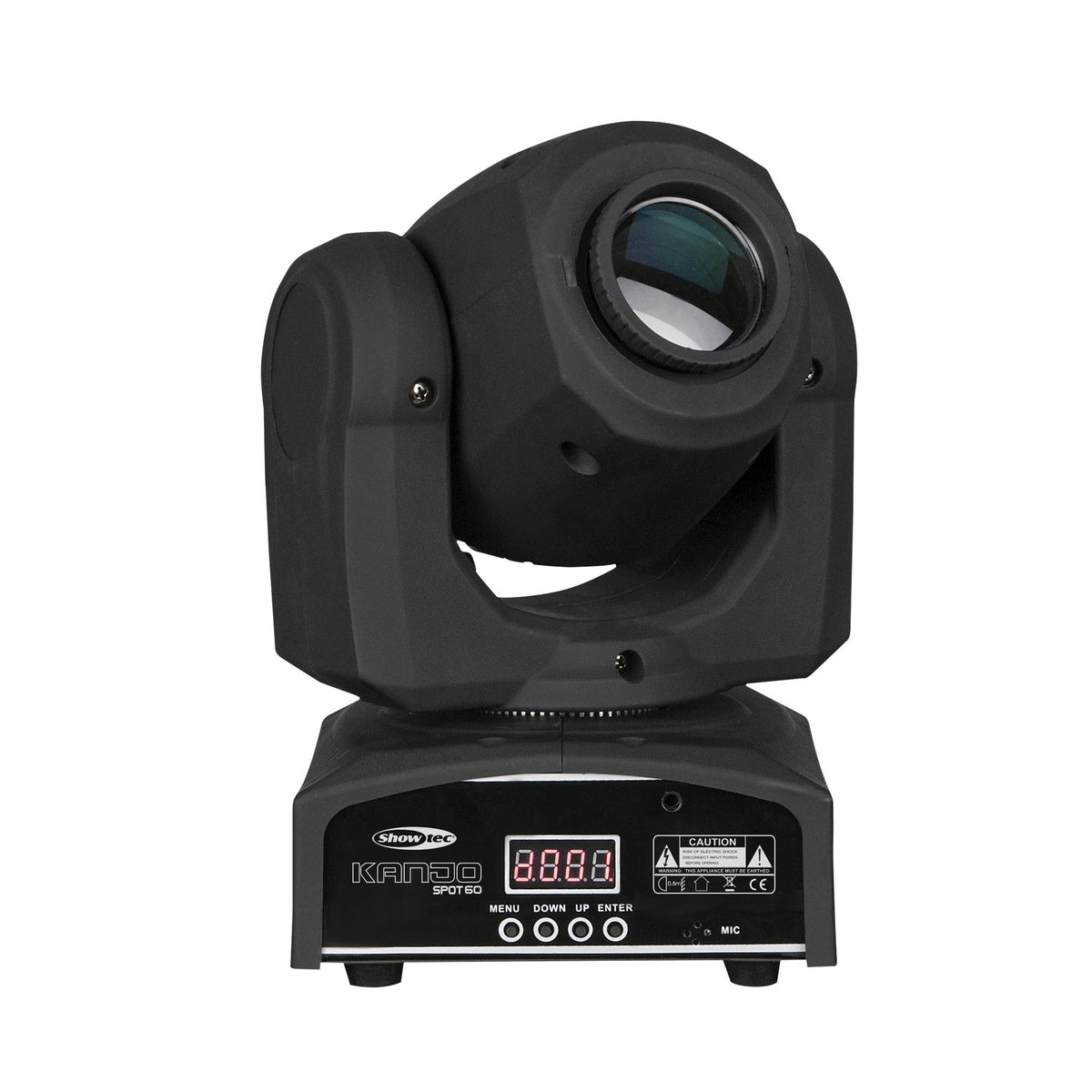

Showtec Kanjo Spot 60 Moving Head

Showtec Kanjo Spot 60 Moving Head

A 60 W white LED projects through fixed 18° optics and a seven-gobo wheel.

A separate wheel provides seven dichroic colours. Both wheels include an open position for white light without a gobo pattern.

Focus is adjusted manually, while the beam angle remains fixed. Dimming and 0–20 Hz strobing combine with horizontal and vertical head movement.

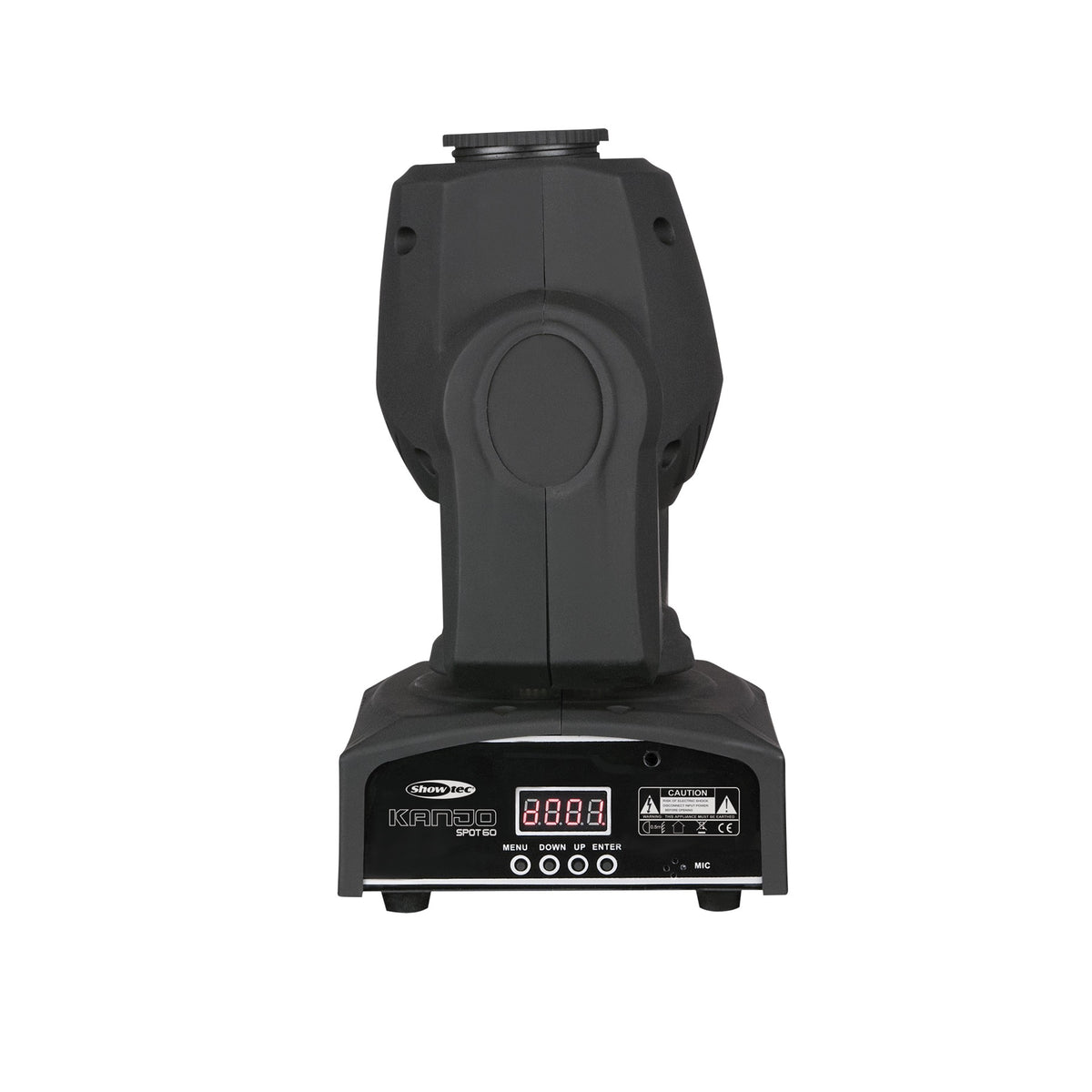

Choose an 8- or 10-channel DMX personality. Automatic, sound-triggered and Master/Slave modes also work without a lighting console. The compact 3 kg housing includes a display with buttons and a mounting bracket.

Main Features

• Seven fixed metal gobos provide different projection patterns.
• 16-bit Pan/Tilt positioning supports precise beam direction.
• 3-pin XLR DMX input and output connections support control linking.
• The supplied bracket attaches with two screws for installation.

Technical Specifications

• Light Source: 1 × 60 W white LED
• Illuminance: 5 m: 656 lx
• Luminous Flux: total: 1640 lm
• Colour Temperature: 7500 K
• Beam Angle: 18°, fixed
• Focus: manual
• Control: DMX, automatic programs, sound activation, Master/Slave
• DMX Channels: 8, 10
• Display: 7-segment LED
• Dimming: 0–100 %
• Strobe: 0–20 Hz
• Colour Wheel: 7 dichroic colours + open; indexing and rotation
• Gobos: 7 + open; metal; wheel indexing and rotation
• Movement: Pan 540°; Tilt 230°; 16-bit positioning
• Power Supply: 100–240 V AC 50/60 Hz
• Power Consumption: 90 W

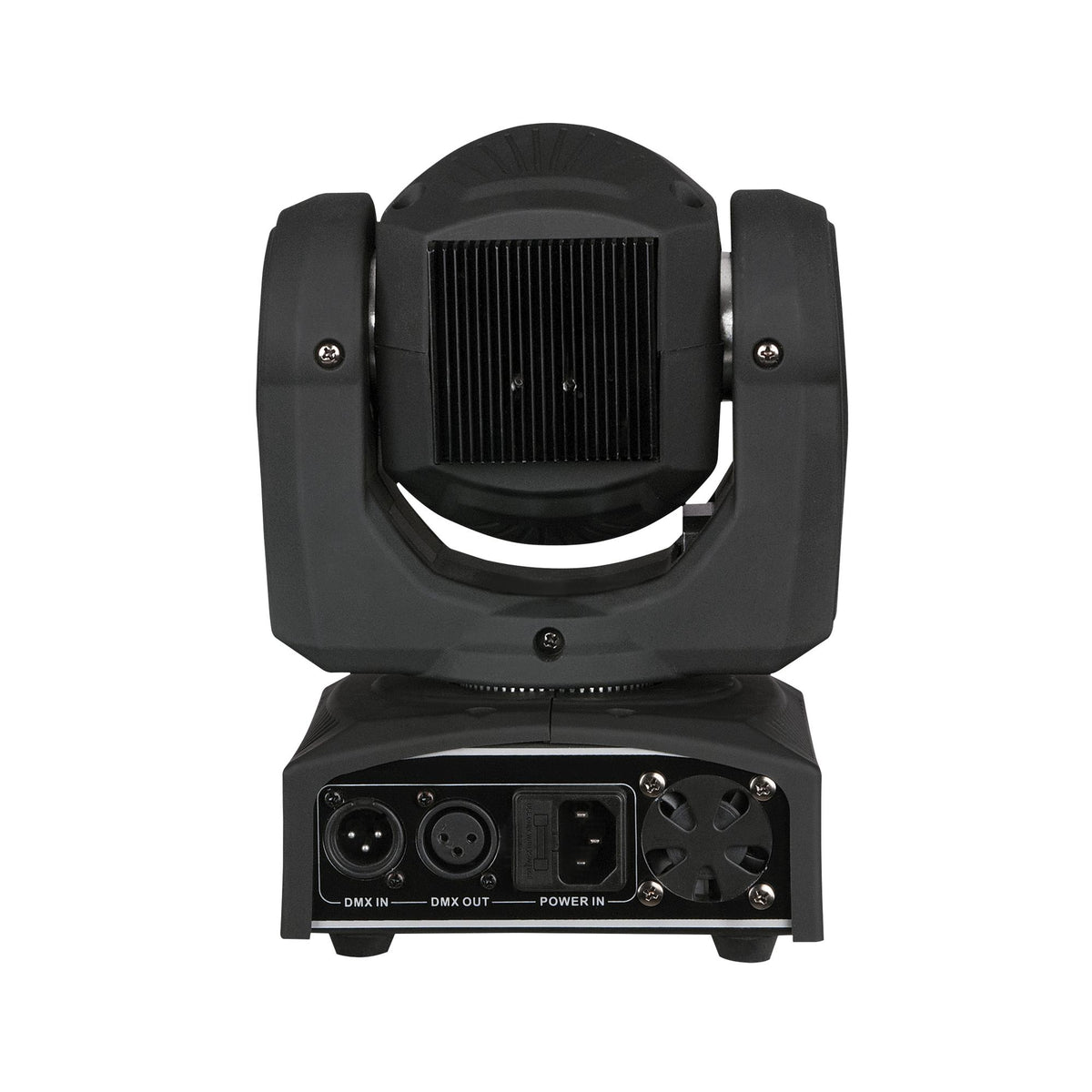

• Connections: IEC input; 3-pin XLR DMX input and output
• Dimensions (L × W × H): 145 × 160 × 265 mm
• Weight: 3 kg
• Housing and Cooling: plastic, black; axial fan
• Protection: IP20, indoor use only
• Mounting: bracket; 1 safety eye
• Maximum Ambient Temperature: 40 °C

What’s Included

• 1 × Showtec Kanjo Spot 60 Moving Head
• 1.5 m IEC power cable
• 1 mounting bracket and 2 screws

Who Is It For

For small indoor stages, bars and mobile events requiring a compact gobo fixture with DMX or automatic operation.
