Showtec DB-1-8/3 DMX Splitter

Showtec DB-1-8/3 DMX Splitter

The DB-1-8/3 distributes a single DMX512 signal to eight separate branches.

Each branch has its own 3-pin XLR output, making it possible to run several fixture chains rather than routing the entire system through one long daisy chain.

Electrical isolation separates the input and output circuits.

A dedicated THRU connection passes the incoming signal onward, while LEDs indicate power and DMX signal status. Product code 50783 identifies the version with eight 3-pin outputs and no RDM support.

Main Features

• Eight branch outputs distribute one DMX universe. The splitter does not generate additional independent universes.

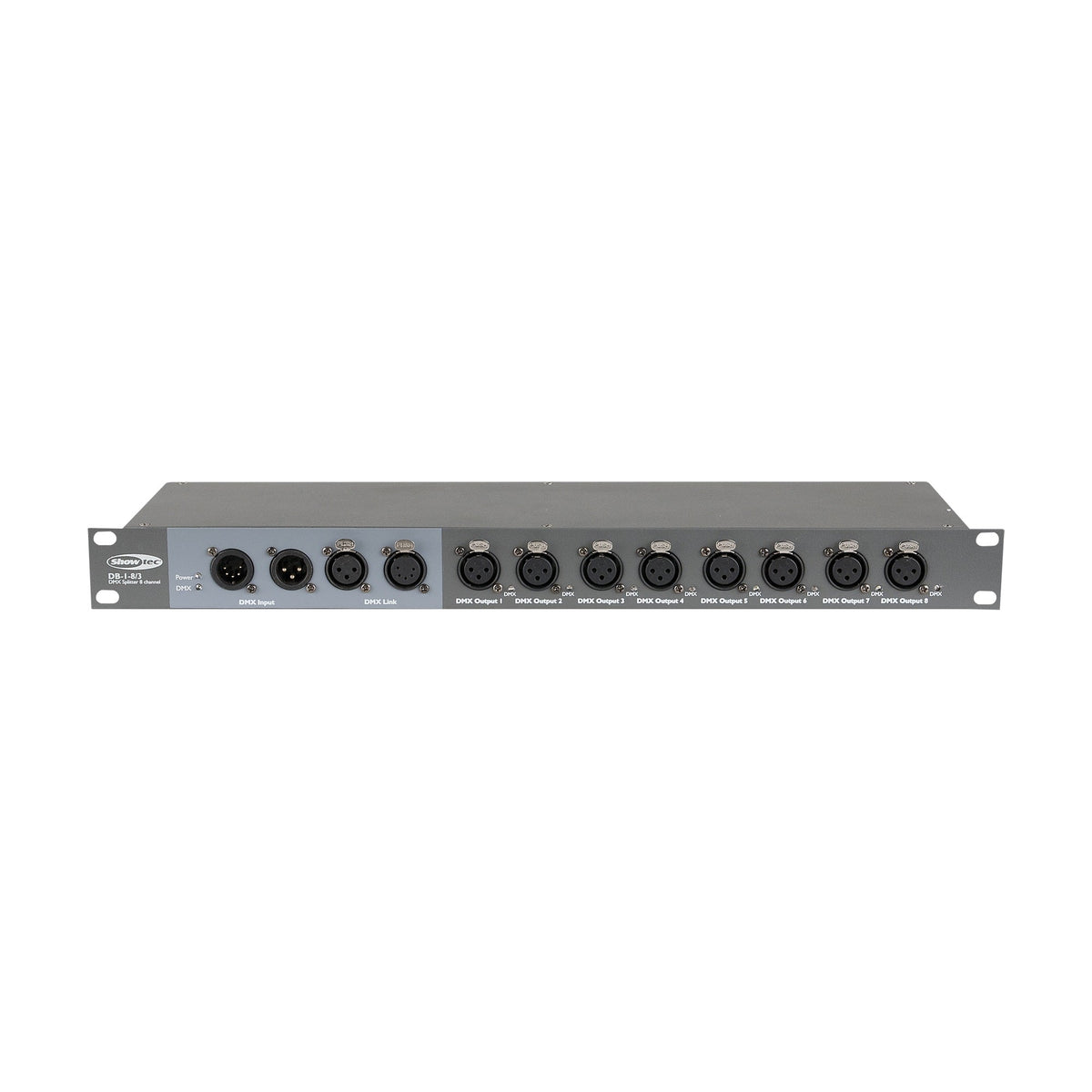

• The input and THRU connections use 3-pin and 5-pin XLR sockets. All eight isolated branch outputs use 3-pin XLR sockets.
• Electrical isolation between input and output separates the signal circuits, with LEDs providing a visible indication of signal activity.

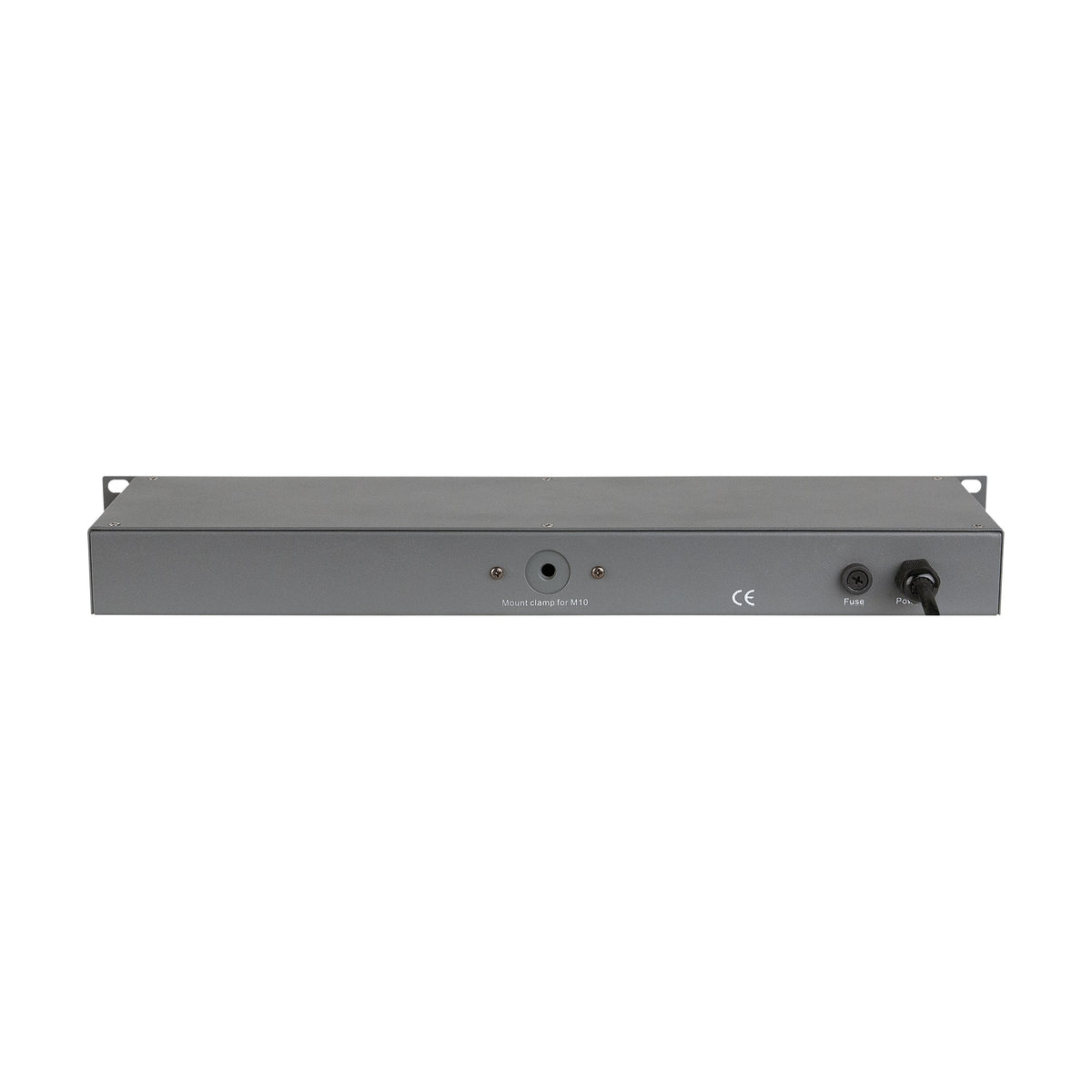

• The 483 mm wide, 1 U housing fits a 19-inch equipment rack. A rear M10 thread accepts a suitable truss clamp.

Technical Specifications

• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 5 W
• Power Connector In: Schuko Plug
• Installation Depth (Excl. Connector): 134 mm
• Weight: 2.5 kg
• Rack Units: 1 U
• IP Rating: IP20 (indoor use only)
• Housing: Metal
• Colour: Grey
• LED Indicators: Power, Signal
• Maximum Ambient Temperature: 40 °C
• Control Mode: DMX
• Universes: 1
• DMX connections: 3-pin and 5-pin XLR input/THRU; eight separate 3-pin XLR outputs
• Dimensions (W × H × D): 483 × 46 × 134 mm
• Electrical isolation: between DMX input and outputs

What’s Included

• 1 × Showtec DB-1-8/3 DMX Splitter
• Fixed 1.5 m power cable with Schuko plug

Who Is It For

Designed for stage, theatre and event DMX systems that require several separate fixture chains. It can be installed in an equipment rack or mounted on truss using a suitable separately purchased clamp.
