Showtec Compact Par 7 Tri LED PAR Spotlight

Showtec Compact Par 7 Tri LED PAR Spotlight

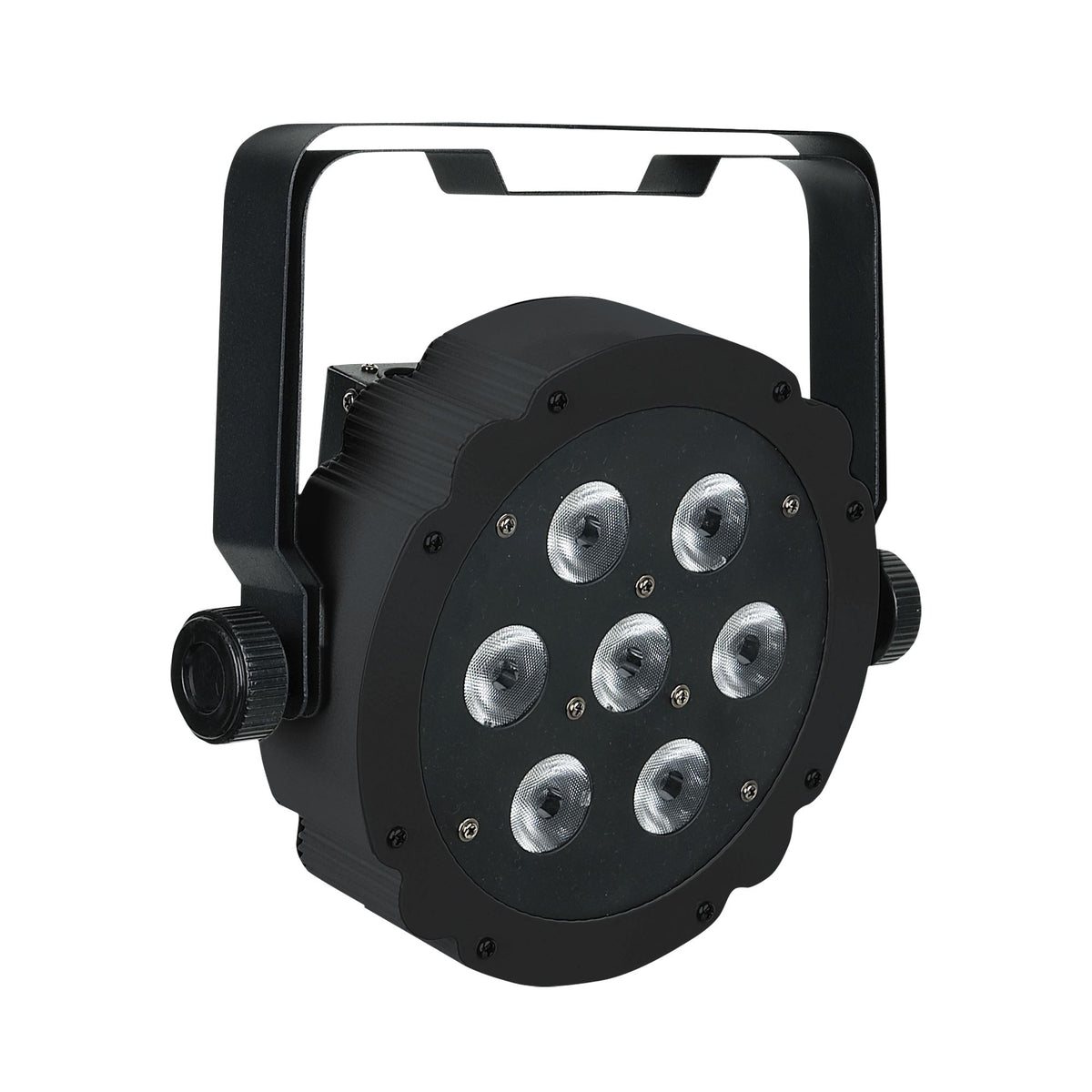

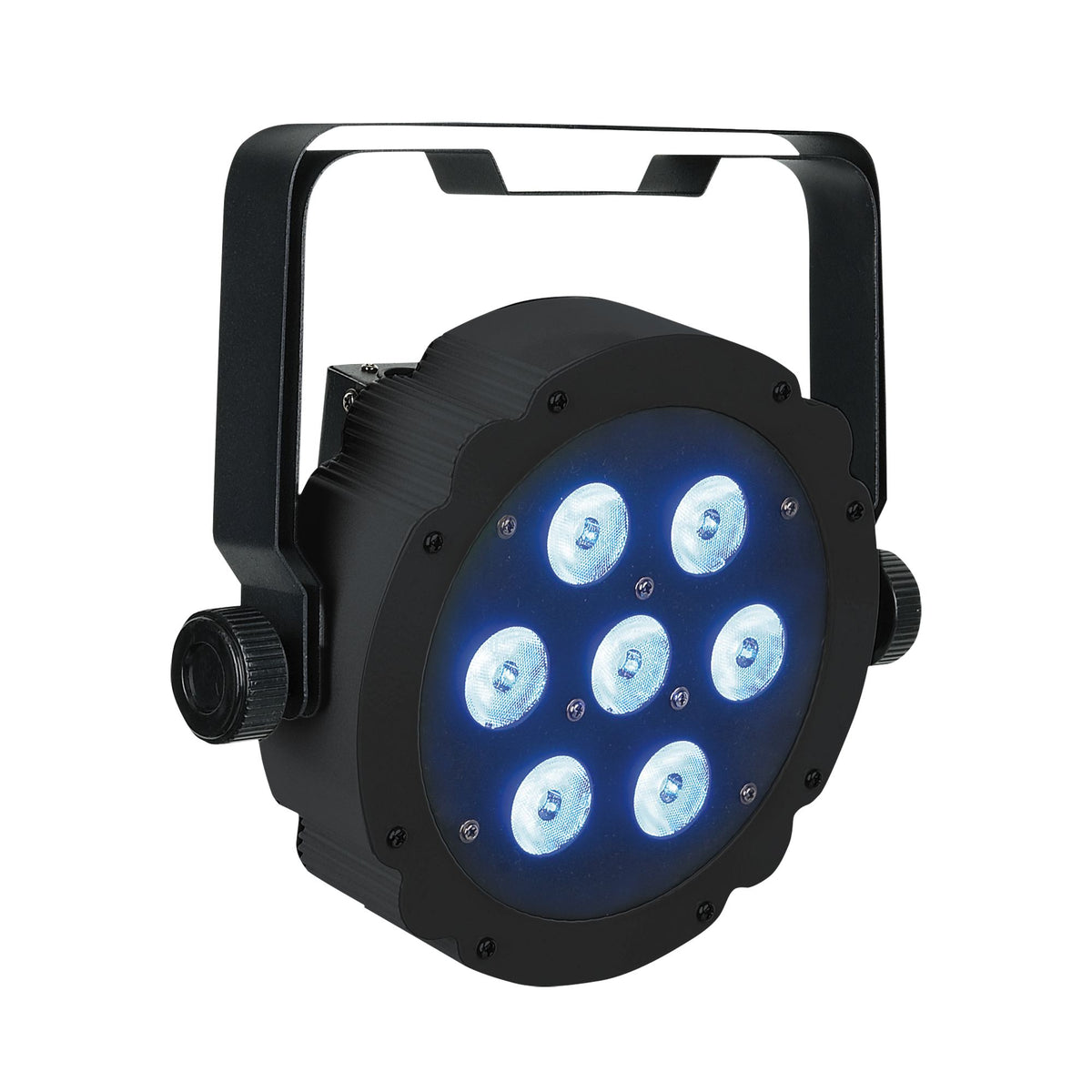

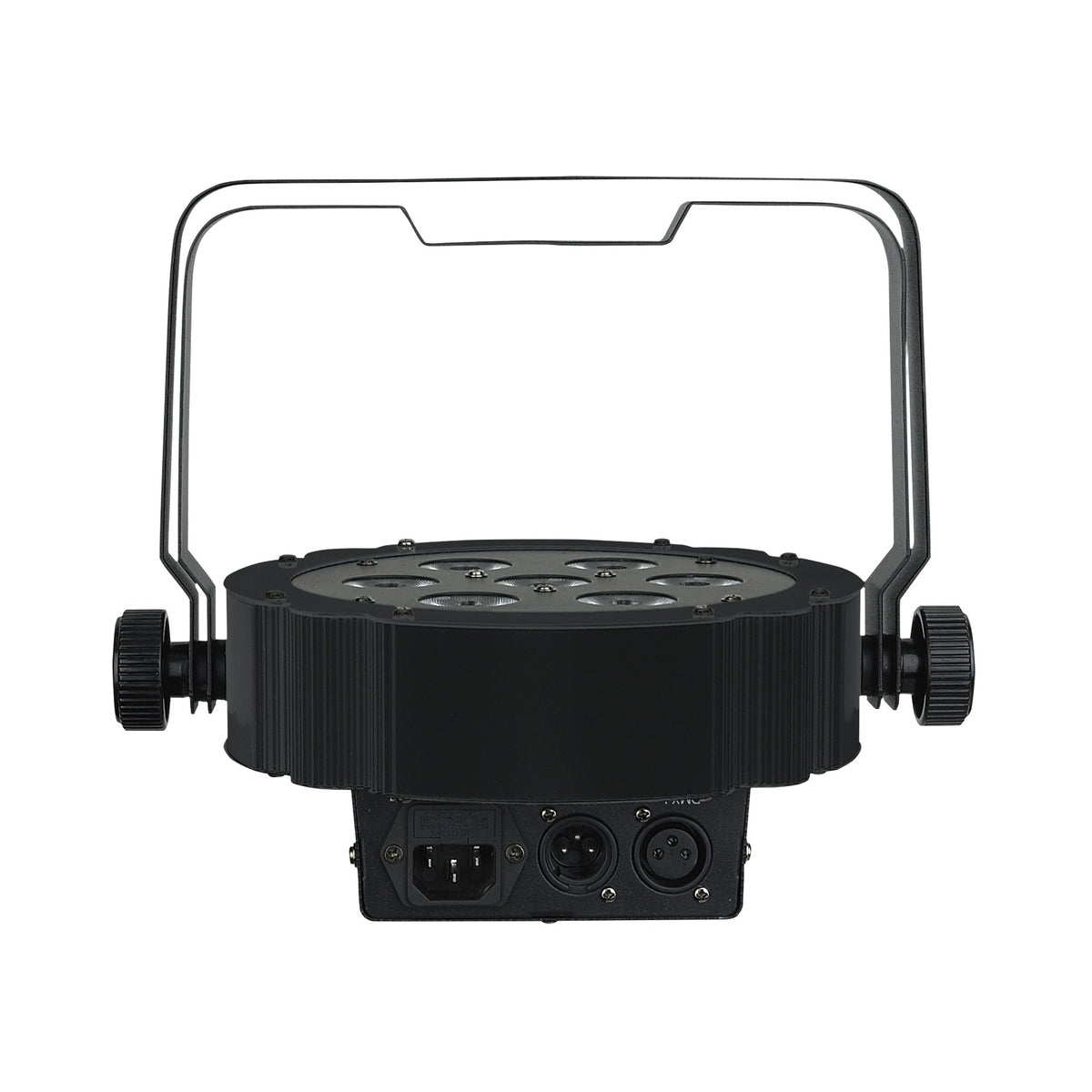

Seven 3 W RGB LEDs mix red, green and blue light into a fixed 40° beam. The flat housing and double bracket allow suspended use or placement on the floor.

Use the buttons to set a colour and intensity, select an automatic chase or enable sound activation. Microphone sensitivity can be adjusted to suit the sound level in the room.

The DMX modes range from direct RGB control to access to the master dimmer, strobe and programs. In Master/Slave operation, linked fixtures follow the program running on the master.

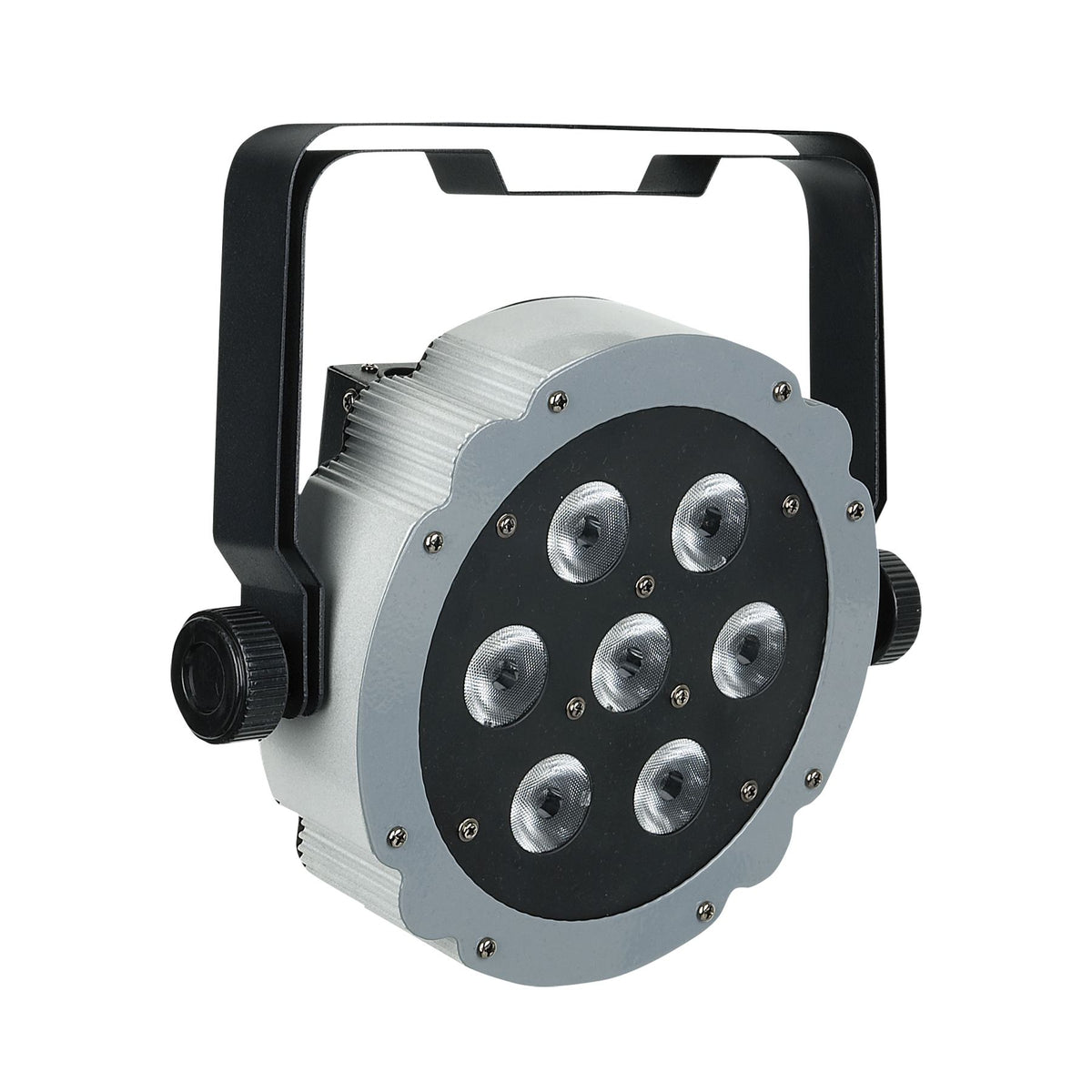

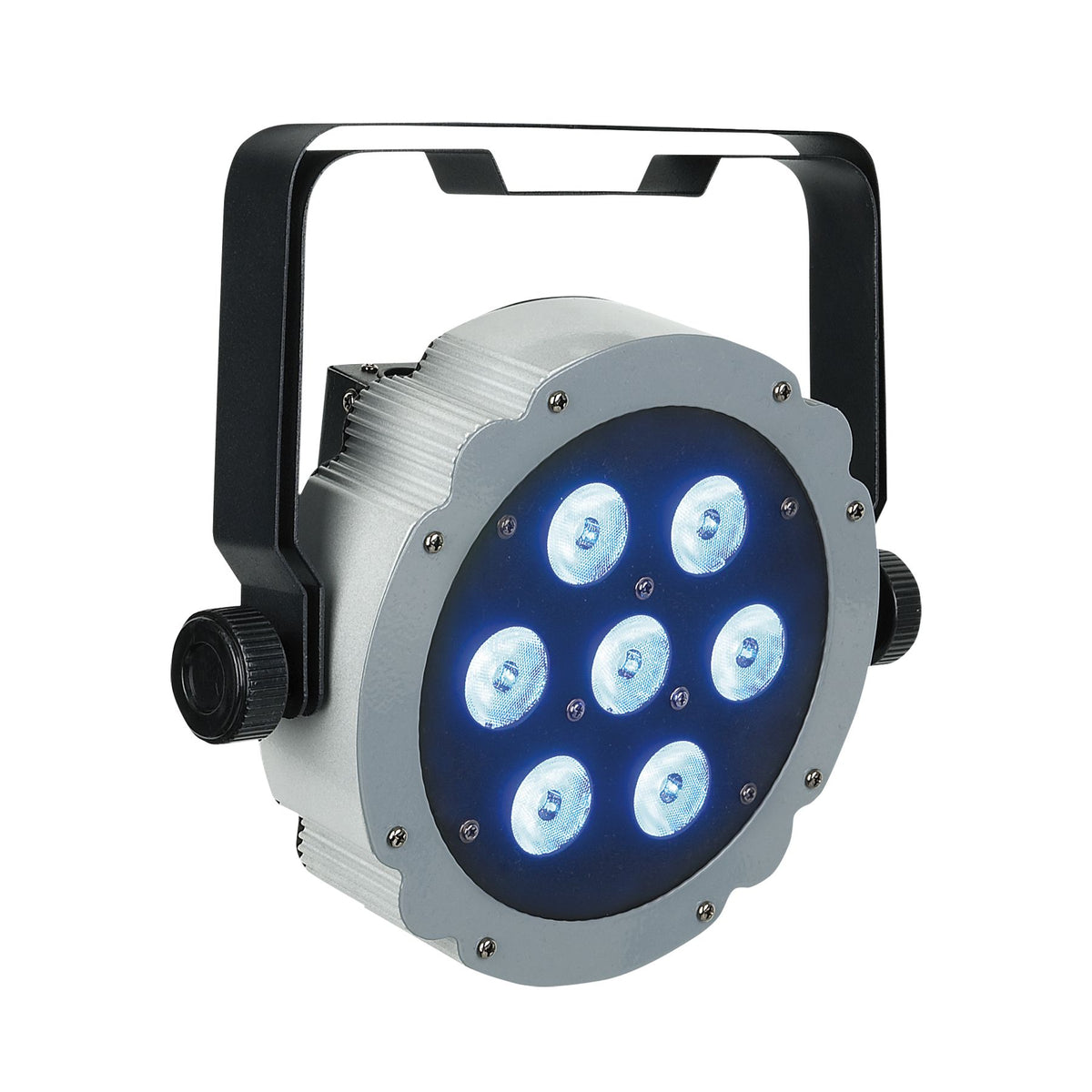

An aluminium heatsink provides passive cooling. The IP20 enclosure is for dry indoor spaces; black and grey finishes are available as variants of the same product.

Main Features

• RGB colour mixing without a mechanical colour wheel.
• A broad 40° beam for colour washes on objects and small stages.
• Built-in chases run without an external DMX desk.
• An integrated microphone provides sound activation.
• Master/Slave operation coordinates linked fixtures.
• Additional ID addresses in 8-channel mode allow fixtures to be grouped.

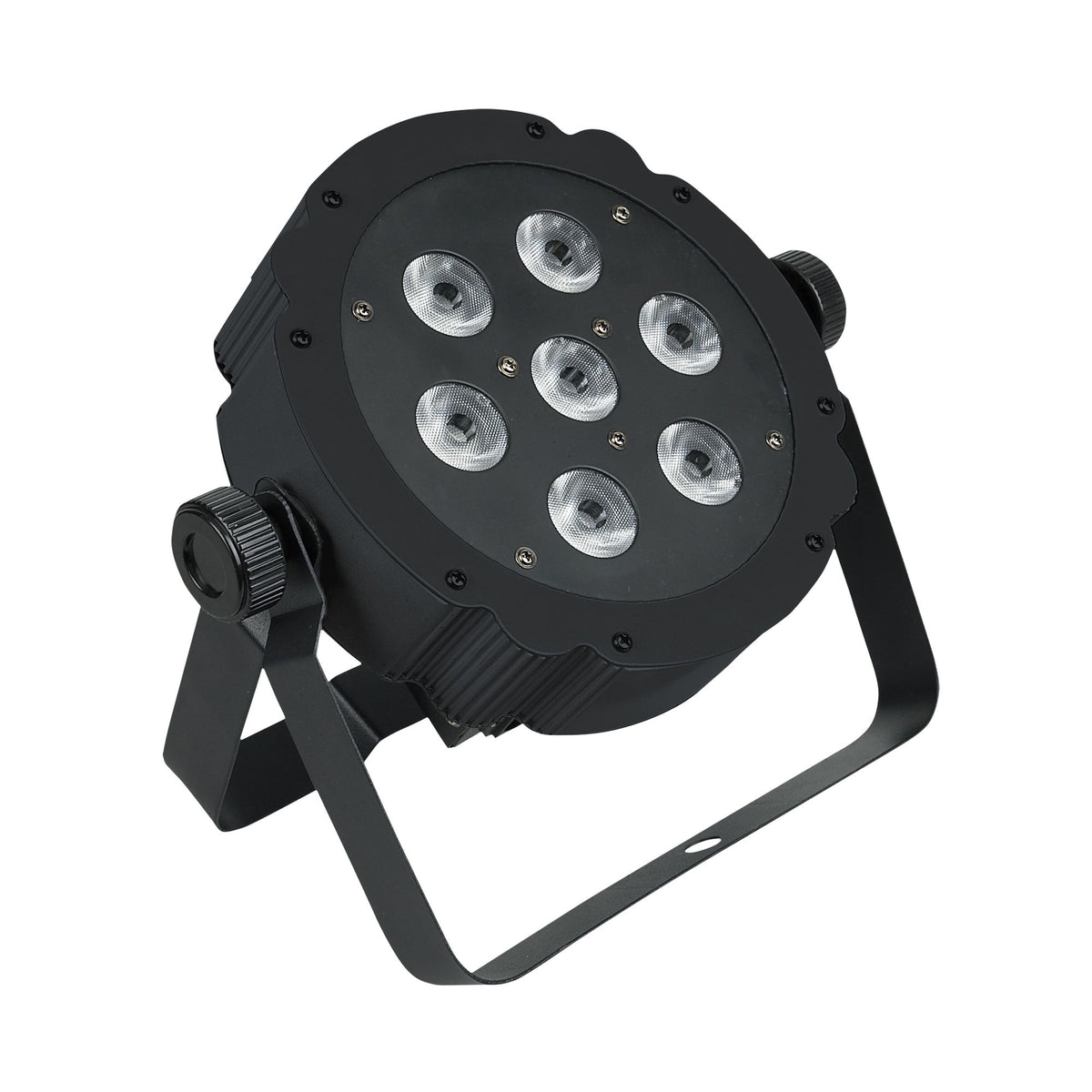

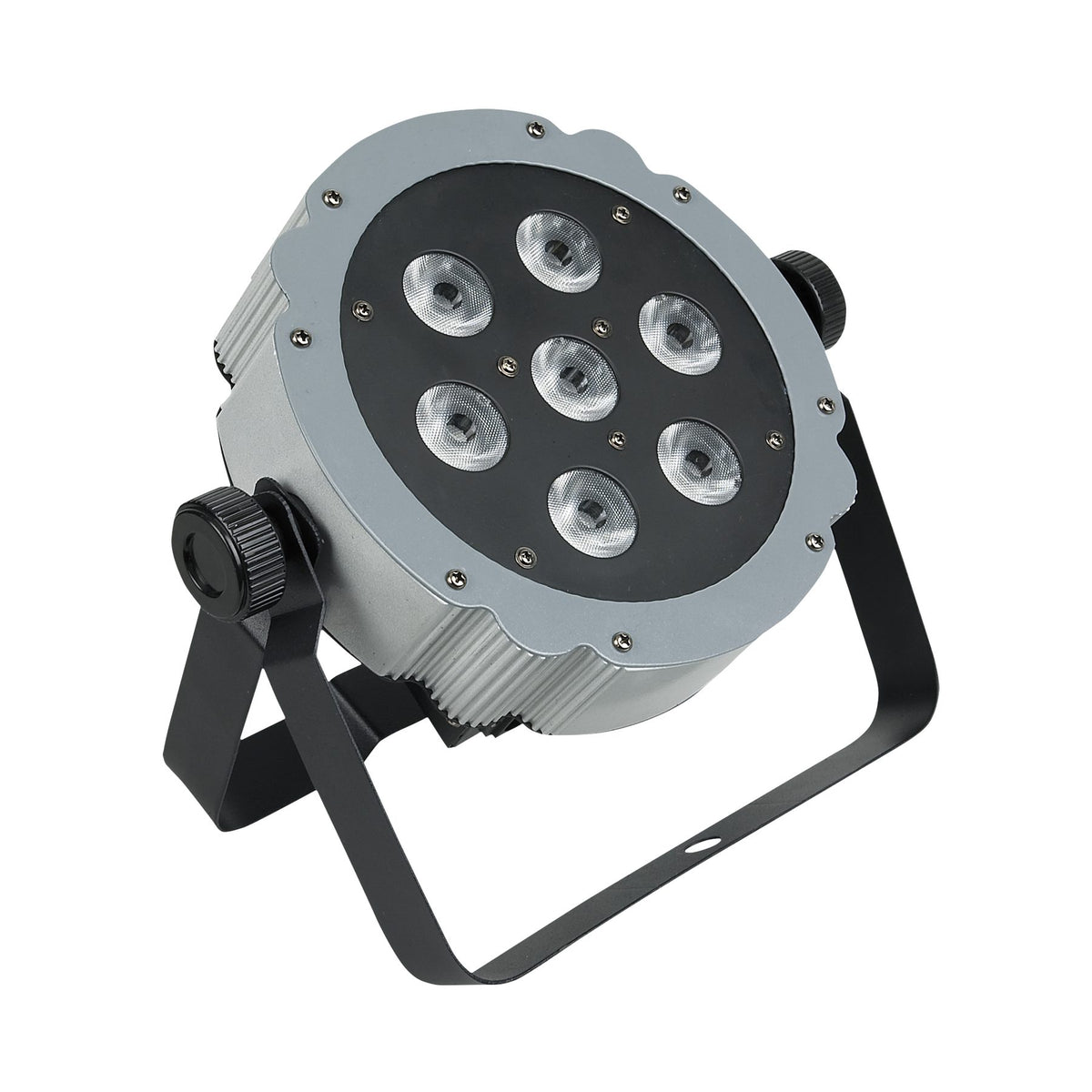

• The adjustable double bracket also serves as a floor stand.
• 3-pin DMX input and output support a continuous signal chain.

Technical Specifications

• Light Source: 7 × 3 W RGB LEDs
• Luminous Flux: 2685 lm
• Illuminance at 2 m: 1772 lx
• Beam Angle: 40°
• PWM Frequency: 3900 Hz
• Control: DMX, automatic programs, physical buttons, sound activation, Master/Slave
• DMX Channels: 3, 4, 8

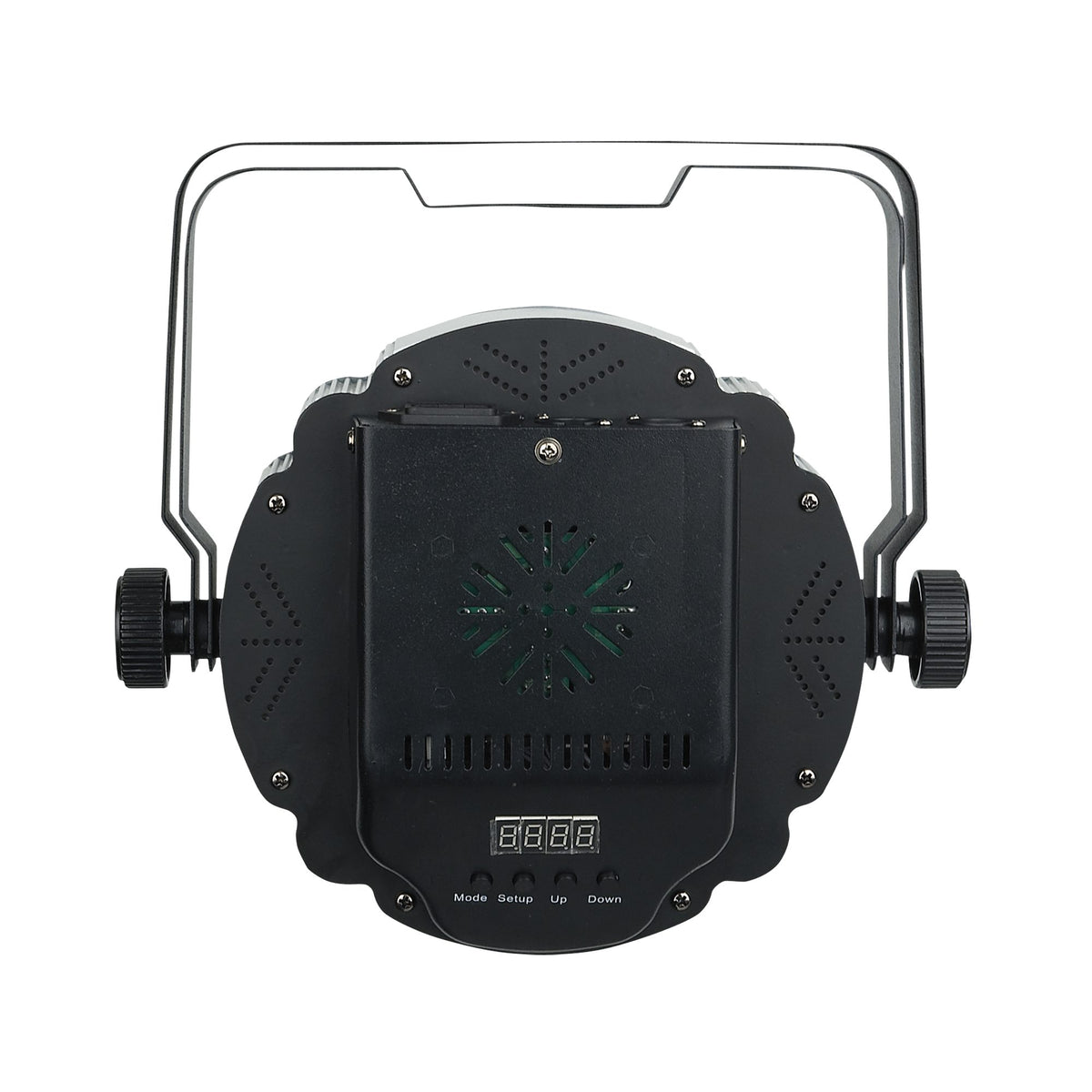

• Control Panel: 4-digit LED display and buttons
• Colours and Programs: 7 colour presets; 9 chases
• Dimming: 0–100 %
• Strobe: 0–20 Hz
• DMX ID Addresses: 1–66, in 8-channel mode
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 28 W

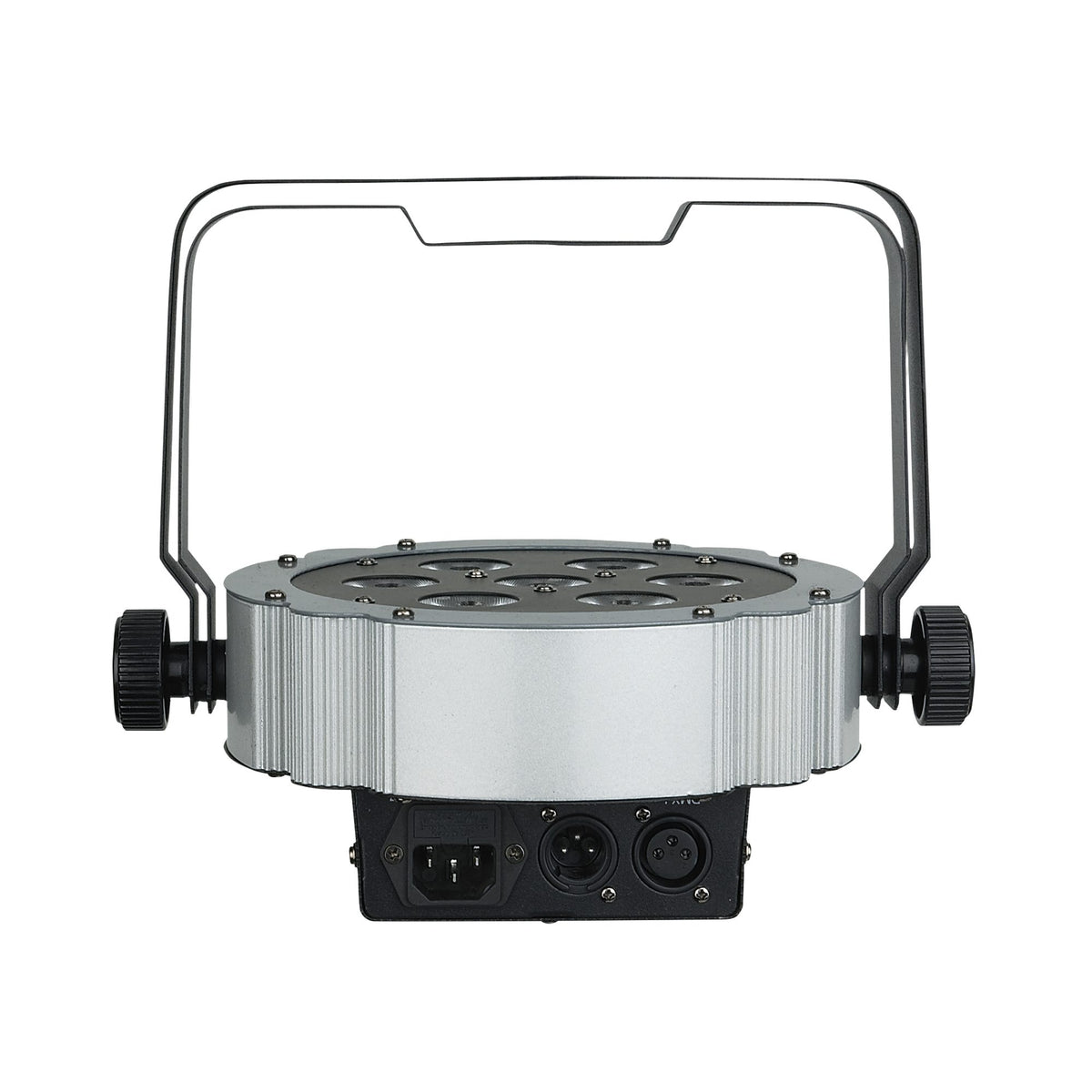

• Connections: IEC C14 power input; 3-pin XLR DMX input and output
• Supplied Cable Length: 1.5 m
• Dimensions (W × H × D): 275 × 258 × 92 mm
• Weight: 2.16 kg
• Housing and Cooling: black or grey; aluminium and metal; passive cooling
• Mounting: adjustable double bracket, supports floor positioning
• Protection: IP20, indoor use only
• Ambient Temperature: -10–40 °C
• Minimum Clearances: at least 0.5 m from illuminated objects and flammable surfaces

What’s Included

• 1 × Showtec Compact Par 7 Tri LED PAR Spotlight
• 1.5 m Schuko to IEC C13 power cable
• Adjustable double bracket

Who Is It For

Suitable for colouring small indoor stages, event spaces and objects. Choose this RGB model when a wider fixed beam is useful and a separate white LED channel is not required.
