Showtec Compact Par 18 MKII LED PAR Spotlight

Showtec Compact Par 18 MKII LED PAR Spotlight

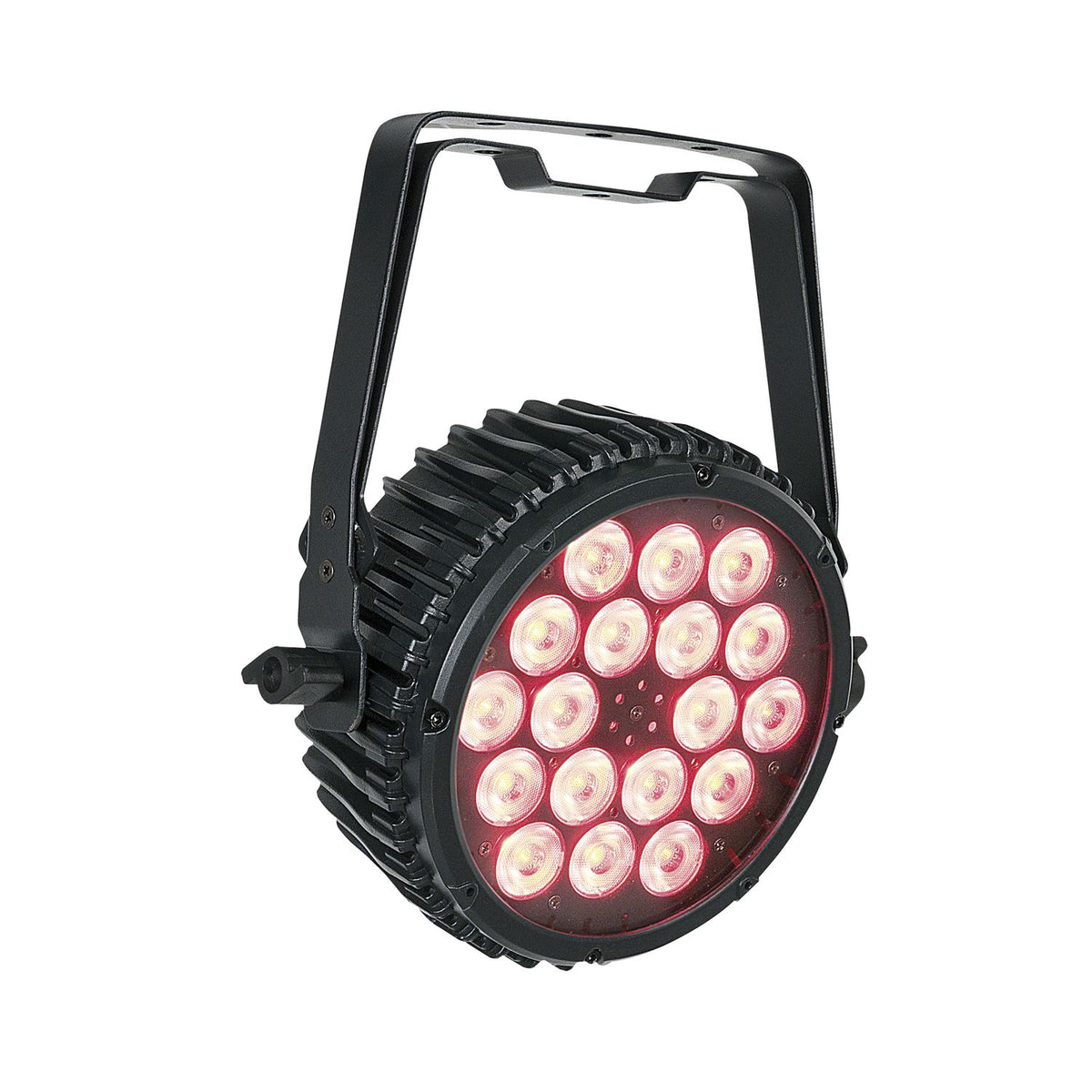

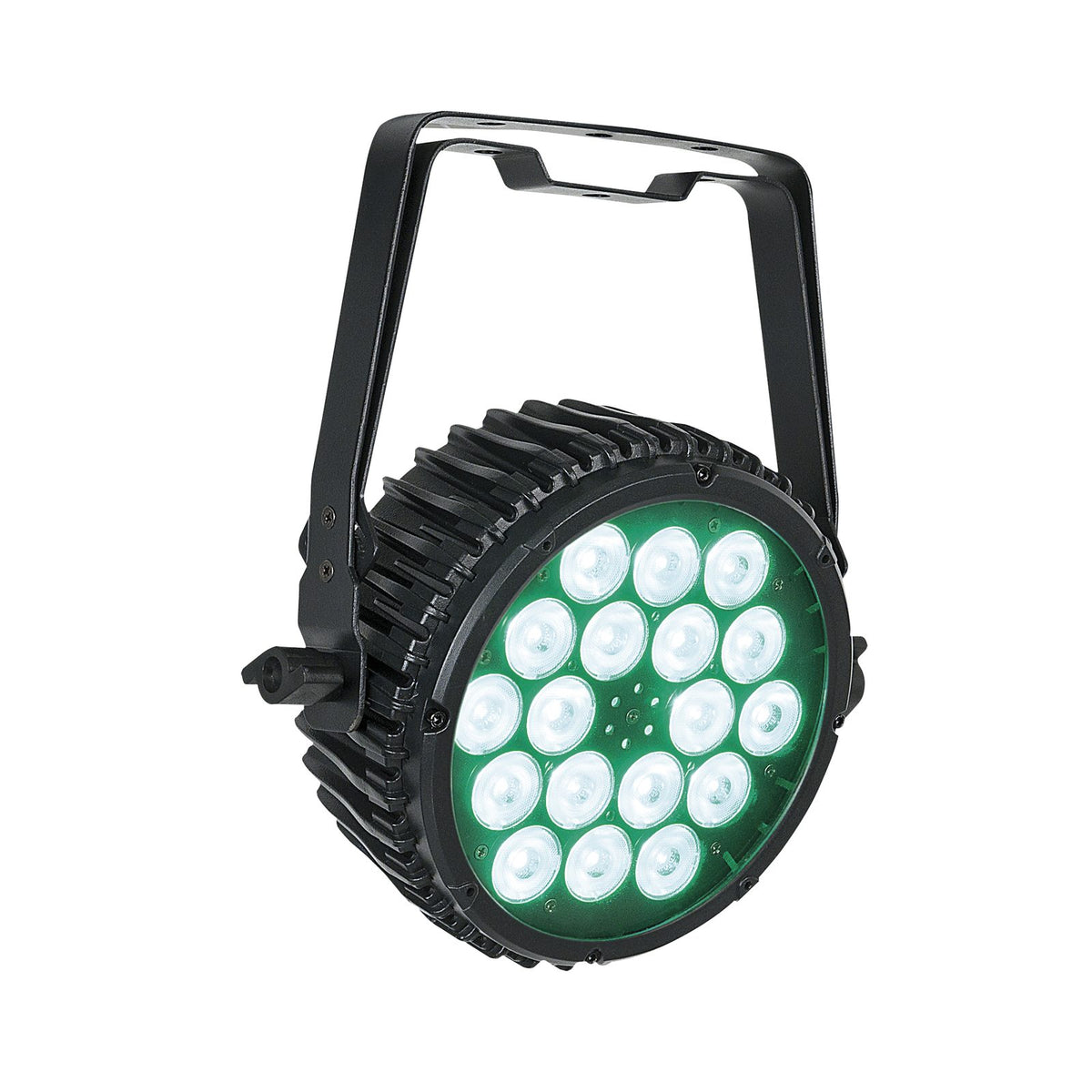

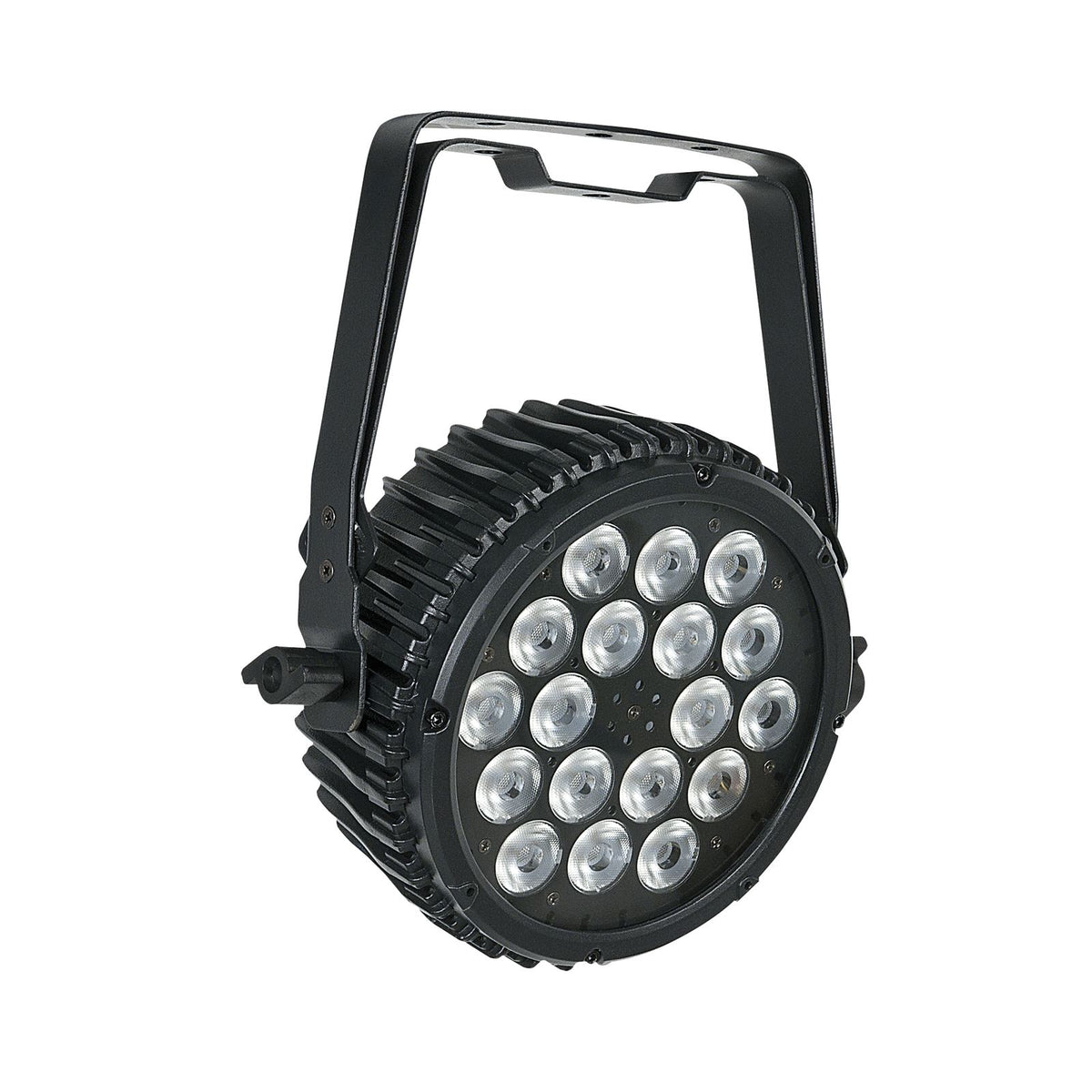

Eighteen 3 W RGB LEDs produce a fixed 28° beam. Red, green and blue can be mixed for short-throw stage and decorative lighting.

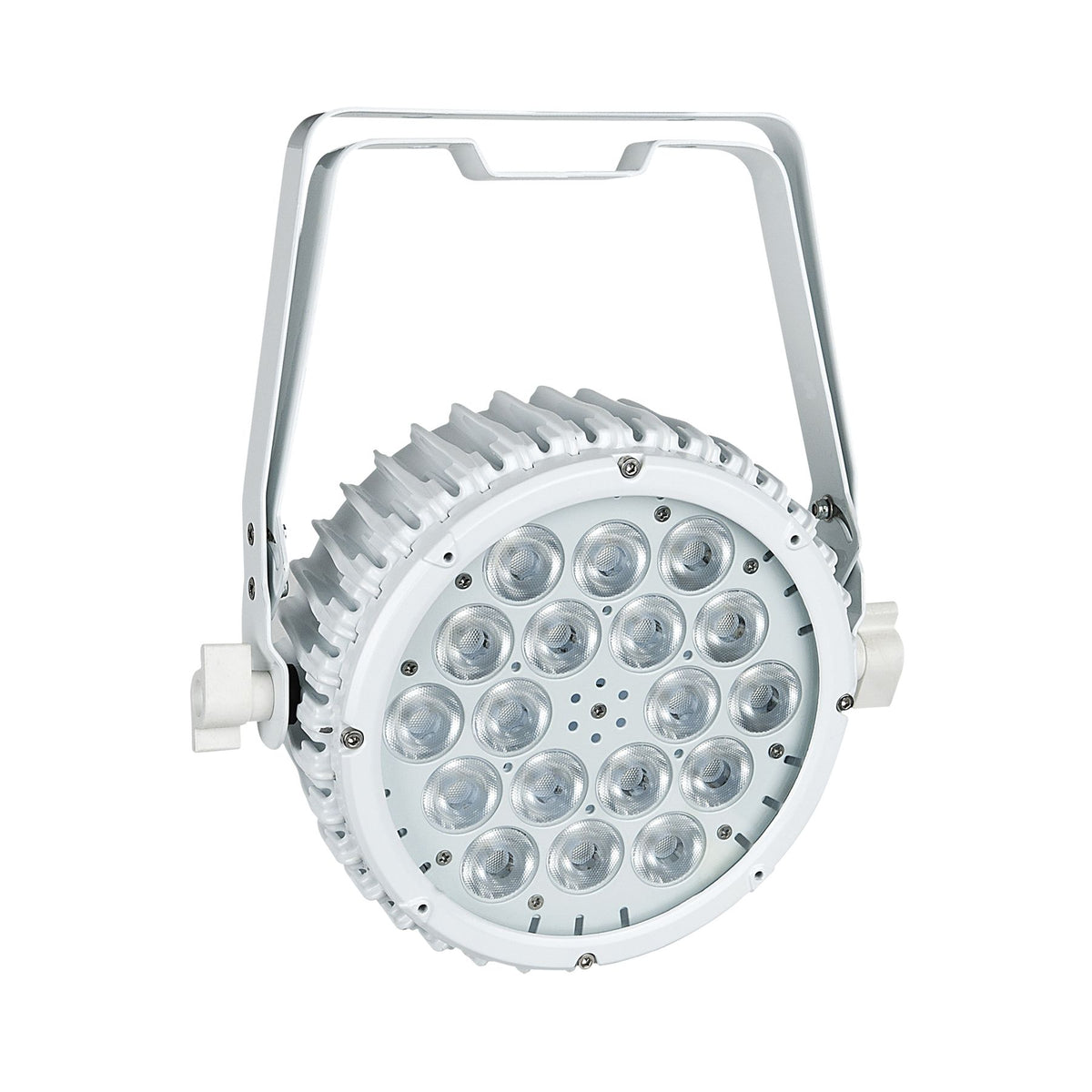

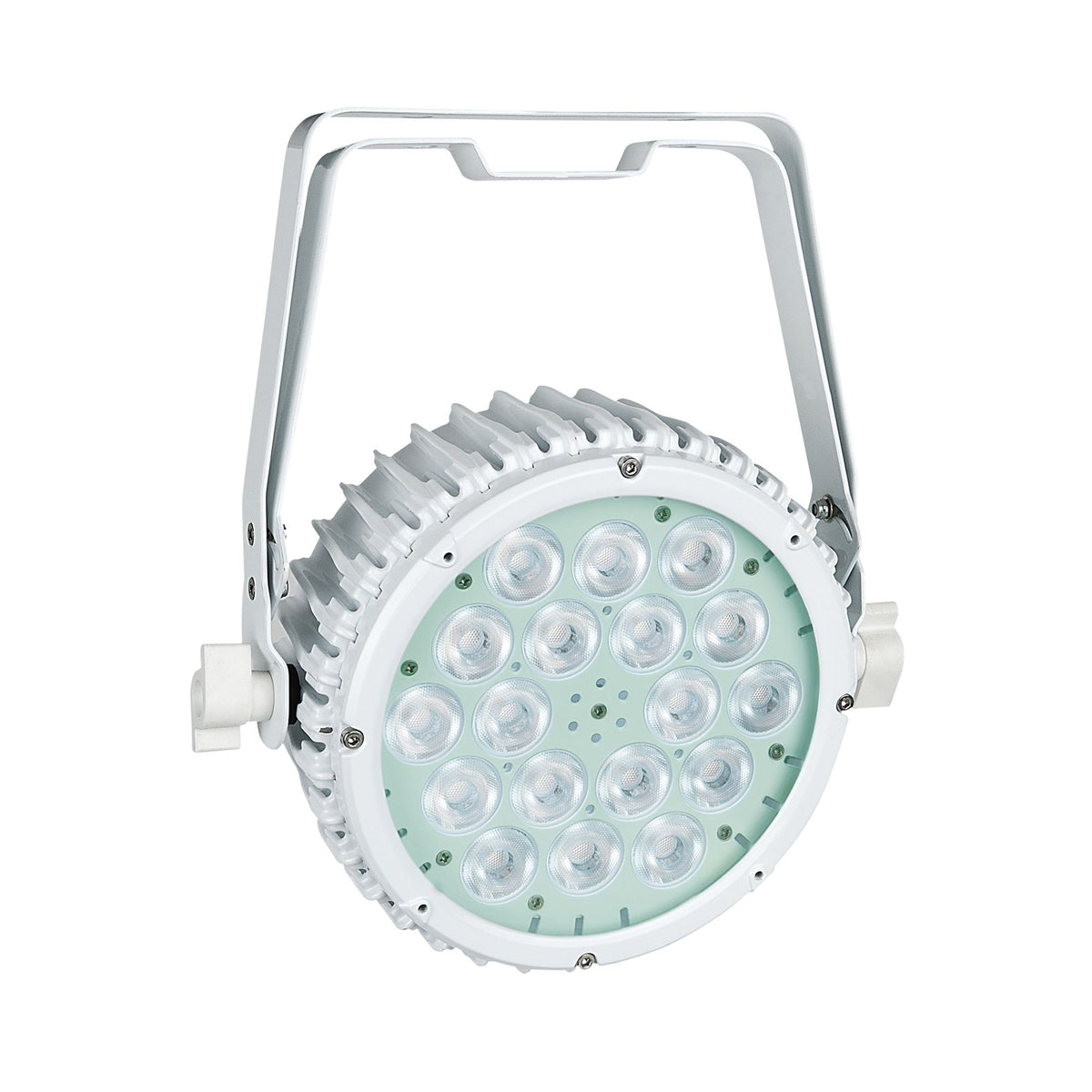

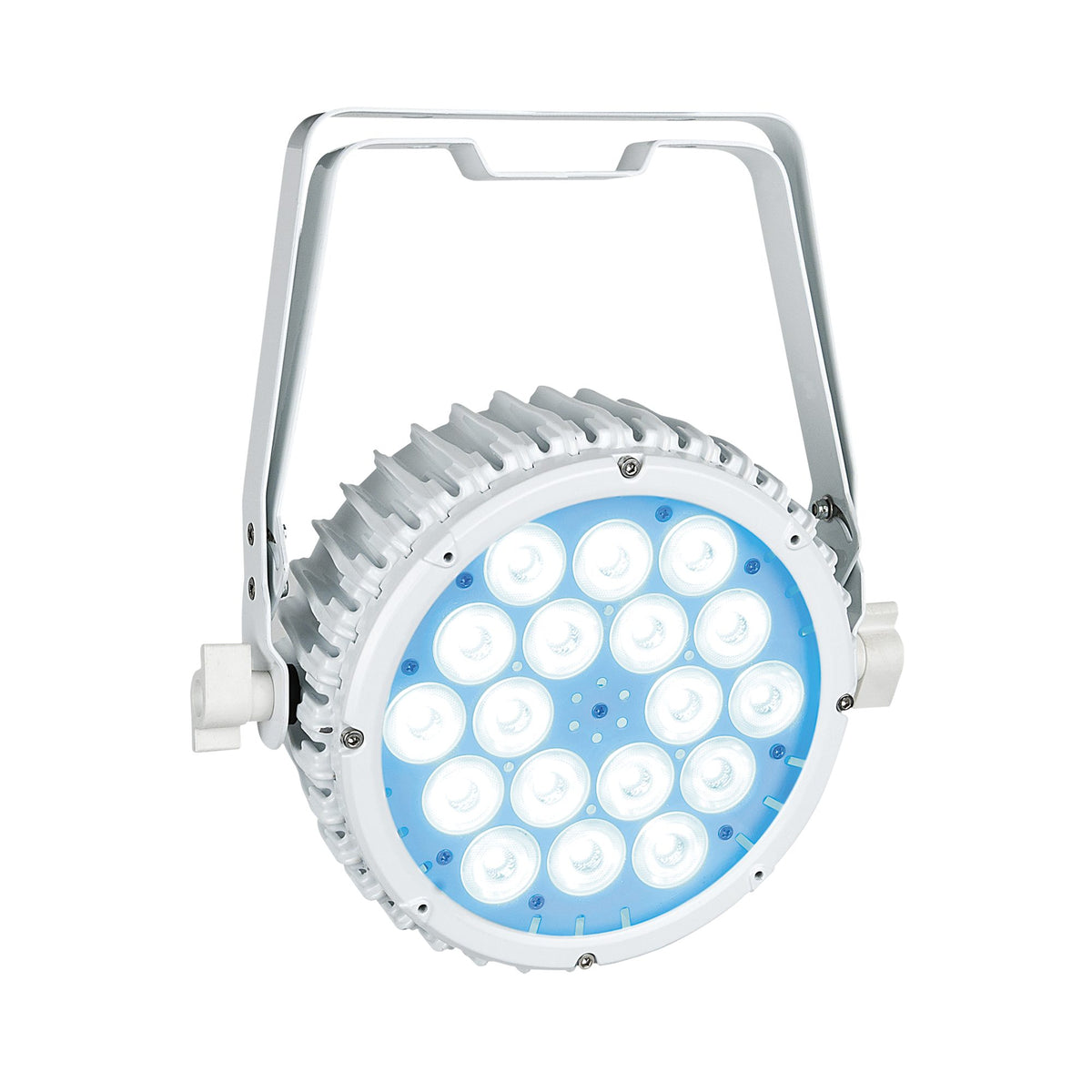

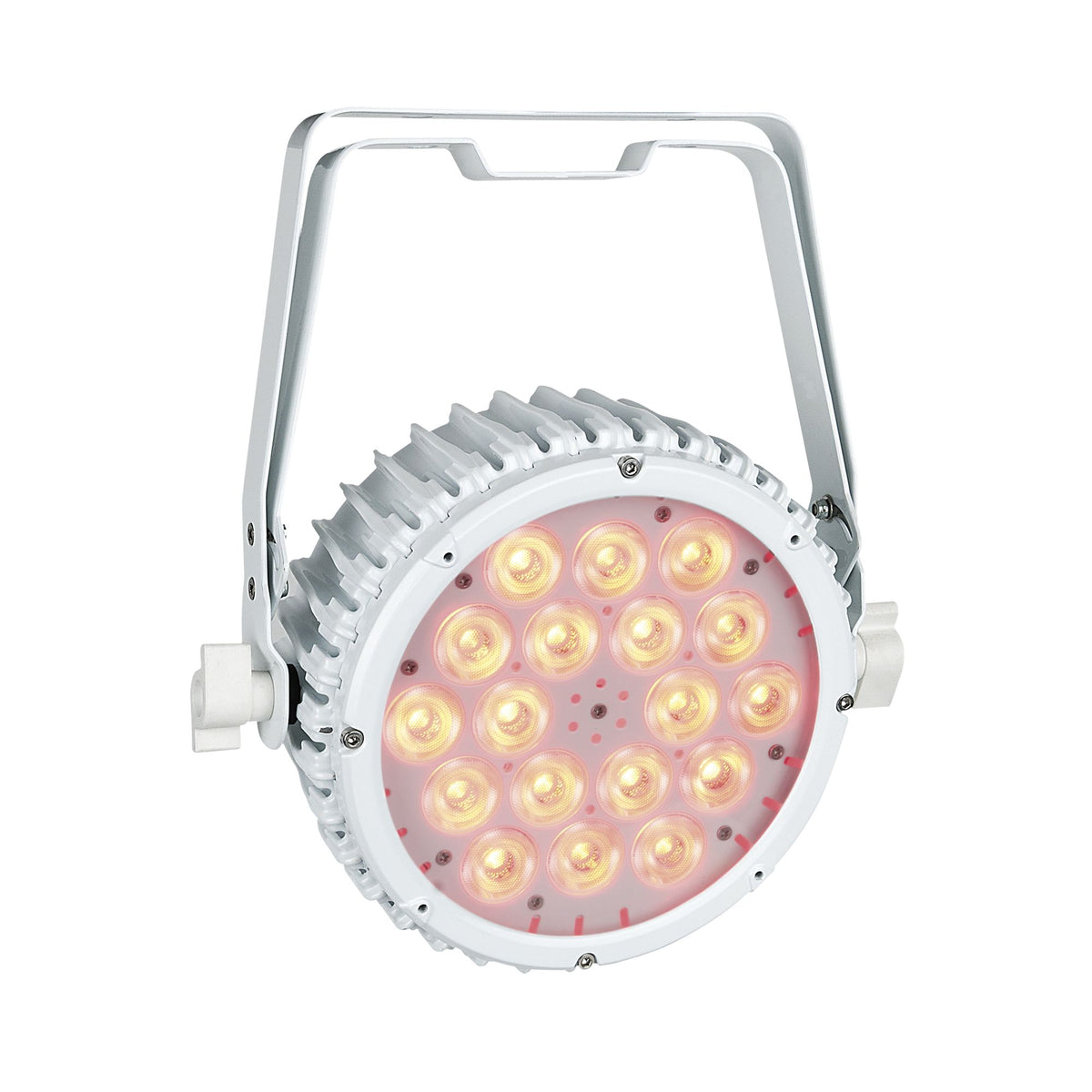

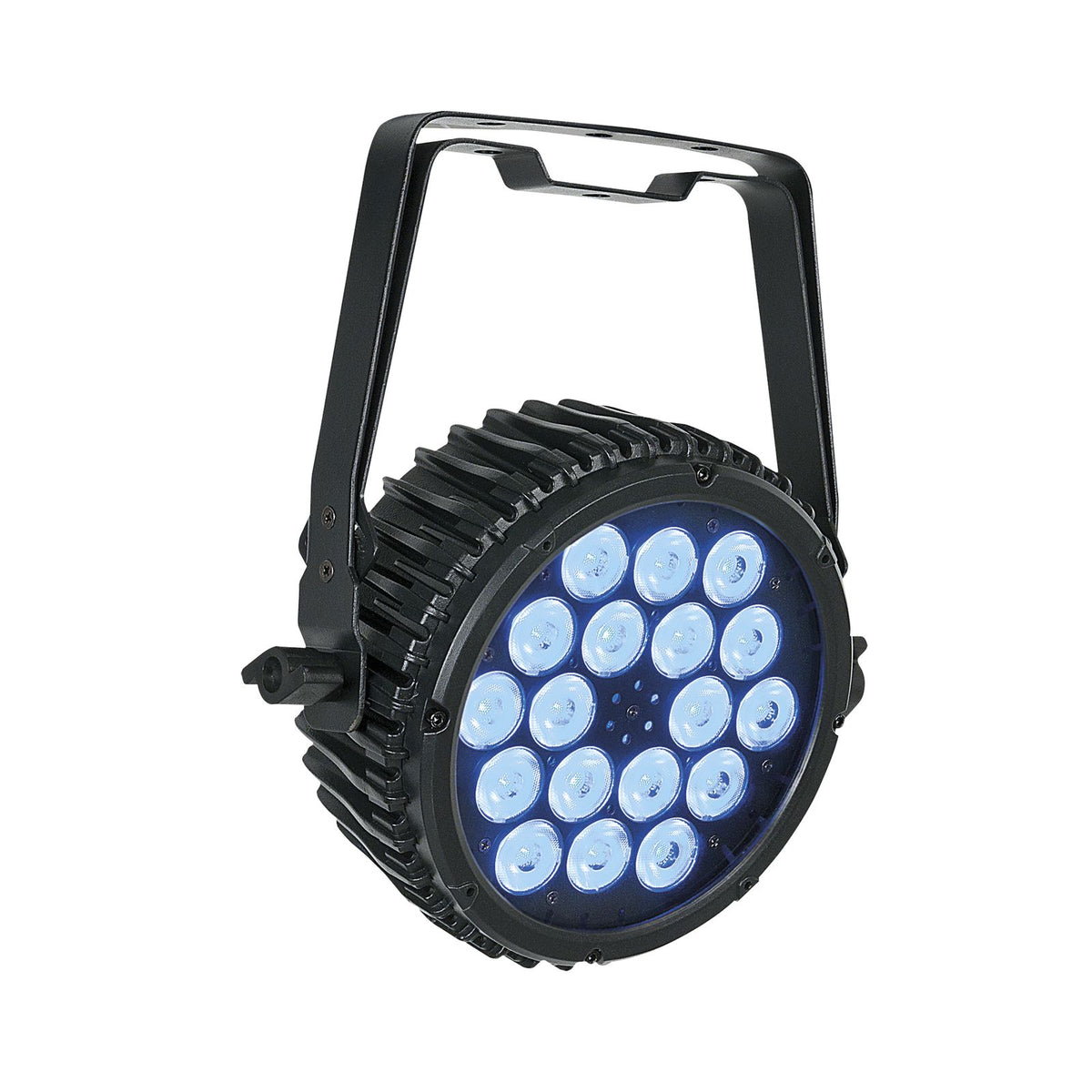

The flat metal housing uses passive cooling, avoiding fan noise. Its adjustable double bracket supports floor positioning and aiming. Both black and white housing finishes are available as variants of the same fixture.

Four DMX channel modes provide different levels of external control. Built-in programs, automatic playback and sound activation also allow operation without a lighting desk. Master/Slave operation makes connected fixtures follow the program running on the master unit.

IEC power input and output allow up to 15 identical fixtures to be linked. The 7800 Hz PWM frequency supports use when filming, and the manufacturer identifies this model as suitable for television studios. The IP20 enclosure is intended for indoor use only.

Main Features

• RGB mixing provides a range of lighting colours.
• A 28° beam suits focused short-throw illumination.
• Passive cooling eliminates fan noise.
• The double bracket supports floor positioning.
• Four DMX modes offer different control levels.
• Programs and sound activation work without a DMX desk.
• Master/Slave operation synchronises connected fixtures.
• Power linking reduces the need for separate supply runs.

Technical Specifications

• Light Source: 18 × 3 W RGB LEDs
• Luminous Flux: 2323 lm
• Illuminance at 2 m: 3112 lx
• Beam Angle: 28°
• PWM Frequency: 7800 Hz
• Control: DMX, Master/Slave, automatic programs, sound activation, onboard buttons
• DMX Channels: 1, 3, 4, 6
• Control Panel: 4-digit LED display and buttons
• Programs and Colour Settings: 10 programs; 33 colour presets on the black version
• Dimming: 0–100 %
• Strobe: 0–20 Hz
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 60 W

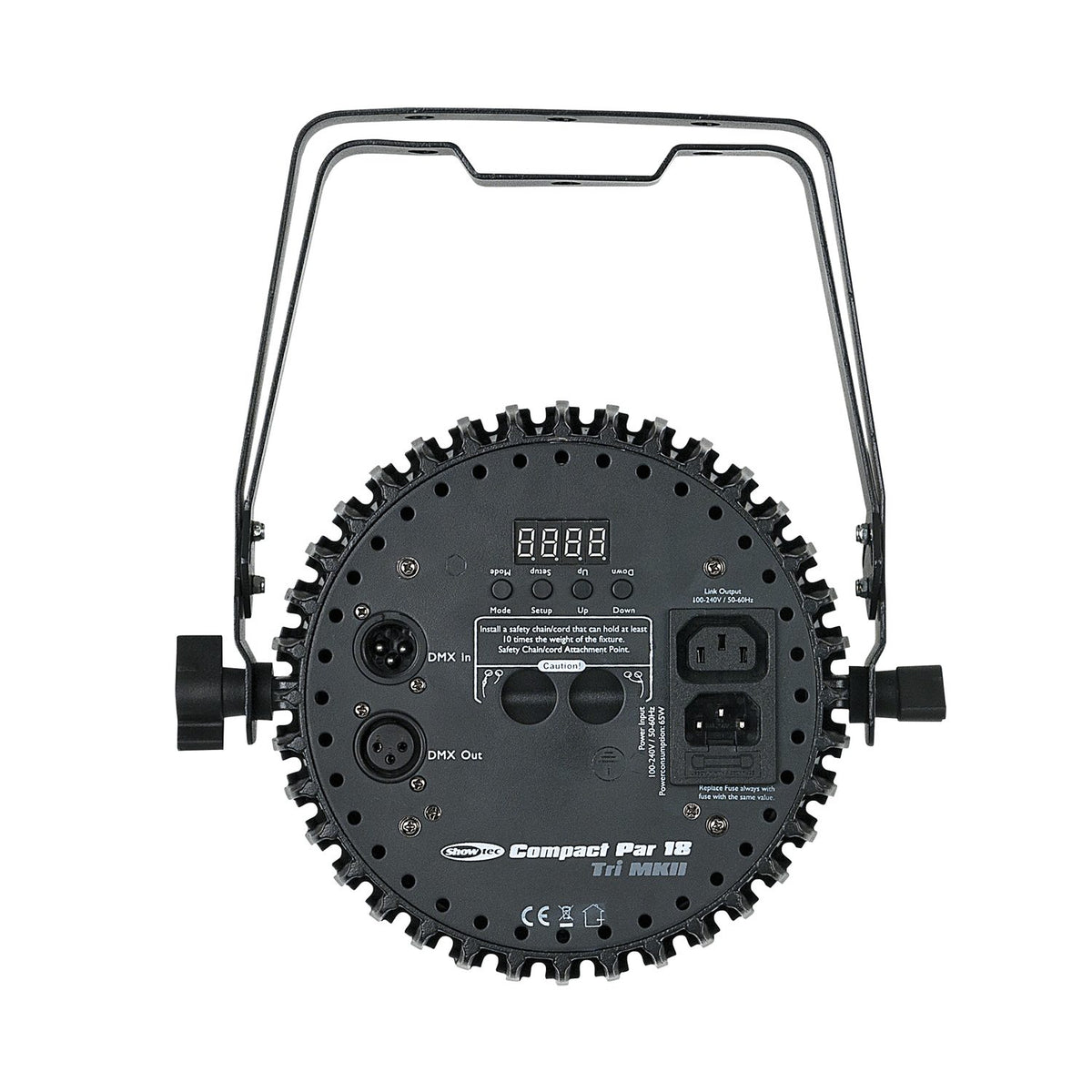

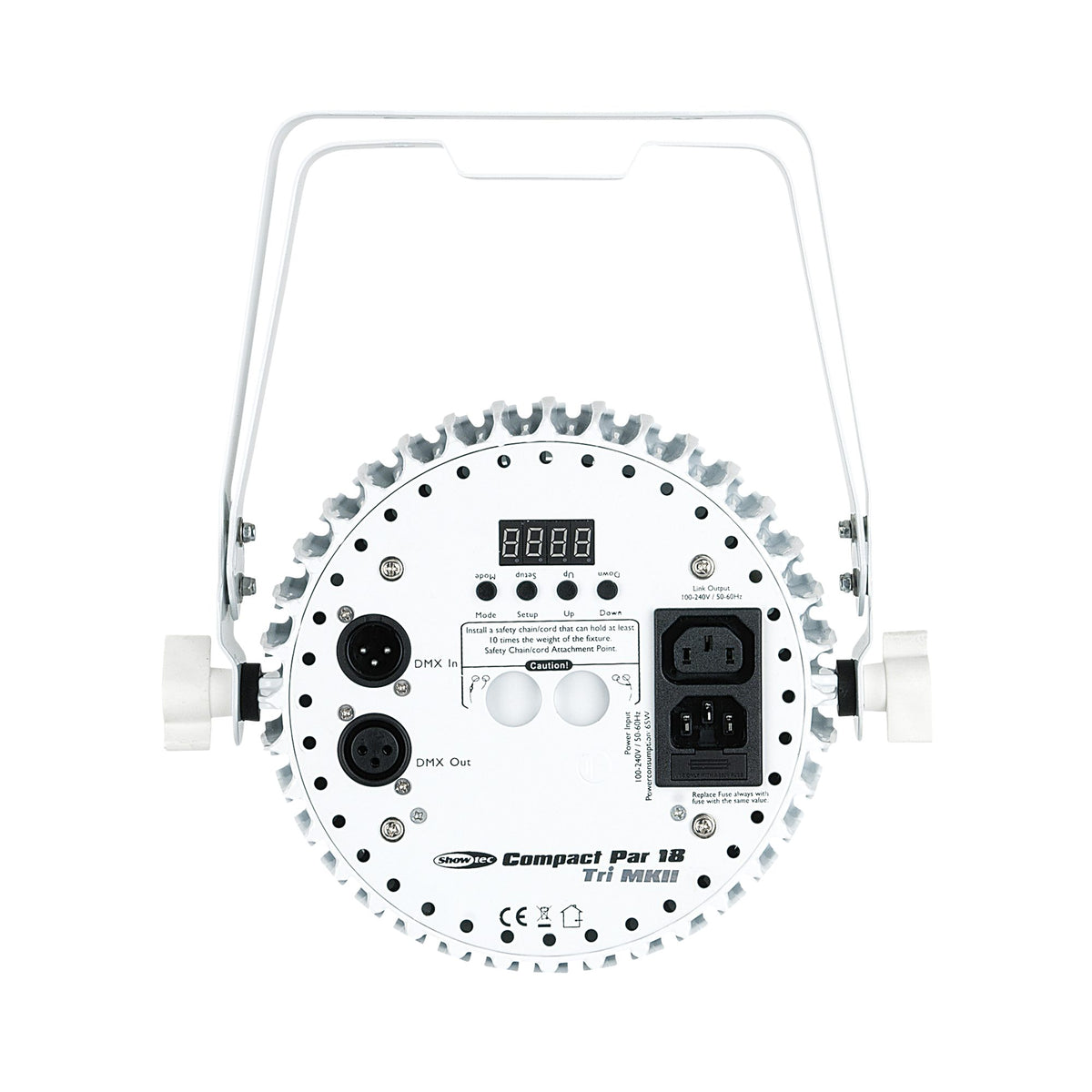

• Connections: IEC power input and output; 3-pin XLR DMX input and output
• Power Cable Length: 1.5 m
• Dimensions (W × H × D): 250 × 290 × 96 mm
• Weight: 2.84 kg
• Housing and Cooling: black or white; aluminium and metal; passive cooling
• Mounting: adjustable double bracket; floor positioning or suspension with an optional clamp
• Protection: IP20, indoor use only
• Ambient Temperature: -10–40 °C
• Minimum Clearances: at least 1.5 m from illuminated objects; 0.5 m from flammable surfaces
• Power Linking: up to 15 identical fixtures

What’s Included

• 1 × Showtec Compact Par 18 MKII LED PAR Spotlight
• Adjustable double bracket
• 1.5 m Schuko to IEC C13 power cable

Who Is It For

For indoor stages and decorative lighting where a flat housing, floor placement and fanless operation are useful. The 7800 Hz PWM frequency supports applications involving filming.
