Showtec Club Par 12/4 RGBW LED PAR Spotlight

Showtec Club Par 12/4 RGBW LED PAR Spotlight

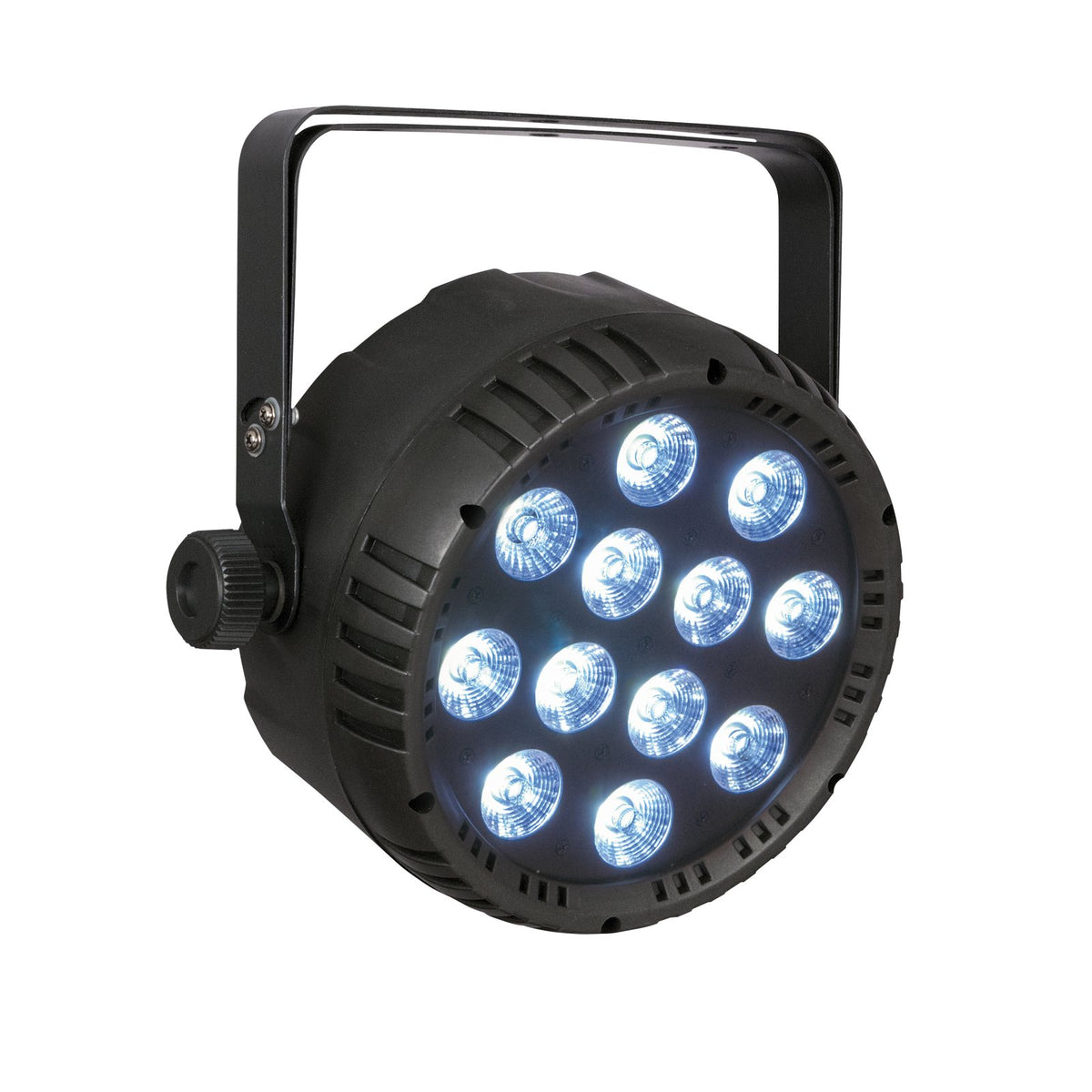

Twelve 8 W RGBW LEDs produce a fixed 25° beam. A dedicated white channel expands red, green and blue colour mixing for small stages and clubs.

Choose 4 or 9 DMX channels for desk control. Standalone operation offers built-in programs, static colours, direct RGBW adjustment and sound activation.

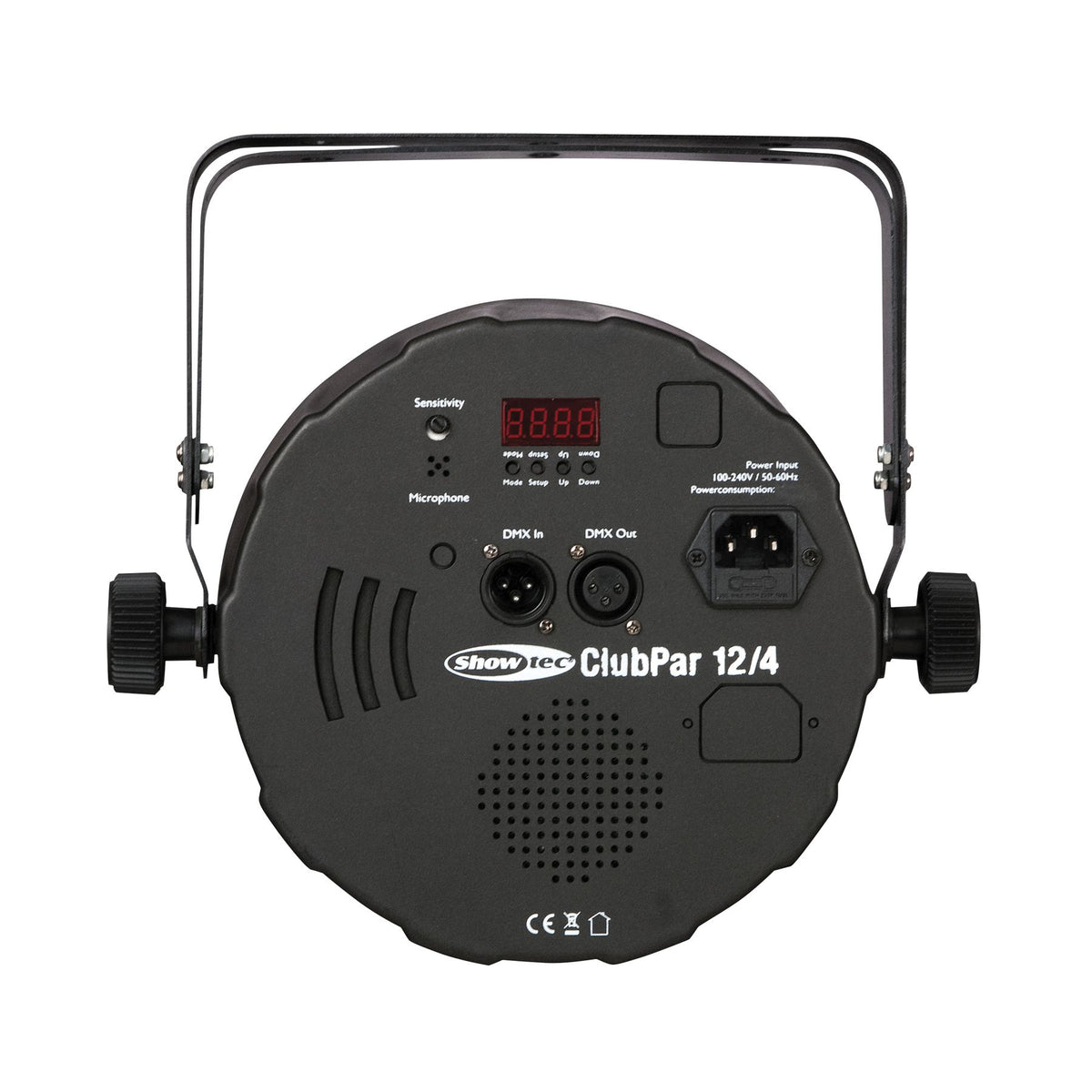

The microphone sensitivity knob is on the rear panel. Dimming response can be linear or use a slower transition, with a separate strobe effect.

An adjustable double bracket supports suspended use and floor placement. The fan-cooled enclosure combines metal with flame-retardant plastic and carries an IP20 rating.

Main Features

• RGBW mixing with a dedicated white channel.
• Fixed 25° beam for coloured stage lighting.
• Two DMX modes to suit the required channel count.
• Automatic programs run without an external desk.
• Integrated microphone with a physical sensitivity control.
• Five dimming response modes from linear to slower transitions.
• 3-pin DMX input and output extend the signal chain.
• Double bracket supports hanging or floor placement.

Technical Specifications

• Light Source: 12 × 8 W RGBW LEDs
• Luminous Flux: 3200 lm
• Illuminance at 2 m: 5400 lx
• Beam Angle: 25°
• PWM Frequency: 1200 Hz
• Control: DMX, automatic programs, physical buttons, sound activation, RDM
• DMX Channels: 4, 9
• Control Panel: 4-digit LED display and buttons
• Colours and Programs: 15 colour presets; 13 programs
• Dimming: 0–100 %
• Strobe: 0–20 Hz
• Dimming Response Modes: 5: linear and four 1–4 s response modes
• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption: 78 W rated; 77 W at full output
• Connections: IEC C14 power input; 3-pin XLR DMX input and output
• Supplied Cable Length: 1.5 m
• Dimensions (W × H × D): 290 × 270 × 110 mm
• Weight: 2.3 kg
• Housing and Cooling: black; metal and flame-retardant plastic; internal fan
• Mounting: adjustable double bracket, supports floor positioning
• Protection: IP20, indoor use only
• Ambient Temperature: -10–40 °C
• Maximum Housing Temperature: 80 °C
• Minimum Clearances: at least 1 m from illuminated objects; 0.5 m from flammable surfaces

What’s Included

• 1 × Showtec Club Par 12/4 RGBW LED PAR Spotlight
• 1.5 m Schuko to IEC C13 power cable
• Adjustable double bracket

Who Is It For

Suitable for small clubs, mobile DJ events and indoor stages. Standalone modes suit a simple setup, while 9-channel DMX operation adds program and effect control.
