Showtec Airwolf Light Effect

Showtec Airwolf Light Effect

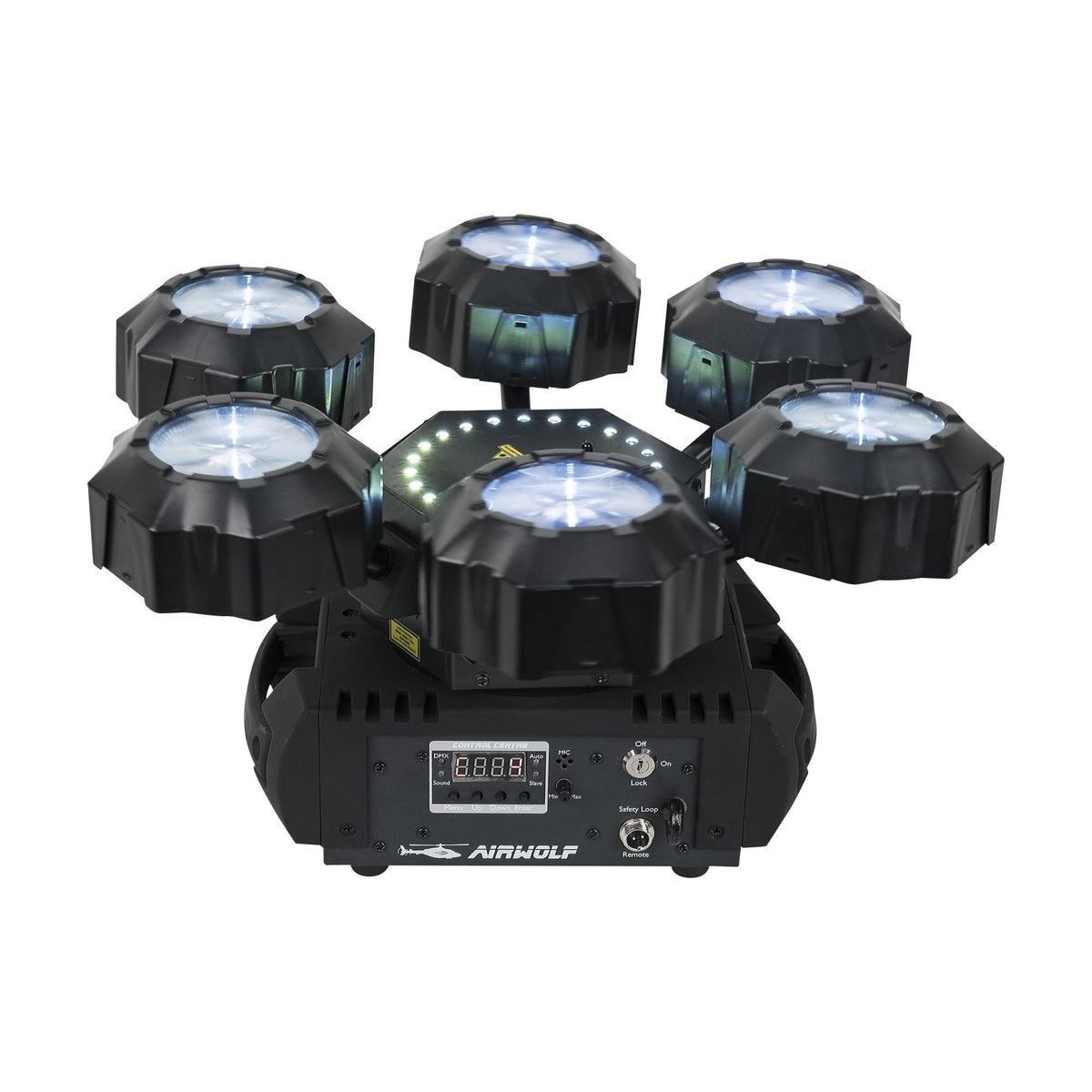

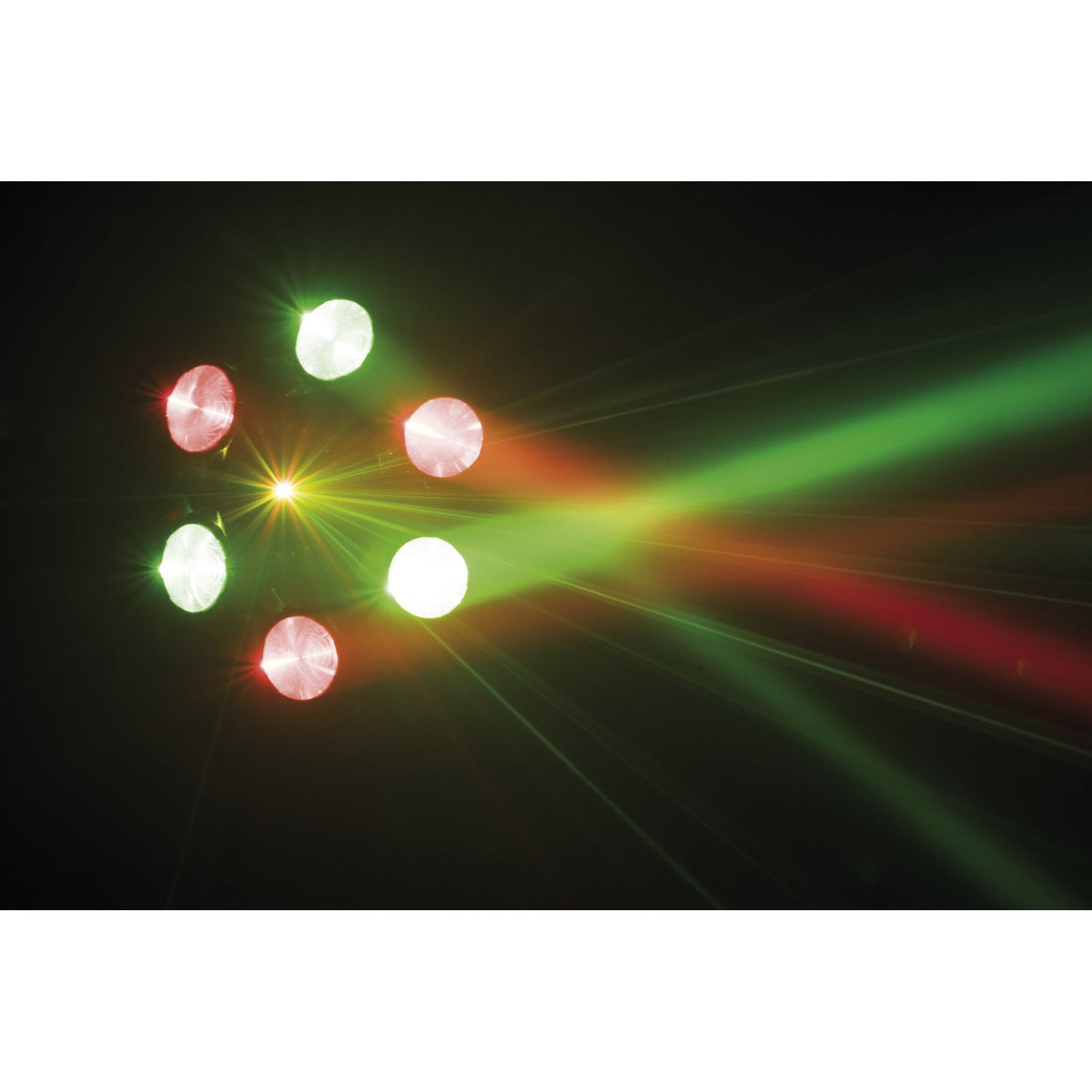

The Airwolf combines six RGBW LED beam modules, a white LED strobe and a red/green laser in one fixture.

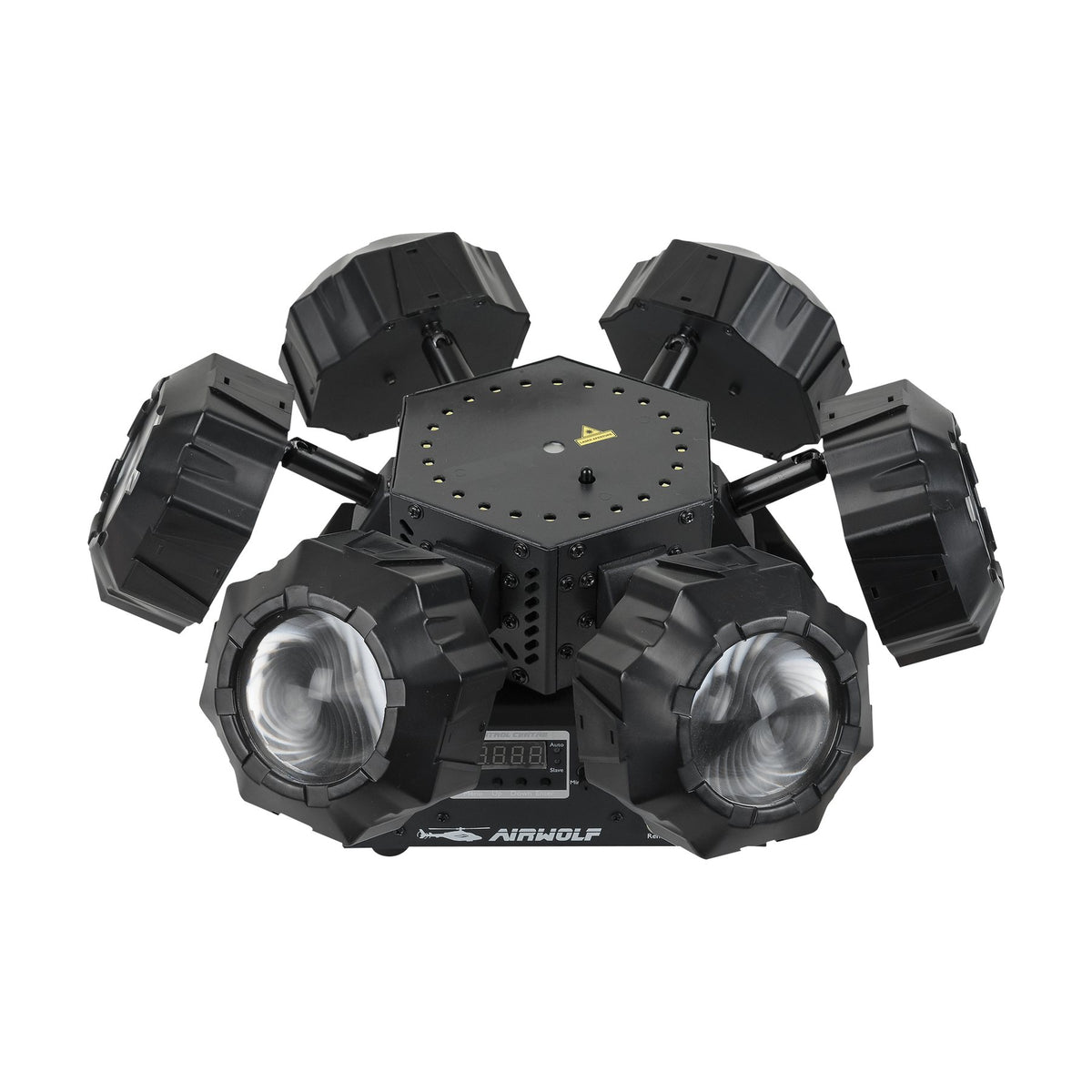

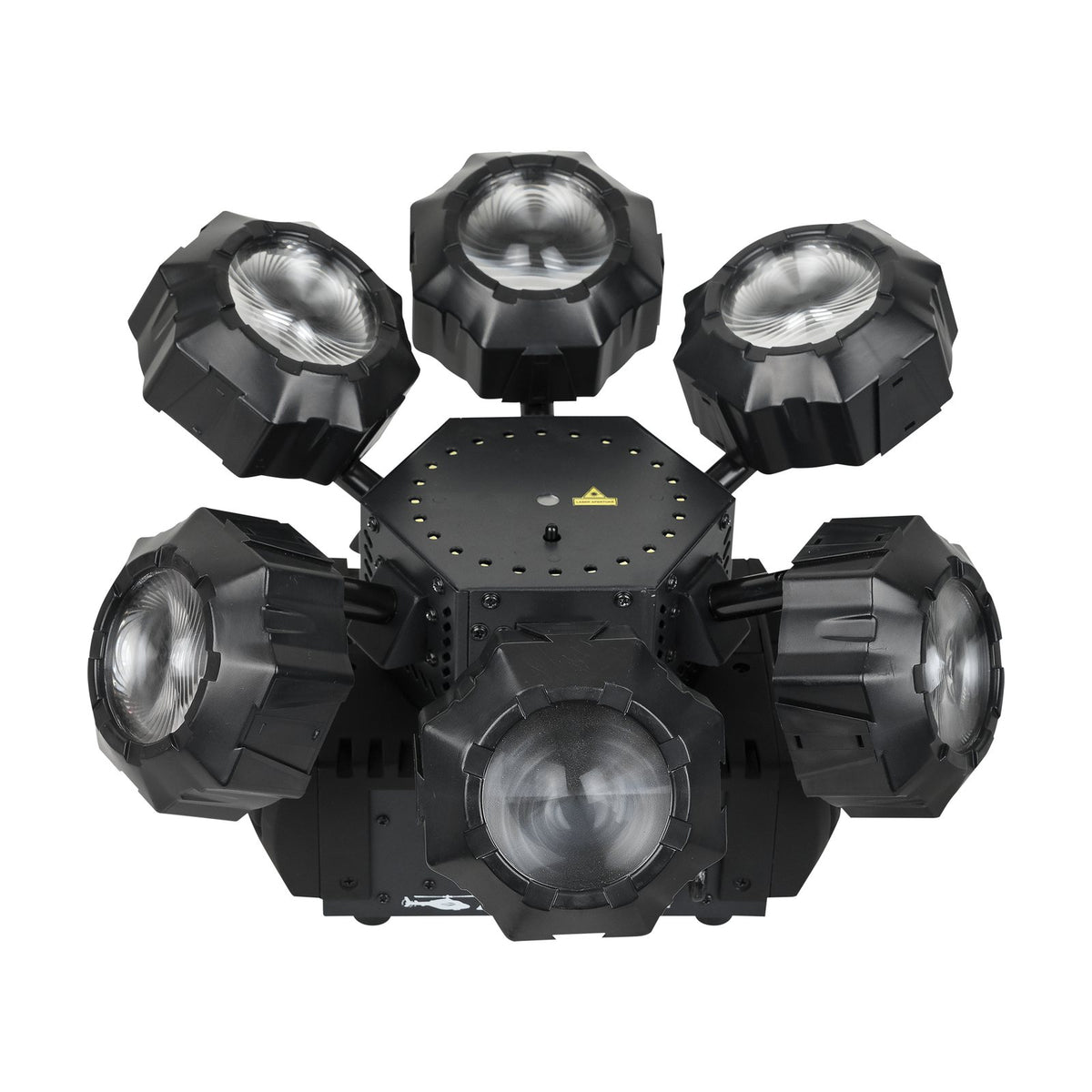

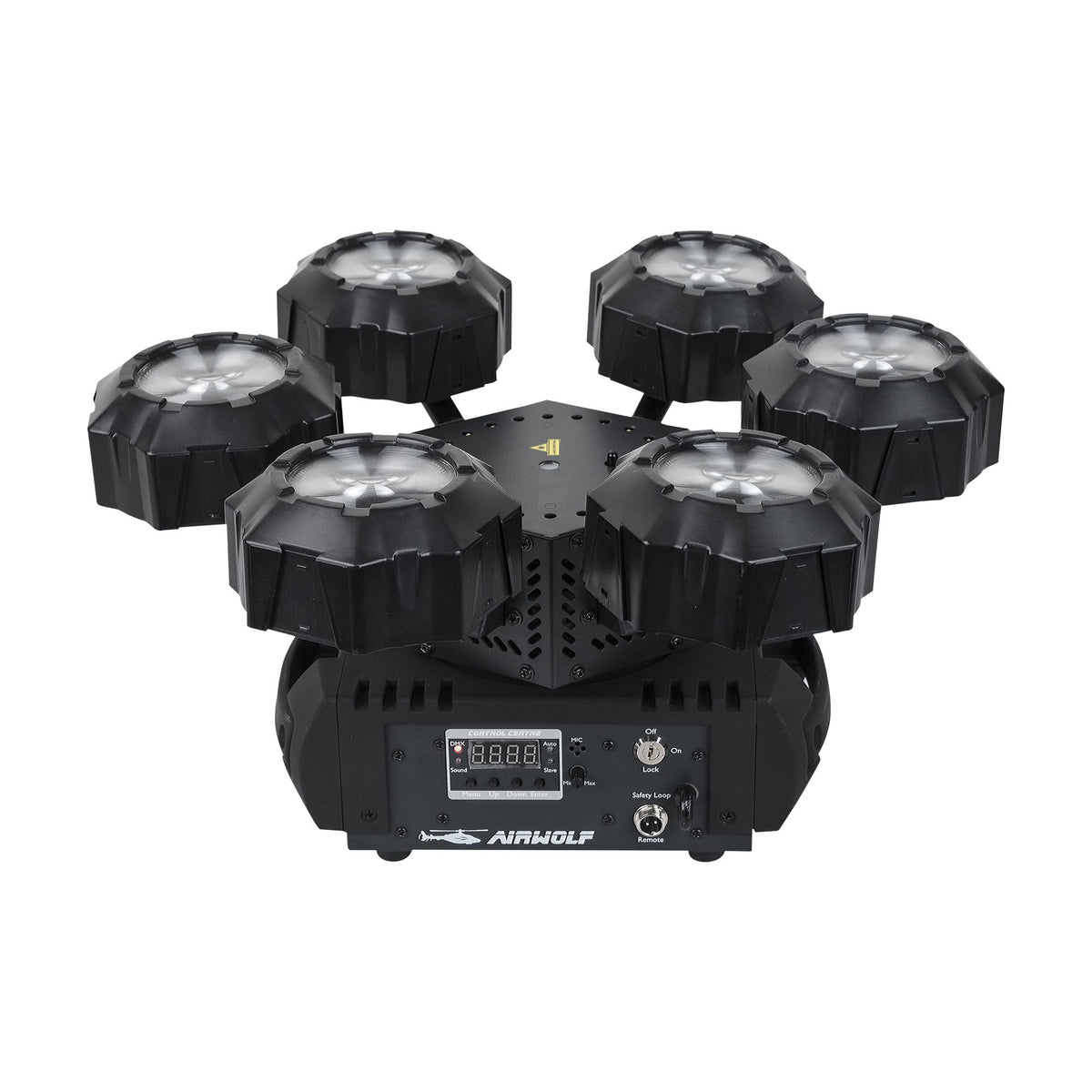

Its modules sit on a rotating base, with each module individually adjustable to change the direction and coverage of the narrow coloured beams.

Use a DMX controller, run the built-in automatic programmes or let the integrated microphone trigger sound-activated operation.

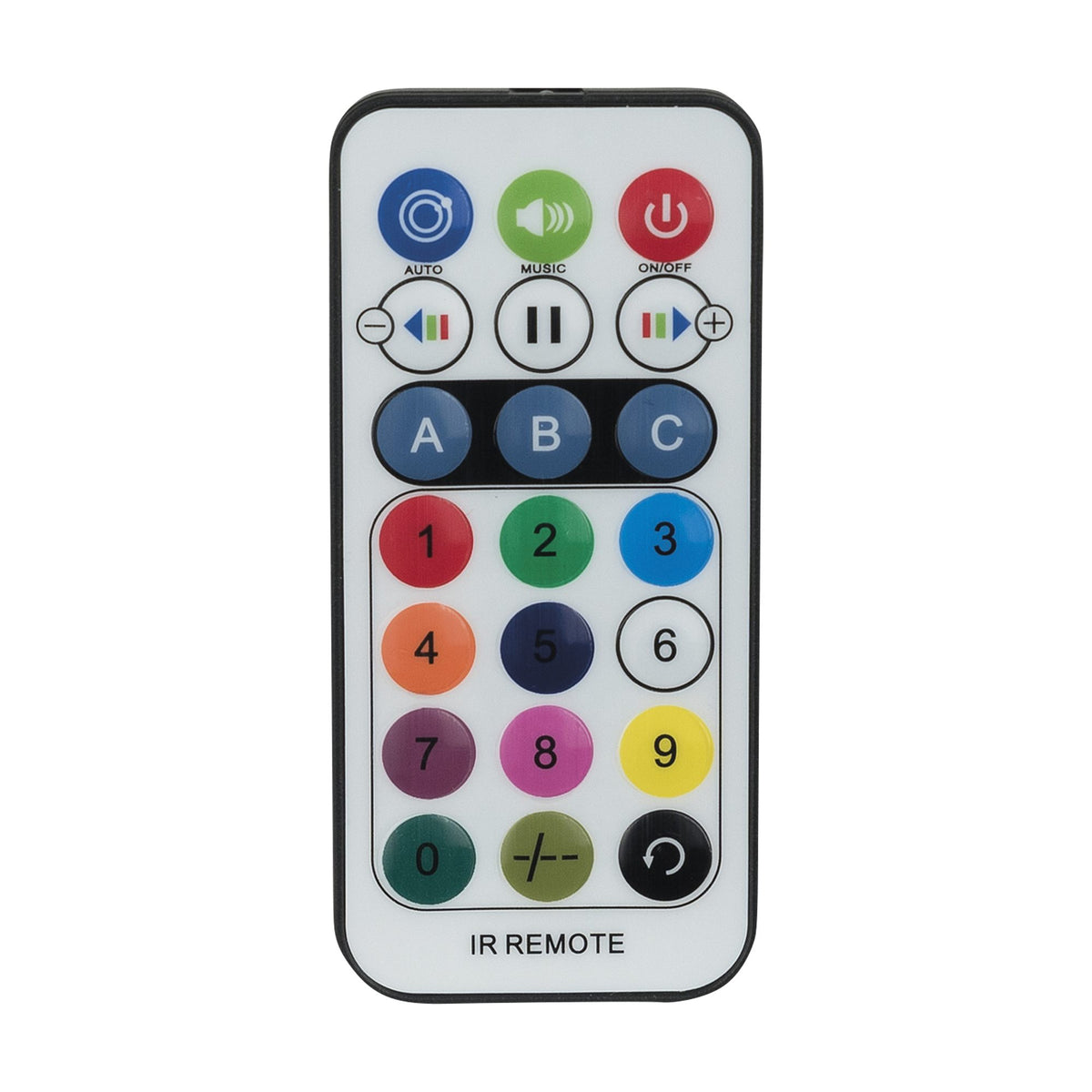

The included IR remote selects functions without a DMX desk, while Master/Slave mode allows multiple fixtures to run together.

Main Features

• Six 8 W RGBW LED modules generate coloured beams. Individual module adjustment and continuous base rotation change the layout of the effect.
• A separate strobe uses 24 white 0.5 W LEDs with a 0–20 Hz flash range.
• The 130 mW laser consists of a 100 mW, 650 nm red source and a 30 mW, 532 nm green source. It is a class 3R laser and its beams must never be directed into eyes.
• Choose a compact 3-channel or more detailed 16-channel DMX mode to suit the controller and programme.

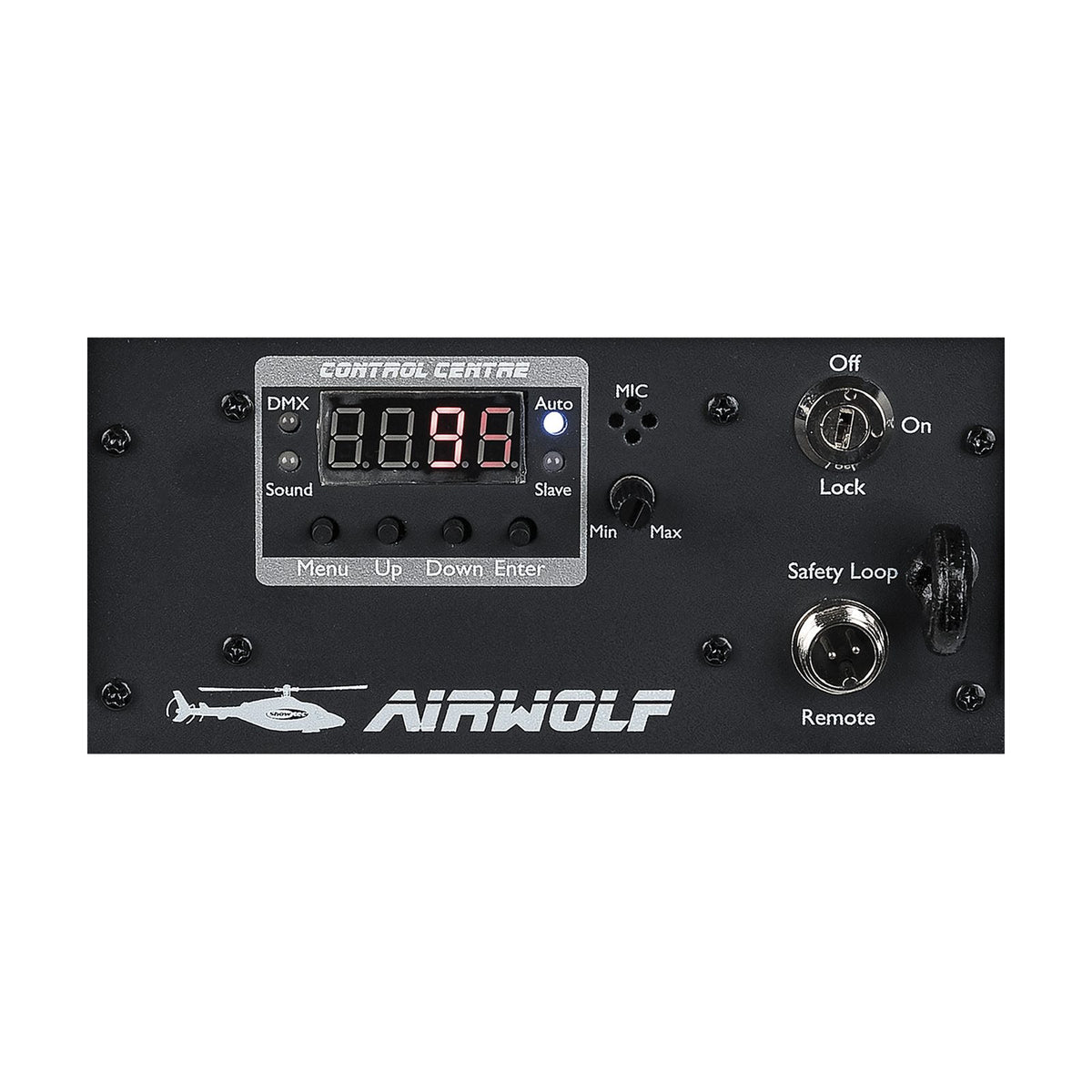

• A 4-digit LED display, buttons and sound-sensitivity control provide local access to the operating mode and settings.

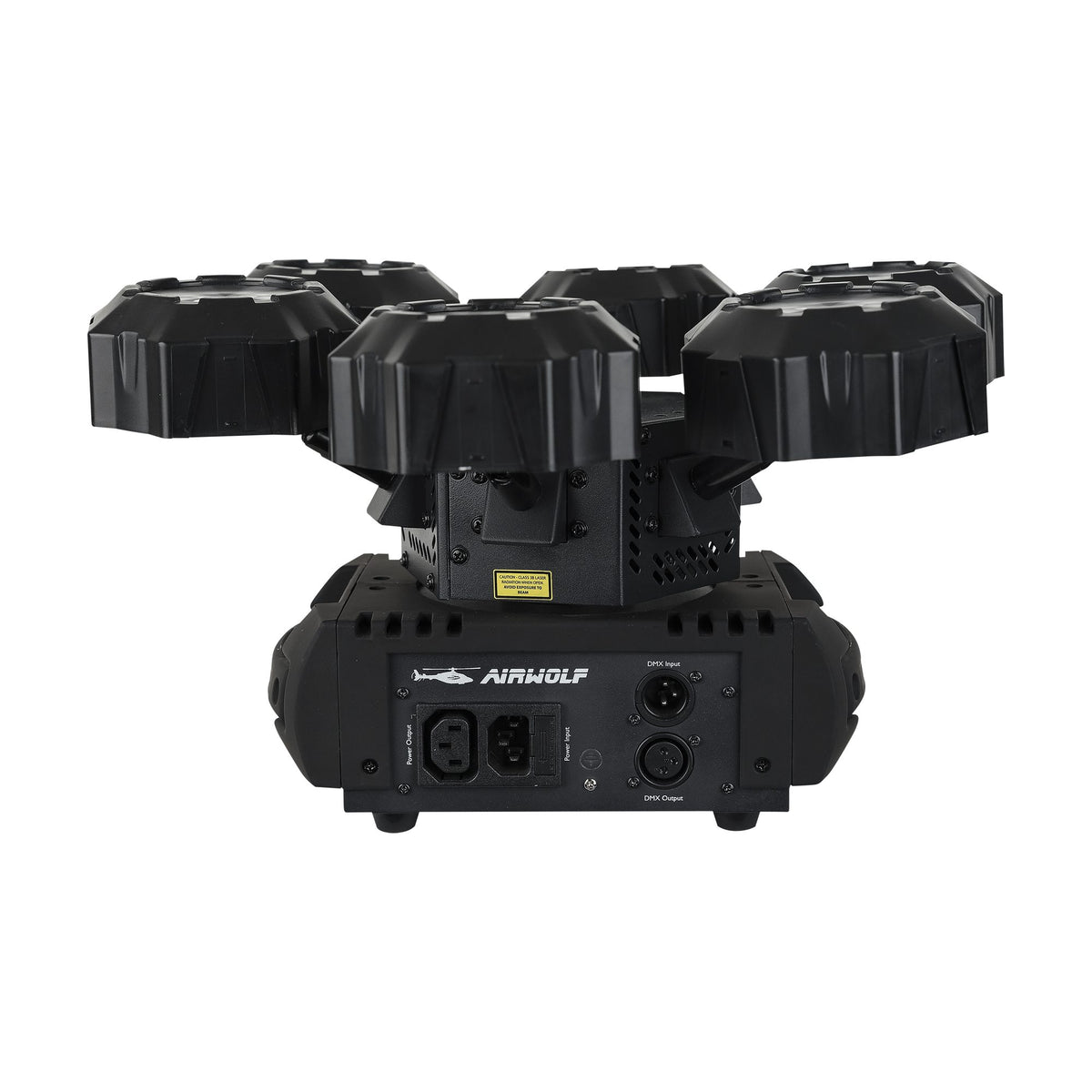

• IEC power input/output and 3-pin XLR DMX connections support daisy chaining within the load limits specified in the manual.
• A key switch, Interlock connection and safety eye support controlled laser operation and secure mounting. A safe beam path must be maintained during installation.

Technical Specifications

• Light Source Type: Diode, DPSS, LED
• Light Source Quantity: 6
• Light Source Power: 8 W
• Light Colour Mode: Multi-colour
• Light Colour Type: RGBW
• LED Strobe: Yes
• LED Strobe Quantity: 24
• Laser: Yes
• Laser Class: 3R
• Laser Colour: Red, Green
• Laser Power (Total): 130 mW
• Laser Power (Red): 100 mW
• Laser Wavelength (Red): 650 nm
• Laser Power (Green): 30 mW
• Laser Wavelength (Green): 532 nm
• Control Mode: Auto, DMX, IR, Manual, Master Slave, Sound
• DMX Channels: 3, 16
• Display: 7-segment LED
• Strobe: 0-20 Hz
• Power Supply: 100-240 V AC 50/60 Hz
• Power Consumption: 52 W
• Power Connector In: IEC
• Power Connector Out: IEC
• Weight: 4 kg
• IP Rating: IP20 (indoor use only)
• Housing: Aluminium die-cast
• Colour: Black
• Cooling: Convection/Axial fan
• Safety Features: Interlock, Key Switch, Safety Eye
• Mounting Options: Clamp
• Safety Attachment: Yes
• Maximum Ambient Temperature: 35 °C
• DMX connections: 3-pin XLR input/output
• Dimensions (W × H × D): 250 × 230 × 390 mm
• Strobe source: 24 × 0.5 W white LEDs

What’s Included

• 1 × Showtec Airwolf Light Effect
• 1.5 m IEC power cable
• 2 keys and Interlock connector plug
• IR remote, battery not included
• Mounting bracket with screws

Who Is It For

Suitable for indoor clubs, dance events and smaller stages that need moving coloured beams, a laser and a strobe from one fixture. The laser must be installed and operated by someone familiar with its operation and safety requirements.
