Showtec ACT Profile 50 RGBAL Profile Spotlight

Showtec ACT Profile 50 RGBAL Profile Spotlight

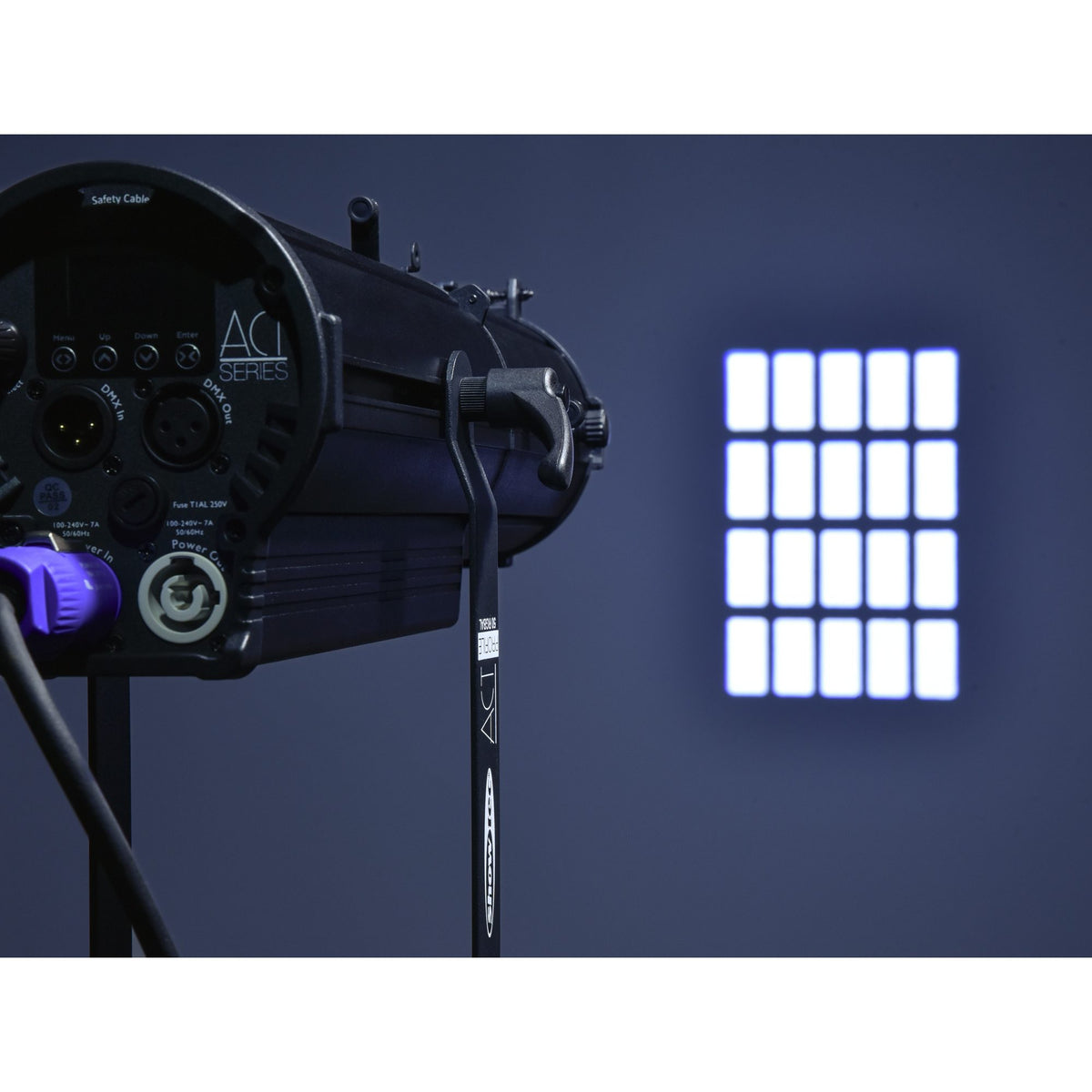

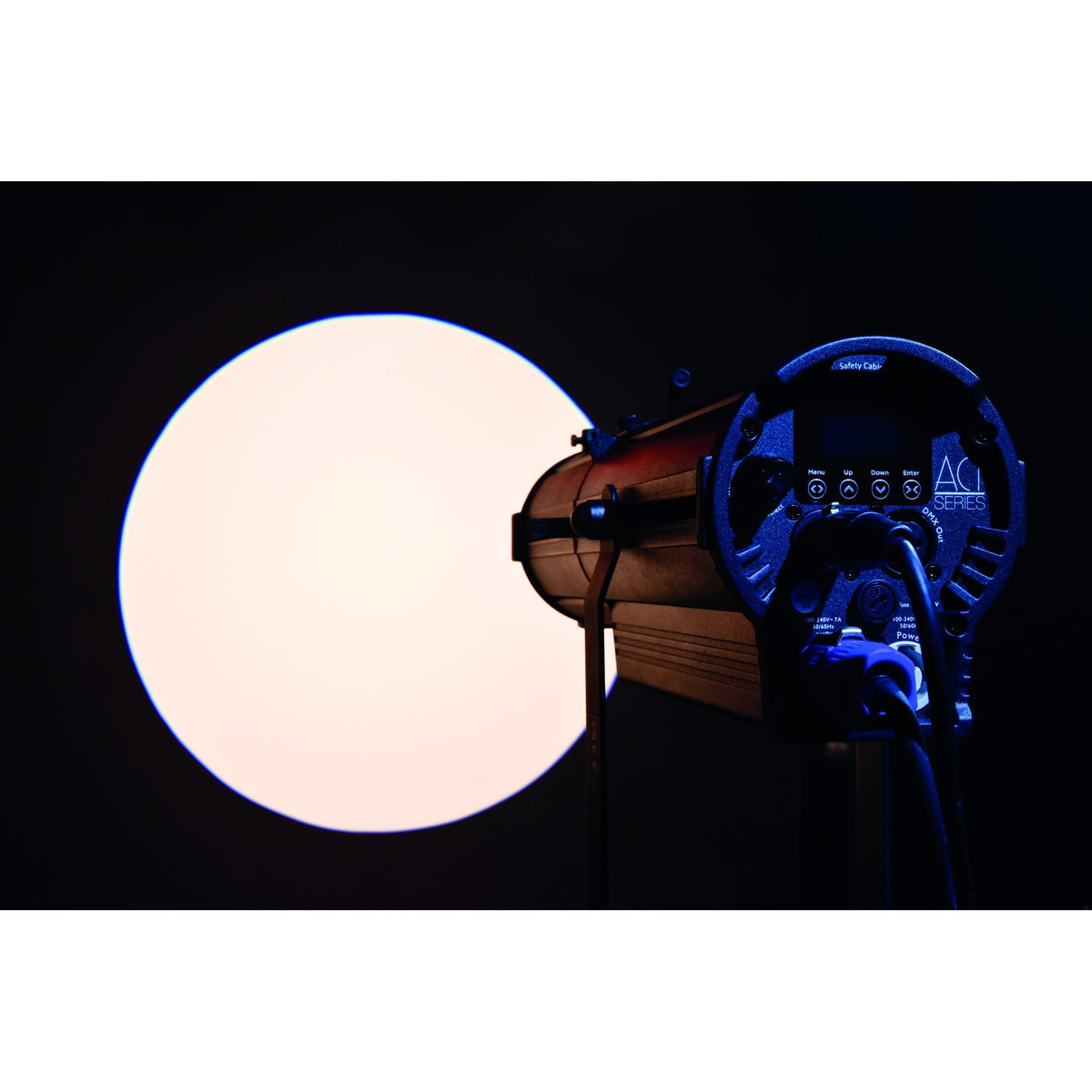

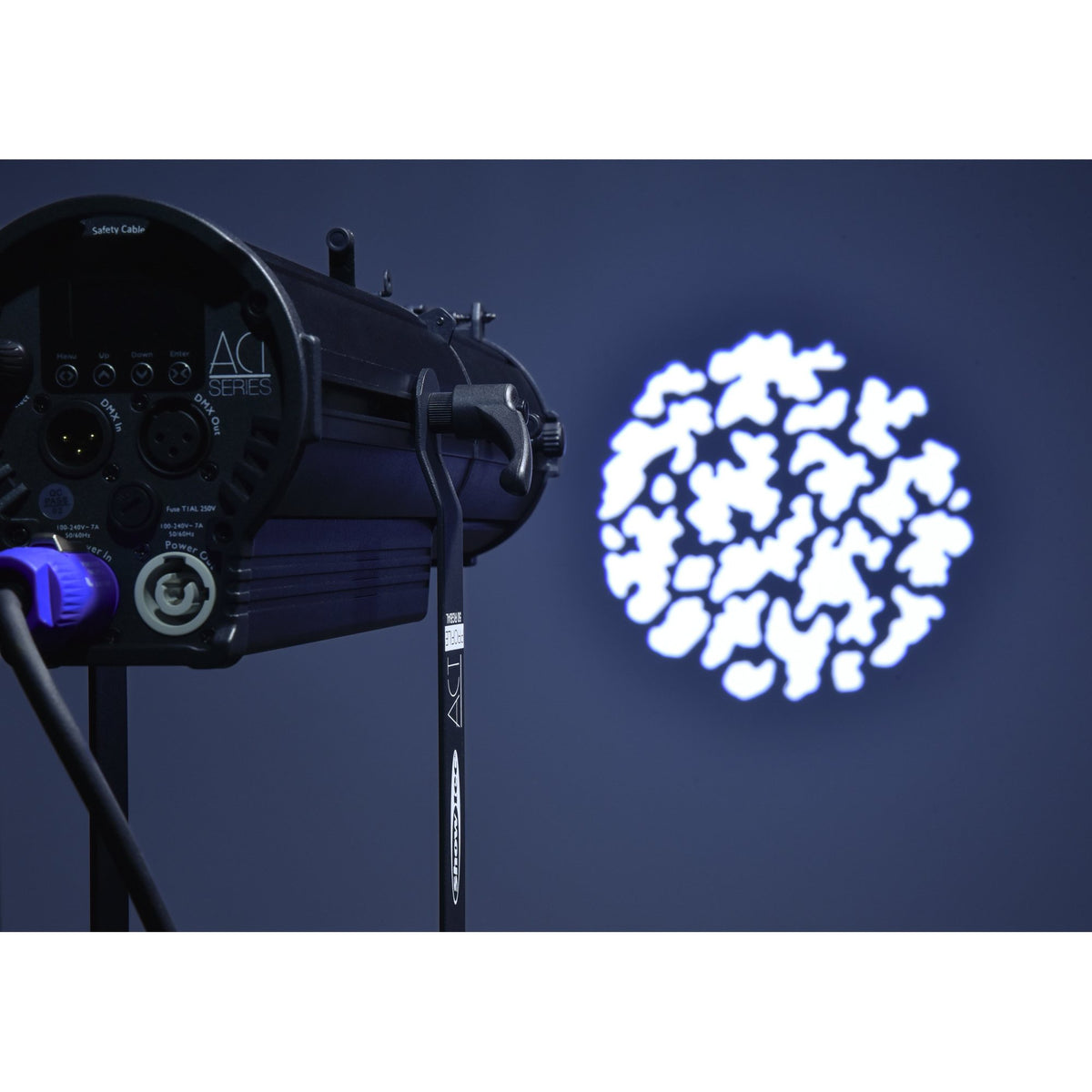

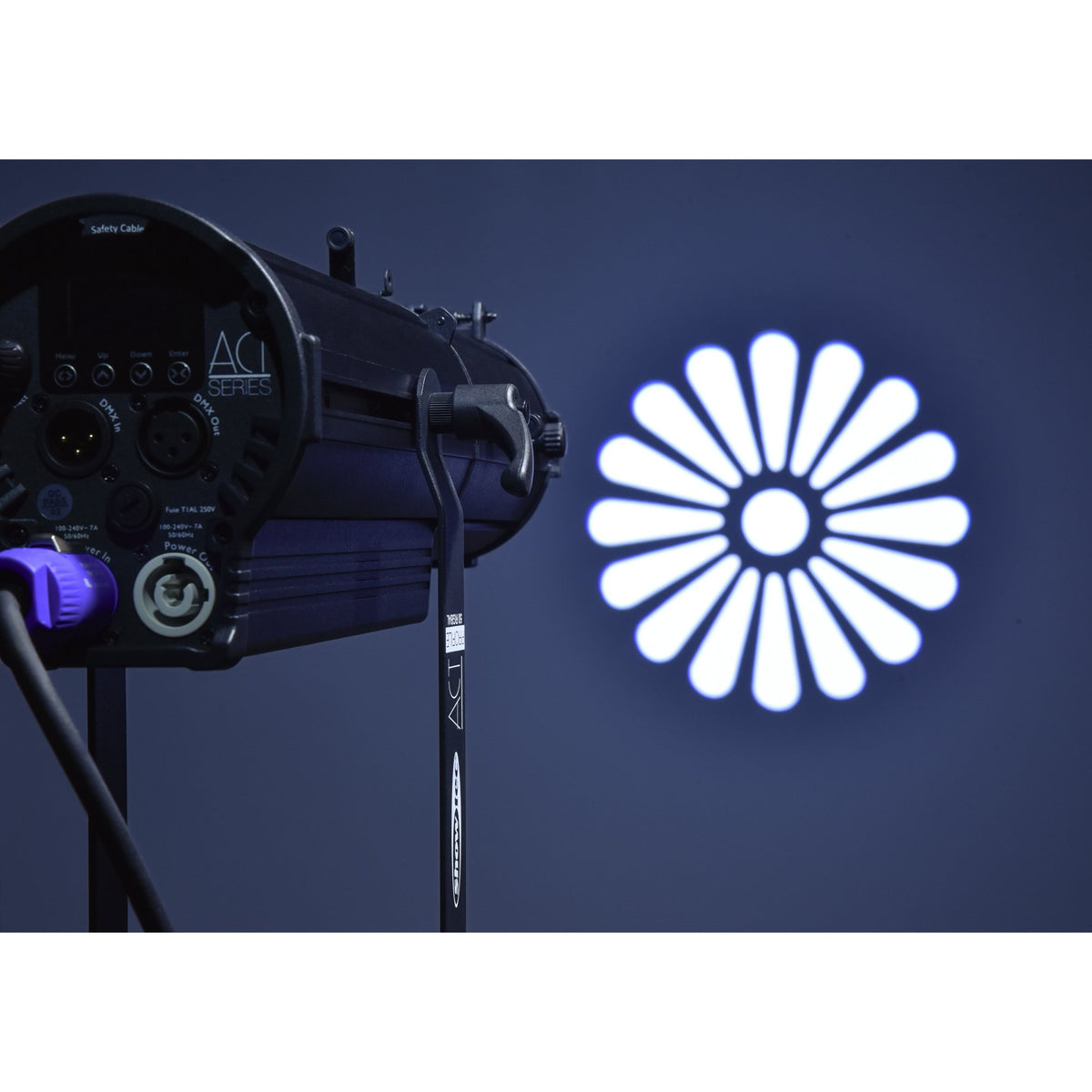

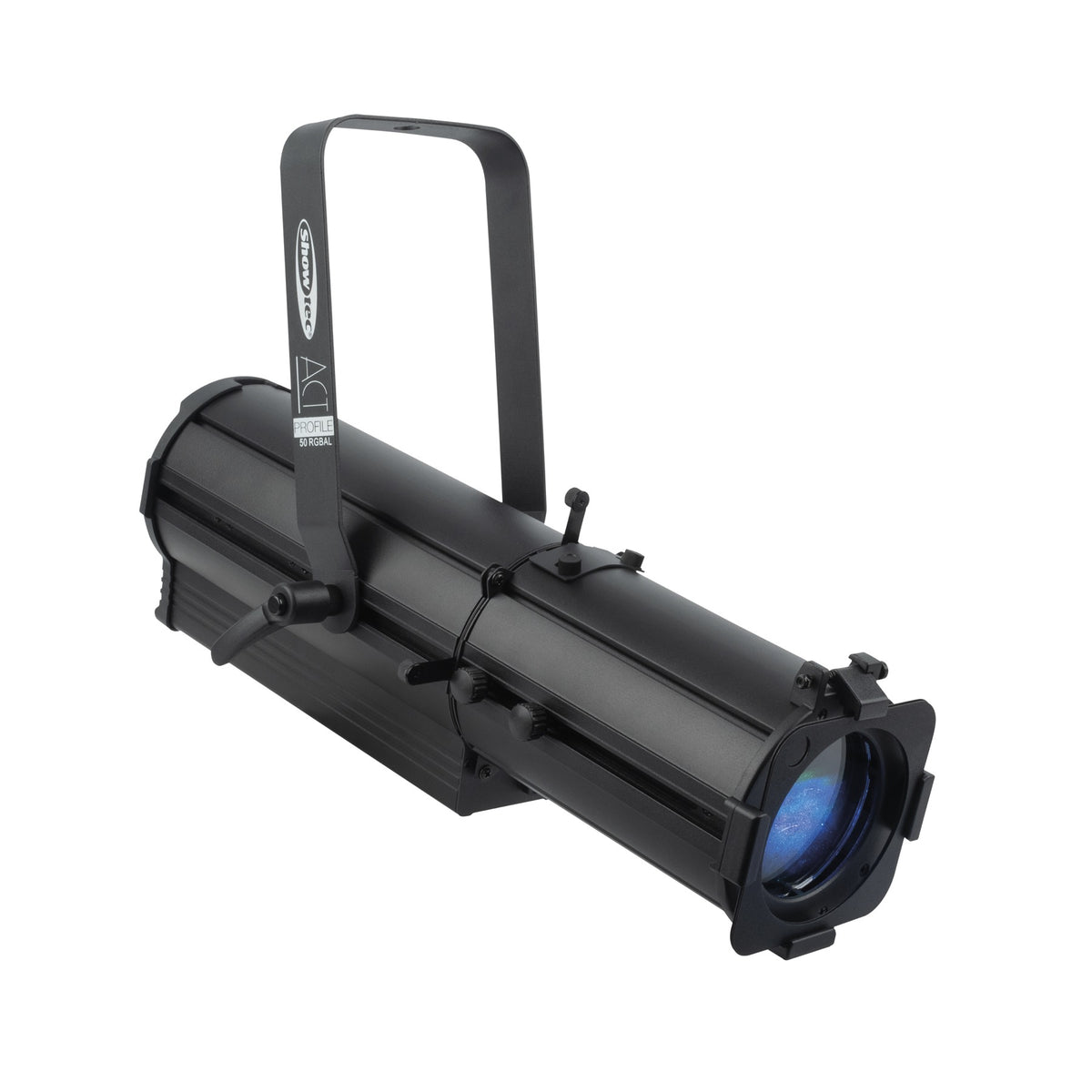

Profile optics and four framing shutters shape defined light boundaries and project gobo patterns.

The RGBAL module provides 30 W for each of its five colours. Its full module rating is 150 W, but combined LED output is limited to 50 W. Electrical consumption is 55 W.

The manual zoom range is 14–32°, while the specified beam angle is 13–26°. These are separate optical measurements. Five metal gobos and their holder are included.

Colour and intensity are set with a rotary control, OLED display or DMX desk. RDM and 16-bit dimming are supported. The fan-cooled IP20 housing is intended for indoor use.

Main Features

• RGBAL provides five-colour mixing.

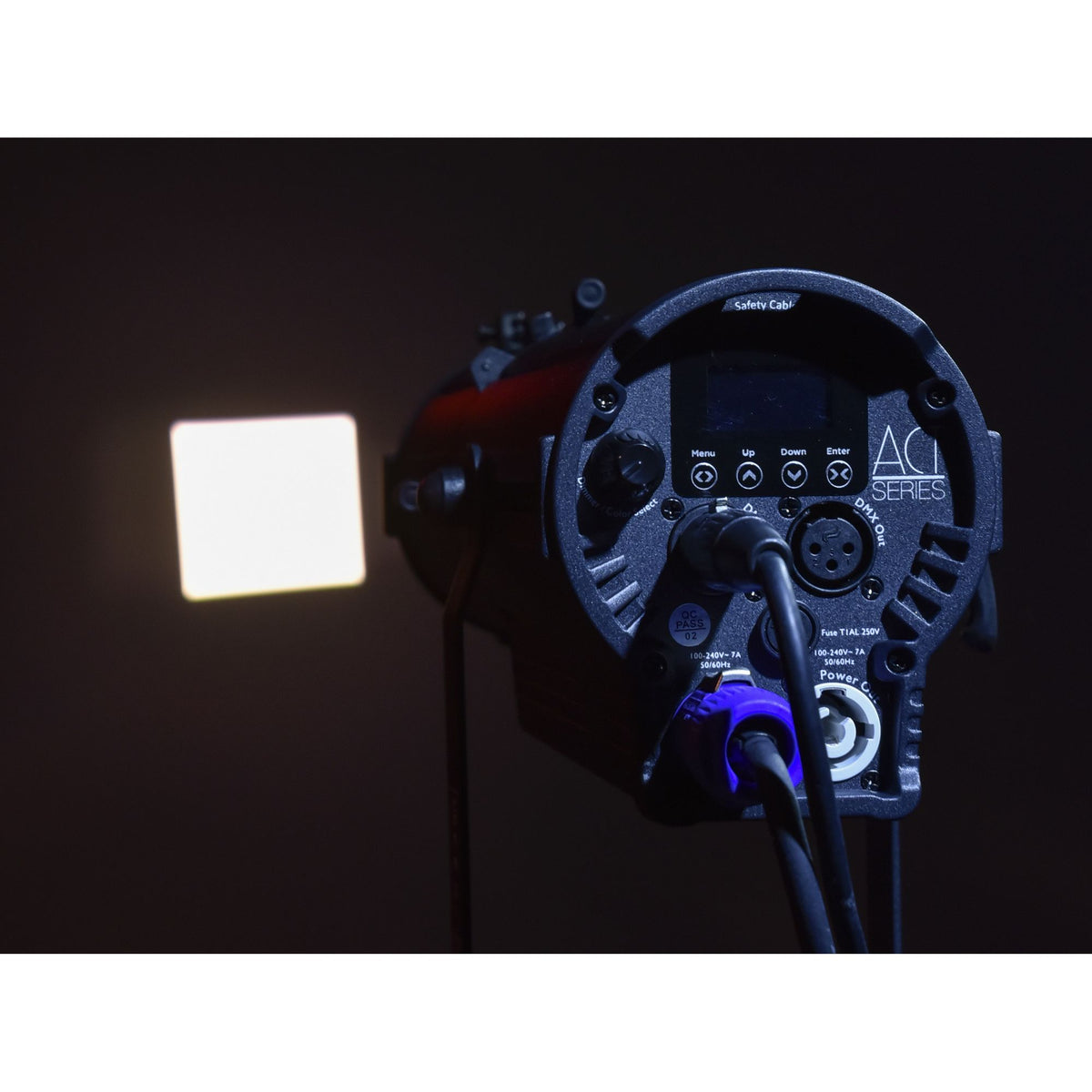

• Four framing shutters define the illuminated area.
• Manual 14–32° zoom adjusts projection size.
• Five supplied gobos allow pattern projection.
• Choose 5, 8 or 12 DMX channels to suit the setup.
• 16-bit dimming provides finer light-level adjustment.
• 64 colour macros and 9 chases provide built-in presets.
• 4 dimmer curves and LED / Halogen response adapt fades.

Technical Specifications

• Light Source: RGBAL COB LED, 150 W module, 30 W per colour; combined output up to 50 W
• Colour Temperature: 2700–10000 K
• CRI: 92
• Luminous Flux: 220 lm
• Individual Colour Flux: R / G / B / A / L: 195 / 271 / 113 / 107 / 234 lm
• Illuminance: 1205 lx / 2 m; 536 lx / 3 m; 193 lx / 5 m
• Beam Angle: 13–26°
• Optical Adjustment: manual; 14–32°
• Control: DMX, RDM; local controls
• DMX Channels: 5, 8, 12
• Dimming: 0–100 %; 16 bit
• Strobe: 0–20 Hz
• Dimmer Curves and Response: 4: Linear, Square Law, Inverse Square Law, S-Curve; LED / Halogen
• Colours and Programs: 64 colour macros, 9 chases
• DMX Signal Loss: Manually Defined, Hold or Blackout
• White Balance: R / G / B: 125–255
• LED Refresh Rate: 1200 Hz
• Power Supply and Consumption: 100–240 V AC 50/60 Hz; 55 W

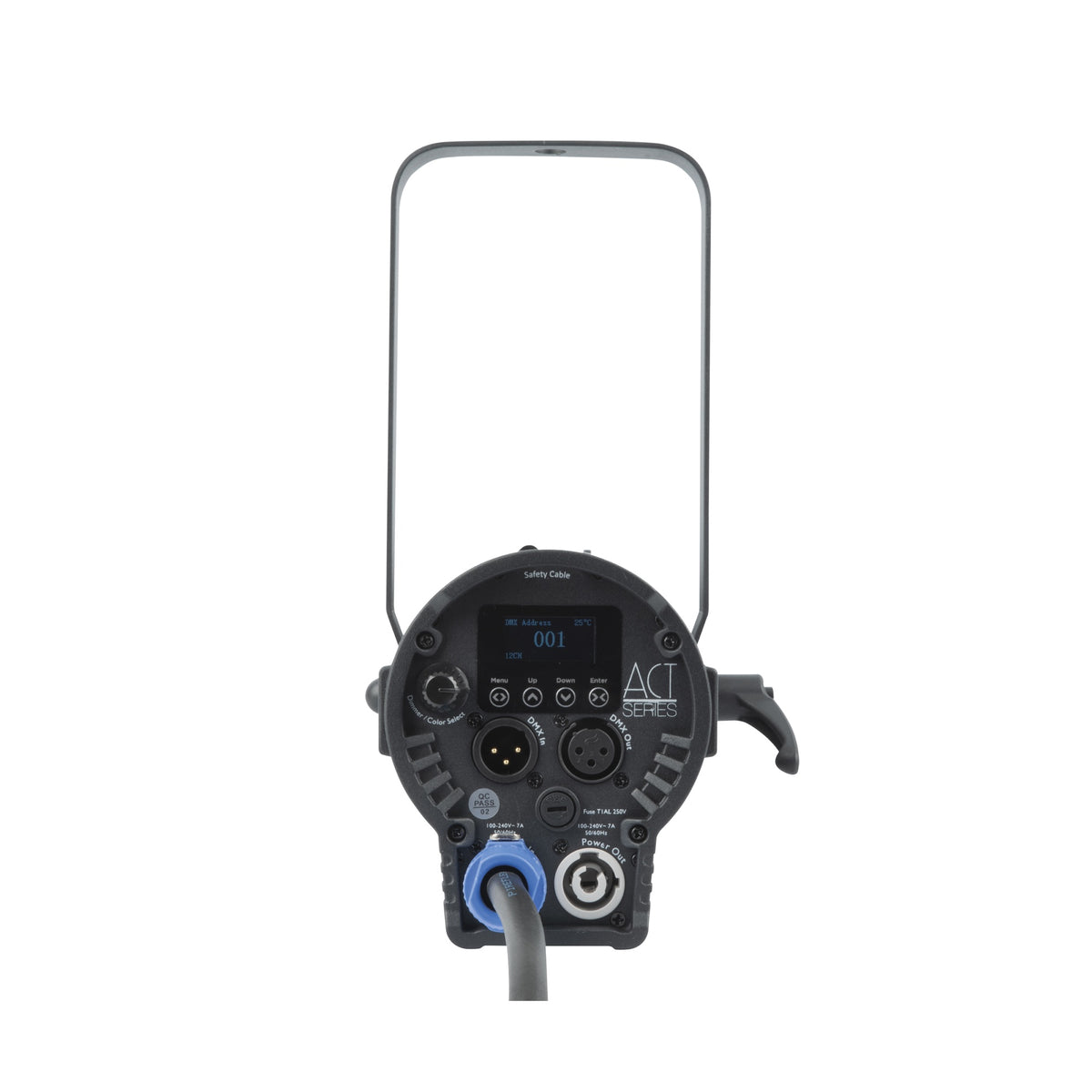

• Connections: Power Pro in/out; 3 pin XLR DMX in/out
• Display: OLED
• Mounting: adjustable bracket
• Housing and Cooling: black aluminium housing; fan
• IP Rating: IP20, indoor use only
• Maximum Ambient Temperature: 45 °C
• Dimensions (W × H × D): 169 × 293 × 430 mm
• Weight: 3 kg

What’s Included

• 1 × Showtec ACT Profile 50 RGBAL Profile Spotlight
• Colour filter frame

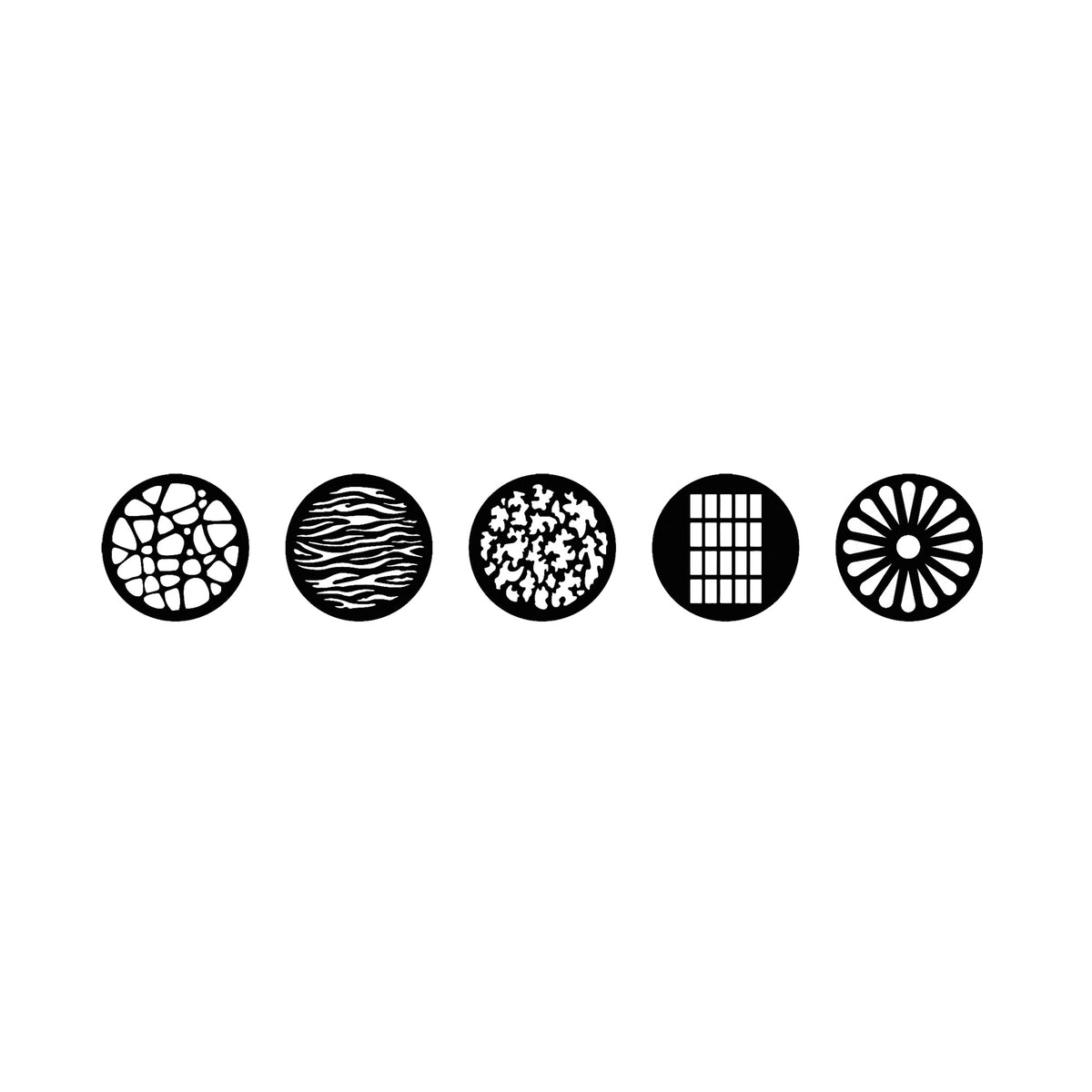

• 5 metal gobos

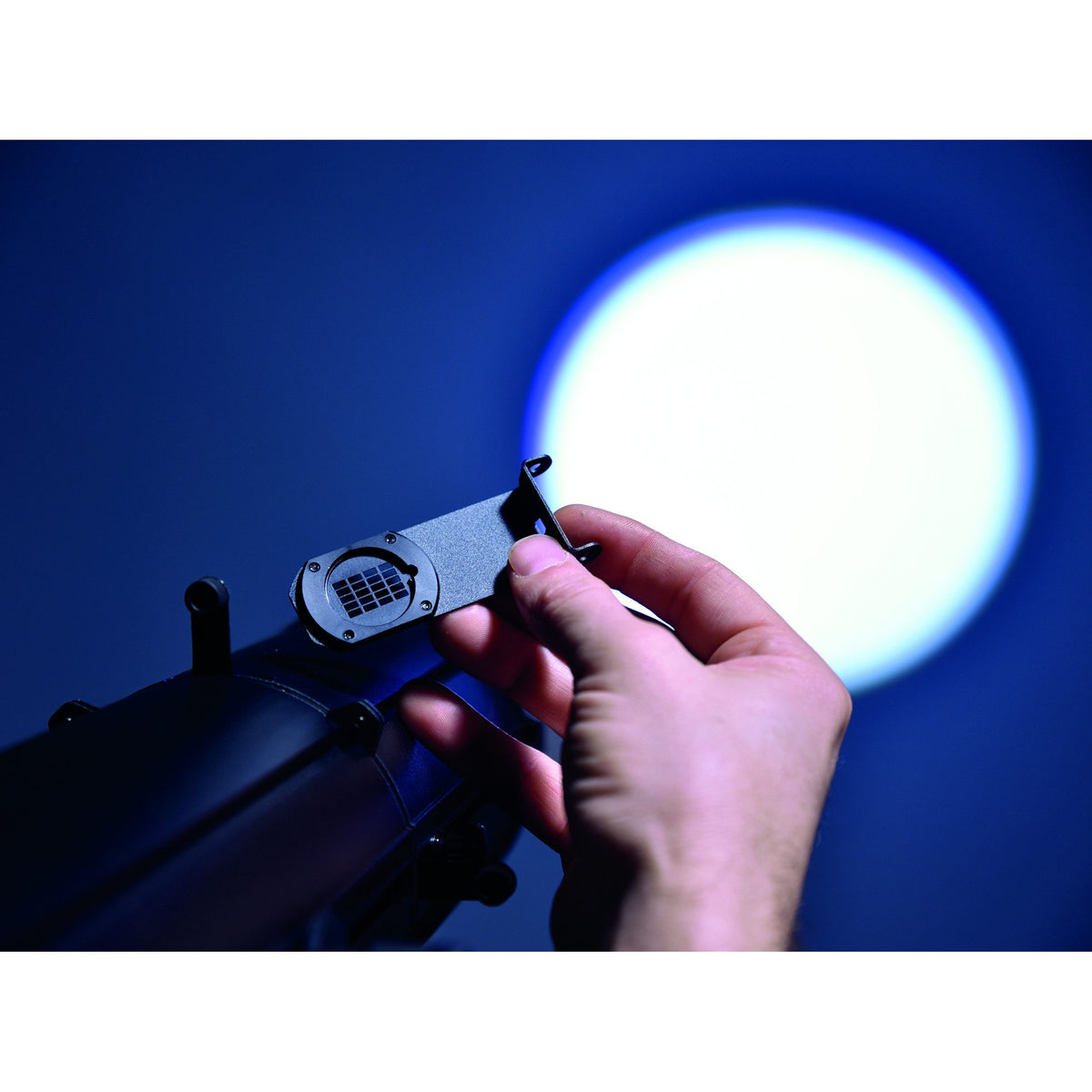

• Gobo holder
• 1.5 m Schuko to Power Pro power cable

Who Is It For

For smaller theatre stages and displays requiring defined illumination or gobo projection. This model includes its optics and gobo holder, so a separate lens module is not required.
