Showtec ACT PC 60 RGBW PC Spotlight

Showtec ACT PC 60 RGBW PC Spotlight

A 60 W RGBW LED and PC optics produce a focused field with defined edges.

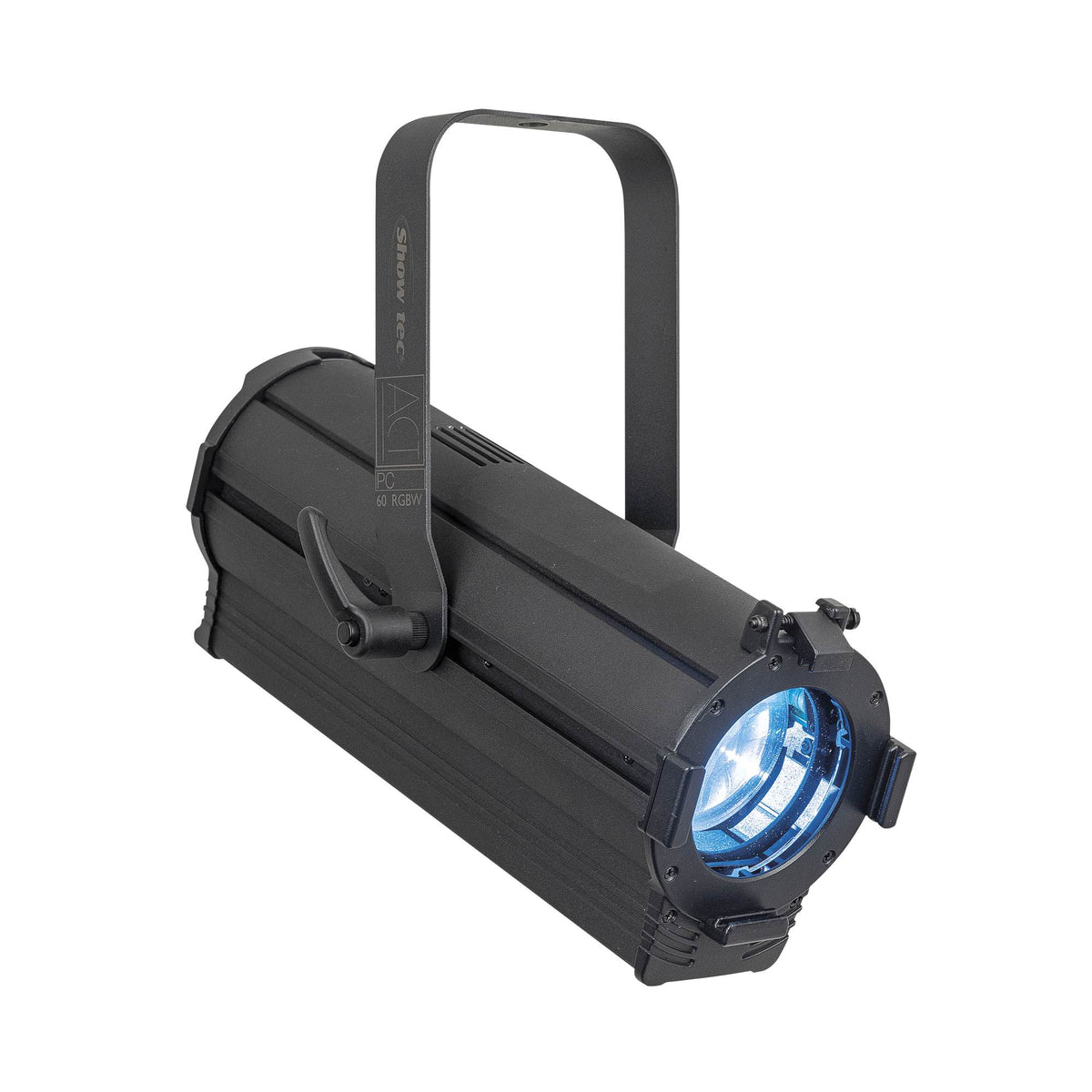

Motorised optics adjust the beam angle from 3.7° to 31.5°. DMX control changes the coverage without reaching the fixture itself.

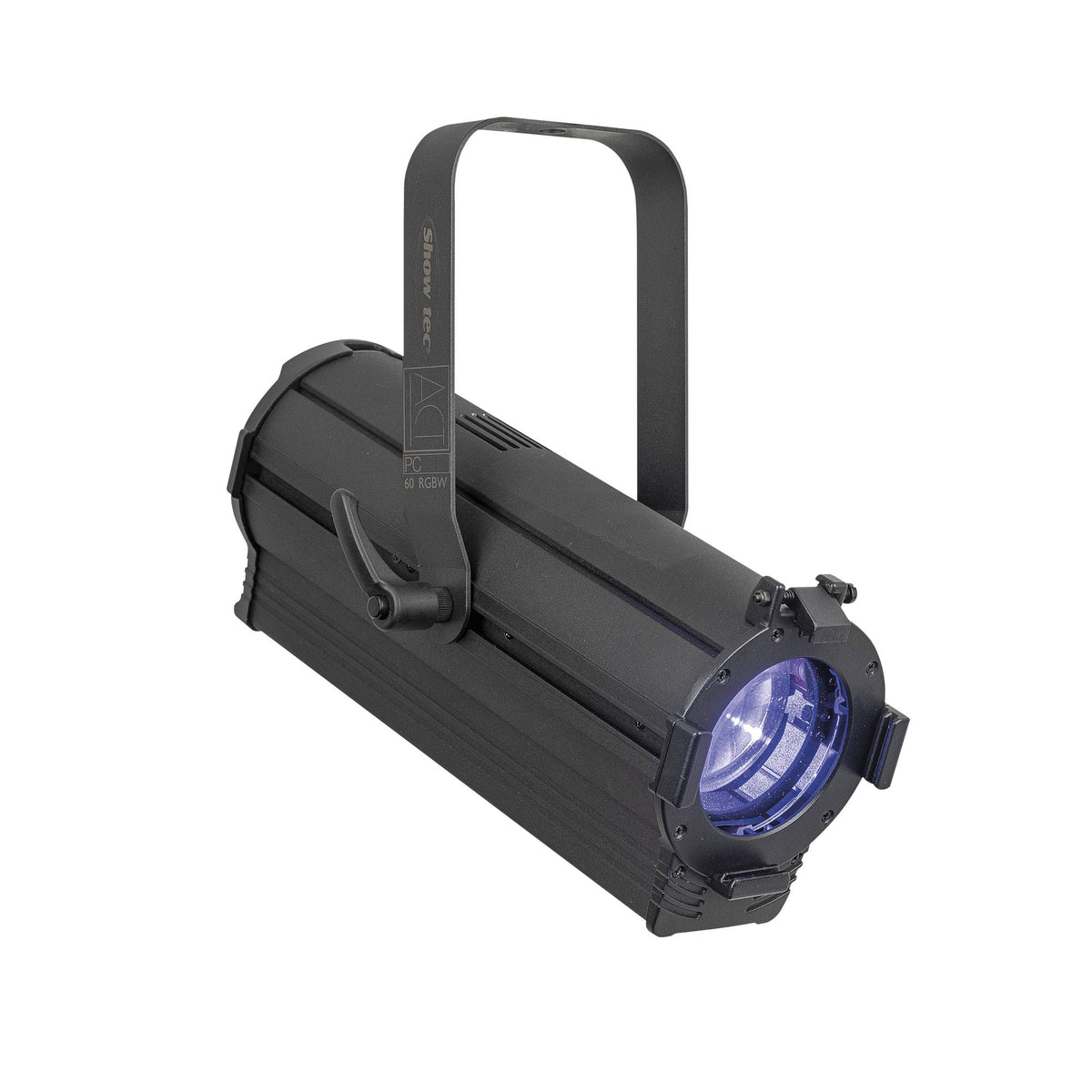

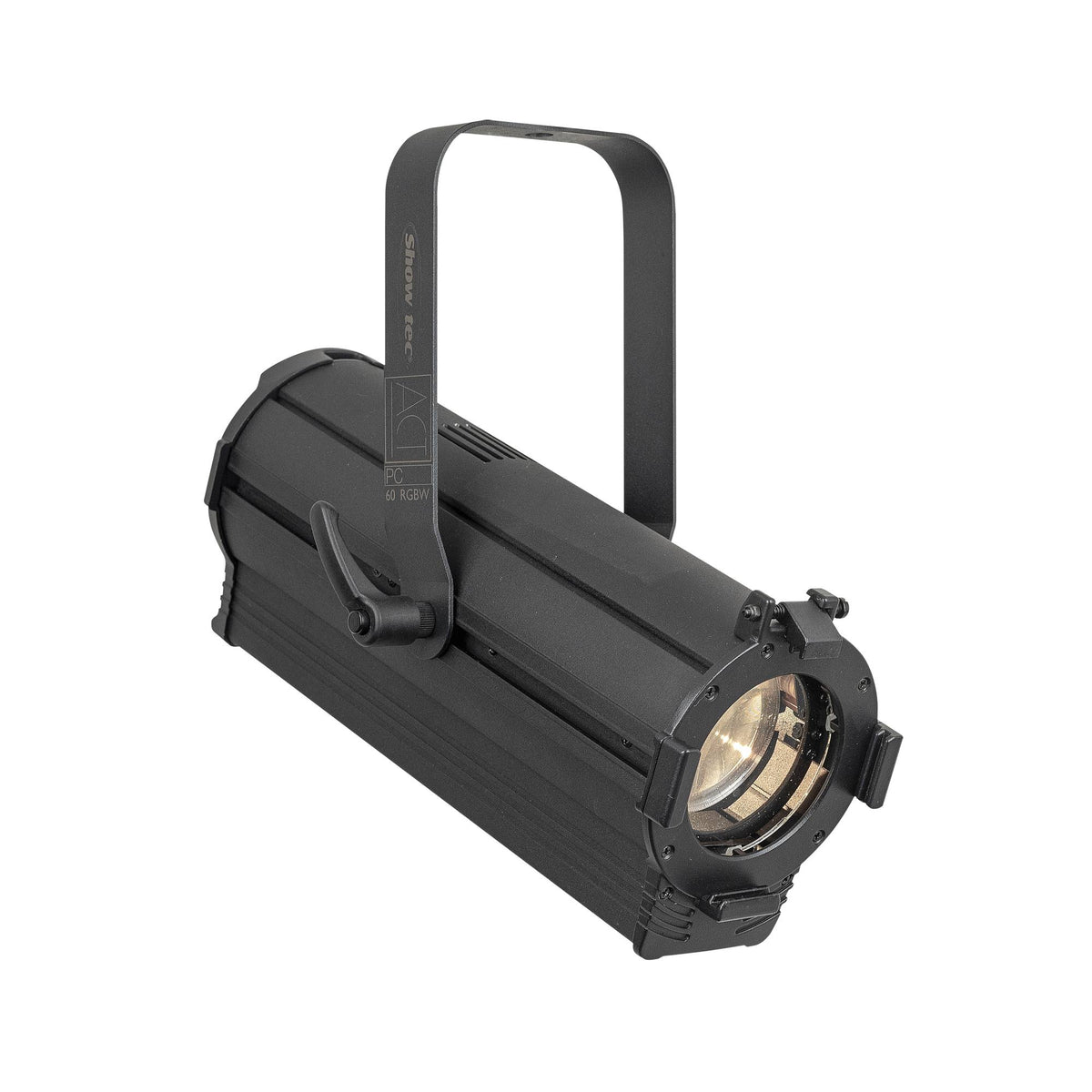

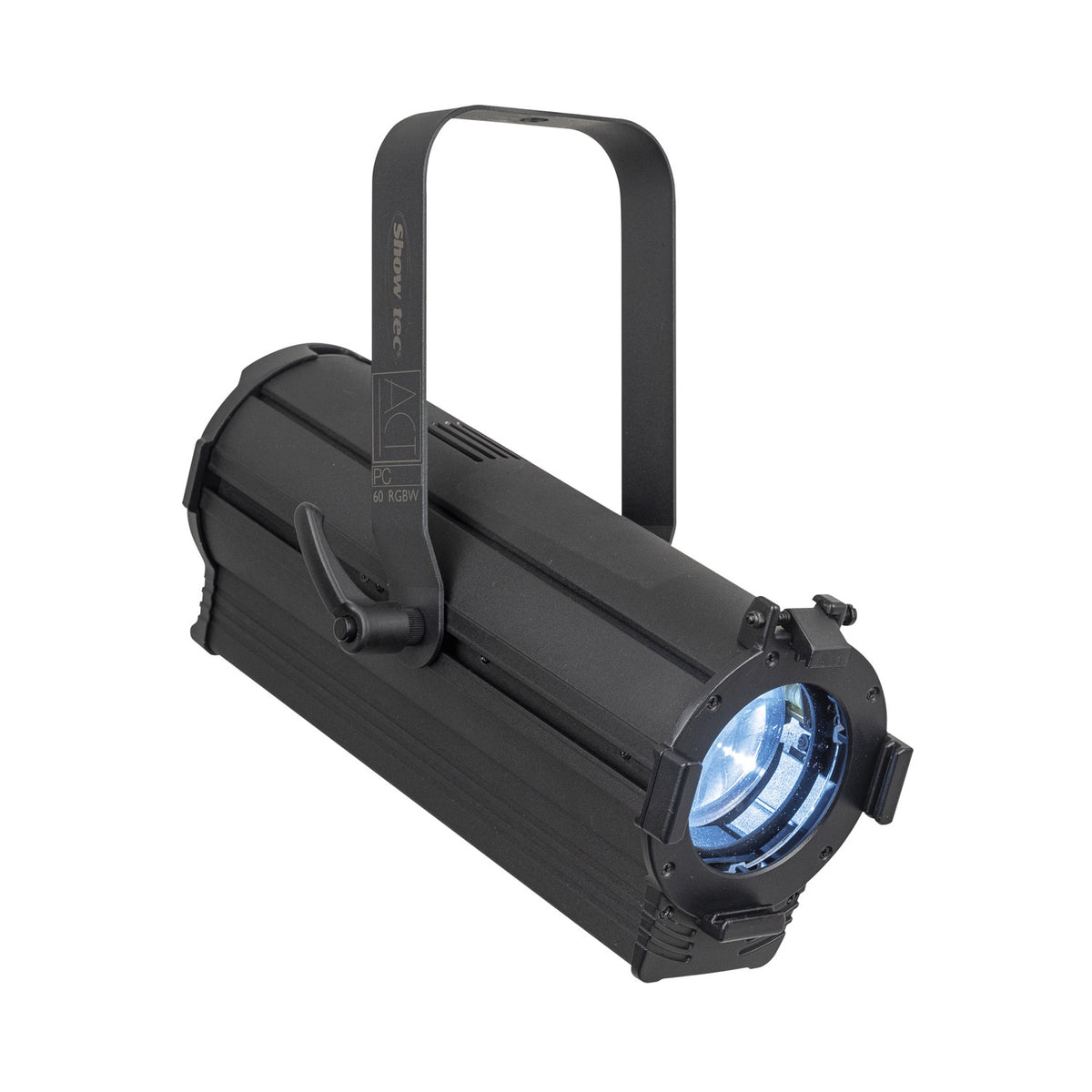

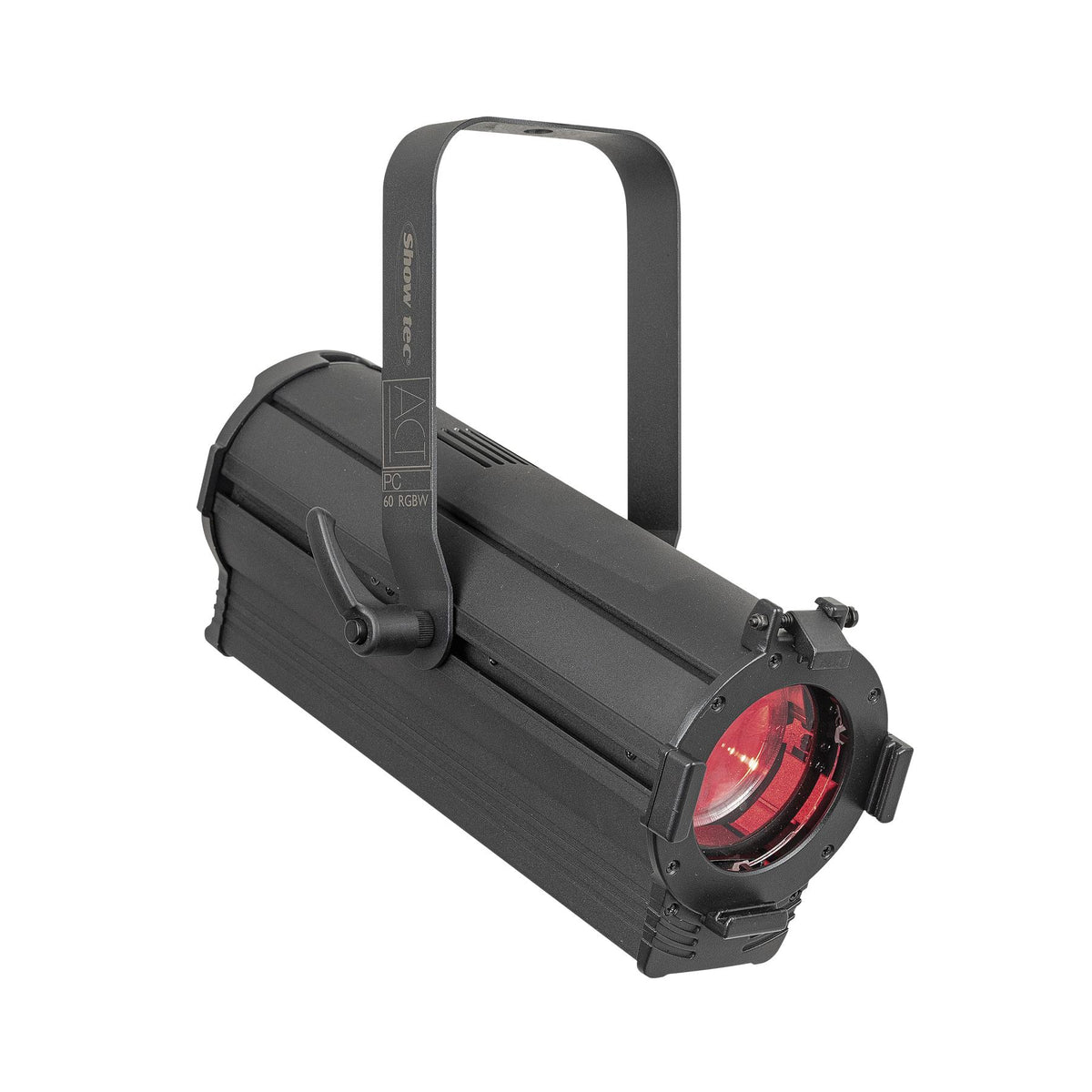

White-light colour temperature adjusts from 2700 to 8000 K. RGBW mixing also produces coloured light, with intensity adjustable from 0 to 100%.

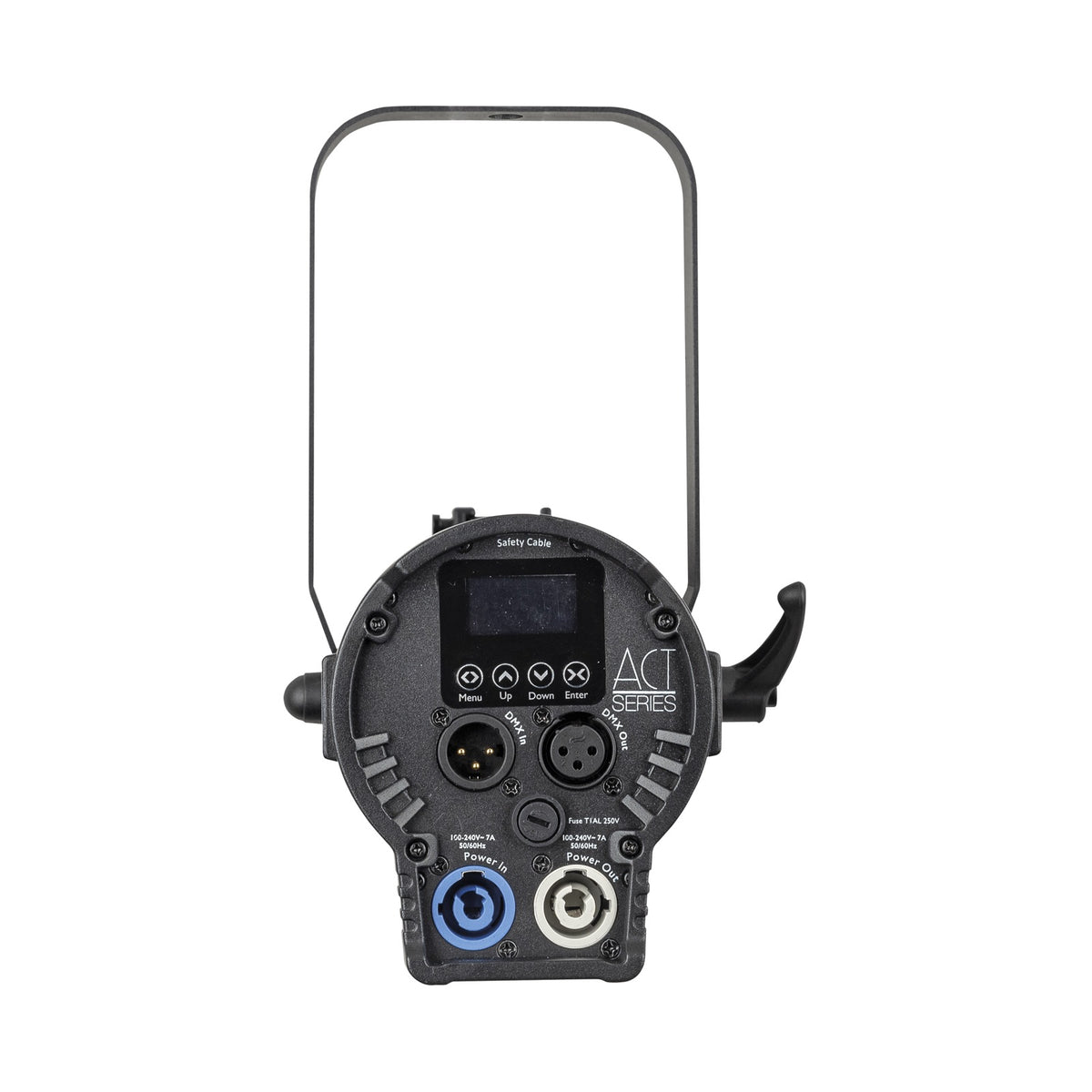

Choose 5, 7 or 11 DMX channels, automatic programs or sound control. A rear OLED display provides access to settings. The fan-cooled IP20 housing is for indoor use only.

Without a desk, choose from 64 colour macros or 9 built-in chases. An internal microphone lets the selected chase respond to the music beat, with microphone sensitivity adjustable in the menu.

Main Features

• A 60 W RGBW source provides white and coloured light.
• PC optics deliver defined beam edges.
• Motorised 3.7–31.5° adjustment is available over DMX.
• A 2700–8000 K range changes the white-light tone.
• 5, 7 or 11 DMX channels offer different control depths.
• Automatic and sound modes work without a lighting desk.
• Master/Slave mode synchronises multiple fixtures.
• Power and DMX outputs allow fixtures to be linked.

Technical Specifications

• Light Source: 1 × 60 W RGBW LED
• Colour Temperature: 2700–8000 K
• CRI: 80
• Luminous Flux: 460 lm
• Illuminance: 1307 lx / 3 m
• Beam Angle: 3.7–31.5°
• Optical Adjustment: motorised
• Control: DMX, local controls
• DMX Channels: 5, 7, 11
• Dimming: 0–100 %
• Strobe: 0–20 Hz
• Colours and Programs: 64 colour macros, 9 chases
• Dimmer Curves and Response: 4: Linear, Square Law, Inverse Square Law, S-Curve; LED / Halogen
• DMX Signal Loss: Manually Defined, Hold, Show or Blackout
• Additional Modes: automatic, sound control, Master/Slave
• LED Refresh Rate: 1100 Hz
• Power Supply and Consumption: 100–240 V AC 50/60 Hz; 70 W
• Connections: Power Pro in/out; 3 pin XLR DMX in/out
• Display: OLED
• Mounting: adjustable bracket
• Housing and Cooling: black aluminium housing; fan
• IP Rating: IP20, indoor use only
• Maximum Ambient Temperature: 40 °C
• Dimensions (W × H × D): 165 × 265 × 313 mm
• Weight: 2.24 kg

What’s Included

• 1 × Showtec ACT PC 60 RGBW PC Spotlight
• 1.5 m Schuko to Power Pro power cable

Who Is It For

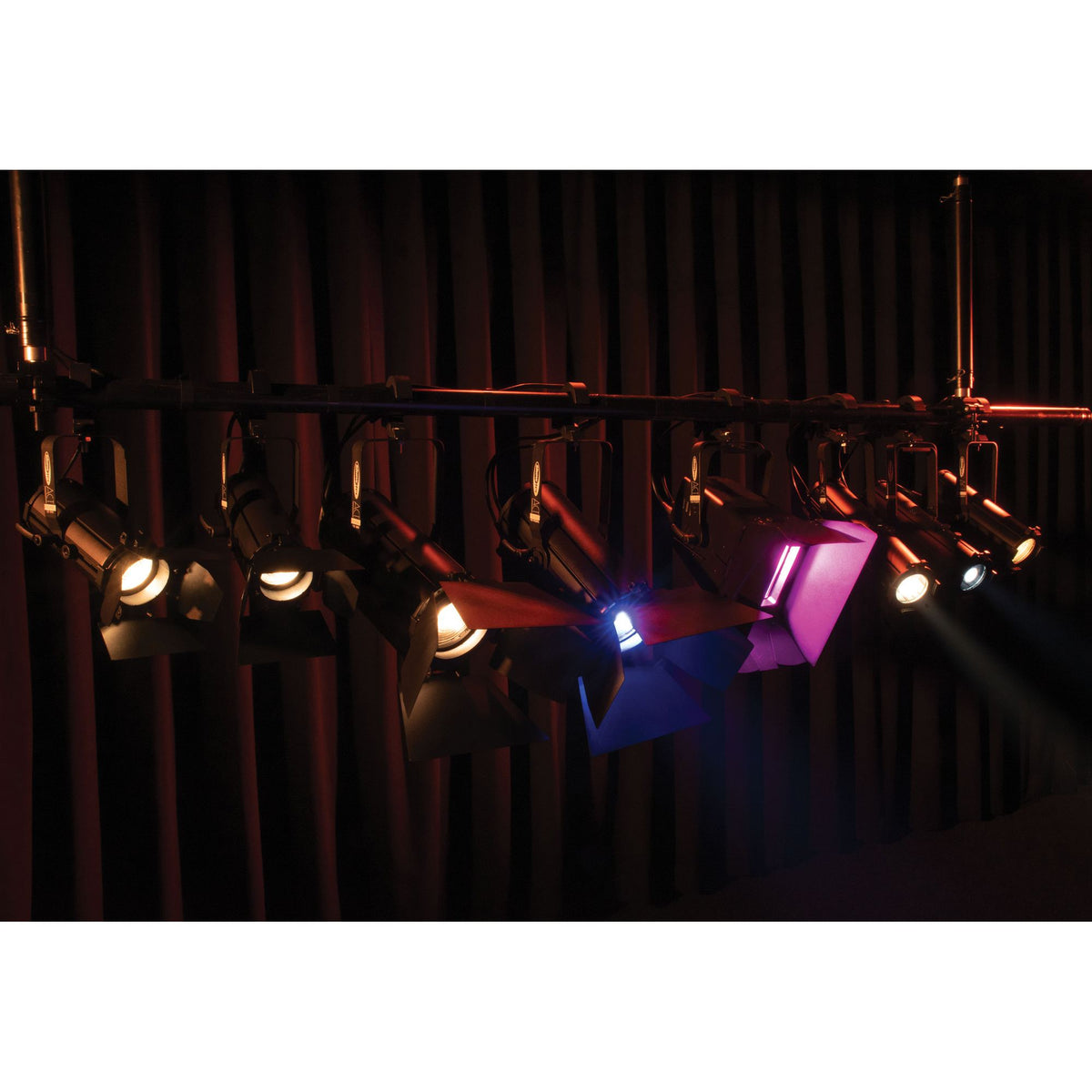

For theatre stages or displays requiring variable-width directional light and DMX optical adjustment. Additional barndoors and a colour filter frame are not supplied.
