Showtec ACT Fresnel 50 RGBAL Fresnel Spotlight

Showtec ACT Fresnel 50 RGBAL Fresnel Spotlight

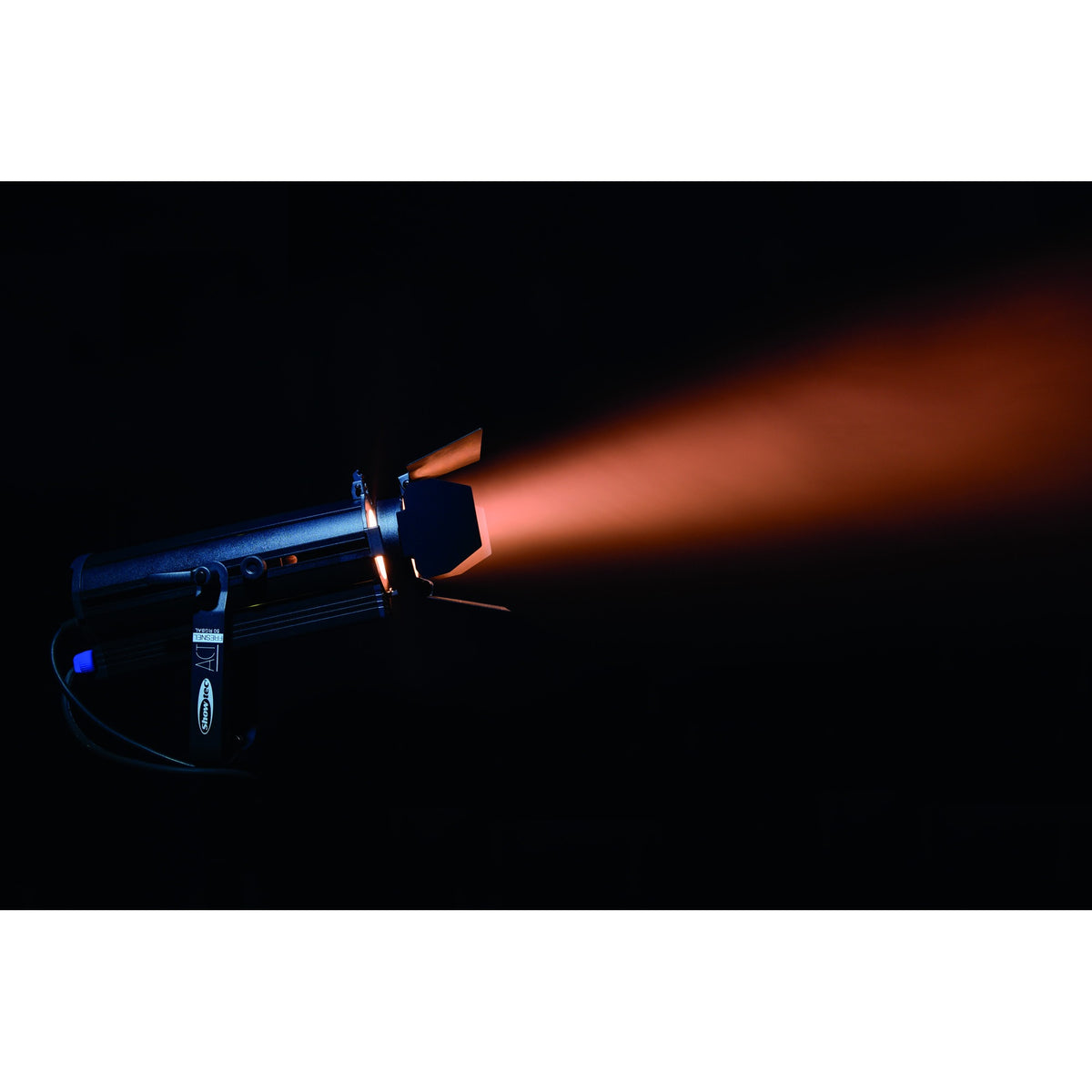

An RGBAL COB LED source mixes five colours, while the Fresnel lens produces soft-edged illumination.

The 150 W module has 30 W per colour, with combined LED output limited to 50 W. These ratings are separate from its 52.5 W electrical consumption.

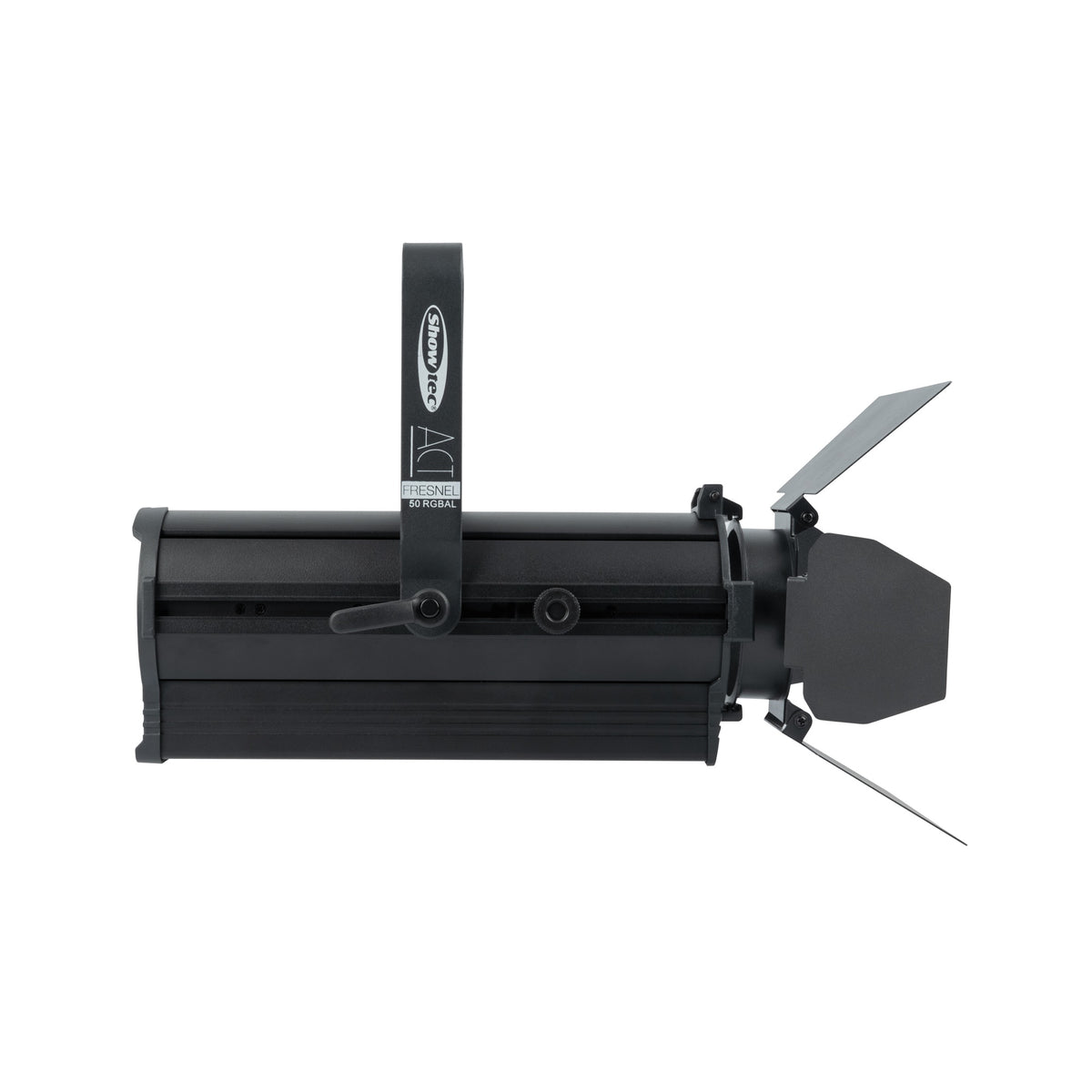

Manual optics cover a 15–35° range. The supplied barndoor and filter frame shape the coverage, and white-light colour temperature adjusts from 2800 to 10000 K.

Colour and intensity can be set locally with a rotary knob or over DMX. RDM supports compatible remote settings and monitoring. The fan-cooled IP20 housing is intended for indoor use.

Main Features

• RGBAL combines red, green, blue, amber and lime light.
• The 15–35° Fresnel optics adjust soft-edged coverage.
• CRI 92 supports colour rendering on stage and in displays.
• Choose 5, 8 or 12 DMX channels to match the control requirements.
• 16-bit dimming provides finer intensity adjustment.
• 64 colour macros and 9 chases provide built-in presets.
• 4 dimmer curves and LED / Halogen response adapt fades.

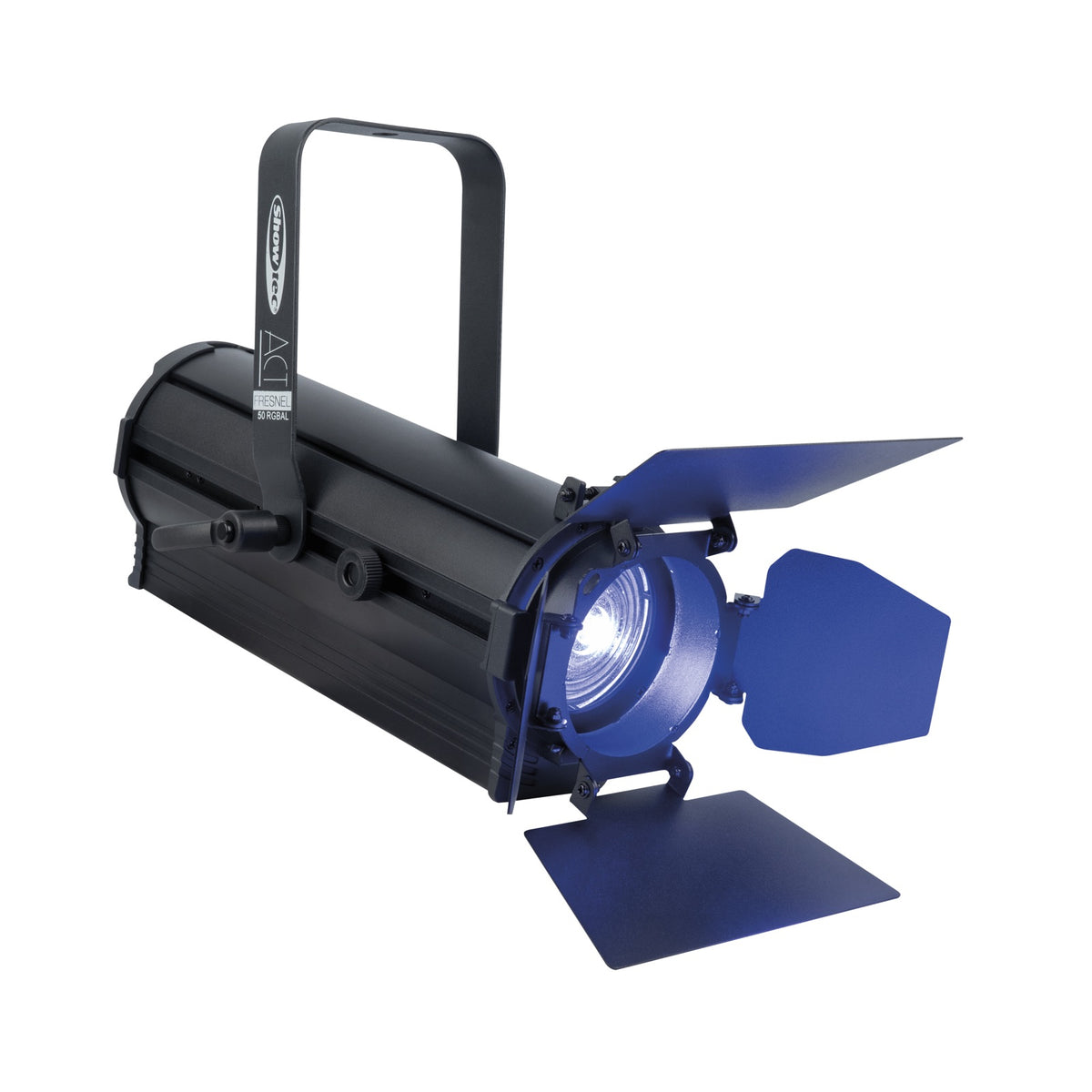

• A supplied barndoor and filter frame support light shaping.

Technical Specifications

• Light Source: RGBAL COB LED, 150 W module, 30 W per colour; combined output up to 50 W
• Colour Temperature: 2800–10000 K
• CRI: 92
• Luminous Flux: 952 lm
• Individual Colour Flux: R / G / B / A / L: 504 / 958 / 313 / 320 / 1024 lm
• Illuminance: 1410 lx / 2 m; 627 lx / 3 m; 226 lx / 5 m
• Beam Angle: 15–35°
• Field Angle: 30–50°
• Optical Adjustment: manual; 15–35°
• Control: DMX, RDM; local controls
• DMX Channels: 5, 8, 12
• Dimming: 0–100 %; 16 bit
• Strobe: 0–20 Hz
• Dimmer Curves and Response: 4: Linear, Square Law, Inverse Square Law, S-Curve; LED / Halogen
• Colours and Programs: 64 colour macros, 9 chases
• DMX Signal Loss: Manually Defined, Hold or Blackout
• White Balance: R / G / B: 125–255
• LED Refresh Rate: 1200 Hz
• Power Supply and Consumption: 100–240 V AC 50/60 Hz; 52.5 W

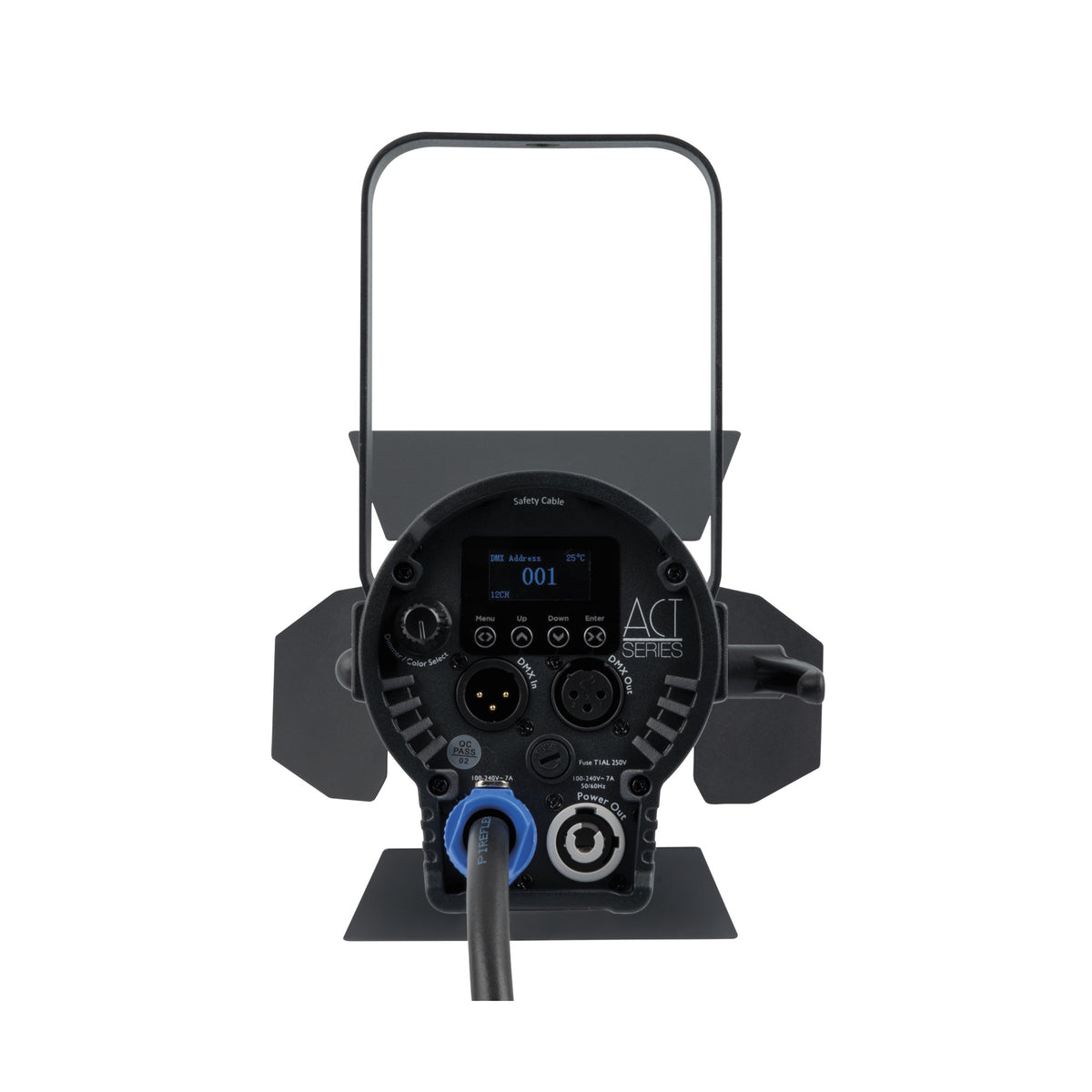

• Connections: Power Pro in/out; 3 pin XLR DMX in/out
• Display: OLED

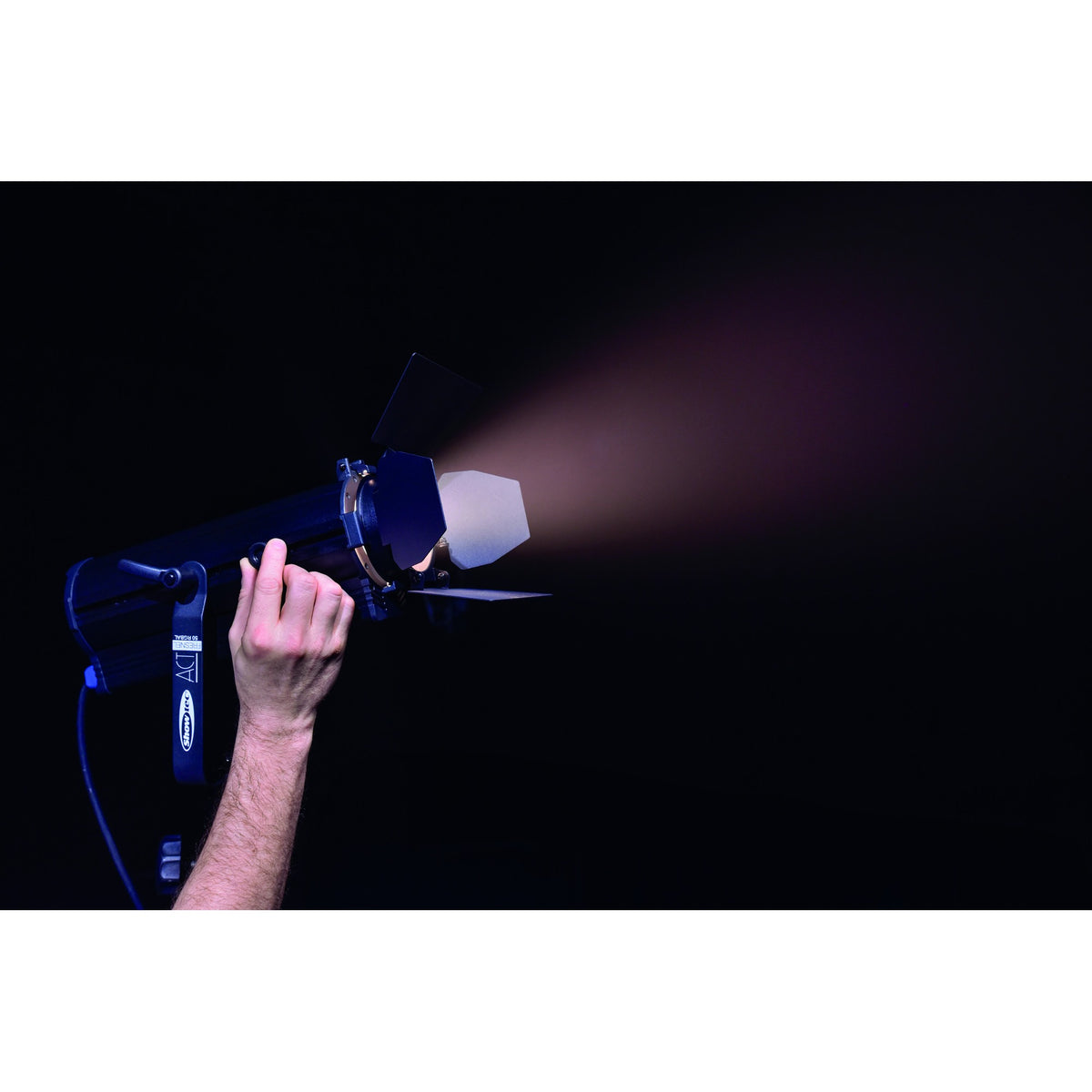

• Mounting: adjustable bracket
• Housing and Cooling: black aluminium housing; fan
• IP Rating: IP20, indoor use only
• Maximum Ambient Temperature: 45 °C
• Dimensions (W × H × D): 168 × 263 × 317 mm
• Weight: 2.9 kg

What’s Included

• 1 × Showtec ACT Fresnel 50 RGBAL Fresnel Spotlight
• Barndoor
• Colour filter frame
• 1.5 m Schuko to Power Pro power cable

Who Is It For

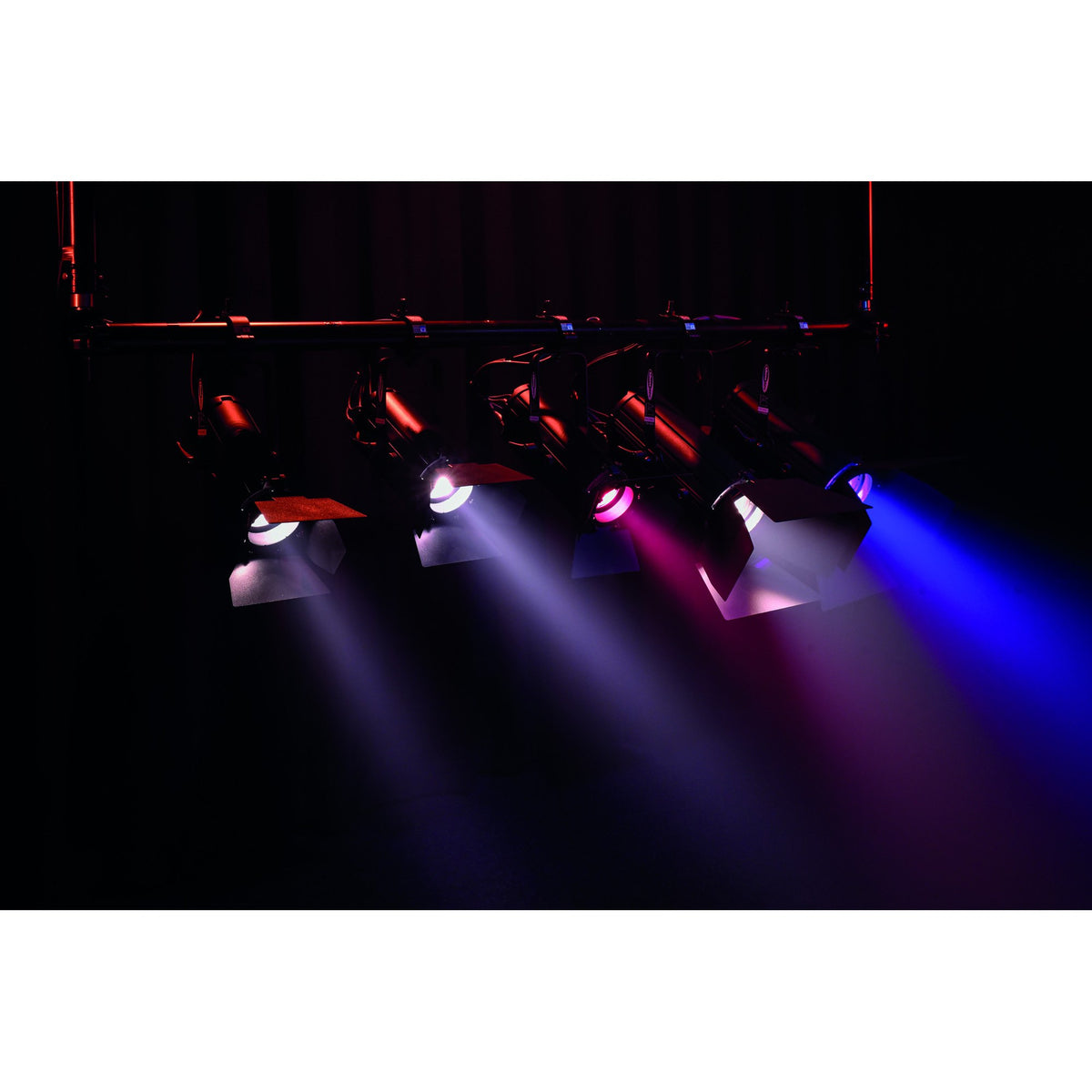

For theatres, museums and exhibitions needing white and coloured illumination from a compact fixture. Account for fan noise in quiet spaces.
