Showtec ACT Fresnel 150 WW Fresnel Spotlight

Showtec ACT Fresnel 150 WW Fresnel Spotlight

A 150 W warm white COB LED with Fresnel optics produces a soft-edged field with mechanically adjustable coverage.

The 14–44° beam spans more concentrated and broader lighting. A supplied barndoor and colour filter frame help shape the output, while CRI 96 supports accurate colour rendering on performers and scenery.

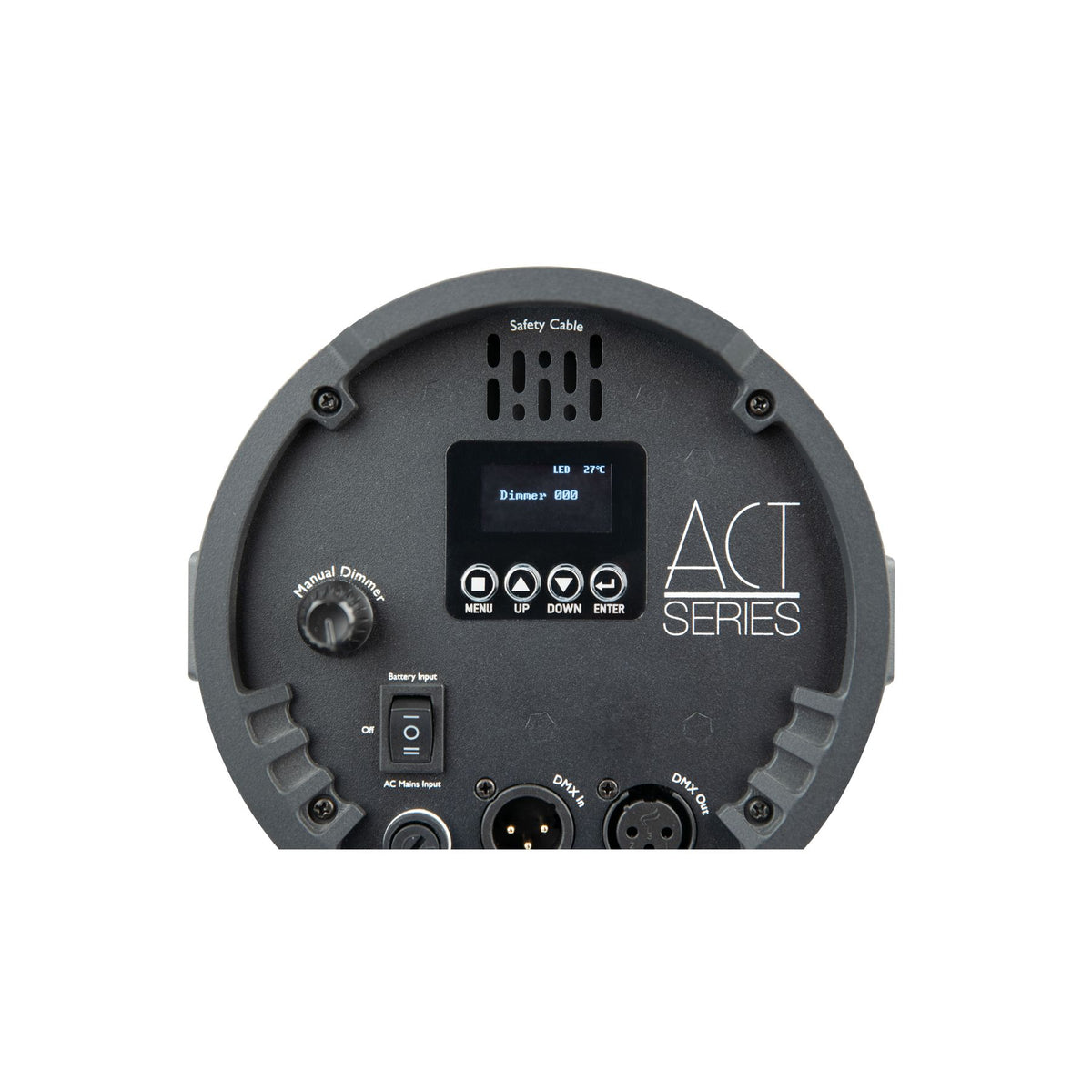

Brightness can be set using the rear rotary control, the display menu or a DMX desk. RDM provides access to supported device settings through a compatible control system.

Power the fixture from AC mains or an external 28 V DC battery. These power sources must not be connected simultaneously. The fan-cooled IP20 housing is designed for indoor use.

Main Features

• A 150 W COB LED and Fresnel lens produce a soft lighting edge.

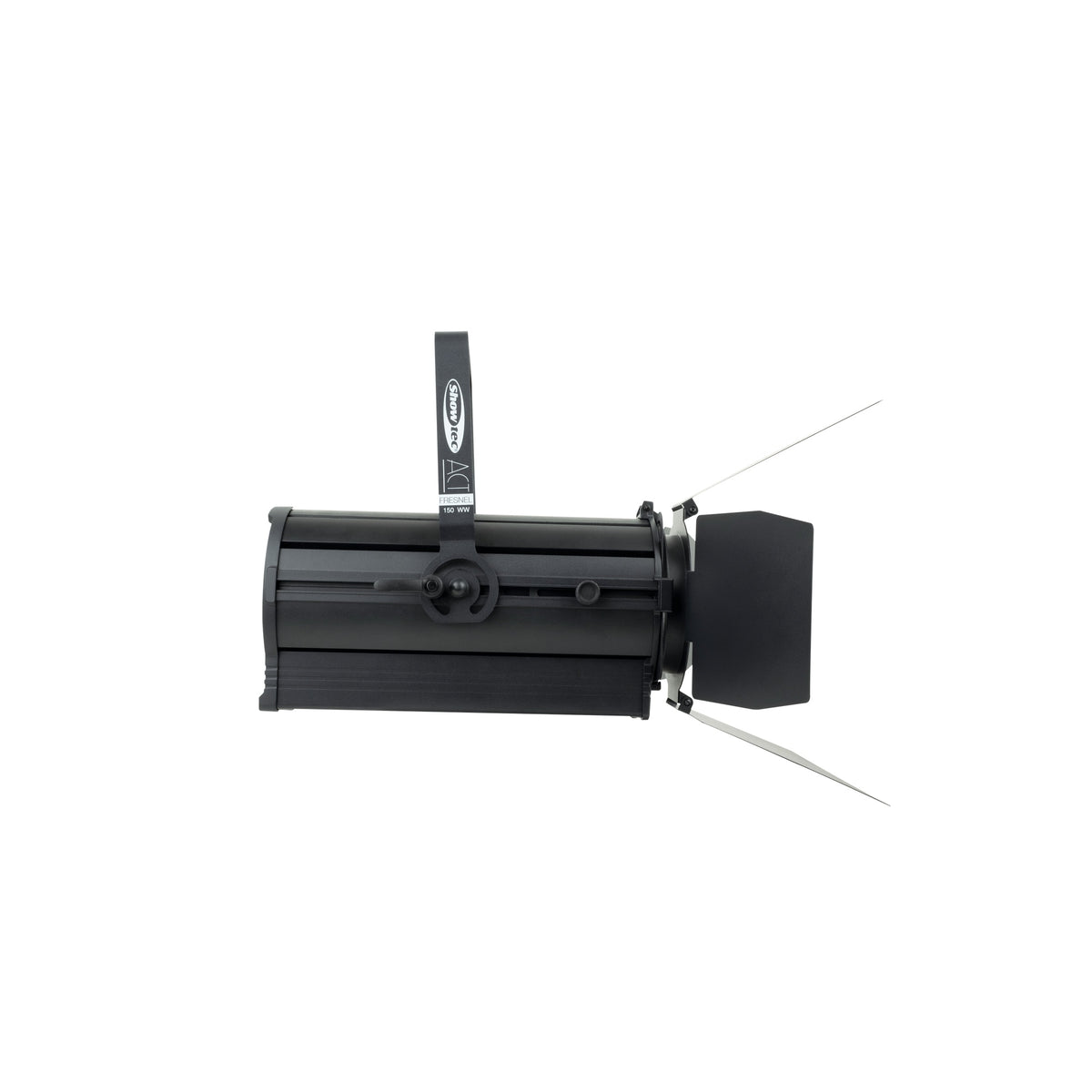

• Mechanical 14–44° optical adjustment matches coverage to the lighting task.
• CRI 96 and 3000 K light suit natural-looking warm illumination.
• DMX control needs only 1 or 2 channels.
• RDM support simplifies configuration in a compatible lighting system.
• Four dimmer curves and LED / Halogen response tailor lighting transitions.
• An external 28 V DC battery input offers an alternative to mains power.

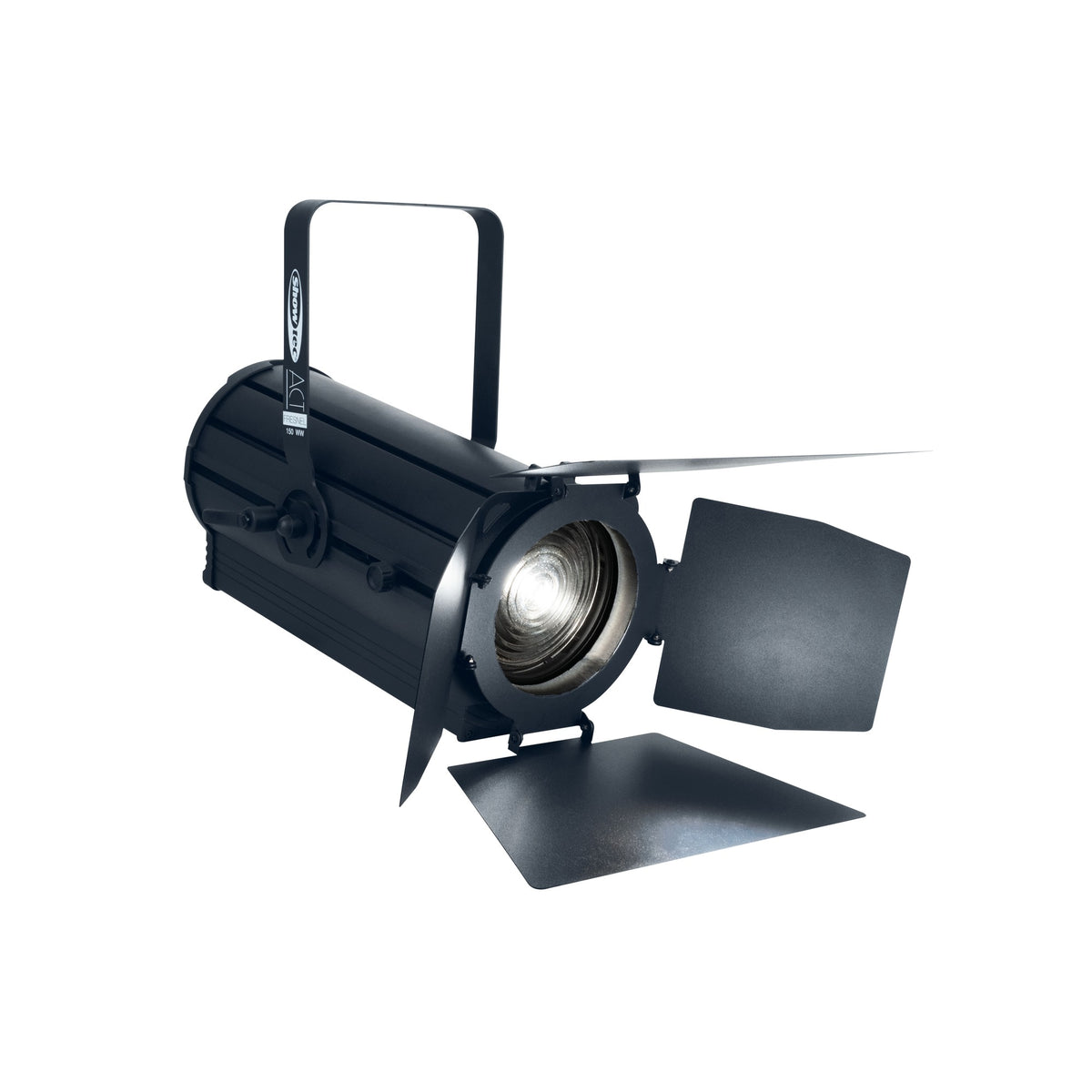

• The included barndoor and filter frame provide beam-shaping tools from the start.

Technical Specifications

• Light Source: 1 × 150 W warm white COB LED
• Light Colour: warm white (WW)
• Colour Temperature: 3000 K
• CRI: 96
• Luminous Flux: 8780 lm
• Illuminance: 24117 lx at 2 m; 10719 lx at 3 m; 3859 lx at 5 m
• LED Refresh Rate: 1100 Hz
• Beam Angle: 14–44°, manually adjustable
• Field Angle: 22–57°
• Control: DMX, RDM and direct dimmer control
• DMX Channels: 1 or 2
• Dimming: 0–100 %
• Dimmer Curves: 4: Linear, Square Law, Inverse Square Law and S-Curve
• Dimmer Response: LED or Halogen
• DMX Signal Loss: Manually Defined, Hold or Blackout
• Strobe: yes
• Power Supply and Consumption: 100–240 V AC, 50/60 Hz; 170 W

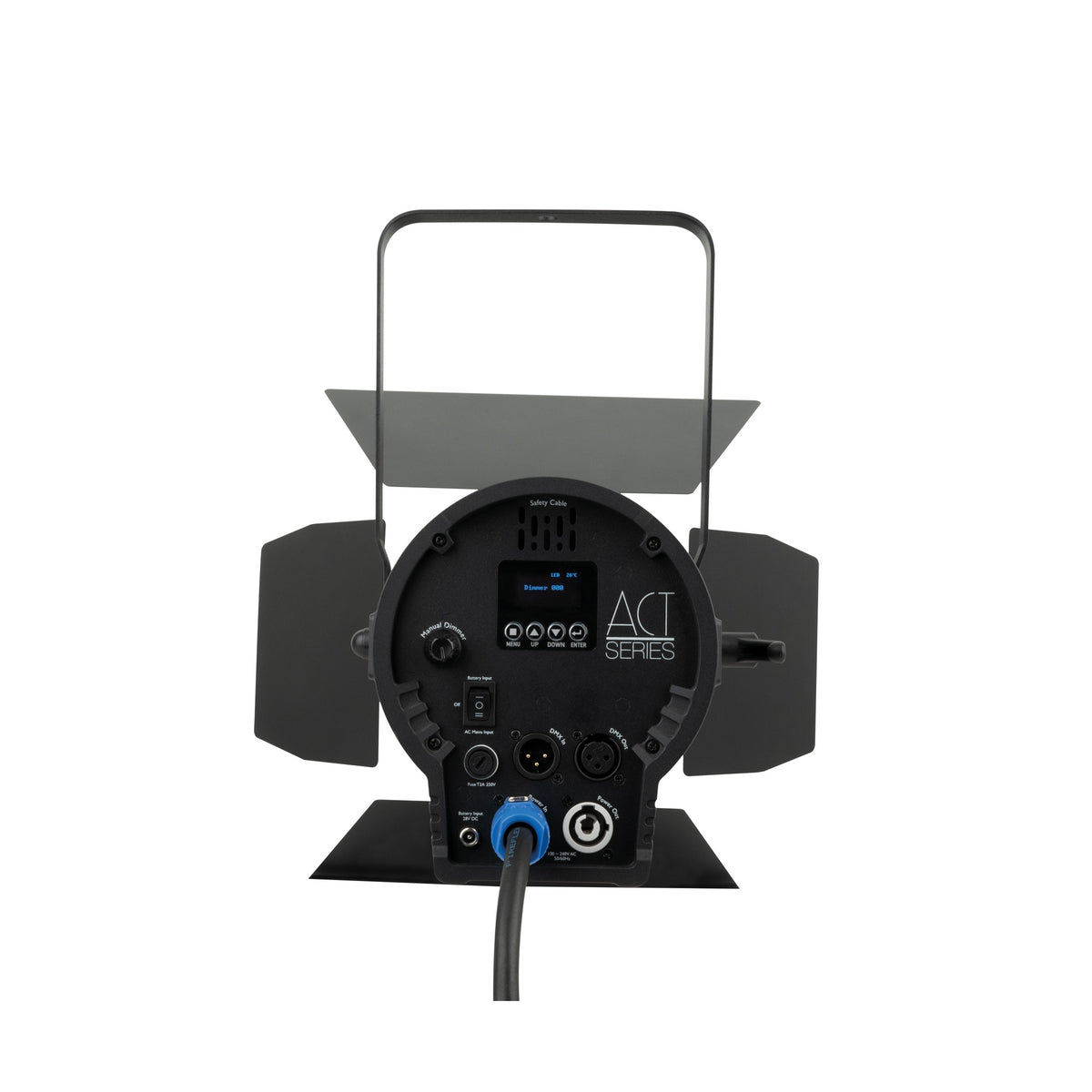

• Connections: Power Pro power input/output, 3-pin XLR DMX input/output
• Display: OLED
• Housing: black aluminium housing
• Mounting: adjustable bracket
• Cooling: fan cooling
• IP Rating: IP20, indoor use only
• Maximum Ambient Temperature: 40 °C
• Dimensions (W × H × D): 225 × 345 × 366 mm
• Weight: 4.1 kg
• External Power: 28 V DC battery; do not connect mains and battery simultaneously
• Noise Level: 33.5–59.8 dB

What’s Included

• 1 × Showtec ACT Fresnel 150 WW Fresnel Spotlight
• Barndoor
• Colour filter frame
• 1.5 m Schuko to Power Pro power cable

Who Is It For

For theatre stages, museums and exhibitions requiring warm white light, adjustable optics and DMX control. Consider fan noise when specifying the fixture for a space with strict acoustic requirements.
