Showtec ACT Fresnel 150 RGBAL Fresnel Spotlight

Showtec ACT Fresnel 150 RGBAL Fresnel Spotlight

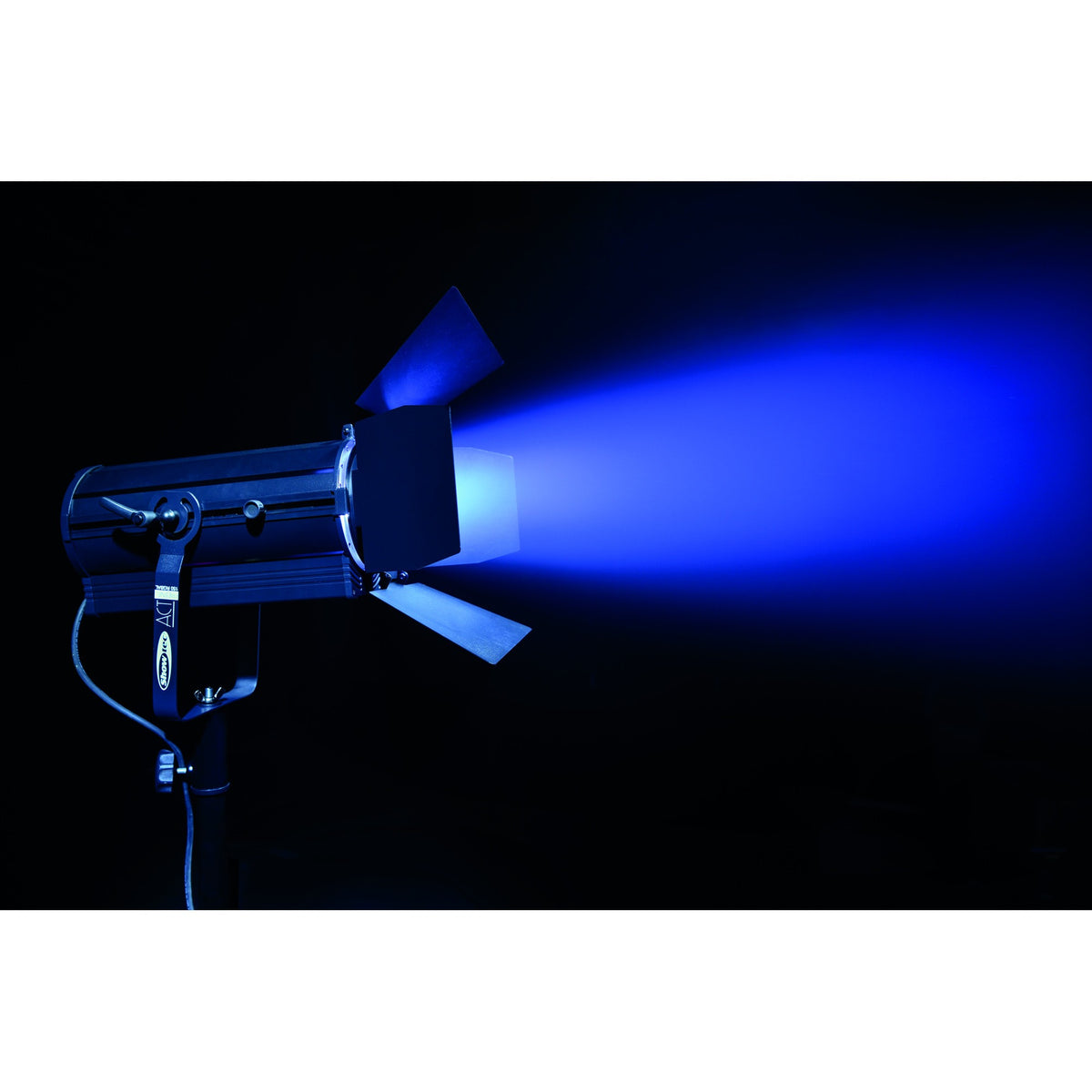

Five-colour RGBAL mixing and a Fresnel lens create a soft-edged field of coloured or white light.

The 280 W LED module provides 56 W per colour, while combined simultaneous LED power is limited to 150 W. This makes the individual colour channels available without confusing module ratings with the 176 W electrical consumption.

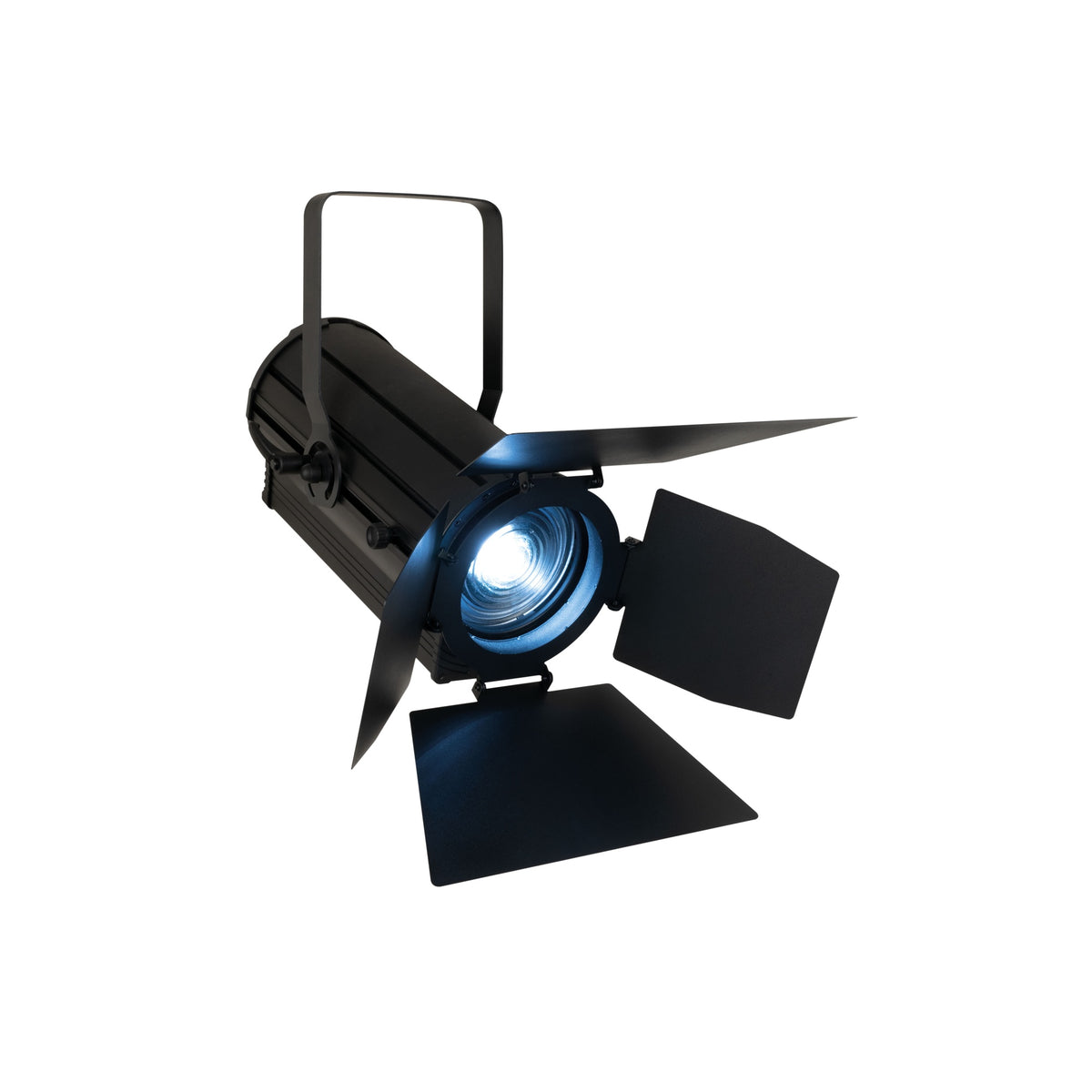

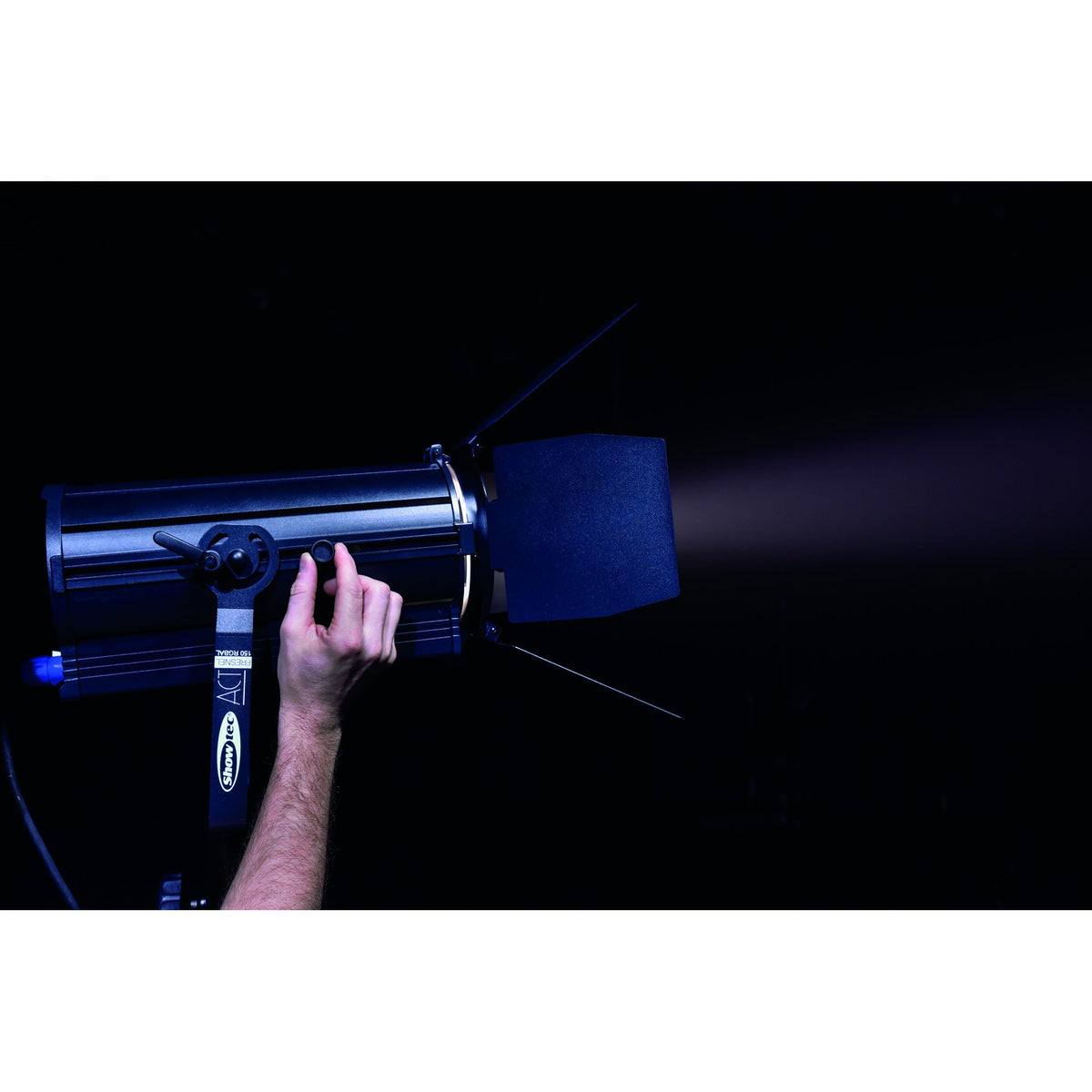

Adjust the beam mechanically between 14° and 36° and shape spill with the included barndoor. RGBAL mixing and a 2700–10000 K colour-temperature range support both coloured lighting and white-light looks.

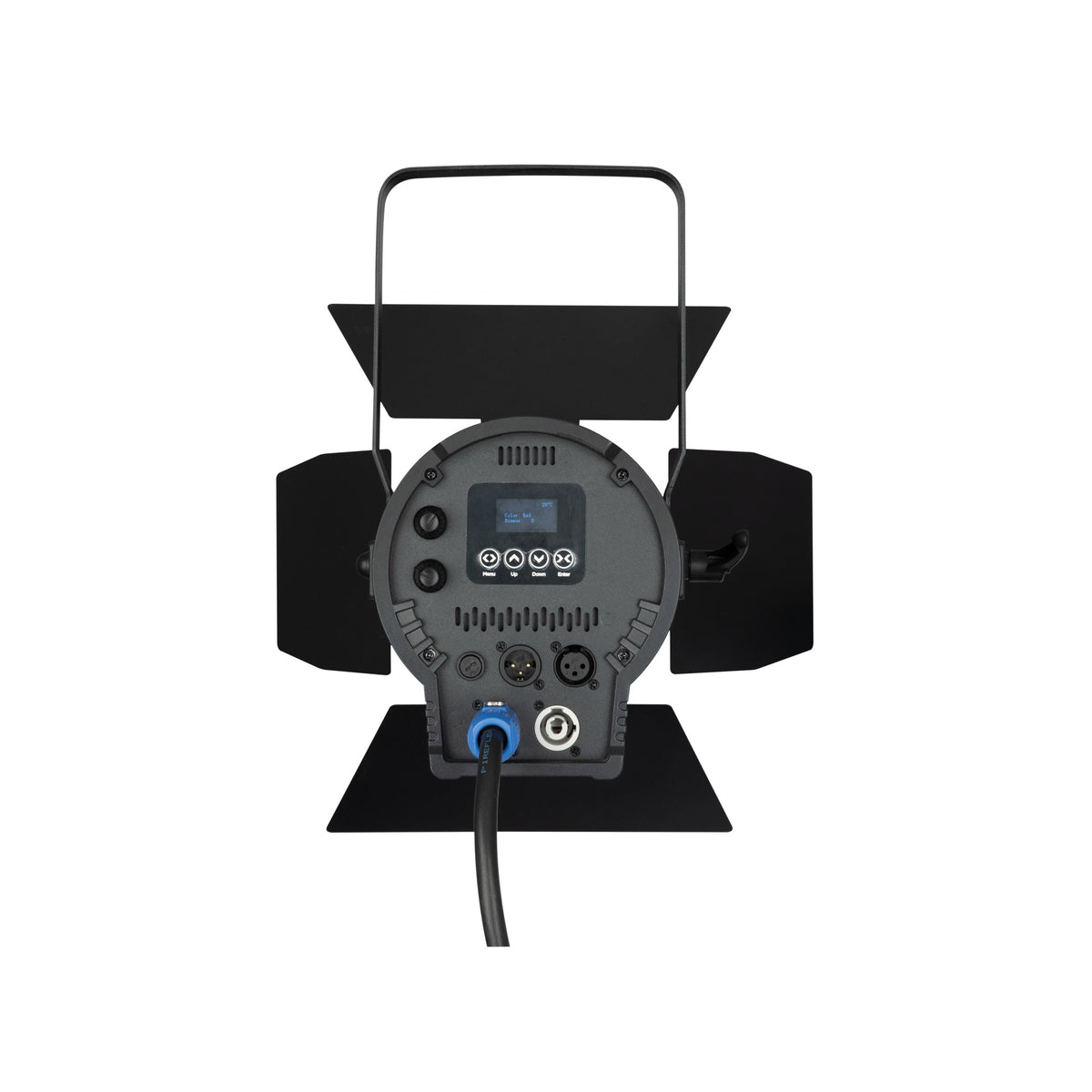

Set brightness and colour using rotary controls or the OLED menu. DMX personalities use 5, 8 or 12 channels and RDM is supported. Built-in programs also allow operation without an external lighting desk.

Main Features

• The five-colour RGBAL source offers a broad choice of white and coloured light.
• Adjust the 14–36° Fresnel optics without adding a separate lens kit.
• CRI 93 supports accurate rendering of illuminated objects.
• 64 colour macros and 9 chases provide ready-made lighting looks.
• 16-bit dimming provides finer adjustment of output levels.
• Four dimmer curves and LED / Halogen response adapt the fixture to transitions.
• RDM gives a compatible system access to supported settings.
• A supplied barndoor and filter frame provide light-shaping options.

Technical Specifications

• Light Source: RGBAL COB LED, 280 W module; combined power limited to 150 W
• Light Colour: RGBAL: red, green, blue, amber and lime
• Colour Temperature: 2700–10000 K
• CRI: 93
• Luminous Flux: 2355 lm
• Illuminance: 7665 lx at 2 m; 3407 lx at 3 m; 1226 lx at 5 m
• LED Refresh Rate: 17 kHz
• Beam Angle: 14–36°, manually adjustable
• Field Angle: 23–53°
• Control: DMX, RDM, display and rotary controls
• DMX Channels: 5, 8 or 12
• Dimming: 0–100 %, 16-bit
• Dimmer Curves: 4: Linear, Square Law, Inverse Square Law and S-Curve
• Dimmer Response: LED or Halogen
• DMX Signal Loss: Manually Defined, Hold or Blackout
• Colours and Programs: 64 colour macros, 9 built-in chases
• White Balance: R, G and B values 125–255
• Strobe: yes
• Power Supply and Consumption: 100–240 V AC, 50/60 Hz; 176 W
• Connections: Power Pro power input/output, 3-pin XLR DMX input/output
• Display: OLED
• Housing: black aluminium housing

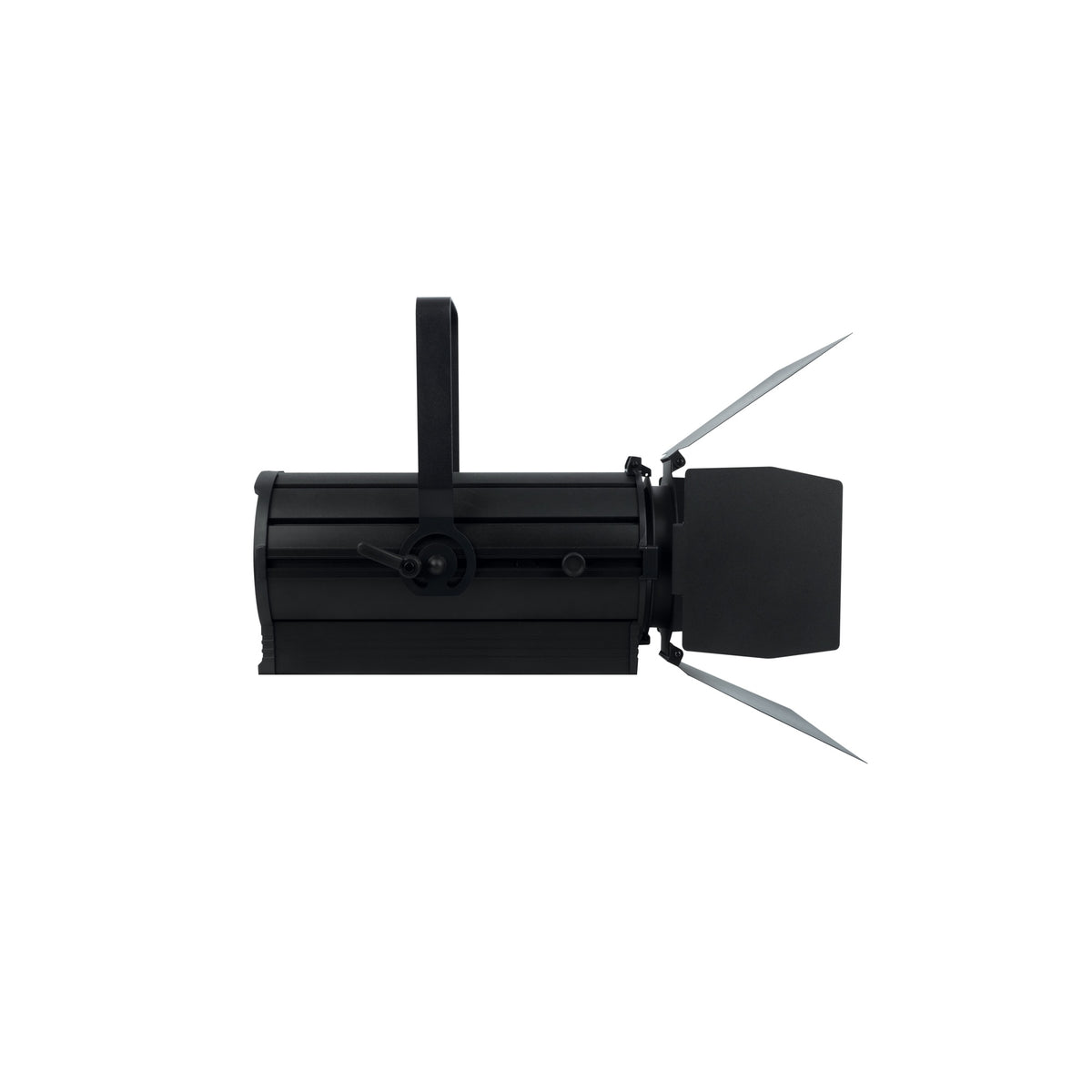

• Mounting: adjustable bracket
• Cooling: fan cooling
• IP Rating: IP20, indoor use only
• Maximum Ambient Temperature: 40 °C
• Dimensions (W × H × D): 220 × 343 × 362 mm
• Weight: 5.9 kg
• Noise Level: 33.5–59.8 dB

What’s Included

• 1 × Showtec ACT Fresnel 150 RGBAL Fresnel Spotlight
• Barndoor
• Colour filter frame
• 1.5 m Schuko to Power Pro power cable

Who Is It For

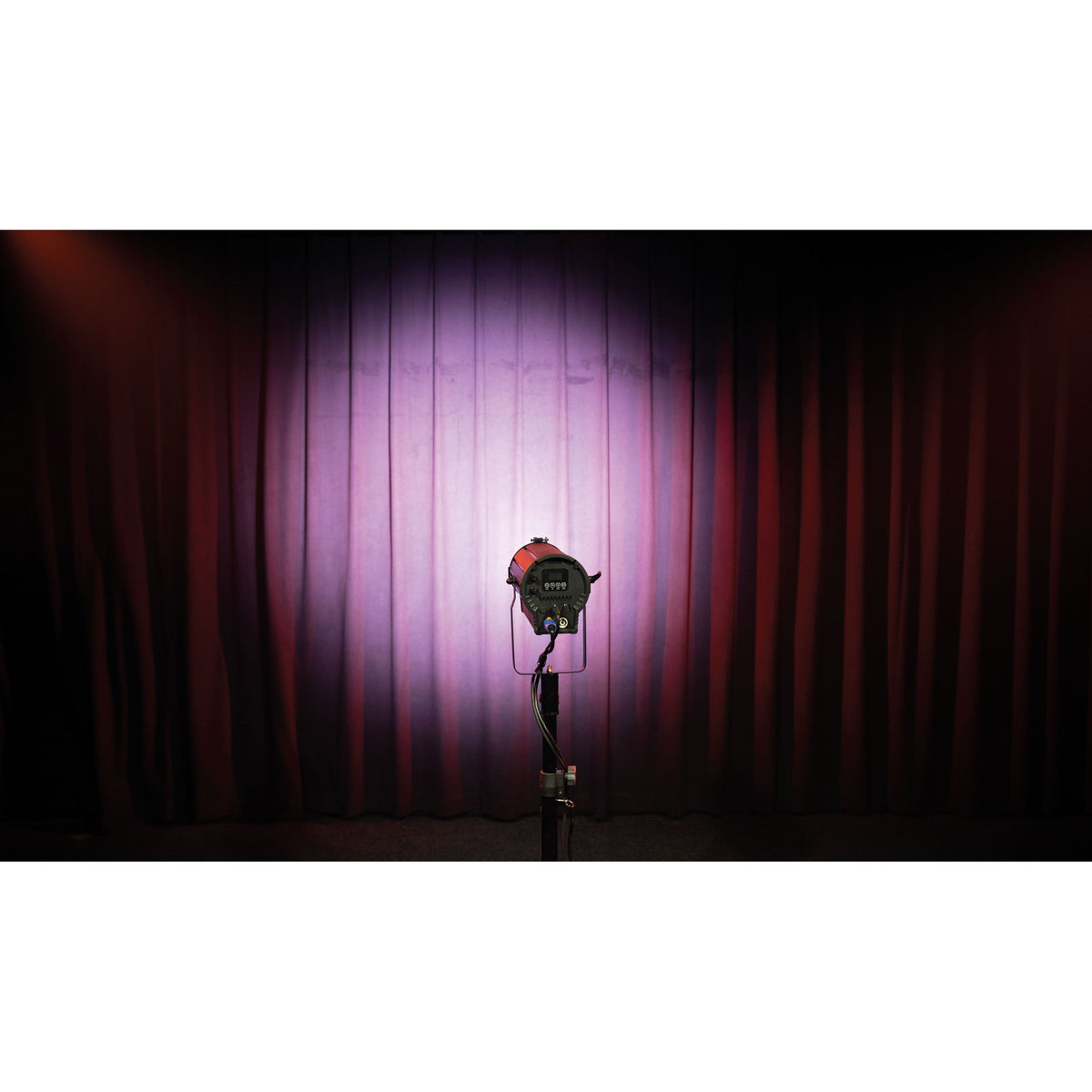

For theatre stages, museums and exhibitions where one fixture must provide white and coloured light with soft edges. The IP20 housing is for indoor use and uses fan cooling.
