sE Electronics V Pack Venue Drum Microphone Kit

sE Electronics V Pack Venue Drum Microphone Kit

The sE Electronics V Pack Venue Standard is a four-dynamic-microphone package for the core elements of an acoustic drum kit. It includes a V KICK for kick drum, two V BEAT microphones for tom or snare duties, and a V7 X instrument microphone. The system is intended for stages, rehearsal rooms and recording studios.

The V KICK is a supercardioid kick-drum microphone with two voicing switches that provide four combinations of low- and high-frequency character. The two V BEAT microphones use the same DMC7 X capsule family as the V7 X and have compact bodies for close placement around toms. Both attach directly to drum rims with the included V CLAMP mounts.

The V7 X is a supercardioid dynamic instrument microphone, normally used on snare in this package. All four microphones are passive dynamic designs and do not need 48 V phantom power. Their 3-pin XLR outputs connect to microphone inputs on a mixer, stagebox or audio interface.

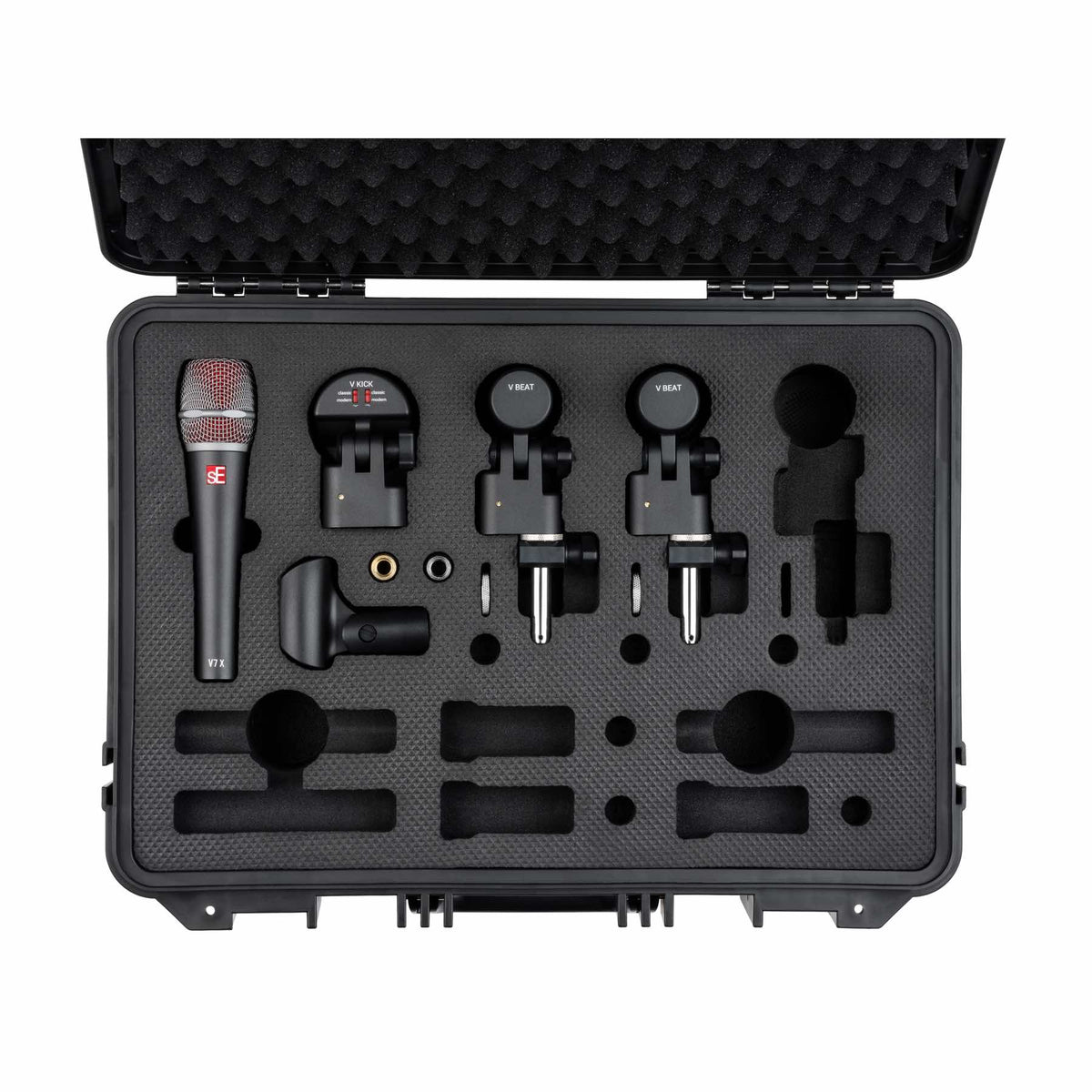

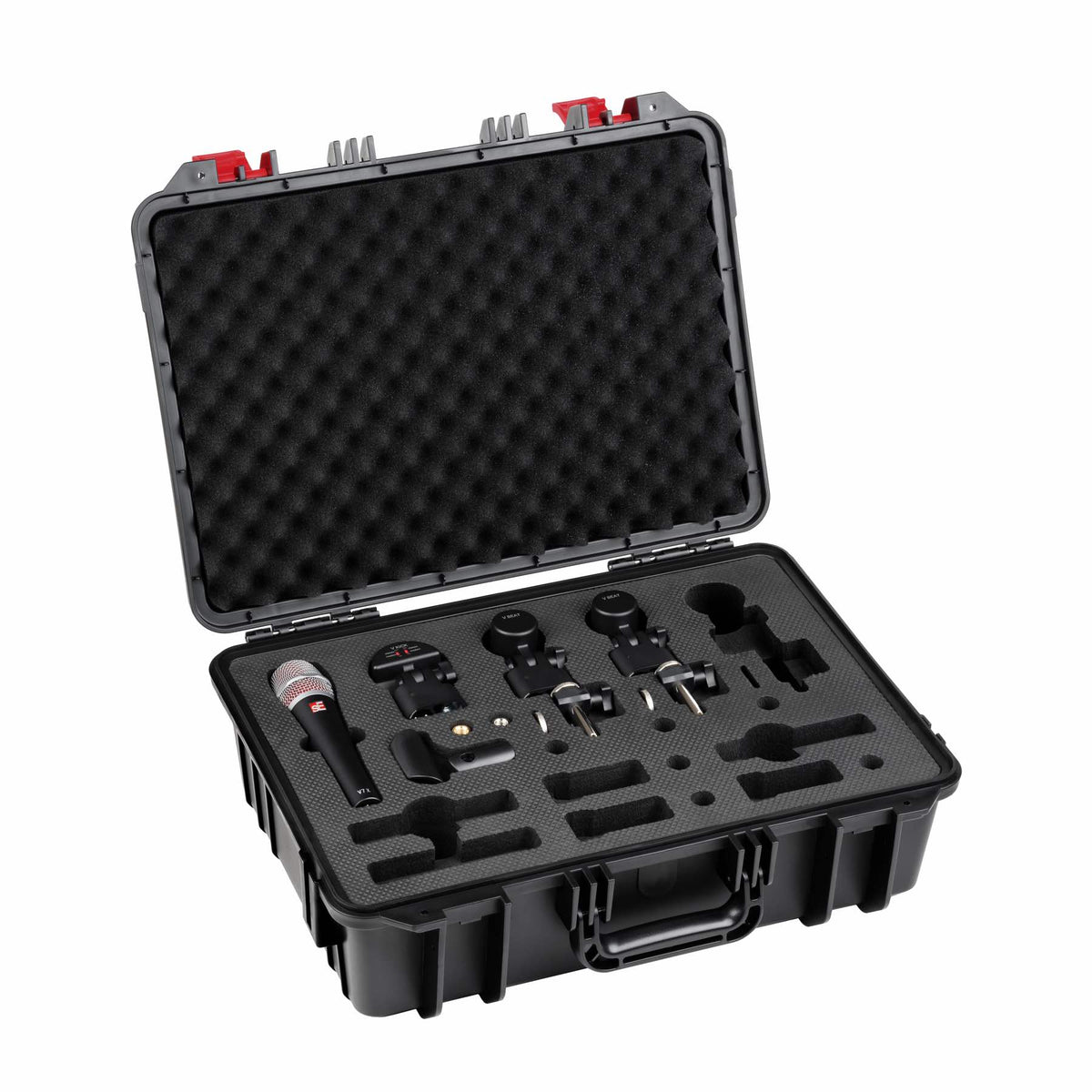

The package is stored in a V Case with a shaped-foam interior. The case has spare positions for one more V BEAT with V CLAMP and three small-diaphragm microphones, allowing the system to grow. The Venue Standard package does not include overhead or hi-hat microphones, XLR cables or stands; these must be selected separately.

Main Features

• Four dynamic microphones for the core drum-kit positions.
• V KICK kick-drum microphone with four voicings.
• Two V BEAT microphones for tom or snare duties.
• Two V CLAMP mounts for drum-rim attachment.
• V7 X supercardioid instrument microphone.
• All microphones operate without phantom power.
• V Case with spare positions for expanding the kit.
• Suitable for live performance, rehearsal and recording.

Technical Specifications

• V KICK: dynamic, supercardioid, 20 Hz to 19 kHz
• V KICK: 300 ohms; 0.2 / 0.4 mV/Pa
• V KICK dimensions and weight: 60 × 135 mm; 468 g
• V BEAT: dynamic, supercardioid, 30 Hz to 19 kHz
• V BEAT: 300 ohms; 2.0 mV/Pa (-54 dBV)
• V BEAT dimensions and weight: 61 × 110 mm; 347 g each
• V7 X: dynamic, supercardioid, 40 Hz to 19 kHz
• V7 X: 300 ohms; 2.0 mV/Pa (-54 dBV)
• V7 X dimensions and weight: 47 × 176 mm; 269 g
• V CLAMP dimensions and weight: approximately 57 × 75 mm; 93 g each
• Connectors: 3-pin XLR output on each microphone
• Power: not required

What’s Included

• 1 × sE Electronics V KICK microphone
• 2 × sE Electronics V BEAT microphones
• 2 × sE Electronics V CLAMP drum-rim mounts
• 1 × sE Electronics V7 X microphone
• V7 X microphone clip
• V Case hard case

Who Is It For

The V Pack Venue is intended for sound-rental companies, smaller venues, drummers and studios that already own overhead microphones or want to select them separately. A typical layout uses V KICK on kick, V7 X on snare and two V BEATs on toms. Four XLR cables and a stand or suitable mount for the V7 X are required; a complete drum image also needs separate overhead microphones and stands.
