Samson S-Patch Plus is a 19-inch rackmount, fully balanced 48-point analogue audio patchbay. It brings the inputs and outputs of a studio or installed sound system to one accessible panel, allowing signal routes to be changed without repeatedly reaching behind a mixer, audio interface, effects processor, or other rack equipment.

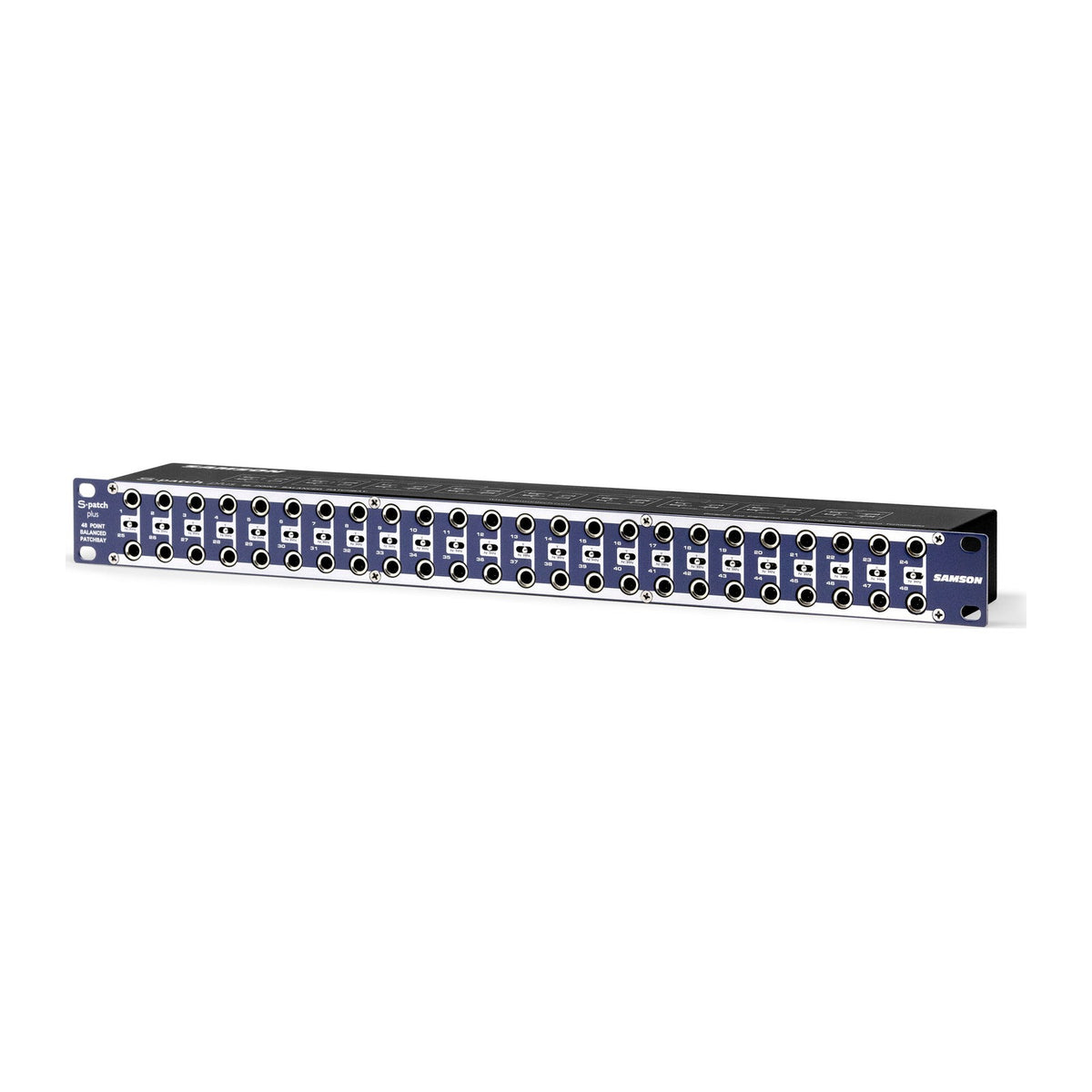

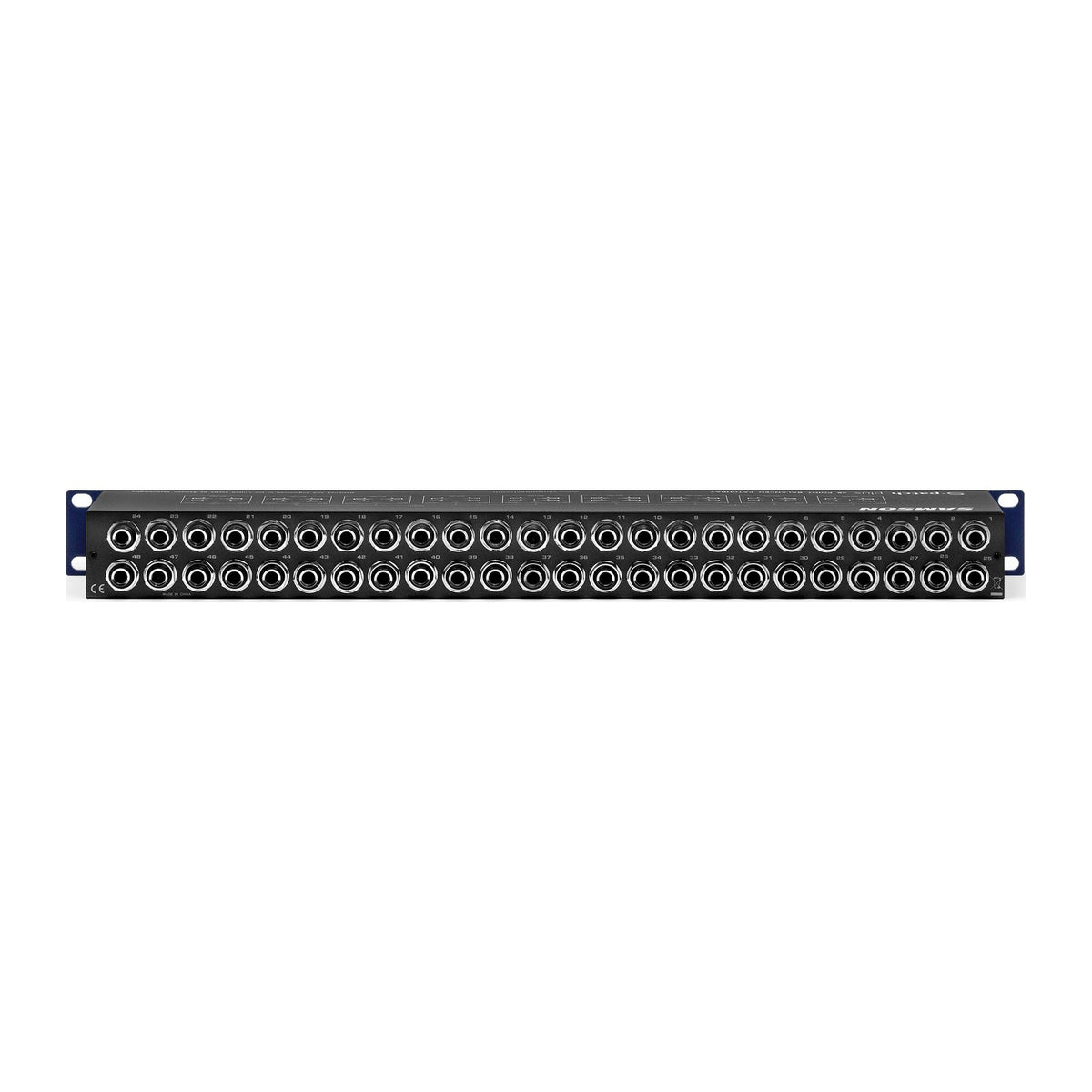

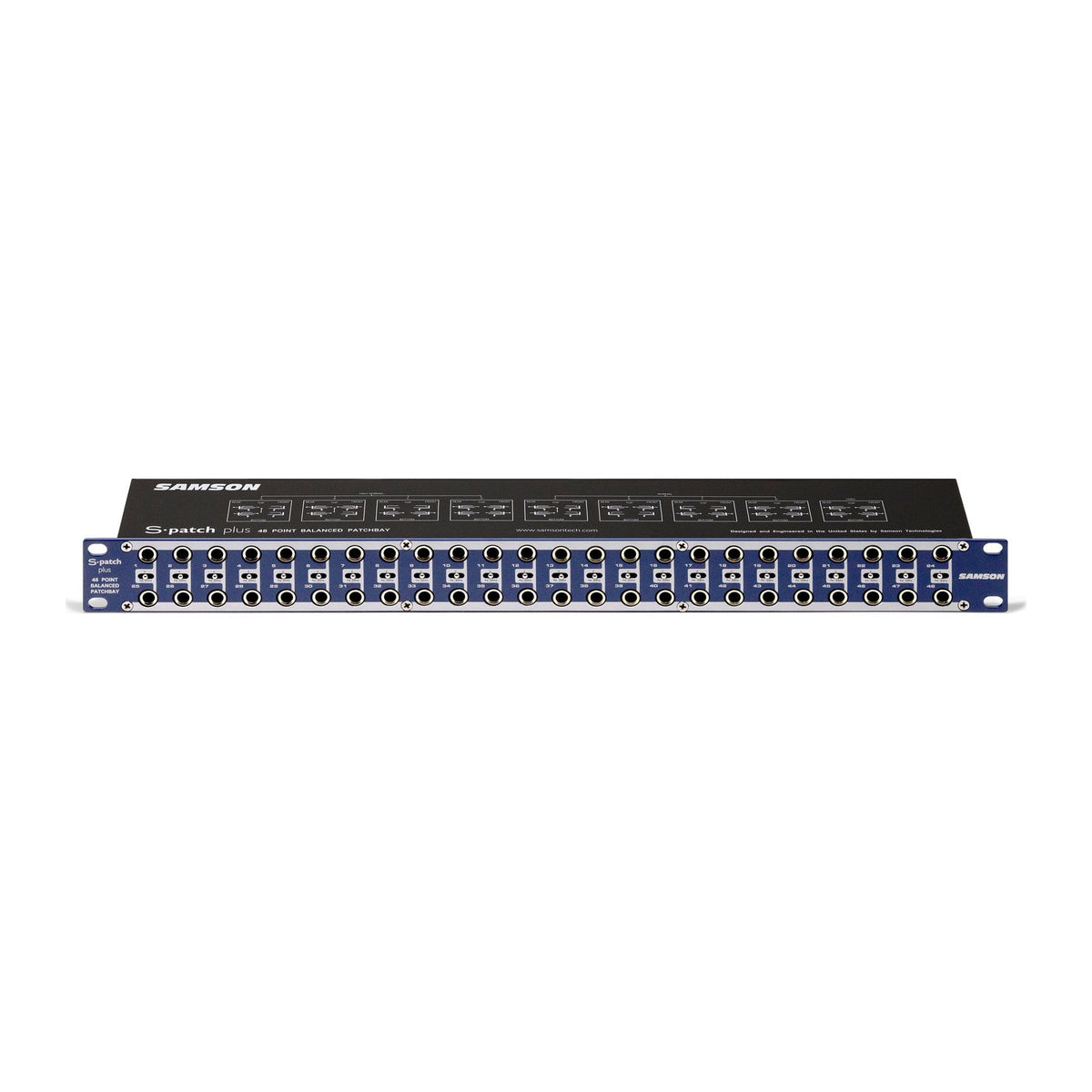

The unit contains 24 patch pairs, with 48 front-panel and 48 rear-panel 1/4-inch TRS connectors. A three-position switch on the front of every pair selects Normal, Half-normal, or Thru operation. Individual channels can therefore retain a default route, provide a parallel signal tap, or work as direct front-to-rear connections.

In Normal mode, inserting a plug at the front breaks the default route. Half-normal mode allows the upper front jack to take a copy of the signal without interrupting the rear connection, while using the lower front jack replaces the route. In Thru mode, the front and rear jacks in each row connect directly with no internal link between the upper and lower rows.

The S-Patch Plus is intended for balanced line-level audio on TRS connections. It is passive and requires no power. Routing phantom-powered microphone lines or loudspeaker-level signals through a patchbay should be avoided unless every part of the system is expressly designed for that use.

Main Features

• 48 fully balanced 1/4-inch TRS connectors on the front and 48 corresponding connectors on the rear.
• Twenty-four patch pairs in a single 19-inch rack space.
• Normal, Half-normal, and Thru modes can be selected independently for every pair.
• Front-panel mode switches allow configuration changes without removing the unit from the rack.
• Passive design requires no electrical power.

Technical Specifications

• Type: balanced analogue audio patchbay
• Patch pairs: 24
• Front connectors: 48 × 1/4-inch TRS
• Rear connectors: 48 × 1/4-inch TRS
• Routing modes: Normal, Half-normal, and Thru
• Rack format: 19-inch, 1U
• Power requirement: none
• Dimensions: 44.45 × 482.6 × 68.5 mm
• Product weight: 1.72 kg

What’s Included

• Samson S-Patch Plus patchbay

Who Is It For

The S-Patch Plus is suitable for recording studios, broadcast workstations, rehearsal spaces, and installed systems where multiple line-level TRS connections need frequent rerouting. Patch cables are not included and should be selected to match the connector type and required length of the system.
