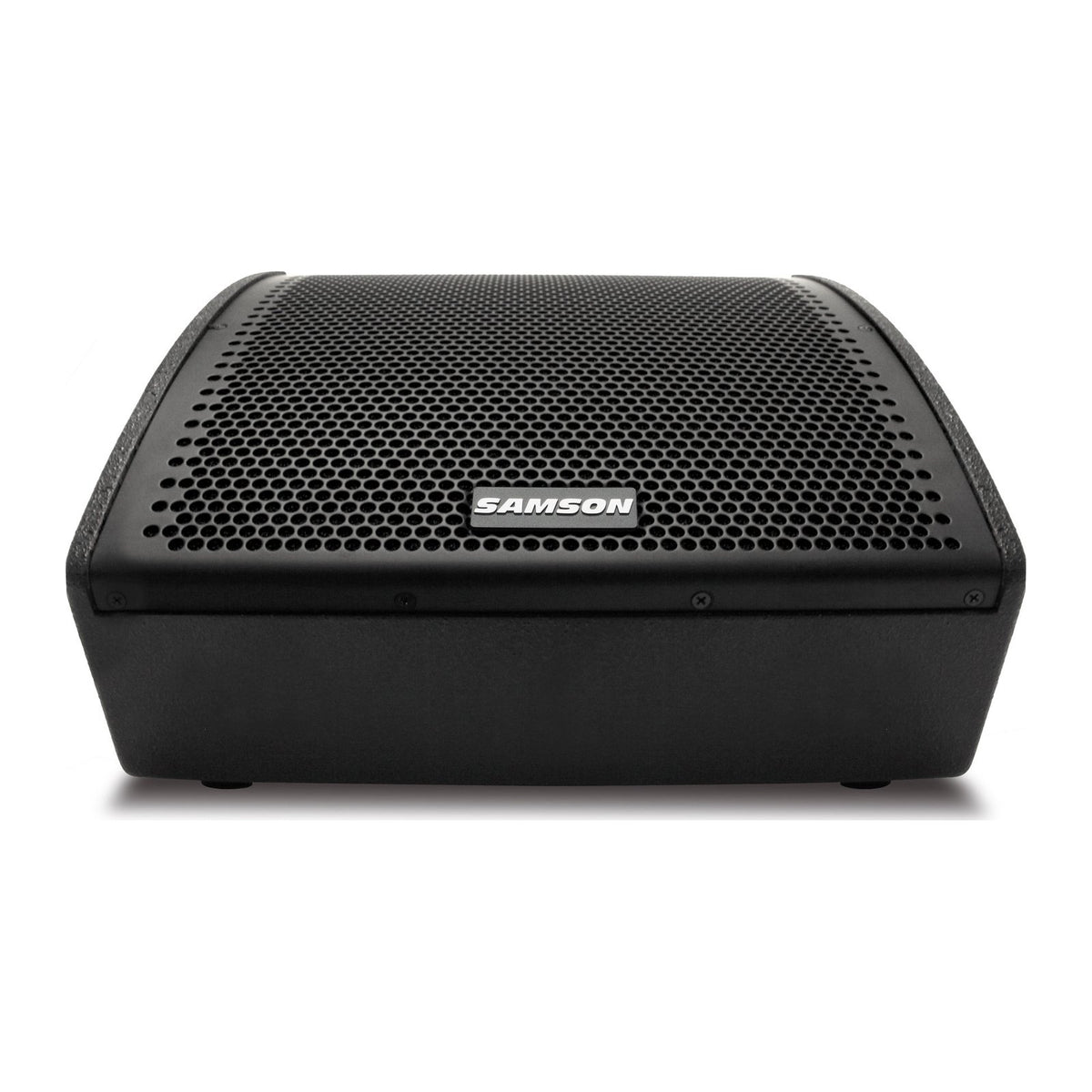

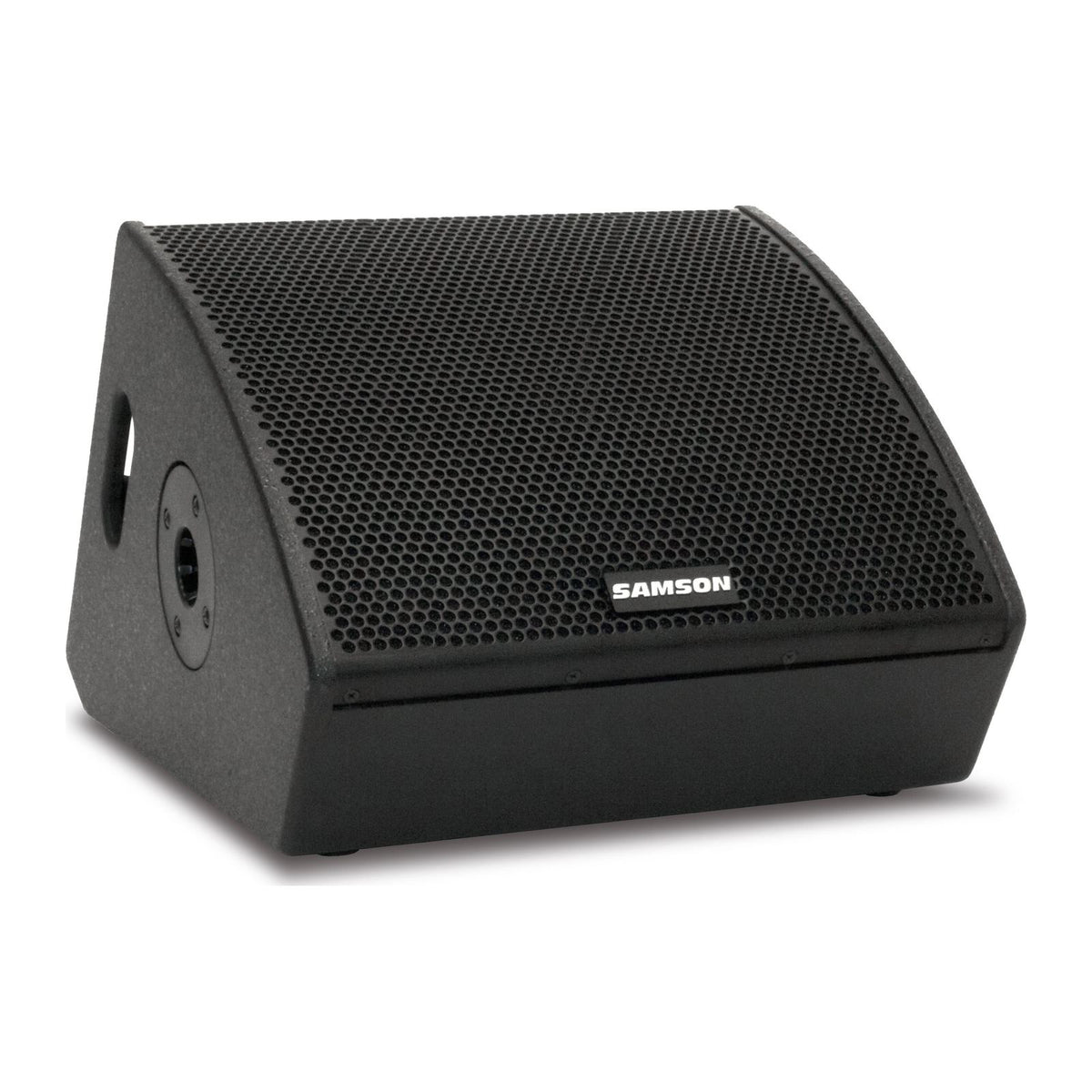

Samson RSXM10A Powered Stage Monitor

Samson RSXM10A Powered Stage Monitor

Samson RSXM10A is a compact two-way powered stage monitor built around a 10-inch low-frequency driver and a coaxially mounted 1-inch high-frequency driver. It is intended for musician, vocalist, and DJ monitoring, while its Monitor/FOH switch also prepares the cabinet for use as a compact front-of-house speaker.

The Class D amplifier delivers 350 watts RMS / 700 watts peak to the low-frequency section and 50 watts RMS / 100 watts peak to the high-frequency section. Samson specifies a 60 Hz to 20 kHz response, 125 dB maximum SPL at one metre, and 70° × 70° coverage. The coaxial arrangement places both frequency bands on a common acoustic axis.

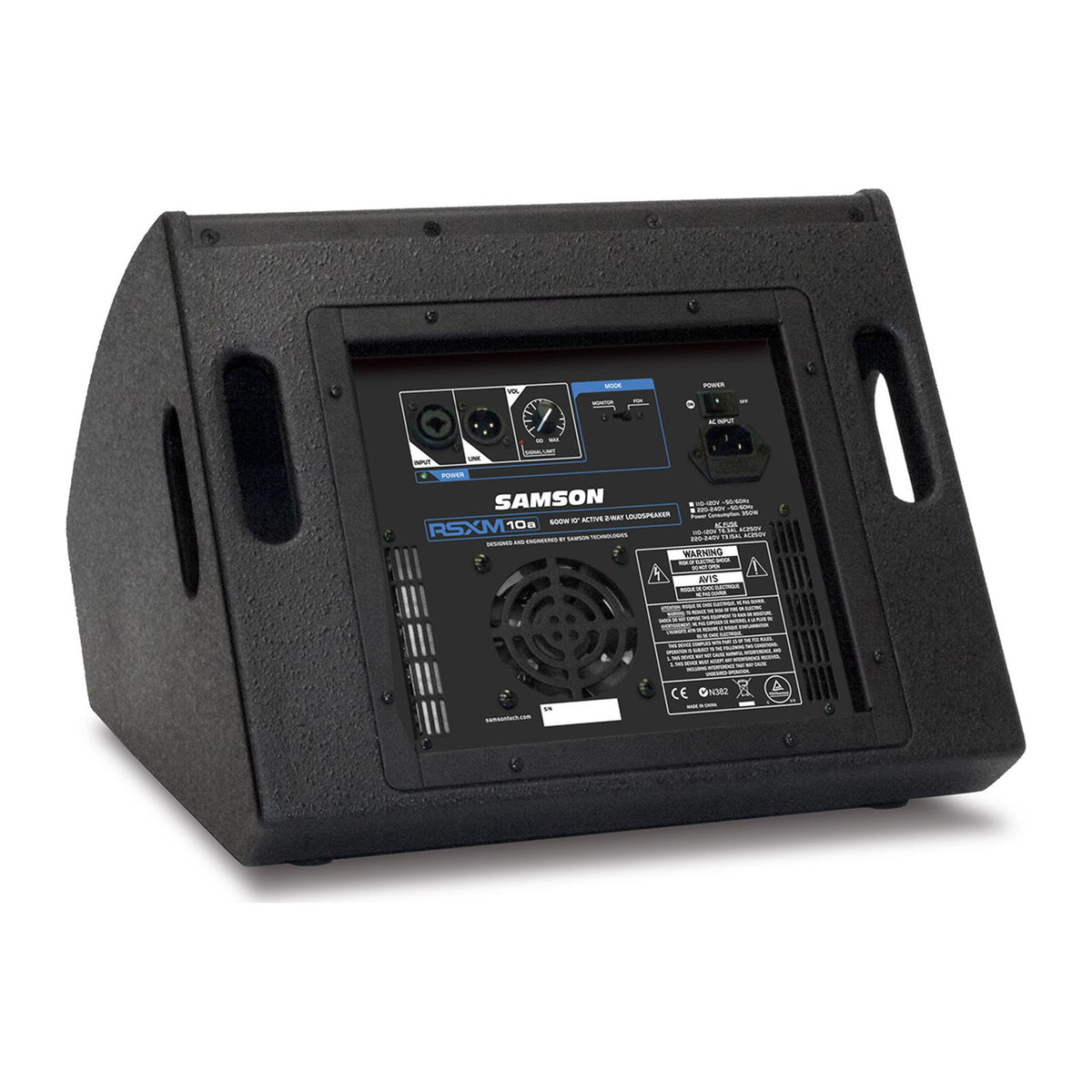

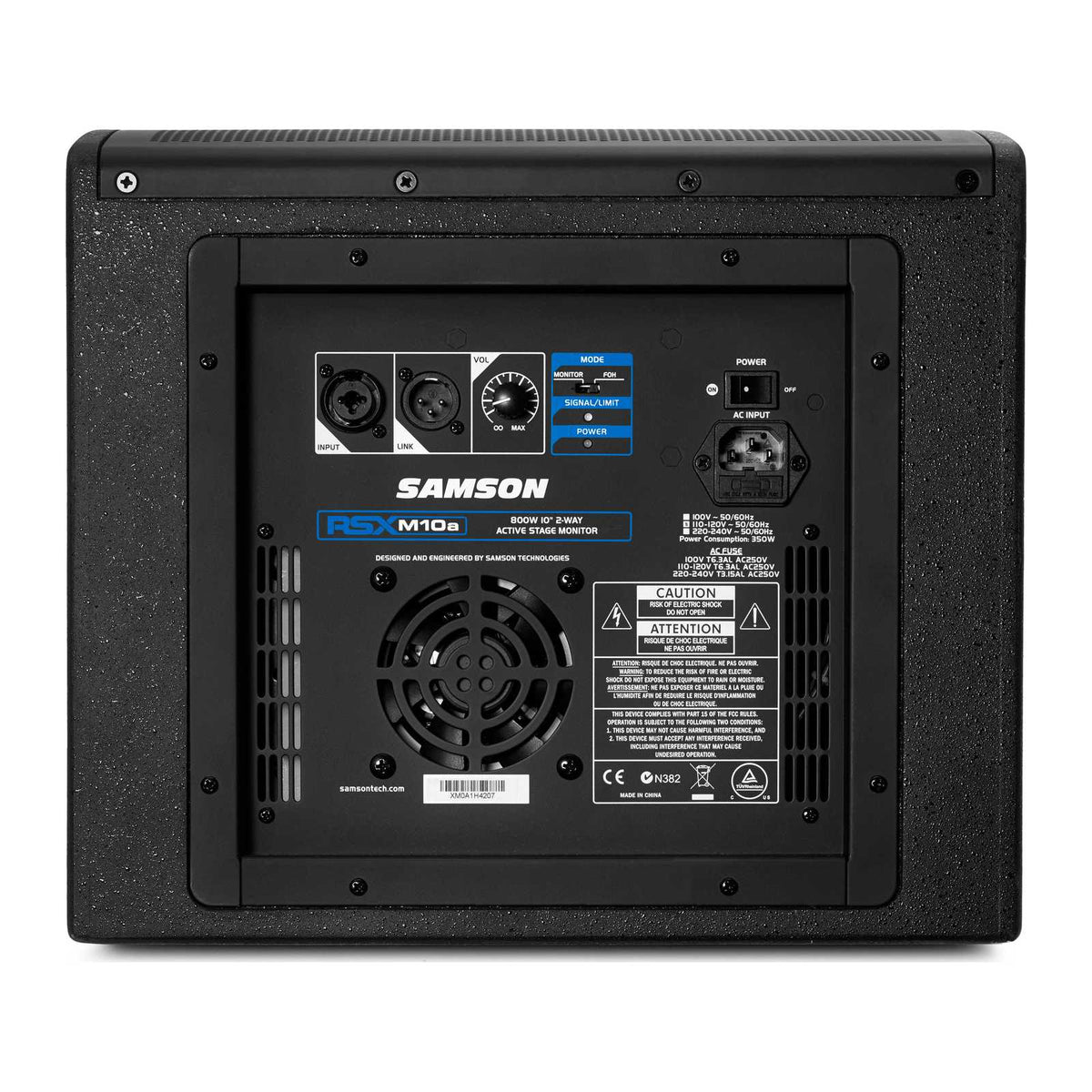

A balanced combination XLR/1/4-inch input accepts microphone- or line-level sources, and a balanced XLR Link output passes the signal to another speaker. A single Volume control sets the input level. The Monitor/FOH switch changes the system voicing for floor-monitor placement or upright main-speaker use.

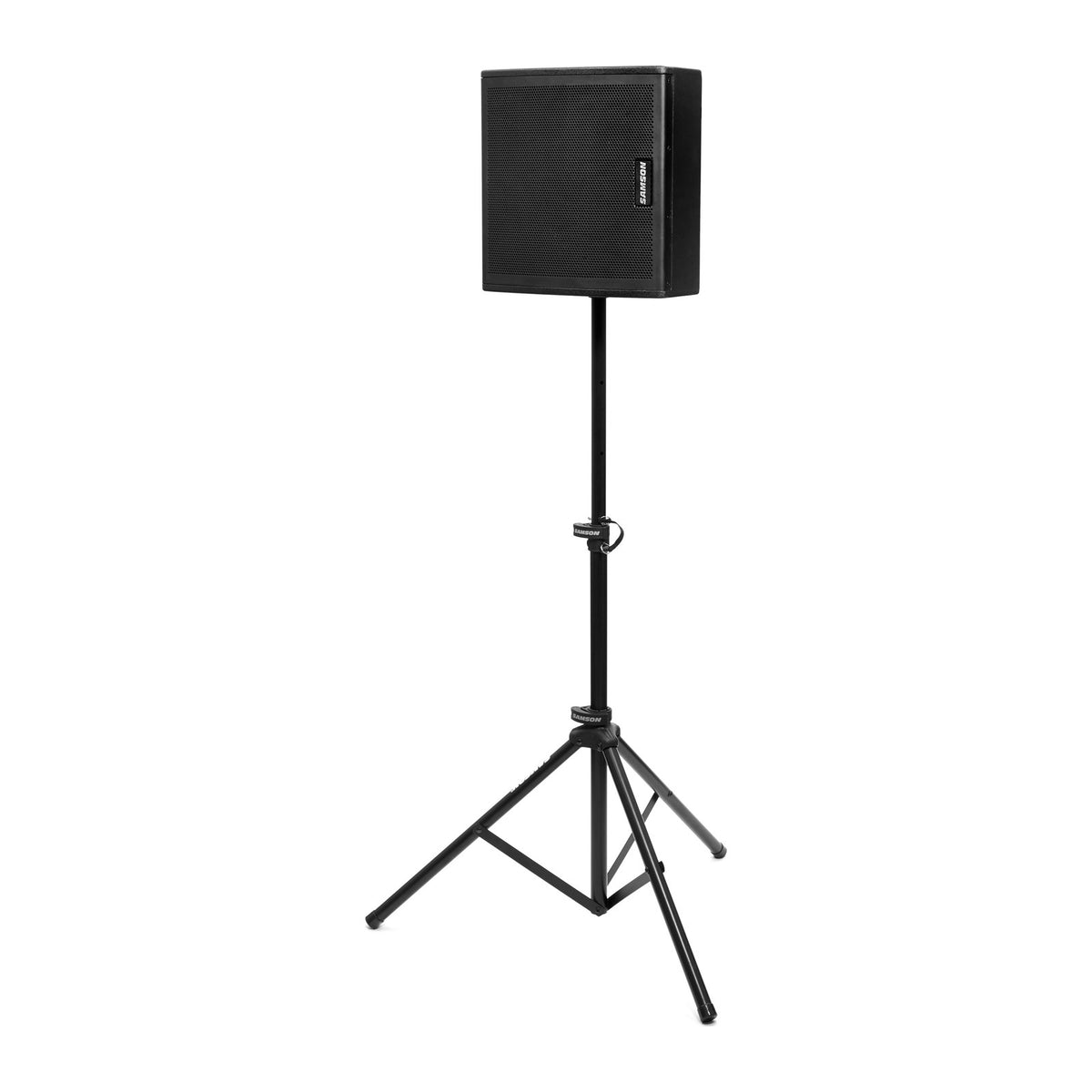

The wooden enclosure is protected by a perforated steel grille and includes two side handles. An integrated 1 3/8-inch pole socket fits a standard speaker stand. The RSXM10A has no internal battery and requires AC power.

Main Features

• Coaxial two-way design with a 10-inch woofer and 1-inch high-frequency driver.
• 800 watts of combined peak Class D amplifier power.
• 125 dB maximum SPL with 70° × 70° coverage.
• Monitor/FOH switch adapts the voicing for wedge or upright placement.
• Combination XLR/1/4-inch input and balanced XLR Link output.
• Wooden enclosure with steel grille, two handles, and an integrated pole socket.

Technical Specifications

• Type: powered two-way coaxial stage monitor
• LF amplifier output: 350 W RMS / 700 W peak
• HF amplifier output: 50 W RMS / 100 W peak
• Low-frequency driver: 10-inch woofer with 2-inch voice coil
• High-frequency driver: 1-inch driver with 1-inch voice coil
• Frequency response: 60 Hz to 20 kHz (-3 dB)
• Maximum SPL: 125 dB at 1 m
• Coverage: 70° × 70°
• Crossover: 3.5 kHz, 12 dB/octave
• Input: balanced combination XLR/1/4-inch
• Output: balanced XLR Link
• Voicing modes: Monitor and FOH
• Pole socket: 1 3/8-inch (35 mm)
• Dimensions: 362.5 × 350.6 × 327 mm
• Product weight: 12.55 kg

What’s Included

• Samson RSXM10A powered stage monitor

Who Is It For

The RSXM10A is designed for bands, singers, DJs, and event technicians who need a compact self-powered floor monitor. It can be raised on a stand in FOH mode, but its input section is deliberately simple; a separate mixer is required when several sources need to be combined.
