Samson MD1 Pro Mono Passive Direct Box

Samson MD1 Pro Mono Passive Direct Box

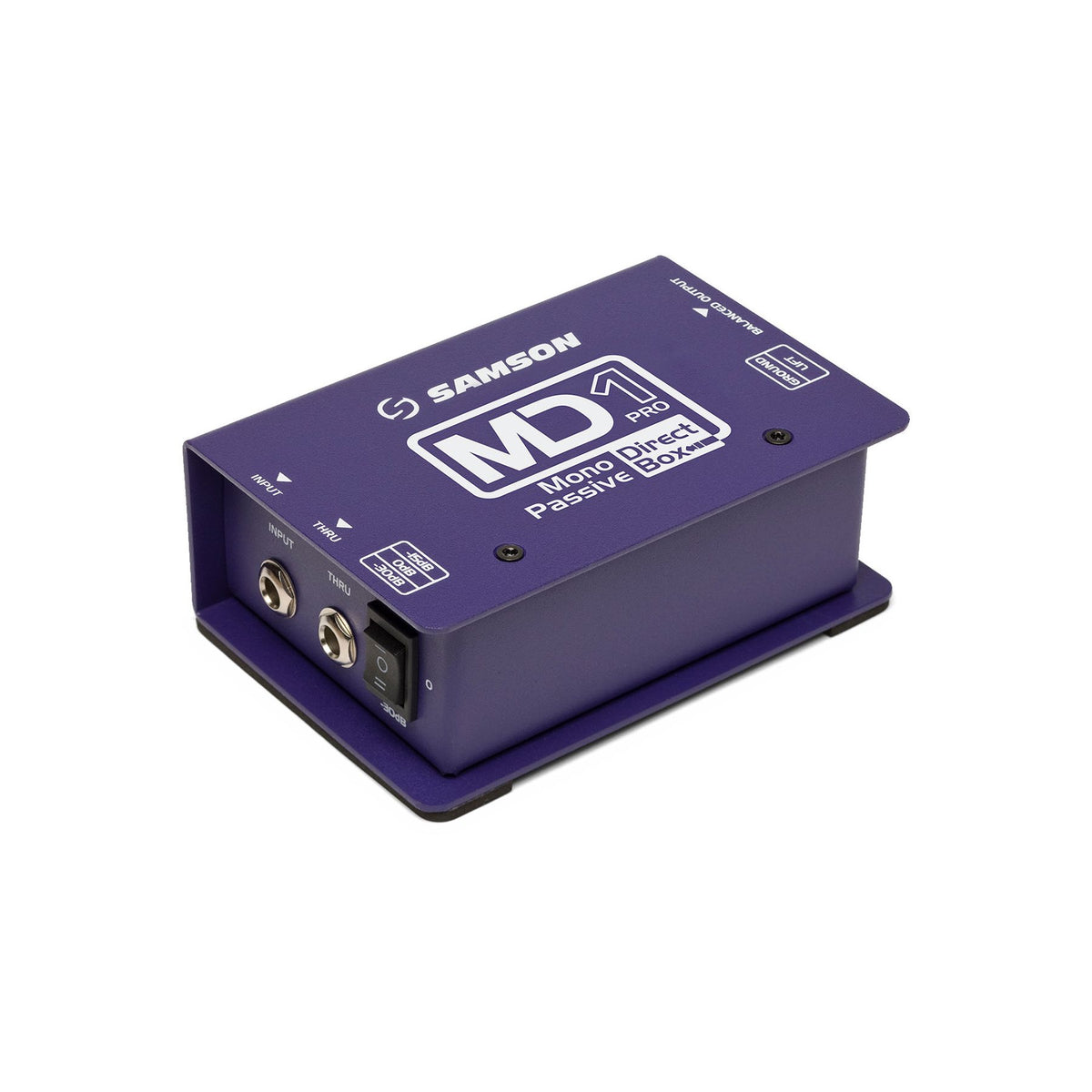

Samson MD1 Pro is a single-channel passive direct box that converts an unbalanced instrument, line-level, or correctly attenuated speaker-level signal to a balanced low-impedance output. It provides a direct connection from a guitar, bass, keyboard, or other source to a microphone input on a mixing console or audio interface.

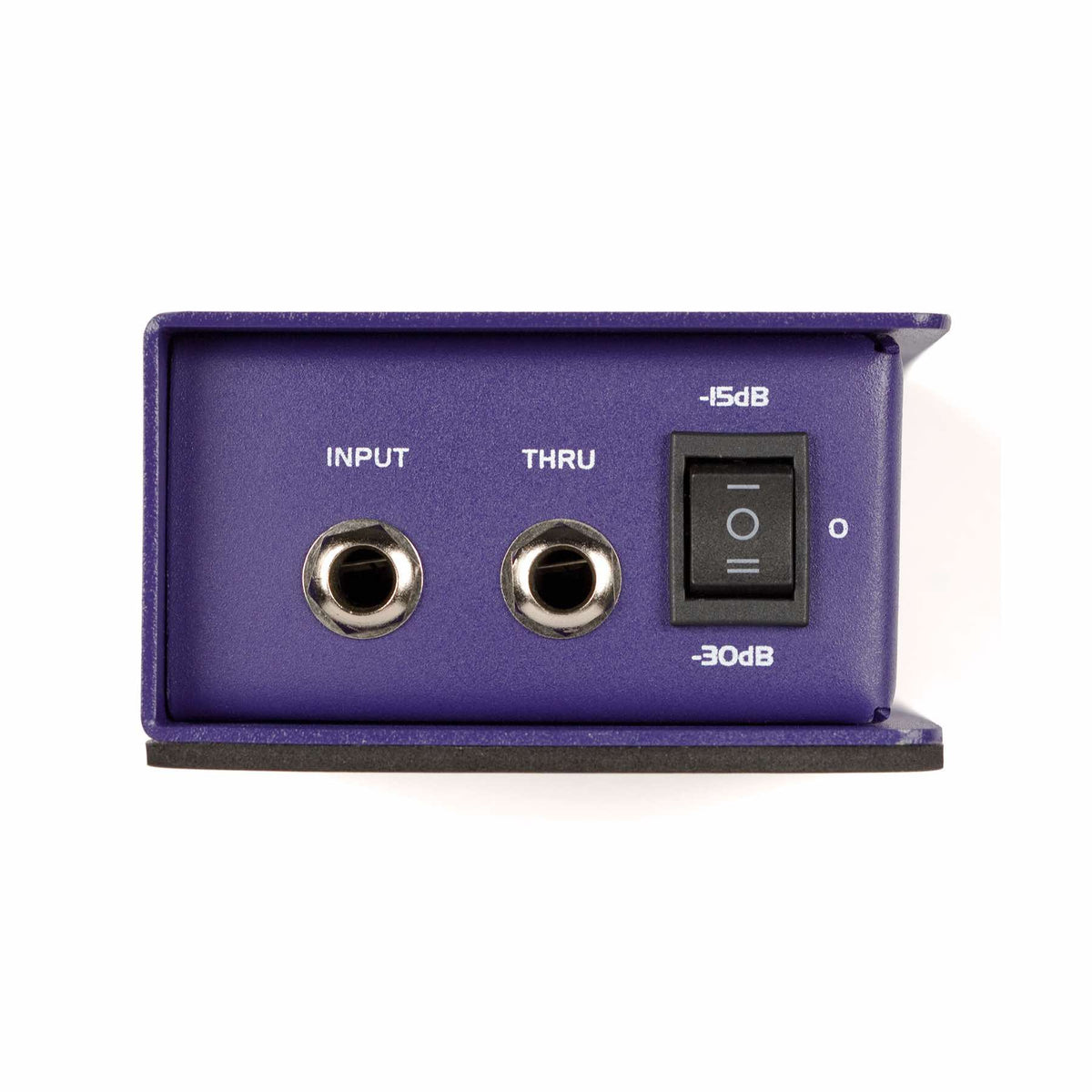

The 1/4-inch TS Input accepts the source, while a parallel Thru jack can feed the same signal to a stage amplifier or monitor. The balanced XLR output is intended for the longer cable route to the console, where a low-impedance balanced connection is less susceptible to interference than an unbalanced line.

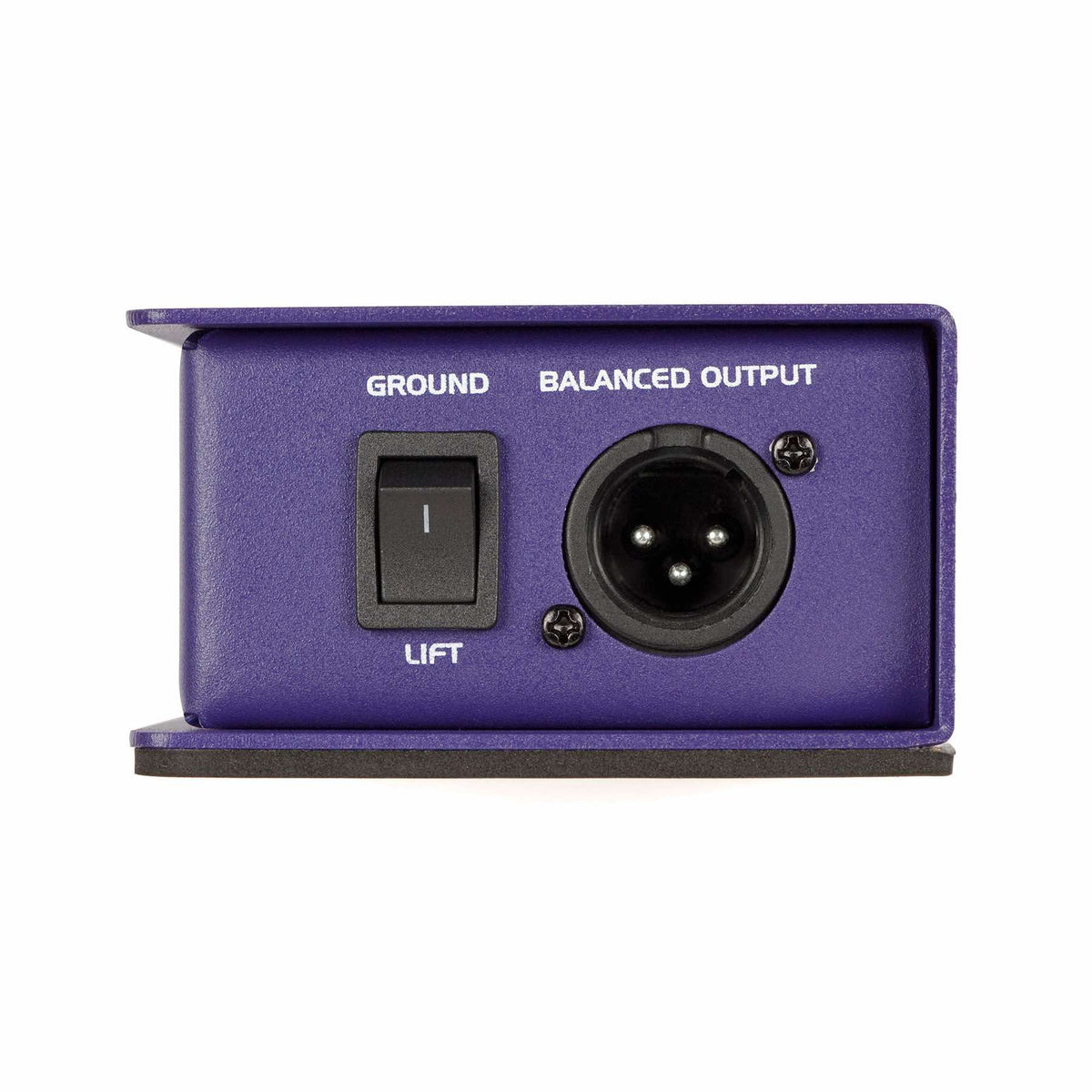

An STLX transformer with Faraday and Mu-Metal shielding provides galvanic isolation. Ground Lift disconnects XLR pin 1 when a ground loop introduces hum. The three-position pad selects 0, -15, or -30 dB, allowing the input to accommodate instrument, line, and higher-level amplifier signals.

A speaker output may be connected only after the pad has been set to -30 dB. Samson specifies an input capability of up to 40 V in this mode, and the amplifier, loudspeaker, and DI wiring instructions must be followed. The passive MD1 Pro does not boost the signal and requires no battery or phantom power.

Main Features

• One passive channel for instrument, line-level, or attenuated speaker-level sources.
• Parallel Thru output keeps a stage amplifier or monitor connected to the original source.
• Shielded STLX transformer helps reject hum and radio-frequency interference.
• 0, -15, and -30 dB pad settings match the input to different signal levels.
• A 14-gauge steel enclosure protects the connectors and internal components.

Technical Specifications

• Type: mono passive direct box
• Frequency response: 18 Hz to 40 kHz, ±0.1 dB
• Maximum input: +20 dBu at 0.35% THD
• Dynamic range: greater than 100 dB at the balanced output
• Noise floor: -117 dB
• Total harmonic distortion: less than 0.03% from 20 Hz to 40 kHz
• Input impedance: 400 kΩ
• Output impedance: 250 Ω, ±20%
• Transformer ratio: 15:1
• Input pad: 0 dB/-15 dB/-30 dB
• Connections: 1/4-inch TS Input and Thru, balanced 3-pin XLR output
• Construction: 14-gauge steel chassis
• Dimensions: 127 × 86 × 49.6 mm
• Product weight: 667 g

What’s Included

• Samson MD1 Pro mono passive direct box

Who Is It For

The MD1 Pro is designed for musicians, studios, and live sound technicians who need one passive channel for a guitar, bass, keyboard, or line-level source. It is particularly useful when the instrument must remain connected to a stage amplifier through the Thru jack while a separate balanced XLR feed goes to the console.
