Samson MCD2 Pro Stereo Passive Media DI Box

Samson MCD2 Pro Stereo Passive Media DI Box

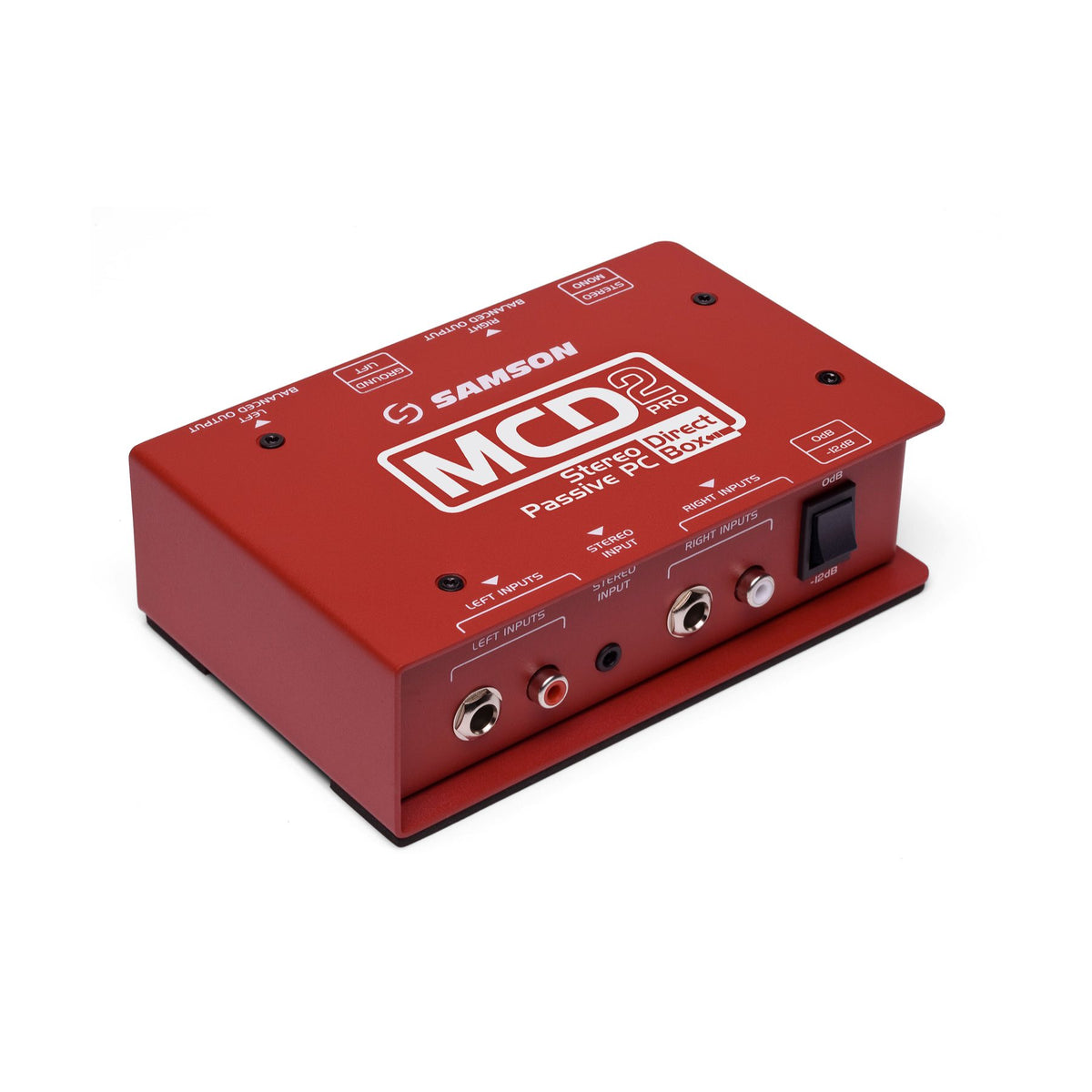

Samson MCD2 Pro is a two-channel passive direct box designed to connect the unbalanced stereo output of a laptop, phone, media player, or DJ mixer to balanced inputs in a professional sound system. Its passive circuit needs neither a battery nor phantom power, making it straightforward to deploy at events, installations, and recording sessions.

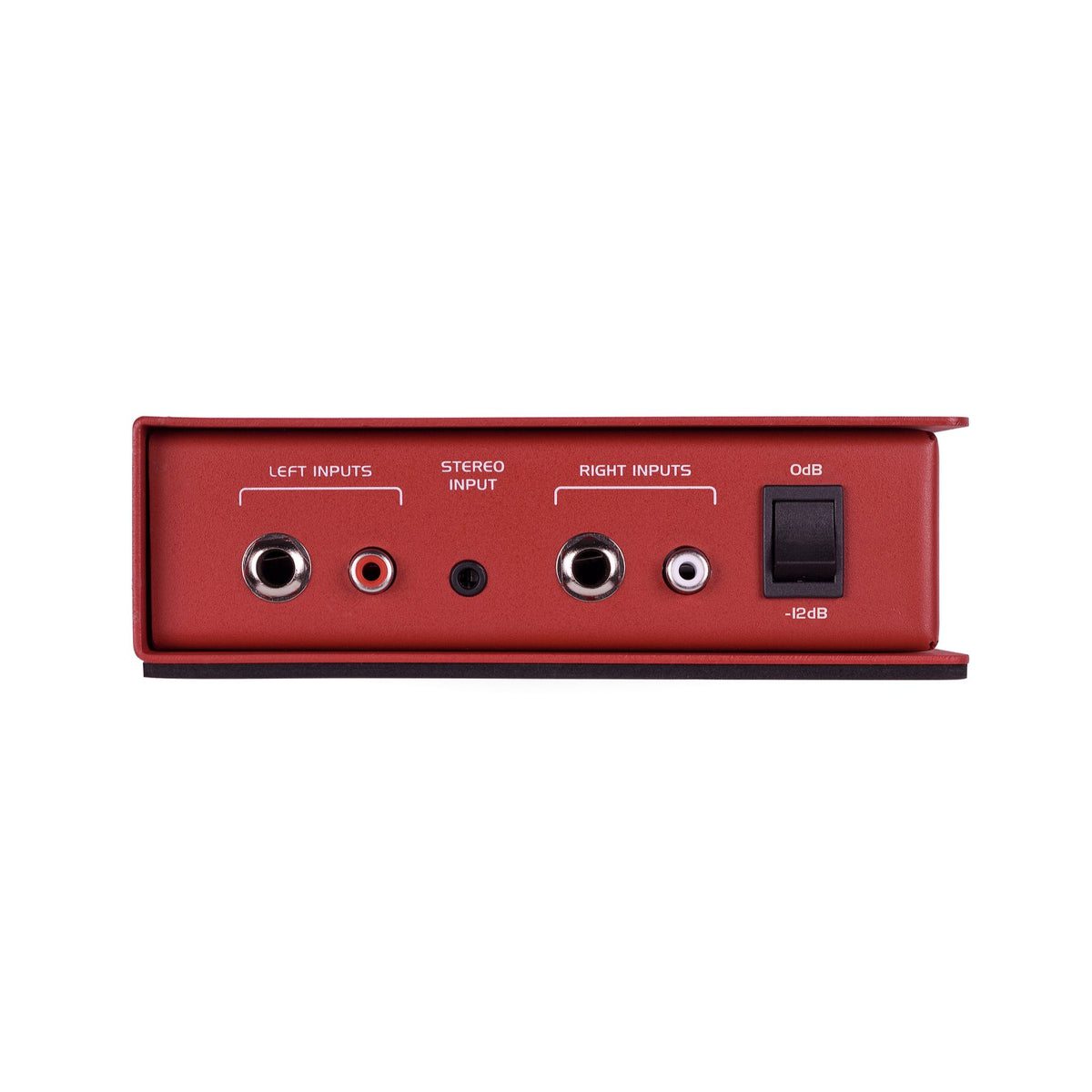

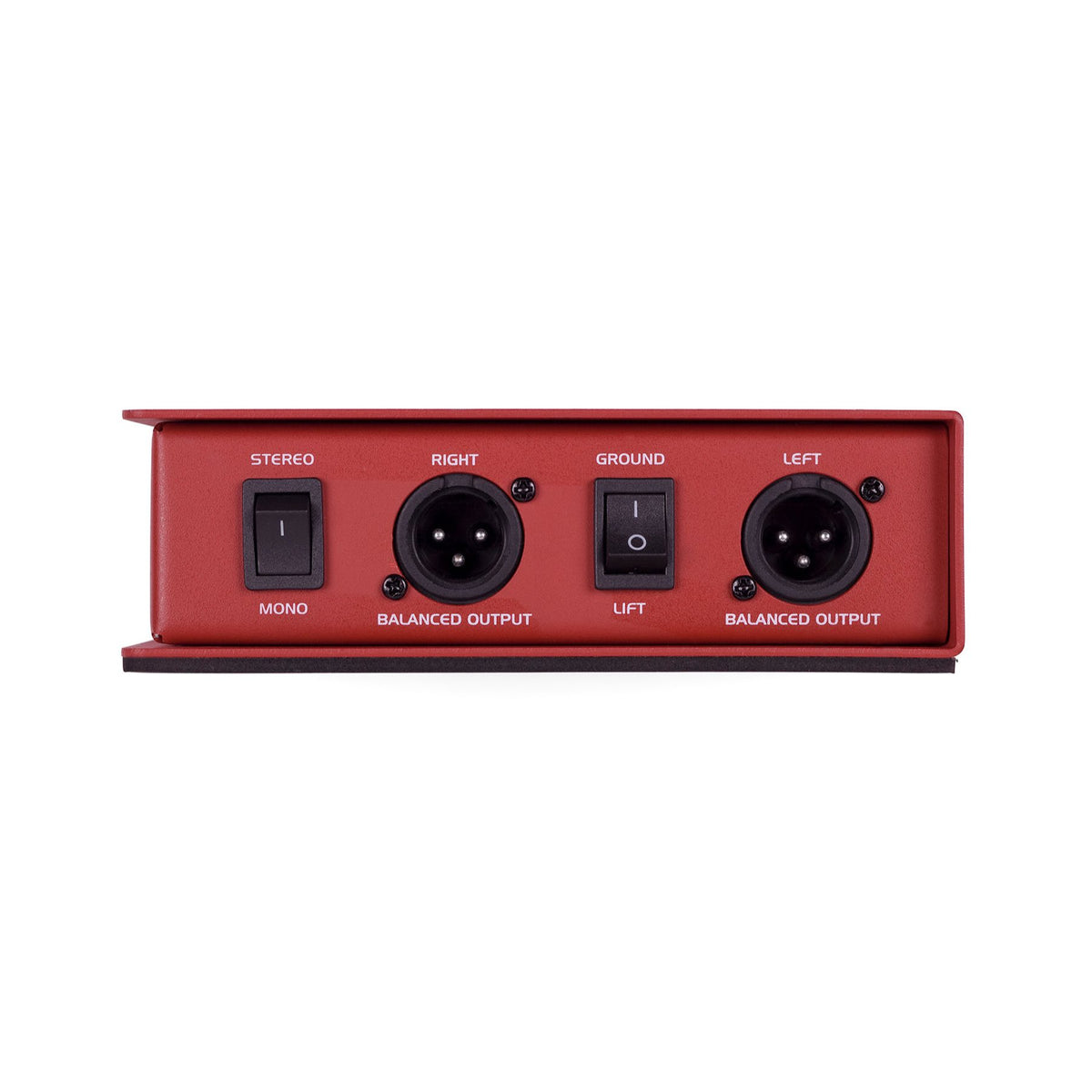

The input panel accepts a pair of 1/4-inch TS sources, left and right RCA connections, or a single 1/8-inch stereo mini jack. Two balanced XLR outputs feed microphone inputs on a console, stage box, or audio interface. A Stereo/Mono switch can preserve separate left and right channels or sum the source when the receiving system is mono.

Two Samson STLX transformers use Mu-Metal shielding to isolate the source and protect the audio path from hum and radio-frequency interference. The Ground Lift switch disconnects XLR pin 1 when a ground loop causes noise, while the 0 dB/-12 dB pad creates headroom for hotter line-level signals.

A 14-gauge steel chassis protects the connectors, switches, and transformers in mobile use. The MCD2 Pro does not provide Thru outputs. If the source must also feed a local monitor or headphone system, that split needs to be made before the DI box or handled by separate routing hardware.

Main Features

• Two passive channels convert unbalanced stereo audio to a pair of balanced XLR signals.
• 1/4-inch TS, RCA, and 1/8-inch stereo inputs accommodate professional and consumer media sources.
• Selectable Stereo/Mono operation keeps the channels separate or sums them for a mono system.
• A 0 dB/-12 dB pad helps manage hotter line-level outputs.
• Mu-Metal-shielded transformers and Ground Lift support low-noise connections over long cable runs.

Technical Specifications

• Type: two-channel passive media direct box
• Frequency response: 18 Hz to 40 kHz
• Inputs: 2 × 1/4-inch TS, 2 × RCA, 1 × 1/8-inch stereo
• Outputs: 2 × balanced 3-pin XLR
• Input pad: 0 dB/-12 dB
• Operating modes: stereo or summed mono
• Transformers: 2 × Samson STLX with Mu-Metal shielding
• Power requirement: none
• Chassis: 14-gauge steel
• Dimensions: 155 × 100 × 45 mm
• Product weight: 957 g

What’s Included

• Samson MCD2 Pro stereo passive media DI box

Who Is It For

The MCD2 Pro is aimed at event technicians, DJs, theatres, schools, conference systems, and installed audio users who need to deliver a computer or media source to a professional mixer over balanced XLR cables. Its inputs are intended for line-level sources, not microphones or powered loudspeaker outputs.
