Polk Audio Signature Elite ES12 Powered Subwoofer

Polk Audio Signature Elite ES12 Powered Subwoofer

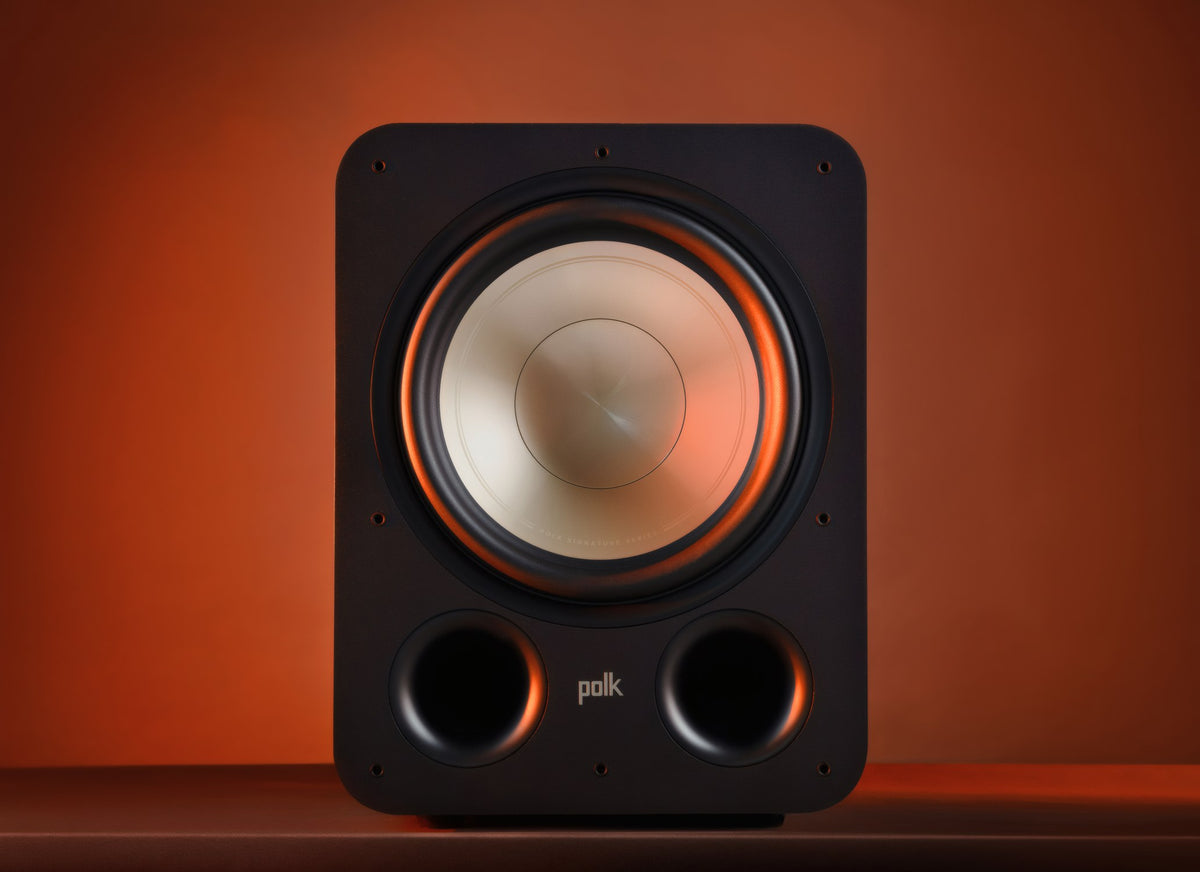

Polk Audio Signature Elite ES12 is a powered subwoofer with a 12-inch driver.

A larger driver and amplifier support home theater and music systems in more spacious rooms, adding deep bass to stereo or multichannel playback.

A 300 W RMS Class D amplifier drives the long-throw woofer. The 32-bit floating-point DSP combines filters designed to minimize group delay with precision limiters for clear bass transients.

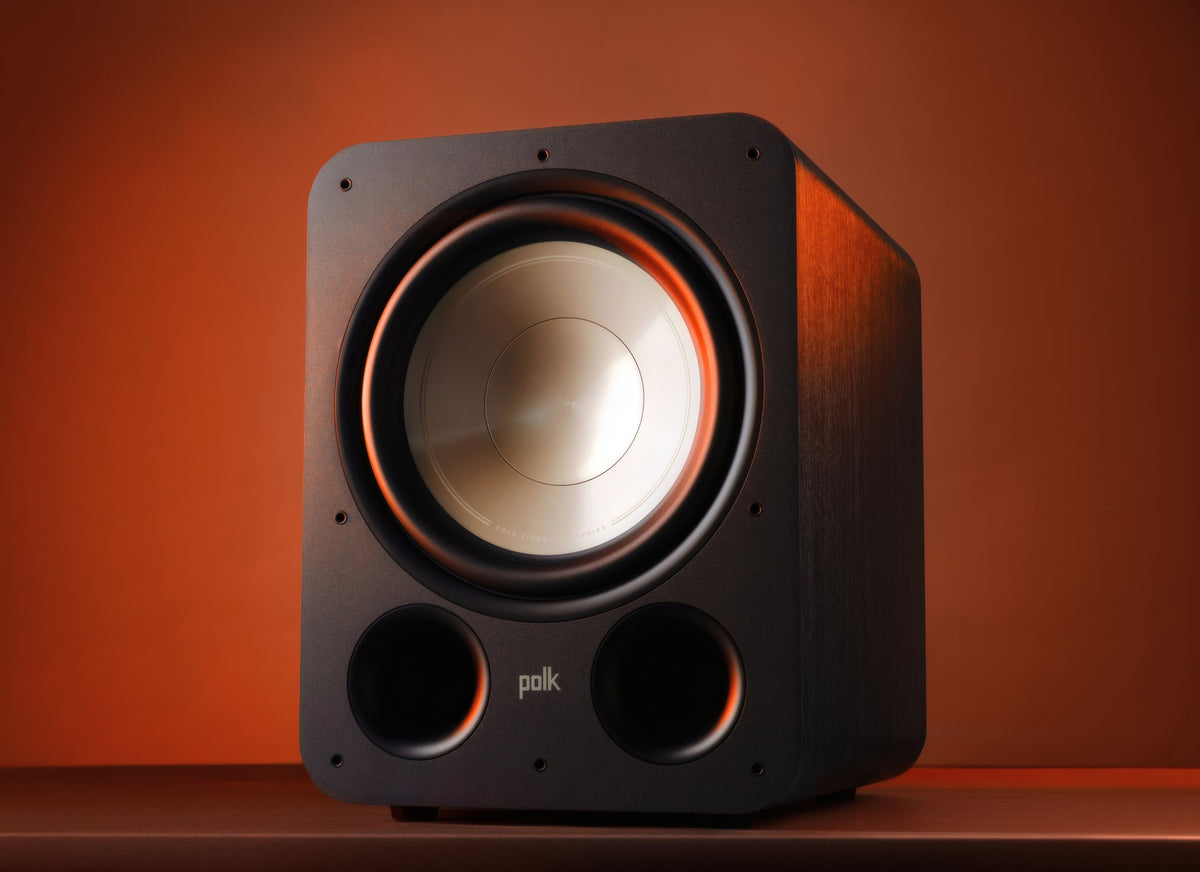

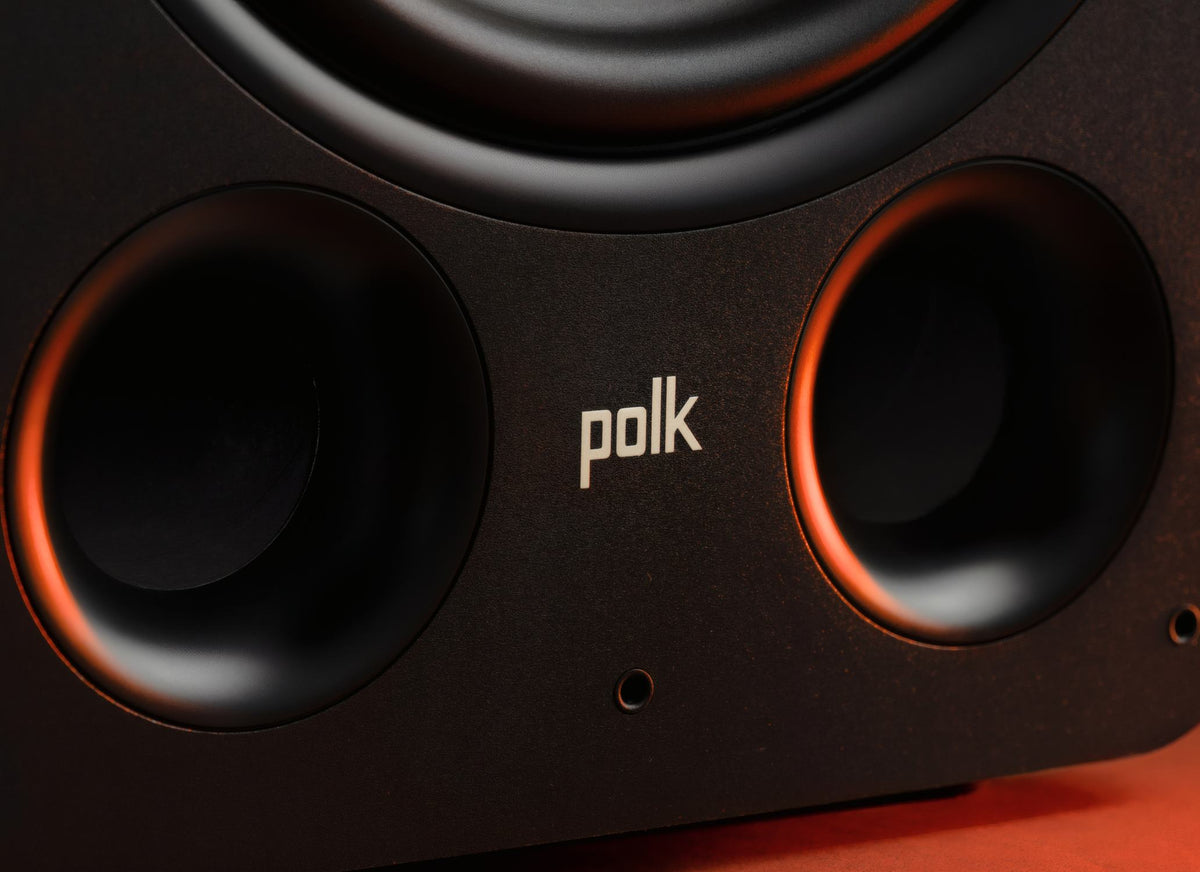

Front-facing Power Port technology reduces airflow turbulence and port noise. FEA-optimized internal bracing reinforces the rigid cabinet to limit unwanted resonances.

A dedicated LFE input connects to a home theater amplifier, while two RCA line-level inputs serve stereo systems. Use a preamplifier output that follows the system volume; a fixed-level tape or record output is unsuitable.

Main Features

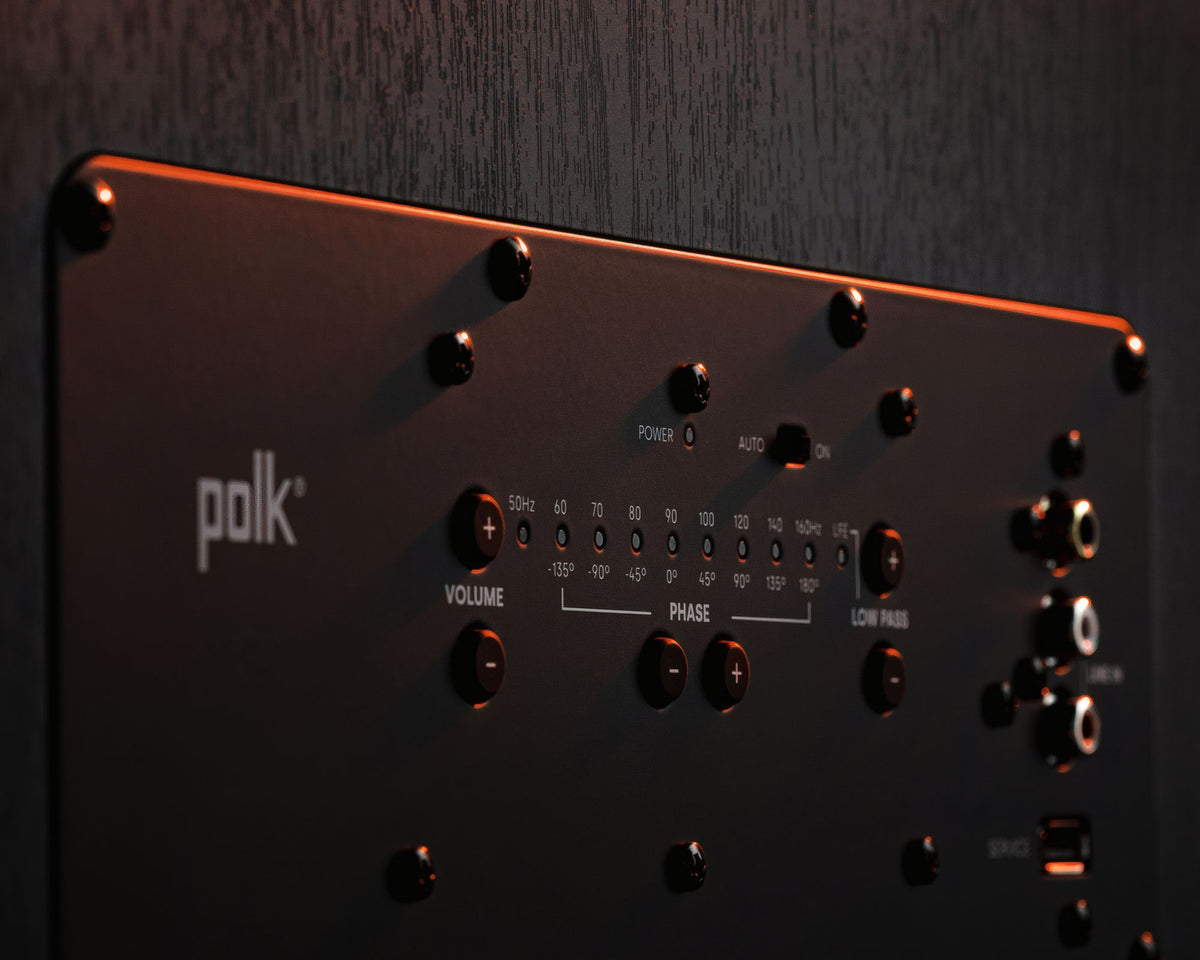

• Time-Smart Phase Control helps blend the subwoofer with the main speakers, with phase adjustments in 45° steps.
• The adjustable fourth-order low-pass filter covers 50–160 Hz. An LFE cable connection bypasses this filter so the home theater amplifier can handle bass management.
• LEDs show the volume, filter and phase settings. Volume is adjustable on a 1–40 scale.
• Auto mode wakes the subwoofer when a signal arrives and enters standby after approximately 20 minutes without audio. An always-on mode is also available.
• Place the subwoofer on its base feet. A wall or corner increases bass output; compare several positions to find the best result in the room.

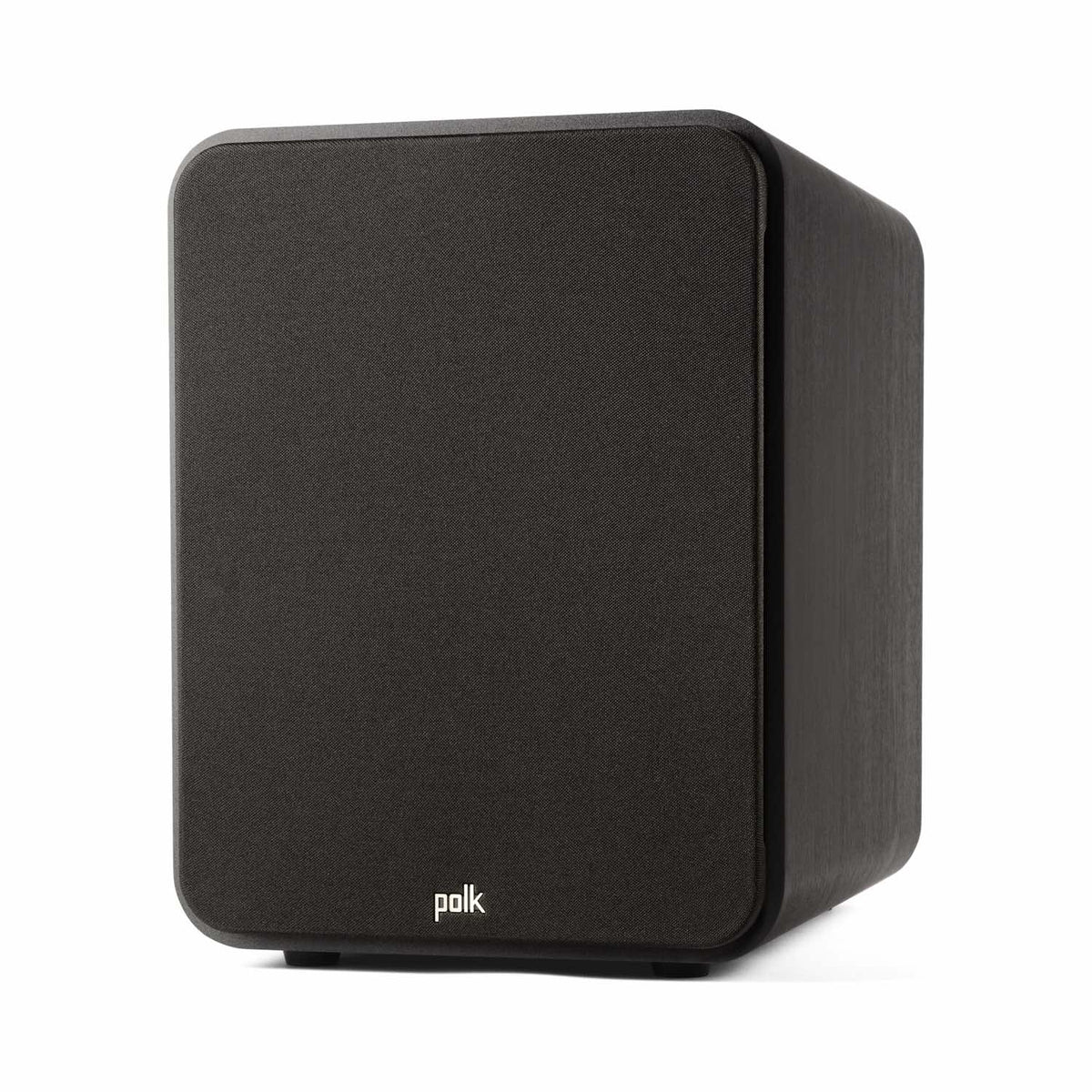

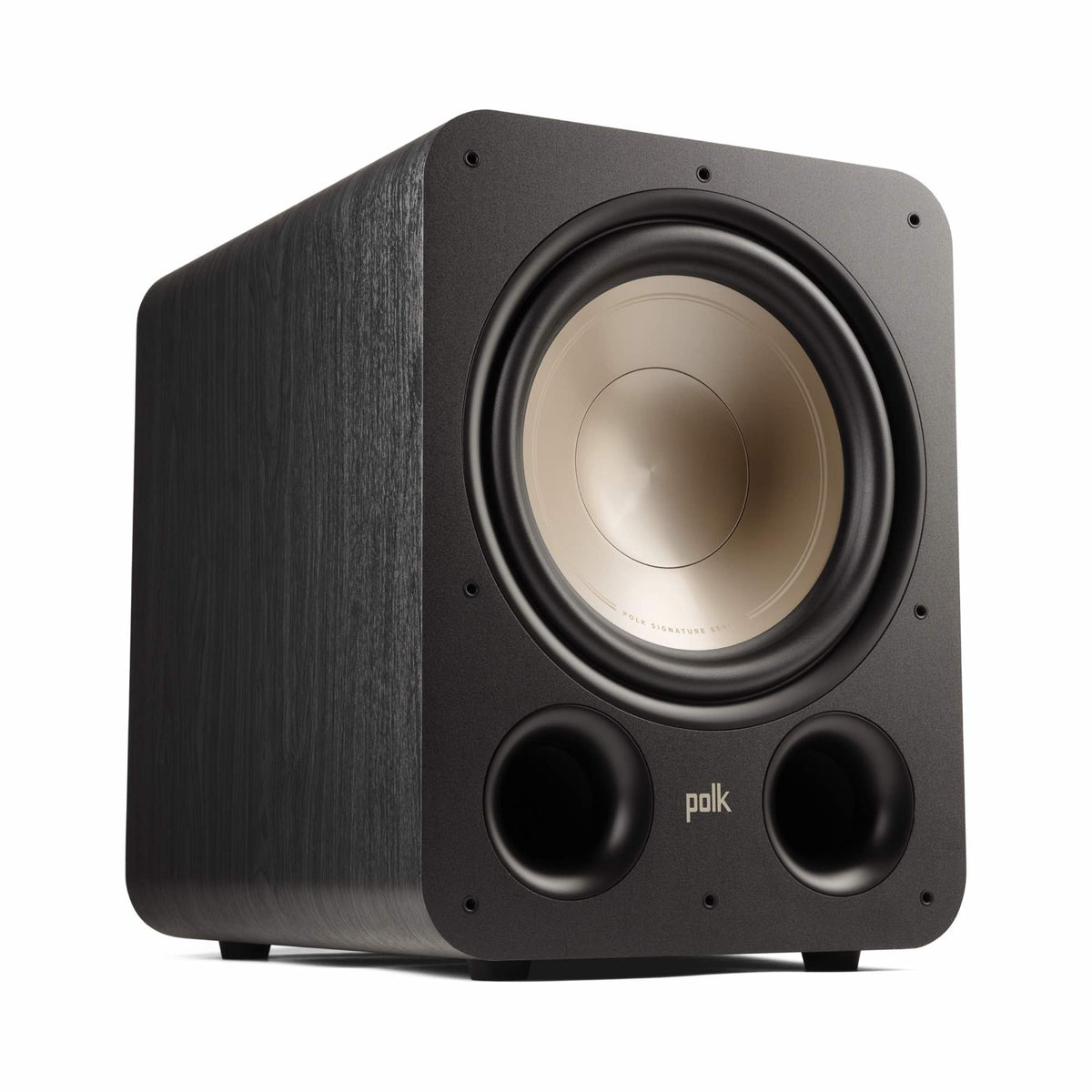

• The removable grille offers a choice of covered or visible driver.
• The black enclosure complements other Signature Elite speakers.
• The rear USB connector is marked SERVICE and is intended for servicing.

Technical Specifications

• Sales Unit: 1 subwoofer

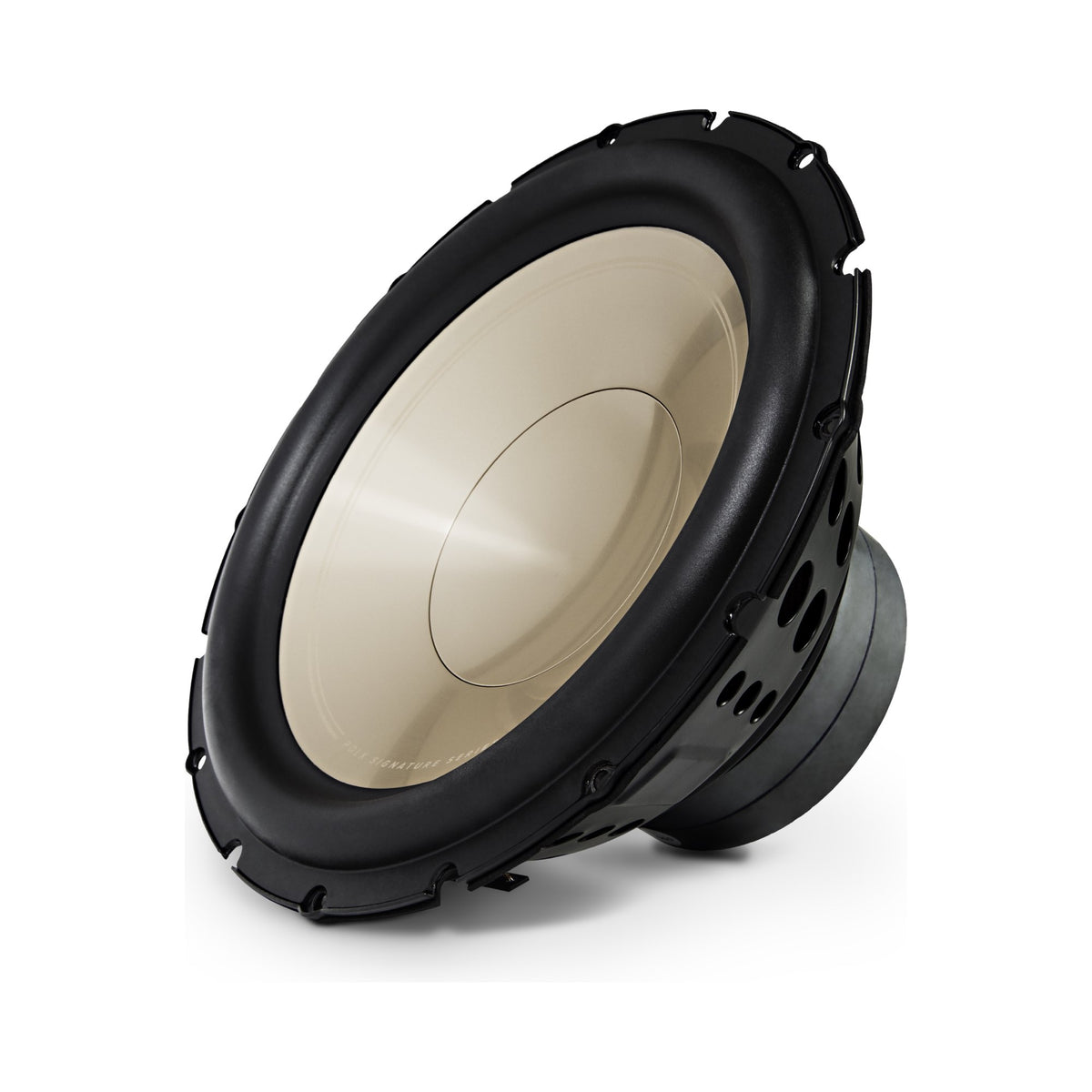

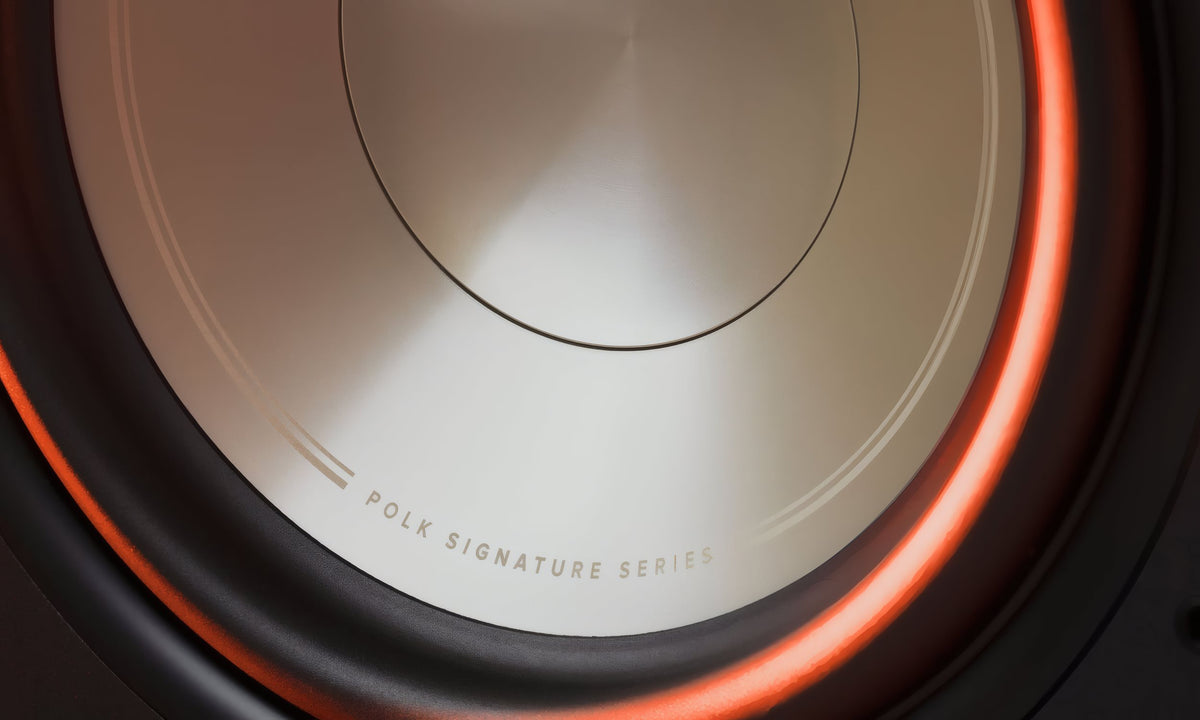

• Driver: 1 × 12-inch mineral-filled polypropylene cone
• Amplifier Power: 300 W RMS, Class D
• Power Port Vents: 2 front-facing
• Frequency Response (−3 dB): 22–250 Hz
• Frequency Response (−10 dB): 18–350 Hz
• Audio Inputs: 1 × LFE RCA, 2 × line-level RCA
• Phase Adjustment: −135° to +180° in 45° steps
• Filter Adjustment: 50–160 Hz and LFE bypass
• Power Supply: 100–240 V, 50/60 Hz

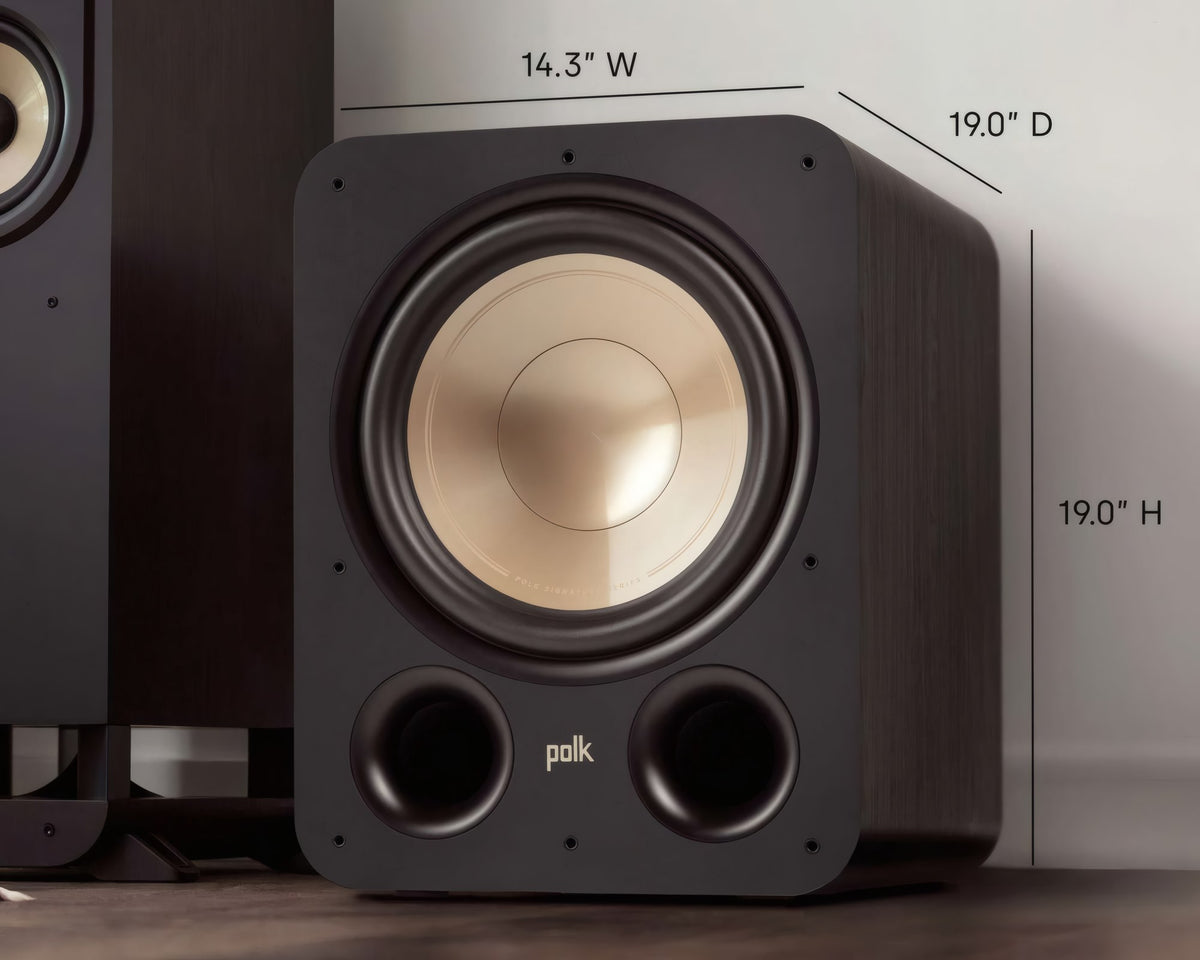

• Dimensions (W × H × D): 362 × 483 × 483 mm
• Weight: 21.6 kg

What’s Included

• 1 × Polk Audio Signature Elite ES12 powered subwoofer
• Removable grille
• Region-appropriate power cable

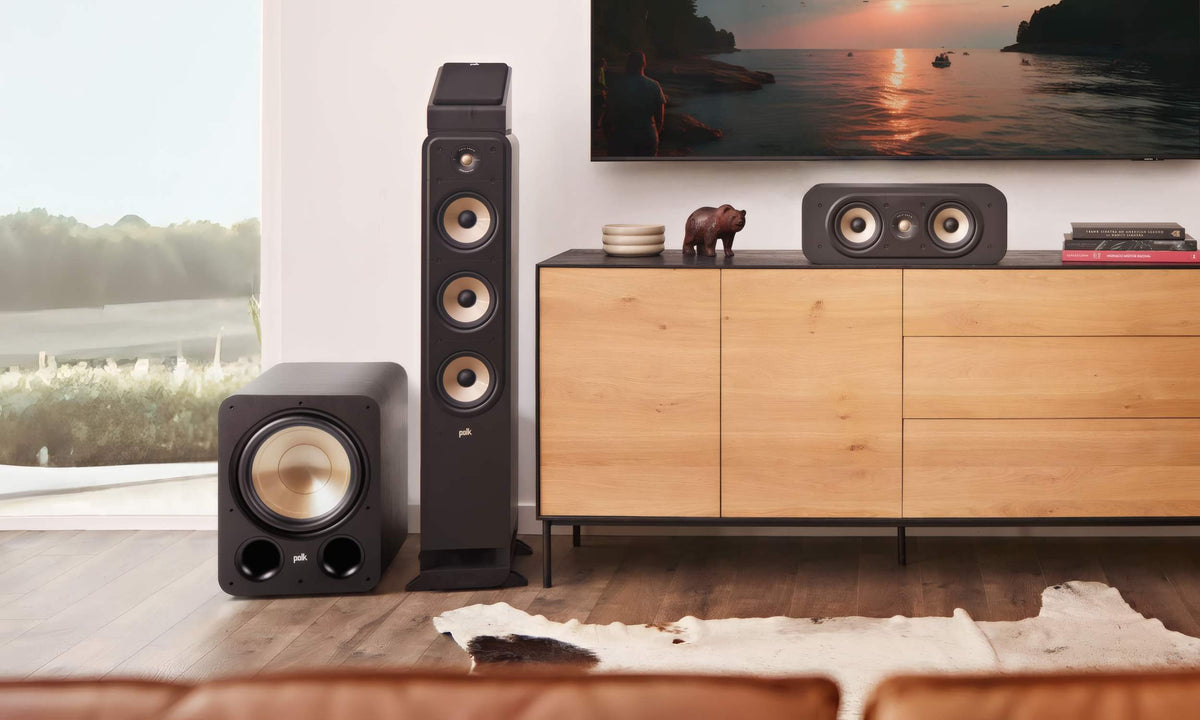

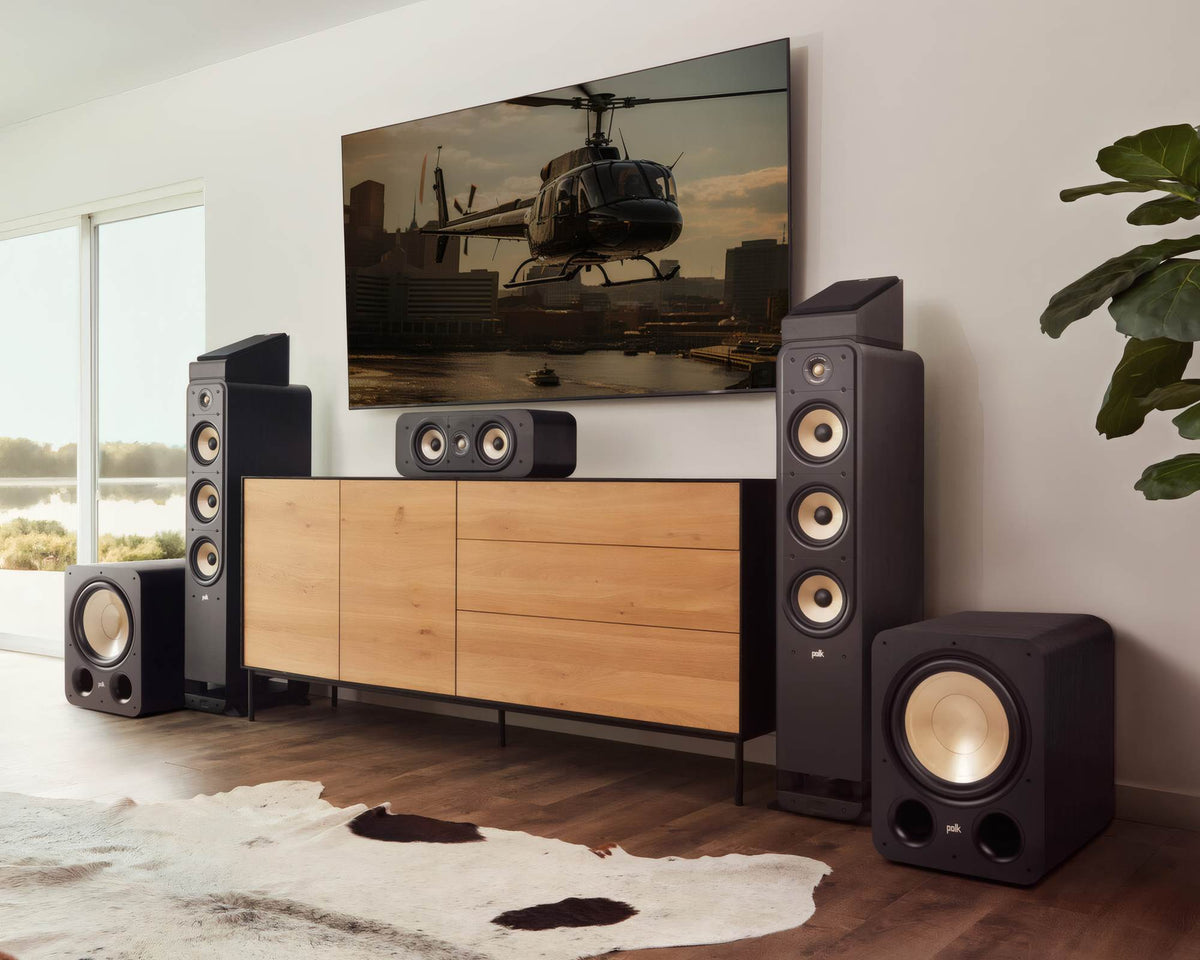

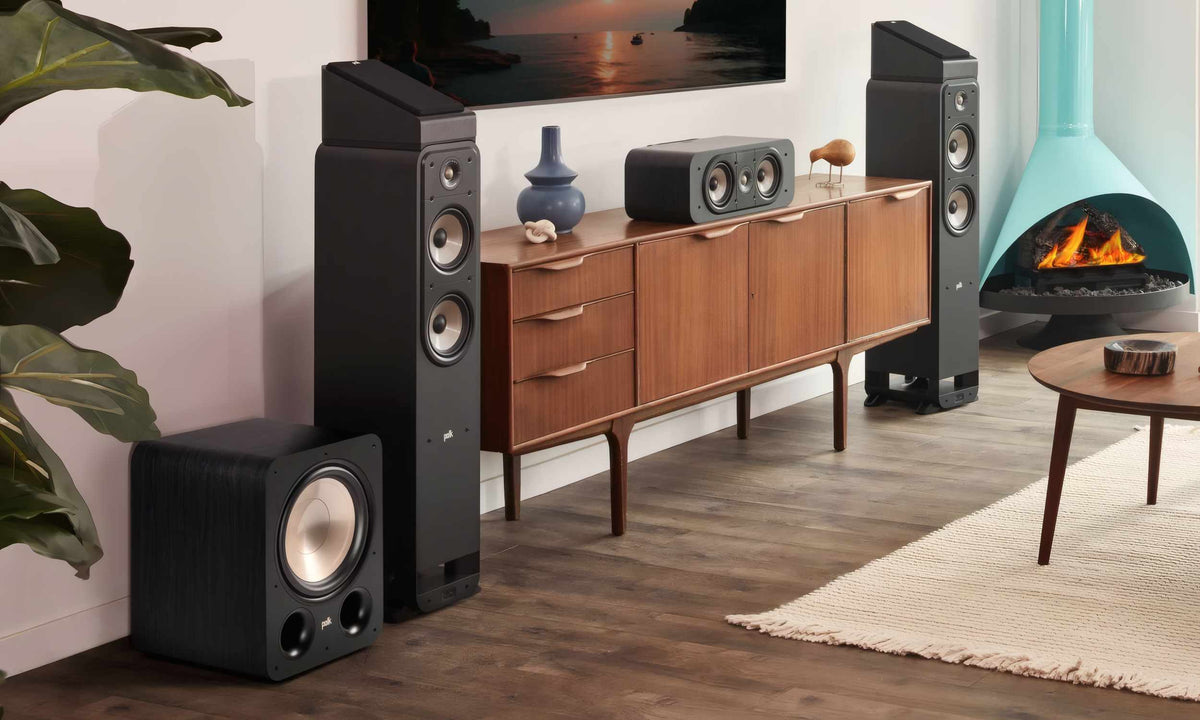

Other audio and video equipment shown in the photographs is not included.

Who Is It For

For music and home theater systems with an LFE output or a volume-controlled RCA line-level output. Select an appropriate RCA cable for the system connection.
