Polk Audio Signature Elite ES10 Powered Subwoofer

Polk Audio Signature Elite ES10 Powered Subwoofer

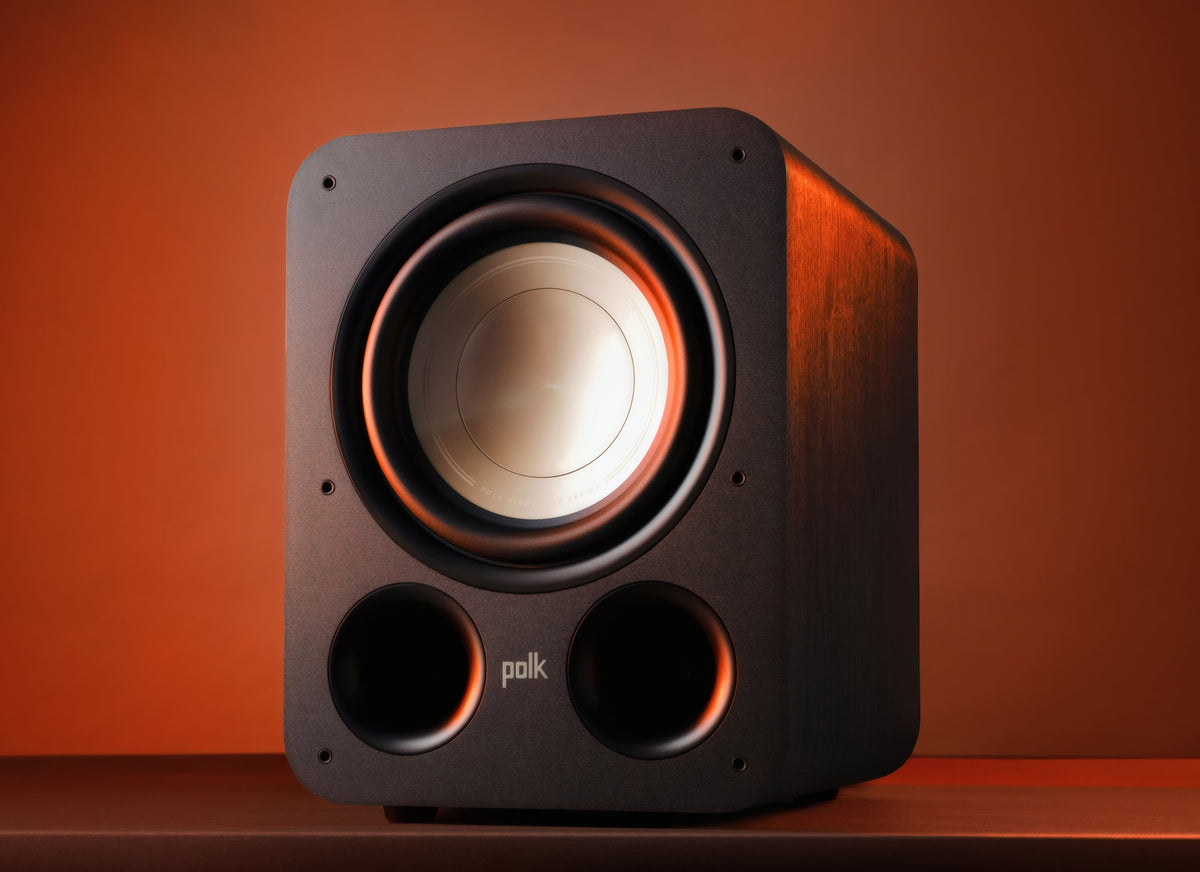

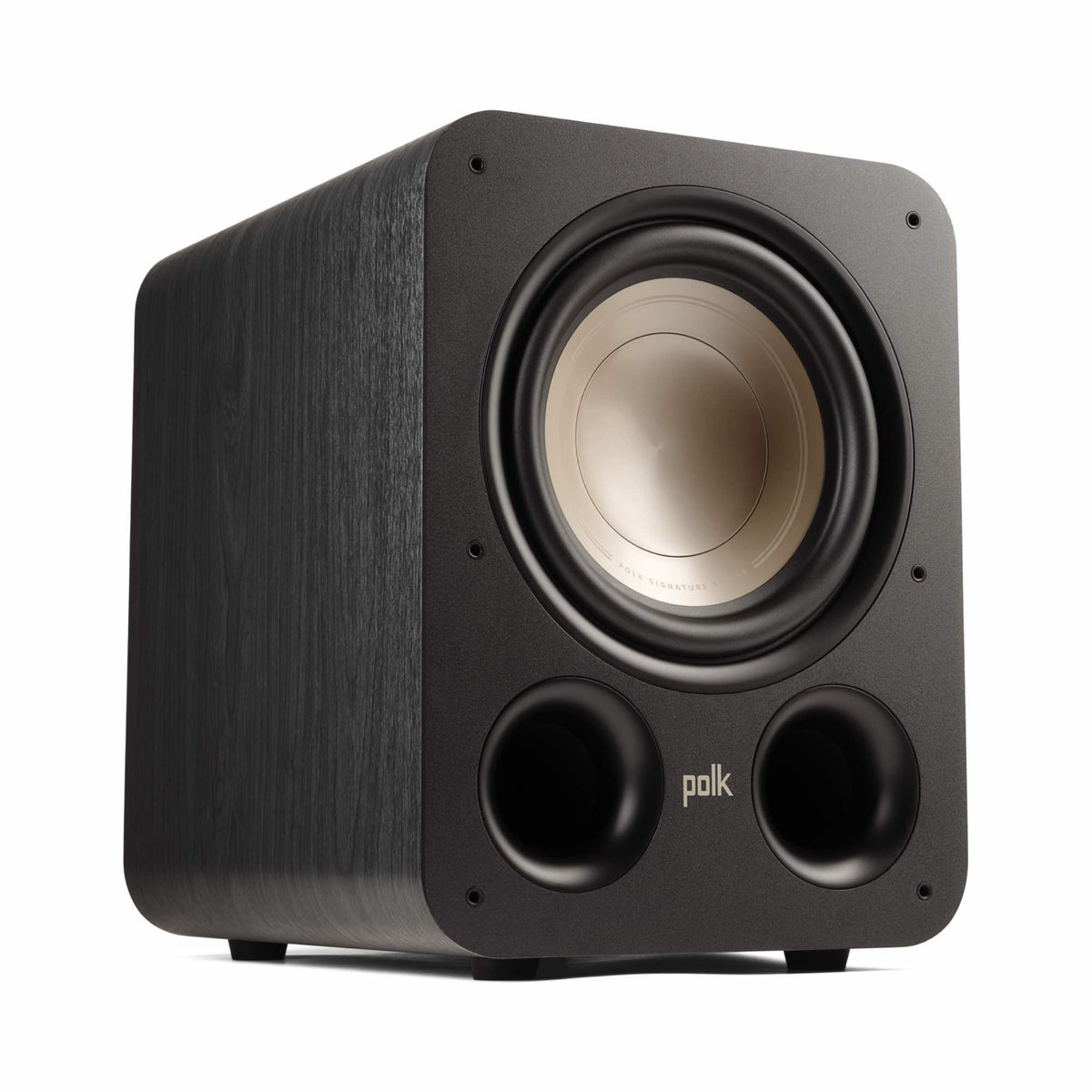

Polk Audio Signature Elite ES10 is a powered subwoofer with a 10-inch driver.

Designed for medium-sized home theater and music systems, it can partner with Signature Elite speakers or another system offering a suitable line-level output.

A 200 W RMS Class D amplifier drives the long-throw woofer. The 32-bit floating-point DSP combines filters designed to minimize group delay with precision limiters for clear bass transients.

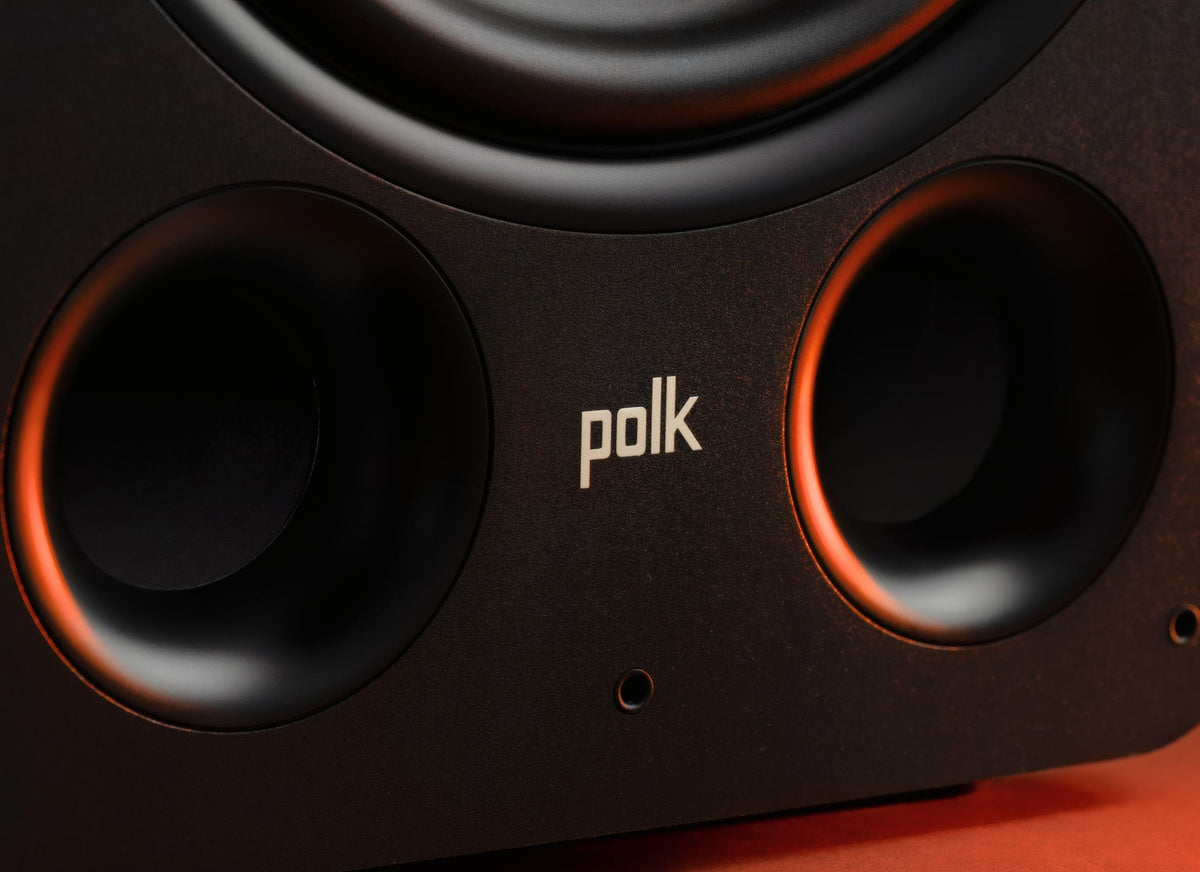

Front-facing Power Port technology reduces airflow turbulence and port noise. FEA-optimized internal bracing reinforces the rigid cabinet to limit unwanted resonances.

A dedicated LFE input connects to a home theater amplifier, while two RCA line-level inputs serve stereo systems. Use a preamplifier output that follows the system volume; a fixed-level tape or record output is unsuitable.

Main Features

• Time-Smart Phase Control helps blend the subwoofer with the main speakers, with phase adjustments in 45° steps.
• The adjustable fourth-order low-pass filter covers 50–160 Hz. An LFE cable connection bypasses this filter so the home theater amplifier can handle bass management.

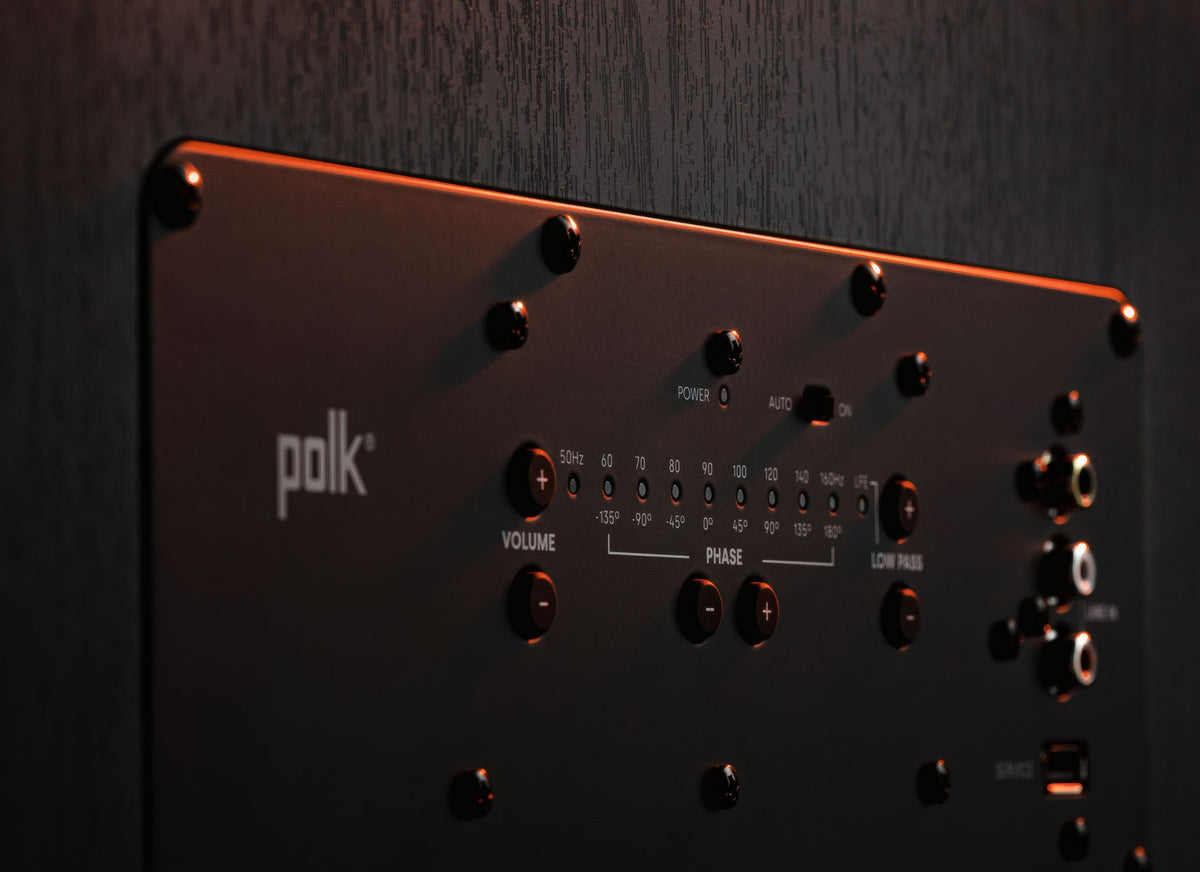

• LEDs show the volume, filter and phase settings. Volume is adjustable on a 1–40 scale.
• Auto mode wakes the subwoofer when a signal arrives and enters standby after approximately 20 minutes without audio. An always-on mode is also available.
• Place the subwoofer on its base feet. A wall or corner increases bass output; compare several positions to find the best result in the room.

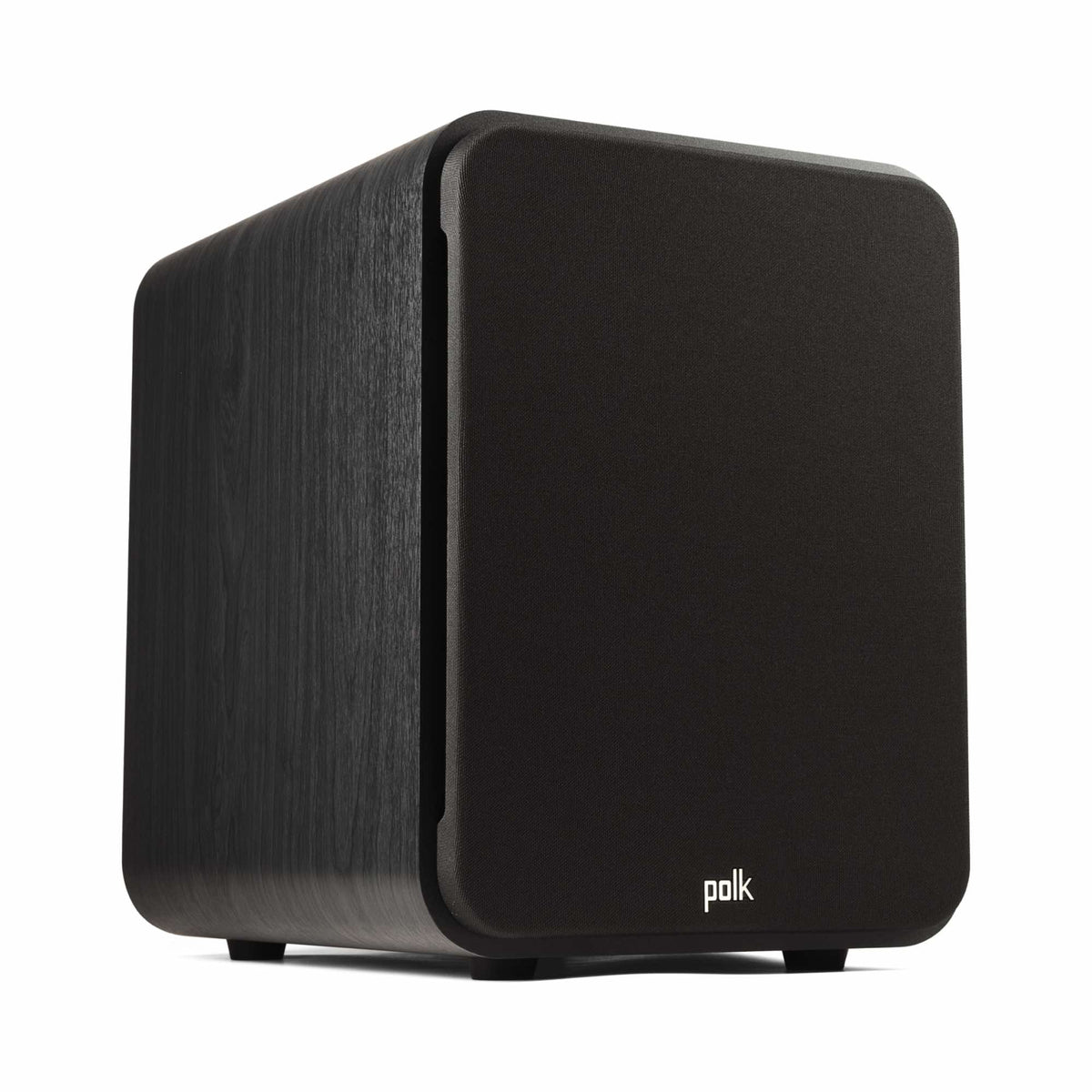

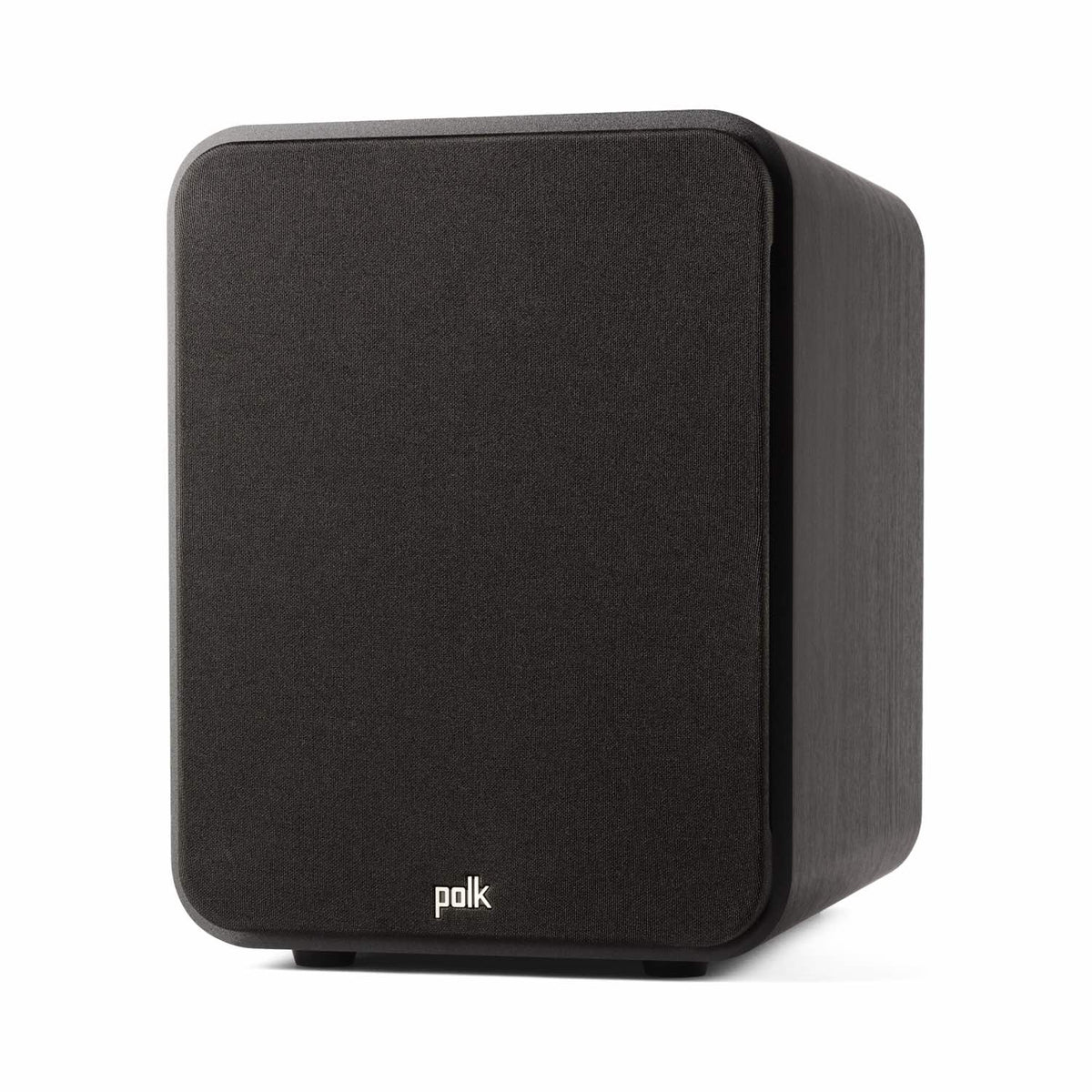

• The removable grille offers a choice of covered or visible driver.

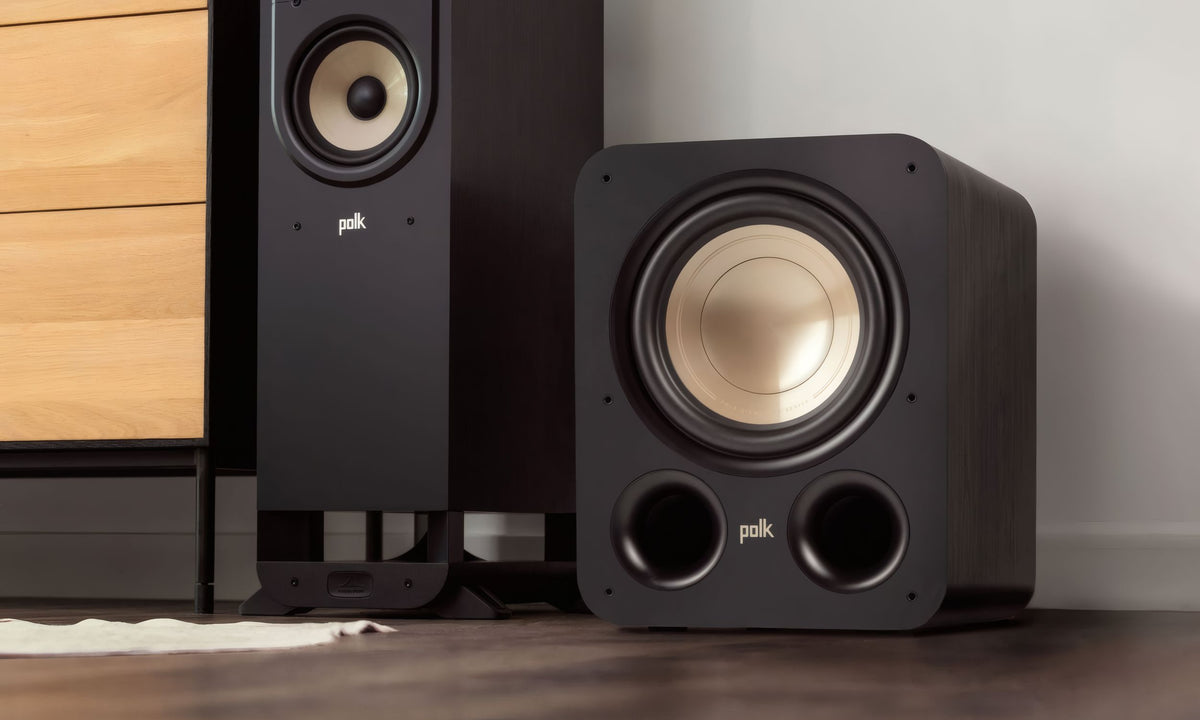

• The black enclosure complements other Signature Elite speakers.
• The rear USB connector is marked SERVICE and is intended for servicing.

Technical Specifications

• Sales Unit: 1 subwoofer
• Driver: 1 × 10-inch mineral-filled polypropylene cone
• Amplifier Power: 200 W RMS, Class D
• Power Port Vents: 2 front-facing
• Frequency Response (−3 dB): 28–250 Hz
• Frequency Response (−10 dB): 22–375 Hz
• Audio Inputs: 1 × LFE RCA, 2 × line-level RCA
• Phase Adjustment: −135° to +180° in 45° steps
• Filter Adjustment: 50–160 Hz and LFE bypass
• Power Supply: 100–240 V, 50/60 Hz
• Dimensions (W × H × D): 331 × 438 × 419 mm
• Weight: 17.7 kg

What’s Included

• 1 × Polk Audio Signature Elite ES10 powered subwoofer
• Removable grille
• Region-appropriate power cable

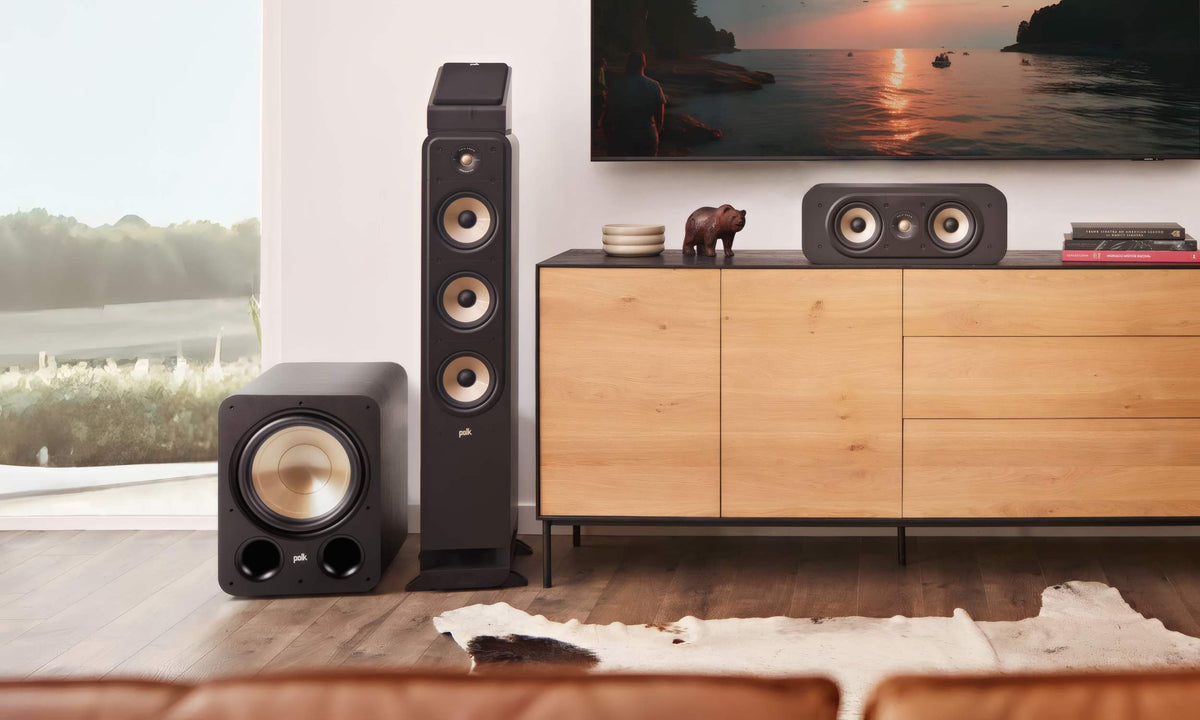

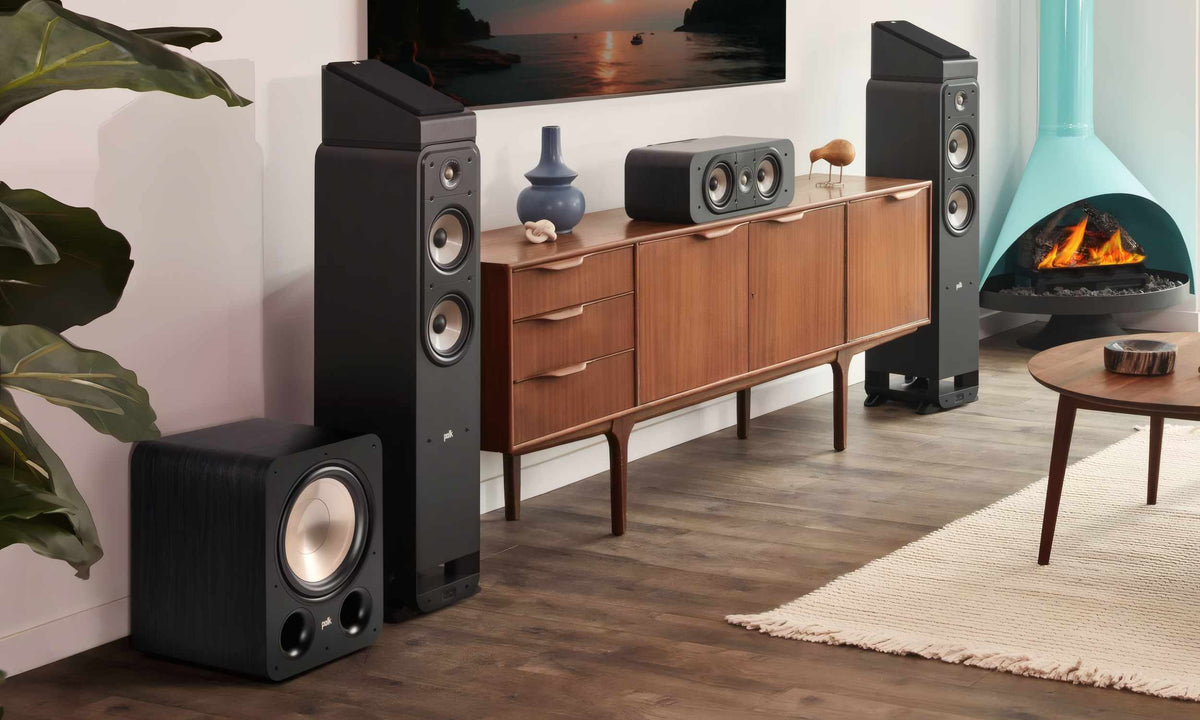

Other audio and video equipment shown in the photographs is not included.

Who Is It For

For music and home theater systems with an LFE output or a volume-controlled RCA line-level output. Select an appropriate RCA cable for the system connection.
