Pioneer DJ PLX-500 Turntable

Pioneer DJ PLX-500 Turntable

Pioneer DJ PLX-500 is a direct-drive turntable.

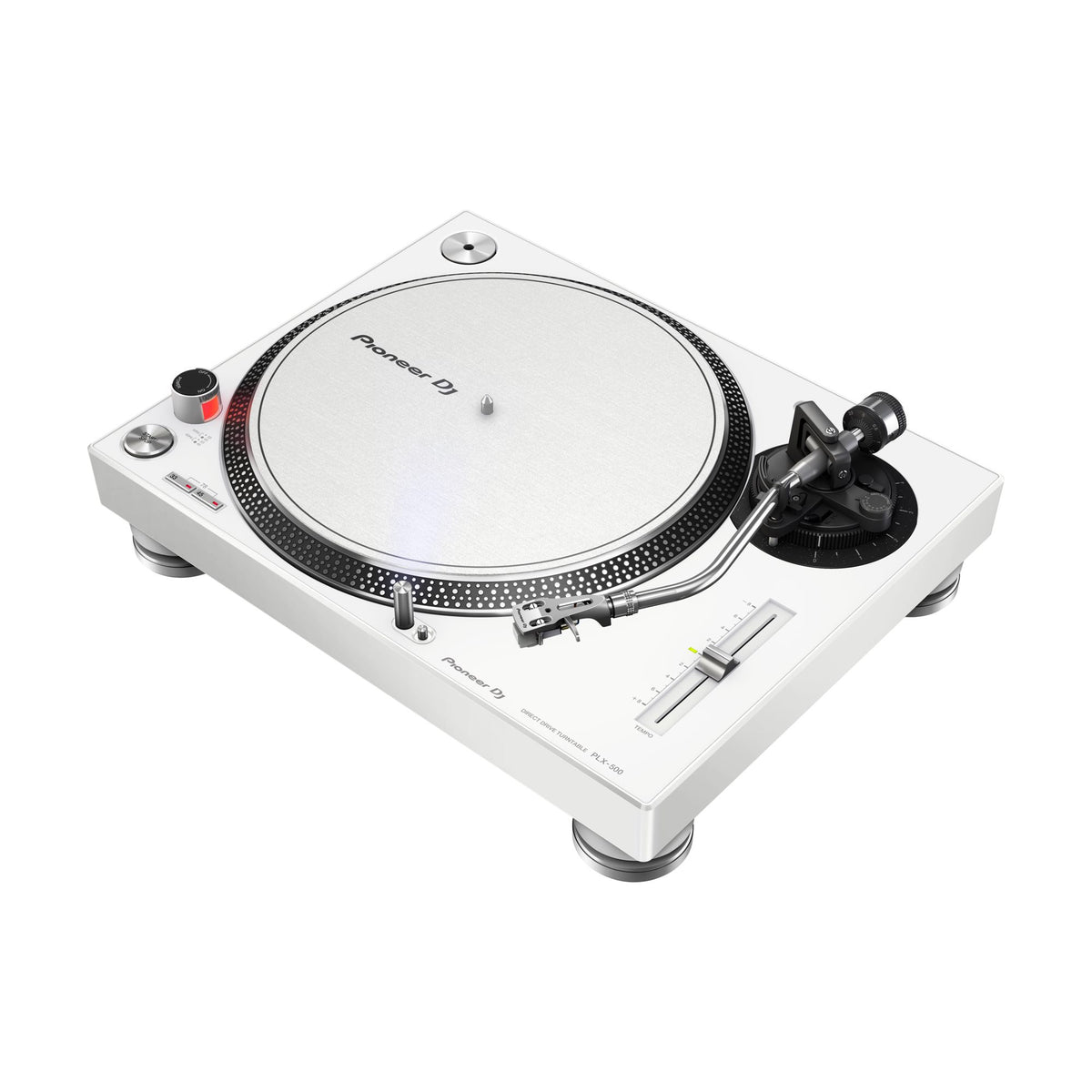

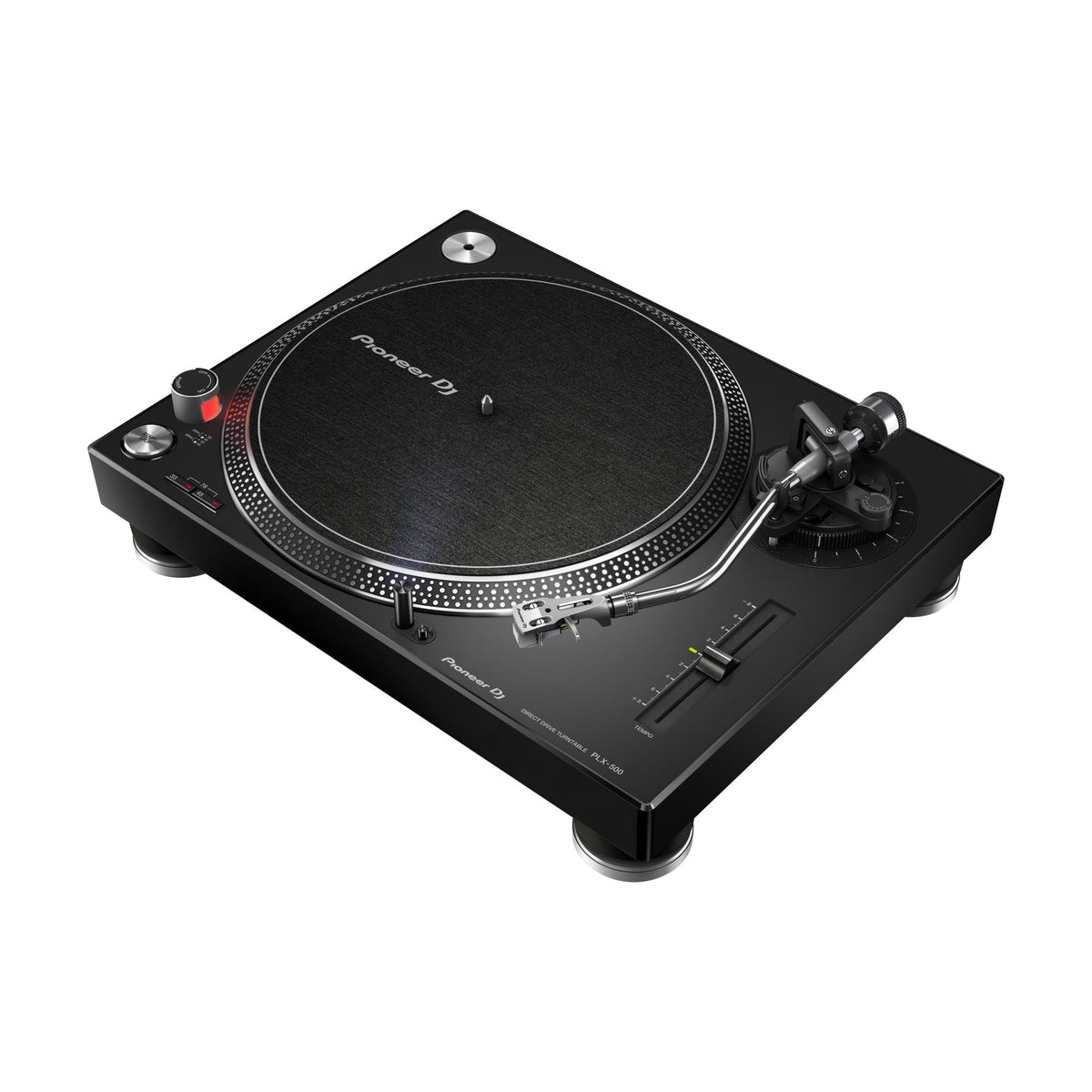

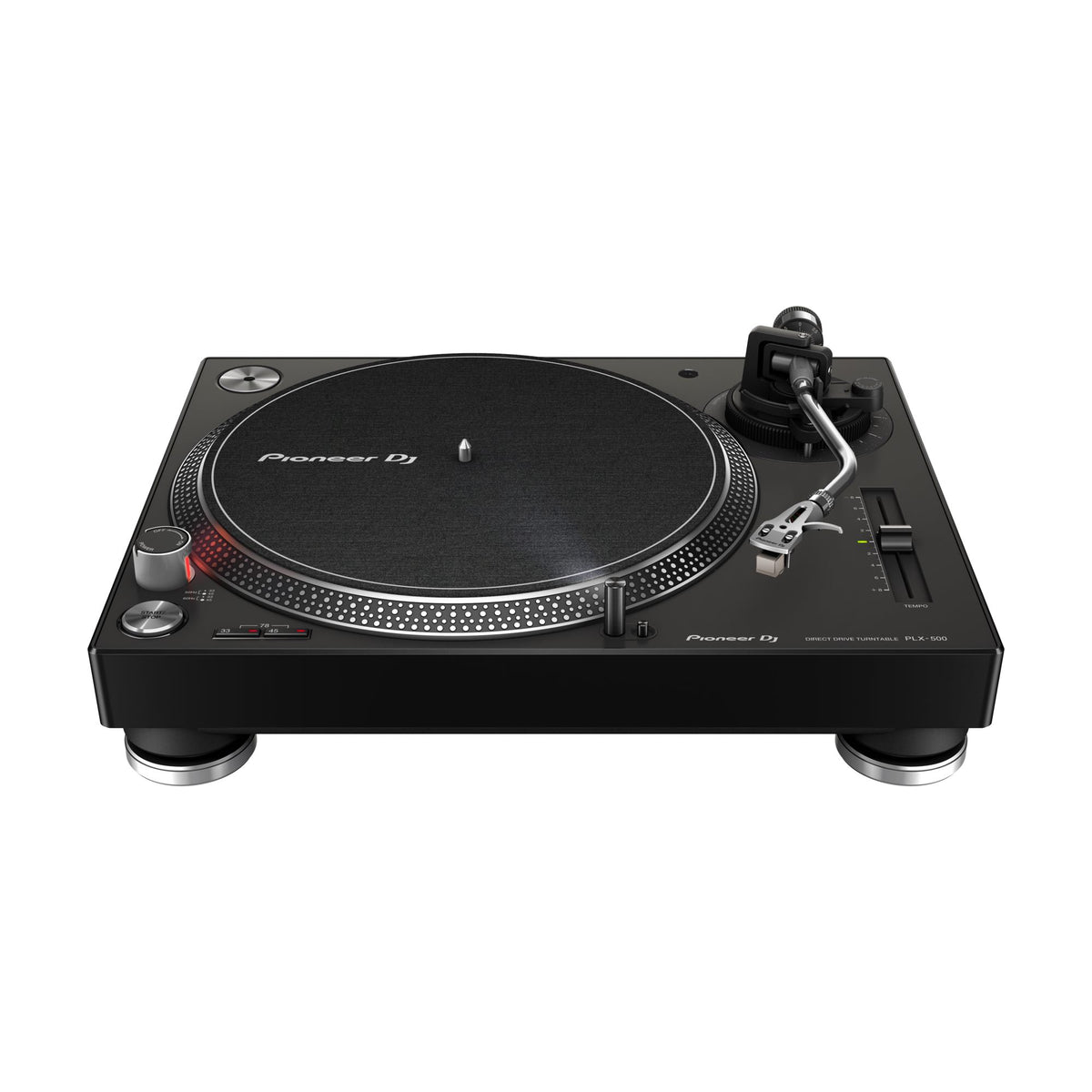

Color options: black (PLX-500-K) or white (PLX-500-W).

A short signal path from stylus to output reduces distortion for warm, clear analog sound. The PHONO/LINE switch selects an output suitable for a DJ mixer or powered speakers.

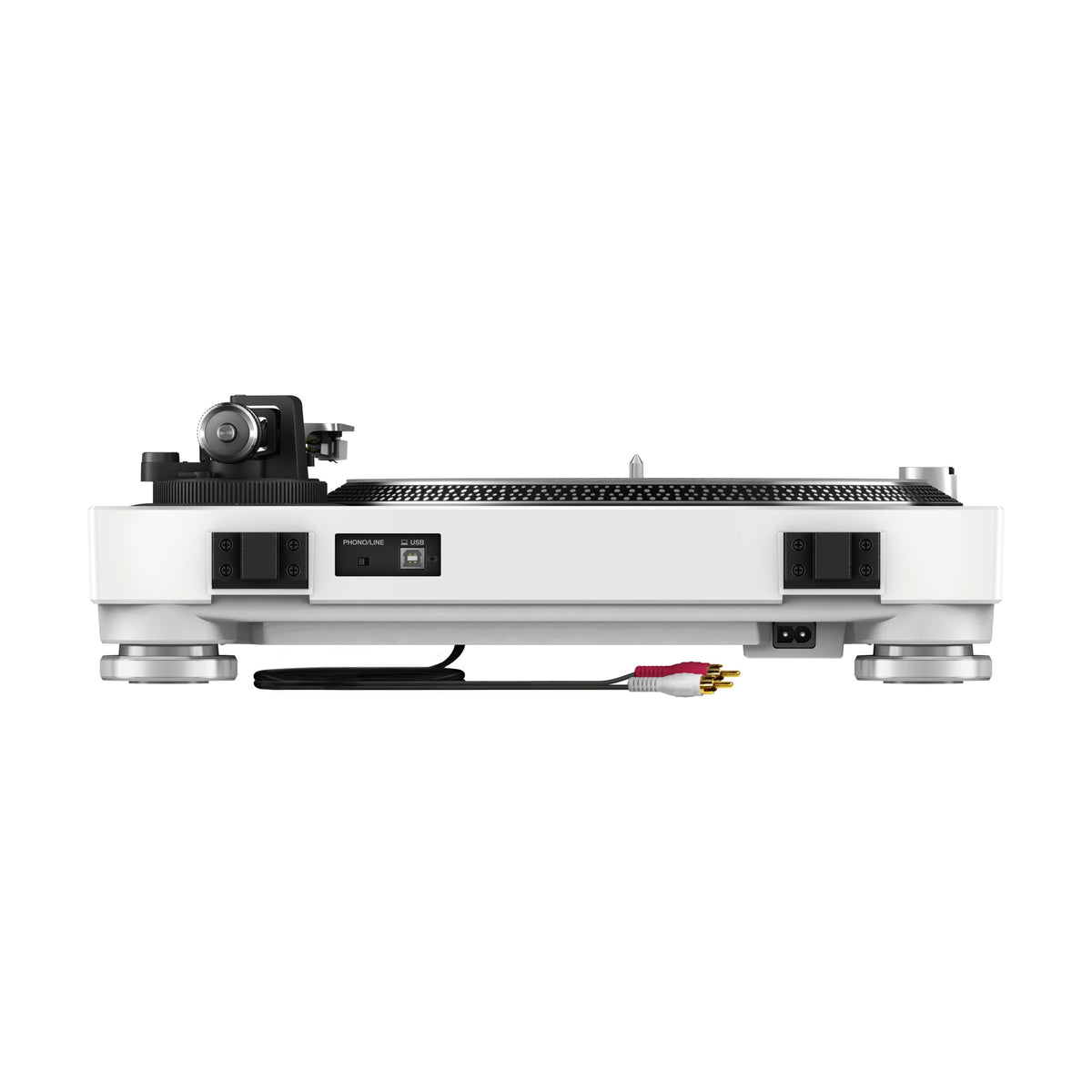

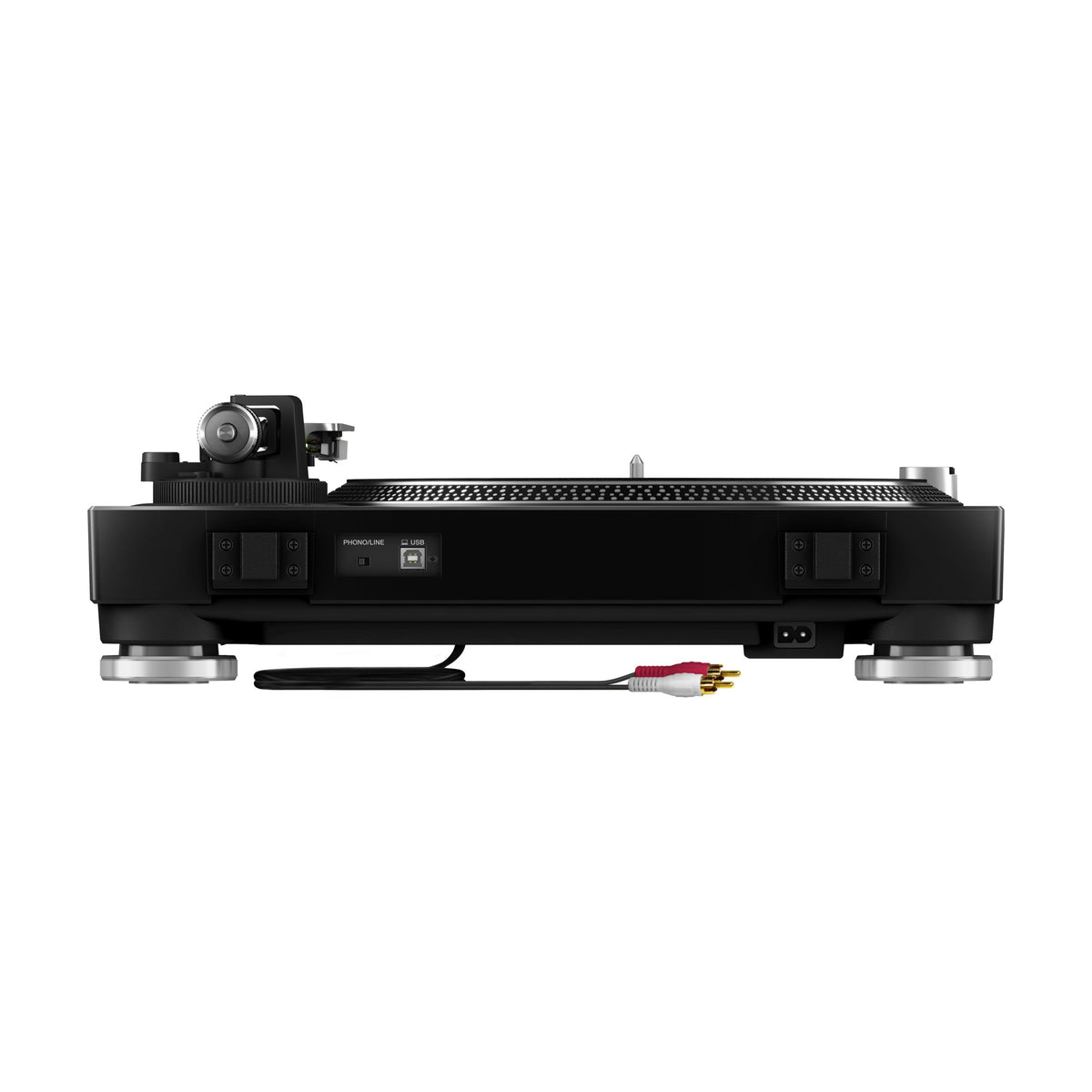

The USB-B connection records vinyl audio to a computer. RCA connections carry the analog audio, while USB provides a separate route for digital archiving.

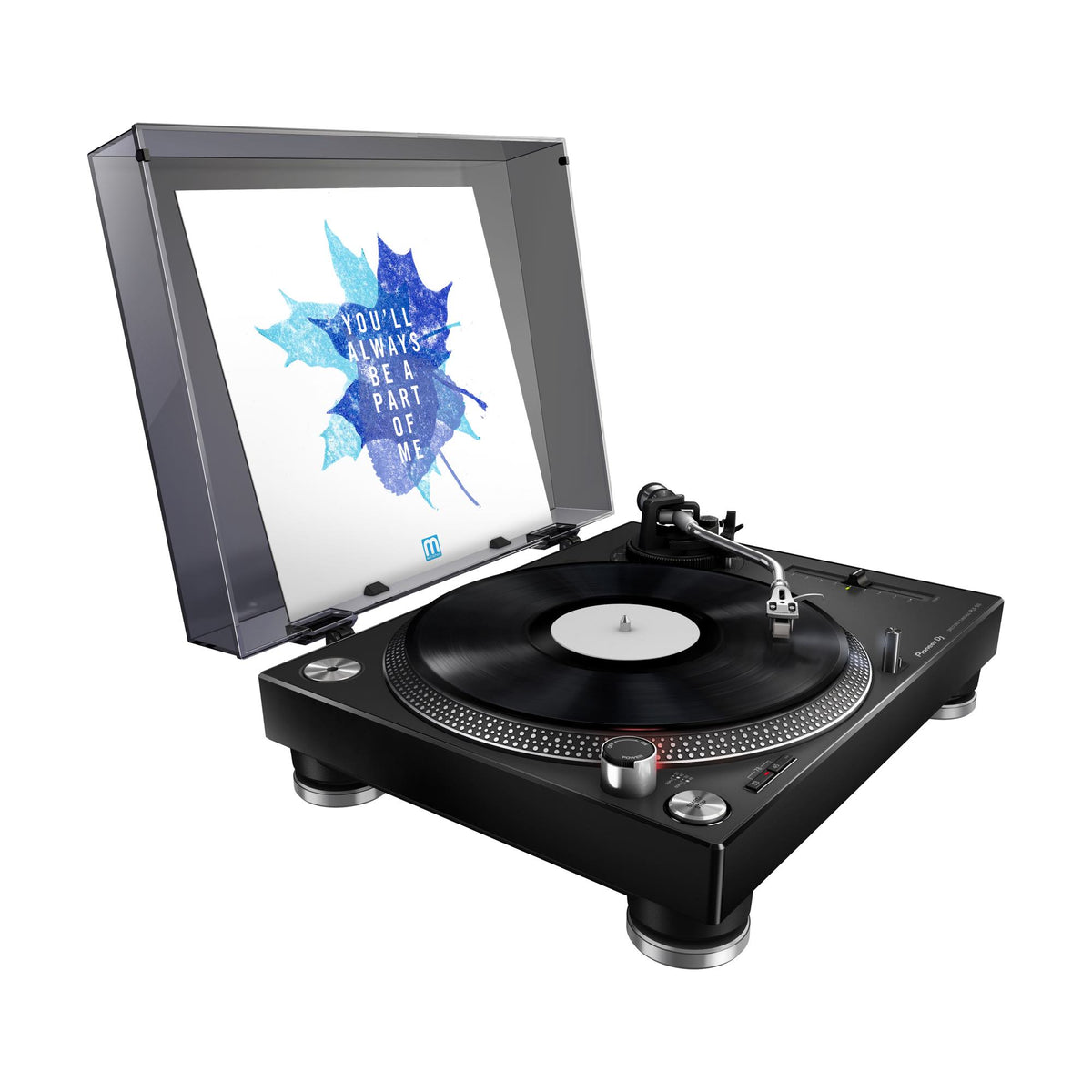

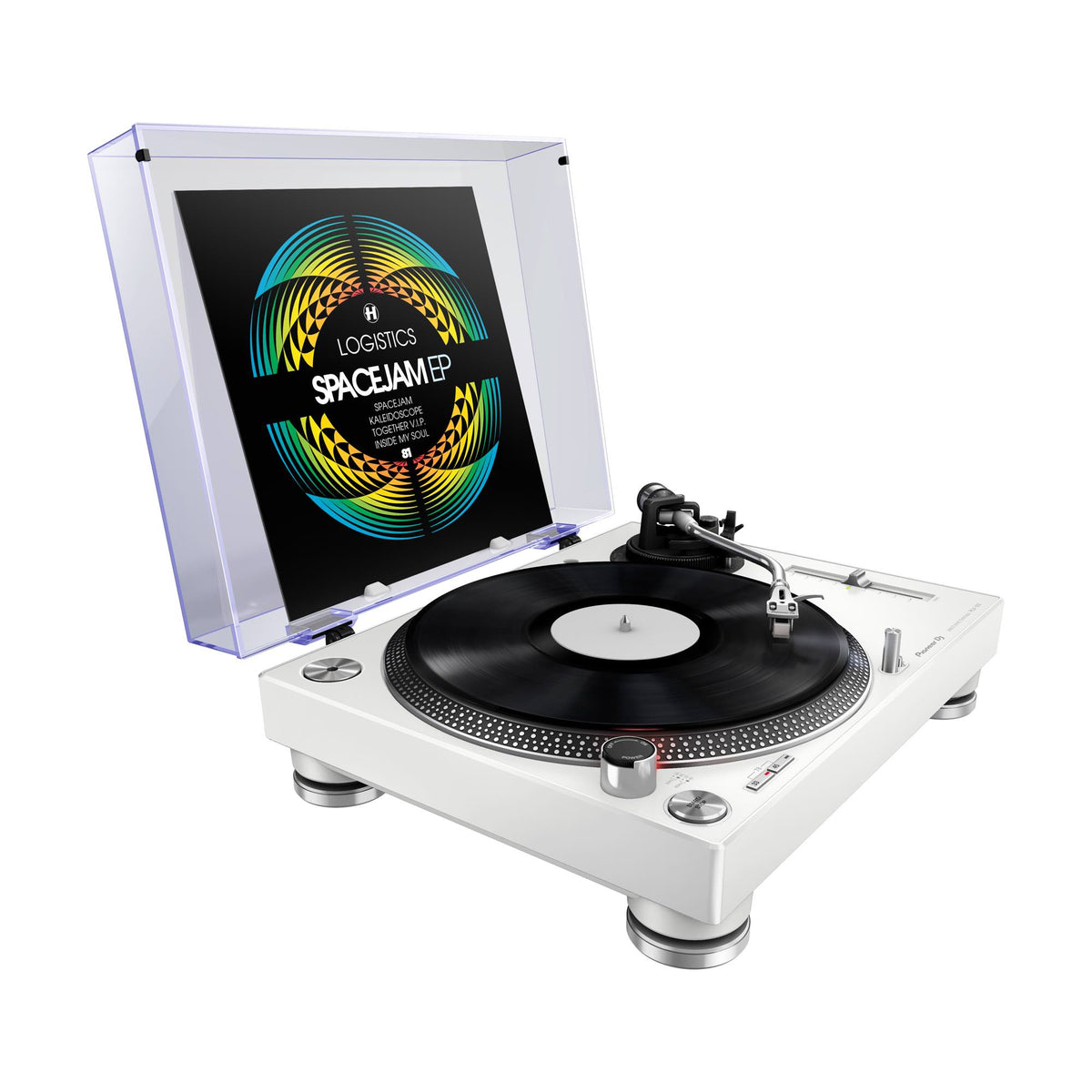

The package includes a cartridge with stylus and a silver PC-HS01-S headshell. The dust-cover stand displays the record sleeve while you listen.

Main Features

• DVS requires a compatible DJ mixer or audio interface, RB-VS1-K control vinyl and a computer running rekordbox. DVS access comes through a suitable subscription or equipment that provides DVS Hardware Unlock.
• Replacement stylus: Pioneer DJ PN-X05.

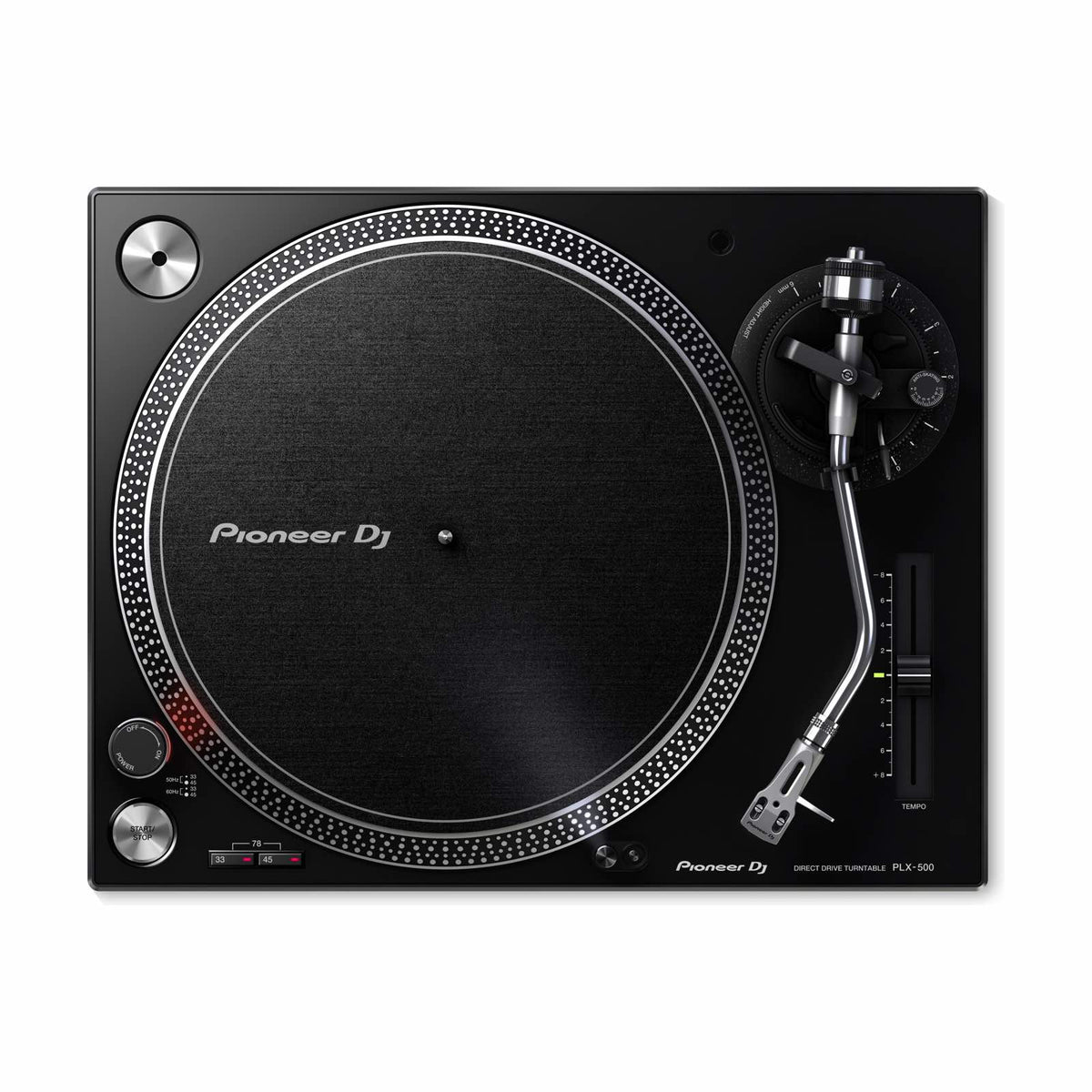

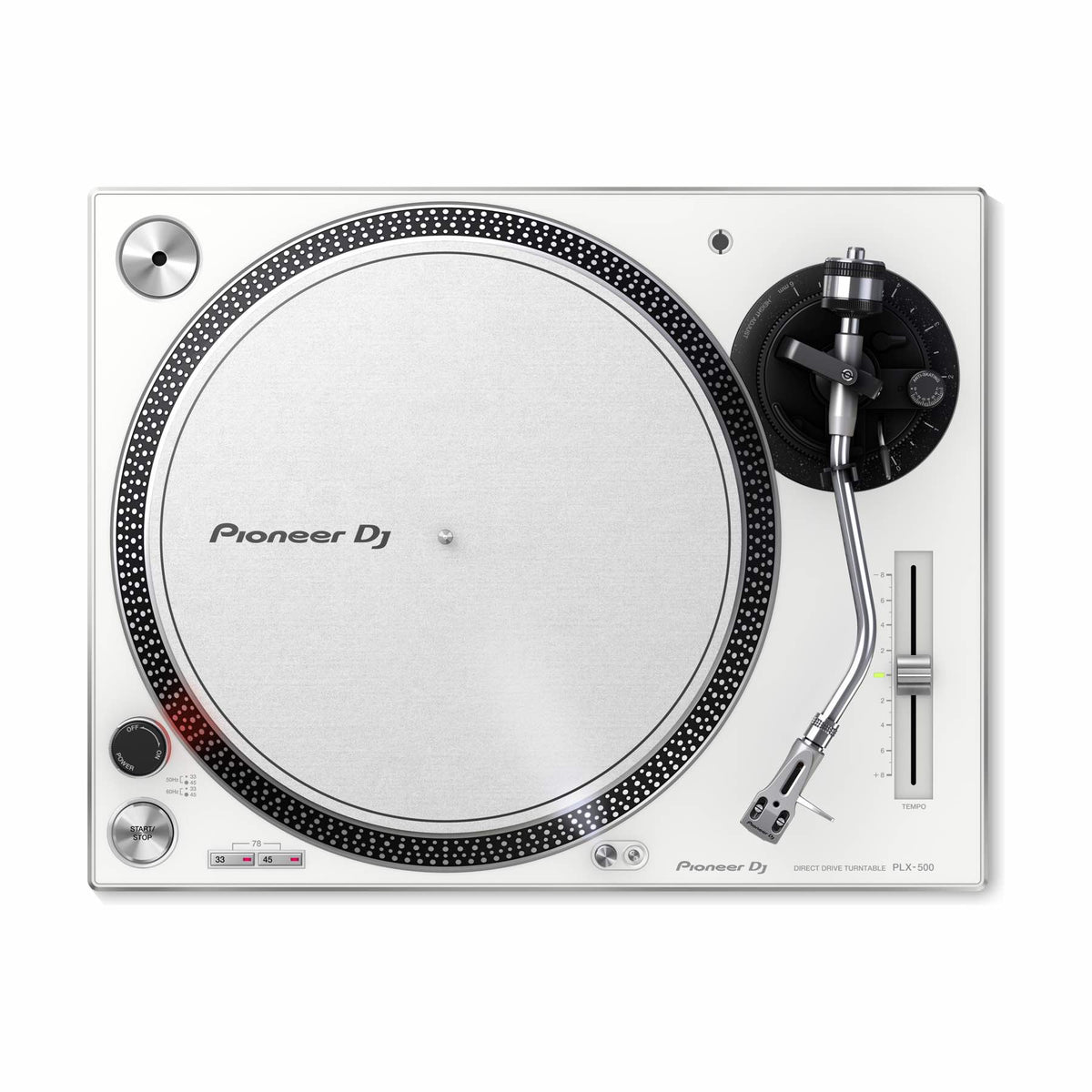

• The S-shaped tonearm uses a gimbal bearing and static balancing. Adjust tonearm height, stylus pressure and anti-skating.
• The supplied balance weight balances the tonearm before setting stylus pressure.
• The vinyl records and sleeves shown in the images are not included.

Technical Specifications

• Drive and brake: servo direct drive; 3-phase brushless DC motor; electronic brake
• Rotation speeds: 33⅓, 45 and 78 rpm
• Starting torque and start time: at least 1.6 kg·cm; within 1 s at 33⅓ rpm
• Pitch adjustment: ±8%
• Wow/flutter and signal-to-noise ratio: ≤0.15% WRMS; ≥50 dB
• Platter: die-cast aluminium, 332 mm diameter
• Tonearm dimensions: effective length 230.5 mm, overhang 16 mm; tracking error within 3°
• Tonearm adjustment: 6 mm height range; stylus pressure 0–4 g, 0.1 g steps
• Cartridge: VM; maximum individual cartridge weight 9.5 g
• Output level: PHONO 2.5 mV / 1 kHz; LINE 150 mV / 1 kHz
• Dimensions (W × H × D): 450 × 158.5 × 367.5 mm
• Weight: 10.7 kg
• Power supply and consumption: AC 110–120 V or 220–240 V, 50/60 Hz; 11 W
• Operating conditions: 5–35 °C; 5–85% humidity, no condensation

What’s Included

• Pioneer DJ PLX-500 turntable (1)
• Platter
• Slipmat
• Dust cover
• EP record adapter
• Balance weight
• Shell weight
• Power cord
• PC-HS01-S headshell with cartridge and stylus
• USB cable
• Audio adapter cable: female RCA to 3.5 mm stereo plug

Who Is It For

For listening to and mixing vinyl records with a DJ mixer, and recording vinyl audio to a computer.
