Pioneer DJ PLX-1000 Turntable

Pioneer DJ PLX-1000 Turntable

Pioneer DJ PLX-1000 is a direct-drive turntable.

High starting torque reaches 33⅓ rpm in 0.3 s, supporting precise starts when playing records with a DJ mixer.

The die-cast zinc chassis, 8 mm resin reinforcement and 9 mm damping layer reduce resonance. Rubber insulation in the tonearm and rubber-and-spring isolators reduce the effects of external vibration.

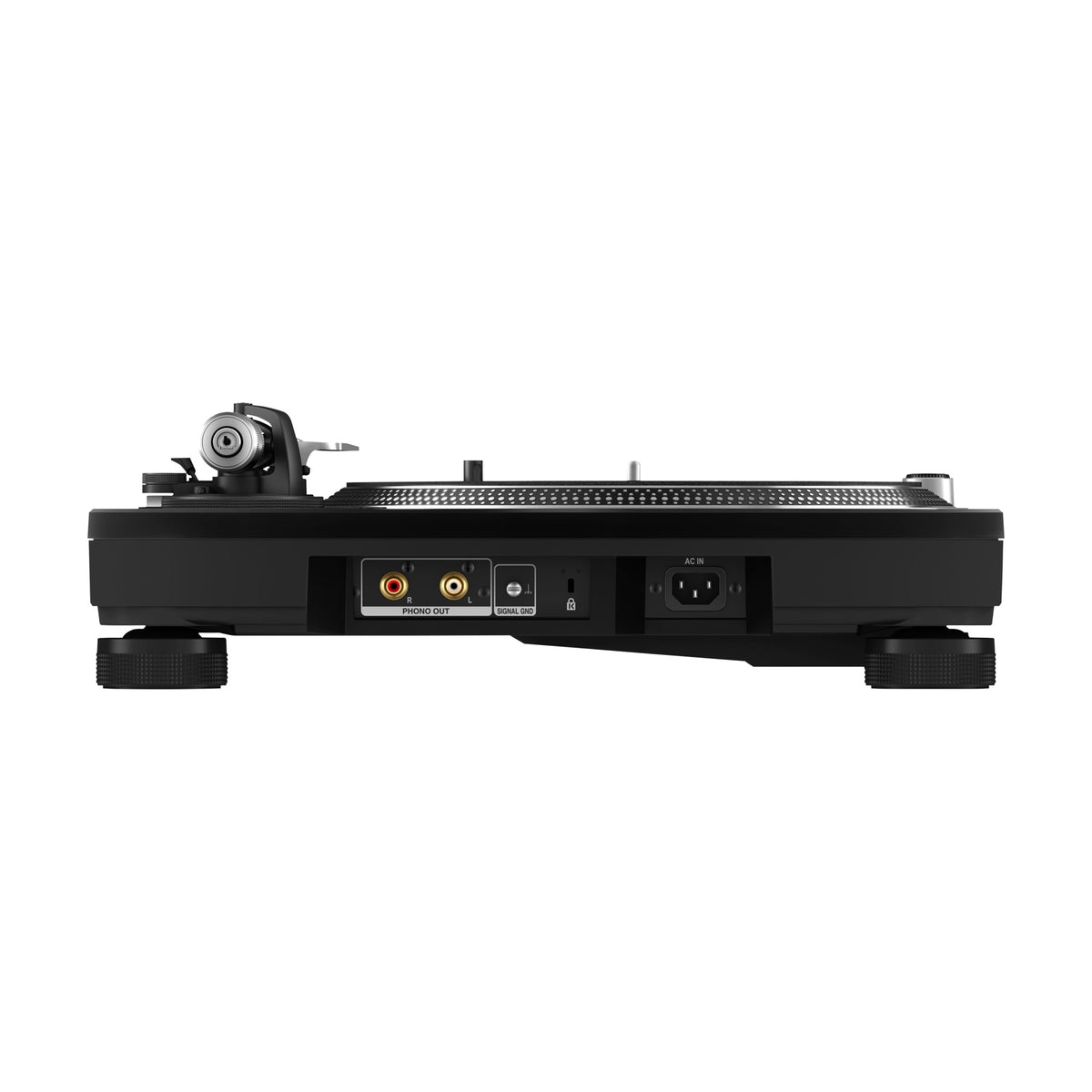

Detachable power and audio cables simplify transport and replacement. Gold-plated RCA connectors carry a PHONO signal, requiring a mixer or amplifier with a PHONO input, or a separate phono preamp.

Main Features

• Switch the pitch range between ±8%, ±16% and ±50%. RESET instantly restores 0%.

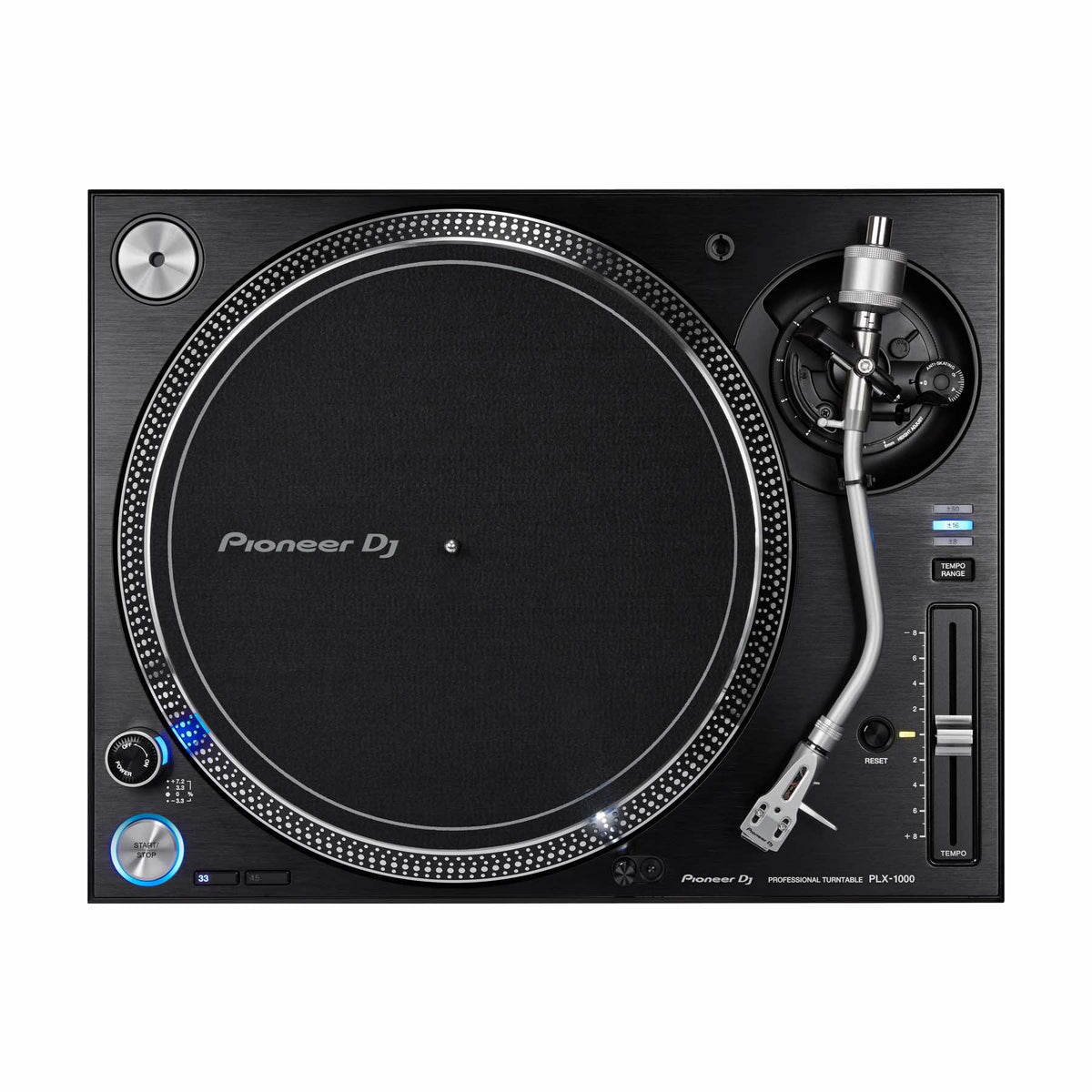

• The S-shaped tonearm uses a gimbal bearing and static balancing. Adjust tonearm height, stylus pressure and anti-skating.
• The supplied balance weight balances the tonearm before setting stylus pressure.

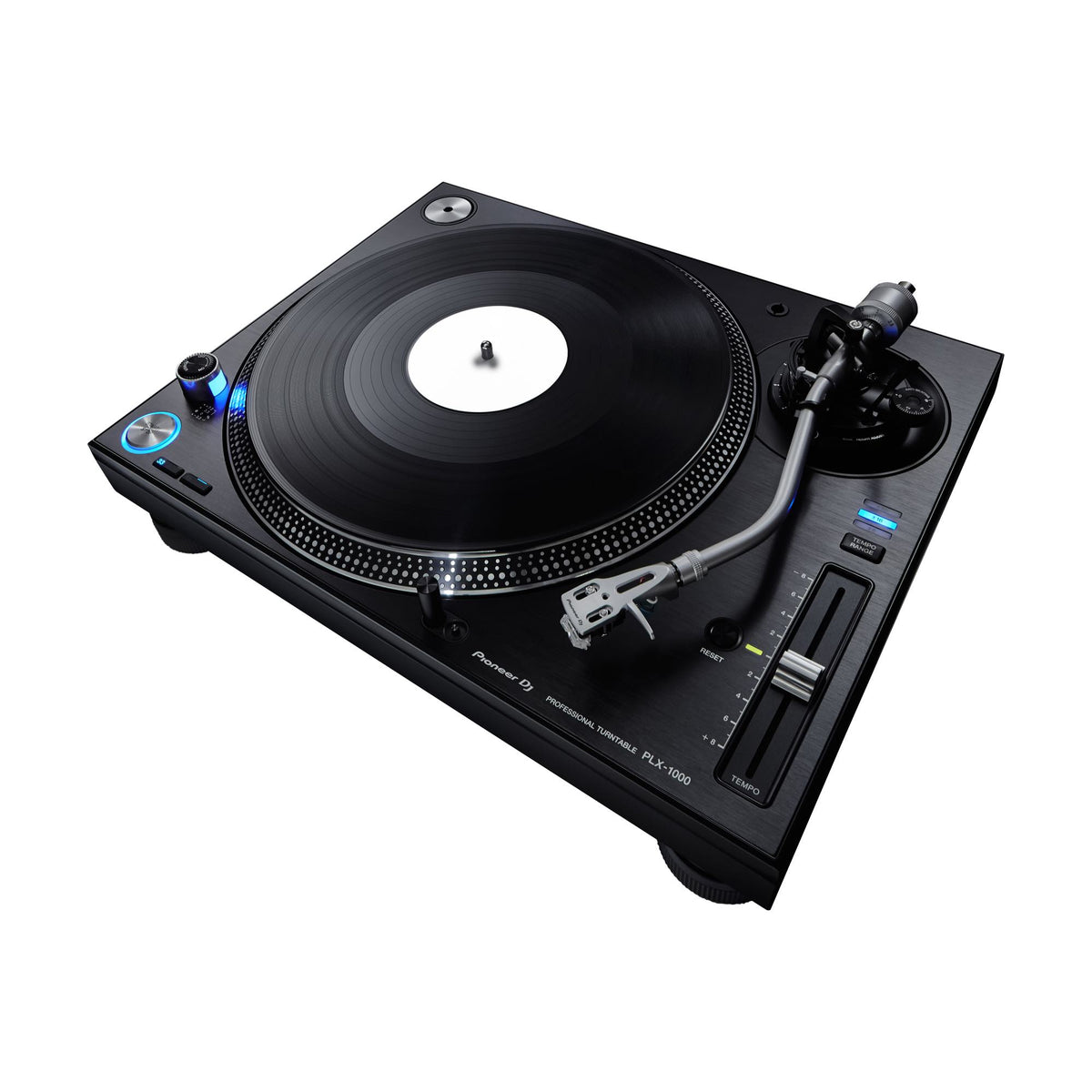

• The record and cartridge shown in the images are not included.

Technical Specifications

• Drive and brake: servo direct drive; 3-phase brushless DC motor; electronic brake
• Rotation speeds: 33⅓ and 45 rpm
• Starting torque and start time: at least 4.5 kg·cm; 0.3 s at 33⅓ rpm
• Wow/flutter and signal-to-noise ratio: ≤0.1% WRMS (JIS WTD); 70 dB (DIN-B)
• Platter: die-cast aluminium, 332 mm diameter
• Tonearm dimensions: effective length 230 mm, overhang 15 mm; tracking error within 3°
• Tonearm adjustment: 6 mm height range; stylus pressure 0–4 g, 0.1 g steps
• Cartridge weight including screws and nuts: 2.5–12 g: with shell weight 2.5–5.5 g; balance weight only 5–9 g; with sub weight 8.5–12 g
• Dimensions (W × H × D): 453 × 159 × 353 mm
• Weight: 14.6 kg
• Power supply and consumption: AC 110–120 V or 220–240 V, 50/60 Hz; 9 W
• Operating conditions: 5–35 °C; 5–85% humidity, no condensation

What’s Included

• Pioneer DJ PLX-1000 turntable (1)
• Platter
• Slipmat
• Dust cover
• EP record adapter
• Balance weight
• Shell weight
• Power cord
• Turntable sheet
• Slip sheet
• Sub weight
• Headshell
• Audio cable
• Ground wire

Cartridge is not included.

Who Is It For

For listening to and mixing vinyl records with a DJ mixer.
