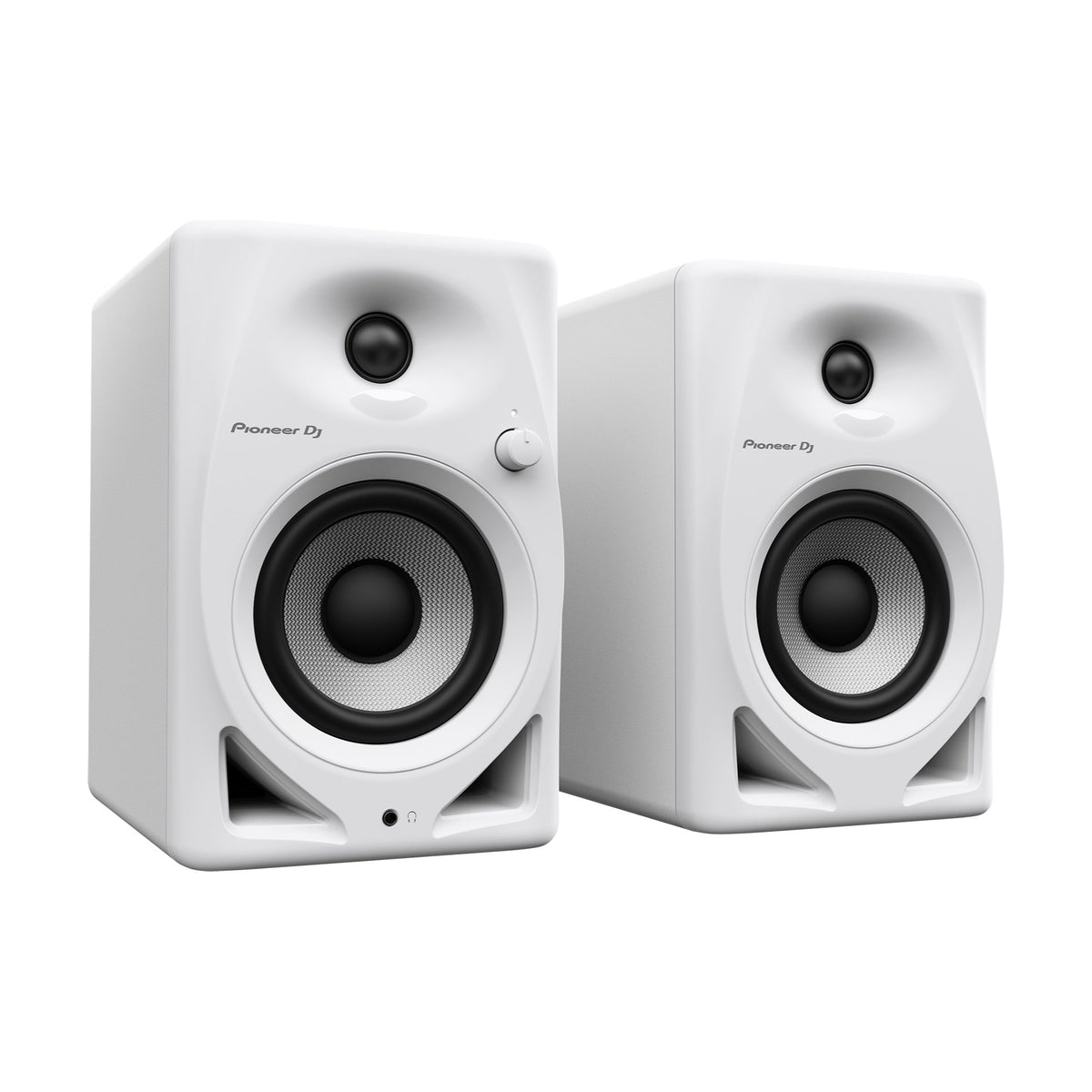

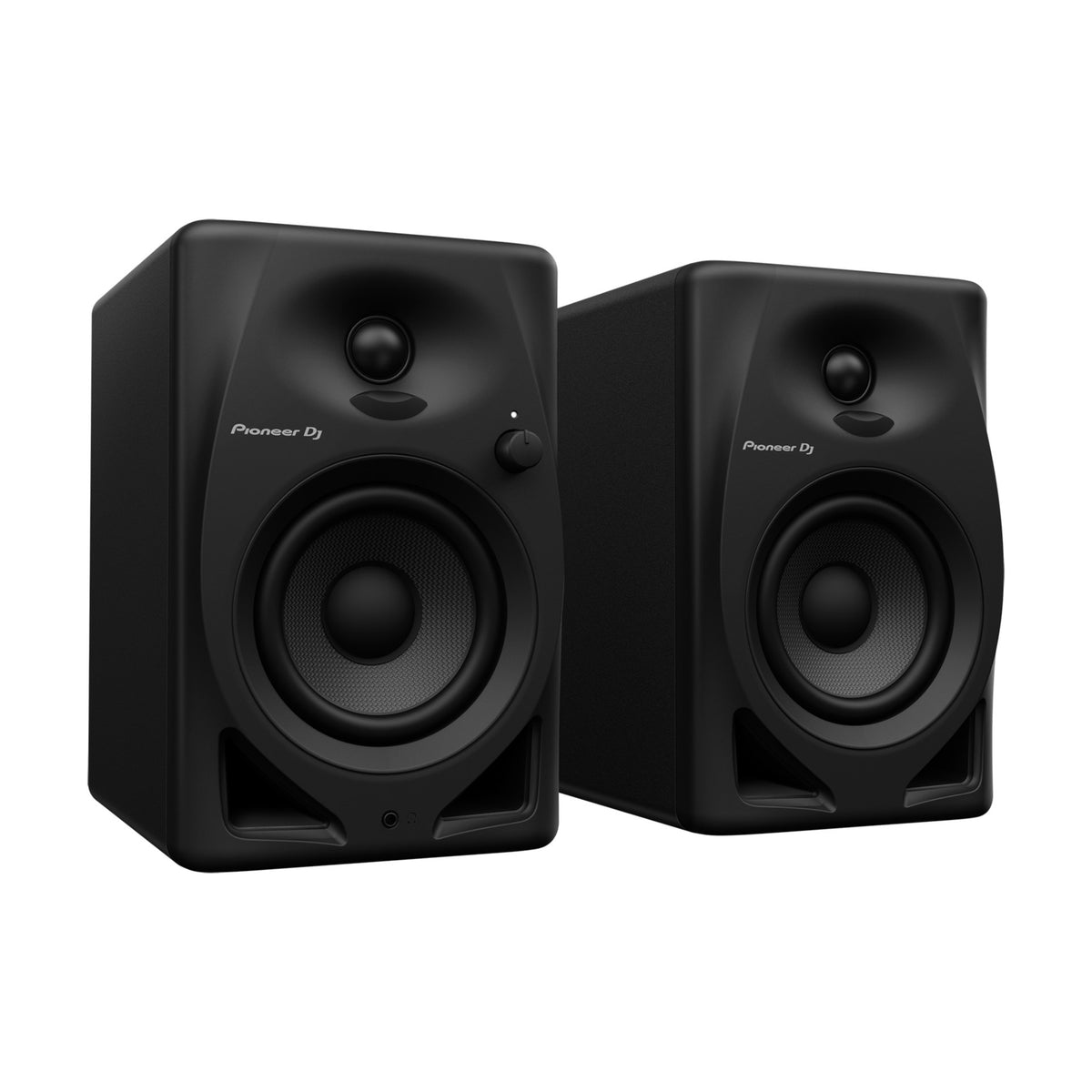

Pioneer DJ DM-40D Active Speakers

Pioneer DJ DM-40D Active Speakers

Pioneer DJ DM-40D is a pair of active two-way speakers.

Use the speakers for music production in a home studio and for DJ practice. Production mode selects a flatter frequency response, while DJ mode gives the bass a punchier character.

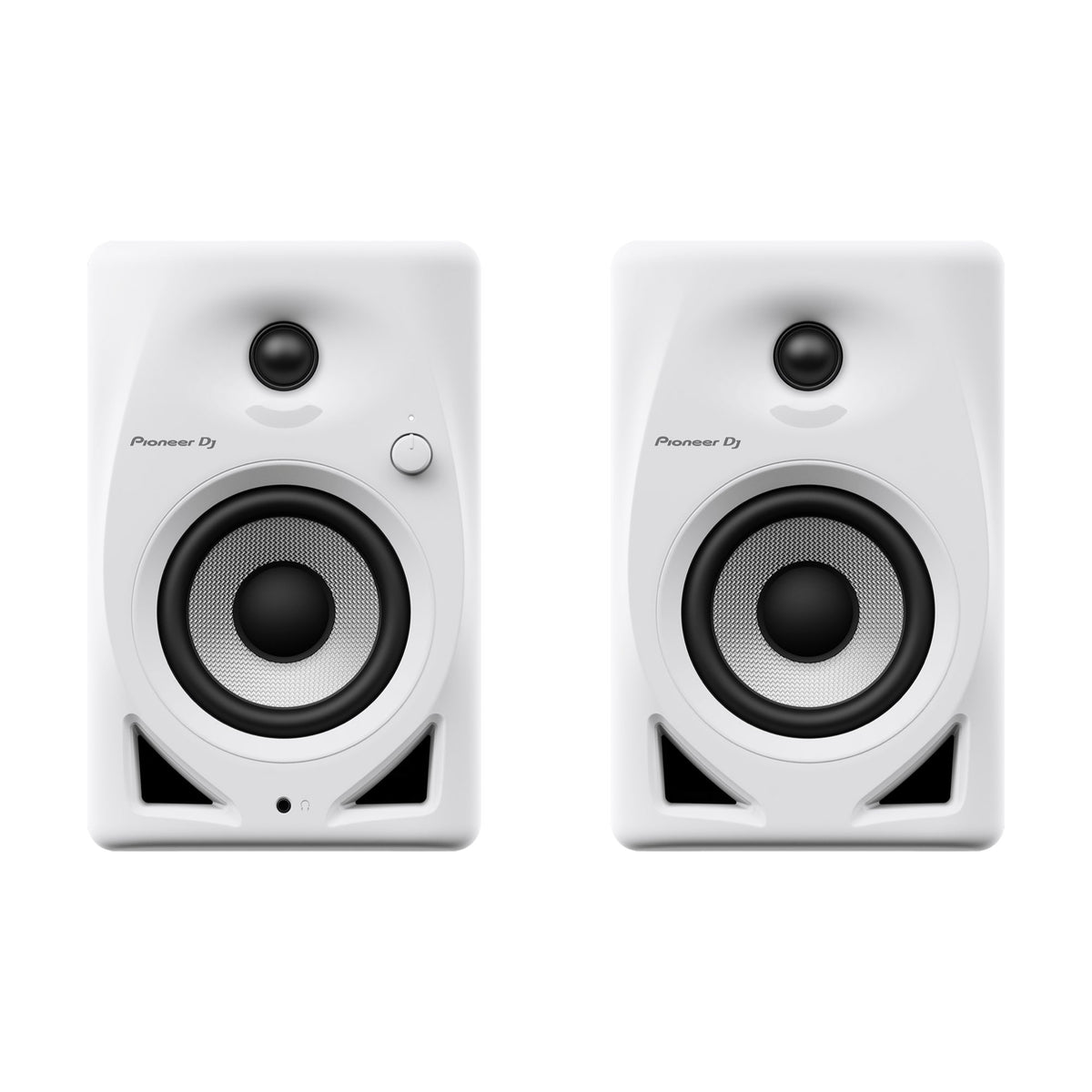

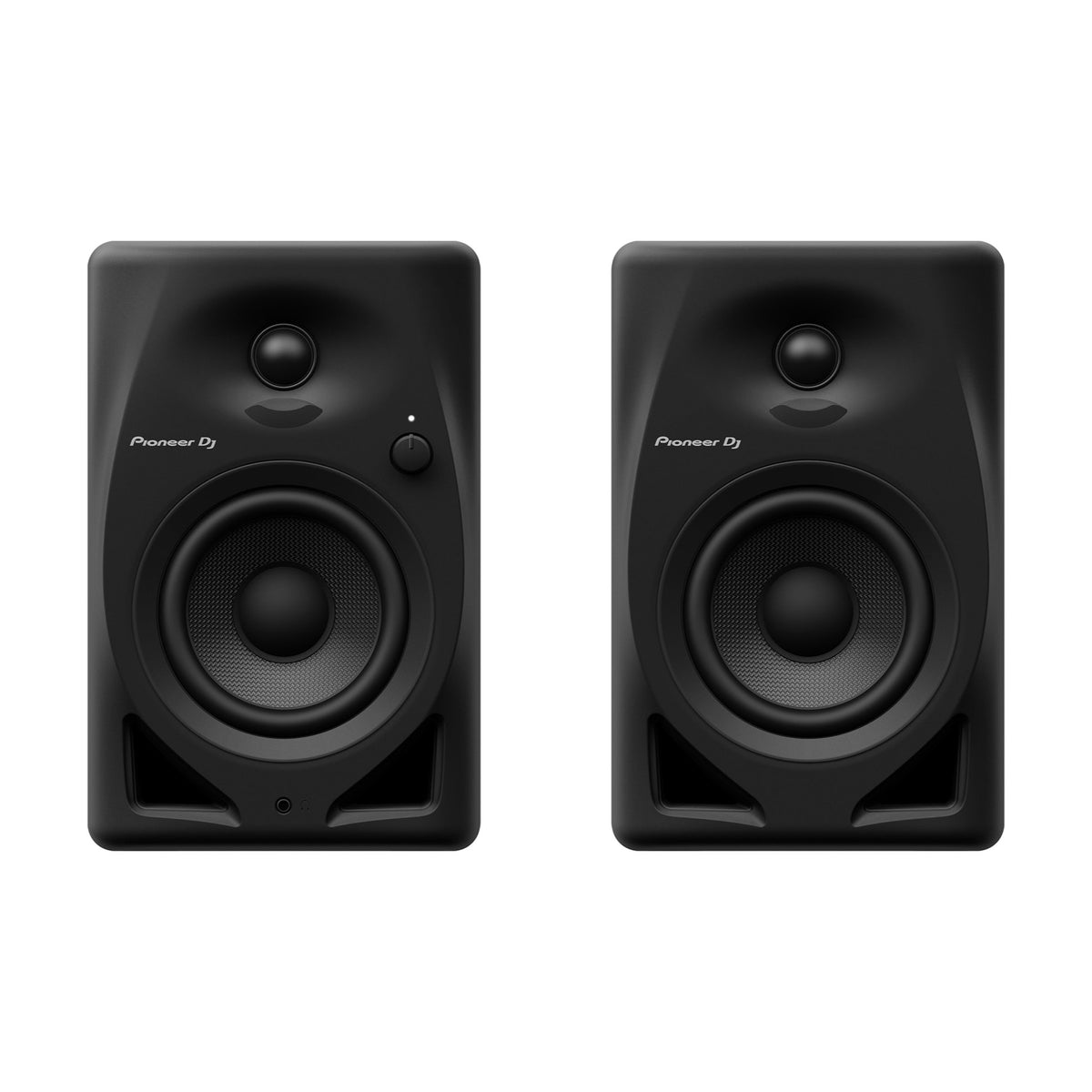

Each speaker combines a 102 mm glass-fibre woofer with a 19 mm soft-dome tweeter. The Class D amplifier uses 96 kHz DSP.

DECO diffusers widen high-frequency coverage. The woofer and tweeter are time-aligned, grooves in the ducts reduce air friction, and curved front edges help reduce cabinet resonance.

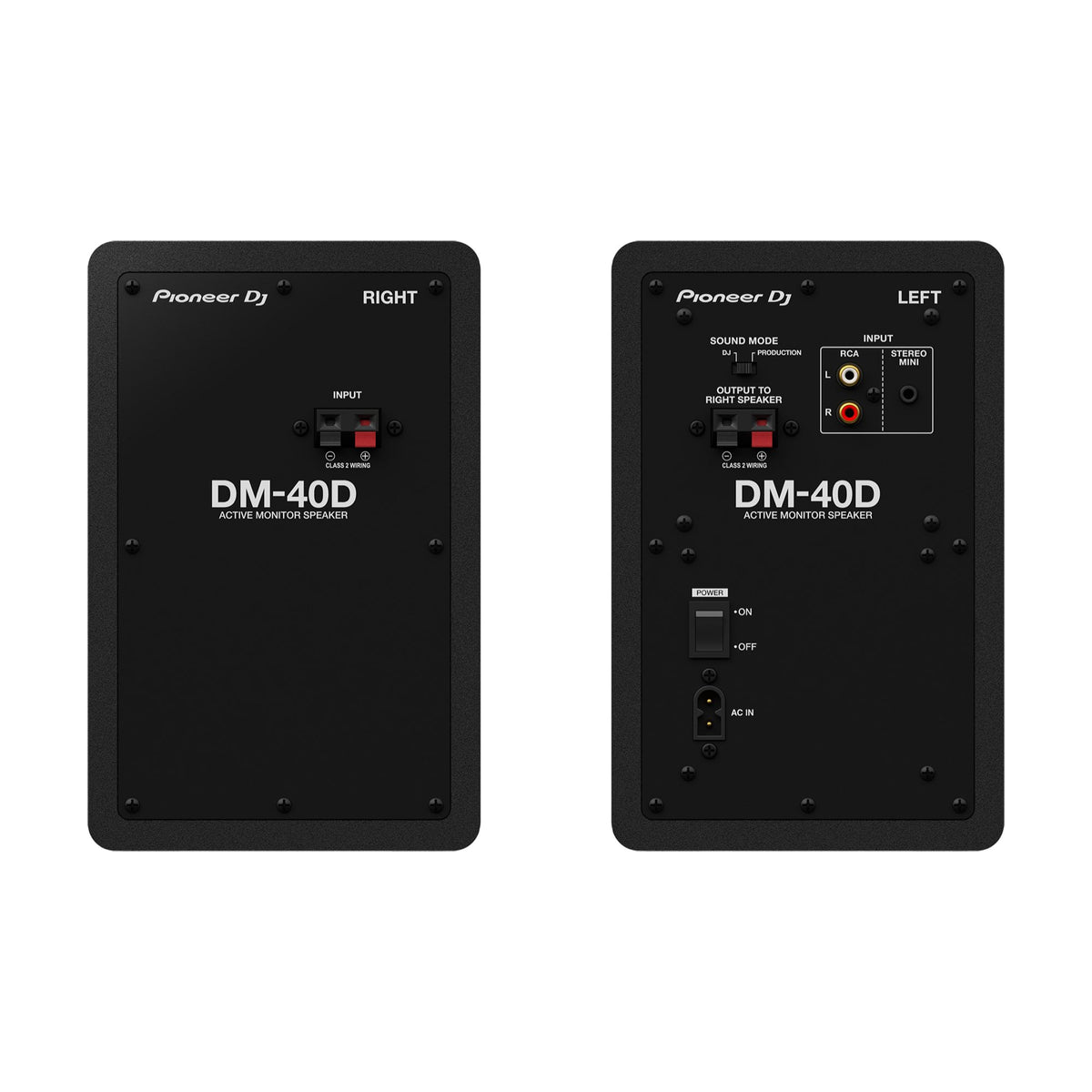

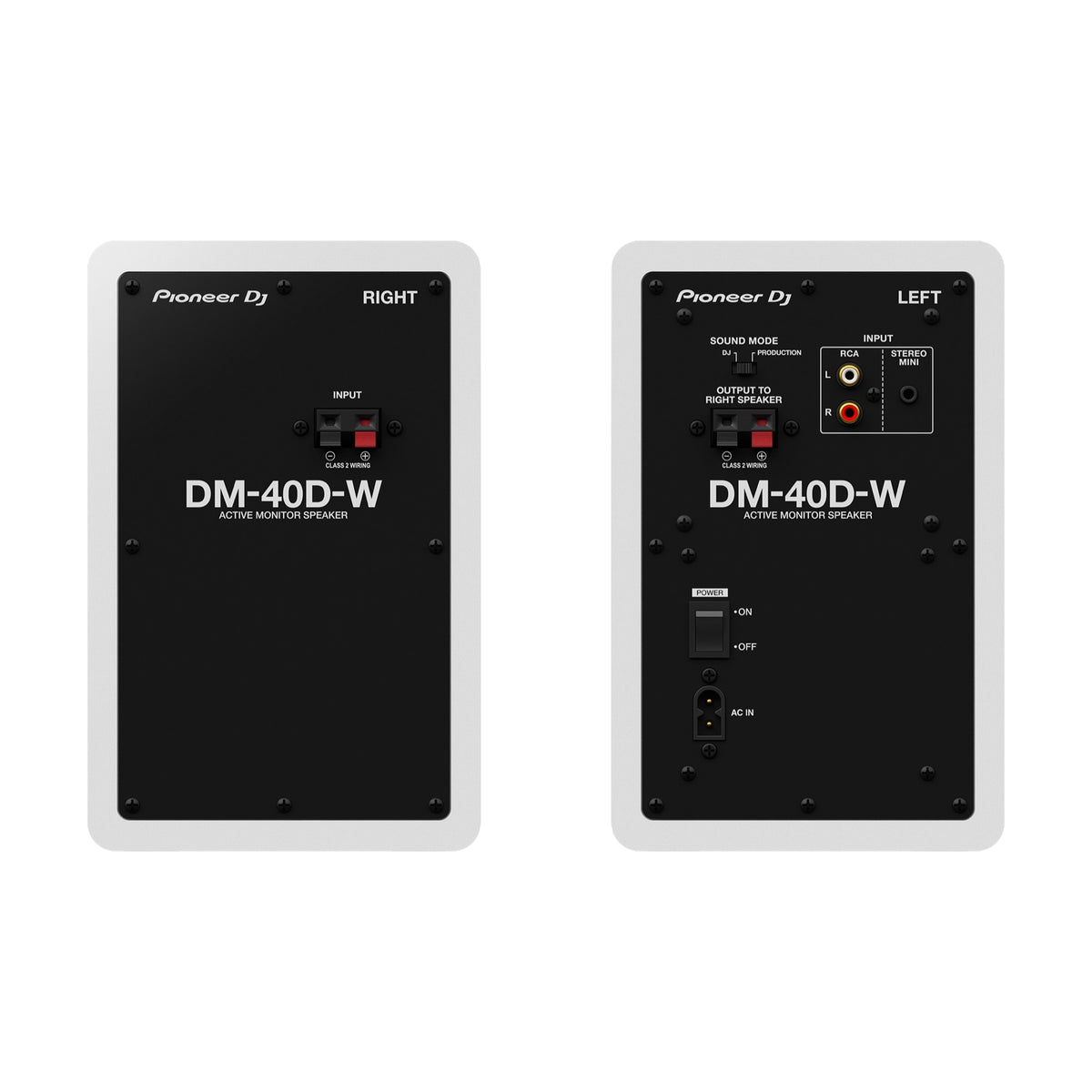

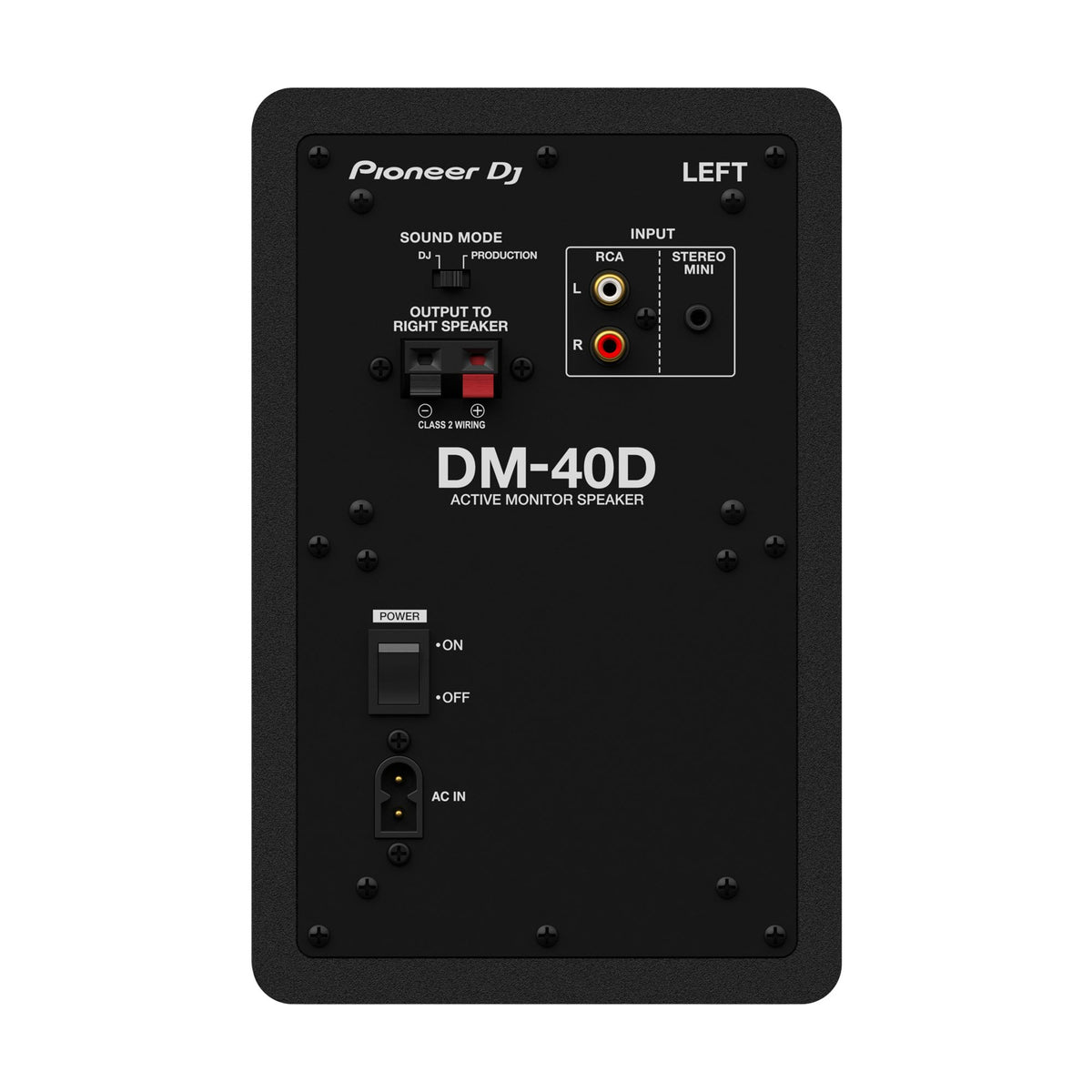

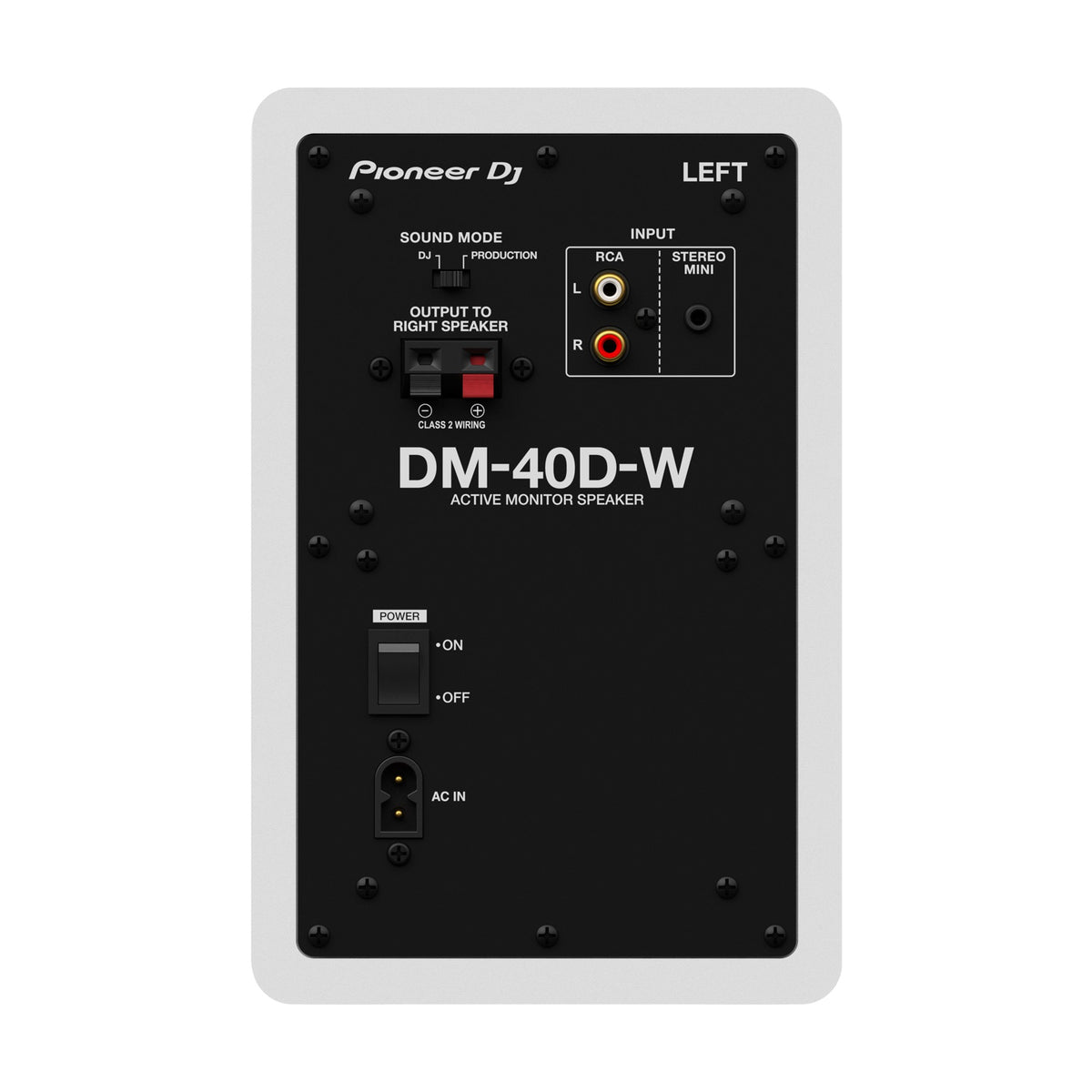

RCA and 3.5 mm inputs accept a DJ controller, mixer, computer or audio interface. Signals from both inputs are mixed, so levels should also be adjusted at the connected sources.

Main Features

• Front-panel volume control and a headphone output keep both functions within reach. The speakers are muted when headphones are connected.
• DJ and Production modes change the DSP settings for mixing or music production.
• MDF cabinets with vinyl laminate use a bass reflex design for low-frequency reproduction.
• After approximately 20 minutes without audio, the system enters standby. It wakes when a wired input signal is received. Auto standby cannot be disabled.
• The supplied speaker cord connects the two speakers; the pair operates without a separate external amplifier.
• The supplied 3.5 mm-to-RCA cable connects an analog audio source.
• The supplied bottom cushions help prevent the speakers from sliding.
• Connect the supplied power cord to the mains after completing the audio connections.

Technical Specifications

• Color: black or white (DM-40D-W), selectable
• System: two-way, 2 speakers
• Amplifier output: left 19 W / 4 Ω, right 19 W / 4 Ω
• Woofers: one 102 mm driver per speaker
• Tweeters: one 19 mm soft-dome driver per speaker
• Frequency range: 60 Hz - 20 kHz (-10 dB)
• Maximum SPL: 106 dB at 1 m, calculated peak value
• Unbalanced inputs: stereo RCA pair, 3.5 mm stereo
• Input impedance: 10 kΩ
• Dimensions (W × H × D): left 146 × 227 × 223 mm, right 146 × 227 × 212 mm
• Weight: left 2.5 kg, right 2.2 kg
• Power supply: AC 110–240 V, 50/60 Hz
• Power consumption: 20 W; standby 0.3 W; power off 0 W

Allow at least 15 cm of ventilation clearance above, behind and on both sides.

What’s Included

• Pioneer DJ DM-40D speaker pair (2 units)
• Power cord (1)
• 3.5 mm stereo-to-RCA audio cable (1)
• Speaker connection cord (1)
• Bottom cushions: 2 sheets of 4

Who Is It For

For monitoring during music production in a home studio and for desktop DJ practice, using one speaker pair for both activities.
