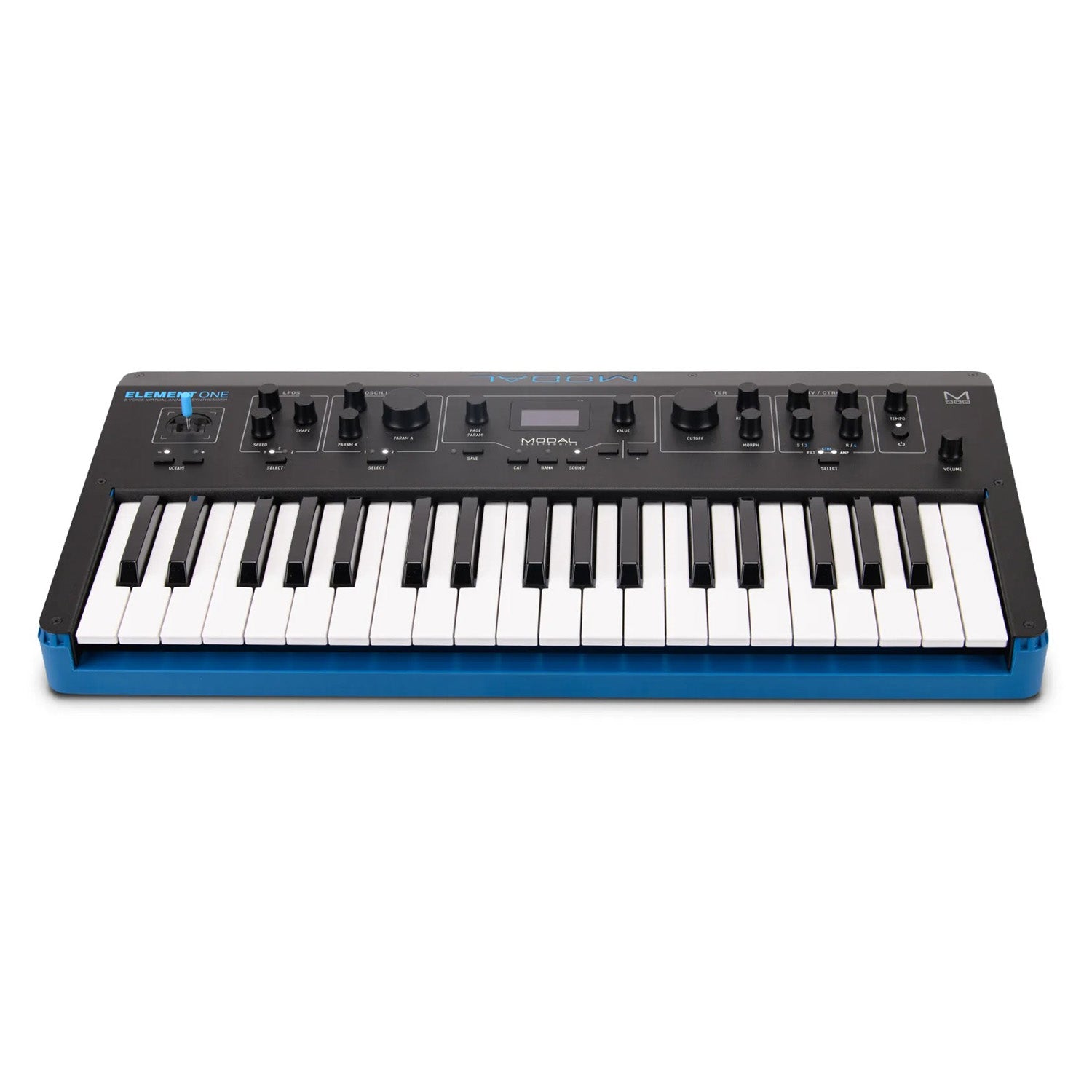

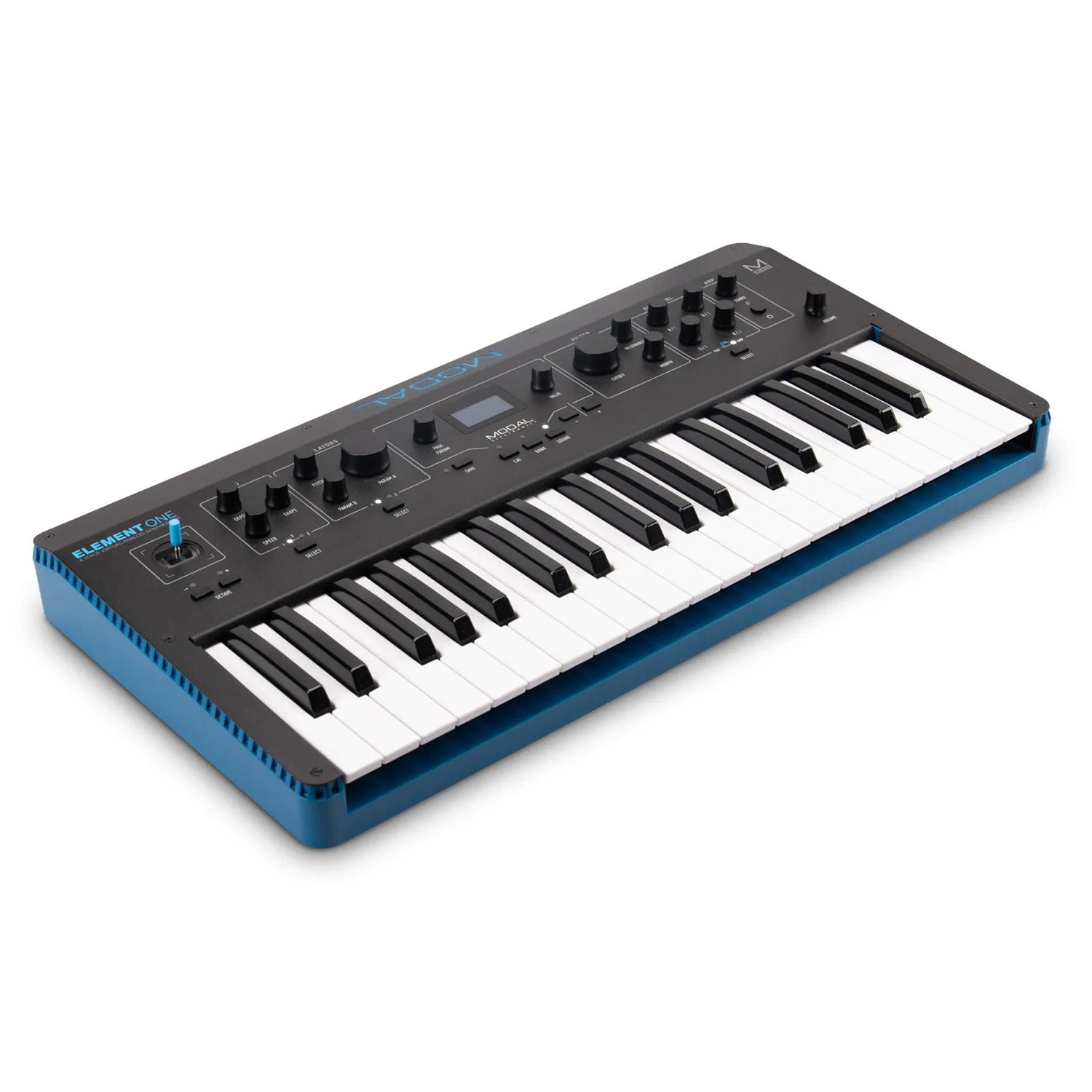

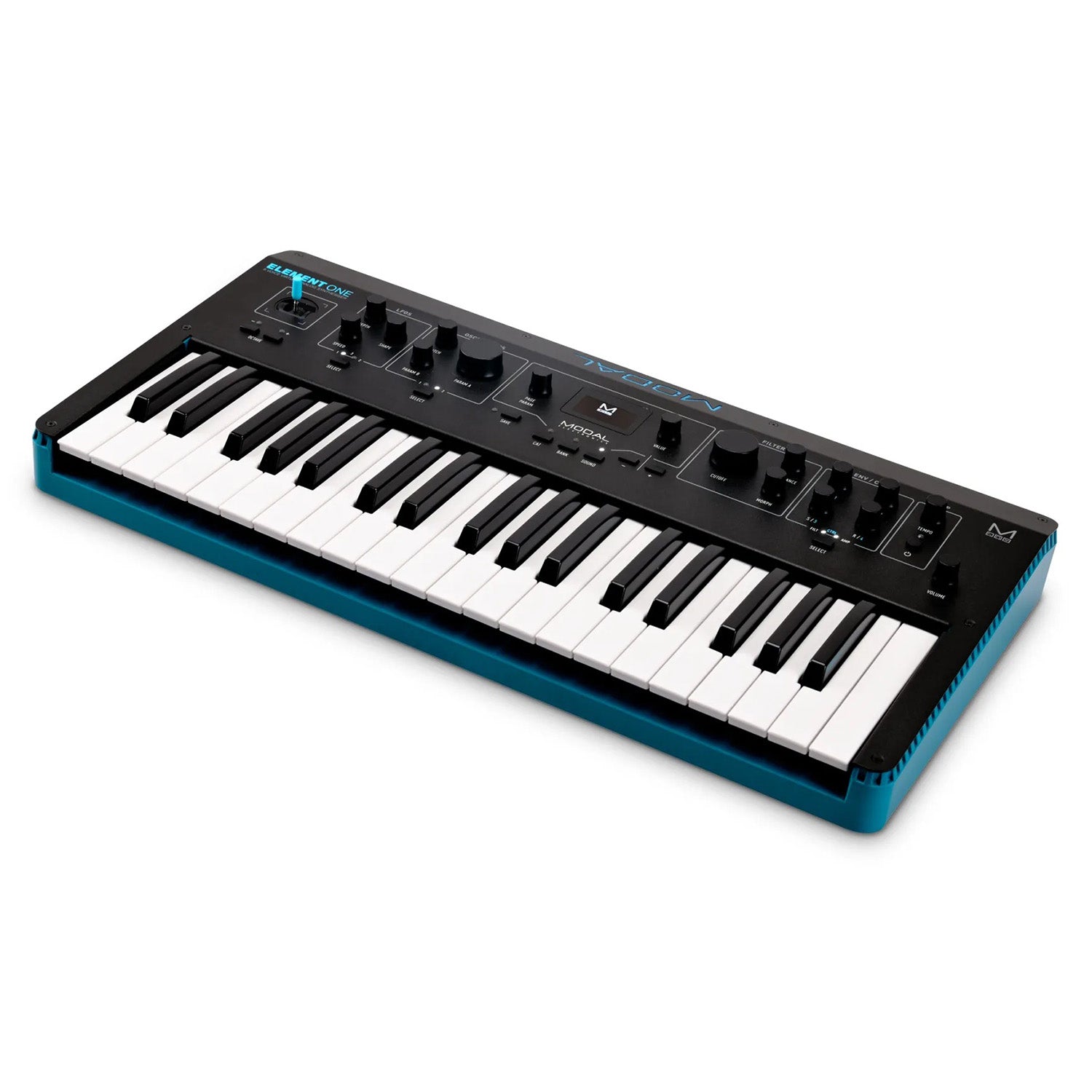

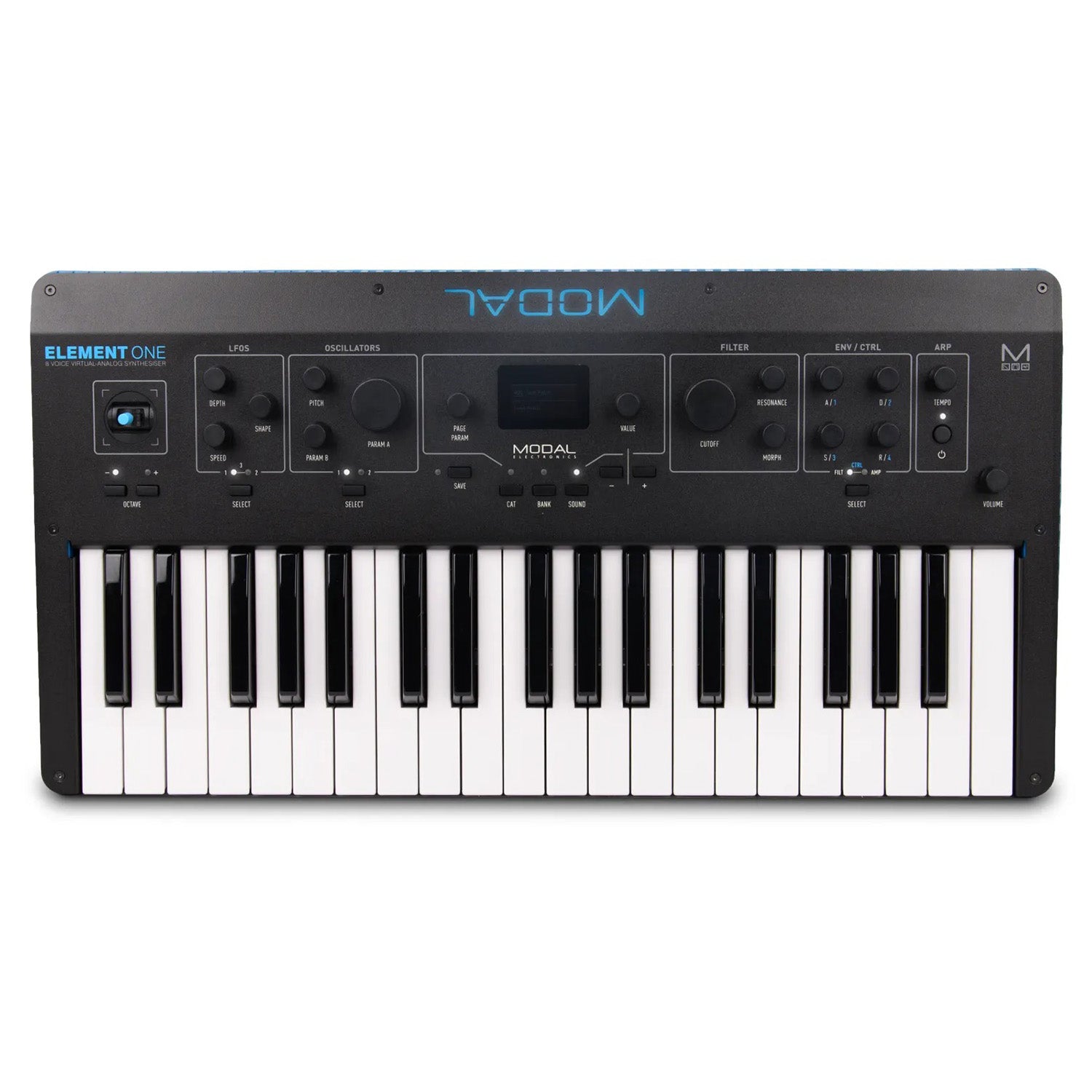

Modal Electronics ELEMENT One Virtual Analog Synthesizer

Modal Electronics ELEMENT One Virtual Analog Synthesizer

The ELEMENT One is an 8-voice polyphonic virtual analog synthesizer built around a synthesis engine derived from Modal's Cobalt architecture, featuring 64 high-resolution oscillators (up to 8 per voice), 31 resonant filter types, and a full modulation matrix. The instrument is designed around direct, physical access to synthesis parameters: 17 endless encoders, 4 assignable control knobs, and a 4-axis joystick cover the most important parameters without requiring menu navigation for day-to-day use.

The 37-key full-size keyboard with velocity and channel aftertouch connects directly to the synthesis engine's modulation system, allowing expressive real-time control over filter, amplitude, and any of the 55 assignable modulation destinations. Three independent stereo effects engines, a programmable 32-step arpeggiator, and 500 patch memories (300 factory, 200 user) round out the feature set. The free MODALapp editor, available for macOS, Windows, iOS, Android, VST3, and AU, provides full patch management and deeper parameter access when needed.

Key Features

• 8-voice polyphonic virtual analog engine: 64 high-resolution oscillators with up to 8 per voice, two independent oscillator groups, and 40 synthesis algorithms covering VA sweeps, hard sync, ring modulation, FM, wave folding, filtered noise, and more.
• 31 resonant filter types: includes morphable and static filters (ladder lowpass, highpass, bandpass, notch, phaser, peaking) with cutoff scaling in two modes and drive on most types. Filters can be continuously morphed between variants.
• Comprehensive modulation system: three dedicated envelope generators (AMP, MOD, FILTER) with negative versions for MOD and FILTER; three audio-rate LFOs with seven shapes and tempo sync (two polyphonic, one global); 8 assignable modulation slots; 4 fixed common routings; 12 sources and 55 destinations.
• 4-axis joystick: assignable to a wide range of modulation destinations; can be virtually locked in position during performance.
• Three independent stereo FX engines: chorus, phaser, flanger (positive and negative), tremolo, LoFi, rotary, stereo delay, ping-pong delay, crossover delay, and reverb; user-configurable order; 100 FX presets.
• Programmable arpeggiator: up to 32 steps with rest capability, cycling through up to 2048 steps before repeat.

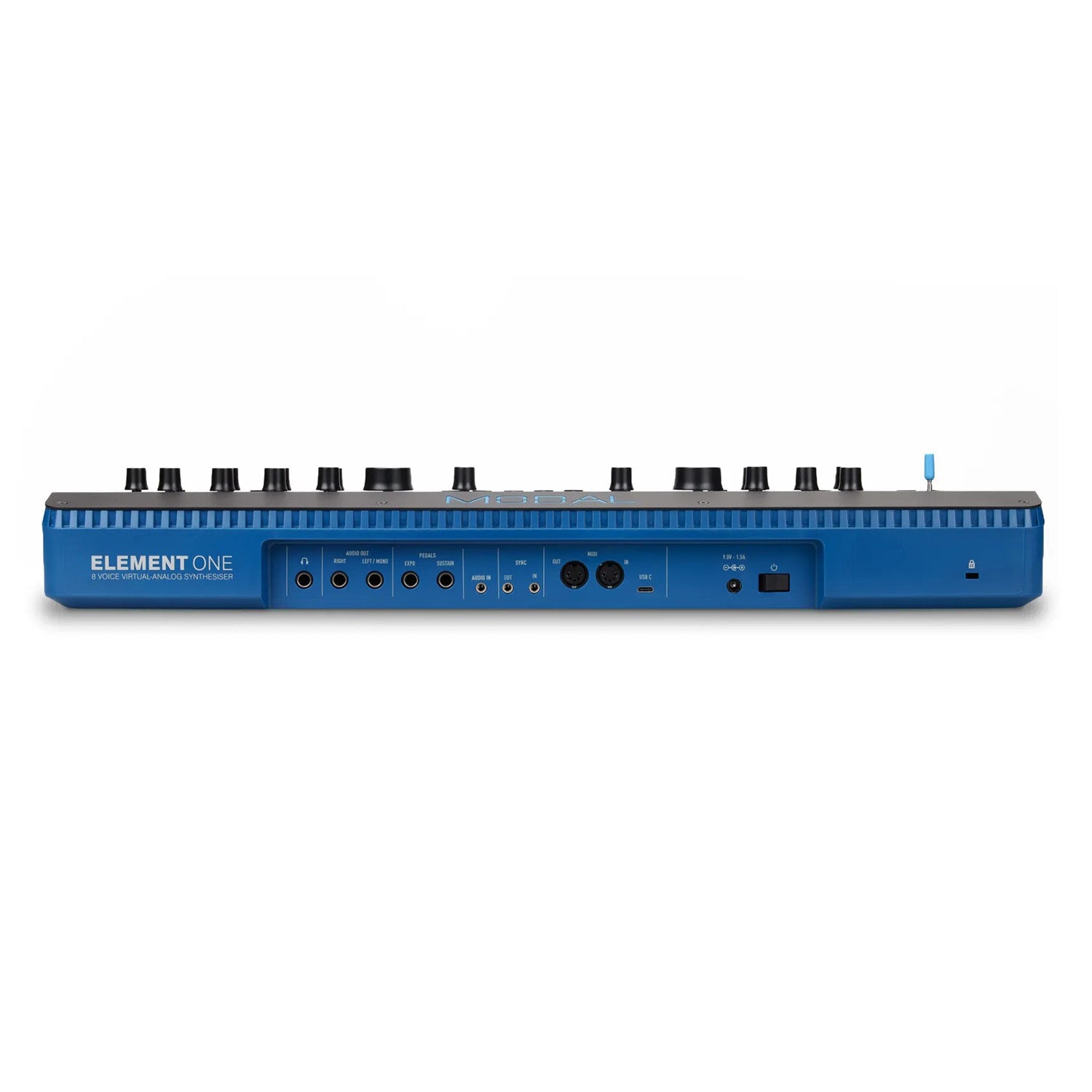

• Expanded I/O: stereo 6.3 mm outputs, stereo headphone output, 3.5 mm stereo audio input (routable through FX), sustain and expression pedal jacks, analogue clock sync in/out (Korg/Teenage Engineering spec), MIDI DIN in/out, USB-C (class-compliant MIDI).

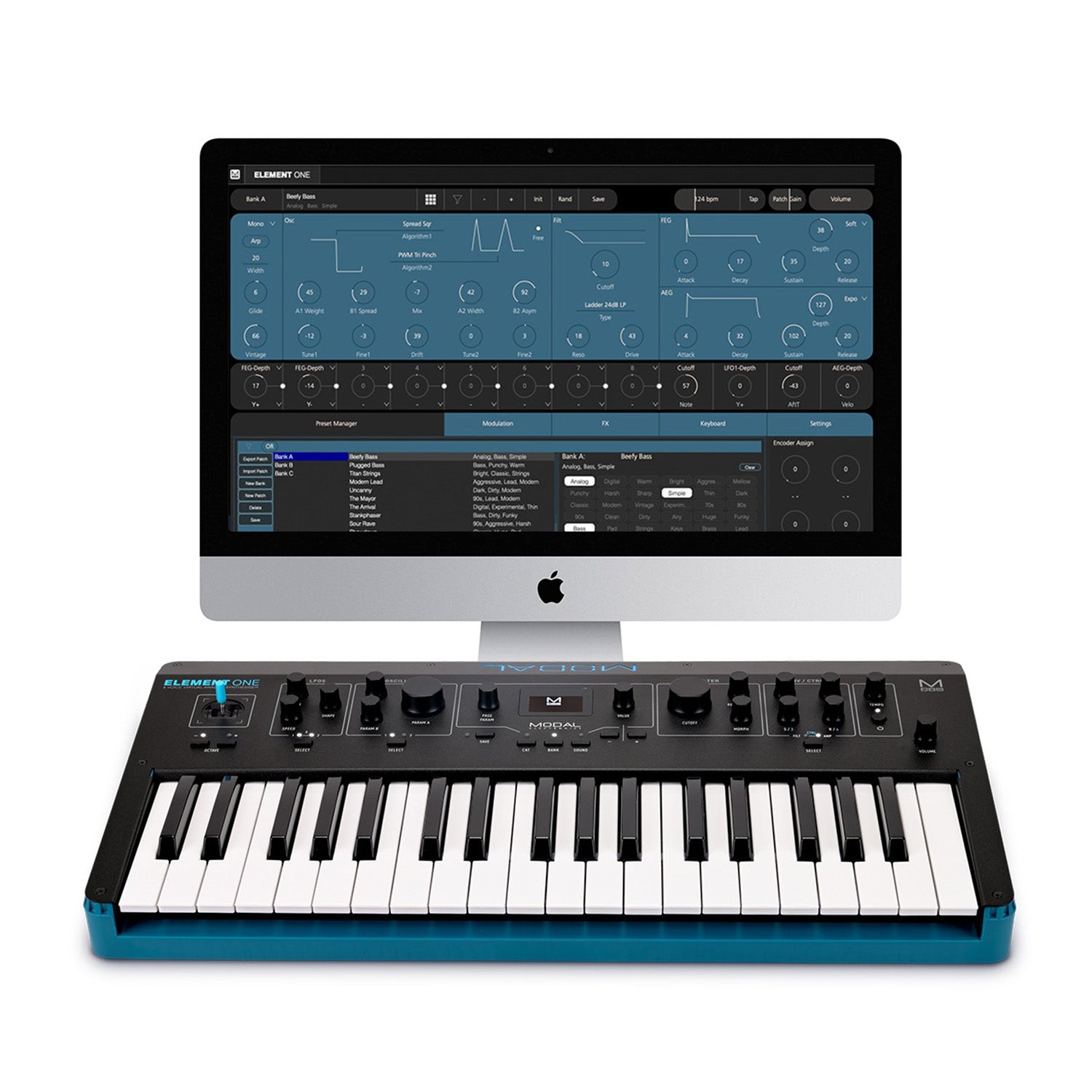

• MODALapp editor: free standalone and plugin editor (VST3, AU) for macOS, Windows, iOS, iPadOS, and Android; full patch management, parameter access, and DAW integration.
• 3-year warranty: activated within 60 days of purchase at modalelectronics.com/register-product.

Technical Specifications

• Manufacturer: Modal Electronics.
• Model: ELEMENT One (8-Voice Virtual Analog Synthesizer).
• Polyphony: 8 voices.
• Oscillators: 64 high-resolution virtual analog oscillators (up to 8 per voice).
• Synthesis algorithms: 40.
• Filter types: 31 resonant filter types.
• Envelopes: 3 (AMP, MOD, FILTER).
• LFOs: 3 audio-rate, 7 shapes each, with tempo sync.
• Modulation slots: 8 assignable + 4 fixed; 12 sources, 55 destinations.
• Keyboard: 37 full-size keys with velocity and channel aftertouch.
• Keyboard modes: Mono, Poly, Unison 2, Unison 4, Unison 8, Stack 2, Stack 4.
• Controls: 17 endless encoders, 11 buttons, 4 assignable encoders, 4-axis joystick.
• Arpeggiator: 32 steps, up to 2048 steps before repeat.
• Effects engines: 3 independent stereo FX engines, user-configurable order.
• Patch memory: 500 patches (300 factory, 200 user), unlimited custom banks, 100 FX presets.
• Audio outputs: 2 × 6.3 mm TS unbalanced (L/R).
• Headphone output: 6.3 mm stereo.
• Audio input: 3.5 mm stereo (routable through FX).
• Pedal inputs: 6.3 mm sustain, 6.3 mm expression.
• Sync: 3.5 mm analogue clock in/out (Korg/Teenage Engineering spec).
• MIDI: DIN in/out, USB-C class-compliant MIDI.
• Display: 1.54-inch OLED.
• Editor software: MODALapp (macOS, Windows, iOS, iPadOS, Android; VST3, AU).
• Power: DC 9.0V, 1.5A, centre-positive.
• Dimensions: 561 × 293 × 67 mm.
• Weight: 4.5 kg.

What's Included

• 1 × Modal Electronics ELEMENT One virtual analog synthesizer.
• 1 × DC 9.0V power adapter.
• 1 × Quick Start Guide.

Who Is It For?

• Keyboard players and synth players: the 37-key full-size keyboard with aftertouch and direct-access controls make the ELEMENT One suitable as a primary performance instrument on stage or in the studio.
• Producers and sound designers: 40 oscillator algorithms, 31 filter types, and a 55-destination modulation matrix provide deep sound design capability, with the MODALapp editor adding full parameter access from a computer or tablet.
• Live performers across instruments: at 4.5 kg with a road-ready steel and polycarbonate enclosure, the instrument fits easily into a live rig as a secondary keyboard, pad, or arpeggiator source alongside other instruments.
