MIDAS DN4816-I Digital Stage Box

The MIDAS DN4816-I digital stage box is designed to collect 16 analogue line-level audio signals and carry them over StageConnect in live sound, monitoring and installed audio systems.

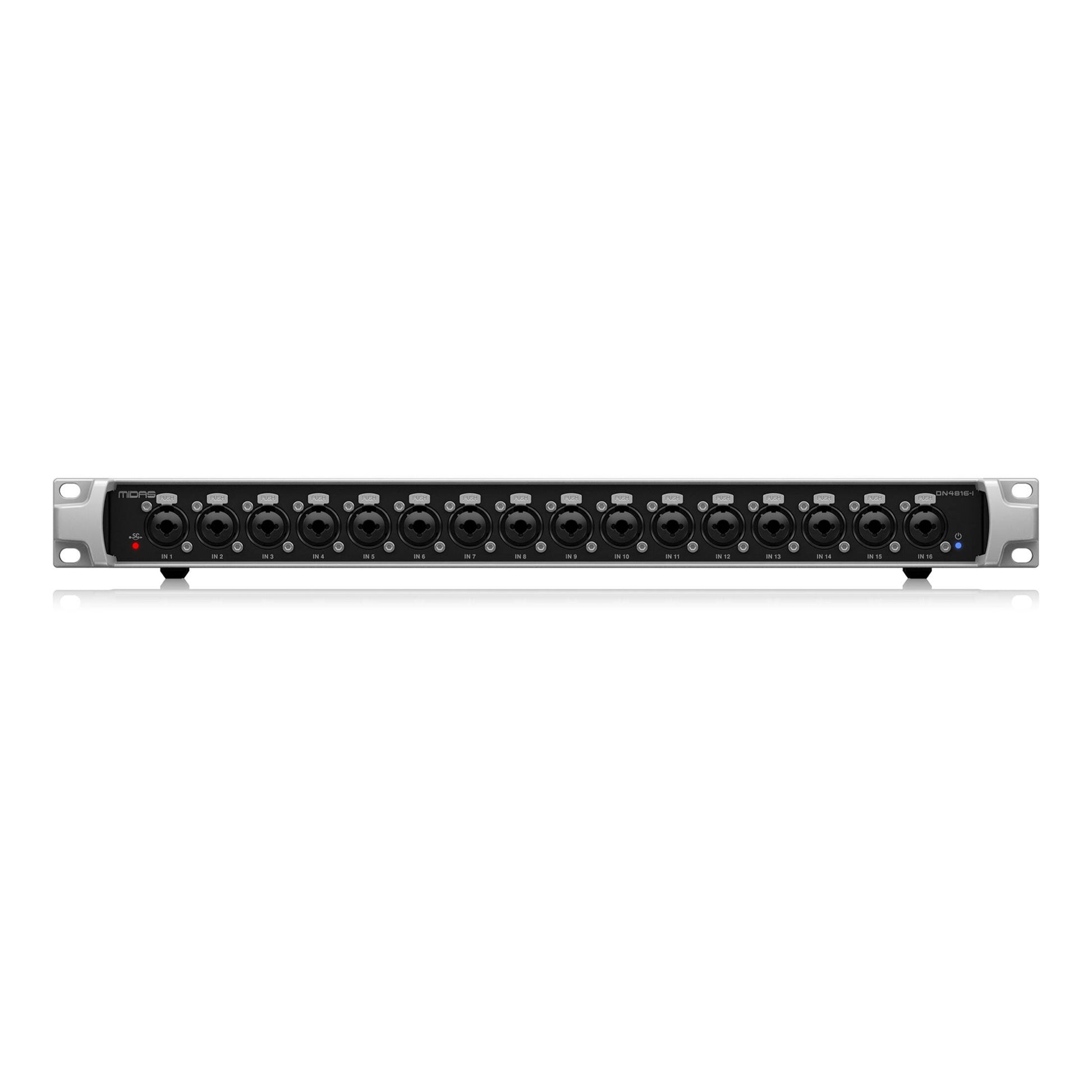

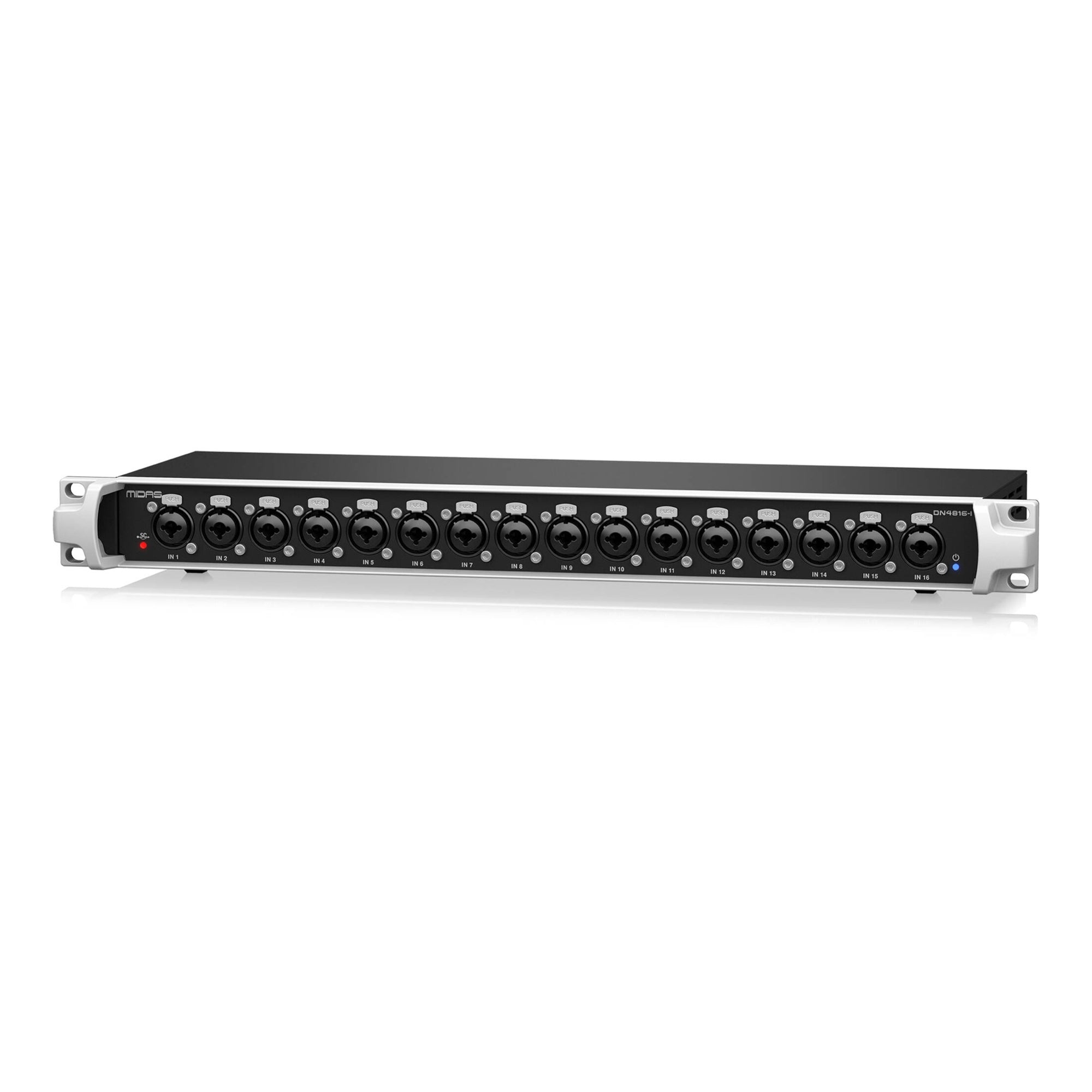

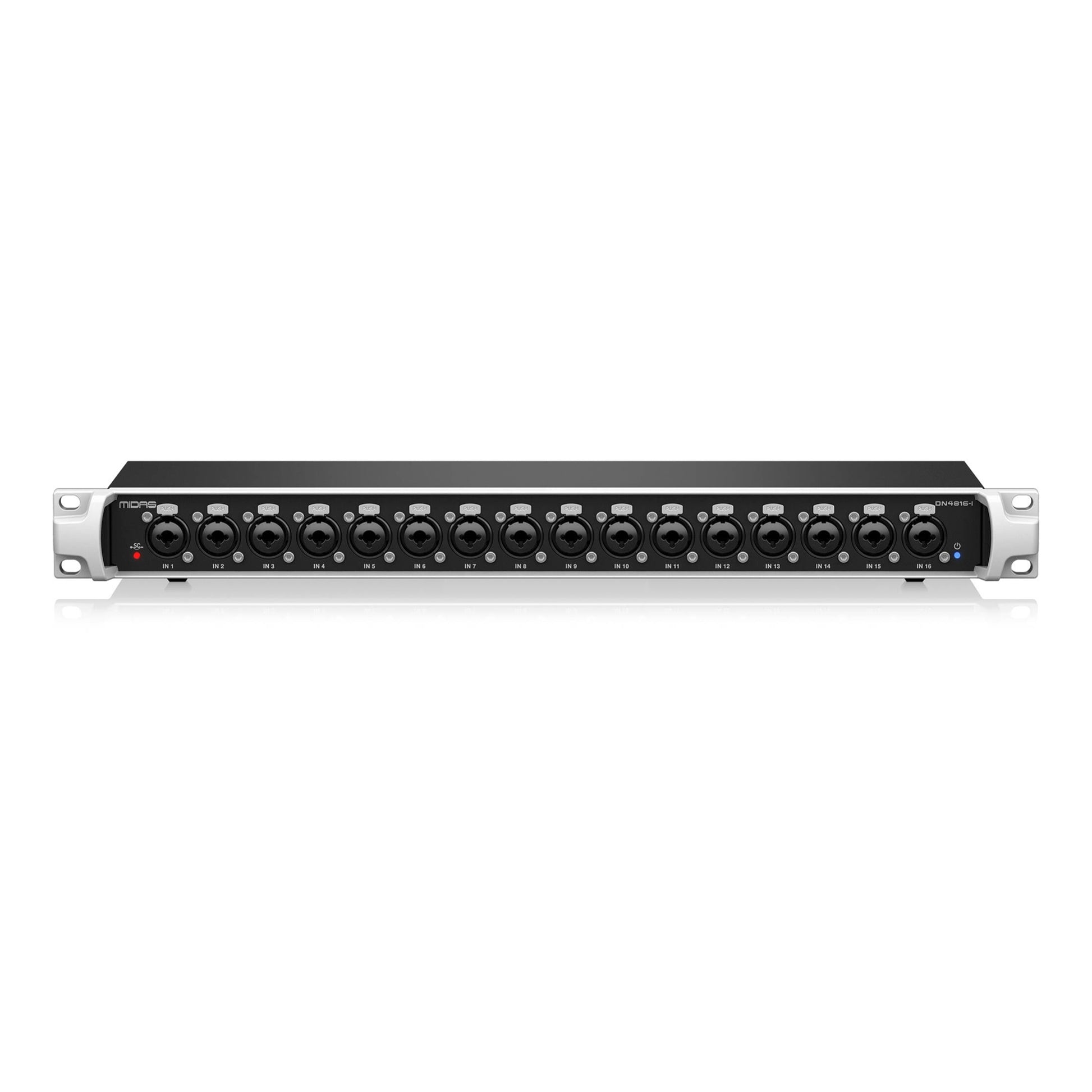

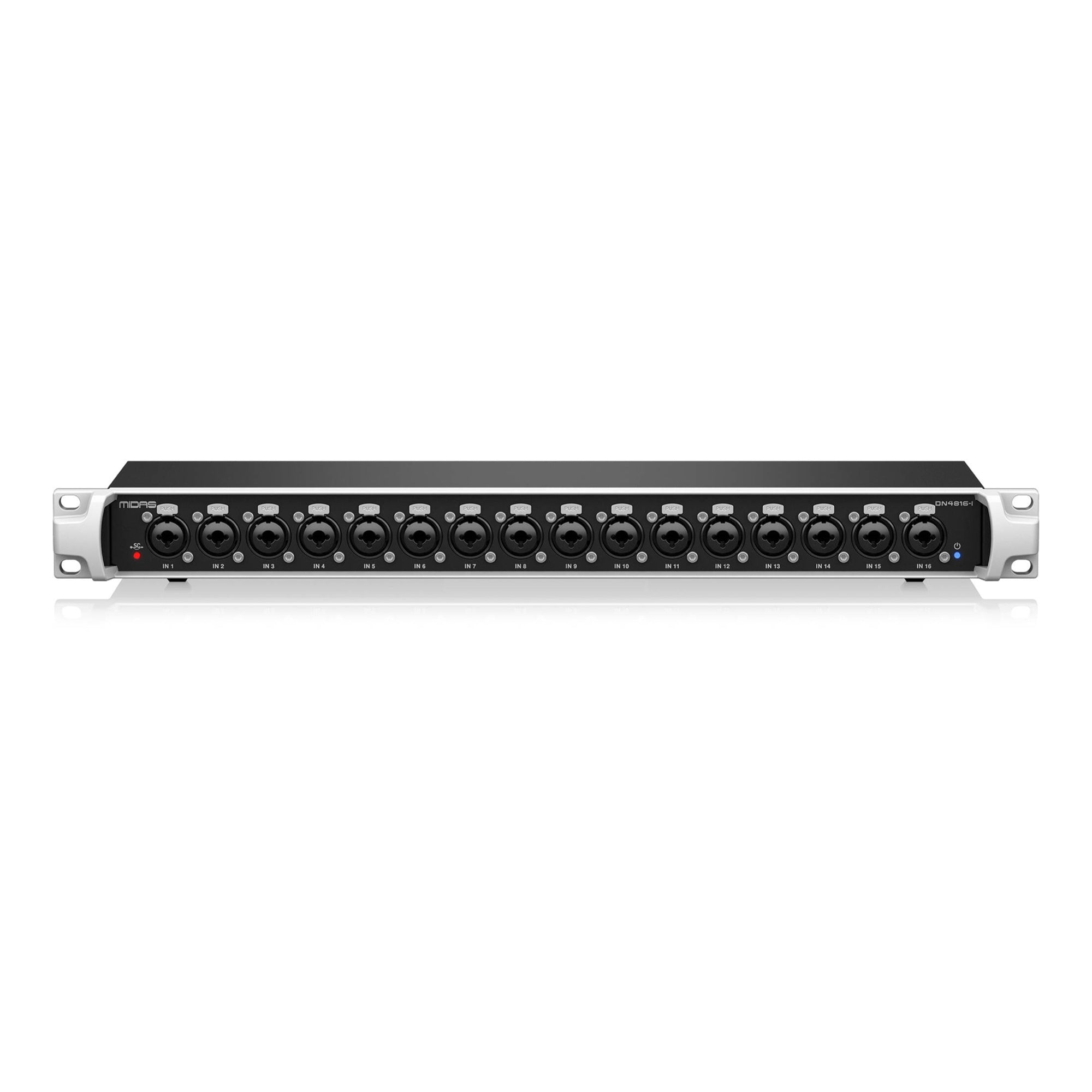

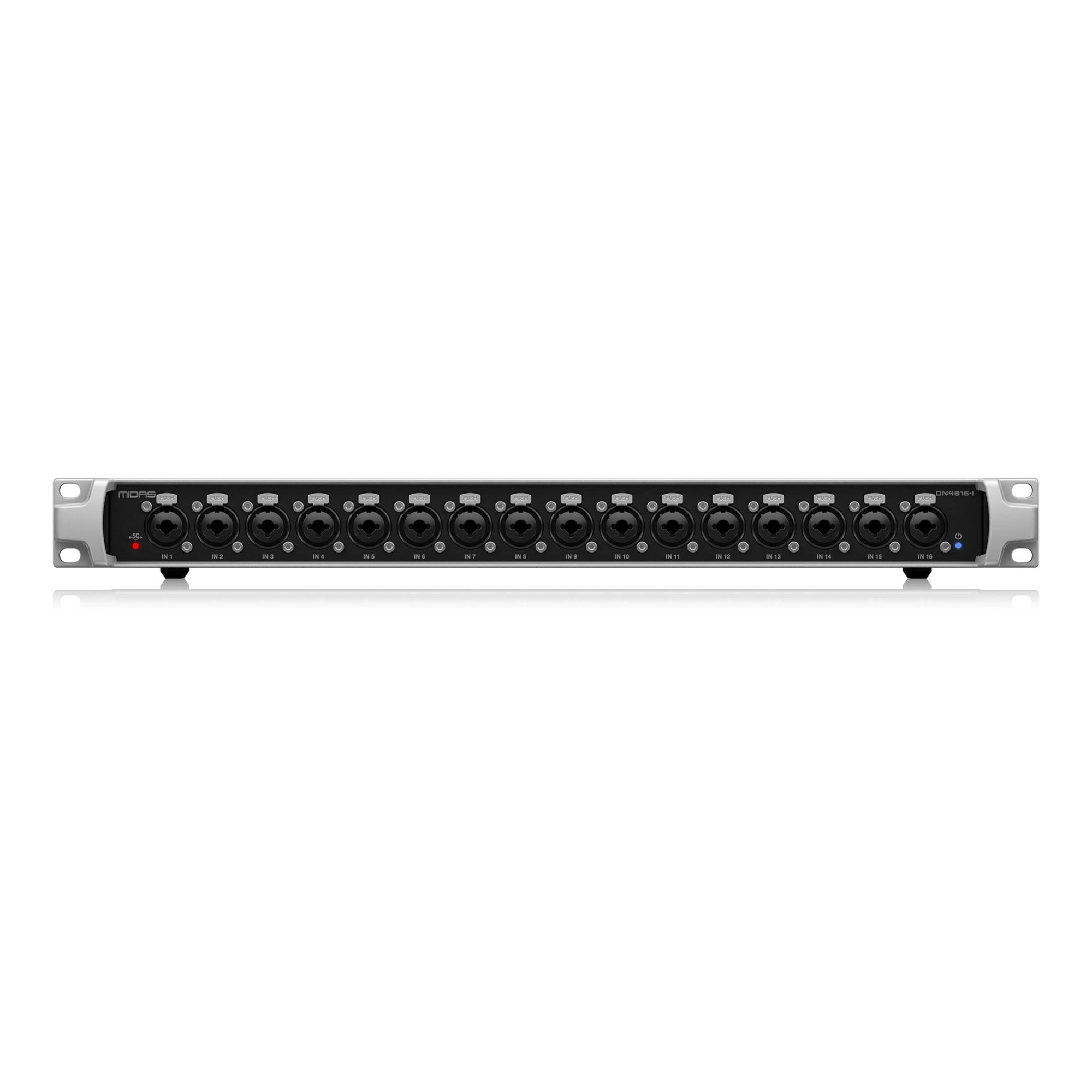

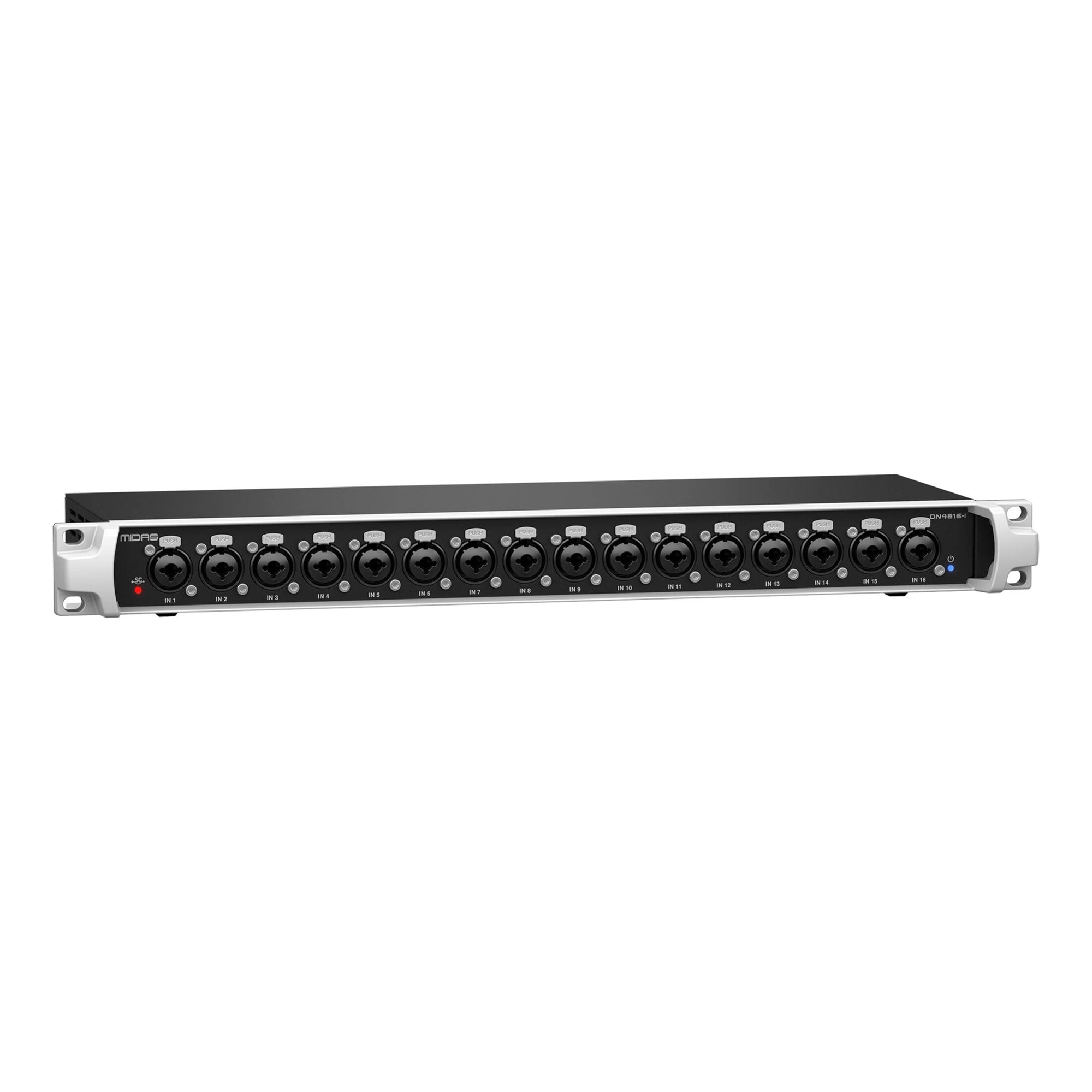

The unit provides 16 balanced XLR inputs. These inputs do not include microphone preamplifiers, so microphone signals must first be amplified by a separate preamplifier or mixing console before they are connected to the DN4816-I.

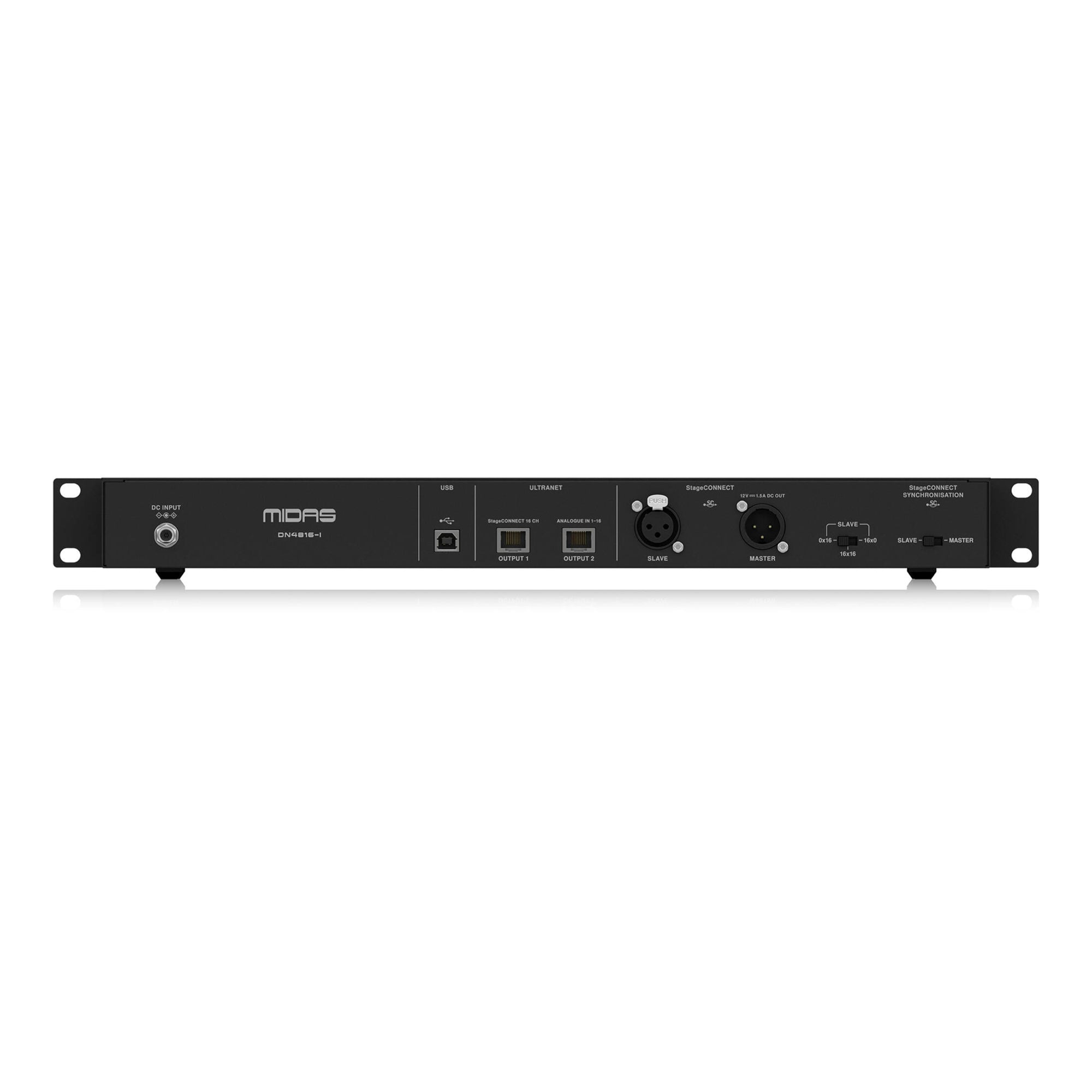

StageConnect carries up to 32 channels of 24-bit PCM audio over a single standard XLR cable. Two Ultranet RJ45 outputs distribute audio to compatible P16 monitors and Turbosound iQ loudspeakers over Cat5e: the first output carries StageConnect channels 1–16, while the second carries the 16 onboard analogue input signals.

The DN4816-I can operate as a StageConnect Master or Slave and can receive power from the included 12 V DC adaptor or through StageConnect. A USB Type-B port is provided for firmware updates, while the 49 mm high and 483 mm wide enclosure is suitable for rack installation.

Main Features

• 16 balanced XLR line inputs bring signals from receivers, consoles and other line-level sources together in one unit
• 32-channel, 24-bit StageConnect audio over a single XLR cable reduces the need for separate analogue cabling
• Less than 0.5 ms input-to-output latency supports time-sensitive live sound and monitoring applications
• Two Ultranet outputs provide separate 16-channel signal sets for compatible personal monitoring and loudspeaker systems
• The first Ultranet output carries StageConnect channels 1–16 for distribution to P16 monitors or Turbosound iQ loudspeakers
• The second Ultranet output carries all 16 analogue input signals, allowing the DN4816-I to work with the direct outputs of an analogue console
• Selectable StageConnect Master or Slave operation supports integration into different signal-chain configurations
• StageConnect bus power or the included power adaptor gives installers greater flexibility when placing the unit
• The MASTER connector can supply up to 18 W to another StageConnect device in the chain
• The USB Type-B port allows connection to a computer for firmware updates

Technical Specifications

• Product type: digital stage box
• Analogue inputs: 16 × balanced XLR female
• Input impedance: 20 kΩ unbalanced / 40 kΩ balanced
• Maximum input level: +21 dBu
• A/D conversion: 24-bit, 44.1 / 48 kHz, 114 dB
• StageConnect capacity: 32 channels, 24-bit PCM audio
• Input-to-output latency: <0.5 ms
• StageConnect connectors: 1 × XLR male, 1 × XLR female
• StageConnect cable: shielded balanced 110 Ω DMX, up to 40 m
• Ultranet connectors: 2 × RJ45
• Ultranet cable: shielded Cat5e, up to 75 m
• USB connector: USB Type-B
• Frequency response: 20 Hz–20 kHz, ±0.2 dB
• Dynamic range: 106 dB
• Adjacent-channel crosstalk rejection at 1 kHz: 106 dB
• Noise, 20 Hz–20 kHz: −106 dBFS
• Distortion: 0.004% / 1 kHz / 0 dBu input
• Power adaptor: 12 V DC / 2.5 A (30 W), included
• Remote power input: via SLAVE XLR female
• Remote power output: via MASTER XLR male, 12 V DC / 1.5 A (18 W)
• Power consumption: 8.5 W
• Operating temperature range: 5–45 °C
• Dimensions: 49 × 483 × 169 mm
• Weight: 2.2 kg

In the Box

• MIDAS DN4816-I digital stage box
• 12 V DC / 2.5 A (30 W) power adaptor

Who Is It For

The MIDAS DN4816-I is intended for live sound and monitoring systems that need to collect up to 16 analogue line-level signals for transport over StageConnect. It is particularly suitable for sending signals from wireless receivers to a console and for connecting the direct outputs of an analogue console to a P16 personal monitoring system.
